Collection: Retaining Rings - External - Circlips

Retaining Rings (With Images)

External

Circlips

884 Products in this selection

This is a combined category of Circlips External Retaining Rings.
Use the filters in the table below, or the category tree above to refine the selection. To order any item, simply click the part number for a full product page, then add to your cart.

Additional resources:
Anderton Cross Reference PDF
Circlips PDF Catalogue
Circlip Tools

A more concise listing may be found on the Smallparts store at Retaining Rings - External - Circlips. Smallparts promote the most popular MBA products.

Shaft Diameter (Ds)	Clip Thickness (T)	Groove Dia. (Dg)	Approx. Loose Circlip ID (A)	Radial Wall (S) min/max	Groove Width (W)	Indicative Image
Shaft Diameter (Ds) 5.00 mm _{(0.197 in.)}	Clip Thickness (T) 0.60 mm + 0.00 / - 0.04 _{(0.024 in.)}	Groove Dia. (Dg) 4.78 mm + 0.00 / - 0.05 _{(0.188 in.)}	Approx. Loose Circlip ID (A) 4.70 mm		Groove Width (W) 0.70 mm

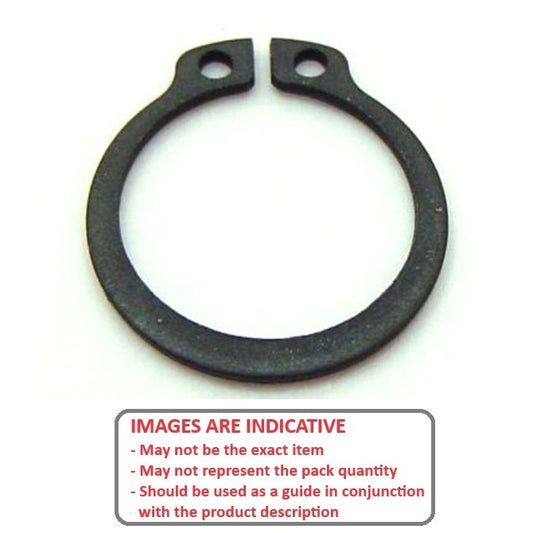

Material: Carbon Steel Clearance on Shaft (C1): 10.30 mm Clearance in Groove (C1): 9.80 mm Category: Retaining Rings - External - Circlips - Standard

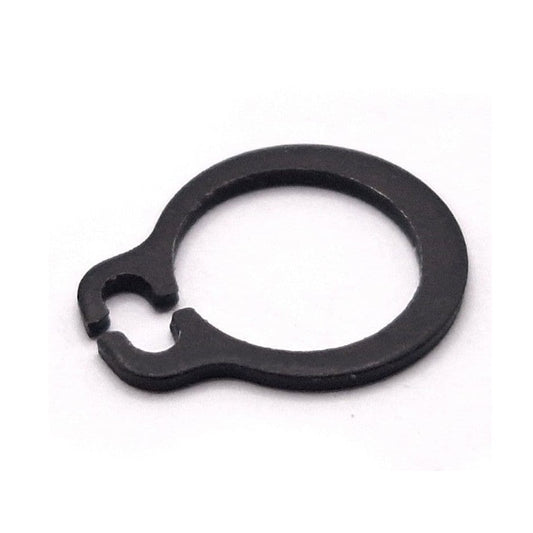

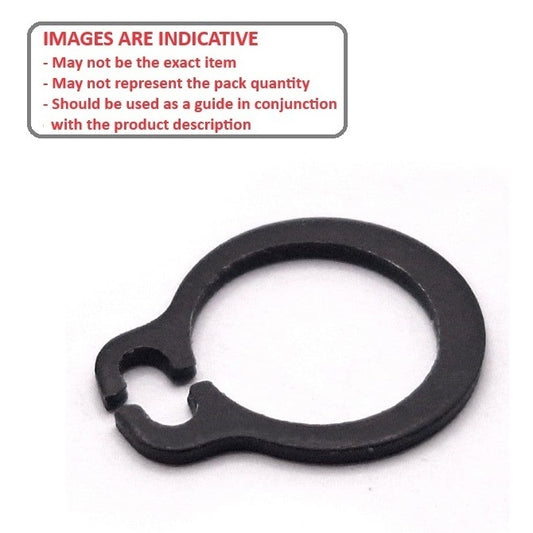

Part Number: CCE-00500-C (100 Pcs) External Retaining Rings - 5x0.6x4.78 mm - Carbon Steel 33 units (3300 pcs) Available Immediately \| Further orders can be expected around Sat, Jun 07, 2025 Regular price $6.14 AUD Regular price Sale price $6.14 AUD Unit price per Per 100
Shaft Diameter (Ds)	Clip Thickness (T)	Groove Dia. (Dg)	Approx. Loose Circlip ID (A)	Indicative Image
Shaft Diameter (Ds) 5.00 mm _{(0.197 in.)}	Clip Thickness (T) 0.60 mm + 0.00 / - 0.04 _{(0.024 in.)}	Groove Dia. (Dg) 4.78 mm + 0.00 / - 0.05 _{(0.188 in.)}	Approx. Loose Circlip ID (A) 4.70 mm
Material: Carbon Steel Groove Width (W): 0.70 mm Clearance on Shaft (C1): 10.30 mm Clearance in Groove (C1): 9.80 mm Category: Retaining Rings - External - Circlips - Standard
Part Number: CCE-00500-C (100 Pcs) External Retaining Rings - 5x0.6x4.78 mm - Carbon Steel 33 units (3300 pcs) Available Immediately \| Further orders can be expected around Sat, Jun 07, 2025 Regular price $6.14 AUD Regular price Sale price $6.14 AUD Unit price per Per 100 View the product page first if you are unsure.
CCE-00500-C (100 Pcs) --- External Retaining Rings - 5x0.6x4.78 mm - Carbon Steel CCE-00500-C (100 Pcs) --- External Retaining Rings - 5x0.6x4.78 mm - Carbon Steel Regular price $6.14 AUD Regular price Sale price $6.14 AUD Unit price per 33 Available Now
Shaft Diameter (Ds) 5.00 mm _{(0.197 in.)}	Clip Thickness (T) 0.60 mm + 0.00 / - 0.04 _{(0.024 in.)}	Groove Dia. (Dg) 4.78 mm + 0.00 / - 0.05 _{(0.188 in.)}	Approx. Loose Circlip ID (A) 4.70 mm		Groove Width (W) 0.70 mm

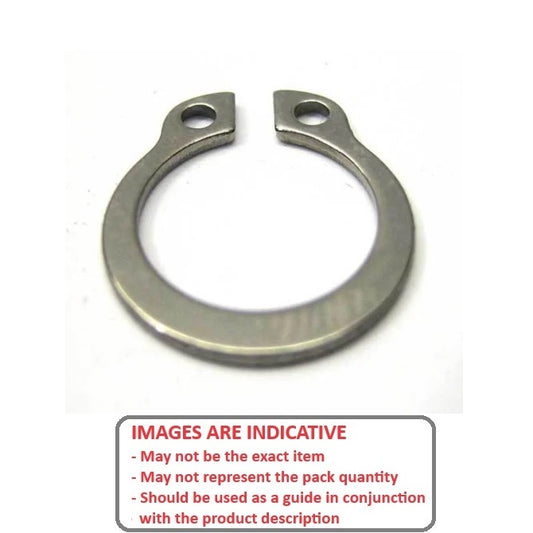

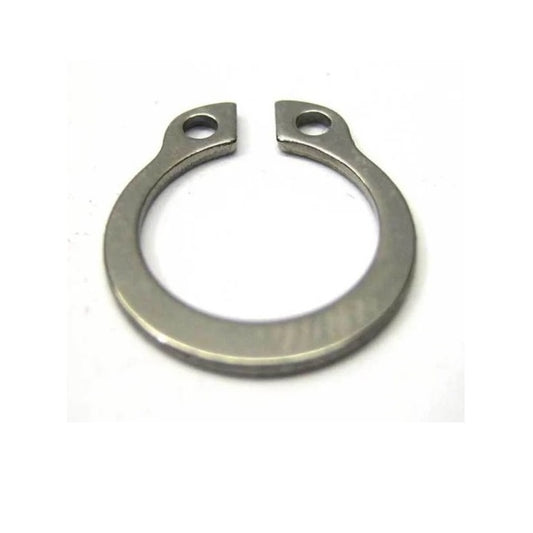

Material: Stainless Steel Grade PH15-7 Mo Clearance on Shaft (C1): 10.30 mm Clearance in Groove (C1): 9.80 mm Category: Retaining Rings - External - Circlips - Standard

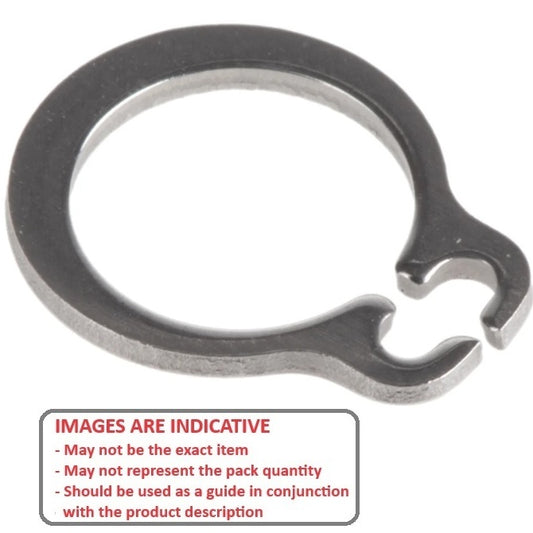

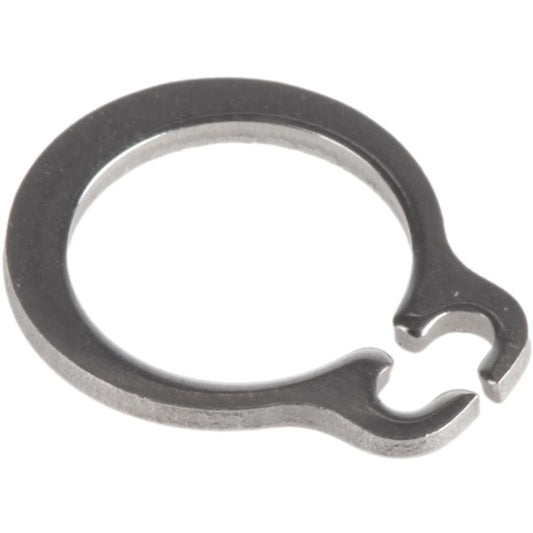

Part Number: CCE-00500-S15 (10 Pcs) External Retaining Rings - 5x0.6x4.78 mm - Stainless Steel Grade PH15-7 Mo 43 units (430 pcs) Available Immediately \| Further orders can be expected around Sat, Jun 07, 2025 Regular price $8.50 AUD Regular price Sale price $8.50 AUD Unit price per Per 10
Shaft Diameter (Ds) 5.00 mm _{(0.197 in.)}	Clip Thickness (T) 0.60 mm + 0.00 / - 0.04 _{(0.024 in.)}	Groove Dia. (Dg) 4.78 mm + 0.00 / - 0.05 _{(0.188 in.)}	Approx. Loose Circlip ID (A) 4.70 mm
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 0.70 mm Clearance on Shaft (C1): 10.30 mm Clearance in Groove (C1): 9.80 mm Category: Retaining Rings - External - Circlips - Standard
Part Number: CCE-00500-S15 (10 Pcs) External Retaining Rings - 5x0.6x4.78 mm - Stainless Steel Grade PH15-7 Mo 43 units (430 pcs) Available Immediately \| Further orders can be expected around Sat, Jun 07, 2025 Regular price $8.50 AUD Regular price Sale price $8.50 AUD Unit price per Per 10 View the product page first if you are unsure.
CCE-00500-S15 (10 Pcs) --- External Retaining Rings - 5x0.6x4.78 mm - Stainless Steel Grade PH15-7 Mo CCE-00500-S15 (10 Pcs) --- External Retaining Rings - 5x0.6x4.78 mm - Stainless Steel Grade PH15-7 Mo Regular price $8.50 AUD Regular price Sale price $8.50 AUD Unit price per 43 Available Now
Shaft Diameter (Ds) 5.00 mm +/- 0.06 _{(0.197 in.)}	Clip Thickness (T) 0.80 mm _{(0.031 in.)}		Approx. Loose Circlip ID (A) 4.75 mm
Material: Carbon Steel Clearance on Shaft (C1): 11.00 mm Clearance in Groove (C1): 127 mm Category: Retaining Rings - External - Circlips - Grooveless
Part Number: CNG-00500-C (100 Pcs) External Retaining Rings - 5x0.8 - - - Carbon Steel 8 units (800 pcs) Available Immediately \| Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price $10.00 AUD Regular price ~~$19.00 AUD~~ Sale price $10.00 AUD Unit price per Per 100
Shaft Diameter (Ds) 5.00 mm +/- 0.06 _{(0.197 in.)}	Clip Thickness (T) 0.80 mm _{(0.031 in.)}		Approx. Loose Circlip ID (A) 4.75 mm
Material: Carbon Steel Clearance on Shaft (C1): 11.00 mm Clearance in Groove (C1): 127 mm Category: Retaining Rings - External - Circlips - Grooveless
Part Number: CNG-00500-C (100 Pcs) External Retaining Rings - 5x0.8 - - - Carbon Steel 8 units (800 pcs) Available Immediately \| Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price $10.00 AUD Regular price ~~$19.00 AUD~~ Sale price $10.00 AUD Unit price per Per 100
CNG-00500-C (100 Pcs) --- External Retaining Rings - 5x0.8 - - - Carbon Steel Sale CNG-00500-C (100 Pcs) --- External Retaining Rings - 5x0.8 - - - Carbon Steel Regular price $10.00 AUD Regular price ~~$19.00 AUD~~ Sale price $10.00 AUD Unit price per 8 Available Now Sale
Shaft Diameter (Ds) 5.01 mm _{(0.197 in.)}	Clip Thickness (T) 0.38 mm +/- 0.038 _{(0.015 in.)}	Groove Dia. (Dg) 4.78 mm +/- 0.051 _{(0.188 in.)}	Approx. Loose Circlip ID (A) 4.60 mm		Groove Width (W) 0.46 mm

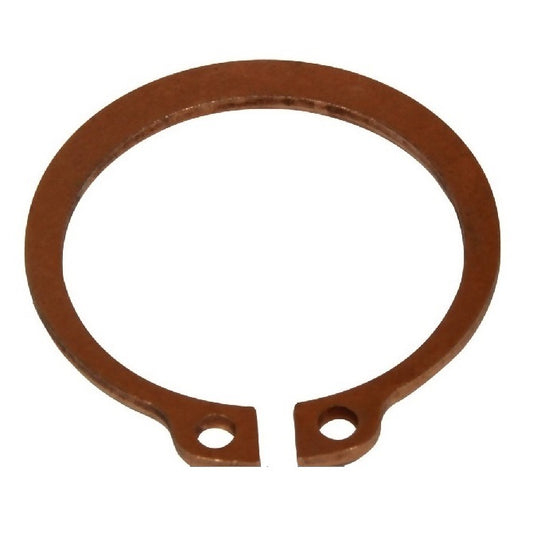

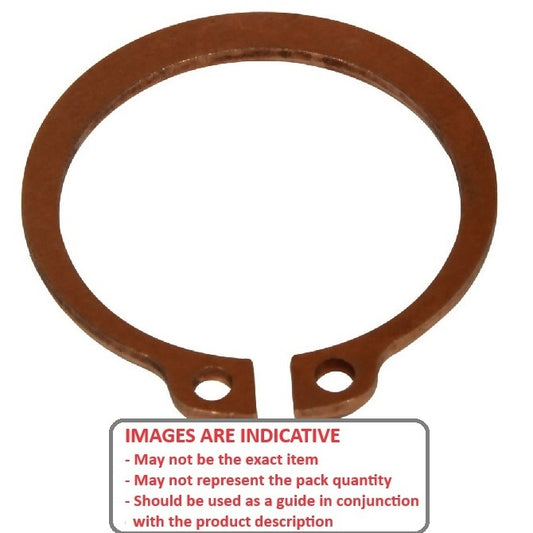

Material: Beryllium Copper Category: Retaining Rings - External - Circlips - Standard
Part Number: CCE-00501-B (5 Pcs) External Retaining Rings - 5.01x0.38x4.78 mm - Beryllium Copper Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $3.68 AUD Regular price Sale price $3.68 AUD Unit price per Per 5
Shaft Diameter (Ds) 5.01 mm _{(0.197 in.)}	Clip Thickness (T) 0.38 mm +/- 0.038 _{(0.015 in.)}	Groove Dia. (Dg) 4.78 mm +/- 0.051 _{(0.188 in.)}	Approx. Loose Circlip ID (A) 4.60 mm
Material: Beryllium Copper Groove Width (W): 0.46 mm Category: Retaining Rings - External - Circlips - Standard
Part Number: CCE-00501-B (5 Pcs) External Retaining Rings - 5.01x0.38x4.78 mm - Beryllium Copper Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $3.68 AUD Regular price Sale price $3.68 AUD Unit price per Per 5 View the product page first if you are unsure.
CCE-00501-B (5 Pcs) --- External Retaining Rings - 5.01x0.38x4.78 mm - Beryllium Copper CCE-00501-B (5 Pcs) --- External Retaining Rings - 5.01x0.38x4.78 mm - Beryllium Copper Regular price $3.68 AUD Regular price Sale price $3.68 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 5.01 mm _{(0.197 in.)}	Clip Thickness (T) 0.40 mm +/- 0.038 _{(0.016 in.)}	Groove Dia. (Dg) 4.78 mm +/- 0.051 _{(0.188 in.)}	Approx. Loose Circlip ID (A) 4.60 mm		Groove Width (W) 0.50 mm
Material: Carbon Spring Steel Self Finish Category: Retaining Rings - External - Circlips - Standard
Part Number: CCE-00501-C External Retaining Rings - 5.01x0.4x4.78 mm - Carbon Spring Steel Self Finish Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Shaft Diameter (Ds) 5.01 mm _{(0.197 in.)}	Clip Thickness (T) 0.40 mm +/- 0.038 _{(0.016 in.)}	Groove Dia. (Dg) 4.78 mm +/- 0.051 _{(0.188 in.)}	Approx. Loose Circlip ID (A) 4.60 mm
Material: Carbon Spring Steel Self Finish Groove Width (W): 0.50 mm Category: Retaining Rings - External - Circlips - Standard
Part Number: CCE-00501-C External Retaining Rings - 5.01x0.4x4.78 mm - Carbon Spring Steel Self Finish Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Shaft Diameter (Ds) 5.56 mm _{(0.219 in.)}	Clip Thickness (T) 0.40 mm +/- 0.038 _{(0.016 in.)}	Groove Dia. (Dg) 5.21 mm +/- 0.051 _{(0.205 in.)}	Approx. Loose Circlip ID (A) 5.00 mm		Groove Width (W) 0.50 mm
Material: Beryllium Copper Clearance on Shaft (C1): 8.64 mm Clearance in Groove (C1): 8.23 mm Category: Retaining Rings - External - Circlips - Standard
Part Number: CCE-00556-B (50 Pcs) External Retaining Rings - 5.56x0.4x5.21 mm - Beryllium Copper Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $55.95 AUD Regular price Sale price $55.95 AUD Unit price per Per 50
Shaft Diameter (Ds) 5.56 mm _{(0.219 in.)}	Clip Thickness (T) 0.40 mm +/- 0.038 _{(0.016 in.)}	Groove Dia. (Dg) 5.21 mm +/- 0.051 _{(0.205 in.)}	Approx. Loose Circlip ID (A) 5.00 mm
Material: Beryllium Copper Groove Width (W): 0.50 mm Clearance on Shaft (C1): 8.64 mm Clearance in Groove (C1): 8.23 mm Category: Retaining Rings - External - Circlips - Standard
Part Number: CCE-00556-B (50 Pcs) External Retaining Rings - 5.56x0.4x5.21 mm - Beryllium Copper Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $55.95 AUD Regular price Sale price $55.95 AUD Unit price per Per 50 View the product page first if you are unsure.
CCE-00556-B (50 Pcs) --- External Retaining Rings - 5.56x0.4x5.21 mm - Beryllium Copper CCE-00556-B (50 Pcs) --- External Retaining Rings - 5.56x0.4x5.21 mm - Beryllium Copper Regular price $55.95 AUD Regular price Sale price $55.95 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 5.56 mm _{(0.219 in.)}	Clip Thickness (T) 0.40 mm +/- 0.038 _{(0.016 in.)}	Groove Dia. (Dg) 5.21 mm +/- 0.051 _{(0.205 in.)}	Approx. Loose Circlip ID (A) 5.00 mm		Groove Width (W) 0.50 mm
Material: Carbon Steel Clearance on Shaft (C1): 8.64 mm Clearance in Groove (C1): 8.23 mm Category: Retaining Rings - External - Circlips - Standard
Part Number: CCE-00556-C (50 Pcs) External Retaining Rings - 5.56x0.4x5.21 mm - Carbon Steel 1 pack (50 pcs) Available Immediately \| Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price $8.00 AUD Regular price ~~$15.20 AUD~~ Sale price $8.00 AUD Unit price per Per 50
Shaft Diameter (Ds) 5.56 mm _{(0.219 in.)}	Clip Thickness (T) 0.40 mm +/- 0.038 _{(0.016 in.)}	Groove Dia. (Dg) 5.21 mm +/- 0.051 _{(0.205 in.)}	Approx. Loose Circlip ID (A) 5.00 mm
Material: Carbon Steel Groove Width (W): 0.50 mm Clearance on Shaft (C1): 8.64 mm Clearance in Groove (C1): 8.23 mm Category: Retaining Rings - External - Circlips - Standard
Part Number: CCE-00556-C (50 Pcs) External Retaining Rings - 5.56x0.4x5.21 mm - Carbon Steel 1 pack (50 pcs) Available Immediately \| Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price $8.00 AUD Regular price ~~$15.20 AUD~~ Sale price $8.00 AUD Unit price per Per 50
CCE-00556-C (50 Pcs) --- External Retaining Rings - 5.56x0.4x5.21 mm - Carbon Steel Sale CCE-00556-C (50 Pcs) --- External Retaining Rings - 5.56x0.4x5.21 mm - Carbon Steel Regular price $8.00 AUD Regular price ~~$15.20 AUD~~ Sale price $8.00 AUD Unit price per 1 Available Now Sale
Shaft Diameter (Ds) 5.95 mm _{(0.234 in.)}	Clip Thickness (T) 0.40 mm +/- 0.038 _{(0.016 in.)}	Groove Dia. (Dg) 5.60 mm +/- 0.051 _{(0.22 in.)}	Approx. Loose Circlip ID (A) 5.50 mm		Groove Width (W) 0.50 mm
Material: Carbon Steel Category: Retaining Rings - External - Circlips - Standard
Part Number: CCE-00595-C (100 Pcs) External Retaining Rings - 5.95x0.4x5.6 mm - Carbon Steel 3 units (300 pcs) Available Immediately \| Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price $20.00 AUD Regular price ~~$38.00 AUD~~ Sale price $20.00 AUD Unit price per Per 100
Shaft Diameter (Ds) 5.95 mm _{(0.234 in.)}	Clip Thickness (T) 0.40 mm +/- 0.038 _{(0.016 in.)}	Groove Dia. (Dg) 5.60 mm +/- 0.051 _{(0.22 in.)}	Approx. Loose Circlip ID (A) 5.50 mm
Material: Carbon Steel Groove Width (W): 0.50 mm Category: Retaining Rings - External - Circlips - Standard
Part Number: CCE-00595-C (100 Pcs) External Retaining Rings - 5.95x0.4x5.6 mm - Carbon Steel 3 units (300 pcs) Available Immediately \| Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price $20.00 AUD Regular price ~~$38.00 AUD~~ Sale price $20.00 AUD Unit price per Per 100
CCE-00595-C (100 Pcs) --- External Retaining Rings - 5.95x0.4x5.6 mm - Carbon Steel Sale CCE-00595-C (100 Pcs) --- External Retaining Rings - 5.95x0.4x5.6 mm - Carbon Steel Regular price $20.00 AUD Regular price ~~$38.00 AUD~~ Sale price $20.00 AUD Unit price per 3 Available Now Sale
Shaft Diameter (Ds) 5.95 mm _{(0.234 in.)}	Clip Thickness (T) 0.40 mm +/- 0.038 _{(0.016 in.)}	Groove Dia. (Dg) 5.60 mm +/- 0.051 _{(0.22 in.)}	Approx. Loose Circlip ID (A) 5.50 mm	Radial Wall (S) min/max B (Square Ends) mm	Groove Width (W) 0.50 mm
Material: Beryllium Copper Category: Retaining Rings - External - Circlips - Standard
Part Number: CCE-00595-B (50 Pcs) External Retaining Rings - 5.95x0.4x5.6 mm - Beryllium Copper Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $53.14 AUD Regular price Sale price $53.14 AUD Unit price per Per 50
Shaft Diameter (Ds) 5.95 mm _{(0.234 in.)}	Clip Thickness (T) 0.40 mm +/- 0.038 _{(0.016 in.)}	Groove Dia. (Dg) 5.60 mm +/- 0.051 _{(0.22 in.)}	Approx. Loose Circlip ID (A) 5.50 mm
Material: Beryllium Copper Radial Wall (S) min/max: B (Square Ends) mm Groove Width (W): 0.50 mm Category: Retaining Rings - External - Circlips - Standard
Part Number: CCE-00595-B (50 Pcs) External Retaining Rings - 5.95x0.4x5.6 mm - Beryllium Copper Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $53.14 AUD Regular price Sale price $53.14 AUD Unit price per Per 50 View the product page first if you are unsure.
CCE-00595-B (50 Pcs) --- External Retaining Rings - 5.95x0.4x5.6 mm - Beryllium Copper CCE-00595-B (50 Pcs) --- External Retaining Rings - 5.95x0.4x5.6 mm - Beryllium Copper Regular price $53.14 AUD Regular price Sale price $53.14 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 5.95 mm +/- 0.08 _{(0.234 in.)}	Clip Thickness (T) 0.99 mm _{(0.039 in.)}		Approx. Loose Circlip ID (A) 5.69 mm
Material: Carbon Steel Clearance on Shaft (C1): 12.70 mm Clearance in Groove (C1): 142 mm Category: Retaining Rings - External - Circlips - Grooveless
Part Number: CNG-00595-C (100 Pcs) External Retaining Rings - 5.95x0.99 - - - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $57.68 AUD Regular price Sale price $57.68 AUD Unit price per Per 100
Shaft Diameter (Ds) 5.95 mm +/- 0.08 _{(0.234 in.)}	Clip Thickness (T) 0.99 mm _{(0.039 in.)}		Approx. Loose Circlip ID (A) 5.69 mm
Material: Carbon Steel Clearance on Shaft (C1): 12.70 mm Clearance in Groove (C1): 142 mm Category: Retaining Rings - External - Circlips - Grooveless
Part Number: CNG-00595-C (100 Pcs) External Retaining Rings - 5.95x0.99 - - - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $57.68 AUD Regular price Sale price $57.68 AUD Unit price per Per 100 View the product page first if you are unsure.
CNG-00595-C (100 Pcs) --- External Retaining Rings - 5.95x0.99 - - - Carbon Steel CNG-00595-C (100 Pcs) --- External Retaining Rings - 5.95x0.99 - - - Carbon Steel Regular price $57.68 AUD Regular price Sale price $57.68 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 5.95 mm _{(0.234 in.)}	Clip Thickness (T) 0.99 mm _{(0.039 in.)}		Approx. Loose Circlip ID (A) 5.690 mm

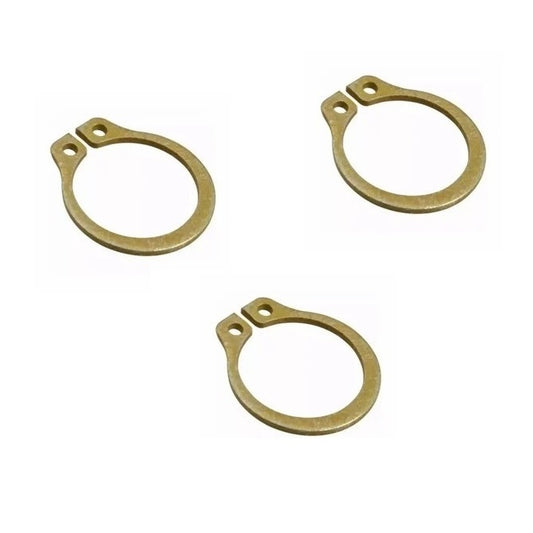

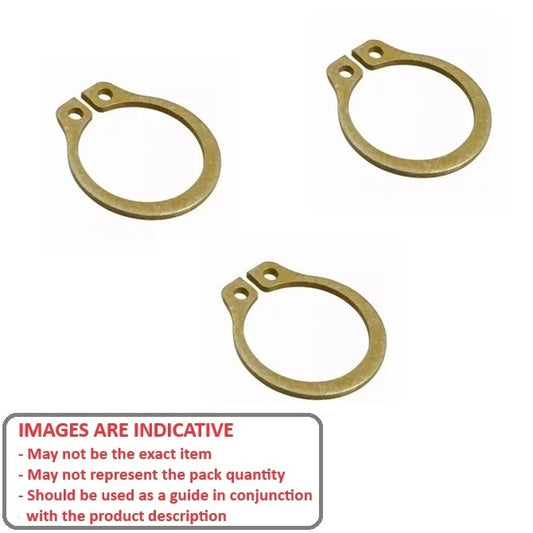

Material: Carbon Steel Zinc Plated Yellow Clearance on Shaft (C1): 12.70 mm Clearance in Groove (C1): 142 mm Category: Retaining Rings - External - Circlips - Grooveless
Part Number: CNG-00595-CZ (100 Pcs) External Retaining Rings - 5.95x0.99 - - - Carbon Steel Zinc Plated Yellow Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $92.14 AUD Regular price Sale price $92.14 AUD Unit price per Per 100
Shaft Diameter (Ds) 5.95 mm _{(0.234 in.)}	Clip Thickness (T) 0.99 mm _{(0.039 in.)}		Approx. Loose Circlip ID (A) 5.690 mm
Material: Carbon Steel Zinc Plated Yellow Clearance on Shaft (C1): 12.70 mm Clearance in Groove (C1): 142 mm Category: Retaining Rings - External - Circlips - Grooveless
Part Number: CNG-00595-CZ (100 Pcs) External Retaining Rings - 5.95x0.99 - - - Carbon Steel Zinc Plated Yellow Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $92.14 AUD Regular price Sale price $92.14 AUD Unit price per Per 100 View the product page first if you are unsure.
CNG-00595-CZ (100 Pcs) --- External Retaining Rings - 5.95x0.99 - - - Carbon Steel Zinc Plated Yellow CNG-00595-CZ (100 Pcs) --- External Retaining Rings - 5.95x0.99 - - - Carbon Steel Zinc Plated Yellow Regular price $92.14 AUD Regular price Sale price $92.14 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 6.00 mm _{(0.236 in.)}	Clip Thickness (T) 0.70 mm + 0.00 / - 0.04 _{(0.028 in.)}	Groove Dia. (Dg) 5.70 mm + 0.00 / - 0.05 _{(0.224 in.)}	Approx. Loose Circlip ID (A) 5.60 mm		Groove Width (W) 0.80 mm
Material: Carbon Steel Clearance on Shaft (C1): 11.70 mm Clearance in Groove (C1): 11.10 mm Category: Retaining Rings - External - Circlips - Standard
Part Number: CCE-00600-C (100 Pcs) External Retaining Rings - 6x0.7x5.7 mm - Carbon Steel 18 units (1800 pcs) Available Immediately \| Further orders can be expected around Sat, Jun 07, 2025 Regular price $7.23 AUD Regular price Sale price $7.23 AUD Unit price per Per 100
Shaft Diameter (Ds) 6.00 mm _{(0.236 in.)}	Clip Thickness (T) 0.70 mm + 0.00 / - 0.04 _{(0.028 in.)}	Groove Dia. (Dg) 5.70 mm + 0.00 / - 0.05 _{(0.224 in.)}	Approx. Loose Circlip ID (A) 5.60 mm
Material: Carbon Steel Groove Width (W): 0.80 mm Clearance on Shaft (C1): 11.70 mm Clearance in Groove (C1): 11.10 mm Category: Retaining Rings - External - Circlips - Standard
Part Number: CCE-00600-C (100 Pcs) External Retaining Rings - 6x0.7x5.7 mm - Carbon Steel 18 units (1800 pcs) Available Immediately \| Further orders can be expected around Sat, Jun 07, 2025 Regular price $7.23 AUD Regular price Sale price $7.23 AUD Unit price per Per 100 View the product page first if you are unsure.
CCE-00600-C (100 Pcs) --- External Retaining Rings - 6x0.7x5.7 mm - Carbon Steel CCE-00600-C (100 Pcs) --- External Retaining Rings - 6x0.7x5.7 mm - Carbon Steel Regular price $7.23 AUD Regular price Sale price $7.23 AUD Unit price per 18 Available Now
Shaft Diameter (Ds) 6.00 mm _{(0.236 in.)}	Clip Thickness (T) 0.70 mm + 0.00 / - 0.04 _{(0.028 in.)}	Groove Dia. (Dg) 5.70 mm + 0.00 / - 0.05 _{(0.224 in.)}	Approx. Loose Circlip ID (A) 5.60 mm		Groove Width (W) 0.80 mm
Material: Stainless Steel Grade PH15-7 Mo Clearance on Shaft (C1): 11.70 mm Clearance in Groove (C1): 11.10 mm Category: Retaining Rings - External - Circlips - Standard
Part Number: CCE-00600-S15 (10 Pcs) External Retaining Rings - 6x0.7x5.7 mm - Stainless Steel Grade PH15-7 Mo 39 units (390 pcs) Available Immediately \| Further orders can be expected around Sat, Jun 07, 2025 Regular price $9.23 AUD Regular price Sale price $9.23 AUD Unit price per Per 10
Shaft Diameter (Ds) 6.00 mm _{(0.236 in.)}	Clip Thickness (T) 0.70 mm + 0.00 / - 0.04 _{(0.028 in.)}	Groove Dia. (Dg) 5.70 mm + 0.00 / - 0.05 _{(0.224 in.)}	Approx. Loose Circlip ID (A) 5.60 mm
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 0.80 mm Clearance on Shaft (C1): 11.70 mm Clearance in Groove (C1): 11.10 mm Category: Retaining Rings - External - Circlips - Standard
Part Number: CCE-00600-S15 (10 Pcs) External Retaining Rings - 6x0.7x5.7 mm - Stainless Steel Grade PH15-7 Mo 39 units (390 pcs) Available Immediately \| Further orders can be expected around Sat, Jun 07, 2025 Regular price $9.23 AUD Regular price Sale price $9.23 AUD Unit price per Per 10 View the product page first if you are unsure.
CCE-00600-S15 (10 Pcs) --- External Retaining Rings - 6x0.7x5.7 mm - Stainless Steel Grade PH15-7 Mo CCE-00600-S15 (10 Pcs) --- External Retaining Rings - 6x0.7x5.7 mm - Stainless Steel Grade PH15-7 Mo Regular price $9.23 AUD Regular price Sale price $9.23 AUD Unit price per 39 Available Now
Shaft Diameter (Ds) 6.00 mm +/- 0.08 _{(0.236 in.)}	Clip Thickness (T) 1.00 mm _{(0.039 in.)}		Approx. Loose Circlip ID (A) 5.72 mm
Material: Carbon Steel Clearance on Shaft (C1): 12.60 mm Clearance in Groove (C1): 166 mm Category: Retaining Rings - External - Circlips - Grooveless
Part Number: CNG-00600-C (100 Pcs) External Retaining Rings - 6x1 - - - Carbon Steel 4 units (400 pcs) Available Immediately \| Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price $10.00 AUD Regular price ~~$19.00 AUD~~ Sale price $10.00 AUD Unit price per Per 100
Shaft Diameter (Ds) 6.00 mm +/- 0.08 _{(0.236 in.)}	Clip Thickness (T) 1.00 mm _{(0.039 in.)}		Approx. Loose Circlip ID (A) 5.72 mm
Material: Carbon Steel Clearance on Shaft (C1): 12.60 mm Clearance in Groove (C1): 166 mm Category: Retaining Rings - External - Circlips - Grooveless
Part Number: CNG-00600-C (100 Pcs) External Retaining Rings - 6x1 - - - Carbon Steel 4 units (400 pcs) Available Immediately \| Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price $10.00 AUD Regular price ~~$19.00 AUD~~ Sale price $10.00 AUD Unit price per Per 100
CNG-00600-C (100 Pcs) --- External Retaining Rings - 6x1 - - - Carbon Steel Sale CNG-00600-C (100 Pcs) --- External Retaining Rings - 6x1 - - - Carbon Steel Regular price $10.00 AUD Regular price ~~$19.00 AUD~~ Sale price $10.00 AUD Unit price per 4 Available Now Sale
Shaft Diameter (Ds) 6.35 mm _{(0.25 in.)}	Clip Thickness (T) 0.64 mm +/- 0.038 _{(0.025 in.)}	Groove Dia. (Dg) 5.84 mm +/- 0.051 _{(0.23 in.)}	Approx. Loose Circlip ID (A) 5.72 mm		Groove Width (W) 0.74 mm
Material: Beryllium Copper Clearance on Shaft (C1): 11.43 mm Clearance in Groove (C1): 10.92 mm Category: Retaining Rings - External - Circlips - Standard
Part Number: CCE-00635-B (50 Pcs) External Retaining Rings - 6.35x0.64x5.84 mm - Beryllium Copper Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $65.68 AUD Regular price Sale price $65.68 AUD Unit price per Per 50
Shaft Diameter (Ds) 6.35 mm _{(0.25 in.)}	Clip Thickness (T) 0.64 mm +/- 0.038 _{(0.025 in.)}	Groove Dia. (Dg) 5.84 mm +/- 0.051 _{(0.23 in.)}	Approx. Loose Circlip ID (A) 5.72 mm
Material: Beryllium Copper Groove Width (W): 0.74 mm Clearance on Shaft (C1): 11.43 mm Clearance in Groove (C1): 10.92 mm Category: Retaining Rings - External - Circlips - Standard
Part Number: CCE-00635-B (50 Pcs) External Retaining Rings - 6.35x0.64x5.84 mm - Beryllium Copper Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $65.68 AUD Regular price Sale price $65.68 AUD Unit price per Per 50 View the product page first if you are unsure.
CCE-00635-B (50 Pcs) --- External Retaining Rings - 6.35x0.64x5.84 mm - Beryllium Copper CCE-00635-B (50 Pcs) --- External Retaining Rings - 6.35x0.64x5.84 mm - Beryllium Copper Regular price $65.68 AUD Regular price Sale price $65.68 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 6.35 mm _{(0.25 in.)}	Clip Thickness (T) 0.64 mm +/- 0.038 _{(0.025 in.)}	Groove Dia. (Dg) 5.84 mm +/- 0.051 _{(0.23 in.)}	Approx. Loose Circlip ID (A) 5.72 mm		Groove Width (W) 0.74 mm
Material: Stainless Steel Grade PH15-7 Mo Clearance on Shaft (C1): 11.43 mm Clearance in Groove (C1): 11.43 mm Category: Retaining Rings - External - Circlips - Standard
Part Number: CCE-00635-S15 (5 Pcs) External Retaining Rings - 6.35x0.64x5.84 mm - Stainless Steel Grade PH15-7 Mo 31 units (155 pcs) Available Immediately \| Further orders can be expected around Sat, Jun 07, 2025 Regular price $10.68 AUD Regular price Sale price $10.68 AUD Unit price per Per 5
Shaft Diameter (Ds) 6.35 mm _{(0.25 in.)}	Clip Thickness (T) 0.64 mm +/- 0.038 _{(0.025 in.)}	Groove Dia. (Dg) 5.84 mm +/- 0.051 _{(0.23 in.)}	Approx. Loose Circlip ID (A) 5.72 mm
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 0.74 mm Clearance on Shaft (C1): 11.43 mm Clearance in Groove (C1): 11.43 mm Category: Retaining Rings - External - Circlips - Standard
Part Number: CCE-00635-S15 (5 Pcs) External Retaining Rings - 6.35x0.64x5.84 mm - Stainless Steel Grade PH15-7 Mo 31 units (155 pcs) Available Immediately \| Further orders can be expected around Sat, Jun 07, 2025 Regular price $10.68 AUD Regular price Sale price $10.68 AUD Unit price per Per 5 View the product page first if you are unsure.
CCE-00635-S15 (5 Pcs) --- External Retaining Rings - 6.35x0.64x5.84 mm - Stainless Steel Grade PH15-7 Mo CCE-00635-S15 (5 Pcs) --- External Retaining Rings - 6.35x0.64x5.84 mm - Stainless Steel Grade PH15-7 Mo Regular price $10.68 AUD Regular price Sale price $10.68 AUD Unit price per 31 Available Now
Shaft Diameter (Ds) 6.35 mm _{(0.25 in.)}	Clip Thickness (T) 0.64 mm +/- 0.038 _{(0.025 in.)}	Groove Dia. (Dg) 5.84 mm +/- 0.051 _{(0.23 in.)}	Approx. Loose Circlip ID (A) 5.72 mm		Groove Width (W) 0.74 mm
Material: Carbon Steel Zinc Plated Clearance on Shaft (C1): 11.43 mm Clearance in Groove (C1): 10.92 mm Category: Retaining Rings - External - Circlips - Standard
Part Number: CCE-00635-CZY (10 Pcs) External Retaining Rings - 6.35x0.64x5.84 mm - Carbon Steel Zinc Plated 50 units (500 pcs) Available Immediately \| Further orders can be expected around Sat, Jun 07, 2025 Regular price $2.95 AUD Regular price Sale price $2.95 AUD Unit price per Per 10
Shaft Diameter (Ds) 6.35 mm _{(0.25 in.)}	Clip Thickness (T) 0.64 mm +/- 0.038 _{(0.025 in.)}	Groove Dia. (Dg) 5.84 mm +/- 0.051 _{(0.23 in.)}	Approx. Loose Circlip ID (A) 5.72 mm
Material: Carbon Steel Zinc Plated Groove Width (W): 0.74 mm Clearance on Shaft (C1): 11.43 mm Clearance in Groove (C1): 10.92 mm Category: Retaining Rings - External - Circlips - Standard
Part Number: CCE-00635-CZY (10 Pcs) External Retaining Rings - 6.35x0.64x5.84 mm - Carbon Steel Zinc Plated 50 units (500 pcs) Available Immediately \| Further orders can be expected around Sat, Jun 07, 2025 Regular price $2.95 AUD Regular price Sale price $2.95 AUD Unit price per Per 10 View the product page first if you are unsure.
CCE-00635-CZY (10 Pcs) --- External Retaining Rings - 6.35x0.64x5.84 mm - Carbon Steel Zinc Plated CCE-00635-CZY (10 Pcs) --- External Retaining Rings - 6.35x0.64x5.84 mm - Carbon Steel Zinc Plated Regular price $2.95 AUD Regular price Sale price $2.95 AUD Unit price per 50 Available Now
Shaft Diameter (Ds) 6.35 mm _{(0.25 in.)}	Clip Thickness (T) 0.64 mm +/- 0.038 _{(0.025 in.)}	Groove Dia. (Dg) 5.84 mm +/- 0.051 _{(0.23 in.)}	Approx. Loose Circlip ID (A) 5.72 mm		Groove Width (W) 0.74 mm
Material: Carbon Steel Zinc Plated Clearance on Shaft (C1): 11.43 mm Clearance in Groove (C1): 10.92 mm Category: Retaining Rings - External - Circlips - Standard
Part Number: CCE-00635-CZ (500 Pcs) External Retaining Rings - 6.35x0.64x5.84 mm - Carbon Steel Zinc Plated Out of Stock \| Backorder Now \| Orders can be expected around Thu, Aug 07, 2025 Regular price $143.59 AUD Regular price Sale price $143.59 AUD Unit price per Per 500
Shaft Diameter (Ds) 6.35 mm _{(0.25 in.)}	Clip Thickness (T) 0.64 mm +/- 0.038 _{(0.025 in.)}	Groove Dia. (Dg) 5.84 mm +/- 0.051 _{(0.23 in.)}	Approx. Loose Circlip ID (A) 5.72 mm
Material: Carbon Steel Zinc Plated Groove Width (W): 0.74 mm Clearance on Shaft (C1): 11.43 mm Clearance in Groove (C1): 10.92 mm Category: Retaining Rings - External - Circlips - Standard
Part Number: CCE-00635-CZ (500 Pcs) External Retaining Rings - 6.35x0.64x5.84 mm - Carbon Steel Zinc Plated Out of Stock \| Backorder Now \| Orders can be expected around Thu, Aug 07, 2025 Regular price $143.59 AUD Regular price Sale price $143.59 AUD Unit price per Per 500 View the product page first if you are unsure.
CCE-00635-CZ (500 Pcs) --- External Retaining Rings - 6.35x0.64x5.84 mm - Carbon Steel Zinc Plated CCE-00635-CZ (500 Pcs) --- External Retaining Rings - 6.35x0.64x5.84 mm - Carbon Steel Zinc Plated Regular price $143.59 AUD Regular price Sale price $143.59 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 6.35 mm _{(0.25 in.)}	Clip Thickness (T) 0.64 mm +/- 0.038 _{(0.025 in.)}	Groove Dia. (Dg) 5.84 mm +/- 0.051 _{(0.23 in.)}	Approx. Loose Circlip ID (A) 5.72 mm		Groove Width (W) 0.74 mm
Material: Carbon Steel Clearance on Shaft (C1): 11.43 mm Clearance in Groove (C1): 10.92 mm Category: Retaining Rings - External - Circlips - Standard
Part Number: CCE-00635-C (20 Pcs) External Retaining Rings - 6.35x0.64x5.84 mm - Carbon Steel 18 units (360 pcs) Available Immediately \| Further orders can be expected around Sat, Jun 07, 2025 Regular price $4.86 AUD Regular price Sale price $4.86 AUD Unit price per Per 20
Shaft Diameter (Ds) 6.35 mm _{(0.25 in.)}	Clip Thickness (T) 0.64 mm +/- 0.038 _{(0.025 in.)}	Groove Dia. (Dg) 5.84 mm +/- 0.051 _{(0.23 in.)}	Approx. Loose Circlip ID (A) 5.72 mm
Material: Carbon Steel Groove Width (W): 0.74 mm Clearance on Shaft (C1): 11.43 mm Clearance in Groove (C1): 10.92 mm Category: Retaining Rings - External - Circlips - Standard
Part Number: CCE-00635-C (20 Pcs) External Retaining Rings - 6.35x0.64x5.84 mm - Carbon Steel 18 units (360 pcs) Available Immediately \| Further orders can be expected around Sat, Jun 07, 2025 Regular price $4.86 AUD Regular price Sale price $4.86 AUD Unit price per Per 20 View the product page first if you are unsure.
CCE-00635-C (20 Pcs) --- External Retaining Rings - 6.35x0.64x5.84 mm - Carbon Steel CCE-00635-C (20 Pcs) --- External Retaining Rings - 6.35x0.64x5.84 mm - Carbon Steel Regular price $4.86 AUD Regular price Sale price $4.86 AUD Unit price per 18 Available Now
Shaft Diameter (Ds) 6.35 mm +/- 0.05 _{(0.25 in.)}	Clip Thickness (T) 0.89 mm _{(0.035 in.)}		Approx. Loose Circlip ID (A) 6.00 mm
Material: Stainless Steel AISI 420C Clearance on Shaft (C1): 12.45 mm Clearance in Groove (C1): 93 mm Category: Retaining Rings - External - Circlips - Grooveless
Part Number: CNG-00635-09-420-2 (5 Pcs) External Retaining Rings - 6.35x0.89 - - - Stainless Steel AISI 420C Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $28.41 AUD Regular price Sale price $28.41 AUD Unit price per Per 5
Shaft Diameter (Ds) 6.35 mm +/- 0.05 _{(0.25 in.)}	Clip Thickness (T) 0.89 mm _{(0.035 in.)}		Approx. Loose Circlip ID (A) 6.00 mm
Material: Stainless Steel AISI 420C Clearance on Shaft (C1): 12.45 mm Clearance in Groove (C1): 93 mm Category: Retaining Rings - External - Circlips - Grooveless
Part Number: CNG-00635-09-420-2 (5 Pcs) External Retaining Rings - 6.35x0.89 - - - Stainless Steel AISI 420C Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $28.41 AUD Regular price Sale price $28.41 AUD Unit price per Per 5 View the product page first if you are unsure.
CNG-00635-09-420-2 (5 Pcs) --- External Retaining Rings - 6.35x0.89 - - - Stainless Steel AISI 420C CNG-00635-09-420-2 (5 Pcs) --- External Retaining Rings - 6.35x0.89 - - - Stainless Steel AISI 420C Regular price $28.41 AUD Regular price Sale price $28.41 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 6.35 mm +/- 0.08 _{(0.25 in.)}	Clip Thickness (T) 0.89 mm _{(0.035 in.)}		Approx. Loose Circlip ID (A) 6.00 mm
Material: Stainless Steel AISI 420C Clearance on Shaft (C1): 12.45 mm Clearance in Groove (C1): 142 mm Category: Retaining Rings - External - Circlips - Grooveless
Part Number: CNG-00635-4 (5 Pcs) External Retaining Rings - 6.35x0.89 - - - Stainless Steel AISI 420C Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $28.41 AUD Regular price Sale price $28.41 AUD Unit price per Per 5
Shaft Diameter (Ds) 6.35 mm +/- 0.08 _{(0.25 in.)}	Clip Thickness (T) 0.89 mm _{(0.035 in.)}		Approx. Loose Circlip ID (A) 6.00 mm
Material: Stainless Steel AISI 420C Clearance on Shaft (C1): 12.45 mm Clearance in Groove (C1): 142 mm Category: Retaining Rings - External - Circlips - Grooveless
Part Number: CNG-00635-4 (5 Pcs) External Retaining Rings - 6.35x0.89 - - - Stainless Steel AISI 420C Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $28.41 AUD Regular price Sale price $28.41 AUD Unit price per Per 5 View the product page first if you are unsure.
CNG-00635-4 (5 Pcs) --- External Retaining Rings - 6.35x0.89 - - - Stainless Steel AISI 420C CNG-00635-4 (5 Pcs) --- External Retaining Rings - 6.35x0.89 - - - Stainless Steel AISI 420C Regular price $28.41 AUD Regular price Sale price $28.41 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 6.35 mm _{(0.25 in.)}	Clip Thickness (T) 0.89 mm _{(0.035 in.)}		Approx. Loose Circlip ID (A) 6.000 mm
Material: Carbon Steel Clearance on Shaft (C1): 12.45 mm Clearance in Groove (C1): 142 mm Category: Retaining Rings - External - Circlips - Grooveless
Part Number: CNG-00635-C (100 Pcs) External Retaining Rings - 6.35x0.89 - - - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $51.68 AUD Regular price Sale price $51.68 AUD Unit price per Per 100
Shaft Diameter (Ds) 6.35 mm _{(0.25 in.)}	Clip Thickness (T) 0.89 mm _{(0.035 in.)}		Approx. Loose Circlip ID (A) 6.000 mm
Material: Carbon Steel Clearance on Shaft (C1): 12.45 mm Clearance in Groove (C1): 142 mm Category: Retaining Rings - External - Circlips - Grooveless

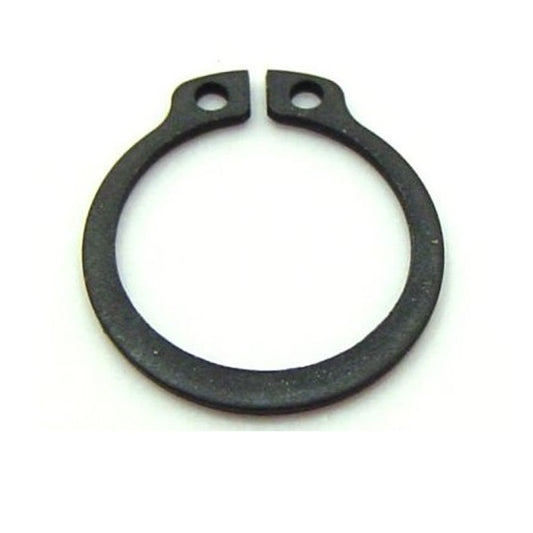

Part Number: CNG-00635-C (100 Pcs) External Retaining Rings - 6.35x0.89 - - - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $51.68 AUD Regular price Sale price $51.68 AUD Unit price per Per 100 View the product page first if you are unsure.
CNG-00635-C (100 Pcs) --- External Retaining Rings - 6.35x0.89 - - - Carbon Steel CNG-00635-C (100 Pcs) --- External Retaining Rings - 6.35x0.89 - - - Carbon Steel Regular price $51.68 AUD Regular price Sale price $51.68 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 6.35 mm _{(0.25 in.)}	Clip Thickness (T) 0.89 mm _{(0.035 in.)}		Approx. Loose Circlip ID (A) 6.000 mm
Material: Carbon Steel Zinc Plated Yellow Clearance on Shaft (C1): 12.45 mm Clearance in Groove (C1): 142 mm Category: Retaining Rings - External - Circlips - Grooveless
Part Number: CNG-00635-CZ (100 Pcs) External Retaining Rings - 6.35x0.89 - - - Carbon Steel Zinc Plated Yellow Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $90.50 AUD Regular price Sale price $90.50 AUD Unit price per Per 100
Shaft Diameter (Ds) 6.35 mm _{(0.25 in.)}	Clip Thickness (T) 0.89 mm _{(0.035 in.)}		Approx. Loose Circlip ID (A) 6.000 mm
Material: Carbon Steel Zinc Plated Yellow Clearance on Shaft (C1): 12.45 mm Clearance in Groove (C1): 142 mm Category: Retaining Rings - External - Circlips - Grooveless
Part Number: CNG-00635-CZ (100 Pcs) External Retaining Rings - 6.35x0.89 - - - Carbon Steel Zinc Plated Yellow Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $90.50 AUD Regular price Sale price $90.50 AUD Unit price per Per 100 View the product page first if you are unsure.
CNG-00635-CZ (100 Pcs) --- External Retaining Rings - 6.35x0.89 - - - Carbon Steel Zinc Plated Yellow CNG-00635-CZ (100 Pcs) --- External Retaining Rings - 6.35x0.89 - - - Carbon Steel Zinc Plated Yellow Regular price $90.50 AUD Regular price Sale price $90.50 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 7.00 mm _{(0.276 in.)}	Clip Thickness (T) 0.80 mm + 0.00 / - 0.06 _{(0.031 in.)}	Groove Dia. (Dg) 6.70 mm + 0.00 / - 0.05 _{(0.264 in.)}	Approx. Loose Circlip ID (A) 6.50 mm		Groove Width (W) 0.90 mm
Material: Carbon Steel Clearance on Shaft (C1): 13.50 mm Clearance in Groove (C1): 12.90 mm Category: Retaining Rings - External - Circlips - Standard
Part Number: CCE-00700-C (50 Pcs) External Retaining Rings - 7x0.8x6.7 mm - Carbon Steel 9 units (450 pcs) Available Immediately \| Further orders can be expected around Sat, Jun 07, 2025 Regular price $5.41 AUD Regular price Sale price $5.41 AUD Unit price per Per 50
Shaft Diameter (Ds) 7.00 mm _{(0.276 in.)}	Clip Thickness (T) 0.80 mm + 0.00 / - 0.06 _{(0.031 in.)}	Groove Dia. (Dg) 6.70 mm + 0.00 / - 0.05 _{(0.264 in.)}	Approx. Loose Circlip ID (A) 6.50 mm
Material: Carbon Steel Groove Width (W): 0.90 mm Clearance on Shaft (C1): 13.50 mm Clearance in Groove (C1): 12.90 mm Category: Retaining Rings - External - Circlips - Standard
Part Number: CCE-00700-C (50 Pcs) External Retaining Rings - 7x0.8x6.7 mm - Carbon Steel 9 units (450 pcs) Available Immediately \| Further orders can be expected around Sat, Jun 07, 2025 Regular price $5.41 AUD Regular price Sale price $5.41 AUD Unit price per Per 50 View the product page first if you are unsure.
CCE-00700-C (50 Pcs) --- External Retaining Rings - 7x0.8x6.7 mm - Carbon Steel CCE-00700-C (50 Pcs) --- External Retaining Rings - 7x0.8x6.7 mm - Carbon Steel Regular price $5.41 AUD Regular price Sale price $5.41 AUD Unit price per 9 Available Now
