Collection: Retaining Rings - External - Circlips - Standard

Retaining Rings (With Images)

External

Circlips

Tabbed

677 Products in this selection

This is a combined category of Standard Circlips External Retaining Rings.
Use the filters in the table below, or the category tree above to refine the selection. To order any item, simply click the part number for a full product page, then add to your cart.

Additional resources:
Anderton Cross Reference PDF
Circlips PDF Catalogue
Assortment Kits

A more concise listing may be found on the Smallparts store at Retaining Rings - External - Circlips - Standard. Smallparts promote the most popular MBA products.

Shaft Diameter (Ds)	Clip Thickness (T)	Groove Dia. (Dg)	Approx. Loose Circlip ID (A)	Radial Wall (S) min/max	Groove Width (W)	Indicative Image
Shaft Diameter (Ds) 70.00 mm _{(2.756 in.)}	Clip Thickness (T) 2.50 mm + 0.00 / - 0.30 _{(0.098 in.)}	Groove Dia. (Dg) 67.00 mm + 0.00 / - 0.07 _{(2.638 in.)}	Approx. Loose Circlip ID (A) 65.50 mm		Groove Width (W) 2.65 mm
Material: Stainless Steel Grade PH15-7 Mo Clearance on Shaft (C1): 83.20 mm Clearance in Groove (C1): 87.00 mm Min. Lug Diameter (h): 3.00 mm Min. Extension (n): 4.50 Category: Retaining Rings - External - Circlips - Standard - Stainless Steel
Part Number: CCE-07000-S15 (50 Pcs) External Retaining Rings - 70x2.5x67 mm - Stainless Steel Grade PH15-7 Mo Out of Stock \| Backorder Now \| Orders can be expected around Sat, Sep 13, 2025 Regular price $2,270.50 AUD Regular price ~~$3,830.40 AUD~~ Sale price $2,270.50 AUD Unit price per Per 50
Shaft Diameter (Ds)	Clip Thickness (T)	Groove Dia. (Dg)	Approx. Loose Circlip ID (A)	Indicative Image
Shaft Diameter (Ds) 70.00 mm _{(2.756 in.)}	Clip Thickness (T) 2.50 mm + 0.00 / - 0.30 _{(0.098 in.)}	Groove Dia. (Dg) 67.00 mm + 0.00 / - 0.07 _{(2.638 in.)}	Approx. Loose Circlip ID (A) 65.50 mm
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 2.65 mm Clearance on Shaft (C1): 83.20 mm Clearance in Groove (C1): 87.00 mm Min. Lug Diameter (h): 3.00 mm Min. Extension (n): 4.50 Category: Retaining Rings - External - Circlips - Standard - Stainless Steel
Part Number: CCE-07000-S15 (50 Pcs) External Retaining Rings - 70x2.5x67 mm - Stainless Steel Grade PH15-7 Mo Out of Stock \| Backorder Now \| Orders can be expected around Sat, Sep 13, 2025 Regular price $2,270.50 AUD Regular price ~~$3,830.40 AUD~~ Sale price $2,270.50 AUD Unit price per Per 50 View the product page first if you are unsure.
CCE-07000-S15 (50 Pcs) --- External Retaining Rings - 70x2.5x67 mm - Stainless Steel Grade PH15-7 Mo Sale CCE-07000-S15 (50 Pcs) --- External Retaining Rings - 70x2.5x67 mm - Stainless Steel Grade PH15-7 Mo Regular price $2,270.50 AUD Regular price ~~$3,830.40 AUD~~ Sale price $2,270.50 AUD Unit price per Out of stock! Backorder Now Sale
Shaft Diameter (Ds) 70.00 mm _{(2.756 in.)}	Clip Thickness (T) 2.50 mm + 0.00 / - 0.30 _{(0.098 in.)}	Groove Dia. (Dg) 67.00 mm + 0.00 / - 0.07 _{(2.638 in.)}	Approx. Loose Circlip ID (A) 65.50 mm		Groove Width (W) 2.65 mm
Material: Carbon Steel Clearance on Shaft (C1): 83.20 mm Clearance in Groove (C1): 87.00 mm Min. Lug Diameter (h): 3.00 mm Min. Extension (n): 4.50 Category: Retaining Rings - External - Circlips - Standard - Carbon Steel
Part Number: CCE-07000-C (2 Pcs) External Retaining Rings - 70x2.5x67 mm - Carbon Steel 28 units (56 pcs) Available Immediately \| Further orders can be expected around Wed, Jun 11, 2025 Regular price $9.41 AUD Regular price Sale price $9.41 AUD Unit price per Per 2
Shaft Diameter (Ds) 70.00 mm _{(2.756 in.)}	Clip Thickness (T) 2.50 mm + 0.00 / - 0.30 _{(0.098 in.)}	Groove Dia. (Dg) 67.00 mm + 0.00 / - 0.07 _{(2.638 in.)}	Approx. Loose Circlip ID (A) 65.50 mm
Material: Carbon Steel Groove Width (W): 2.65 mm Clearance on Shaft (C1): 83.20 mm Clearance in Groove (C1): 87.00 mm Min. Lug Diameter (h): 3.00 mm Min. Extension (n): 4.50 Category: Retaining Rings - External - Circlips - Standard - Carbon Steel
Part Number: CCE-07000-C (2 Pcs) External Retaining Rings - 70x2.5x67 mm - Carbon Steel 28 units (56 pcs) Available Immediately \| Further orders can be expected around Wed, Jun 11, 2025 Regular price $9.41 AUD Regular price Sale price $9.41 AUD Unit price per Per 2 View the product page first if you are unsure.
CCE-07000-C (2 Pcs) --- External Retaining Rings - 70x2.5x67 mm - Carbon Steel CCE-07000-C (2 Pcs) --- External Retaining Rings - 70x2.5x67 mm - Carbon Steel Regular price $9.41 AUD Regular price Sale price $9.41 AUD Unit price per 28 Available Now
Shaft Diameter (Ds) 72.00 mm _{(2.835 in.)}	Clip Thickness (T) 2.50 mm + 0.00 / - 0.30 _{(0.098 in.)}	Groove Dia. (Dg) 69.00 mm + 0.00 / - 0.07 _{(2.717 in.)}	Approx. Loose Circlip ID (A) 67.50 mm		Groove Width (W) 2.67 mm
Material: Carbon Steel Clearance on Shaft (C1): 85.40 mm Clearance in Groove (C1): 89.20 mm Min. Lug Diameter (h): 3.00 mm Min. Extension (n): 4.50 Category: Retaining Rings - External - Circlips - Standard - Carbon Steel
Part Number: CCE-07200-C (2 Pcs) External Retaining Rings - 72x2.5x69 mm - Carbon Steel 183 units (366 pcs) Available Immediately \| Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price $4.50 AUD Regular price ~~$9.15 AUD~~ Sale price $4.50 AUD Unit price per Per 2
Shaft Diameter (Ds) 72.00 mm _{(2.835 in.)}	Clip Thickness (T) 2.50 mm + 0.00 / - 0.30 _{(0.098 in.)}	Groove Dia. (Dg) 69.00 mm + 0.00 / - 0.07 _{(2.717 in.)}	Approx. Loose Circlip ID (A) 67.50 mm
Material: Carbon Steel Groove Width (W): 2.67 mm Clearance on Shaft (C1): 85.40 mm Clearance in Groove (C1): 89.20 mm Min. Lug Diameter (h): 3.00 mm Min. Extension (n): 4.50 Category: Retaining Rings - External - Circlips - Standard - Carbon Steel
Part Number: CCE-07200-C (2 Pcs) External Retaining Rings - 72x2.5x69 mm - Carbon Steel 183 units (366 pcs) Available Immediately \| Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price $4.50 AUD Regular price ~~$9.15 AUD~~ Sale price $4.50 AUD Unit price per Per 2
CCE-07200-C (2 Pcs) --- External Retaining Rings - 72x2.5x69 mm - Carbon Steel Sale CCE-07200-C (2 Pcs) --- External Retaining Rings - 72x2.5x69 mm - Carbon Steel Regular price $4.50 AUD Regular price ~~$9.15 AUD~~ Sale price $4.50 AUD Unit price per 183 Available Now Sale
Shaft Diameter (Ds) 73.03 mm _{(2.875 in.)}	Clip Thickness (T) 2.36 mm +/- 0.152 _{(0.093 in.)}	Groove Dia. (Dg) 69.11 mm +/- 0.076 _{(2.721 in.)}	Approx. Loose Circlip ID (A) 67.50 mm		Groove Width (W) 2.60 mm

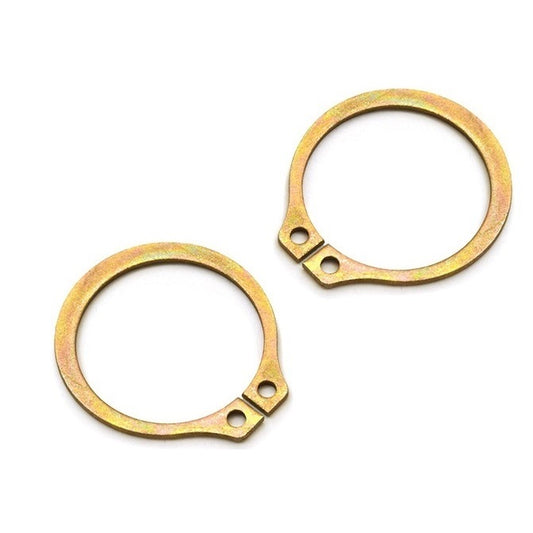

Material: Carbon Steel Zinc Plated Category: Retaining Rings - External - Circlips - Standard - Zinc Plated
Part Number: CCE-07303-CZY (25 Pcs) External Retaining Rings - 73.03x2.36x69.11 mm - Carbon Steel Zinc Plated Out of Stock \| Backorder Now \| Orders can be expected around Mon, Aug 11, 2025 Regular price $197.77 AUD Regular price ~~$237.33 AUD~~ Sale price $197.77 AUD Unit price per Per 25
Shaft Diameter (Ds) 73.03 mm _{(2.875 in.)}	Clip Thickness (T) 2.36 mm +/- 0.152 _{(0.093 in.)}	Groove Dia. (Dg) 69.11 mm +/- 0.076 _{(2.721 in.)}	Approx. Loose Circlip ID (A) 67.50 mm
Material: Carbon Steel Zinc Plated Groove Width (W): 2.60 mm Category: Retaining Rings - External - Circlips - Standard - Zinc Plated
Part Number: CCE-07303-CZY (25 Pcs) External Retaining Rings - 73.03x2.36x69.11 mm - Carbon Steel Zinc Plated Out of Stock \| Backorder Now \| Orders can be expected around Mon, Aug 11, 2025 Regular price $197.77 AUD Regular price ~~$237.33 AUD~~ Sale price $197.77 AUD Unit price per Per 25 View the product page first if you are unsure.
CCE-07303-CZY (25 Pcs) --- External Retaining Rings - 73.03x2.36x69.11 mm - Carbon Steel Zinc Plated Sale CCE-07303-CZY (25 Pcs) --- External Retaining Rings - 73.03x2.36x69.11 mm - Carbon Steel Zinc Plated Regular price $197.77 AUD Regular price ~~$237.33 AUD~~ Sale price $197.77 AUD Unit price per Out of stock! Backorder Now Sale
Shaft Diameter (Ds) 73.03 mm _{(2.875 in.)}	Clip Thickness (T) 2.36 mm +/- 0.152 _{(0.093 in.)}	Groove Dia. (Dg) 69.11 mm +/- 0.076 _{(2.721 in.)}	Approx. Loose Circlip ID (A) 67.50 mm		Groove Width (W) 2.60 mm
Material: Stainless Steel Grade PH15-7 Mo Category: Retaining Rings - External - Circlips - Standard - Stainless Steel
Part Number: CCE-07303-S15 External Retaining Rings - 73.03x2.36x69.11 mm - Stainless Steel Grade PH15-7 Mo Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 11, 2025 Regular price $84.23 AUD Regular price ~~$139.35 AUD~~ Sale price $84.23 AUD Unit price per Each
Shaft Diameter (Ds) 73.03 mm _{(2.875 in.)}	Clip Thickness (T) 2.36 mm +/- 0.152 _{(0.093 in.)}	Groove Dia. (Dg) 69.11 mm +/- 0.076 _{(2.721 in.)}	Approx. Loose Circlip ID (A) 67.50 mm
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 2.60 mm Category: Retaining Rings - External - Circlips - Standard - Stainless Steel
Part Number: CCE-07303-S15 External Retaining Rings - 73.03x2.36x69.11 mm - Stainless Steel Grade PH15-7 Mo Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 11, 2025 Regular price $84.23 AUD Regular price ~~$139.35 AUD~~ Sale price $84.23 AUD Unit price per Each View the product page first if you are unsure.
CCE-07303-S15 --- External Retaining Rings - 73.03x2.36x69.11 mm - Stainless Steel Grade PH15-7 Mo Sale CCE-07303-S15 --- External Retaining Rings - 73.03x2.36x69.11 mm - Stainless Steel Grade PH15-7 Mo Regular price $84.23 AUD Regular price ~~$139.35 AUD~~ Sale price $84.23 AUD Unit price per Out of stock! Backorder Now Sale
Shaft Diameter (Ds) 73.03 mm _{(2.875 in.)}	Clip Thickness (T) 2.36 mm +/- 0.152 _{(0.093 in.)}	Groove Dia. (Dg) 69.11 mm +/- 0.076 _{(2.721 in.)}	Approx. Loose Circlip ID (A) 67.54 mm		Groove Width (W) 2.62 mm
Material: Carbon Steel Clearance on Shaft (C1): 86.87 mm Clearance in Groove (C1): 82.80 mm Min. Lug Diameter (h): 3.12 mm Min. Extension (n): 6.10 Category: Retaining Rings - External - Circlips - Standard - Carbon Steel
Part Number: CCE-07303-C (2 Pcs) External Retaining Rings - 73.03x2.36x69.11 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 11, 2025 Regular price $13.95 AUD Regular price ~~$16.75 AUD~~ Sale price $13.95 AUD Unit price per Per 2
Shaft Diameter (Ds) 73.03 mm _{(2.875 in.)}	Clip Thickness (T) 2.36 mm +/- 0.152 _{(0.093 in.)}	Groove Dia. (Dg) 69.11 mm +/- 0.076 _{(2.721 in.)}	Approx. Loose Circlip ID (A) 67.54 mm
Material: Carbon Steel Groove Width (W): 2.62 mm Clearance on Shaft (C1): 86.87 mm Clearance in Groove (C1): 82.80 mm Min. Lug Diameter (h): 3.12 mm Min. Extension (n): 6.10 Category: Retaining Rings - External - Circlips - Standard - Carbon Steel
Part Number: CCE-07303-C (2 Pcs) External Retaining Rings - 73.03x2.36x69.11 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 11, 2025 Regular price $13.95 AUD Regular price ~~$16.75 AUD~~ Sale price $13.95 AUD Unit price per Per 2 View the product page first if you are unsure.
CCE-07303-C (2 Pcs) --- External Retaining Rings - 73.03x2.36x69.11 mm - Carbon Steel Sale CCE-07303-C (2 Pcs) --- External Retaining Rings - 73.03x2.36x69.11 mm - Carbon Steel Regular price $13.95 AUD Regular price ~~$16.75 AUD~~ Sale price $13.95 AUD Unit price per Out of stock! Backorder Now Sale
Shaft Diameter (Ds) 74.61 mm _{(2.937 in.)}	Clip Thickness (T) 2.36 mm +/- 0.152 _{(0.093 in.)}	Groove Dia. (Dg) 70.59 mm +/- 0.076 _{(2.779 in.)}	Approx. Loose Circlip ID (A) 69.00 mm		Groove Width (W) 2.60 mm
Material: Carbon Steel Category: Retaining Rings - External - Circlips - Standard - Carbon Steel
Part Number: CCE-07461-C (2 Pcs) External Retaining Rings - 74.61x2.36x70.59 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 11, 2025 Regular price $14.95 AUD Regular price ~~$17.95 AUD~~ Sale price $14.95 AUD Unit price per Per 2
Shaft Diameter (Ds) 74.61 mm _{(2.937 in.)}	Clip Thickness (T) 2.36 mm +/- 0.152 _{(0.093 in.)}	Groove Dia. (Dg) 70.59 mm +/- 0.076 _{(2.779 in.)}	Approx. Loose Circlip ID (A) 69.00 mm
Material: Carbon Steel Groove Width (W): 2.60 mm Category: Retaining Rings - External - Circlips - Standard - Carbon Steel
Part Number: CCE-07461-C (2 Pcs) External Retaining Rings - 74.61x2.36x70.59 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 11, 2025 Regular price $14.95 AUD Regular price ~~$17.95 AUD~~ Sale price $14.95 AUD Unit price per Per 2 View the product page first if you are unsure.
CCE-07461-C (2 Pcs) --- External Retaining Rings - 74.61x2.36x70.59 mm - Carbon Steel Sale CCE-07461-C (2 Pcs) --- External Retaining Rings - 74.61x2.36x70.59 mm - Carbon Steel Regular price $14.95 AUD Regular price ~~$17.95 AUD~~ Sale price $14.95 AUD Unit price per Out of stock! Backorder Now Sale
Shaft Diameter (Ds) 74.61 mm _{(2.937 in.)}	Clip Thickness (T) 2.36 mm +/- 0.152 _{(0.093 in.)}	Groove Dia. (Dg) 70.59 mm +/- 0.076 _{(2.779 in.)}	Approx. Loose Circlip ID (A) 69.00 mm		Groove Width (W) 2.60 mm
Material: Carbon Steel Zinc Plated Category: Retaining Rings - External - Circlips - Standard - Zinc Plated
Part Number: CCE-07461-CZY (25 Pcs) External Retaining Rings - 74.61x2.36x70.59 mm - Carbon Steel Zinc Plated Out of Stock \| Backorder Now \| Orders can be expected around Mon, Aug 11, 2025 Regular price $211.50 AUD Regular price ~~$253.80 AUD~~ Sale price $211.50 AUD Unit price per Per 25
Shaft Diameter (Ds) 74.61 mm _{(2.937 in.)}	Clip Thickness (T) 2.36 mm +/- 0.152 _{(0.093 in.)}	Groove Dia. (Dg) 70.59 mm +/- 0.076 _{(2.779 in.)}	Approx. Loose Circlip ID (A) 69.00 mm
Material: Carbon Steel Zinc Plated Groove Width (W): 2.60 mm Category: Retaining Rings - External - Circlips - Standard - Zinc Plated
Part Number: CCE-07461-CZY (25 Pcs) External Retaining Rings - 74.61x2.36x70.59 mm - Carbon Steel Zinc Plated Out of Stock \| Backorder Now \| Orders can be expected around Mon, Aug 11, 2025 Regular price $211.50 AUD Regular price ~~$253.80 AUD~~ Sale price $211.50 AUD Unit price per Per 25 View the product page first if you are unsure.
CCE-07461-CZY (25 Pcs) --- External Retaining Rings - 74.61x2.36x70.59 mm - Carbon Steel Zinc Plated Sale CCE-07461-CZY (25 Pcs) --- External Retaining Rings - 74.61x2.36x70.59 mm - Carbon Steel Zinc Plated Regular price $211.50 AUD Regular price ~~$253.80 AUD~~ Sale price $211.50 AUD Unit price per Out of stock! Backorder Now Sale
Shaft Diameter (Ds) 74.61 mm _{(2.937 in.)}	Clip Thickness (T) 2.36 mm +/- 0.152 _{(0.093 in.)}	Groove Dia. (Dg) 70.59 mm +/- 0.076 _{(2.779 in.)}	Approx. Loose Circlip ID (A) 69.00 mm		Groove Width (W) 2.60 mm
Material: Stainless Steel Grade PH15-7 Mo Category: Retaining Rings - External - Circlips - Standard - Stainless Steel
Part Number: CCE-07461-S15 External Retaining Rings - 74.61x2.36x70.59 mm - Stainless Steel Grade PH15-7 Mo Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 11, 2025 Regular price $99.05 AUD Regular price ~~$164.47 AUD~~ Sale price $99.05 AUD Unit price per Each
Shaft Diameter (Ds) 74.61 mm _{(2.937 in.)}	Clip Thickness (T) 2.36 mm +/- 0.152 _{(0.093 in.)}	Groove Dia. (Dg) 70.59 mm +/- 0.076 _{(2.779 in.)}	Approx. Loose Circlip ID (A) 69.00 mm
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 2.60 mm Category: Retaining Rings - External - Circlips - Standard - Stainless Steel
Part Number: CCE-07461-S15 External Retaining Rings - 74.61x2.36x70.59 mm - Stainless Steel Grade PH15-7 Mo Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 11, 2025 Regular price $99.05 AUD Regular price ~~$164.47 AUD~~ Sale price $99.05 AUD Unit price per Each View the product page first if you are unsure.
CCE-07461-S15 --- External Retaining Rings - 74.61x2.36x70.59 mm - Stainless Steel Grade PH15-7 Mo Sale CCE-07461-S15 --- External Retaining Rings - 74.61x2.36x70.59 mm - Stainless Steel Grade PH15-7 Mo Regular price $99.05 AUD Regular price ~~$164.47 AUD~~ Sale price $99.05 AUD Unit price per Out of stock! Backorder Now Sale
Shaft Diameter (Ds) 75.00 mm _{(2.953 in.)}	Clip Thickness (T) 2.50 mm + 0.00 / - 0.30 _{(0.098 in.)}	Groove Dia. (Dg) 72.00 mm + 0.00 / - 0.07 _{(2.835 in.)}	Approx. Loose Circlip ID (A) 70.50 mm		Groove Width (W) 2.65 mm
Material: Stainless Steel Grade PH15-7 Mo Clearance on Shaft (C1): 88.80 mm Clearance in Groove (C1): 92.70 mm Min. Lug Diameter (h): 3.00 mm Min. Extension (n): 4.50 Category: Retaining Rings - External - Circlips - Standard - Stainless Steel
Part Number: CCE-07500-S15 (25 Pcs) External Retaining Rings - 75x2.5x72 mm - Stainless Steel Grade PH15-7 Mo Out of Stock \| Backorder Now \| Orders can be expected around Mon, Aug 11, 2025 Regular price $939.68 AUD Regular price ~~$1,583.60 AUD~~ Sale price $939.68 AUD Unit price per Per 25
Shaft Diameter (Ds) 75.00 mm _{(2.953 in.)}	Clip Thickness (T) 2.50 mm + 0.00 / - 0.30 _{(0.098 in.)}	Groove Dia. (Dg) 72.00 mm + 0.00 / - 0.07 _{(2.835 in.)}	Approx. Loose Circlip ID (A) 70.50 mm
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 2.65 mm Clearance on Shaft (C1): 88.80 mm Clearance in Groove (C1): 92.70 mm Min. Lug Diameter (h): 3.00 mm Min. Extension (n): 4.50 Category: Retaining Rings - External - Circlips - Standard - Stainless Steel
Part Number: CCE-07500-S15 (25 Pcs) External Retaining Rings - 75x2.5x72 mm - Stainless Steel Grade PH15-7 Mo Out of Stock \| Backorder Now \| Orders can be expected around Mon, Aug 11, 2025 Regular price $939.68 AUD Regular price ~~$1,583.60 AUD~~ Sale price $939.68 AUD Unit price per Per 25 View the product page first if you are unsure.
CCE-07500-S15 (25 Pcs) --- External Retaining Rings - 75x2.5x72 mm - Stainless Steel Grade PH15-7 Mo Sale CCE-07500-S15 (25 Pcs) --- External Retaining Rings - 75x2.5x72 mm - Stainless Steel Grade PH15-7 Mo Regular price $939.68 AUD Regular price ~~$1,583.60 AUD~~ Sale price $939.68 AUD Unit price per Out of stock! Backorder Now Sale
Shaft Diameter (Ds) 75.00 mm _{(2.953 in.)}	Clip Thickness (T) 2.50 mm + 0.00 / - 0.30 _{(0.098 in.)}	Groove Dia. (Dg) 72.00 mm + 0.00 / - 0.07 _{(2.835 in.)}	Approx. Loose Circlip ID (A) 70.50 mm		Groove Width (W) 2.65 mm
Material: Carbon Steel Clearance in Groove (C1): 92.80 mm Min. Lug Diameter (h): 3.00 mm Category: Retaining Rings - External - Circlips - Standard - Carbon Steel
Part Number: CCE-07500-C External Retaining Rings - 75x2.5x72 mm - Carbon Steel 68 Available Immediately \| Further orders can be expected around Wed, Jun 11, 2025 Regular price $5.68 AUD Regular price Sale price $5.68 AUD Unit price per Each
Shaft Diameter (Ds) 75.00 mm _{(2.953 in.)}	Clip Thickness (T) 2.50 mm + 0.00 / - 0.30 _{(0.098 in.)}	Groove Dia. (Dg) 72.00 mm + 0.00 / - 0.07 _{(2.835 in.)}	Approx. Loose Circlip ID (A) 70.50 mm
Material: Carbon Steel Groove Width (W): 2.65 mm Clearance in Groove (C1): 92.80 mm Min. Lug Diameter (h): 3.00 mm Category: Retaining Rings - External - Circlips - Standard - Carbon Steel
Part Number: CCE-07500-C External Retaining Rings - 75x2.5x72 mm - Carbon Steel 68 Available Immediately \| Further orders can be expected around Wed, Jun 11, 2025 Regular price $5.68 AUD Regular price Sale price $5.68 AUD Unit price per Each View the product page first if you are unsure.
CCE-07500-C --- External Retaining Rings - 75x2.5x72 mm - Carbon Steel CCE-07500-C --- External Retaining Rings - 75x2.5x72 mm - Carbon Steel Regular price $5.68 AUD Regular price Sale price $5.68 AUD Unit price per 68 Available Now
Shaft Diameter (Ds) 75.00 mm _{(2.953 in.)}	Clip Thickness (T) 4.00 mm + 0.00 / - 0.30 _{(0.157 in.)}	Groove Dia. (Dg) 72.00 mm + 0.00 / - 0.10 _{(2.835 in.)}	Approx. Loose Circlip ID (A) 70.50 mm		Groove Width (W) 4.15 mm
Material: Carbon Steel Clearance on Shaft (C1): 95.40 mm Clearance in Groove (C1): 91.40 mm Min. Lug Diameter (h): 3.00 mm Min. Extension (n): 4.50 Category: Retaining Rings - External - Circlips - Standard - Carbon Steel
Part Number: CCE-07500H-C (25 Pcs) External Retaining Rings - 75x4x72 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Mon, Aug 11, 2025 Regular price $199.32 AUD Regular price ~~$239.18 AUD~~ Sale price $199.32 AUD Unit price per Per 25
Shaft Diameter (Ds) 75.00 mm _{(2.953 in.)}	Clip Thickness (T) 4.00 mm + 0.00 / - 0.30 _{(0.157 in.)}	Groove Dia. (Dg) 72.00 mm + 0.00 / - 0.10 _{(2.835 in.)}	Approx. Loose Circlip ID (A) 70.50 mm
Material: Carbon Steel Groove Width (W): 4.15 mm Clearance on Shaft (C1): 95.40 mm Clearance in Groove (C1): 91.40 mm Min. Lug Diameter (h): 3.00 mm Min. Extension (n): 4.50 Category: Retaining Rings - External - Circlips - Standard - Carbon Steel
Part Number: CCE-07500H-C (25 Pcs) External Retaining Rings - 75x4x72 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Mon, Aug 11, 2025 Regular price $199.32 AUD Regular price ~~$239.18 AUD~~ Sale price $199.32 AUD Unit price per Per 25 View the product page first if you are unsure.
CCE-07500H-C (25 Pcs) --- External Retaining Rings - 75x4x72 mm - Carbon Steel Sale CCE-07500H-C (25 Pcs) --- External Retaining Rings - 75x4x72 mm - Carbon Steel Regular price $199.32 AUD Regular price ~~$239.18 AUD~~ Sale price $199.32 AUD Unit price per Out of stock! Backorder Now Sale
Shaft Diameter (Ds) 76.20 mm _{(3 in.)}	Clip Thickness (T) 2.36 mm +/- 0.152 _{(0.093 in.)}	Groove Dia. (Dg) 72.09 mm +/- 0.076 _{(2.838 in.)}	Approx. Loose Circlip ID (A) 70.49 mm		Groove Width (W) 2.62 mm
Material: Carbon Steel Clearance on Shaft (C1): 90.17 mm Clearance in Groove (C1): 85.85 mm Min. Lug Diameter (h): 3.12 mm Min. Extension (n): 6.40 Category: Retaining Rings - External - Circlips - Standard - Carbon Steel
Part Number: CCE-07620-C External Retaining Rings - 76.2x2.36x72.09 mm - Carbon Steel 9 Available Immediately \| Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price $4.14 AUD Regular price ~~$7.46 AUD~~ Sale price $4.14 AUD Unit price per Each
Shaft Diameter (Ds) 76.20 mm _{(3 in.)}	Clip Thickness (T) 2.36 mm +/- 0.152 _{(0.093 in.)}	Groove Dia. (Dg) 72.09 mm +/- 0.076 _{(2.838 in.)}	Approx. Loose Circlip ID (A) 70.49 mm
Material: Carbon Steel Groove Width (W): 2.62 mm Clearance on Shaft (C1): 90.17 mm Clearance in Groove (C1): 85.85 mm Min. Lug Diameter (h): 3.12 mm Min. Extension (n): 6.40 Category: Retaining Rings - External - Circlips - Standard - Carbon Steel
Part Number: CCE-07620-C External Retaining Rings - 76.2x2.36x72.09 mm - Carbon Steel 9 Available Immediately \| Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price $4.14 AUD Regular price ~~$7.46 AUD~~ Sale price $4.14 AUD Unit price per Each
CCE-07620-C --- External Retaining Rings - 76.2x2.36x72.09 mm - Carbon Steel Sale CCE-07620-C --- External Retaining Rings - 76.2x2.36x72.09 mm - Carbon Steel Regular price $4.14 AUD Regular price ~~$7.46 AUD~~ Sale price $4.14 AUD Unit price per 9 Available Now Sale
Shaft Diameter (Ds) 76.20 mm _{(3 in.)}	Clip Thickness (T) 2.36 mm +/- 0.152 _{(0.093 in.)}	Groove Dia. (Dg) 72.09 mm +/- 0.076 _{(2.838 in.)}	Approx. Loose Circlip ID (A) 70.50 mm		Groove Width (W) 2.60 mm
Material: Stainless Steel Grade PH15-7 Mo Category: Retaining Rings - External - Circlips - Standard - Stainless Steel
Part Number: CCE-07620-S15 External Retaining Rings - 76.2x2.36x72.09 mm - Stainless Steel Grade PH15-7 Mo Out of Stock \| Backorder Now \| Orders can be expected around Sat, Sep 13, 2025 Regular price $96.41 AUD Regular price ~~$160.00 AUD~~ Sale price $96.41 AUD Unit price per Each
Shaft Diameter (Ds) 76.20 mm _{(3 in.)}	Clip Thickness (T) 2.36 mm +/- 0.152 _{(0.093 in.)}	Groove Dia. (Dg) 72.09 mm +/- 0.076 _{(2.838 in.)}	Approx. Loose Circlip ID (A) 70.50 mm
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 2.60 mm Category: Retaining Rings - External - Circlips - Standard - Stainless Steel
Part Number: CCE-07620-S15 External Retaining Rings - 76.2x2.36x72.09 mm - Stainless Steel Grade PH15-7 Mo Out of Stock \| Backorder Now \| Orders can be expected around Sat, Sep 13, 2025 Regular price $96.41 AUD Regular price ~~$160.00 AUD~~ Sale price $96.41 AUD Unit price per Each View the product page first if you are unsure.
CCE-07620-S15 --- External Retaining Rings - 76.2x2.36x72.09 mm - Stainless Steel Grade PH15-7 Mo Sale CCE-07620-S15 --- External Retaining Rings - 76.2x2.36x72.09 mm - Stainless Steel Grade PH15-7 Mo Regular price $96.41 AUD Regular price ~~$160.00 AUD~~ Sale price $96.41 AUD Unit price per Out of stock! Backorder Now Sale
Shaft Diameter (Ds) 76.20 mm _{(3 in.)}	Clip Thickness (T) 2.36 mm +/- 0.152 _{(0.093 in.)}	Groove Dia. (Dg) 72.09 mm +/- 0.076 _{(2.838 in.)}	Approx. Loose Circlip ID (A) 70.50 mm		Groove Width (W) 2.60 mm
Material: Carbon Steel Zinc Plated Category: Retaining Rings - External - Circlips - Standard - Zinc Plated
Part Number: CCE-07620-CZY (2 Pcs) External Retaining Rings - 76.2x2.36x72.09 mm - Carbon Steel Zinc Plated Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 11, 2025 Regular price $16.77 AUD Regular price ~~$20.13 AUD~~ Sale price $16.77 AUD Unit price per Per 2
Shaft Diameter (Ds) 76.20 mm _{(3 in.)}	Clip Thickness (T) 2.36 mm +/- 0.152 _{(0.093 in.)}	Groove Dia. (Dg) 72.09 mm +/- 0.076 _{(2.838 in.)}	Approx. Loose Circlip ID (A) 70.50 mm
Material: Carbon Steel Zinc Plated Groove Width (W): 2.60 mm Category: Retaining Rings - External - Circlips - Standard - Zinc Plated
Part Number: CCE-07620-CZY (2 Pcs) External Retaining Rings - 76.2x2.36x72.09 mm - Carbon Steel Zinc Plated Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 11, 2025 Regular price $16.77 AUD Regular price ~~$20.13 AUD~~ Sale price $16.77 AUD Unit price per Per 2 View the product page first if you are unsure.
CCE-07620-CZY (2 Pcs) --- External Retaining Rings - 76.2x2.36x72.09 mm - Carbon Steel Zinc Plated Sale CCE-07620-CZY (2 Pcs) --- External Retaining Rings - 76.2x2.36x72.09 mm - Carbon Steel Zinc Plated Regular price $16.77 AUD Regular price ~~$20.13 AUD~~ Sale price $16.77 AUD Unit price per Out of stock! Backorder Now Sale
Shaft Diameter (Ds) 77.79 mm _{(3.063 in.)}	Clip Thickness (T) 2.36 mm +/- 0.152 _{(0.093 in.)}	Groove Dia. (Dg) 73.61 mm +/- 0.076 _{(2.898 in.)}	Approx. Loose Circlip ID (A) 73.00 mm		Groove Width (W) 2.62 mm
Material: Carbon Steel Zinc Plated Category: Retaining Rings - External - Circlips - Standard - Zinc Plated
Part Number: CCE-07779-CZY External Retaining Rings - 77.79x2.36x73.61 mm - Carbon Steel Zinc Plated Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 11, 2025 Regular price $35.14 AUD Regular price ~~$42.16 AUD~~ Sale price $35.14 AUD Unit price per Each
Shaft Diameter (Ds) 77.79 mm _{(3.063 in.)}	Clip Thickness (T) 2.36 mm +/- 0.152 _{(0.093 in.)}	Groove Dia. (Dg) 73.61 mm +/- 0.076 _{(2.898 in.)}	Approx. Loose Circlip ID (A) 73.00 mm
Material: Carbon Steel Zinc Plated Groove Width (W): 2.62 mm Category: Retaining Rings - External - Circlips - Standard - Zinc Plated
Part Number: CCE-07779-CZY External Retaining Rings - 77.79x2.36x73.61 mm - Carbon Steel Zinc Plated Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 11, 2025 Regular price $35.14 AUD Regular price ~~$42.16 AUD~~ Sale price $35.14 AUD Unit price per Each View the product page first if you are unsure.
CCE-07779-CZY --- External Retaining Rings - 77.79x2.36x73.61 mm - Carbon Steel Zinc Plated Sale CCE-07779-CZY --- External Retaining Rings - 77.79x2.36x73.61 mm - Carbon Steel Zinc Plated Regular price $35.14 AUD Regular price ~~$42.16 AUD~~ Sale price $35.14 AUD Unit price per Out of stock! Backorder Now Sale
Shaft Diameter (Ds) 77.79 mm _{(3.063 in.)}	Clip Thickness (T) 2.36 mm +/- 0.152 _{(0.093 in.)}	Groove Dia. (Dg) 73.61 mm +/- 0.076 _{(2.898 in.)}	Approx. Loose Circlip ID (A) 73.00 mm		Groove Width (W) 2.62 mm
Material: Carbon Steel Category: Retaining Rings - External - Circlips - Standard - Carbon Steel
Part Number: CCE-07779-C External Retaining Rings - 77.79x2.36x73.61 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 11, 2025 Regular price $32.77 AUD Regular price ~~$39.33 AUD~~ Sale price $32.77 AUD Unit price per Each
Shaft Diameter (Ds) 77.79 mm _{(3.063 in.)}	Clip Thickness (T) 2.36 mm +/- 0.152 _{(0.093 in.)}	Groove Dia. (Dg) 73.61 mm +/- 0.076 _{(2.898 in.)}	Approx. Loose Circlip ID (A) 73.00 mm
Material: Carbon Steel Groove Width (W): 2.62 mm Category: Retaining Rings - External - Circlips - Standard - Carbon Steel
Part Number: CCE-07779-C External Retaining Rings - 77.79x2.36x73.61 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 11, 2025 Regular price $32.77 AUD Regular price ~~$39.33 AUD~~ Sale price $32.77 AUD Unit price per Each View the product page first if you are unsure.
CCE-07779-C --- External Retaining Rings - 77.79x2.36x73.61 mm - Carbon Steel Sale CCE-07779-C --- External Retaining Rings - 77.79x2.36x73.61 mm - Carbon Steel Regular price $32.77 AUD Regular price ~~$39.33 AUD~~ Sale price $32.77 AUD Unit price per Out of stock! Backorder Now Sale
Shaft Diameter (Ds) 77.79 mm _{(3.063 in.)}	Clip Thickness (T) 2.36 mm +/- 0.152 _{(0.093 in.)}	Groove Dia. (Dg) 73.61 mm +/- 0.076 _{(2.898 in.)}	Approx. Loose Circlip ID (A) 73.00 mm	Radial Wall (S) min/max B (Square Ends) mm	Groove Width (W) 2.62 mm
Material: Stainless Steel Grade PH15-7 Mo Category: Retaining Rings - External - Circlips - Standard - Stainless Steel
Part Number: CCE-07779-S15 (3 Pcs) External Retaining Rings - 77.79x2.36x73.61 mm - Stainless Steel Grade PH15-7 Mo Out of Stock \| Backorder Now \| Orders can be expected around Mon, Aug 11, 2025 Regular price $288.14 AUD Regular price ~~$483.61 AUD~~ Sale price $288.14 AUD Unit price per Per 3
Shaft Diameter (Ds) 77.79 mm _{(3.063 in.)}	Clip Thickness (T) 2.36 mm +/- 0.152 _{(0.093 in.)}	Groove Dia. (Dg) 73.61 mm +/- 0.076 _{(2.898 in.)}	Approx. Loose Circlip ID (A) 73.00 mm
Material: Stainless Steel Grade PH15-7 Mo Radial Wall (S) min/max: B (Square Ends) mm Groove Width (W): 2.62 mm Category: Retaining Rings - External - Circlips - Standard - Stainless Steel
Part Number: CCE-07779-S15 (3 Pcs) External Retaining Rings - 77.79x2.36x73.61 mm - Stainless Steel Grade PH15-7 Mo Out of Stock \| Backorder Now \| Orders can be expected around Mon, Aug 11, 2025 Regular price $288.14 AUD Regular price ~~$483.61 AUD~~ Sale price $288.14 AUD Unit price per Per 3 View the product page first if you are unsure.
CCE-07779-S15 (3 Pcs) --- External Retaining Rings - 77.79x2.36x73.61 mm - Stainless Steel Grade PH15-7 Mo Sale CCE-07779-S15 (3 Pcs) --- External Retaining Rings - 77.79x2.36x73.61 mm - Stainless Steel Grade PH15-7 Mo Regular price $288.14 AUD Regular price ~~$483.61 AUD~~ Sale price $288.14 AUD Unit price per Out of stock! Backorder Now Sale
Shaft Diameter (Ds) 78.00 mm _{(3.071 in.)}	Clip Thickness (T) 2.50 mm + 0.00 / - 0.30 _{(0.098 in.)}	Groove Dia. (Dg) 74.78 mm + 0.00 / - 0.07 _{(2.944 in.)}	Approx. Loose Circlip ID (A) 72.40 mm		Groove Width (W) 2.65 mm
Material: Carbon Steel Clearance on Shaft (C1): 92.20 mm Clearance in Groove (C1): 96.10 mm Min. Lug Diameter (h): 3.00 mm Min. Extension (n): 4.50 Category: Retaining Rings - External - Circlips - Standard - Carbon Steel
Part Number: CCE-07800-C (4 Pcs) External Retaining Rings - 78x2.5x74.78 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 11, 2025 Regular price $18.50 AUD Regular price ~~$22.20 AUD~~ Sale price $18.50 AUD Unit price per Per 4
Shaft Diameter (Ds) 78.00 mm _{(3.071 in.)}	Clip Thickness (T) 2.50 mm + 0.00 / - 0.30 _{(0.098 in.)}	Groove Dia. (Dg) 74.78 mm + 0.00 / - 0.07 _{(2.944 in.)}	Approx. Loose Circlip ID (A) 72.40 mm
Material: Carbon Steel Groove Width (W): 2.65 mm Clearance on Shaft (C1): 92.20 mm Clearance in Groove (C1): 96.10 mm Min. Lug Diameter (h): 3.00 mm Min. Extension (n): 4.50 Category: Retaining Rings - External - Circlips - Standard - Carbon Steel
Part Number: CCE-07800-C (4 Pcs) External Retaining Rings - 78x2.5x74.78 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 11, 2025 Regular price $18.50 AUD Regular price ~~$22.20 AUD~~ Sale price $18.50 AUD Unit price per Per 4 View the product page first if you are unsure.
CCE-07800-C (4 Pcs) --- External Retaining Rings - 78x2.5x74.78 mm - Carbon Steel Sale CCE-07800-C (4 Pcs) --- External Retaining Rings - 78x2.5x74.78 mm - Carbon Steel Regular price $18.50 AUD Regular price ~~$22.20 AUD~~ Sale price $18.50 AUD Unit price per Out of stock! Backorder Now Sale
Shaft Diameter (Ds) 79.38 mm _{(3.125 in.)}	Clip Thickness (T) 2.36 mm +/- 0.152 _{(0.093 in.)}	Groove Dia. (Dg) 75.11 mm +/- 0.076 _{(2.957 in.)}	Approx. Loose Circlip ID (A) 73.46 mm		Groove Width (W) 2.62 mm
Material: Carbon Steel Clearance on Shaft (C1): 95.25 mm Clearance in Groove (C1): 90.68 mm Min. Lug Diameter (h): 3.12 mm Min. Extension (n): 6.63 Category: Retaining Rings - External - Circlips - Standard - Carbon Steel
Part Number: CCE-07938-C (2 Pcs) External Retaining Rings - 79.38x2.36x75.11 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 11, 2025 Regular price $18.50 AUD Regular price ~~$22.20 AUD~~ Sale price $18.50 AUD Unit price per Per 2
Shaft Diameter (Ds) 79.38 mm _{(3.125 in.)}	Clip Thickness (T) 2.36 mm +/- 0.152 _{(0.093 in.)}	Groove Dia. (Dg) 75.11 mm +/- 0.076 _{(2.957 in.)}	Approx. Loose Circlip ID (A) 73.46 mm
Material: Carbon Steel Groove Width (W): 2.62 mm Clearance on Shaft (C1): 95.25 mm Clearance in Groove (C1): 90.68 mm Min. Lug Diameter (h): 3.12 mm Min. Extension (n): 6.63 Category: Retaining Rings - External - Circlips - Standard - Carbon Steel
Part Number: CCE-07938-C (2 Pcs) External Retaining Rings - 79.38x2.36x75.11 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 11, 2025 Regular price $18.50 AUD Regular price ~~$22.20 AUD~~ Sale price $18.50 AUD Unit price per Per 2 View the product page first if you are unsure.
CCE-07938-C (2 Pcs) --- External Retaining Rings - 79.38x2.36x75.11 mm - Carbon Steel Sale CCE-07938-C (2 Pcs) --- External Retaining Rings - 79.38x2.36x75.11 mm - Carbon Steel Regular price $18.50 AUD Regular price ~~$22.20 AUD~~ Sale price $18.50 AUD Unit price per Out of stock! Backorder Now Sale
Shaft Diameter (Ds) 79.38 mm _{(3.125 in.)}	Clip Thickness (T) 2.36 mm +/- 0.152 _{(0.093 in.)}	Groove Dia. (Dg) 75.11 mm +/- 0.076 _{(2.957 in.)}	Approx. Loose Circlip ID (A) 73.50 mm		Groove Width (W) 2.60 mm
Material: Carbon Steel Zinc Plated Category: Retaining Rings - External - Circlips - Standard - Zinc Plated
Part Number: CCE-07938-CZY (2 Pcs) External Retaining Rings - 79.38x2.36x75.11 mm - Carbon Steel Zinc Plated Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 11, 2025 Regular price $22.59 AUD Regular price ~~$27.11 AUD~~ Sale price $22.59 AUD Unit price per Per 2
Shaft Diameter (Ds) 79.38 mm _{(3.125 in.)}	Clip Thickness (T) 2.36 mm +/- 0.152 _{(0.093 in.)}	Groove Dia. (Dg) 75.11 mm +/- 0.076 _{(2.957 in.)}	Approx. Loose Circlip ID (A) 73.50 mm
Material: Carbon Steel Zinc Plated Groove Width (W): 2.60 mm Category: Retaining Rings - External - Circlips - Standard - Zinc Plated
Part Number: CCE-07938-CZY (2 Pcs) External Retaining Rings - 79.38x2.36x75.11 mm - Carbon Steel Zinc Plated Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 11, 2025 Regular price $22.59 AUD Regular price ~~$27.11 AUD~~ Sale price $22.59 AUD Unit price per Per 2 View the product page first if you are unsure.
CCE-07938-CZY (2 Pcs) --- External Retaining Rings - 79.38x2.36x75.11 mm - Carbon Steel Zinc Plated Sale CCE-07938-CZY (2 Pcs) --- External Retaining Rings - 79.38x2.36x75.11 mm - Carbon Steel Zinc Plated Regular price $22.59 AUD Regular price ~~$27.11 AUD~~ Sale price $22.59 AUD Unit price per Out of stock! Backorder Now Sale
Shaft Diameter (Ds) 79.38 mm _{(3.125 in.)}	Clip Thickness (T) 2.36 mm +/- 0.152 _{(0.093 in.)}	Groove Dia. (Dg) 75.11 mm +/- 0.076 _{(2.957 in.)}	Approx. Loose Circlip ID (A) 73.50 mm		Groove Width (W) 2.60 mm
Material: Stainless Steel Grade PH15-7 Mo Category: Retaining Rings - External - Circlips - Standard - Stainless Steel
Part Number: CCE-07938-S15 External Retaining Rings - 79.38x2.36x75.11 mm - Stainless Steel Grade PH15-7 Mo Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 11, 2025 Regular price $110.05 AUD Regular price ~~$182.94 AUD~~ Sale price $110.05 AUD Unit price per Each
Shaft Diameter (Ds) 79.38 mm _{(3.125 in.)}	Clip Thickness (T) 2.36 mm +/- 0.152 _{(0.093 in.)}	Groove Dia. (Dg) 75.11 mm +/- 0.076 _{(2.957 in.)}	Approx. Loose Circlip ID (A) 73.50 mm
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 2.60 mm Category: Retaining Rings - External - Circlips - Standard - Stainless Steel
Part Number: CCE-07938-S15 External Retaining Rings - 79.38x2.36x75.11 mm - Stainless Steel Grade PH15-7 Mo Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 11, 2025 Regular price $110.05 AUD Regular price ~~$182.94 AUD~~ Sale price $110.05 AUD Unit price per Each View the product page first if you are unsure.
CCE-07938-S15 --- External Retaining Rings - 79.38x2.36x75.11 mm - Stainless Steel Grade PH15-7 Mo Sale CCE-07938-S15 --- External Retaining Rings - 79.38x2.36x75.11 mm - Stainless Steel Grade PH15-7 Mo Regular price $110.05 AUD Regular price ~~$182.94 AUD~~ Sale price $110.05 AUD Unit price per Out of stock! Backorder Now Sale
Shaft Diameter (Ds) 80.00 mm _{(3.15 in.)}	Clip Thickness (T) 2.50 mm + 0.00 / - 0.30 _{(0.098 in.)}	Groove Dia. (Dg) 76.50 mm + 0.00 / - 0.07 _{(3.012 in.)}	Approx. Loose Circlip ID (A) 74.50 mm		Groove Width (W) 2.65 mm
Material: Stainless Steel Grade PH15-7 Mo Clearance on Shaft (C1): 93.70 mm Clearance in Groove (C1): 98.10 mm Min. Lug Diameter (h): 3.00 mm Min. Extension (n): 5.30 Category: Retaining Rings - External - Circlips - Standard - Stainless Steel
Part Number: CCE-08000-S15 External Retaining Rings - 80x2.5x76.5 mm - Stainless Steel Grade PH15-7 Mo Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 11, 2025 Regular price $40.86 AUD Regular price ~~$49.04 AUD~~ Sale price $40.86 AUD Unit price per Each
Shaft Diameter (Ds) 80.00 mm _{(3.15 in.)}	Clip Thickness (T) 2.50 mm + 0.00 / - 0.30 _{(0.098 in.)}	Groove Dia. (Dg) 76.50 mm + 0.00 / - 0.07 _{(3.012 in.)}	Approx. Loose Circlip ID (A) 74.50 mm
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 2.65 mm Clearance on Shaft (C1): 93.70 mm Clearance in Groove (C1): 98.10 mm Min. Lug Diameter (h): 3.00 mm Min. Extension (n): 5.30 Category: Retaining Rings - External - Circlips - Standard - Stainless Steel
Part Number: CCE-08000-S15 External Retaining Rings - 80x2.5x76.5 mm - Stainless Steel Grade PH15-7 Mo Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 11, 2025 Regular price $40.86 AUD Regular price ~~$49.04 AUD~~ Sale price $40.86 AUD Unit price per Each View the product page first if you are unsure.
CCE-08000-S15 --- External Retaining Rings - 80x2.5x76.5 mm - Stainless Steel Grade PH15-7 Mo Sale CCE-08000-S15 --- External Retaining Rings - 80x2.5x76.5 mm - Stainless Steel Grade PH15-7 Mo Regular price $40.86 AUD Regular price ~~$49.04 AUD~~ Sale price $40.86 AUD Unit price per Out of stock! Backorder Now Sale
Shaft Diameter (Ds) 80.00 mm _{(3.15 in.)}	Clip Thickness (T) 2.50 mm + 0.00 / - 0.30 _{(0.098 in.)}	Groove Dia. (Dg) 76.50 mm + 0.00 / - 0.07 _{(3.012 in.)}	Approx. Loose Circlip ID (A) 74.50 mm		Groove Width (W) 2.65 mm
Material: Carbon Steel Clearance on Shaft (C1): 93.70 mm Clearance in Groove (C1): 98.10 mm Min. Lug Diameter (h): 3.00 mm Min. Extension (n): 5.30 Category: Retaining Rings - External - Circlips - Standard - Carbon Steel
Part Number: CCE-08000-C External Retaining Rings - 80x2.5x76.5 mm - Carbon Steel 52 Available Immediately \| Further orders can be expected around Wed, Jun 11, 2025 Regular price $6.05 AUD Regular price Sale price $6.05 AUD Unit price per Each
Shaft Diameter (Ds) 80.00 mm _{(3.15 in.)}	Clip Thickness (T) 2.50 mm + 0.00 / - 0.30 _{(0.098 in.)}	Groove Dia. (Dg) 76.50 mm + 0.00 / - 0.07 _{(3.012 in.)}	Approx. Loose Circlip ID (A) 74.50 mm
Material: Carbon Steel Groove Width (W): 2.65 mm Clearance on Shaft (C1): 93.70 mm Clearance in Groove (C1): 98.10 mm Min. Lug Diameter (h): 3.00 mm Min. Extension (n): 5.30 Category: Retaining Rings - External - Circlips - Standard - Carbon Steel
Part Number: CCE-08000-C External Retaining Rings - 80x2.5x76.5 mm - Carbon Steel 52 Available Immediately \| Further orders can be expected around Wed, Jun 11, 2025 Regular price $6.05 AUD Regular price Sale price $6.05 AUD Unit price per Each View the product page first if you are unsure.
CCE-08000-C --- External Retaining Rings - 80x2.5x76.5 mm - Carbon Steel CCE-08000-C --- External Retaining Rings - 80x2.5x76.5 mm - Carbon Steel Regular price $6.05 AUD Regular price Sale price $6.05 AUD Unit price per 52 Available Now
