Collection: Retaining Rings - External - Circlips - Standard - Zinc Plated

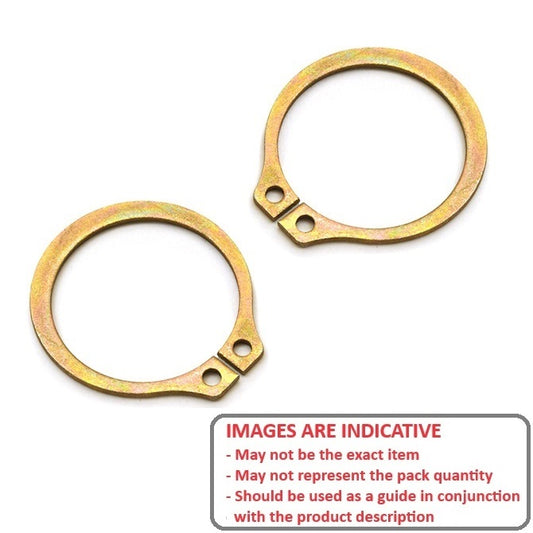

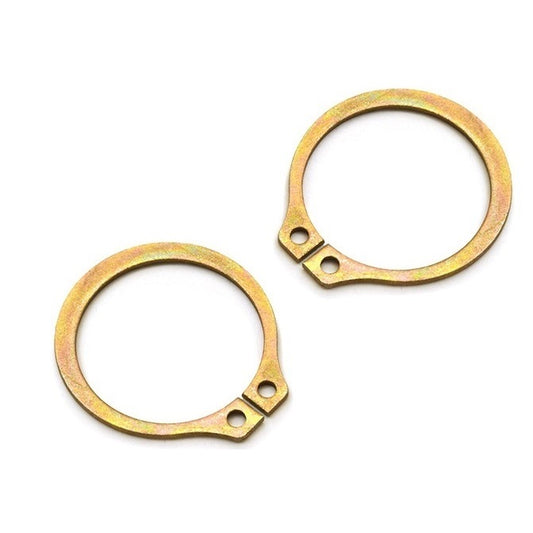

Retaining Rings (With Images)

External

Circlips

Standard

129 Products in this selection

Imperial and metric DIN471 / D1400 / N1400 / D1460. Retaining rings. Snap Rings (USA).
Zinc plated carbon steel

Additional resources:
Anderton Cross Reference PDF
Circlips PDF Catalogue
Circlip Tools

A more concise listing may be found on the Smallparts store at Retaining Rings - External - Circlips - Standard - Zinc Plated. Smallparts promote the most popular MBA products.

Shaft Diameter (Ds)	Clip Thickness (T)	Groove Dia. (Dg)	Approx. Loose Circlip ID (A)	Radial Wall (S) min/max	Groove Width (W)	Indicative Image
Shaft Diameter (Ds) 171.45 mm _{(6.75 in.)}	Clip Thickness (T) 3.96 mm +/- 0.204 _{(0.156 in.)}	Groove Dia. (Dg) 164.20 mm +/- 0.127 _{(6.465 in.)}	Approx. Loose Circlip ID (A) 160.90 mm		Groove Width (W) 4.40 mm
Material: Carbon Steel Zinc Plated Standard: MIL-16624
Part Number: CCE-17145-CZY External Retaining Rings - 171.45x3.96x164.2 mm - Carbon Steel Zinc Plated Out of Stock \| Backorder Now \| Orders can be expected around Thu, Aug 07, 2025 Regular price $332.23 AUD Regular price Sale price $332.23 AUD Unit price per Each
Shaft Diameter (Ds)	Clip Thickness (T)	Groove Dia. (Dg)	Approx. Loose Circlip ID (A)	Indicative Image
Shaft Diameter (Ds) 171.45 mm _{(6.75 in.)}	Clip Thickness (T) 3.96 mm +/- 0.204 _{(0.156 in.)}	Groove Dia. (Dg) 164.20 mm +/- 0.127 _{(6.465 in.)}	Approx. Loose Circlip ID (A) 160.90 mm
Material: Carbon Steel Zinc Plated Groove Width (W): 4.40 mm Standard: MIL-16624
Part Number: CCE-17145-CZY External Retaining Rings - 171.45x3.96x164.2 mm - Carbon Steel Zinc Plated Out of Stock \| Backorder Now \| Orders can be expected around Thu, Aug 07, 2025 Regular price $332.23 AUD Regular price Sale price $332.23 AUD Unit price per Each View the product page first if you are unsure.
CCE-17145-CZY --- External Retaining Rings - 171.45x3.96x164.2 mm - Carbon Steel Zinc Plated CCE-17145-CZY --- External Retaining Rings - 171.45x3.96x164.2 mm - Carbon Steel Zinc Plated Regular price $332.23 AUD Regular price Sale price $332.23 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 190.50 mm _{(7.5 in.)}	Clip Thickness (T) 4.75 mm +/- 0.204 _{(0.187 in.)}	Groove Dia. (Dg) 182.40 mm +/- 0.127 _{(7.181 in.)}	Approx. Loose Circlip ID (A) 178.00 mm		Groove Width (W) 5.30 mm
Material: Carbon Steel Zinc Plated Standard: MIL-16624
Part Number: CCE-19050-CZY (5 Pcs) External Retaining Rings - 190.5x4.75x182.4 mm - Carbon Steel Zinc Plated Out of Stock \| Backorder Now \| Orders can be expected around Thu, Aug 07, 2025 Regular price $1,826.41 AUD Regular price Sale price $1,826.41 AUD Unit price per Per 5
Shaft Diameter (Ds) 190.50 mm _{(7.5 in.)}	Clip Thickness (T) 4.75 mm +/- 0.204 _{(0.187 in.)}	Groove Dia. (Dg) 182.40 mm +/- 0.127 _{(7.181 in.)}	Approx. Loose Circlip ID (A) 178.00 mm
Material: Carbon Steel Zinc Plated Groove Width (W): 5.30 mm Standard: MIL-16624
Part Number: CCE-19050-CZY (5 Pcs) External Retaining Rings - 190.5x4.75x182.4 mm - Carbon Steel Zinc Plated Out of Stock \| Backorder Now \| Orders can be expected around Thu, Aug 07, 2025 Regular price $1,826.41 AUD Regular price Sale price $1,826.41 AUD Unit price per Per 5 View the product page first if you are unsure.
CCE-19050-CZY (5 Pcs) --- External Retaining Rings - 190.5x4.75x182.4 mm - Carbon Steel Zinc Plated CCE-19050-CZY (5 Pcs) --- External Retaining Rings - 190.5x4.75x182.4 mm - Carbon Steel Zinc Plated Regular price $1,826.41 AUD Regular price Sale price $1,826.41 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 196.85 mm _{(7.75 in.)}	Clip Thickness (T) 4.80 mm +/- 0.204 _{(0.189 in.)}	Groove Dia. (Dg) 188.50 mm +/- 0.127 _{(7.421 in.)}	Approx. Loose Circlip ID (A) 184.00 mm		Groove Width (W) 5.30 mm
Material: Carbon Steel Zinc Plated Standard: MIL-16624
Part Number: CCE-19685-CZY External Retaining Rings - 196.85x4.8x188.5 mm - Carbon Steel Zinc Plated Out of Stock \| Backorder Now \| Orders can be expected around Thu, Aug 07, 2025 Regular price $354.95 AUD Regular price Sale price $354.95 AUD Unit price per Each
Shaft Diameter (Ds) 196.85 mm _{(7.75 in.)}	Clip Thickness (T) 4.80 mm +/- 0.204 _{(0.189 in.)}	Groove Dia. (Dg) 188.50 mm +/- 0.127 _{(7.421 in.)}	Approx. Loose Circlip ID (A) 184.00 mm
Material: Carbon Steel Zinc Plated Groove Width (W): 5.30 mm Standard: MIL-16624
Part Number: CCE-19685-CZY External Retaining Rings - 196.85x4.8x188.5 mm - Carbon Steel Zinc Plated Out of Stock \| Backorder Now \| Orders can be expected around Thu, Aug 07, 2025 Regular price $354.95 AUD Regular price Sale price $354.95 AUD Unit price per Each View the product page first if you are unsure.
CCE-19685-CZY --- External Retaining Rings - 196.85x4.8x188.5 mm - Carbon Steel Zinc Plated CCE-19685-CZY --- External Retaining Rings - 196.85x4.8x188.5 mm - Carbon Steel Zinc Plated Regular price $354.95 AUD Regular price Sale price $354.95 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 203.20 mm _{(8 in.)}	Clip Thickness (T) 4.75 mm +/- 0.204 _{(0.187 in.)}	Groove Dia. (Dg) 194.46 mm +/- 0.127 _{(7.656 in.)}	Approx. Loose Circlip ID (A) 189.90 mm		Groove Width (W) 5.30 mm
Material: Carbon Steel Zinc Plated Standard: MIL-16624
Part Number: CCE-20320-CZY (3 Pcs) External Retaining Rings - 203.2x4.75x194.46 mm - Carbon Steel Zinc Plated Out of Stock \| Backorder Now \| Orders can be expected around Thu, Aug 07, 2025 Regular price $1,112.14 AUD Regular price Sale price $1,112.14 AUD Unit price per Per 3
Shaft Diameter (Ds) 203.20 mm _{(8 in.)}	Clip Thickness (T) 4.75 mm +/- 0.204 _{(0.187 in.)}	Groove Dia. (Dg) 194.46 mm +/- 0.127 _{(7.656 in.)}	Approx. Loose Circlip ID (A) 189.90 mm
Material: Carbon Steel Zinc Plated Groove Width (W): 5.30 mm Standard: MIL-16624
Part Number: CCE-20320-CZY (3 Pcs) External Retaining Rings - 203.2x4.75x194.46 mm - Carbon Steel Zinc Plated Out of Stock \| Backorder Now \| Orders can be expected around Thu, Aug 07, 2025 Regular price $1,112.14 AUD Regular price Sale price $1,112.14 AUD Unit price per Per 3 View the product page first if you are unsure.
CCE-20320-CZY (3 Pcs) --- External Retaining Rings - 203.2x4.75x194.46 mm - Carbon Steel Zinc Plated CCE-20320-CZY (3 Pcs) --- External Retaining Rings - 203.2x4.75x194.46 mm - Carbon Steel Zinc Plated Regular price $1,112.14 AUD Regular price Sale price $1,112.14 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 209.55 mm _{(8.25 in.)}	Clip Thickness (T) 4.80 mm +/- 0.204 _{(0.189 in.)}	Groove Dia. (Dg) 200.70 mm +/- 0.127 _{(7.902 in.)}	Approx. Loose Circlip ID (A) 195.90 mm		Groove Width (W) 5.30 mm
Material: Carbon Steel Zinc Plated Standard: MIL-16624
Part Number: CCE-20955-CZY External Retaining Rings - 209.55x4.8x200.7 mm - Carbon Steel Zinc Plated Out of Stock \| Backorder Now \| Orders can be expected around Thu, Aug 07, 2025 Regular price $384.14 AUD Regular price Sale price $384.14 AUD Unit price per Each
Shaft Diameter (Ds) 209.55 mm _{(8.25 in.)}	Clip Thickness (T) 4.80 mm +/- 0.204 _{(0.189 in.)}	Groove Dia. (Dg) 200.70 mm +/- 0.127 _{(7.902 in.)}	Approx. Loose Circlip ID (A) 195.90 mm
Material: Carbon Steel Zinc Plated Groove Width (W): 5.30 mm Standard: MIL-16624
Part Number: CCE-20955-CZY External Retaining Rings - 209.55x4.8x200.7 mm - Carbon Steel Zinc Plated Out of Stock \| Backorder Now \| Orders can be expected around Thu, Aug 07, 2025 Regular price $384.14 AUD Regular price Sale price $384.14 AUD Unit price per Each View the product page first if you are unsure.
CCE-20955-CZY --- External Retaining Rings - 209.55x4.8x200.7 mm - Carbon Steel Zinc Plated CCE-20955-CZY --- External Retaining Rings - 209.55x4.8x200.7 mm - Carbon Steel Zinc Plated Regular price $384.14 AUD Regular price Sale price $384.14 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 215.90 mm _{(8.5 in.)}	Clip Thickness (T) 4.75 mm +/- 0.204 _{(0.187 in.)}	Groove Dia. (Dg) 206.80 mm +/- 0.127 _{(8.142 in.)}	Approx. Loose Circlip ID (A) 201.90 mm		Groove Width (W) 5.30 mm
Material: Carbon Steel Zinc Plated Standard: MIL-16624
Part Number: CCE-21590-CZY (3 Pcs) External Retaining Rings - 215.9x4.75x206.8 mm - Carbon Steel Zinc Plated Out of Stock \| Backorder Now \| Orders can be expected around Thu, Aug 07, 2025 Regular price $1,400.23 AUD Regular price Sale price $1,400.23 AUD Unit price per Per 3
Shaft Diameter (Ds) 215.90 mm _{(8.5 in.)}	Clip Thickness (T) 4.75 mm +/- 0.204 _{(0.187 in.)}	Groove Dia. (Dg) 206.80 mm +/- 0.127 _{(8.142 in.)}	Approx. Loose Circlip ID (A) 201.90 mm
Material: Carbon Steel Zinc Plated Groove Width (W): 5.30 mm Standard: MIL-16624
Part Number: CCE-21590-CZY (3 Pcs) External Retaining Rings - 215.9x4.75x206.8 mm - Carbon Steel Zinc Plated Out of Stock \| Backorder Now \| Orders can be expected around Thu, Aug 07, 2025 Regular price $1,400.23 AUD Regular price Sale price $1,400.23 AUD Unit price per Per 3 View the product page first if you are unsure.
CCE-21590-CZY (3 Pcs) --- External Retaining Rings - 215.9x4.75x206.8 mm - Carbon Steel Zinc Plated CCE-21590-CZY (3 Pcs) --- External Retaining Rings - 215.9x4.75x206.8 mm - Carbon Steel Zinc Plated Regular price $1,400.23 AUD Regular price Sale price $1,400.23 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 222.25 mm _{(8.75 in.)}	Clip Thickness (T) 4.80 mm +/- 0.204 _{(0.189 in.)}	Groove Dia. (Dg) 212.90 mm +/- 0.127 _{(8.382 in.)}	Approx. Loose Circlip ID (A) 207.80 mm		Groove Width (W) 5.30 mm
Material: Carbon Steel Zinc Plated Standard: MIL-16624
Part Number: CCE-22225-CZY External Retaining Rings - 222.25x4.8x212.9 mm - Carbon Steel Zinc Plated Out of Stock \| Backorder Now \| Orders can be expected around Thu, Aug 07, 2025 Regular price $386.23 AUD Regular price Sale price $386.23 AUD Unit price per Each
Shaft Diameter (Ds) 222.25 mm _{(8.75 in.)}	Clip Thickness (T) 4.80 mm +/- 0.204 _{(0.189 in.)}	Groove Dia. (Dg) 212.90 mm +/- 0.127 _{(8.382 in.)}	Approx. Loose Circlip ID (A) 207.80 mm
Material: Carbon Steel Zinc Plated Groove Width (W): 5.30 mm Standard: MIL-16624
Part Number: CCE-22225-CZY External Retaining Rings - 222.25x4.8x212.9 mm - Carbon Steel Zinc Plated Out of Stock \| Backorder Now \| Orders can be expected around Thu, Aug 07, 2025 Regular price $386.23 AUD Regular price Sale price $386.23 AUD Unit price per Each View the product page first if you are unsure.
CCE-22225-CZY --- External Retaining Rings - 222.25x4.8x212.9 mm - Carbon Steel Zinc Plated CCE-22225-CZY --- External Retaining Rings - 222.25x4.8x212.9 mm - Carbon Steel Zinc Plated Regular price $386.23 AUD Regular price Sale price $386.23 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 228.60 mm _{(9 in.)}	Clip Thickness (T) 4.75 mm +/- 0.204 _{(0.187 in.)}	Groove Dia. (Dg) 219.00 mm +/- 0.127 _{(8.622 in.)}	Approx. Loose Circlip ID (A) 213.70 mm		Groove Width (W) 5.30 mm
Material: Carbon Steel Zinc Plated Standard: MIL-16624
Part Number: CCE-22860-CZY External Retaining Rings - 228.6x4.75x219 mm - Carbon Steel Zinc Plated Out of Stock \| Backorder Now \| Orders can be expected around Thu, Aug 07, 2025 Regular price $384.95 AUD Regular price Sale price $384.95 AUD Unit price per Each
Shaft Diameter (Ds) 228.60 mm _{(9 in.)}	Clip Thickness (T) 4.75 mm +/- 0.204 _{(0.187 in.)}	Groove Dia. (Dg) 219.00 mm +/- 0.127 _{(8.622 in.)}	Approx. Loose Circlip ID (A) 213.70 mm
Material: Carbon Steel Zinc Plated Groove Width (W): 5.30 mm Standard: MIL-16624
Part Number: CCE-22860-CZY External Retaining Rings - 228.6x4.75x219 mm - Carbon Steel Zinc Plated Out of Stock \| Backorder Now \| Orders can be expected around Thu, Aug 07, 2025 Regular price $384.95 AUD Regular price Sale price $384.95 AUD Unit price per Each View the product page first if you are unsure.
CCE-22860-CZY --- External Retaining Rings - 228.6x4.75x219 mm - Carbon Steel Zinc Plated CCE-22860-CZY --- External Retaining Rings - 228.6x4.75x219 mm - Carbon Steel Zinc Plated Regular price $384.95 AUD Regular price Sale price $384.95 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 241.30 mm _{(9.5 in.)}	Clip Thickness (T) 4.75 mm +/- 0.204 _{(0.187 in.)}	Groove Dia. (Dg) 231.10 mm +/- 0.127 _{(9.098 in.)}	Approx. Loose Circlip ID (A) 225.70 mm		Groove Width (W) 5.30 mm
Material: Carbon Steel Zinc Plated Standard: MIL-16624
Part Number: CCE-24130-CZY (3 Pcs) External Retaining Rings - 241.3x4.75x231.1 mm - Carbon Steel Zinc Plated Out of Stock \| Backorder Now \| Orders can be expected around Thu, Aug 07, 2025 Regular price $1,286.95 AUD Regular price Sale price $1,286.95 AUD Unit price per Per 3
Shaft Diameter (Ds) 241.30 mm _{(9.5 in.)}	Clip Thickness (T) 4.75 mm +/- 0.204 _{(0.187 in.)}	Groove Dia. (Dg) 231.10 mm +/- 0.127 _{(9.098 in.)}	Approx. Loose Circlip ID (A) 225.70 mm
Material: Carbon Steel Zinc Plated Groove Width (W): 5.30 mm Standard: MIL-16624
Part Number: CCE-24130-CZY (3 Pcs) External Retaining Rings - 241.3x4.75x231.1 mm - Carbon Steel Zinc Plated Out of Stock \| Backorder Now \| Orders can be expected around Thu, Aug 07, 2025 Regular price $1,286.95 AUD Regular price Sale price $1,286.95 AUD Unit price per Per 3 View the product page first if you are unsure.
CCE-24130-CZY (3 Pcs) --- External Retaining Rings - 241.3x4.75x231.1 mm - Carbon Steel Zinc Plated CCE-24130-CZY (3 Pcs) --- External Retaining Rings - 241.3x4.75x231.1 mm - Carbon Steel Zinc Plated Regular price $1,286.95 AUD Regular price Sale price $1,286.95 AUD Unit price per Out of stock! Backorder Now
