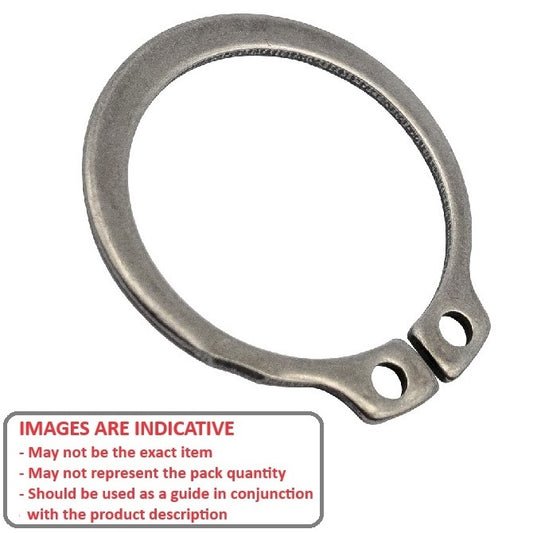

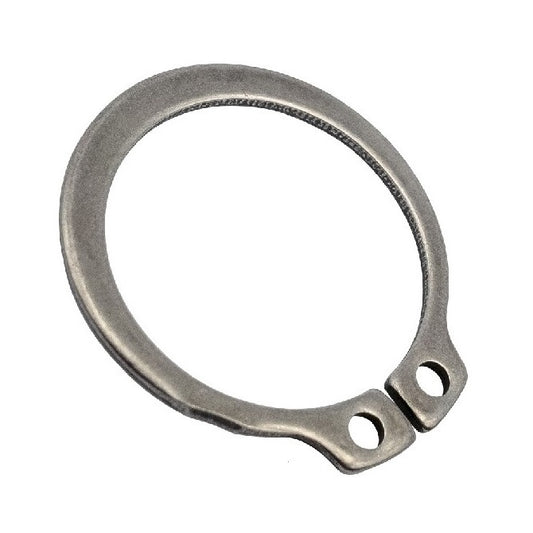

Collection: Retaining Rings - External - Circlips - Standard - Stainless Steel

Retaining Rings (With Images)

External

Circlips

Standard

147 Products in this selection

Imperial and metric DIN471 / D1400 / N1400 / D1460. PH15-7 Mo Stainless Steel. Retaining rings. Snap Rings (USA).
PH15-7 Mo Stainless Steel.

Additional resources:
Anderton Cross Reference PDF
Circlips PDF Catalogue
Circlip Tools

A more concise listing may be found on the Smallparts store at Retaining Rings - External - Circlips - Standard - Stainless Steel. Smallparts promote the most popular MBA products.

Shaft Diameter (Ds)	Clip Thickness (T)	Groove Dia. (Dg)	Approx. Loose Circlip ID (A)	Radial Wall (S) min/max	Groove Width (W)	Indicative Image
Shaft Diameter (Ds) 55.00 mm _{(2.165 in.)}	Clip Thickness (T) 2.00 mm + 0.00 / - 0.25 _{(0.079 in.)}	Groove Dia. (Dg) 51.75 mm + 0.00 / - 0.06 _{(2.037 in.)}	Approx. Loose Circlip ID (A) 50.80 mm		Groove Width (W) 2.15 mm
Material: Stainless Steel Grade PH15-7 Mo Clearance on Shaft (C1): 66.40 mm Clearance in Groove (C1): 70.20 mm Min. Lug Diameter (h): 2.50 mm Min. Extension (n): 4.50 Standard: DIN471
Part Number: CCE-05500-S15 External Retaining Rings - 55x2x51.75 mm - Stainless Steel Grade PH15-7 Mo Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $37.05 AUD Regular price Sale price $37.05 AUD Unit price per Each
Shaft Diameter (Ds)	Clip Thickness (T)	Groove Dia. (Dg)	Approx. Loose Circlip ID (A)	Indicative Image
Shaft Diameter (Ds) 55.00 mm _{(2.165 in.)}	Clip Thickness (T) 2.00 mm + 0.00 / - 0.25 _{(0.079 in.)}	Groove Dia. (Dg) 51.75 mm + 0.00 / - 0.06 _{(2.037 in.)}	Approx. Loose Circlip ID (A) 50.80 mm
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 2.15 mm Clearance on Shaft (C1): 66.40 mm Clearance in Groove (C1): 70.20 mm Min. Lug Diameter (h): 2.50 mm Min. Extension (n): 4.50 Standard: DIN471
Part Number: CCE-05500-S15 External Retaining Rings - 55x2x51.75 mm - Stainless Steel Grade PH15-7 Mo Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $37.05 AUD Regular price Sale price $37.05 AUD Unit price per Each View the product page first if you are unsure.
CCE-05500-S15 --- External Retaining Rings - 55x2x51.75 mm - Stainless Steel Grade PH15-7 Mo CCE-05500-S15 --- External Retaining Rings - 55x2x51.75 mm - Stainless Steel Grade PH15-7 Mo Regular price $37.05 AUD Regular price Sale price $37.05 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 57.15 mm _{(2.25 in.)}	Clip Thickness (T) 1.98 mm +/- 0.152 _{(0.078 in.)}	Groove Dia. (Dg) 53.90 mm +/- 0.076 _{(2.122 in.)}	Approx. Loose Circlip ID (A) 52.90 mm	Radial Wall (S) min/max B (Square Ends) mm	Groove Width (W) 2.20 mm
Material: Stainless Steel Grade PH15-7 Mo Standard: MIL-16624
Part Number: CCE-05715-S15 External Retaining Rings - 57.15x1.98x53.9 mm - Stainless Steel Grade PH15-7 Mo Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $75.86 AUD Regular price Sale price $75.86 AUD Unit price per Each
Shaft Diameter (Ds) 57.15 mm _{(2.25 in.)}	Clip Thickness (T) 1.98 mm +/- 0.152 _{(0.078 in.)}	Groove Dia. (Dg) 53.90 mm +/- 0.076 _{(2.122 in.)}	Approx. Loose Circlip ID (A) 52.90 mm
Material: Stainless Steel Grade PH15-7 Mo Radial Wall (S) min/max: B (Square Ends) mm Groove Width (W): 2.20 mm Standard: MIL-16624
Part Number: CCE-05715-S15 External Retaining Rings - 57.15x1.98x53.9 mm - Stainless Steel Grade PH15-7 Mo Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $75.86 AUD Regular price Sale price $75.86 AUD Unit price per Each View the product page first if you are unsure.
CCE-05715-S15 --- External Retaining Rings - 57.15x1.98x53.9 mm - Stainless Steel Grade PH15-7 Mo CCE-05715-S15 --- External Retaining Rings - 57.15x1.98x53.9 mm - Stainless Steel Grade PH15-7 Mo Regular price $75.86 AUD Regular price Sale price $75.86 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 58.74 mm _{(2.313 in.)}	Clip Thickness (T) 1.98 mm +/- 0.152 _{(0.078 in.)}	Groove Dia. (Dg) 55.30 mm +/- 0.076 _{(2.177 in.)}	Approx. Loose Circlip ID (A) 54.30 mm	Radial Wall (S) min/max B (Square Ends) mm	Groove Width (W) 2.20 mm
Material: Stainless Steel Grade PH15-7 Mo Standard: MIL-16624
Part Number: CCE-05874-S15 (25 Pcs) External Retaining Rings - 58.74x1.98x55.3 mm - Stainless Steel Grade PH15-7 Mo Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $2,316.68 AUD Regular price Sale price $2,316.68 AUD Unit price per Per 25
Shaft Diameter (Ds) 58.74 mm _{(2.313 in.)}	Clip Thickness (T) 1.98 mm +/- 0.152 _{(0.078 in.)}	Groove Dia. (Dg) 55.30 mm +/- 0.076 _{(2.177 in.)}	Approx. Loose Circlip ID (A) 54.30 mm
Material: Stainless Steel Grade PH15-7 Mo Radial Wall (S) min/max: B (Square Ends) mm Groove Width (W): 2.20 mm Standard: MIL-16624
Part Number: CCE-05874-S15 (25 Pcs) External Retaining Rings - 58.74x1.98x55.3 mm - Stainless Steel Grade PH15-7 Mo Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $2,316.68 AUD Regular price Sale price $2,316.68 AUD Unit price per Per 25 View the product page first if you are unsure.
CCE-05874-S15 (25 Pcs) --- External Retaining Rings - 58.74x1.98x55.3 mm - Stainless Steel Grade PH15-7 Mo CCE-05874-S15 (25 Pcs) --- External Retaining Rings - 58.74x1.98x55.3 mm - Stainless Steel Grade PH15-7 Mo Regular price $2,316.68 AUD Regular price Sale price $2,316.68 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 60.00 mm _{(2.362 in.)}	Clip Thickness (T) 2.00 mm + 0.00 / - 0.30 _{(0.079 in.)}	Groove Dia. (Dg) 56.70 mm + 0.00 / - 0.07 _{(2.232 in.)}	Approx. Loose Circlip ID (A) 55.80 mm		Groove Width (W) 2.15 mm
Material: Stainless Steel Grade PH15-7 Mo Clearance on Shaft (C1): 71.80 mm Clearance in Groove (C1): 75.60 mm Min. Lug Diameter (h): 2.50 mm Min. Extension (n): 4.50 Standard: DIN471
Part Number: CCE-06000-S15 External Retaining Rings - 60x2x56.7 mm - Stainless Steel Grade PH15-7 Mo 25 Available Immediately \| Further orders can be expected around Sun, Jun 08, 2025 Regular price $38.05 AUD Regular price Sale price $38.05 AUD Unit price per Each
Shaft Diameter (Ds) 60.00 mm _{(2.362 in.)}	Clip Thickness (T) 2.00 mm + 0.00 / - 0.30 _{(0.079 in.)}	Groove Dia. (Dg) 56.70 mm + 0.00 / - 0.07 _{(2.232 in.)}	Approx. Loose Circlip ID (A) 55.80 mm
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 2.15 mm Clearance on Shaft (C1): 71.80 mm Clearance in Groove (C1): 75.60 mm Min. Lug Diameter (h): 2.50 mm Min. Extension (n): 4.50 Standard: DIN471
Part Number: CCE-06000-S15 External Retaining Rings - 60x2x56.7 mm - Stainless Steel Grade PH15-7 Mo 25 Available Immediately \| Further orders can be expected around Sun, Jun 08, 2025 Regular price $38.05 AUD Regular price Sale price $38.05 AUD Unit price per Each View the product page first if you are unsure.
CCE-06000-S15 --- External Retaining Rings - 60x2x56.7 mm - Stainless Steel Grade PH15-7 Mo CCE-06000-S15 --- External Retaining Rings - 60x2x56.7 mm - Stainless Steel Grade PH15-7 Mo Regular price $38.05 AUD Regular price Sale price $38.05 AUD Unit price per 25 Available Now
Shaft Diameter (Ds) 60.33 mm _{(2.375 in.)}	Clip Thickness (T) 1.98 mm +/- 0.152 _{(0.078 in.)}	Groove Dia. (Dg) 56.90 mm +/- 0.076 _{(2.24 in.)}	Approx. Loose Circlip ID (A) 55.80 mm	Radial Wall (S) min/max B (Square Ends) mm	Groove Width (W) 2.20 mm
Material: Stainless Steel Grade PH15-7 Mo Standard: MIL-16624
Part Number: CCE-06033-S15 External Retaining Rings - 60.33x1.98x56.9 mm - Stainless Steel Grade PH15-7 Mo Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $71.23 AUD Regular price Sale price $71.23 AUD Unit price per Each
Shaft Diameter (Ds) 60.33 mm _{(2.375 in.)}	Clip Thickness (T) 1.98 mm +/- 0.152 _{(0.078 in.)}	Groove Dia. (Dg) 56.90 mm +/- 0.076 _{(2.24 in.)}	Approx. Loose Circlip ID (A) 55.80 mm
Material: Stainless Steel Grade PH15-7 Mo Radial Wall (S) min/max: B (Square Ends) mm Groove Width (W): 2.20 mm Standard: MIL-16624
Part Number: CCE-06033-S15 External Retaining Rings - 60.33x1.98x56.9 mm - Stainless Steel Grade PH15-7 Mo Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $71.23 AUD Regular price Sale price $71.23 AUD Unit price per Each View the product page first if you are unsure.
CCE-06033-S15 --- External Retaining Rings - 60.33x1.98x56.9 mm - Stainless Steel Grade PH15-7 Mo CCE-06033-S15 --- External Retaining Rings - 60.33x1.98x56.9 mm - Stainless Steel Grade PH15-7 Mo Regular price $71.23 AUD Regular price Sale price $71.23 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 61.91 mm _{(2.437 in.)}	Clip Thickness (T) 1.98 mm +/- 0.152 _{(0.078 in.)}	Groove Dia. (Dg) 58.39 mm +/- 0.076 _{(2.299 in.)}	Approx. Loose Circlip ID (A) 57.28 mm		Groove Width (W) 2.18 mm
Material: Stainless Steel Grade PH15-7 Mo Clearance on Shaft (C1): 74.17 mm Clearance in Groove (C1): 70.61 mm Min. Lug Diameter (h): 3.12 mm Min. Extension (n): 5.51 Standard: MIL-16624
Part Number: CCE-06191-S15 External Retaining Rings - 61.91x1.98x58.39 mm - Stainless Steel Grade PH15-7 Mo Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $77.32 AUD Regular price Sale price $77.32 AUD Unit price per Each
Shaft Diameter (Ds) 61.91 mm _{(2.437 in.)}	Clip Thickness (T) 1.98 mm +/- 0.152 _{(0.078 in.)}	Groove Dia. (Dg) 58.39 mm +/- 0.076 _{(2.299 in.)}	Approx. Loose Circlip ID (A) 57.28 mm
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 2.18 mm Clearance on Shaft (C1): 74.17 mm Clearance in Groove (C1): 70.61 mm Min. Lug Diameter (h): 3.12 mm Min. Extension (n): 5.51 Standard: MIL-16624
Part Number: CCE-06191-S15 External Retaining Rings - 61.91x1.98x58.39 mm - Stainless Steel Grade PH15-7 Mo Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $77.32 AUD Regular price Sale price $77.32 AUD Unit price per Each View the product page first if you are unsure.
CCE-06191-S15 --- External Retaining Rings - 61.91x1.98x58.39 mm - Stainless Steel Grade PH15-7 Mo CCE-06191-S15 --- External Retaining Rings - 61.91x1.98x58.39 mm - Stainless Steel Grade PH15-7 Mo Regular price $77.32 AUD Regular price Sale price $77.32 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 62.00 mm _{(2.441 in.)}	Clip Thickness (T) 2.00 mm + 0.00 / - 0.30 _{(0.079 in.)}	Groove Dia. (Dg) 58.70 mm + 0.00 / - 0.07 _{(2.311 in.)}	Approx. Loose Circlip ID (A) 57.80 mm		Groove Width (W) 2.15 mm
Material: Stainless Steel Grade PH15-7 Mo Clearance on Shaft (C1): 74.00 mm Clearance in Groove (C1): 77.80 mm Min. Lug Diameter (h): 2.50 mm Min. Extension (n): 4.50 Standard: DIN471
Part Number: CCE-06200-S15 External Retaining Rings - 62x2x58.7 mm - Stainless Steel Grade PH15-7 Mo 5 Available Immediately \| Further orders can be expected around Sun, Jun 08, 2025 Regular price $42.41 AUD Regular price Sale price $42.41 AUD Unit price per Each
Shaft Diameter (Ds) 62.00 mm _{(2.441 in.)}	Clip Thickness (T) 2.00 mm + 0.00 / - 0.30 _{(0.079 in.)}	Groove Dia. (Dg) 58.70 mm + 0.00 / - 0.07 _{(2.311 in.)}	Approx. Loose Circlip ID (A) 57.80 mm
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 2.15 mm Clearance on Shaft (C1): 74.00 mm Clearance in Groove (C1): 77.80 mm Min. Lug Diameter (h): 2.50 mm Min. Extension (n): 4.50 Standard: DIN471
Part Number: CCE-06200-S15 External Retaining Rings - 62x2x58.7 mm - Stainless Steel Grade PH15-7 Mo 5 Available Immediately \| Further orders can be expected around Sun, Jun 08, 2025 Regular price $42.41 AUD Regular price Sale price $42.41 AUD Unit price per Each View the product page first if you are unsure.
CCE-06200-S15 --- External Retaining Rings - 62x2x58.7 mm - Stainless Steel Grade PH15-7 Mo CCE-06200-S15 --- External Retaining Rings - 62x2x58.7 mm - Stainless Steel Grade PH15-7 Mo Regular price $42.41 AUD Regular price Sale price $42.41 AUD Unit price per 5 Available Now
Shaft Diameter (Ds) 63.50 mm _{(2.5 in.)}	Clip Thickness (T) 1.98 mm +/- 0.152 _{(0.078 in.)}	Groove Dia. (Dg) 59.94 mm +/- 0.076 _{(2.36 in.)}	Approx. Loose Circlip ID (A) 58.80 mm	Radial Wall (S) min/max B (Square Ends) mm	Groove Width (W) 2.20 mm
Material: Stainless Steel Grade PH15-7 Mo Standard: MIL-16624
Part Number: CCE-06350-S15 External Retaining Rings - 63.5x1.98x59.94 mm - Stainless Steel Grade PH15-7 Mo Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $77.50 AUD Regular price Sale price $77.50 AUD Unit price per Each
Shaft Diameter (Ds) 63.50 mm _{(2.5 in.)}	Clip Thickness (T) 1.98 mm +/- 0.152 _{(0.078 in.)}	Groove Dia. (Dg) 59.94 mm +/- 0.076 _{(2.36 in.)}	Approx. Loose Circlip ID (A) 58.80 mm
Material: Stainless Steel Grade PH15-7 Mo Radial Wall (S) min/max: B (Square Ends) mm Groove Width (W): 2.20 mm Standard: MIL-16624
Part Number: CCE-06350-S15 External Retaining Rings - 63.5x1.98x59.94 mm - Stainless Steel Grade PH15-7 Mo Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $77.50 AUD Regular price Sale price $77.50 AUD Unit price per Each View the product page first if you are unsure.
CCE-06350-S15 --- External Retaining Rings - 63.5x1.98x59.94 mm - Stainless Steel Grade PH15-7 Mo CCE-06350-S15 --- External Retaining Rings - 63.5x1.98x59.94 mm - Stainless Steel Grade PH15-7 Mo Regular price $77.50 AUD Regular price Sale price $77.50 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 64.99 mm _{(2.559 in.)}	Clip Thickness (T) 1.98 mm +/- 0.152 _{(0.078 in.)}	Groove Dia. (Dg) 61.44 mm +/- 0.076 _{(2.419 in.)}	Approx. Loose Circlip ID (A) 60.40 mm		Groove Width (W) 2.18 mm
Material: Stainless Steel Grade PH15-7 Mo Standard: MIL-16624
Part Number: CCE-06499-S15 External Retaining Rings - 64.99x1.98x61.44 mm - Stainless Steel Grade PH15-7 Mo Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $106.50 AUD Regular price Sale price $106.50 AUD Unit price per Each
Shaft Diameter (Ds) 64.99 mm _{(2.559 in.)}	Clip Thickness (T) 1.98 mm +/- 0.152 _{(0.078 in.)}	Groove Dia. (Dg) 61.44 mm +/- 0.076 _{(2.419 in.)}	Approx. Loose Circlip ID (A) 60.40 mm
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 2.18 mm Standard: MIL-16624
Part Number: CCE-06499-S15 External Retaining Rings - 64.99x1.98x61.44 mm - Stainless Steel Grade PH15-7 Mo Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $106.50 AUD Regular price Sale price $106.50 AUD Unit price per Each View the product page first if you are unsure.
CCE-06499-S15 --- External Retaining Rings - 64.99x1.98x61.44 mm - Stainless Steel Grade PH15-7 Mo CCE-06499-S15 --- External Retaining Rings - 64.99x1.98x61.44 mm - Stainless Steel Grade PH15-7 Mo Regular price $106.50 AUD Regular price Sale price $106.50 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 65.00 mm _{(2.559 in.)}	Clip Thickness (T) 2.50 mm + 0.00 / - 0.30 _{(0.098 in.)}	Groove Dia. (Dg) 61.70 mm + 0.00 / - 0.07 _{(2.429 in.)}	Approx. Loose Circlip ID (A) 60.80 mm		Groove Width (W) 2.65 mm
Material: Stainless Steel Grade PH15-7 Mo Clearance on Shaft (C1): 77.60 mm Clearance in Groove (C1): 81.40 mm Min. Lug Diameter (h): 3.00 mm Min. Extension (n): 4.50 Standard: DIN471
Part Number: CCE-06500-S15 External Retaining Rings - 65x2.5x61.7 mm - Stainless Steel Grade PH15-7 Mo Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $72.59 AUD Regular price Sale price $72.59 AUD Unit price per Each
Shaft Diameter (Ds) 65.00 mm _{(2.559 in.)}	Clip Thickness (T) 2.50 mm + 0.00 / - 0.30 _{(0.098 in.)}	Groove Dia. (Dg) 61.70 mm + 0.00 / - 0.07 _{(2.429 in.)}	Approx. Loose Circlip ID (A) 60.80 mm
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 2.65 mm Clearance on Shaft (C1): 77.60 mm Clearance in Groove (C1): 81.40 mm Min. Lug Diameter (h): 3.00 mm Min. Extension (n): 4.50 Standard: DIN471
Part Number: CCE-06500-S15 External Retaining Rings - 65x2.5x61.7 mm - Stainless Steel Grade PH15-7 Mo Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $72.59 AUD Regular price Sale price $72.59 AUD Unit price per Each View the product page first if you are unsure.
CCE-06500-S15 --- External Retaining Rings - 65x2.5x61.7 mm - Stainless Steel Grade PH15-7 Mo CCE-06500-S15 --- External Retaining Rings - 65x2.5x61.7 mm - Stainless Steel Grade PH15-7 Mo Regular price $72.59 AUD Regular price Sale price $72.59 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 66.68 mm _{(2.625 in.)}	Clip Thickness (T) 1.98 mm +/- 0.152 _{(0.078 in.)}	Groove Dia. (Dg) 63.00 mm +/- 0.076 _{(2.48 in.)}	Approx. Loose Circlip ID (A) 61.70 mm		Groove Width (W) 2.20 mm
Material: Stainless Steel Grade PH15-7 Mo Standard: MIL-16624
Part Number: CCE-06668-S15 External Retaining Rings - 66.68x1.98x63 mm - Stainless Steel Grade PH15-7 Mo Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $100.41 AUD Regular price Sale price $100.41 AUD Unit price per Each
Shaft Diameter (Ds) 66.68 mm _{(2.625 in.)}	Clip Thickness (T) 1.98 mm +/- 0.152 _{(0.078 in.)}	Groove Dia. (Dg) 63.00 mm +/- 0.076 _{(2.48 in.)}	Approx. Loose Circlip ID (A) 61.70 mm
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 2.20 mm Standard: MIL-16624
Part Number: CCE-06668-S15 External Retaining Rings - 66.68x1.98x63 mm - Stainless Steel Grade PH15-7 Mo Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $100.41 AUD Regular price Sale price $100.41 AUD Unit price per Each View the product page first if you are unsure.
CCE-06668-S15 --- External Retaining Rings - 66.68x1.98x63 mm - Stainless Steel Grade PH15-7 Mo CCE-06668-S15 --- External Retaining Rings - 66.68x1.98x63 mm - Stainless Steel Grade PH15-7 Mo Regular price $100.41 AUD Regular price Sale price $100.41 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 68.26 mm _{(2.687 in.)}	Clip Thickness (T) 1.98 mm +/- 0.152 _{(0.078 in.)}	Groove Dia. (Dg) 89.90 mm +/- 0.076 _{(3.539 in.)}	Approx. Loose Circlip ID (A) 63.10 mm	Radial Wall (S) min/max B (Square Ends) mm	Groove Width (W) 2.20 mm
Material: Stainless Steel Grade PH15-7 Mo Standard: MIL-16624
Part Number: CCE-06826-S15 External Retaining Rings - 68.26x1.98x89.9 mm - Stainless Steel Grade PH15-7 Mo Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $85.50 AUD Regular price Sale price $85.50 AUD Unit price per Each
Shaft Diameter (Ds) 68.26 mm _{(2.687 in.)}	Clip Thickness (T) 1.98 mm +/- 0.152 _{(0.078 in.)}	Groove Dia. (Dg) 89.90 mm +/- 0.076 _{(3.539 in.)}	Approx. Loose Circlip ID (A) 63.10 mm
Material: Stainless Steel Grade PH15-7 Mo Radial Wall (S) min/max: B (Square Ends) mm Groove Width (W): 2.20 mm Standard: MIL-16624
Part Number: CCE-06826-S15 External Retaining Rings - 68.26x1.98x89.9 mm - Stainless Steel Grade PH15-7 Mo Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $85.50 AUD Regular price Sale price $85.50 AUD Unit price per Each View the product page first if you are unsure.
CCE-06826-S15 --- External Retaining Rings - 68.26x1.98x89.9 mm - Stainless Steel Grade PH15-7 Mo CCE-06826-S15 --- External Retaining Rings - 68.26x1.98x89.9 mm - Stainless Steel Grade PH15-7 Mo Regular price $85.50 AUD Regular price Sale price $85.50 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 69.85 mm _{(2.75 in.)}	Clip Thickness (T) 2.36 mm +/- 0.152 _{(0.093 in.)}	Groove Dia. (Dg) 66.10 mm +/- 0.076 _{(2.602 in.)}	Approx. Loose Circlip ID (A) 64.60 mm	Radial Wall (S) min/max B (Square Ends) mm	Groove Width (W) 2.60 mm
Material: Stainless Steel Grade PH15-7 Mo Standard: MIL-16624
Part Number: CCE-06985-S15 External Retaining Rings - 69.85x2.36x66.1 mm - Stainless Steel Grade PH15-7 Mo Out of Stock \| Backorder Now \| Orders can be expected around Wed, Sep 10, 2025 Regular price $121.41 AUD Regular price Sale price $121.41 AUD Unit price per Each
Shaft Diameter (Ds) 69.85 mm _{(2.75 in.)}	Clip Thickness (T) 2.36 mm +/- 0.152 _{(0.093 in.)}	Groove Dia. (Dg) 66.10 mm +/- 0.076 _{(2.602 in.)}	Approx. Loose Circlip ID (A) 64.60 mm
Material: Stainless Steel Grade PH15-7 Mo Radial Wall (S) min/max: B (Square Ends) mm Groove Width (W): 2.60 mm Standard: MIL-16624
Part Number: CCE-06985-S15 External Retaining Rings - 69.85x2.36x66.1 mm - Stainless Steel Grade PH15-7 Mo Out of Stock \| Backorder Now \| Orders can be expected around Wed, Sep 10, 2025 Regular price $121.41 AUD Regular price Sale price $121.41 AUD Unit price per Each View the product page first if you are unsure.
CCE-06985-S15 --- External Retaining Rings - 69.85x2.36x66.1 mm - Stainless Steel Grade PH15-7 Mo CCE-06985-S15 --- External Retaining Rings - 69.85x2.36x66.1 mm - Stainless Steel Grade PH15-7 Mo Regular price $121.41 AUD Regular price Sale price $121.41 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 70.00 mm _{(2.756 in.)}	Clip Thickness (T) 2.50 mm + 0.00 / - 0.30 _{(0.098 in.)}	Groove Dia. (Dg) 67.00 mm + 0.00 / - 0.07 _{(2.638 in.)}	Approx. Loose Circlip ID (A) 65.50 mm		Groove Width (W) 2.65 mm
Material: Stainless Steel Grade PH15-7 Mo Clearance on Shaft (C1): 83.20 mm Clearance in Groove (C1): 87.00 mm Min. Lug Diameter (h): 3.00 mm Min. Extension (n): 4.50 Standard: DIN471
Part Number: CCE-07000-S15 (50 Pcs) External Retaining Rings - 70x2.5x67 mm - Stainless Steel Grade PH15-7 Mo Out of Stock \| Backorder Now \| Orders can be expected around Wed, Sep 10, 2025 Regular price $3,831.41 AUD Regular price Sale price $3,831.41 AUD Unit price per Per 50
Shaft Diameter (Ds) 70.00 mm _{(2.756 in.)}	Clip Thickness (T) 2.50 mm + 0.00 / - 0.30 _{(0.098 in.)}	Groove Dia. (Dg) 67.00 mm + 0.00 / - 0.07 _{(2.638 in.)}	Approx. Loose Circlip ID (A) 65.50 mm
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 2.65 mm Clearance on Shaft (C1): 83.20 mm Clearance in Groove (C1): 87.00 mm Min. Lug Diameter (h): 3.00 mm Min. Extension (n): 4.50 Standard: DIN471
Part Number: CCE-07000-S15 (50 Pcs) External Retaining Rings - 70x2.5x67 mm - Stainless Steel Grade PH15-7 Mo Out of Stock \| Backorder Now \| Orders can be expected around Wed, Sep 10, 2025 Regular price $3,831.41 AUD Regular price Sale price $3,831.41 AUD Unit price per Per 50 View the product page first if you are unsure.
CCE-07000-S15 (50 Pcs) --- External Retaining Rings - 70x2.5x67 mm - Stainless Steel Grade PH15-7 Mo CCE-07000-S15 (50 Pcs) --- External Retaining Rings - 70x2.5x67 mm - Stainless Steel Grade PH15-7 Mo Regular price $3,831.41 AUD Regular price Sale price $3,831.41 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 73.03 mm _{(2.875 in.)}	Clip Thickness (T) 2.36 mm +/- 0.152 _{(0.093 in.)}	Groove Dia. (Dg) 69.11 mm +/- 0.076 _{(2.721 in.)}	Approx. Loose Circlip ID (A) 67.50 mm		Groove Width (W) 2.60 mm
Material: Stainless Steel Grade PH15-7 Mo Standard: MIL-16624
Part Number: CCE-07303-S15 External Retaining Rings - 73.03x2.36x69.11 mm - Stainless Steel Grade PH15-7 Mo Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $140.41 AUD Regular price Sale price $140.41 AUD Unit price per Each
Shaft Diameter (Ds) 73.03 mm _{(2.875 in.)}	Clip Thickness (T) 2.36 mm +/- 0.152 _{(0.093 in.)}	Groove Dia. (Dg) 69.11 mm +/- 0.076 _{(2.721 in.)}	Approx. Loose Circlip ID (A) 67.50 mm
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 2.60 mm Standard: MIL-16624
Part Number: CCE-07303-S15 External Retaining Rings - 73.03x2.36x69.11 mm - Stainless Steel Grade PH15-7 Mo Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $140.41 AUD Regular price Sale price $140.41 AUD Unit price per Each View the product page first if you are unsure.
CCE-07303-S15 --- External Retaining Rings - 73.03x2.36x69.11 mm - Stainless Steel Grade PH15-7 Mo CCE-07303-S15 --- External Retaining Rings - 73.03x2.36x69.11 mm - Stainless Steel Grade PH15-7 Mo Regular price $140.41 AUD Regular price Sale price $140.41 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 74.61 mm _{(2.937 in.)}	Clip Thickness (T) 2.36 mm +/- 0.152 _{(0.093 in.)}	Groove Dia. (Dg) 70.59 mm +/- 0.076 _{(2.779 in.)}	Approx. Loose Circlip ID (A) 69.00 mm		Groove Width (W) 2.60 mm
Material: Stainless Steel Grade PH15-7 Mo Standard: MIL-16624
Part Number: CCE-07461-S15 External Retaining Rings - 74.61x2.36x70.59 mm - Stainless Steel Grade PH15-7 Mo Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $165.50 AUD Regular price Sale price $165.50 AUD Unit price per Each
Shaft Diameter (Ds) 74.61 mm _{(2.937 in.)}	Clip Thickness (T) 2.36 mm +/- 0.152 _{(0.093 in.)}	Groove Dia. (Dg) 70.59 mm +/- 0.076 _{(2.779 in.)}	Approx. Loose Circlip ID (A) 69.00 mm
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 2.60 mm Standard: MIL-16624
Part Number: CCE-07461-S15 External Retaining Rings - 74.61x2.36x70.59 mm - Stainless Steel Grade PH15-7 Mo Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $165.50 AUD Regular price Sale price $165.50 AUD Unit price per Each View the product page first if you are unsure.
CCE-07461-S15 --- External Retaining Rings - 74.61x2.36x70.59 mm - Stainless Steel Grade PH15-7 Mo CCE-07461-S15 --- External Retaining Rings - 74.61x2.36x70.59 mm - Stainless Steel Grade PH15-7 Mo Regular price $165.50 AUD Regular price Sale price $165.50 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 75.00 mm _{(2.953 in.)}	Clip Thickness (T) 2.50 mm + 0.00 / - 0.30 _{(0.098 in.)}	Groove Dia. (Dg) 72.00 mm + 0.00 / - 0.07 _{(2.835 in.)}	Approx. Loose Circlip ID (A) 70.50 mm		Groove Width (W) 2.65 mm
Material: Stainless Steel Grade PH15-7 Mo Clearance on Shaft (C1): 88.80 mm Clearance in Groove (C1): 92.70 mm Min. Lug Diameter (h): 3.00 mm Min. Extension (n): 4.50 Standard: DIN471
Part Number: CCE-07500-S15 (25 Pcs) External Retaining Rings - 75x2.5x72 mm - Stainless Steel Grade PH15-7 Mo Out of Stock \| Backorder Now \| Orders can be expected around Fri, Aug 08, 2025 Regular price $1,584.59 AUD Regular price Sale price $1,584.59 AUD Unit price per Per 25
Shaft Diameter (Ds) 75.00 mm _{(2.953 in.)}	Clip Thickness (T) 2.50 mm + 0.00 / - 0.30 _{(0.098 in.)}	Groove Dia. (Dg) 72.00 mm + 0.00 / - 0.07 _{(2.835 in.)}	Approx. Loose Circlip ID (A) 70.50 mm
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 2.65 mm Clearance on Shaft (C1): 88.80 mm Clearance in Groove (C1): 92.70 mm Min. Lug Diameter (h): 3.00 mm Min. Extension (n): 4.50 Standard: DIN471
Part Number: CCE-07500-S15 (25 Pcs) External Retaining Rings - 75x2.5x72 mm - Stainless Steel Grade PH15-7 Mo Out of Stock \| Backorder Now \| Orders can be expected around Fri, Aug 08, 2025 Regular price $1,584.59 AUD Regular price Sale price $1,584.59 AUD Unit price per Per 25 View the product page first if you are unsure.
CCE-07500-S15 (25 Pcs) --- External Retaining Rings - 75x2.5x72 mm - Stainless Steel Grade PH15-7 Mo CCE-07500-S15 (25 Pcs) --- External Retaining Rings - 75x2.5x72 mm - Stainless Steel Grade PH15-7 Mo Regular price $1,584.59 AUD Regular price Sale price $1,584.59 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 76.20 mm _{(3 in.)}	Clip Thickness (T) 2.36 mm +/- 0.152 _{(0.093 in.)}	Groove Dia. (Dg) 72.09 mm +/- 0.076 _{(2.838 in.)}	Approx. Loose Circlip ID (A) 70.50 mm		Groove Width (W) 2.60 mm
Material: Stainless Steel Grade PH15-7 Mo Standard: MIL-16624
Part Number: CCE-07620-S15 External Retaining Rings - 76.2x2.36x72.09 mm - Stainless Steel Grade PH15-7 Mo Out of Stock \| Backorder Now \| Orders can be expected around Wed, Sep 10, 2025 Regular price $161.05 AUD Regular price Sale price $161.05 AUD Unit price per Each
Shaft Diameter (Ds) 76.20 mm _{(3 in.)}	Clip Thickness (T) 2.36 mm +/- 0.152 _{(0.093 in.)}	Groove Dia. (Dg) 72.09 mm +/- 0.076 _{(2.838 in.)}	Approx. Loose Circlip ID (A) 70.50 mm
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 2.60 mm Standard: MIL-16624
Part Number: CCE-07620-S15 External Retaining Rings - 76.2x2.36x72.09 mm - Stainless Steel Grade PH15-7 Mo Out of Stock \| Backorder Now \| Orders can be expected around Wed, Sep 10, 2025 Regular price $161.05 AUD Regular price Sale price $161.05 AUD Unit price per Each View the product page first if you are unsure.
CCE-07620-S15 --- External Retaining Rings - 76.2x2.36x72.09 mm - Stainless Steel Grade PH15-7 Mo CCE-07620-S15 --- External Retaining Rings - 76.2x2.36x72.09 mm - Stainless Steel Grade PH15-7 Mo Regular price $161.05 AUD Regular price Sale price $161.05 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 77.79 mm _{(3.063 in.)}	Clip Thickness (T) 2.36 mm +/- 0.152 _{(0.093 in.)}	Groove Dia. (Dg) 73.61 mm +/- 0.076 _{(2.898 in.)}	Approx. Loose Circlip ID (A) 73.00 mm	Radial Wall (S) min/max B (Square Ends) mm	Groove Width (W) 2.62 mm
Material: Stainless Steel Grade PH15-7 Mo Standard: MIL-16624
Part Number: CCE-07779-S15 (3 Pcs) External Retaining Rings - 77.79x2.36x73.61 mm - Stainless Steel Grade PH15-7 Mo Out of Stock \| Backorder Now \| Orders can be expected around Fri, Aug 08, 2025 Regular price $484.59 AUD Regular price Sale price $484.59 AUD Unit price per Per 3
Shaft Diameter (Ds) 77.79 mm _{(3.063 in.)}	Clip Thickness (T) 2.36 mm +/- 0.152 _{(0.093 in.)}	Groove Dia. (Dg) 73.61 mm +/- 0.076 _{(2.898 in.)}	Approx. Loose Circlip ID (A) 73.00 mm
Material: Stainless Steel Grade PH15-7 Mo Radial Wall (S) min/max: B (Square Ends) mm Groove Width (W): 2.62 mm Standard: MIL-16624
Part Number: CCE-07779-S15 (3 Pcs) External Retaining Rings - 77.79x2.36x73.61 mm - Stainless Steel Grade PH15-7 Mo Out of Stock \| Backorder Now \| Orders can be expected around Fri, Aug 08, 2025 Regular price $484.59 AUD Regular price Sale price $484.59 AUD Unit price per Per 3 View the product page first if you are unsure.
CCE-07779-S15 (3 Pcs) --- External Retaining Rings - 77.79x2.36x73.61 mm - Stainless Steel Grade PH15-7 Mo CCE-07779-S15 (3 Pcs) --- External Retaining Rings - 77.79x2.36x73.61 mm - Stainless Steel Grade PH15-7 Mo Regular price $484.59 AUD Regular price Sale price $484.59 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 79.38 mm _{(3.125 in.)}	Clip Thickness (T) 2.36 mm +/- 0.152 _{(0.093 in.)}	Groove Dia. (Dg) 75.11 mm +/- 0.076 _{(2.957 in.)}	Approx. Loose Circlip ID (A) 73.50 mm		Groove Width (W) 2.60 mm
Material: Stainless Steel Grade PH15-7 Mo Standard: MIL-16624
Part Number: CCE-07938-S15 External Retaining Rings - 79.38x2.36x75.11 mm - Stainless Steel Grade PH15-7 Mo Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $183.95 AUD Regular price Sale price $183.95 AUD Unit price per Each
Shaft Diameter (Ds) 79.38 mm _{(3.125 in.)}	Clip Thickness (T) 2.36 mm +/- 0.152 _{(0.093 in.)}	Groove Dia. (Dg) 75.11 mm +/- 0.076 _{(2.957 in.)}	Approx. Loose Circlip ID (A) 73.50 mm
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 2.60 mm Standard: MIL-16624
Part Number: CCE-07938-S15 External Retaining Rings - 79.38x2.36x75.11 mm - Stainless Steel Grade PH15-7 Mo Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $183.95 AUD Regular price Sale price $183.95 AUD Unit price per Each View the product page first if you are unsure.
CCE-07938-S15 --- External Retaining Rings - 79.38x2.36x75.11 mm - Stainless Steel Grade PH15-7 Mo CCE-07938-S15 --- External Retaining Rings - 79.38x2.36x75.11 mm - Stainless Steel Grade PH15-7 Mo Regular price $183.95 AUD Regular price Sale price $183.95 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 80.00 mm _{(3.15 in.)}	Clip Thickness (T) 2.50 mm + 0.00 / - 0.30 _{(0.098 in.)}	Groove Dia. (Dg) 76.50 mm + 0.00 / - 0.07 _{(3.012 in.)}	Approx. Loose Circlip ID (A) 74.50 mm		Groove Width (W) 2.65 mm
Material: Stainless Steel Grade PH15-7 Mo Clearance on Shaft (C1): 93.70 mm Clearance in Groove (C1): 98.10 mm Min. Lug Diameter (h): 3.00 mm Min. Extension (n): 5.30 Standard: DIN471
Part Number: CCE-08000-S15 External Retaining Rings - 80x2.5x76.5 mm - Stainless Steel Grade PH15-7 Mo Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $67.23 AUD Regular price Sale price $67.23 AUD Unit price per Each
Shaft Diameter (Ds) 80.00 mm _{(3.15 in.)}	Clip Thickness (T) 2.50 mm + 0.00 / - 0.30 _{(0.098 in.)}	Groove Dia. (Dg) 76.50 mm + 0.00 / - 0.07 _{(3.012 in.)}	Approx. Loose Circlip ID (A) 74.50 mm
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 2.65 mm Clearance on Shaft (C1): 93.70 mm Clearance in Groove (C1): 98.10 mm Min. Lug Diameter (h): 3.00 mm Min. Extension (n): 5.30 Standard: DIN471
Part Number: CCE-08000-S15 External Retaining Rings - 80x2.5x76.5 mm - Stainless Steel Grade PH15-7 Mo Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $67.23 AUD Regular price Sale price $67.23 AUD Unit price per Each View the product page first if you are unsure.
CCE-08000-S15 --- External Retaining Rings - 80x2.5x76.5 mm - Stainless Steel Grade PH15-7 Mo CCE-08000-S15 --- External Retaining Rings - 80x2.5x76.5 mm - Stainless Steel Grade PH15-7 Mo Regular price $67.23 AUD Regular price Sale price $67.23 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 80.17 mm _{(3.156 in.)}	Clip Thickness (T) 2.36 mm +/- 0.152 _{(0.093 in.)}	Groove Dia. (Dg) 75.84 mm +/- 0.076 _{(2.986 in.)}	Approx. Loose Circlip ID (A) 74.20 mm	Radial Wall (S) min/max B (Square Ends) mm	Groove Width (W) 2.60 mm
Material: Stainless Steel Grade PH15-7 Mo Standard: MIL-16624
Part Number: CCE-08017-S15 (5 Pcs) External Retaining Rings - 80.17x2.36x75.84 mm - Stainless Steel Grade PH15-7 Mo Out of Stock \| Backorder Now \| Orders can be expected around Fri, Aug 08, 2025 Regular price $1,049.68 AUD Regular price Sale price $1,049.68 AUD Unit price per Per 5
Shaft Diameter (Ds) 80.17 mm _{(3.156 in.)}	Clip Thickness (T) 2.36 mm +/- 0.152 _{(0.093 in.)}	Groove Dia. (Dg) 75.84 mm +/- 0.076 _{(2.986 in.)}	Approx. Loose Circlip ID (A) 74.20 mm
Material: Stainless Steel Grade PH15-7 Mo Radial Wall (S) min/max: B (Square Ends) mm Groove Width (W): 2.60 mm Standard: MIL-16624
Part Number: CCE-08017-S15 (5 Pcs) External Retaining Rings - 80.17x2.36x75.84 mm - Stainless Steel Grade PH15-7 Mo Out of Stock \| Backorder Now \| Orders can be expected around Fri, Aug 08, 2025 Regular price $1,049.68 AUD Regular price Sale price $1,049.68 AUD Unit price per Per 5 View the product page first if you are unsure.
CCE-08017-S15 (5 Pcs) --- External Retaining Rings - 80.17x2.36x75.84 mm - Stainless Steel Grade PH15-7 Mo CCE-08017-S15 (5 Pcs) --- External Retaining Rings - 80.17x2.36x75.84 mm - Stainless Steel Grade PH15-7 Mo Regular price $1,049.68 AUD Regular price Sale price $1,049.68 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 82.55 mm _{(3.25 in.)}	Clip Thickness (T) 2.36 mm +/- 0.152 _{(0.093 in.)}	Groove Dia. (Dg) 78.10 mm +/- 0.076 _{(3.075 in.)}	Approx. Loose Circlip ID (A) 76.40 mm		Groove Width (W) 2.60 mm
Material: Stainless Steel Grade PH15-7 Mo Standard: MIL-16624
Part Number: CCE-08255-S15 External Retaining Rings - 82.55x2.36x78.1 mm - Stainless Steel Grade PH15-7 Mo Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $180.59 AUD Regular price Sale price $180.59 AUD Unit price per Each
Shaft Diameter (Ds) 82.55 mm _{(3.25 in.)}	Clip Thickness (T) 2.36 mm +/- 0.152 _{(0.093 in.)}	Groove Dia. (Dg) 78.10 mm +/- 0.076 _{(3.075 in.)}	Approx. Loose Circlip ID (A) 76.40 mm
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 2.60 mm Standard: MIL-16624
Part Number: CCE-08255-S15 External Retaining Rings - 82.55x2.36x78.1 mm - Stainless Steel Grade PH15-7 Mo Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $180.59 AUD Regular price Sale price $180.59 AUD Unit price per Each View the product page first if you are unsure.
CCE-08255-S15 --- External Retaining Rings - 82.55x2.36x78.1 mm - Stainless Steel Grade PH15-7 Mo CCE-08255-S15 --- External Retaining Rings - 82.55x2.36x78.1 mm - Stainless Steel Grade PH15-7 Mo Regular price $180.59 AUD Regular price Sale price $180.59 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 84.99 mm _{(3.346 in.)}	Clip Thickness (T) 2.36 mm +/- 0.152 _{(0.093 in.)}	Groove Dia. (Dg) 80.42 mm +/- 0.076 _{(3.166 in.)}	Approx. Loose Circlip ID (A) 78.50 mm	Radial Wall (S) min/max B (Square Ends) mm	Groove Width (W) 2.60 mm
Material: Stainless Steel Grade PH15-7 Mo Standard: MIL-16624
Part Number: CCE-08499-S15 External Retaining Rings - 84.99x2.36x80.42 mm - Stainless Steel Grade PH15-7 Mo Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $188.50 AUD Regular price Sale price $188.50 AUD Unit price per Each
Shaft Diameter (Ds) 84.99 mm _{(3.346 in.)}	Clip Thickness (T) 2.36 mm +/- 0.152 _{(0.093 in.)}	Groove Dia. (Dg) 80.42 mm +/- 0.076 _{(3.166 in.)}	Approx. Loose Circlip ID (A) 78.50 mm
Material: Stainless Steel Grade PH15-7 Mo Radial Wall (S) min/max: B (Square Ends) mm Groove Width (W): 2.60 mm Standard: MIL-16624
Part Number: CCE-08499-S15 External Retaining Rings - 84.99x2.36x80.42 mm - Stainless Steel Grade PH15-7 Mo Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $188.50 AUD Regular price Sale price $188.50 AUD Unit price per Each View the product page first if you are unsure.
CCE-08499-S15 --- External Retaining Rings - 84.99x2.36x80.42 mm - Stainless Steel Grade PH15-7 Mo CCE-08499-S15 --- External Retaining Rings - 84.99x2.36x80.42 mm - Stainless Steel Grade PH15-7 Mo Regular price $188.50 AUD Regular price Sale price $188.50 AUD Unit price per Out of stock! Backorder Now
