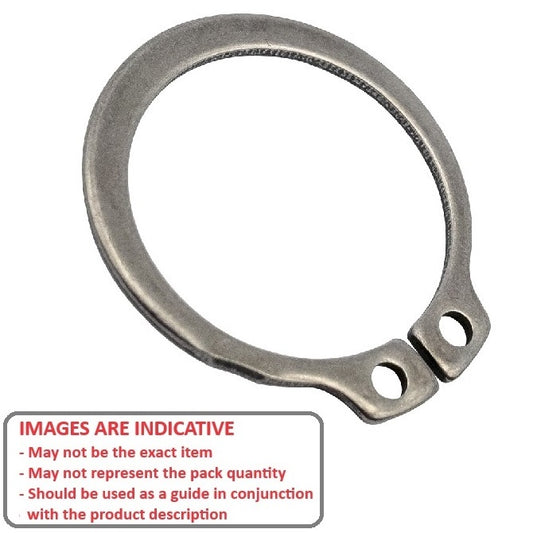

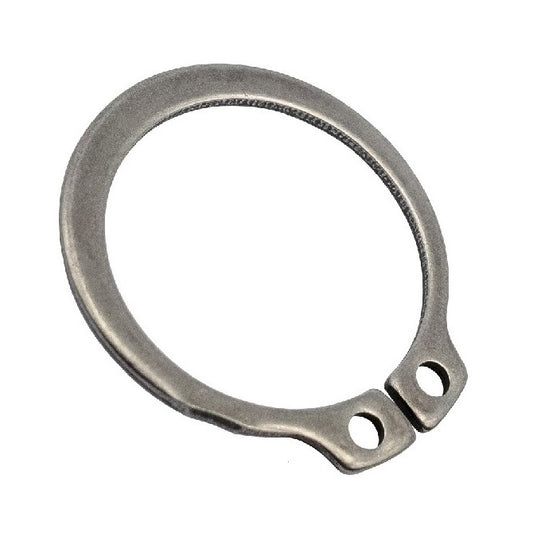

Collection: Retaining Rings - External - Circlips - Standard - Stainless Steel

Retaining Rings (With Images)

External

Circlips

Standard

147 Products in this selection

Imperial and metric DIN471 / D1400 / N1400 / D1460. PH15-7 Mo Stainless Steel. Retaining rings. Snap Rings (USA).
PH15-7 Mo Stainless Steel.

Additional resources:
Anderton Cross Reference PDF
Circlips PDF Catalogue
Circlip Tools

A more concise listing may be found on the Smallparts store at Retaining Rings - External - Circlips - Standard - Stainless Steel. Smallparts promote the most popular MBA products.

Shaft Diameter (Ds)	Clip Thickness (T)	Groove Dia. (Dg)	Approx. Loose Circlip ID (A)	Radial Wall (S) min/max	Groove Width (W)	Indicative Image
Shaft Diameter (Ds) 35.00 mm _{(1.378 in.)}	Clip Thickness (T) 1.50 mm + 0.00 / - 0.25 _{(0.059 in.)}	Groove Dia. (Dg) 32.75 mm + 0.00 / - 0.06 _{(1.289 in.)}	Approx. Loose Circlip ID (A) 32.20 mm		Groove Width (W) 1.60 mm
Material: Stainless Steel Grade PH15-7 Mo Clearance on Shaft (C1): 44.20 mm Clearance in Groove (C1): 46.80 mm Min. Lug Diameter (h): 2.50 mm Min. Extension (n): 3.00 Standard: DIN471
Part Number: CCE-03500-S15 (2 Pcs) External Retaining Rings - 35x1.5x32.75 mm - Stainless Steel Grade PH15-7 Mo Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $35.41 AUD Regular price Sale price $35.41 AUD Unit price per Per 2
Shaft Diameter (Ds)	Clip Thickness (T)	Groove Dia. (Dg)	Approx. Loose Circlip ID (A)	Indicative Image
Shaft Diameter (Ds) 35.00 mm _{(1.378 in.)}	Clip Thickness (T) 1.50 mm + 0.00 / - 0.25 _{(0.059 in.)}	Groove Dia. (Dg) 32.75 mm + 0.00 / - 0.06 _{(1.289 in.)}	Approx. Loose Circlip ID (A) 32.20 mm
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 1.60 mm Clearance on Shaft (C1): 44.20 mm Clearance in Groove (C1): 46.80 mm Min. Lug Diameter (h): 2.50 mm Min. Extension (n): 3.00 Standard: DIN471
Part Number: CCE-03500-S15 (2 Pcs) External Retaining Rings - 35x1.5x32.75 mm - Stainless Steel Grade PH15-7 Mo Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $35.41 AUD Regular price Sale price $35.41 AUD Unit price per Per 2 View the product page first if you are unsure.
CCE-03500-S15 (2 Pcs) --- External Retaining Rings - 35x1.5x32.75 mm - Stainless Steel Grade PH15-7 Mo CCE-03500-S15 (2 Pcs) --- External Retaining Rings - 35x1.5x32.75 mm - Stainless Steel Grade PH15-7 Mo Regular price $35.41 AUD Regular price Sale price $35.41 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 36.00 mm _{(1.417 in.)}	Clip Thickness (T) 1.75 mm + 0.00 / - 0.25 _{(0.069 in.)}	Groove Dia. (Dg) 34.00 mm + 0.00 / - 0.06 _{(1.339 in.)}	Approx. Loose Circlip ID (A) 33.20 mm		Groove Width (W) 1.85 mm
Material: Stainless Steel Grade PH15-7 Mo Clearance on Shaft (C1): 47.80 mm Clearance in Groove (C1): 45.20 mm Min. Lug Diameter (h): 2.50 mm Min. Extension (n): 3.00 Standard: DIN471
Part Number: CCE-03600-S15 External Retaining Rings - 36x1.75x34 mm - Stainless Steel Grade PH15-7 Mo Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $23.86 AUD Regular price Sale price $23.86 AUD Unit price per Each
Shaft Diameter (Ds) 36.00 mm _{(1.417 in.)}	Clip Thickness (T) 1.75 mm + 0.00 / - 0.25 _{(0.069 in.)}	Groove Dia. (Dg) 34.00 mm + 0.00 / - 0.06 _{(1.339 in.)}	Approx. Loose Circlip ID (A) 33.20 mm
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 1.85 mm Clearance on Shaft (C1): 47.80 mm Clearance in Groove (C1): 45.20 mm Min. Lug Diameter (h): 2.50 mm Min. Extension (n): 3.00 Standard: DIN471
Part Number: CCE-03600-S15 External Retaining Rings - 36x1.75x34 mm - Stainless Steel Grade PH15-7 Mo Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $23.86 AUD Regular price Sale price $23.86 AUD Unit price per Each View the product page first if you are unsure.
CCE-03600-S15 --- External Retaining Rings - 36x1.75x34 mm - Stainless Steel Grade PH15-7 Mo CCE-03600-S15 --- External Retaining Rings - 36x1.75x34 mm - Stainless Steel Grade PH15-7 Mo Regular price $23.86 AUD Regular price Sale price $23.86 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 36.53 mm _{(1.438 in.)}	Clip Thickness (T) 1.27 mm +/- 0.102 _{(0.05 in.)}	Groove Dia. (Dg) 34.29 mm +/- 0.051 _{(1.35 in.)}	Approx. Loose Circlip ID (A) 33.86 mm		Groove Width (W) 1.42 mm
Material: Stainless Steel Grade PH15-7 Mo Clearance in Groove (C1): 47.50 mm Min. Lug Diameter (h): 1.93 mm Standard: MIL-16624
Part Number: CCE-03653-S15 (2 Pcs) External Retaining Rings - 36.53x1.27x34.29 mm - Stainless Steel Grade PH15-7 Mo Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $25.68 AUD Regular price Sale price $25.68 AUD Unit price per Per 2
Shaft Diameter (Ds) 36.53 mm _{(1.438 in.)}	Clip Thickness (T) 1.27 mm +/- 0.102 _{(0.05 in.)}	Groove Dia. (Dg) 34.29 mm +/- 0.051 _{(1.35 in.)}	Approx. Loose Circlip ID (A) 33.86 mm
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 1.42 mm Clearance in Groove (C1): 47.50 mm Min. Lug Diameter (h): 1.93 mm Standard: MIL-16624
Part Number: CCE-03653-S15 (2 Pcs) External Retaining Rings - 36.53x1.27x34.29 mm - Stainless Steel Grade PH15-7 Mo Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $25.68 AUD Regular price Sale price $25.68 AUD Unit price per Per 2 View the product page first if you are unsure.
CCE-03653-S15 (2 Pcs) --- External Retaining Rings - 36.53x1.27x34.29 mm - Stainless Steel Grade PH15-7 Mo CCE-03653-S15 (2 Pcs) --- External Retaining Rings - 36.53x1.27x34.29 mm - Stainless Steel Grade PH15-7 Mo Regular price $25.68 AUD Regular price Sale price $25.68 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 38.00 mm _{(1.496 in.)}	Clip Thickness (T) 1.75 mm + 0.00 / - 0.25 _{(0.069 in.)}	Groove Dia. (Dg) 35.75 mm + 0.00 / - 0.06 _{(1.407 in.)}	Approx. Loose Circlip ID (A) 34.50 mm		Groove Width (W) 1.85 mm
Material: Stainless Steel Grade PH15-7 Mo Clearance on Shaft (C1): 47.60 mm Clearance in Groove (C1): 50.20 mm Min. Lug Diameter (h): 2.50 mm Min. Extension (n): 3.00 Standard: DIN471
Part Number: CCE-03800-S15 External Retaining Rings - 38x1.75x35.75 mm - Stainless Steel Grade PH15-7 Mo Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $24.14 AUD Regular price Sale price $24.14 AUD Unit price per Each
Shaft Diameter (Ds) 38.00 mm _{(1.496 in.)}	Clip Thickness (T) 1.75 mm + 0.00 / - 0.25 _{(0.069 in.)}	Groove Dia. (Dg) 35.75 mm + 0.00 / - 0.06 _{(1.407 in.)}	Approx. Loose Circlip ID (A) 34.50 mm
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 1.85 mm Clearance on Shaft (C1): 47.60 mm Clearance in Groove (C1): 50.20 mm Min. Lug Diameter (h): 2.50 mm Min. Extension (n): 3.00 Standard: DIN471
Part Number: CCE-03800-S15 External Retaining Rings - 38x1.75x35.75 mm - Stainless Steel Grade PH15-7 Mo Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $24.14 AUD Regular price Sale price $24.14 AUD Unit price per Each View the product page first if you are unsure.
CCE-03800-S15 --- External Retaining Rings - 38x1.75x35.75 mm - Stainless Steel Grade PH15-7 Mo CCE-03800-S15 --- External Retaining Rings - 38x1.75x35.75 mm - Stainless Steel Grade PH15-7 Mo Regular price $24.14 AUD Regular price Sale price $24.14 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 38.10 mm _{(1.5 in.)}	Clip Thickness (T) 1.27 mm +/- 0.102 _{(0.05 in.)}	Groove Dia. (Dg) 35.71 mm +/- 0.051 _{(1.406 in.)}	Approx. Loose Circlip ID (A) 35.23 mm		Groove Width (W) 1.42 mm
Material: Stainless Steel Grade PH15-7 Mo Clearance in Groove (C1): 50.55 mm Min. Lug Diameter (h): 2.72 mm Standard: MIL-16624
Part Number: CCE-03810-S15 External Retaining Rings - 38.1x1.27x35.71 mm - Stainless Steel Grade PH15-7 Mo 30 Available Immediately \| Further orders can be expected around Sun, Jun 08, 2025 Regular price $15.77 AUD Regular price Sale price $15.77 AUD Unit price per Each
Shaft Diameter (Ds) 38.10 mm _{(1.5 in.)}	Clip Thickness (T) 1.27 mm +/- 0.102 _{(0.05 in.)}	Groove Dia. (Dg) 35.71 mm +/- 0.051 _{(1.406 in.)}	Approx. Loose Circlip ID (A) 35.23 mm
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 1.42 mm Clearance in Groove (C1): 50.55 mm Min. Lug Diameter (h): 2.72 mm Standard: MIL-16624
Part Number: CCE-03810-S15 External Retaining Rings - 38.1x1.27x35.71 mm - Stainless Steel Grade PH15-7 Mo 30 Available Immediately \| Further orders can be expected around Sun, Jun 08, 2025 Regular price $15.77 AUD Regular price Sale price $15.77 AUD Unit price per Each View the product page first if you are unsure.
CCE-03810-S15 --- External Retaining Rings - 38.1x1.27x35.71 mm - Stainless Steel Grade PH15-7 Mo CCE-03810-S15 --- External Retaining Rings - 38.1x1.27x35.71 mm - Stainless Steel Grade PH15-7 Mo Regular price $15.77 AUD Regular price Sale price $15.77 AUD Unit price per 30 Available Now
Shaft Diameter (Ds) 38.10 mm _{(1.5 in.)}	Clip Thickness (T) 2.77 mm + 0.051 / - 0.102 _{(0.109 in.)}	Groove Dia. (Dg) 35.71 mm +/- 0.076 _{(1.406 in.)}	Approx. Loose Circlip ID (A) 35.05 mm
Material: Stainless Steel Grade PH15-7 Mo Standard: MIL-3217
Part Number: CCE-03810H-S15 External Retaining Rings - 38.1x2.77x35.71 mm - Stainless Steel Grade PH15-7 Mo Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $90.59 AUD Regular price Sale price $90.59 AUD Unit price per Each
Shaft Diameter (Ds) 38.10 mm _{(1.5 in.)}	Clip Thickness (T) 2.77 mm + 0.051 / - 0.102 _{(0.109 in.)}	Groove Dia. (Dg) 35.71 mm +/- 0.076 _{(1.406 in.)}	Approx. Loose Circlip ID (A) 35.05 mm
Material: Stainless Steel Grade PH15-7 Mo Standard: MIL-3217
Part Number: CCE-03810H-S15 External Retaining Rings - 38.1x2.77x35.71 mm - Stainless Steel Grade PH15-7 Mo Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $90.59 AUD Regular price Sale price $90.59 AUD Unit price per Each View the product page first if you are unsure.
CCE-03810H-S15 --- External Retaining Rings - 38.1x2.77x35.71 mm - Stainless Steel Grade PH15-7 Mo CCE-03810H-S15 --- External Retaining Rings - 38.1x2.77x35.71 mm - Stainless Steel Grade PH15-7 Mo Regular price $90.59 AUD Regular price Sale price $90.59 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 39.67 mm _{(1.562 in.)}	Clip Thickness (T) 1.58 mm +/- 0.127 _{(0.062 in.)}	Groove Dia. (Dg) 37.29 mm +/- 0.076 _{(1.468 in.)}	Approx. Loose Circlip ID (A) 36.73 mm		Groove Width (W) 1.73 mm
Material: Stainless Steel Grade PH15-7 Mo Clearance in Groove (C1): 53.34 mm Min. Lug Diameter (h): 2.49 mm Standard: MIL-16624
Part Number: CCE-03967-S15 External Retaining Rings - 39.67x1.58x37.29 mm - Stainless Steel Grade PH15-7 Mo Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $19.77 AUD Regular price Sale price $19.77 AUD Unit price per Each
Shaft Diameter (Ds) 39.67 mm _{(1.562 in.)}	Clip Thickness (T) 1.58 mm +/- 0.127 _{(0.062 in.)}	Groove Dia. (Dg) 37.29 mm +/- 0.076 _{(1.468 in.)}	Approx. Loose Circlip ID (A) 36.73 mm
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 1.73 mm Clearance in Groove (C1): 53.34 mm Min. Lug Diameter (h): 2.49 mm Standard: MIL-16624
Part Number: CCE-03967-S15 External Retaining Rings - 39.67x1.58x37.29 mm - Stainless Steel Grade PH15-7 Mo Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $19.77 AUD Regular price Sale price $19.77 AUD Unit price per Each View the product page first if you are unsure.
CCE-03967-S15 --- External Retaining Rings - 39.67x1.58x37.29 mm - Stainless Steel Grade PH15-7 Mo CCE-03967-S15 --- External Retaining Rings - 39.67x1.58x37.29 mm - Stainless Steel Grade PH15-7 Mo Regular price $19.77 AUD Regular price Sale price $19.77 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 40.00 mm _{(1.575 in.)}	Clip Thickness (T) 1.75 mm + 0.00 / - 0.25 _{(0.069 in.)}	Groove Dia. (Dg) 37.50 mm + 0.00 / - 0.06 _{(1.476 in.)}	Approx. Loose Circlip ID (A) 36.50 mm		Groove Width (W) 1.85 mm
Material: Stainless Steel Grade PH15-7 Mo Clearance on Shaft (C1): 49.50 mm Clearance in Groove (C1): 52.60 mm Min. Lug Diameter (h): 2.50 mm Min. Extension (n): 3.80 Standard: DIN471
Part Number: CCE-04000-S15 External Retaining Rings - 40x1.75x37.5 mm - Stainless Steel Grade PH15-7 Mo 46 Available Immediately \| Further orders can be expected around Sun, Jun 08, 2025 Regular price $8.59 AUD Regular price Sale price $8.59 AUD Unit price per Each
Shaft Diameter (Ds) 40.00 mm _{(1.575 in.)}	Clip Thickness (T) 1.75 mm + 0.00 / - 0.25 _{(0.069 in.)}	Groove Dia. (Dg) 37.50 mm + 0.00 / - 0.06 _{(1.476 in.)}	Approx. Loose Circlip ID (A) 36.50 mm
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 1.85 mm Clearance on Shaft (C1): 49.50 mm Clearance in Groove (C1): 52.60 mm Min. Lug Diameter (h): 2.50 mm Min. Extension (n): 3.80 Standard: DIN471
Part Number: CCE-04000-S15 External Retaining Rings - 40x1.75x37.5 mm - Stainless Steel Grade PH15-7 Mo 46 Available Immediately \| Further orders can be expected around Sun, Jun 08, 2025 Regular price $8.59 AUD Regular price Sale price $8.59 AUD Unit price per Each View the product page first if you are unsure.
CCE-04000-S15 --- External Retaining Rings - 40x1.75x37.5 mm - Stainless Steel Grade PH15-7 Mo CCE-04000-S15 --- External Retaining Rings - 40x1.75x37.5 mm - Stainless Steel Grade PH15-7 Mo Regular price $8.59 AUD Regular price Sale price $8.59 AUD Unit price per 46 Available Now
Shaft Diameter (Ds) 41.28 mm _{(1.625 in.)}	Clip Thickness (T) 1.57 mm +/- 0.127 _{(0.062 in.)}	Groove Dia. (Dg) 38.84 mm +/- 0.076 _{(1.529 in.)}	Approx. Loose Circlip ID (A) 38.18 mm		Groove Width (W) 1.73 mm
Material: Stainless Steel Grade PH15-7 Mo Clearance in Groove (C1): 55.12 mm Min. Lug Diameter (h): 2.54 mm Standard: MIL-16624
Part Number: CCE-04128-S15 External Retaining Rings - 41.28x1.57x38.84 mm - Stainless Steel Grade PH15-7 Mo Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $25.14 AUD Regular price Sale price $25.14 AUD Unit price per Each
Shaft Diameter (Ds) 41.28 mm _{(1.625 in.)}	Clip Thickness (T) 1.57 mm +/- 0.127 _{(0.062 in.)}	Groove Dia. (Dg) 38.84 mm +/- 0.076 _{(1.529 in.)}	Approx. Loose Circlip ID (A) 38.18 mm
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 1.73 mm Clearance in Groove (C1): 55.12 mm Min. Lug Diameter (h): 2.54 mm Standard: MIL-16624
Part Number: CCE-04128-S15 External Retaining Rings - 41.28x1.57x38.84 mm - Stainless Steel Grade PH15-7 Mo Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $25.14 AUD Regular price Sale price $25.14 AUD Unit price per Each View the product page first if you are unsure.
CCE-04128-S15 --- External Retaining Rings - 41.28x1.57x38.84 mm - Stainless Steel Grade PH15-7 Mo CCE-04128-S15 --- External Retaining Rings - 41.28x1.57x38.84 mm - Stainless Steel Grade PH15-7 Mo Regular price $25.14 AUD Regular price Sale price $25.14 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 42.00 mm _{(1.654 in.)}	Clip Thickness (T) 1.75 mm + 0.00 / - 0.25 _{(0.069 in.)}	Groove Dia. (Dg) 39.25 mm + 0.00 / - 0.06 _{(1.545 in.)}	Approx. Loose Circlip ID (A) 38.50 mm		Groove Width (W) 1.85 mm
Material: Stainless Steel Grade PH15-7 Mo Clearance on Shaft (C1): 52.50 mm Clearance in Groove (C1): 55.70 mm Min. Lug Diameter (h): 2.50 mm Min. Extension (n): 3.80 Standard: DIN471
Part Number: CCE-04200-S15 (2 Pcs) External Retaining Rings - 42x1.75x39.25 mm - Stainless Steel Grade PH15-7 Mo Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $51.14 AUD Regular price Sale price $51.14 AUD Unit price per Per 2
Shaft Diameter (Ds) 42.00 mm _{(1.654 in.)}	Clip Thickness (T) 1.75 mm + 0.00 / - 0.25 _{(0.069 in.)}	Groove Dia. (Dg) 39.25 mm + 0.00 / - 0.06 _{(1.545 in.)}	Approx. Loose Circlip ID (A) 38.50 mm
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 1.85 mm Clearance on Shaft (C1): 52.50 mm Clearance in Groove (C1): 55.70 mm Min. Lug Diameter (h): 2.50 mm Min. Extension (n): 3.80 Standard: DIN471
Part Number: CCE-04200-S15 (2 Pcs) External Retaining Rings - 42x1.75x39.25 mm - Stainless Steel Grade PH15-7 Mo Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $51.14 AUD Regular price Sale price $51.14 AUD Unit price per Per 2 View the product page first if you are unsure.
CCE-04200-S15 (2 Pcs) --- External Retaining Rings - 42x1.75x39.25 mm - Stainless Steel Grade PH15-7 Mo CCE-04200-S15 (2 Pcs) --- External Retaining Rings - 42x1.75x39.25 mm - Stainless Steel Grade PH15-7 Mo Regular price $51.14 AUD Regular price Sale price $51.14 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 42.86 mm _{(1.687 in.)}	Clip Thickness (T) 1.57 mm +/- 0.127 _{(0.062 in.)}	Groove Dia. (Dg) 40.36 mm +/- 0.076 _{(1.589 in.)}	Approx. Loose Circlip ID (A) 39.60 mm	Radial Wall (S) min/max B (Square Ends) mm	Groove Width (W) 1.70 mm
Material: Stainless Steel Grade PH15-7 Mo Standard: MIL-16624
Part Number: CCE-04286-S15 External Retaining Rings - 42.86x1.57x40.36 mm - Stainless Steel Grade PH15-7 Mo Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $21.86 AUD Regular price Sale price $21.86 AUD Unit price per Each
Shaft Diameter (Ds) 42.86 mm _{(1.687 in.)}	Clip Thickness (T) 1.57 mm +/- 0.127 _{(0.062 in.)}	Groove Dia. (Dg) 40.36 mm +/- 0.076 _{(1.589 in.)}	Approx. Loose Circlip ID (A) 39.60 mm
Material: Stainless Steel Grade PH15-7 Mo Radial Wall (S) min/max: B (Square Ends) mm Groove Width (W): 1.70 mm Standard: MIL-16624
Part Number: CCE-04286-S15 External Retaining Rings - 42.86x1.57x40.36 mm - Stainless Steel Grade PH15-7 Mo Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $21.86 AUD Regular price Sale price $21.86 AUD Unit price per Each View the product page first if you are unsure.
CCE-04286-S15 --- External Retaining Rings - 42.86x1.57x40.36 mm - Stainless Steel Grade PH15-7 Mo CCE-04286-S15 --- External Retaining Rings - 42.86x1.57x40.36 mm - Stainless Steel Grade PH15-7 Mo Regular price $21.86 AUD Regular price Sale price $21.86 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 44.45 mm _{(1.75 in.)}	Clip Thickness (T) 1.57 mm +/- 0.127 _{(0.062 in.)}	Groove Dia. (Dg) 41.90 mm +/- 0.076 _{(1.65 in.)}	Approx. Loose Circlip ID (A) 41.10 mm	Radial Wall (S) min/max B (Square Ends) mm	Groove Width (W) 1.70 mm
Material: Stainless Steel Grade PH15-7 Mo Standard: MIL-16624
Part Number: CCE-04445-S15 External Retaining Rings - 44.45x1.57x41.9 mm - Stainless Steel Grade PH15-7 Mo Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $26.95 AUD Regular price Sale price $26.95 AUD Unit price per Each
Shaft Diameter (Ds) 44.45 mm _{(1.75 in.)}	Clip Thickness (T) 1.57 mm +/- 0.127 _{(0.062 in.)}	Groove Dia. (Dg) 41.90 mm +/- 0.076 _{(1.65 in.)}	Approx. Loose Circlip ID (A) 41.10 mm
Material: Stainless Steel Grade PH15-7 Mo Radial Wall (S) min/max: B (Square Ends) mm Groove Width (W): 1.70 mm Standard: MIL-16624
Part Number: CCE-04445-S15 External Retaining Rings - 44.45x1.57x41.9 mm - Stainless Steel Grade PH15-7 Mo Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $26.95 AUD Regular price Sale price $26.95 AUD Unit price per Each View the product page first if you are unsure.
CCE-04445-S15 --- External Retaining Rings - 44.45x1.57x41.9 mm - Stainless Steel Grade PH15-7 Mo CCE-04445-S15 --- External Retaining Rings - 44.45x1.57x41.9 mm - Stainless Steel Grade PH15-7 Mo Regular price $26.95 AUD Regular price Sale price $26.95 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 44.45 mm _{(1.75 in.)}	Clip Thickness (T) 2.77 mm + 0.076 / - 0.102 _{(0.109 in.)}	Groove Dia. (Dg) 41.91 mm +/- 0.076 _{(1.65 in.)}	Approx. Loose Circlip ID (A) 40.84 mm
Material: Stainless Steel Grade PH15-7 Mo Standard: MIL-3217
Part Number: CCE-04445H-S15 (5 Pcs) External Retaining Rings - 44.45x2.77x41.91 mm - Stainless Steel Grade PH15-7 Mo Out of Stock \| Backorder Now \| Orders can be expected around Fri, Aug 08, 2025 Regular price $598.14 AUD Regular price Sale price $598.14 AUD Unit price per Per 5
Shaft Diameter (Ds) 44.45 mm _{(1.75 in.)}	Clip Thickness (T) 2.77 mm + 0.076 / - 0.102 _{(0.109 in.)}	Groove Dia. (Dg) 41.91 mm +/- 0.076 _{(1.65 in.)}	Approx. Loose Circlip ID (A) 40.84 mm
Material: Stainless Steel Grade PH15-7 Mo Standard: MIL-3217
Part Number: CCE-04445H-S15 (5 Pcs) External Retaining Rings - 44.45x2.77x41.91 mm - Stainless Steel Grade PH15-7 Mo Out of Stock \| Backorder Now \| Orders can be expected around Fri, Aug 08, 2025 Regular price $598.14 AUD Regular price Sale price $598.14 AUD Unit price per Per 5 View the product page first if you are unsure.
CCE-04445H-S15 (5 Pcs) --- External Retaining Rings - 44.45x2.77x41.91 mm - Stainless Steel Grade PH15-7 Mo CCE-04445H-S15 (5 Pcs) --- External Retaining Rings - 44.45x2.77x41.91 mm - Stainless Steel Grade PH15-7 Mo Regular price $598.14 AUD Regular price Sale price $598.14 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 45.00 mm _{(1.772 in.)}	Clip Thickness (T) 1.75 mm + 0.00 / - 0.25 _{(0.069 in.)}	Groove Dia. (Dg) 42.50 mm + 0.00 / - 0.06 _{(1.673 in.)}	Approx. Loose Circlip ID (A) 41.50 mm		Groove Width (W) 1.85 mm
Material: Stainless Steel Grade PH15-7 Mo Clearance on Shaft (C1): 55.90 mm Clearance in Groove (C1): 59.10 mm Min. Lug Diameter (h): 2.50 mm Min. Extension (n): 3.80 Standard: DIN471
Part Number: CCE-04500-S15 External Retaining Rings - 45x1.75x42.5 mm - Stainless Steel Grade PH15-7 Mo Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $30.59 AUD Regular price Sale price $30.59 AUD Unit price per Each
Shaft Diameter (Ds) 45.00 mm _{(1.772 in.)}	Clip Thickness (T) 1.75 mm + 0.00 / - 0.25 _{(0.069 in.)}	Groove Dia. (Dg) 42.50 mm + 0.00 / - 0.06 _{(1.673 in.)}	Approx. Loose Circlip ID (A) 41.50 mm
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 1.85 mm Clearance on Shaft (C1): 55.90 mm Clearance in Groove (C1): 59.10 mm Min. Lug Diameter (h): 2.50 mm Min. Extension (n): 3.80 Standard: DIN471
Part Number: CCE-04500-S15 External Retaining Rings - 45x1.75x42.5 mm - Stainless Steel Grade PH15-7 Mo Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $30.59 AUD Regular price Sale price $30.59 AUD Unit price per Each View the product page first if you are unsure.
CCE-04500-S15 --- External Retaining Rings - 45x1.75x42.5 mm - Stainless Steel Grade PH15-7 Mo CCE-04500-S15 --- External Retaining Rings - 45x1.75x42.5 mm - Stainless Steel Grade PH15-7 Mo Regular price $30.59 AUD Regular price Sale price $30.59 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 45.01 mm _{(1.772 in.)}	Clip Thickness (T) 1.57 mm +/- 0.127 _{(0.062 in.)}	Groove Dia. (Dg) 42.40 mm +/- 0.076 _{(1.669 in.)}	Approx. Loose Circlip ID (A) 41.60 mm	Radial Wall (S) min/max B (Square Ends) mm	Groove Width (W) 1.70 mm
Material: Stainless Steel Grade PH15-7 Mo Standard: MIL-16624
Part Number: CCE-04501-S15 External Retaining Rings - 45.01x1.57x42.4 mm - Stainless Steel Grade PH15-7 Mo Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $27.50 AUD Regular price Sale price $27.50 AUD Unit price per Each
Shaft Diameter (Ds) 45.01 mm _{(1.772 in.)}	Clip Thickness (T) 1.57 mm +/- 0.127 _{(0.062 in.)}	Groove Dia. (Dg) 42.40 mm +/- 0.076 _{(1.669 in.)}	Approx. Loose Circlip ID (A) 41.60 mm
Material: Stainless Steel Grade PH15-7 Mo Radial Wall (S) min/max: B (Square Ends) mm Groove Width (W): 1.70 mm Standard: MIL-16624
Part Number: CCE-04501-S15 External Retaining Rings - 45.01x1.57x42.4 mm - Stainless Steel Grade PH15-7 Mo Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $27.50 AUD Regular price Sale price $27.50 AUD Unit price per Each View the product page first if you are unsure.
CCE-04501-S15 --- External Retaining Rings - 45.01x1.57x42.4 mm - Stainless Steel Grade PH15-7 Mo CCE-04501-S15 --- External Retaining Rings - 45.01x1.57x42.4 mm - Stainless Steel Grade PH15-7 Mo Regular price $27.50 AUD Regular price Sale price $27.50 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 46.04 mm _{(1.813 in.)}	Clip Thickness (T) 1.57 mm +/- 0.127 _{(0.062 in.)}	Groove Dia. (Dg) 43.40 mm +/- 0.076 _{(1.709 in.)}	Approx. Loose Circlip ID (A) 42.60 mm	Radial Wall (S) min/max B (Square Ends) mm	Groove Width (W) 1.70 mm
Material: Stainless Steel Grade PH15-7 Mo Standard: MIL-16624
Part Number: CCE-04604-S15 External Retaining Rings - 46.04x1.57x43.4 mm - Stainless Steel Grade PH15-7 Mo Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $37.68 AUD Regular price Sale price $37.68 AUD Unit price per Each
Shaft Diameter (Ds) 46.04 mm _{(1.813 in.)}	Clip Thickness (T) 1.57 mm +/- 0.127 _{(0.062 in.)}	Groove Dia. (Dg) 43.40 mm +/- 0.076 _{(1.709 in.)}	Approx. Loose Circlip ID (A) 42.60 mm
Material: Stainless Steel Grade PH15-7 Mo Radial Wall (S) min/max: B (Square Ends) mm Groove Width (W): 1.70 mm Standard: MIL-16624
Part Number: CCE-04604-S15 External Retaining Rings - 46.04x1.57x43.4 mm - Stainless Steel Grade PH15-7 Mo Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $37.68 AUD Regular price Sale price $37.68 AUD Unit price per Each View the product page first if you are unsure.
CCE-04604-S15 --- External Retaining Rings - 46.04x1.57x43.4 mm - Stainless Steel Grade PH15-7 Mo CCE-04604-S15 --- External Retaining Rings - 46.04x1.57x43.4 mm - Stainless Steel Grade PH15-7 Mo Regular price $37.68 AUD Regular price Sale price $37.68 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 47.63 mm _{(1.875 in.)}	Clip Thickness (T) 1.57 mm +/- 0.127 _{(0.062 in.)}	Groove Dia. (Dg) 44.90 mm +/- 0.076 _{(1.768 in.)}	Approx. Loose Circlip ID (A) 44.10 mm		Groove Width (W) 1.70 mm
Material: Stainless Steel Grade PH15-7 Mo Standard: MIL-16624
Part Number: CCE-04763-S15 External Retaining Rings - 47.63x1.57x44.9 mm - Stainless Steel Grade PH15-7 Mo Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $26.32 AUD Regular price Sale price $26.32 AUD Unit price per Each
Shaft Diameter (Ds) 47.63 mm _{(1.875 in.)}	Clip Thickness (T) 1.57 mm +/- 0.127 _{(0.062 in.)}	Groove Dia. (Dg) 44.90 mm +/- 0.076 _{(1.768 in.)}	Approx. Loose Circlip ID (A) 44.10 mm
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 1.70 mm Standard: MIL-16624
Part Number: CCE-04763-S15 External Retaining Rings - 47.63x1.57x44.9 mm - Stainless Steel Grade PH15-7 Mo Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $26.32 AUD Regular price Sale price $26.32 AUD Unit price per Each View the product page first if you are unsure.
CCE-04763-S15 --- External Retaining Rings - 47.63x1.57x44.9 mm - Stainless Steel Grade PH15-7 Mo CCE-04763-S15 --- External Retaining Rings - 47.63x1.57x44.9 mm - Stainless Steel Grade PH15-7 Mo Regular price $26.32 AUD Regular price Sale price $26.32 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 48.00 mm _{(1.89 in.)}	Clip Thickness (T) 1.75 mm + 0.00 / - 0.25 _{(0.069 in.)}	Groove Dia. (Dg) 45.50 mm + 0.00 / - 0.06 _{(1.791 in.)}	Approx. Loose Circlip ID (A) 44.50 mm		Groove Width (W) 1.85 mm
Material: Stainless Steel Grade PH15-7 Mo Clearance on Shaft (C1): 62.50 mm Clearance in Groove (C1): 59.30 mm Min. Lug Diameter (h): 2.50 mm Min. Extension (n): 3.80 Standard: DIN471
Part Number: CCE-04800-S15 (2 Pcs) External Retaining Rings - 48x1.75x45.5 mm - Stainless Steel Grade PH15-7 Mo Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $23.77 AUD Regular price Sale price $23.77 AUD Unit price per Per 2
Shaft Diameter (Ds) 48.00 mm _{(1.89 in.)}	Clip Thickness (T) 1.75 mm + 0.00 / - 0.25 _{(0.069 in.)}	Groove Dia. (Dg) 45.50 mm + 0.00 / - 0.06 _{(1.791 in.)}	Approx. Loose Circlip ID (A) 44.50 mm
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 1.85 mm Clearance on Shaft (C1): 62.50 mm Clearance in Groove (C1): 59.30 mm Min. Lug Diameter (h): 2.50 mm Min. Extension (n): 3.80 Standard: DIN471
Part Number: CCE-04800-S15 (2 Pcs) External Retaining Rings - 48x1.75x45.5 mm - Stainless Steel Grade PH15-7 Mo Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $23.77 AUD Regular price Sale price $23.77 AUD Unit price per Per 2 View the product page first if you are unsure.
CCE-04800-S15 (2 Pcs) --- External Retaining Rings - 48x1.75x45.5 mm - Stainless Steel Grade PH15-7 Mo CCE-04800-S15 (2 Pcs) --- External Retaining Rings - 48x1.75x45.5 mm - Stainless Steel Grade PH15-7 Mo Regular price $23.77 AUD Regular price Sale price $23.77 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 50.00 mm _{(1.969 in.)}	Clip Thickness (T) 1.57 mm +/- 0.127 _{(0.062 in.)}	Groove Dia. (Dg) 47.20 mm +/- 0.076 _{(1.858 in.)}	Approx. Loose Circlip ID (A) 46.20 mm		Groove Width (W) 1.70 mm
Material: Stainless Steel Grade PH15-7 Mo Standard: MIL-16624
Part Number: CCE-05001-S15 External Retaining Rings - 50x1.57x47.2 mm - Stainless Steel Grade PH15-7 Mo Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $107.50 AUD Regular price Sale price $107.50 AUD Unit price per Each
Shaft Diameter (Ds) 50.00 mm _{(1.969 in.)}	Clip Thickness (T) 1.57 mm +/- 0.127 _{(0.062 in.)}	Groove Dia. (Dg) 47.20 mm +/- 0.076 _{(1.858 in.)}	Approx. Loose Circlip ID (A) 46.20 mm
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 1.70 mm Standard: MIL-16624
Part Number: CCE-05001-S15 External Retaining Rings - 50x1.57x47.2 mm - Stainless Steel Grade PH15-7 Mo Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $107.50 AUD Regular price Sale price $107.50 AUD Unit price per Each View the product page first if you are unsure.
CCE-05001-S15 --- External Retaining Rings - 50x1.57x47.2 mm - Stainless Steel Grade PH15-7 Mo CCE-05001-S15 --- External Retaining Rings - 50x1.57x47.2 mm - Stainless Steel Grade PH15-7 Mo Regular price $107.50 AUD Regular price Sale price $107.50 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 50.00 mm _{(1.969 in.)}	Clip Thickness (T) 2.00 mm + 0.00 / - 0.25 _{(0.079 in.)}	Groove Dia. (Dg) 46.75 mm + 0.00 / - 0.06 _{(1.841 in.)}	Approx. Loose Circlip ID (A) 45.80 mm		Groove Width (W) 2.15 mm
Material: Stainless Steel Grade PH15-7 Mo Clearance on Shaft (C1): 60.80 mm Clearance in Groove (C1): 64.50 mm Min. Lug Diameter (h): 2.50 mm Min. Extension (n): 4.50 Standard: DIN471
Part Number: CCE-05000-S15 External Retaining Rings - 50x2x46.75 mm - Stainless Steel Grade PH15-7 Mo Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $18.32 AUD Regular price Sale price $18.32 AUD Unit price per Each
Shaft Diameter (Ds) 50.00 mm _{(1.969 in.)}	Clip Thickness (T) 2.00 mm + 0.00 / - 0.25 _{(0.079 in.)}	Groove Dia. (Dg) 46.75 mm + 0.00 / - 0.06 _{(1.841 in.)}	Approx. Loose Circlip ID (A) 45.80 mm
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 2.15 mm Clearance on Shaft (C1): 60.80 mm Clearance in Groove (C1): 64.50 mm Min. Lug Diameter (h): 2.50 mm Min. Extension (n): 4.50 Standard: DIN471
Part Number: CCE-05000-S15 External Retaining Rings - 50x2x46.75 mm - Stainless Steel Grade PH15-7 Mo Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $18.32 AUD Regular price Sale price $18.32 AUD Unit price per Each View the product page first if you are unsure.
CCE-05000-S15 --- External Retaining Rings - 50x2x46.75 mm - Stainless Steel Grade PH15-7 Mo CCE-05000-S15 --- External Retaining Rings - 50x2x46.75 mm - Stainless Steel Grade PH15-7 Mo Regular price $18.32 AUD Regular price Sale price $18.32 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 50.80 mm _{(2 in.)}	Clip Thickness (T) 1.57 mm +/- 0.152 _{(0.062 in.)}	Groove Dia. (Dg) 47.90 mm +/- 0.076 _{(1.886 in.)}	Approx. Loose Circlip ID (A) 47.00 mm		Groove Width (W) 1.70 mm
Material: Stainless Steel Grade PH15-7 Mo Standard: MIL-16624
Part Number: CCE-05080-S15 External Retaining Rings - 50.8x1.57x47.9 mm - Stainless Steel Grade PH15-7 Mo Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $36.50 AUD Regular price Sale price $36.50 AUD Unit price per Each
Shaft Diameter (Ds) 50.80 mm _{(2 in.)}	Clip Thickness (T) 1.57 mm +/- 0.152 _{(0.062 in.)}	Groove Dia. (Dg) 47.90 mm +/- 0.076 _{(1.886 in.)}	Approx. Loose Circlip ID (A) 47.00 mm
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 1.70 mm Standard: MIL-16624
Part Number: CCE-05080-S15 External Retaining Rings - 50.8x1.57x47.9 mm - Stainless Steel Grade PH15-7 Mo Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $36.50 AUD Regular price Sale price $36.50 AUD Unit price per Each View the product page first if you are unsure.
CCE-05080-S15 --- External Retaining Rings - 50.8x1.57x47.9 mm - Stainless Steel Grade PH15-7 Mo CCE-05080-S15 --- External Retaining Rings - 50.8x1.57x47.9 mm - Stainless Steel Grade PH15-7 Mo Regular price $36.50 AUD Regular price Sale price $36.50 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 52.39 mm _{(2.063 in.)}	Clip Thickness (T) 1.98 mm +/- 0.152 _{(0.078 in.)}	Groove Dia. (Dg) 49.43 mm +/- 0.076 _{(1.946 in.)}	Approx. Loose Circlip ID (A) 48.40 mm	Radial Wall (S) min/max B (Square Ends) mm	Groove Width (W) 2.20 mm
Material: Stainless Steel Grade PH15-7 Mo Standard: MIL-16624
Part Number: CCE-05239-S15 External Retaining Rings - 52.39x1.98x49.43 mm - Stainless Steel Grade PH15-7 Mo Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $79.68 AUD Regular price Sale price $79.68 AUD Unit price per Each
Shaft Diameter (Ds) 52.39 mm _{(2.063 in.)}	Clip Thickness (T) 1.98 mm +/- 0.152 _{(0.078 in.)}	Groove Dia. (Dg) 49.43 mm +/- 0.076 _{(1.946 in.)}	Approx. Loose Circlip ID (A) 48.40 mm
Material: Stainless Steel Grade PH15-7 Mo Radial Wall (S) min/max: B (Square Ends) mm Groove Width (W): 2.20 mm Standard: MIL-16624
Part Number: CCE-05239-S15 External Retaining Rings - 52.39x1.98x49.43 mm - Stainless Steel Grade PH15-7 Mo Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $79.68 AUD Regular price Sale price $79.68 AUD Unit price per Each View the product page first if you are unsure.
CCE-05239-S15 --- External Retaining Rings - 52.39x1.98x49.43 mm - Stainless Steel Grade PH15-7 Mo CCE-05239-S15 --- External Retaining Rings - 52.39x1.98x49.43 mm - Stainless Steel Grade PH15-7 Mo Regular price $79.68 AUD Regular price Sale price $79.68 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 53.98 mm _{(2.125 in.)}	Clip Thickness (T) 1.98 mm +/- 0.152 _{(0.078 in.)}	Groove Dia. (Dg) 50.89 mm +/- 0.076 _{(2.004 in.)}	Approx. Loose Circlip ID (A) 49.90 mm	Radial Wall (S) min/max B (Square Ends) mm	Groove Width (W) 2.20 mm
Material: Stainless Steel Grade PH15-7 Mo Standard: MIL-16624
Part Number: CCE-05398-S15 External Retaining Rings - 53.98x1.98x50.89 mm - Stainless Steel Grade PH15-7 Mo Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $60.68 AUD Regular price Sale price $60.68 AUD Unit price per Each
Shaft Diameter (Ds) 53.98 mm _{(2.125 in.)}	Clip Thickness (T) 1.98 mm +/- 0.152 _{(0.078 in.)}	Groove Dia. (Dg) 50.89 mm +/- 0.076 _{(2.004 in.)}	Approx. Loose Circlip ID (A) 49.90 mm
Material: Stainless Steel Grade PH15-7 Mo Radial Wall (S) min/max: B (Square Ends) mm Groove Width (W): 2.20 mm Standard: MIL-16624
Part Number: CCE-05398-S15 External Retaining Rings - 53.98x1.98x50.89 mm - Stainless Steel Grade PH15-7 Mo Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $60.68 AUD Regular price Sale price $60.68 AUD Unit price per Each View the product page first if you are unsure.
CCE-05398-S15 --- External Retaining Rings - 53.98x1.98x50.89 mm - Stainless Steel Grade PH15-7 Mo CCE-05398-S15 --- External Retaining Rings - 53.98x1.98x50.89 mm - Stainless Steel Grade PH15-7 Mo Regular price $60.68 AUD Regular price Sale price $60.68 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 54.77 mm _{(2.156 in.)}	Clip Thickness (T) 1.98 mm +/- 0.152 _{(0.078 in.)}	Groove Dia. (Dg) 51.61 mm +/- 0.076 _{(2.032 in.)}	Approx. Loose Circlip ID (A) 50.60 mm	Radial Wall (S) min/max B (Square Ends) mm	Groove Width (W) 2.18 mm
Material: Stainless Steel Grade PH15-7 Mo Standard: MIL-16624
Part Number: CCE-05477-S15 External Retaining Rings - 54.77x1.98x51.61 mm - Stainless Steel Grade PH15-7 Mo Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $133.77 AUD Regular price Sale price $133.77 AUD Unit price per Each
Shaft Diameter (Ds) 54.77 mm _{(2.156 in.)}	Clip Thickness (T) 1.98 mm +/- 0.152 _{(0.078 in.)}	Groove Dia. (Dg) 51.61 mm +/- 0.076 _{(2.032 in.)}	Approx. Loose Circlip ID (A) 50.60 mm
Material: Stainless Steel Grade PH15-7 Mo Radial Wall (S) min/max: B (Square Ends) mm Groove Width (W): 2.18 mm Standard: MIL-16624
Part Number: CCE-05477-S15 External Retaining Rings - 54.77x1.98x51.61 mm - Stainless Steel Grade PH15-7 Mo Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $133.77 AUD Regular price Sale price $133.77 AUD Unit price per Each View the product page first if you are unsure.
CCE-05477-S15 --- External Retaining Rings - 54.77x1.98x51.61 mm - Stainless Steel Grade PH15-7 Mo CCE-05477-S15 --- External Retaining Rings - 54.77x1.98x51.61 mm - Stainless Steel Grade PH15-7 Mo Regular price $133.77 AUD Regular price Sale price $133.77 AUD Unit price per Out of stock! Backorder Now
