Collection: Retaining Rings - E-Clips - Basic

Retaining Rings (With Images)

E-Clips

Basic

Bowed
Klipring

108 Products in this selection

This is a combined category of Basic E-Clips Retaining Rings.
Use the filters in the table below, or the category tree above to refine the selection. To order any item, simply click the part number for a full product page, then add to your cart.

Additional resources:
E-Clip Applicators

A more concise listing may be found on the Smallparts store at Retaining Rings - E-Clips - Basic. Smallparts promote the most popular MBA products.

Minimum Rec. Shaft Dia (S)	Groove Dia. (Dg)	Clip Thickness (T)	Clip OD Loose (D1)	Groove Width (W)	Indicative Image
Minimum Rec. Shaft Dia (S) 1.00 mm + 0.25 / - 0.00 _{(0.039 in.)}	Groove Dia. (Dg) 0.66 mm + 0.051 / - 0.000 _{(0.026 in.)}	Clip Thickness (T) 0.25 mm +/ - 0.025 _{(0.01 in.)}	Clip OD Loose (D1) 1.75 mm	Groove Width (W) 0.31 mm

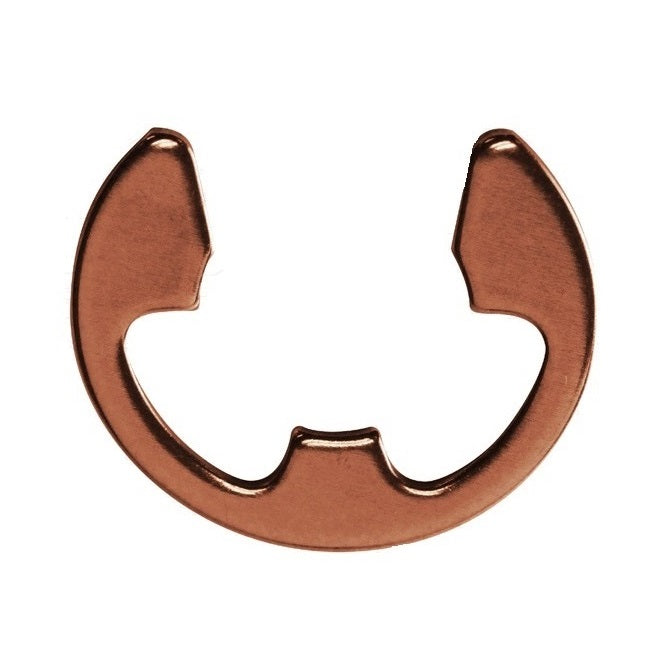

Material: Beryllium Copper Maximum Rec. Shaft Dia (S): 1.25 Clip OD in groove (C1): 2.01 mm Category: Retaining Rings - E-Clips - Basic - Beryllium Copper
Part Number: ECL-0007-0010-B (5 Pcs) E-Clips Retaining Rings - 1x0.66x0.25 mm - Beryllium Copper 4 units (20 pcs) Available Immediately \| Further orders can be expected around Sat, Jun 07, 2025 Regular price $2.95 AUD Regular price Sale price $2.95 AUD Unit price per Per 5
Minimum Rec. Shaft Dia (S)	Groove Dia. (Dg)	Clip Thickness (T)	Clip OD Loose (D1)	Indicative Image
Minimum Rec. Shaft Dia (S) 1.00 mm + 0.25 / - 0.00 _{(0.039 in.)}	Groove Dia. (Dg) 0.66 mm + 0.051 / - 0.000 _{(0.026 in.)}	Clip Thickness (T) 0.25 mm +/ - 0.025 _{(0.01 in.)}	Clip OD Loose (D1) 1.75 mm
Material: Beryllium Copper Groove Width (W): 0.31 mm Maximum Rec. Shaft Dia (S): 1.25 Clip OD in groove (C1): 2.01 mm Category: Retaining Rings - E-Clips - Basic - Beryllium Copper
Part Number: ECL-0007-0010-B (5 Pcs) E-Clips Retaining Rings - 1x0.66x0.25 mm - Beryllium Copper 4 units (20 pcs) Available Immediately \| Further orders can be expected around Sat, Jun 07, 2025 Regular price $2.95 AUD Regular price Sale price $2.95 AUD Unit price per Per 5 View the product page first if you are unsure.
ECL-0007-0010-B (5 Pcs) --- E-Clips Retaining Rings - 1x0.66x0.25 mm - Beryllium Copper ECL-0007-0010-B (5 Pcs) --- E-Clips Retaining Rings - 1x0.66x0.25 mm - Beryllium Copper Regular price $2.95 AUD Regular price Sale price $2.95 AUD Unit price per 4 Available Now
Minimum Rec. Shaft Dia (S) 1.40 mm + 0.60 / - 0.00 _{(0.055 in.)}	Groove Dia. (Dg) 1.20 mm + 0.00 / - 0.06 _{(0.047 in.)}	Clip Thickness (T) 0.30 mm +/ - 0.02 _{(0.012 in.)}	Clip OD Loose (D1) 2.90 mm	Groove Width (W) 0.34 mm

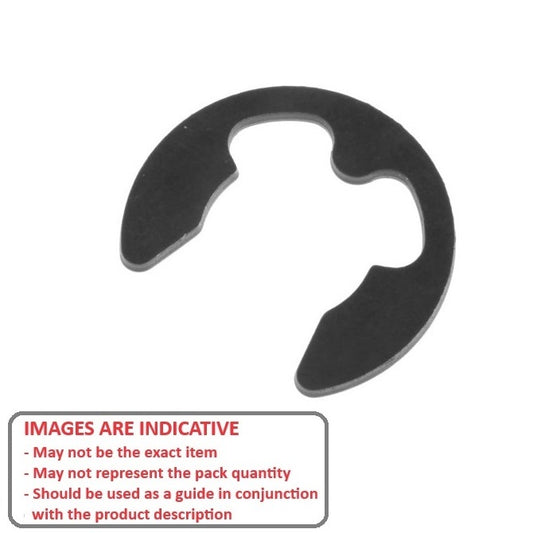

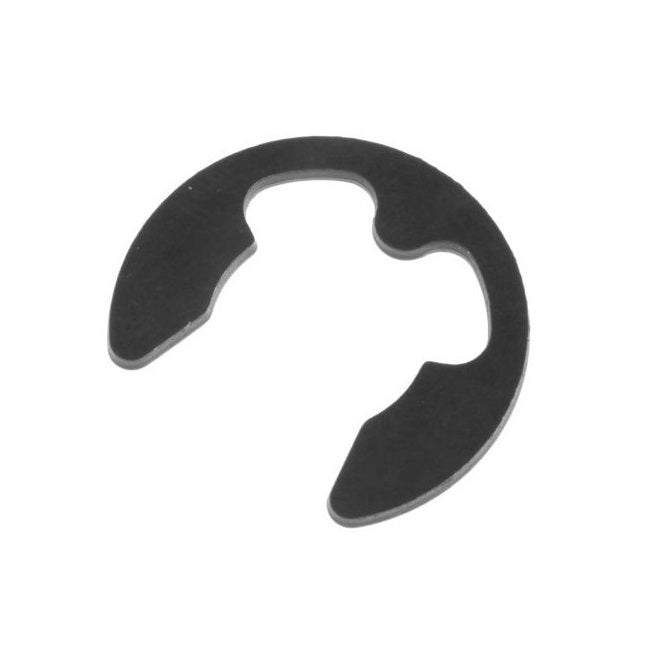

Material: Carbon Steel Maximum Rec. Shaft Dia (S): 2.00 Clip OD in groove (C1): 3.25 mm Category: Retaining Rings - E-Clips - Basic - Carbon Steel
Part Number: ECL-0012-0014-C (100 Pcs) E-Clips Retaining Rings - 1.4x1.2x0.3 mm - Carbon Steel 28 units (2800 pcs) Available Immediately \| Further orders can be expected around Sat, Jun 07, 2025 Regular price $5.32 AUD Regular price Sale price $5.32 AUD Unit price per Per 100
Minimum Rec. Shaft Dia (S) 1.40 mm + 0.60 / - 0.00 _{(0.055 in.)}	Groove Dia. (Dg) 1.20 mm + 0.00 / - 0.06 _{(0.047 in.)}	Clip Thickness (T) 0.30 mm +/ - 0.02 _{(0.012 in.)}	Clip OD Loose (D1) 2.90 mm
Material: Carbon Steel Groove Width (W): 0.34 mm Maximum Rec. Shaft Dia (S): 2.00 Clip OD in groove (C1): 3.25 mm Category: Retaining Rings - E-Clips - Basic - Carbon Steel
Part Number: ECL-0012-0014-C (100 Pcs) E-Clips Retaining Rings - 1.4x1.2x0.3 mm - Carbon Steel 28 units (2800 pcs) Available Immediately \| Further orders can be expected around Sat, Jun 07, 2025 Regular price $5.32 AUD Regular price Sale price $5.32 AUD Unit price per Per 100 View the product page first if you are unsure.
ECL-0012-0014-C (100 Pcs) --- E-Clips Retaining Rings - 1.4x1.2x0.3 mm - Carbon Steel ECL-0012-0014-C (100 Pcs) --- E-Clips Retaining Rings - 1.4x1.2x0.3 mm - Carbon Steel Regular price $5.32 AUD Regular price Sale price $5.32 AUD Unit price per 28 Available Now
Minimum Rec. Shaft Dia (S) 1.59 mm + 0.76 / - 0.00 _{(0.063 in.)}	Groove Dia. (Dg) 1.32 mm + 0.051 / - 0.000 _{(0.052 in.)}	Clip Thickness (T) 0.25 mm +/ - 0.025 _{(0.01 in.)}	Clip OD Loose (D1) 3.56 mm	Groove Width (W) 0.31 mm
Material: Carbon Steel Maximum Rec. Shaft Dia (S): 2.35 Clip OD in groove (C1): 3.88 mm Category: Retaining Rings - E-Clips - Basic - Carbon Steel
Part Number: ECL-0013-0016-C (50 Pcs) E-Clips Retaining Rings - 1.59x1.32x0.25 mm - Carbon Steel 3 units (150 pcs) Available Immediately \| Further orders can be expected around Sat, Jun 07, 2025 Regular price $9.32 AUD Regular price Sale price $9.32 AUD Unit price per Per 50
Minimum Rec. Shaft Dia (S) 1.59 mm + 0.76 / - 0.00 _{(0.063 in.)}	Groove Dia. (Dg) 1.32 mm + 0.051 / - 0.000 _{(0.052 in.)}	Clip Thickness (T) 0.25 mm +/ - 0.025 _{(0.01 in.)}	Clip OD Loose (D1) 3.56 mm
Material: Carbon Steel Groove Width (W): 0.31 mm Maximum Rec. Shaft Dia (S): 2.35 Clip OD in groove (C1): 3.88 mm Category: Retaining Rings - E-Clips - Basic - Carbon Steel
Part Number: ECL-0013-0016-C (50 Pcs) E-Clips Retaining Rings - 1.59x1.32x0.25 mm - Carbon Steel 3 units (150 pcs) Available Immediately \| Further orders can be expected around Sat, Jun 07, 2025 Regular price $9.32 AUD Regular price Sale price $9.32 AUD Unit price per Per 50 View the product page first if you are unsure.
ECL-0013-0016-C (50 Pcs) --- E-Clips Retaining Rings - 1.59x1.32x0.25 mm - Carbon Steel ECL-0013-0016-C (50 Pcs) --- E-Clips Retaining Rings - 1.59x1.32x0.25 mm - Carbon Steel Regular price $9.32 AUD Regular price Sale price $9.32 AUD Unit price per 3 Available Now
Minimum Rec. Shaft Dia (S) 1.59 mm + 0.76 / - 0.00 _{(0.063 in.)}	Groove Dia. (Dg) 1.32 mm + 0.051 / - 0.000 _{(0.052 in.)}	Clip Thickness (T) 0.25 mm +/ - 0.025 _{(0.01 in.)}	Clip OD Loose (D1) 3.96 mm	Groove Width (W) 0.30 mm
Material: Carbon Steel Maximum Rec. Shaft Dia (S): 2.35 Clip OD in groove (C1): 4.19 mm Category: Retaining Rings - E-Clips - Basic - Carbon Steel
Part Number: ECL-0013-0016A-C (100 Pcs) E-Clips Retaining Rings - 1.59x1.32x0.25 mm - Carbon Steel 1 pack (100 pcs) Available Immediately \| Further orders can be expected around Sat, Jun 07, 2025 Regular price $14.14 AUD Regular price Sale price $14.14 AUD Unit price per Per 100
Minimum Rec. Shaft Dia (S) 1.59 mm + 0.76 / - 0.00 _{(0.063 in.)}	Groove Dia. (Dg) 1.32 mm + 0.051 / - 0.000 _{(0.052 in.)}	Clip Thickness (T) 0.25 mm +/ - 0.025 _{(0.01 in.)}	Clip OD Loose (D1) 3.96 mm
Material: Carbon Steel Groove Width (W): 0.30 mm Maximum Rec. Shaft Dia (S): 2.35 Clip OD in groove (C1): 4.19 mm Category: Retaining Rings - E-Clips - Basic - Carbon Steel
Part Number: ECL-0013-0016A-C (100 Pcs) E-Clips Retaining Rings - 1.59x1.32x0.25 mm - Carbon Steel 1 pack (100 pcs) Available Immediately \| Further orders can be expected around Sat, Jun 07, 2025 Regular price $14.14 AUD Regular price Sale price $14.14 AUD Unit price per Per 100 View the product page first if you are unsure.
ECL-0013-0016A-C (100 Pcs) --- E-Clips Retaining Rings - 1.59x1.32x0.25 mm - Carbon Steel ECL-0013-0016A-C (100 Pcs) --- E-Clips Retaining Rings - 1.59x1.32x0.25 mm - Carbon Steel Regular price $14.14 AUD Regular price Sale price $14.14 AUD Unit price per 1 Available Now
Minimum Rec. Shaft Dia (S) 1.59 mm + 0.76 / - 0.00 _{(0.063 in.)}	Groove Dia. (Dg) 1.32 mm + 0.051 / - 0.000 _{(0.052 in.)}	Clip Thickness (T) 0.25 mm +/ - 0.025 _{(0.01 in.)}	Clip OD Loose (D1) 3.96 mm	Groove Width (W) 0.30 mm

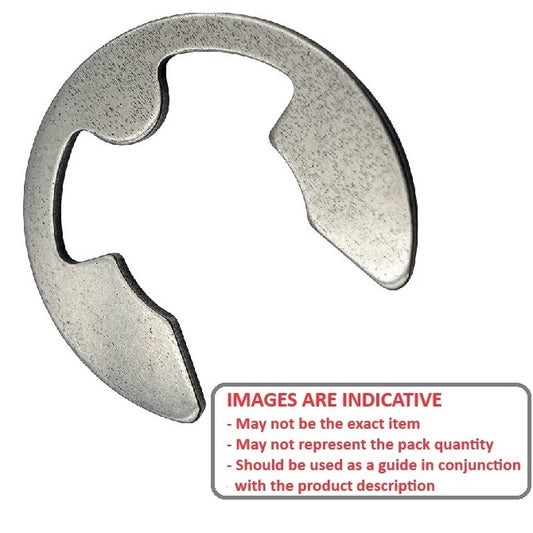

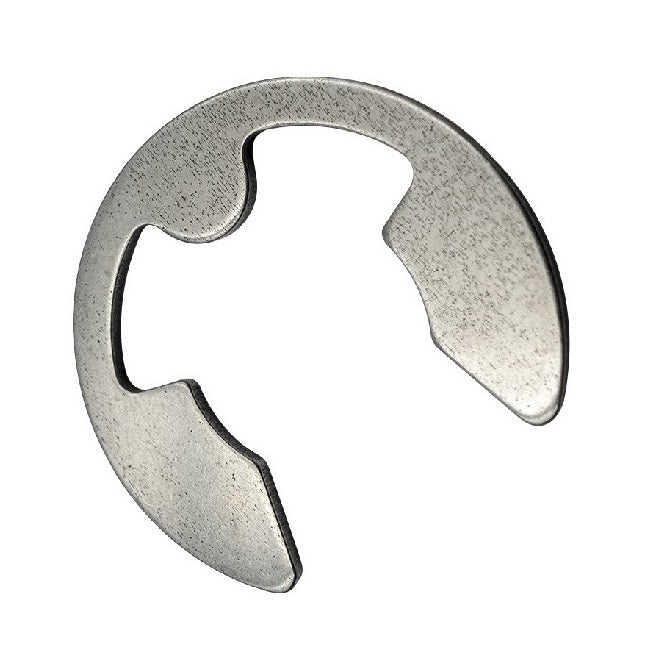

Material: Stainless Steel Grade PH15-7 Mo Maximum Rec. Shaft Dia (S): 2.35 Clip OD in groove (C1): 4.19 mm Category: Retaining Rings - E-Clips - Basic - Stainless Steel
Part Number: ECL-0013-0016A-S15 (20 Pcs) E-Clips Retaining Rings - 1.59x1.32x0.25 mm - Stainless Steel Grade PH15-7 Mo 25 units (500 pcs) Available Immediately \| Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price $9.32 AUD Regular price ~~$32.08 AUD~~ Sale price $9.32 AUD Unit price per Per 20
Minimum Rec. Shaft Dia (S) 1.59 mm + 0.76 / - 0.00 _{(0.063 in.)}	Groove Dia. (Dg) 1.32 mm + 0.051 / - 0.000 _{(0.052 in.)}	Clip Thickness (T) 0.25 mm +/ - 0.025 _{(0.01 in.)}	Clip OD Loose (D1) 3.96 mm
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 0.30 mm Maximum Rec. Shaft Dia (S): 2.35 Clip OD in groove (C1): 4.19 mm Category: Retaining Rings - E-Clips - Basic - Stainless Steel
Part Number: ECL-0013-0016A-S15 (20 Pcs) E-Clips Retaining Rings - 1.59x1.32x0.25 mm - Stainless Steel Grade PH15-7 Mo 25 units (500 pcs) Available Immediately \| Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price $9.32 AUD Regular price ~~$32.08 AUD~~ Sale price $9.32 AUD Unit price per Per 20
ECL-0013-0016A-S15 (20 Pcs) --- E-Clips Retaining Rings - 1.59x1.32x0.25 mm - Stainless Steel Grade PH15-7 Mo Sale ECL-0013-0016A-S15 (20 Pcs) --- E-Clips Retaining Rings - 1.59x1.32x0.25 mm - Stainless Steel Grade PH15-7 Mo Regular price $9.32 AUD Regular price ~~$32.08 AUD~~ Sale price $9.32 AUD Unit price per 25 Available Now Sale
Minimum Rec. Shaft Dia (S) 1.59 mm + 0.76 / - 0.00 _{(0.063 in.)}	Groove Dia. (Dg) 1.32 mm + 0.051 / - 0.000 _{(0.052 in.)}	Clip Thickness (T) 0.25 mm +/ - 0.025 _{(0.01 in.)}	Clip OD Loose (D1) 3.96 mm	Groove Width (W) 0.30 mm
Material: Beryllium Copper Maximum Rec. Shaft Dia (S): 2.35 Clip OD in groove (C1): 4.19 mm Category: Retaining Rings - E-Clips - Basic - Beryllium Copper
Part Number: ECL-0013-0016A-B (5 Pcs) E-Clips Retaining Rings - 1.59x1.32x0.25 mm - Beryllium Copper 14 units (70 pcs) Available Immediately \| Further orders can be expected around Sat, Jun 07, 2025 Regular price $9.95 AUD Regular price Sale price $9.95 AUD Unit price per Per 5
Minimum Rec. Shaft Dia (S) 1.59 mm + 0.76 / - 0.00 _{(0.063 in.)}	Groove Dia. (Dg) 1.32 mm + 0.051 / - 0.000 _{(0.052 in.)}	Clip Thickness (T) 0.25 mm +/ - 0.025 _{(0.01 in.)}	Clip OD Loose (D1) 3.96 mm
Material: Beryllium Copper Groove Width (W): 0.30 mm Maximum Rec. Shaft Dia (S): 2.35 Clip OD in groove (C1): 4.19 mm Category: Retaining Rings - E-Clips - Basic - Beryllium Copper
Part Number: ECL-0013-0016A-B (5 Pcs) E-Clips Retaining Rings - 1.59x1.32x0.25 mm - Beryllium Copper 14 units (70 pcs) Available Immediately \| Further orders can be expected around Sat, Jun 07, 2025 Regular price $9.95 AUD Regular price Sale price $9.95 AUD Unit price per Per 5 View the product page first if you are unsure.
ECL-0013-0016A-B (5 Pcs) --- E-Clips Retaining Rings - 1.59x1.32x0.25 mm - Beryllium Copper ECL-0013-0016A-B (5 Pcs) --- E-Clips Retaining Rings - 1.59x1.32x0.25 mm - Beryllium Copper Regular price $9.95 AUD Regular price Sale price $9.95 AUD Unit price per 14 Available Now
Minimum Rec. Shaft Dia (S) 1.59 mm + 0.76 / - 0.00 _{(0.063 in.)}	Groove Dia. (Dg) 1.32 mm + 0.051 / - 0.000 _{(0.052 in.)}	Clip Thickness (T) 0.51 mm _{(0.02 in.)}	Clip OD Loose (D1) 4.76 mm	Groove Width (W) 0.58 mm
Material: Stainless Steel Grade PH15-7 Mo Maximum Rec. Shaft Dia (S): 2.35 Clip OD in groove (C1): 5.08 mm Category: Retaining Rings - E-Clips - Basic - Stainless Steel
Part Number: ECL-0013-0016C-S15 (250 Pcs) E-Clips Retaining Rings - 1.59x1.32x0.51 mm - Stainless Steel Grade PH15-7 Mo Out of Stock \| Backorder Now \| Orders can be expected around Thu, Aug 07, 2025 Regular price $245.14 AUD Regular price Sale price $245.14 AUD Unit price per Per 250
Minimum Rec. Shaft Dia (S) 1.59 mm + 0.76 / - 0.00 _{(0.063 in.)}	Groove Dia. (Dg) 1.32 mm + 0.051 / - 0.000 _{(0.052 in.)}	Clip Thickness (T) 0.51 mm _{(0.02 in.)}	Clip OD Loose (D1) 4.76 mm
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 0.58 mm Maximum Rec. Shaft Dia (S): 2.35 Clip OD in groove (C1): 5.08 mm Category: Retaining Rings - E-Clips - Basic - Stainless Steel
Part Number: ECL-0013-0016C-S15 (250 Pcs) E-Clips Retaining Rings - 1.59x1.32x0.51 mm - Stainless Steel Grade PH15-7 Mo Out of Stock \| Backorder Now \| Orders can be expected around Thu, Aug 07, 2025 Regular price $245.14 AUD Regular price Sale price $245.14 AUD Unit price per Per 250 View the product page first if you are unsure.
ECL-0013-0016C-S15 (250 Pcs) --- E-Clips Retaining Rings - 1.59x1.32x0.51 mm - Stainless Steel Grade PH15-7 Mo ECL-0013-0016C-S15 (250 Pcs) --- E-Clips Retaining Rings - 1.59x1.32x0.51 mm - Stainless Steel Grade PH15-7 Mo Regular price $245.14 AUD Regular price Sale price $245.14 AUD Unit price per Out of stock! Backorder Now
Minimum Rec. Shaft Dia (S) 1.59 mm + 0.76 / - 0.00 _{(0.063 in.)}	Groove Dia. (Dg) 1.32 mm + 0.051 / - 0.000 _{(0.052 in.)}	Clip Thickness (T) 0.51 mm _{(0.02 in.)}	Clip OD Loose (D1) 4.76 mm	Groove Width (W) 0.58 mm
Material: Carbon Steel Maximum Rec. Shaft Dia (S): 2.35 Clip OD in groove (C1): 5.08 mm Category: Retaining Rings - E-Clips - Basic - Carbon Steel
Part Number: ECL-0013-0016C-C (100 Pcs) E-Clips Retaining Rings - 1.59x1.32x0.51 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $16.95 AUD Regular price Sale price $16.95 AUD Unit price per Per 100
Minimum Rec. Shaft Dia (S) 1.59 mm + 0.76 / - 0.00 _{(0.063 in.)}	Groove Dia. (Dg) 1.32 mm + 0.051 / - 0.000 _{(0.052 in.)}	Clip Thickness (T) 0.51 mm _{(0.02 in.)}	Clip OD Loose (D1) 4.76 mm
Material: Carbon Steel Groove Width (W): 0.58 mm Maximum Rec. Shaft Dia (S): 2.35 Clip OD in groove (C1): 5.08 mm Category: Retaining Rings - E-Clips - Basic - Carbon Steel
Part Number: ECL-0013-0016C-C (100 Pcs) E-Clips Retaining Rings - 1.59x1.32x0.51 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $16.95 AUD Regular price Sale price $16.95 AUD Unit price per Per 100 View the product page first if you are unsure.
ECL-0013-0016C-C (100 Pcs) --- E-Clips Retaining Rings - 1.59x1.32x0.51 mm - Carbon Steel ECL-0013-0016C-C (100 Pcs) --- E-Clips Retaining Rings - 1.59x1.32x0.51 mm - Carbon Steel Regular price $16.95 AUD Regular price Sale price $16.95 AUD Unit price per Out of stock! Backorder Now
Minimum Rec. Shaft Dia (S) 2.00 mm + 0.50 / - 0.00 _{(0.079 in.)}	Groove Dia. (Dg) 1.50 mm + 0.00 / - 0.06 _{(0.059 in.)}	Clip Thickness (T) 0.40 mm +/ - 0.02 _{(0.016 in.)}	Clip OD Loose (D1) 3.85 mm	Groove Width (W) 0.44 mm
Material: Carbon Steel Maximum Rec. Shaft Dia (S): 2.50 Clip OD in groove (C1): 4.25 mm Category: Retaining Rings - E-Clips - Basic - Carbon Steel
Part Number: ECL-0015-0020-C (100 Pcs) E-Clips Retaining Rings - 2x1.5x0.4 mm - Carbon Steel 79 units (7900 pcs) Available Immediately \| Further orders can be expected around Sat, Jun 07, 2025 Regular price $6.50 AUD Regular price Sale price $6.50 AUD Unit price per Per 100
Minimum Rec. Shaft Dia (S) 2.00 mm + 0.50 / - 0.00 _{(0.079 in.)}	Groove Dia. (Dg) 1.50 mm + 0.00 / - 0.06 _{(0.059 in.)}	Clip Thickness (T) 0.40 mm +/ - 0.02 _{(0.016 in.)}	Clip OD Loose (D1) 3.85 mm
Material: Carbon Steel Groove Width (W): 0.44 mm Maximum Rec. Shaft Dia (S): 2.50 Clip OD in groove (C1): 4.25 mm Category: Retaining Rings - E-Clips - Basic - Carbon Steel
Part Number: ECL-0015-0020-C (100 Pcs) E-Clips Retaining Rings - 2x1.5x0.4 mm - Carbon Steel 79 units (7900 pcs) Available Immediately \| Further orders can be expected around Sat, Jun 07, 2025 Regular price $6.50 AUD Regular price Sale price $6.50 AUD Unit price per Per 100 View the product page first if you are unsure.
ECL-0015-0020-C (100 Pcs) --- E-Clips Retaining Rings - 2x1.5x0.4 mm - Carbon Steel ECL-0015-0020-C (100 Pcs) --- E-Clips Retaining Rings - 2x1.5x0.4 mm - Carbon Steel Regular price $6.50 AUD Regular price Sale price $6.50 AUD Unit price per 79 Available Now
Minimum Rec. Shaft Dia (S) 2.00 mm + 0.50 / - 0.00 _{(0.079 in.)}	Groove Dia. (Dg) 1.50 mm + 0.00 / - 0.06 _{(0.059 in.)}	Clip Thickness (T) 0.40 mm +/ - 0.02 _{(0.016 in.)}	Clip OD Loose (D1) 3.85 mm	Groove Width (W) 0.44 mm
Material: Stainless Steel Grade PH15-7 Mo Maximum Rec. Shaft Dia (S): 2.50 Clip OD in groove (C1): 4.25 mm Category: Retaining Rings - E-Clips - Basic - Stainless Steel
Part Number: ECL-0015-0020-S15 E-Clips Retaining Rings - 2x1.5x0.4 mm - Stainless Steel Grade PH15-7 Mo 343 Available Immediately \| Further orders can be expected around Sat, Jun 07, 2025 Regular price $2.23 AUD Regular price Sale price $2.23 AUD Unit price per Each
Minimum Rec. Shaft Dia (S) 2.00 mm + 0.50 / - 0.00 _{(0.079 in.)}	Groove Dia. (Dg) 1.50 mm + 0.00 / - 0.06 _{(0.059 in.)}	Clip Thickness (T) 0.40 mm +/ - 0.02 _{(0.016 in.)}	Clip OD Loose (D1) 3.85 mm
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 0.44 mm Maximum Rec. Shaft Dia (S): 2.50 Clip OD in groove (C1): 4.25 mm Category: Retaining Rings - E-Clips - Basic - Stainless Steel
Part Number: ECL-0015-0020-S15 E-Clips Retaining Rings - 2x1.5x0.4 mm - Stainless Steel Grade PH15-7 Mo 343 Available Immediately \| Further orders can be expected around Sat, Jun 07, 2025 Regular price $2.23 AUD Regular price Sale price $2.23 AUD Unit price per Each View the product page first if you are unsure.
ECL-0015-0020-S15 --- E-Clips Retaining Rings - 2x1.5x0.4 mm - Stainless Steel Grade PH15-7 Mo ECL-0015-0020-S15 --- E-Clips Retaining Rings - 2x1.5x0.4 mm - Stainless Steel Grade PH15-7 Mo Regular price $2.23 AUD Regular price Sale price $2.23 AUD Unit price per 343 Available Now
Minimum Rec. Shaft Dia (S) 2.39 mm + 0.76 / - 0.00 _{(0.094 in.)}	Groove Dia. (Dg) 1.88 mm + 0.051 / - 0.000 _{(0.074 in.)}	Clip Thickness (T) 0.38 mm +/ - 0.025 _{(0.015 in.)}	Clip OD Loose (D1) 4.75 mm	Groove Width (W) 0.46 mm
Material: Stainless Steel Grade PH15-7 Mo Maximum Rec. Shaft Dia (S): 3.15 Clip OD in groove (C1): 5.08 mm Category: Retaining Rings - E-Clips - Basic - Stainless Steel
Part Number: ECL-0018-0024A-S15 (20 Pcs) E-Clips Retaining Rings - 2.39x1.88x0.38 mm - Stainless Steel Grade PH15-7 Mo 24 units (480 pcs) Available Immediately \| Further orders can be expected around Sat, Jun 07, 2025 Regular price $8.05 AUD Regular price Sale price $8.05 AUD Unit price per Per 20
Minimum Rec. Shaft Dia (S) 2.39 mm + 0.76 / - 0.00 _{(0.094 in.)}	Groove Dia. (Dg) 1.88 mm + 0.051 / - 0.000 _{(0.074 in.)}	Clip Thickness (T) 0.38 mm +/ - 0.025 _{(0.015 in.)}	Clip OD Loose (D1) 4.75 mm
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 0.46 mm Maximum Rec. Shaft Dia (S): 3.15 Clip OD in groove (C1): 5.08 mm Category: Retaining Rings - E-Clips - Basic - Stainless Steel
Part Number: ECL-0018-0024A-S15 (20 Pcs) E-Clips Retaining Rings - 2.39x1.88x0.38 mm - Stainless Steel Grade PH15-7 Mo 24 units (480 pcs) Available Immediately \| Further orders can be expected around Sat, Jun 07, 2025 Regular price $8.05 AUD Regular price Sale price $8.05 AUD Unit price per Per 20 View the product page first if you are unsure.
ECL-0018-0024A-S15 (20 Pcs) --- E-Clips Retaining Rings - 2.39x1.88x0.38 mm - Stainless Steel Grade PH15-7 Mo ECL-0018-0024A-S15 (20 Pcs) --- E-Clips Retaining Rings - 2.39x1.88x0.38 mm - Stainless Steel Grade PH15-7 Mo Regular price $8.05 AUD Regular price Sale price $8.05 AUD Unit price per 24 Available Now
Minimum Rec. Shaft Dia (S) 2.39 mm + 0.76 / - 0.00 _{(0.094 in.)}	Groove Dia. (Dg) 1.88 mm + 0.051 / - 0.000 _{(0.074 in.)}	Clip Thickness (T) 0.38 mm +/ - 0.025 _{(0.015 in.)}	Clip OD Loose (D1) 4.75 mm	Groove Width (W) 0.46 mm
Material: Carbon Steel Maximum Rec. Shaft Dia (S): 3.15 Clip OD in groove (C1): 5.08 mm Category: Retaining Rings - E-Clips - Basic - Carbon Steel
Part Number: ECL-0018-0024A-C (50 Pcs) E-Clips Retaining Rings - 2.39x1.88x0.38 mm - Carbon Steel 1 pack (50 pcs) Available Immediately \| Further orders can be expected around Sat, Jun 07, 2025 Regular price $8.95 AUD Regular price Sale price $8.95 AUD Unit price per Per 50
Minimum Rec. Shaft Dia (S) 2.39 mm + 0.76 / - 0.00 _{(0.094 in.)}	Groove Dia. (Dg) 1.88 mm + 0.051 / - 0.000 _{(0.074 in.)}	Clip Thickness (T) 0.38 mm +/ - 0.025 _{(0.015 in.)}	Clip OD Loose (D1) 4.75 mm
Material: Carbon Steel Groove Width (W): 0.46 mm Maximum Rec. Shaft Dia (S): 3.15 Clip OD in groove (C1): 5.08 mm Category: Retaining Rings - E-Clips - Basic - Carbon Steel
Part Number: ECL-0018-0024A-C (50 Pcs) E-Clips Retaining Rings - 2.39x1.88x0.38 mm - Carbon Steel 1 pack (50 pcs) Available Immediately \| Further orders can be expected around Sat, Jun 07, 2025 Regular price $8.95 AUD Regular price Sale price $8.95 AUD Unit price per Per 50 View the product page first if you are unsure.
ECL-0018-0024A-C (50 Pcs) --- E-Clips Retaining Rings - 2.39x1.88x0.38 mm - Carbon Steel ECL-0018-0024A-C (50 Pcs) --- E-Clips Retaining Rings - 2.39x1.88x0.38 mm - Carbon Steel Regular price $8.95 AUD Regular price Sale price $8.95 AUD Unit price per 1 Available Now
Minimum Rec. Shaft Dia (S) 2.39 mm + 0.76 / - 0.00 _{(0.094 in.)}	Groove Dia. (Dg) 1.88 mm + 0.051 / - 0.000 _{(0.074 in.)}	Clip Thickness (T) 0.38 mm +/ - 0.052 _{(0.015 in.)}	Clip OD Loose (D1) 5.23 mm	Groove Width (W) 0.51 mm
Material: Carbon Steel Maximum Rec. Shaft Dia (S): 3.15 Clip OD in groove (C1): 5.56 mm Category: Retaining Rings - E-Clips - Basic - Carbon Steel
Part Number: ECL-0018-0024D-C (750 Pcs) E-Clips Retaining Rings - 2.39x1.88x0.38 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Aug 07, 2025 Regular price $150.14 AUD Regular price Sale price $150.14 AUD Unit price per Per 750
Minimum Rec. Shaft Dia (S) 2.39 mm + 0.76 / - 0.00 _{(0.094 in.)}	Groove Dia. (Dg) 1.88 mm + 0.051 / - 0.000 _{(0.074 in.)}	Clip Thickness (T) 0.38 mm +/ - 0.052 _{(0.015 in.)}	Clip OD Loose (D1) 5.23 mm
Material: Carbon Steel Groove Width (W): 0.51 mm Maximum Rec. Shaft Dia (S): 3.15 Clip OD in groove (C1): 5.56 mm Category: Retaining Rings - E-Clips - Basic - Carbon Steel
Part Number: ECL-0018-0024D-C (750 Pcs) E-Clips Retaining Rings - 2.39x1.88x0.38 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Aug 07, 2025 Regular price $150.14 AUD Regular price Sale price $150.14 AUD Unit price per Per 750 View the product page first if you are unsure.
ECL-0018-0024D-C (750 Pcs) --- E-Clips Retaining Rings - 2.39x1.88x0.38 mm - Carbon Steel ECL-0018-0024D-C (750 Pcs) --- E-Clips Retaining Rings - 2.39x1.88x0.38 mm - Carbon Steel Regular price $150.14 AUD Regular price Sale price $150.14 AUD Unit price per Out of stock! Backorder Now
Minimum Rec. Shaft Dia (S) 2.39 mm + 0.76 / - 0.00 _{(0.094 in.)}	Groove Dia. (Dg) 1.88 mm + 0.051 / - 0.000 _{(0.074 in.)}	Clip Thickness (T) 0.38 mm +/ - 0.050 _{(0.015 in.)}	Clip OD Loose (D1) 5.84 mm	Groove Width (W) 0.46 mm
Material: Carbon Steel Maximum Rec. Shaft Dia (S): 3.15 Clip OD in groove (C1): 6.22 mm Category: Retaining Rings - E-Clips - Basic - Carbon Steel
Part Number: ECL-0018-0024-C (50 Pcs) E-Clips Retaining Rings - 2.39x1.88x0.38 mm - Carbon Steel 1 pack (50 pcs) Available Immediately \| Further orders can be expected around Sat, Jun 07, 2025 Regular price $8.68 AUD Regular price Sale price $8.68 AUD Unit price per Per 50
Minimum Rec. Shaft Dia (S) 2.39 mm + 0.76 / - 0.00 _{(0.094 in.)}	Groove Dia. (Dg) 1.88 mm + 0.051 / - 0.000 _{(0.074 in.)}	Clip Thickness (T) 0.38 mm +/ - 0.050 _{(0.015 in.)}	Clip OD Loose (D1) 5.84 mm
Material: Carbon Steel Groove Width (W): 0.46 mm Maximum Rec. Shaft Dia (S): 3.15 Clip OD in groove (C1): 6.22 mm Category: Retaining Rings - E-Clips - Basic - Carbon Steel
Part Number: ECL-0018-0024-C (50 Pcs) E-Clips Retaining Rings - 2.39x1.88x0.38 mm - Carbon Steel 1 pack (50 pcs) Available Immediately \| Further orders can be expected around Sat, Jun 07, 2025 Regular price $8.68 AUD Regular price Sale price $8.68 AUD Unit price per Per 50 View the product page first if you are unsure.
ECL-0018-0024-C (50 Pcs) --- E-Clips Retaining Rings - 2.39x1.88x0.38 mm - Carbon Steel ECL-0018-0024-C (50 Pcs) --- E-Clips Retaining Rings - 2.39x1.88x0.38 mm - Carbon Steel Regular price $8.68 AUD Regular price Sale price $8.68 AUD Unit price per 1 Available Now
Minimum Rec. Shaft Dia (S) 2.50 mm + 0.50 / - 0.00 _{(0.098 in.)}	Groove Dia. (Dg) 1.90 mm + 0.00 / - 0.06 _{(0.075 in.)}	Clip Thickness (T) 0.50 mm +/ - 0.02 _{(0.02 in.)}	Clip OD Loose (D1) 4.40 mm	Groove Width (W) 0.54 mm
Material: Carbon Steel Maximum Rec. Shaft Dia (S): 3.00 Clip OD in groove (C1): 4.80 mm Category: Retaining Rings - E-Clips - Basic - Carbon Steel
Part Number: ECL-0019-0025-C (100 Pcs) E-Clips Retaining Rings - 2.5x1.9x0.5 mm - Carbon Steel 37 units (3700 pcs) Available Immediately \| Further orders can be expected around Sat, Jun 07, 2025 Regular price $5.32 AUD Regular price Sale price $5.32 AUD Unit price per Per 100
Minimum Rec. Shaft Dia (S) 2.50 mm + 0.50 / - 0.00 _{(0.098 in.)}	Groove Dia. (Dg) 1.90 mm + 0.00 / - 0.06 _{(0.075 in.)}	Clip Thickness (T) 0.50 mm +/ - 0.02 _{(0.02 in.)}	Clip OD Loose (D1) 4.40 mm
Material: Carbon Steel Groove Width (W): 0.54 mm Maximum Rec. Shaft Dia (S): 3.00 Clip OD in groove (C1): 4.80 mm Category: Retaining Rings - E-Clips - Basic - Carbon Steel
Part Number: ECL-0019-0025-C (100 Pcs) E-Clips Retaining Rings - 2.5x1.9x0.5 mm - Carbon Steel 37 units (3700 pcs) Available Immediately \| Further orders can be expected around Sat, Jun 07, 2025 Regular price $5.32 AUD Regular price Sale price $5.32 AUD Unit price per Per 100 View the product page first if you are unsure.
ECL-0019-0025-C (100 Pcs) --- E-Clips Retaining Rings - 2.5x1.9x0.5 mm - Carbon Steel ECL-0019-0025-C (100 Pcs) --- E-Clips Retaining Rings - 2.5x1.9x0.5 mm - Carbon Steel Regular price $5.32 AUD Regular price Sale price $5.32 AUD Unit price per 37 Available Now
Minimum Rec. Shaft Dia (S) 2.50 mm + 0.50 / - 0.00 _{(0.098 in.)}	Groove Dia. (Dg) 1.90 mm + 0.00 / - 0.06 _{(0.075 in.)}	Clip Thickness (T) 0.50 mm +/ - 0.02 _{(0.02 in.)}	Clip OD Loose (D1) 4.40 mm	Groove Width (W) 0.54 mm
Material: Stainless Steel Grade PH15-7 Mo Maximum Rec. Shaft Dia (S): 3.00 Clip OD in groove (C1): 4.80 mm Category: Retaining Rings - E-Clips - Basic - Stainless Steel
Part Number: ECL-0019-0025-S15 (10 Pcs) E-Clips Retaining Rings - 2.5x1.9x0.5 mm - Stainless Steel Grade PH15-7 Mo 6 units (60 pcs) Available Immediately \| Further orders can be expected around Sat, Jun 07, 2025 Regular price $12.86 AUD Regular price Sale price $12.86 AUD Unit price per Per 10
Minimum Rec. Shaft Dia (S) 2.50 mm + 0.50 / - 0.00 _{(0.098 in.)}	Groove Dia. (Dg) 1.90 mm + 0.00 / - 0.06 _{(0.075 in.)}	Clip Thickness (T) 0.50 mm +/ - 0.02 _{(0.02 in.)}	Clip OD Loose (D1) 4.40 mm
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 0.54 mm Maximum Rec. Shaft Dia (S): 3.00 Clip OD in groove (C1): 4.80 mm Category: Retaining Rings - E-Clips - Basic - Stainless Steel
Part Number: ECL-0019-0025-S15 (10 Pcs) E-Clips Retaining Rings - 2.5x1.9x0.5 mm - Stainless Steel Grade PH15-7 Mo 6 units (60 pcs) Available Immediately \| Further orders can be expected around Sat, Jun 07, 2025 Regular price $12.86 AUD Regular price Sale price $12.86 AUD Unit price per Per 10 View the product page first if you are unsure.
ECL-0019-0025-S15 (10 Pcs) --- E-Clips Retaining Rings - 2.5x1.9x0.5 mm - Stainless Steel Grade PH15-7 Mo ECL-0019-0025-S15 (10 Pcs) --- E-Clips Retaining Rings - 2.5x1.9x0.5 mm - Stainless Steel Grade PH15-7 Mo Regular price $12.86 AUD Regular price Sale price $12.86 AUD Unit price per 6 Available Now
Minimum Rec. Shaft Dia (S) 2.79 mm + 1.02 / - 0.00 _{(0.11 in.)}	Groove Dia. (Dg) 1.98 mm + 0.051 / - 0.000 _{(0.078 in.)}	Clip Thickness (T) 0.51 mm +/ - 0.038 _{(0.02 in.)}	Clip OD Loose (D1) 10.82 mm	Groove Width (W) 0.58 mm

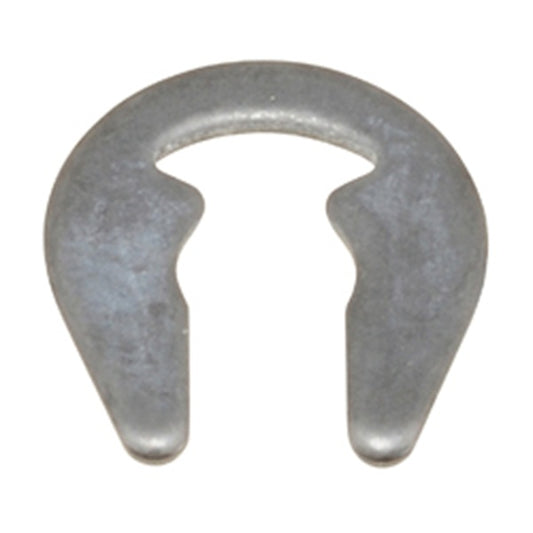

Material: Carbon Steel Maximum Rec. Shaft Dia (S): 3.81 Clip OD in groove (C1): 10.92 mm Category: Retaining Rings - E-Clips - Basic - Carbon Steel
Part Number: ECL-0020-0028-C (100 Pcs) E-Clips Retaining Rings - 2.79x1.98x0.51 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 18, 2025 Regular price $47.59 AUD Regular price Sale price $47.59 AUD Unit price per Per 100
Minimum Rec. Shaft Dia (S) 2.79 mm + 1.02 / - 0.00 _{(0.11 in.)}	Groove Dia. (Dg) 1.98 mm + 0.051 / - 0.000 _{(0.078 in.)}	Clip Thickness (T) 0.51 mm +/ - 0.038 _{(0.02 in.)}	Clip OD Loose (D1) 10.82 mm
Material: Carbon Steel Groove Width (W): 0.58 mm Maximum Rec. Shaft Dia (S): 3.81 Clip OD in groove (C1): 10.92 mm Category: Retaining Rings - E-Clips - Basic - Carbon Steel
Part Number: ECL-0020-0028-C (100 Pcs) E-Clips Retaining Rings - 2.79x1.98x0.51 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 18, 2025 Regular price $47.59 AUD Regular price Sale price $47.59 AUD Unit price per Per 100 View the product page first if you are unsure.
ECL-0020-0028-C (100 Pcs) --- E-Clips Retaining Rings - 2.79x1.98x0.51 mm - Carbon Steel ECL-0020-0028-C (100 Pcs) --- E-Clips Retaining Rings - 2.79x1.98x0.51 mm - Carbon Steel Regular price $47.59 AUD Regular price Sale price $47.59 AUD Unit price per Out of stock! Backorder Now
Minimum Rec. Shaft Dia (S) 2.79 mm + 1.02 / - 0.00 _{(0.11 in.)}	Groove Dia. (Dg) 2.01 mm + 0.051 / - 0.000 _{(0.079 in.)}	Clip Thickness (T) 0.38 mm +/ - 0.050 _{(0.015 in.)}	Clip OD Loose (D1) 9.53 mm	Groove Width (W) 0.61 mm
Material: Carbon Steel Maximum Rec. Shaft Dia (S): 3.81 Clip OD in groove (C1): 9.91 mm Category: Retaining Rings - E-Clips - Basic - Carbon Steel
Part Number: ECL-0020-0028A-C (100 Pcs) E-Clips Retaining Rings - 2.79x2.01x0.38 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $20.50 AUD Regular price Sale price $20.50 AUD Unit price per Per 100
Minimum Rec. Shaft Dia (S) 2.79 mm + 1.02 / - 0.00 _{(0.11 in.)}	Groove Dia. (Dg) 2.01 mm + 0.051 / - 0.000 _{(0.079 in.)}	Clip Thickness (T) 0.38 mm +/ - 0.050 _{(0.015 in.)}	Clip OD Loose (D1) 9.53 mm
Material: Carbon Steel Groove Width (W): 0.61 mm Maximum Rec. Shaft Dia (S): 3.81 Clip OD in groove (C1): 9.91 mm Category: Retaining Rings - E-Clips - Basic - Carbon Steel
Part Number: ECL-0020-0028A-C (100 Pcs) E-Clips Retaining Rings - 2.79x2.01x0.38 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $20.50 AUD Regular price Sale price $20.50 AUD Unit price per Per 100 View the product page first if you are unsure.
ECL-0020-0028A-C (100 Pcs) --- E-Clips Retaining Rings - 2.79x2.01x0.38 mm - Carbon Steel ECL-0020-0028A-C (100 Pcs) --- E-Clips Retaining Rings - 2.79x2.01x0.38 mm - Carbon Steel Regular price $20.50 AUD Regular price Sale price $20.50 AUD Unit price per Out of stock! Backorder Now
Minimum Rec. Shaft Dia (S) 2.79 mm + 1.02 / - 0.00 _{(0.11 in.)}	Groove Dia. (Dg) 2.18 mm + 0.051 / - 0.000 _{(0.086 in.)}	Clip Thickness (T) 0.56 mm +/ - 0.051 _{(0.022 in.)}	Clip OD Loose (D1) 7.16 mm	Groove Width (W) 0.64 mm

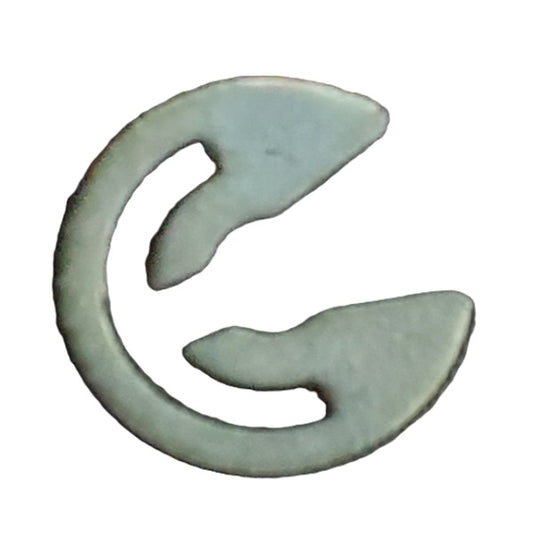

Material: Carbon Steel Zinc Plated Maximum Rec. Shaft Dia (S): 3.81 Clip OD in groove (C1): 7.54 mm Category: Retaining Rings - E-Clips - Basic - Carbon Steel
Part Number: ECL-0022-0028-CZ (20 Pcs) E-Clips Retaining Rings - 2.79x2.18x0.56 mm - Carbon Steel Zinc Plated 8 units (160 pcs) Available Immediately \| Further orders can be expected around Wed, Jun 18, 2025 Regular price $13.05 AUD Regular price Sale price $13.05 AUD Unit price per Per 20
Minimum Rec. Shaft Dia (S) 2.79 mm + 1.02 / - 0.00 _{(0.11 in.)}	Groove Dia. (Dg) 2.18 mm + 0.051 / - 0.000 _{(0.086 in.)}	Clip Thickness (T) 0.56 mm +/ - 0.051 _{(0.022 in.)}	Clip OD Loose (D1) 7.16 mm
Material: Carbon Steel Zinc Plated Groove Width (W): 0.64 mm Maximum Rec. Shaft Dia (S): 3.81 Clip OD in groove (C1): 7.54 mm Category: Retaining Rings - E-Clips - Basic - Carbon Steel
Part Number: ECL-0022-0028-CZ (20 Pcs) E-Clips Retaining Rings - 2.79x2.18x0.56 mm - Carbon Steel Zinc Plated 8 units (160 pcs) Available Immediately \| Further orders can be expected around Wed, Jun 18, 2025 Regular price $13.05 AUD Regular price Sale price $13.05 AUD Unit price per Per 20 View the product page first if you are unsure.
ECL-0022-0028-CZ (20 Pcs) --- E-Clips Retaining Rings - 2.79x2.18x0.56 mm - Carbon Steel Zinc Plated ECL-0022-0028-CZ (20 Pcs) --- E-Clips Retaining Rings - 2.79x2.18x0.56 mm - Carbon Steel Zinc Plated Regular price $13.05 AUD Regular price Sale price $13.05 AUD Unit price per 8 Available Now
Minimum Rec. Shaft Dia (S) 3.00 mm + 1.00 / - 0.00 _{(0.118 in.)}	Groove Dia. (Dg) 2.30 mm + 0.00 / - 0.06 _{(0.091 in.)}	Clip Thickness (T) 0.60 mm +/ - 0.02 _{(0.024 in.)}	Clip OD Loose (D1) 5.90 mm	Groove Width (W) 0.64 mm
Material: Carbon Steel Maximum Rec. Shaft Dia (S): 4.00 Clip OD in groove (C1): 7.30 mm Category: Retaining Rings - E-Clips - Basic - Carbon Steel
Part Number: ECL-0023-0030-C (100 Pcs) E-Clips Retaining Rings - 3x2.3x0.6 mm - Carbon Steel 24 units (2400 pcs) Available Immediately \| Further orders can be expected around Sat, Jun 07, 2025 Regular price $4.50 AUD Regular price Sale price $4.50 AUD Unit price per Per 100
Minimum Rec. Shaft Dia (S) 3.00 mm + 1.00 / - 0.00 _{(0.118 in.)}	Groove Dia. (Dg) 2.30 mm + 0.00 / - 0.06 _{(0.091 in.)}	Clip Thickness (T) 0.60 mm +/ - 0.02 _{(0.024 in.)}	Clip OD Loose (D1) 5.90 mm
Material: Carbon Steel Groove Width (W): 0.64 mm Maximum Rec. Shaft Dia (S): 4.00 Clip OD in groove (C1): 7.30 mm Category: Retaining Rings - E-Clips - Basic - Carbon Steel
Part Number: ECL-0023-0030-C (100 Pcs) E-Clips Retaining Rings - 3x2.3x0.6 mm - Carbon Steel 24 units (2400 pcs) Available Immediately \| Further orders can be expected around Sat, Jun 07, 2025 Regular price $4.50 AUD Regular price Sale price $4.50 AUD Unit price per Per 100 View the product page first if you are unsure.
ECL-0023-0030-C (100 Pcs) --- E-Clips Retaining Rings - 3x2.3x0.6 mm - Carbon Steel ECL-0023-0030-C (100 Pcs) --- E-Clips Retaining Rings - 3x2.3x0.6 mm - Carbon Steel Regular price $4.50 AUD Regular price Sale price $4.50 AUD Unit price per 24 Available Now
Minimum Rec. Shaft Dia (S) 3.00 mm + 1.00 / - 0.00 _{(0.118 in.)}	Groove Dia. (Dg) 2.30 mm + 0.00 / - 0.06 _{(0.091 in.)}	Clip Thickness (T) 0.60 mm +/ - 0.02 _{(0.024 in.)}	Clip OD Loose (D1) 5.90 mm	Groove Width (W) 0.64 mm
Material: Stainless Steel Grade PH15-7 Mo Maximum Rec. Shaft Dia (S): 4.00 Clip OD in groove (C1): 7.30 mm Category: Retaining Rings - E-Clips - Basic - Stainless Steel
Part Number: ECL-0023-0030-S15 (10 Pcs) E-Clips Retaining Rings - 3x2.3x0.6 mm - Stainless Steel Grade PH15-7 Mo 14 units (140 pcs) Available Immediately \| Further orders can be expected around Sat, Jun 07, 2025 Regular price $9.86 AUD Regular price Sale price $9.86 AUD Unit price per Per 10
Minimum Rec. Shaft Dia (S) 3.00 mm + 1.00 / - 0.00 _{(0.118 in.)}	Groove Dia. (Dg) 2.30 mm + 0.00 / - 0.06 _{(0.091 in.)}	Clip Thickness (T) 0.60 mm +/ - 0.02 _{(0.024 in.)}	Clip OD Loose (D1) 5.90 mm
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 0.64 mm Maximum Rec. Shaft Dia (S): 4.00 Clip OD in groove (C1): 7.30 mm Category: Retaining Rings - E-Clips - Basic - Stainless Steel
Part Number: ECL-0023-0030-S15 (10 Pcs) E-Clips Retaining Rings - 3x2.3x0.6 mm - Stainless Steel Grade PH15-7 Mo 14 units (140 pcs) Available Immediately \| Further orders can be expected around Sat, Jun 07, 2025 Regular price $9.86 AUD Regular price Sale price $9.86 AUD Unit price per Per 10 View the product page first if you are unsure.
ECL-0023-0030-S15 (10 Pcs) --- E-Clips Retaining Rings - 3x2.3x0.6 mm - Stainless Steel Grade PH15-7 Mo ECL-0023-0030-S15 (10 Pcs) --- E-Clips Retaining Rings - 3x2.3x0.6 mm - Stainless Steel Grade PH15-7 Mo Regular price $9.86 AUD Regular price Sale price $9.86 AUD Unit price per 14 Available Now
Minimum Rec. Shaft Dia (S) 3.18 mm + 1.02 / - 0.00 _{(0.125 in.)}	Groove Dia. (Dg) 2.41 mm + 0.051 / - 0.000 _{(0.095 in.)}	Clip Thickness (T) 0.38 mm +/ - 0.050 _{(0.015 in.)}	Clip OD Loose (D1) 5.84 mm	Groove Width (W) 0.46 mm

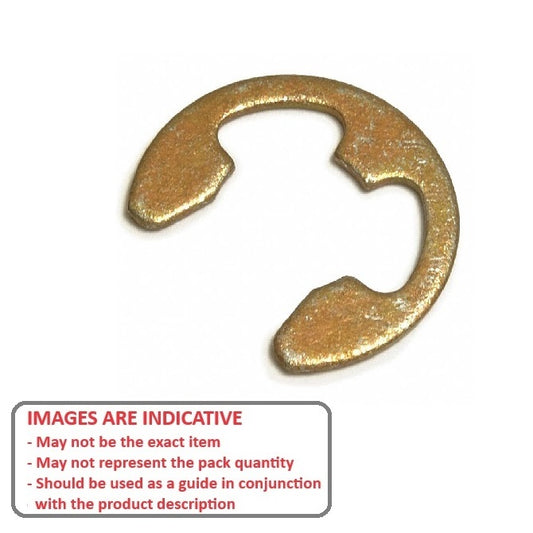

Material: Zinc Plated Yellow Maximum Rec. Shaft Dia (S): 4.20 Clip OD in groove (C1): 6.10 mm Category: Retaining Rings - E-Clips - Basic - Carbon Steel
Part Number: ECL-0024-0032A-CZY (100 Pcs) E-Clips Retaining Rings - 3.18x2.41x0.38 mm - Zinc Plated Yellow Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $22.95 AUD Regular price Sale price $22.95 AUD Unit price per Per 100
Minimum Rec. Shaft Dia (S) 3.18 mm + 1.02 / - 0.00 _{(0.125 in.)}	Groove Dia. (Dg) 2.41 mm + 0.051 / - 0.000 _{(0.095 in.)}	Clip Thickness (T) 0.38 mm +/ - 0.050 _{(0.015 in.)}	Clip OD Loose (D1) 5.84 mm
Material: Zinc Plated Yellow Groove Width (W): 0.46 mm Maximum Rec. Shaft Dia (S): 4.20 Clip OD in groove (C1): 6.10 mm Category: Retaining Rings - E-Clips - Basic - Carbon Steel
Part Number: ECL-0024-0032A-CZY (100 Pcs) E-Clips Retaining Rings - 3.18x2.41x0.38 mm - Zinc Plated Yellow Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $22.95 AUD Regular price Sale price $22.95 AUD Unit price per Per 100 View the product page first if you are unsure.
ECL-0024-0032A-CZY (100 Pcs) --- E-Clips Retaining Rings - 3.18x2.41x0.38 mm - Zinc Plated Yellow ECL-0024-0032A-CZY (100 Pcs) --- E-Clips Retaining Rings - 3.18x2.41x0.38 mm - Zinc Plated Yellow Regular price $22.95 AUD Regular price Sale price $22.95 AUD Unit price per Out of stock! Backorder Now
Minimum Rec. Shaft Dia (S) 3.18 mm + 1.02 / - 0.00 _{(0.125 in.)}	Groove Dia. (Dg) 2.41 mm + 0.051 / - 0.000 _{(0.095 in.)}	Clip Thickness (T) 0.38 mm +/ - 0.050 _{(0.015 in.)}	Clip OD Loose (D1) 5.84 mm	Groove Width (W) 0.46 mm
Material: Carbon Steel Maximum Rec. Shaft Dia (S): 4.20 Clip OD in groove (C1): 6.10 mm Category: Retaining Rings - E-Clips - Basic - Carbon Steel
Part Number: ECL-0024-0032A-C (50 Pcs) E-Clips Retaining Rings - 3.18x2.41x0.38 mm - Carbon Steel 2 units (100 pcs) Available Immediately \| Further orders can be expected around Sat, Jun 07, 2025 Regular price $9.14 AUD Regular price Sale price $9.14 AUD Unit price per Per 50
Minimum Rec. Shaft Dia (S) 3.18 mm + 1.02 / - 0.00 _{(0.125 in.)}	Groove Dia. (Dg) 2.41 mm + 0.051 / - 0.000 _{(0.095 in.)}	Clip Thickness (T) 0.38 mm +/ - 0.050 _{(0.015 in.)}	Clip OD Loose (D1) 5.84 mm
Material: Carbon Steel Groove Width (W): 0.46 mm Maximum Rec. Shaft Dia (S): 4.20 Clip OD in groove (C1): 6.10 mm Category: Retaining Rings - E-Clips - Basic - Carbon Steel
Part Number: ECL-0024-0032A-C (50 Pcs) E-Clips Retaining Rings - 3.18x2.41x0.38 mm - Carbon Steel 2 units (100 pcs) Available Immediately \| Further orders can be expected around Sat, Jun 07, 2025 Regular price $9.14 AUD Regular price Sale price $9.14 AUD Unit price per Per 50 View the product page first if you are unsure.
ECL-0024-0032A-C (50 Pcs) --- E-Clips Retaining Rings - 3.18x2.41x0.38 mm - Carbon Steel ECL-0024-0032A-C (50 Pcs) --- E-Clips Retaining Rings - 3.18x2.41x0.38 mm - Carbon Steel Regular price $9.14 AUD Regular price Sale price $9.14 AUD Unit price per 2 Available Now
Minimum Rec. Shaft Dia (S) 3.18 mm + 1.02 / - 0.00 _{(0.125 in.)}	Groove Dia. (Dg) 2.41 mm + 0.051 / - 0.000 _{(0.095 in.)}	Clip Thickness (T) 0.38 mm +/ - 0.050 _{(0.015 in.)}	Clip OD Loose (D1) 5.84 mm	Groove Width (W) 0.46 mm
Material: Stainless Steel Grade PH15-7 Mo Maximum Rec. Shaft Dia (S): 4.20 Clip OD in groove (C1): 6.10 mm Category: Retaining Rings - E-Clips - Basic - Stainless Steel
Part Number: ECL-0024-0032A-S15 (20 Pcs) E-Clips Retaining Rings - 3.18x2.41x0.38 mm - Stainless Steel Grade PH15-7 Mo 89 units (1780 pcs) Available Immediately \| Further orders can be expected around Sat, Jun 07, 2025 Regular price $9.86 AUD Regular price Sale price $9.86 AUD Unit price per Per 20
Minimum Rec. Shaft Dia (S) 3.18 mm + 1.02 / - 0.00 _{(0.125 in.)}	Groove Dia. (Dg) 2.41 mm + 0.051 / - 0.000 _{(0.095 in.)}	Clip Thickness (T) 0.38 mm +/ - 0.050 _{(0.015 in.)}	Clip OD Loose (D1) 5.84 mm
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 0.46 mm Maximum Rec. Shaft Dia (S): 4.20 Clip OD in groove (C1): 6.10 mm Category: Retaining Rings - E-Clips - Basic - Stainless Steel
Part Number: ECL-0024-0032A-S15 (20 Pcs) E-Clips Retaining Rings - 3.18x2.41x0.38 mm - Stainless Steel Grade PH15-7 Mo 89 units (1780 pcs) Available Immediately \| Further orders can be expected around Sat, Jun 07, 2025 Regular price $9.86 AUD Regular price Sale price $9.86 AUD Unit price per Per 20 View the product page first if you are unsure.
ECL-0024-0032A-S15 (20 Pcs) --- E-Clips Retaining Rings - 3.18x2.41x0.38 mm - Stainless Steel Grade PH15-7 Mo ECL-0024-0032A-S15 (20 Pcs) --- E-Clips Retaining Rings - 3.18x2.41x0.38 mm - Stainless Steel Grade PH15-7 Mo Regular price $9.86 AUD Regular price Sale price $9.86 AUD Unit price per 89 Available Now
