Collection: Retaining Rings - E-Clips - Basic - Stainless Steel

Retaining Rings -> E-Clips -> Basic -> Stainless Steel

There are 29 products in the sub-categories of Retaining Rings - E-Clips - Basic - Stainless Steel. Scroll down or follow the link to Retaining Rings - E-Clips - Basic - Stainless Steel in the products table to see all these items combined into a handy table with filters.

Category Details

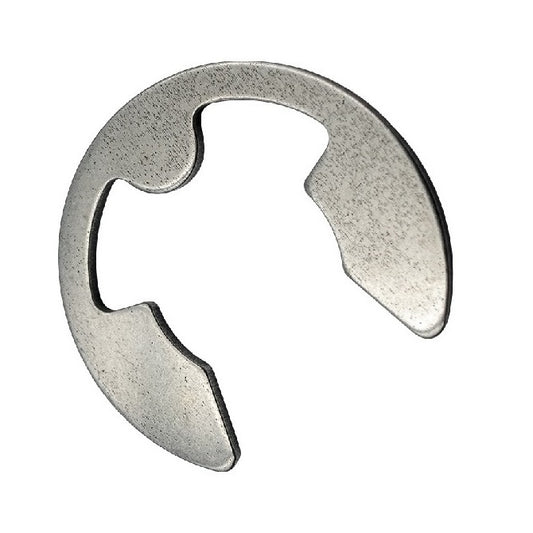

A selection of Stainless Steel Basic E-Clips Retaining Rings. Basic imperial and metric e-clips DIN6799 and N1500. Stainless Steel PH15-7 Mo.

An expanded range may be available on special order. Please enquire.

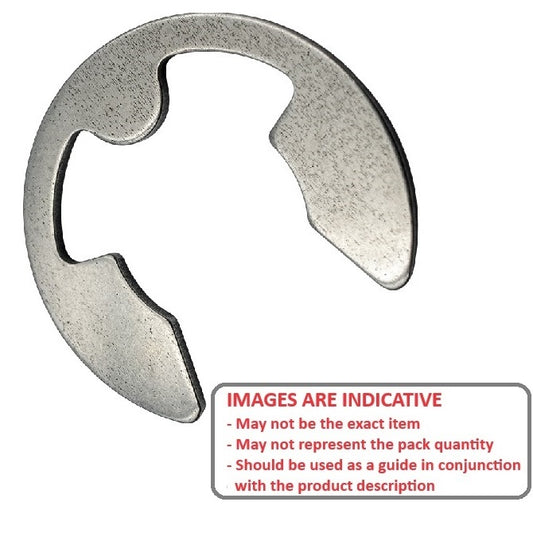

Not all e-clips are exactly the same style, however all follow the basic principal of a push on clip.

Miniature Bearings Australia - MBA Minibearings

Additional resources:

A more concise listing may be found in the Retaining Rings - E-Clips - Basic - Stainless Steel category on the Small Parts & Bearings online store.

Minimum Rec. Shaft Dia (S)	Groove Dia. (Dg)	Clip Thickness (T)	Clip OD Loose (D1)	Groove Width (W)
Minimum Rec. Shaft Dia (S) 1.59 mm _{+ 0.76 / - 0.00} (Equiv. 0.063 in.)	Groove Dia. (Dg) 1.32 mm _{+ 0.051 / - 0.000} (Equiv. 0.052 in.)	Clip Thickness (T) 0.25 mm _{+/ - 0.025} (Equiv. 0.01 in.)	Clip OD Loose (D1) 3.96 mm	Groove Width (W) 0.30 mm
Material: Stainless Steel Grade PH15-7 Mo Maximum Rec. Shaft Dia (S): 2.35 Clip OD in groove (C1): 4.19 mm Standard: MIL-16633
Part Number: ECL-0013-0016A-S15 (20 Pcs) E-Clips Retaining Rings - 1.59x1.32x0.25 mm Basic - Stainless Steel Grade PH15-7 Mo E-Clip 25 units (500 pcs) Available Now \| Further orders can be expected around Tue, Sep 30, 2025 Regular price $11.50 AUD Regular price ~~$32.56 AUD~~ Sale price $11.50 AUD Unit price per Per 20 Quantity Required 25 units (500 pcs) Available Now. Backorder if more than 25.
Minimum Rec. Shaft Dia (S)	Groove Dia. (Dg)	Clip Thickness (T)	Clip OD Loose (D1)	Indicative Image
Minimum Rec. Shaft Dia (S) 1.59 mm _{+ 0.76 / - 0.00} (Equiv. 0.063 in.)	Groove Dia. (Dg) 1.32 mm _{+ 0.051 / - 0.000} (Equiv. 0.052 in.)	Clip Thickness (T) 0.25 mm _{+/ - 0.025} (Equiv. 0.01 in.)	Clip OD Loose (D1) 3.96 mm
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 0.30 mm Maximum Rec. Shaft Dia (S): 2.35 Clip OD in groove (C1): 4.19 mm Standard: MIL-16633
Part Number: ECL-0013-0016A-S15 (20 Pcs) E-Clips Retaining Rings - 1.59x1.32x0.25 mm Basic - Stainless Steel Grade PH15-7 Mo E-Clip 25 units (500 pcs) Available Now \| Further orders can be expected around Tue, Sep 30, 2025 Regular price $11.50 AUD Regular price ~~$32.56 AUD~~ Sale price $11.50 AUD Unit price per Per 20 Quantity Required 25 units (500 pcs) Available Now. Backorder if more than 25.
ECL-0013-0016A-S15 (20 Pcs) --- E-Clips Retaining Rings - 1.59x1.32x0.25 mm Basic - Stainless Steel Grade PH15-7 Mo E-Clip Sale ECL-0013-0016A-S15 (20 Pcs) --- E-Clips Retaining Rings - 1.59x1.32x0.25 mm Basic - Stainless Steel Grade PH15-7 Mo E-Clip Regular price $11.50 AUD Regular price ~~$32.56 AUD~~ Sale price $11.50 AUD Unit price per 25 Available Now Sale
Minimum Rec. Shaft Dia (S) 1.59 mm _{+ 0.76 / - 0.00} (Equiv. 0.063 in.)	Groove Dia. (Dg) 1.32 mm _{+ 0.051 / - 0.000} (Equiv. 0.052 in.)	Clip Thickness (T) 0.51 mm (Equiv. 0.02 in.)	Clip OD Loose (D1) 4.76 mm	Groove Width (W) 0.58 mm
Material: Stainless Steel Grade PH15-7 Mo Maximum Rec. Shaft Dia (S): 2.35 Clip OD in groove (C1): 5.08 mm
Part Number: ECL-0013-0016C-S15 (500 Pcs) E-Clips Retaining Rings - 1.59x1.32x0.51 mm Basic - Stainless Steel Grade PH15-7 Mo E-Clip Out of Stock \| Backorder Now \| Orders can be expected around Thu, Nov 27, 2025 Regular price $208.41 AUD Regular price ~~$490.00 AUD~~ Sale price $208.41 AUD Unit price per Per 500 Quantity Required Backorder: Out of Stock.
Minimum Rec. Shaft Dia (S) 1.59 mm _{+ 0.76 / - 0.00} (Equiv. 0.063 in.)	Groove Dia. (Dg) 1.32 mm _{+ 0.051 / - 0.000} (Equiv. 0.052 in.)	Clip Thickness (T) 0.51 mm (Equiv. 0.02 in.)	Clip OD Loose (D1) 4.76 mm
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 0.58 mm Maximum Rec. Shaft Dia (S): 2.35 Clip OD in groove (C1): 5.08 mm
Part Number: ECL-0013-0016C-S15 (500 Pcs) E-Clips Retaining Rings - 1.59x1.32x0.51 mm Basic - Stainless Steel Grade PH15-7 Mo E-Clip Out of Stock \| Backorder Now \| Orders can be expected around Thu, Nov 27, 2025 Regular price $208.41 AUD Regular price ~~$490.00 AUD~~ Sale price $208.41 AUD Unit price per Per 500 Quantity Required Backorder: Out of Stock.
ECL-0013-0016C-S15 (500 Pcs) --- E-Clips Retaining Rings - 1.59x1.32x0.51 mm Basic - Stainless Steel Grade PH15-7 Mo E-Clip Sale ECL-0013-0016C-S15 (500 Pcs) --- E-Clips Retaining Rings - 1.59x1.32x0.51 mm Basic - Stainless Steel Grade PH15-7 Mo E-Clip Regular price $208.41 AUD Regular price ~~$490.00 AUD~~ Sale price $208.41 AUD Unit price per Out of stock! Backorder Now Sale
Minimum Rec. Shaft Dia (S) 2.00 mm _{+ 0.50 / - 0.00} (Equiv. 0.079 in.)	Groove Dia. (Dg) 1.50 mm _{+ 0.00 / - 0.06} (Equiv. 0.059 in.)	Clip Thickness (T) 0.40 mm _{+/ - 0.02} (Equiv. 0.016 in.)	Clip OD Loose (D1) 3.85 mm	Groove Width (W) 0.44 mm
Material: Stainless Steel Grade PH15-7 Mo Maximum Rec. Shaft Dia (S): 2.50 Clip OD in groove (C1): 4.25 mm Loose Clip ID (A): 1.28 mm Min. Extension (n): 0.80 Additional Info: RRA-715 Applicator Standard: DIN6799
Part Number: ECL-0015-0020-S15 E-Clips Retaining Rings - 2x1.5x0.4 mm Basic - Stainless Steel Grade PH15-7 Mo E-Clip 343 Available Now \| Further orders can be expected around Sat, Sep 27, 2025 Regular price $2.14 AUD Regular price Sale price $2.14 AUD Unit price per Each Quantity Required 343 Available Now. Backorder if more than 343.
Minimum Rec. Shaft Dia (S) 2.00 mm _{+ 0.50 / - 0.00} (Equiv. 0.079 in.)	Groove Dia. (Dg) 1.50 mm _{+ 0.00 / - 0.06} (Equiv. 0.059 in.)	Clip Thickness (T) 0.40 mm _{+/ - 0.02} (Equiv. 0.016 in.)	Clip OD Loose (D1) 3.85 mm
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 0.44 mm Maximum Rec. Shaft Dia (S): 2.50 Clip OD in groove (C1): 4.25 mm Loose Clip ID (A): 1.28 mm Min. Extension (n): 0.80 Additional Info: RRA-715 Applicator Standard: DIN6799
Part Number: ECL-0015-0020-S15 E-Clips Retaining Rings - 2x1.5x0.4 mm Basic - Stainless Steel Grade PH15-7 Mo E-Clip 343 Available Now \| Further orders can be expected around Sat, Sep 27, 2025 Regular price $2.14 AUD Regular price Sale price $2.14 AUD Unit price per Each Quantity Required 343 Available Now. Backorder if more than 343.
ECL-0015-0020-S15 --- E-Clips Retaining Rings - 2x1.5x0.4 mm Basic - Stainless Steel Grade PH15-7 Mo E-Clip ECL-0015-0020-S15 --- E-Clips Retaining Rings - 2x1.5x0.4 mm Basic - Stainless Steel Grade PH15-7 Mo E-Clip Regular price $2.14 AUD Regular price Sale price $2.14 AUD Unit price per 343 Available Now
Minimum Rec. Shaft Dia (S) 2.39 mm _{+ 0.76 / - 0.00} (Equiv. 0.094 in.)	Groove Dia. (Dg) 1.88 mm _{+ 0.051 / - 0.000} (Equiv. 0.074 in.)	Clip Thickness (T) 0.38 mm _{+/ - 0.025} (Equiv. 0.015 in.)	Clip OD Loose (D1) 4.75 mm	Groove Width (W) 0.46 mm
Material: Stainless Steel Grade PH15-7 Mo Maximum Rec. Shaft Dia (S): 3.15 Clip OD in groove (C1): 5.08 mm Loose Clip ID (A): 1.85 mm Standard: MIL-16633
Part Number: ECL-0018-0024A-S15 (20 Pcs) E-Clips Retaining Rings - 2.39x1.88x0.38 mm Basic - Stainless Steel Grade PH15-7 Mo E-Clip 47 units (940 pcs) Available Now \| Further orders can be expected around Sat, Sep 27, 2025 Regular price $8.14 AUD Regular price Sale price $8.14 AUD Unit price per Per 20 Quantity Required 47 units (940 pcs) Available Now. Backorder if more than 47.
Minimum Rec. Shaft Dia (S) 2.39 mm _{+ 0.76 / - 0.00} (Equiv. 0.094 in.)	Groove Dia. (Dg) 1.88 mm _{+ 0.051 / - 0.000} (Equiv. 0.074 in.)	Clip Thickness (T) 0.38 mm _{+/ - 0.025} (Equiv. 0.015 in.)	Clip OD Loose (D1) 4.75 mm
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 0.46 mm Maximum Rec. Shaft Dia (S): 3.15 Clip OD in groove (C1): 5.08 mm Loose Clip ID (A): 1.85 mm Standard: MIL-16633
Part Number: ECL-0018-0024A-S15 (20 Pcs) E-Clips Retaining Rings - 2.39x1.88x0.38 mm Basic - Stainless Steel Grade PH15-7 Mo E-Clip 47 units (940 pcs) Available Now \| Further orders can be expected around Sat, Sep 27, 2025 Regular price $8.14 AUD Regular price Sale price $8.14 AUD Unit price per Per 20 Quantity Required 47 units (940 pcs) Available Now. Backorder if more than 47.
ECL-0018-0024A-S15 (20 Pcs) --- E-Clips Retaining Rings - 2.39x1.88x0.38 mm Basic - Stainless Steel Grade PH15-7 Mo E-Clip ECL-0018-0024A-S15 (20 Pcs) --- E-Clips Retaining Rings - 2.39x1.88x0.38 mm Basic - Stainless Steel Grade PH15-7 Mo E-Clip Regular price $8.14 AUD Regular price Sale price $8.14 AUD Unit price per 47 Available Now
Minimum Rec. Shaft Dia (S) 2.50 mm _{+ 0.50 / - 0.00} (Equiv. 0.098 in.)	Groove Dia. (Dg) 1.90 mm _{+ 0.00 / - 0.06} (Equiv. 0.075 in.)	Clip Thickness (T) 0.50 mm _{+/ - 0.02} (Equiv. 0.02 in.)	Clip OD Loose (D1) 4.40 mm	Groove Width (W) 0.54 mm
Material: Stainless Steel Grade PH15-7 Mo Maximum Rec. Shaft Dia (S): 3.00 Clip OD in groove (C1): 4.80 mm Loose Clip ID (A): 1.61 mm Min. Extension (n): 1.00 Additional Info: RRA-719 Applicator Standard: DIN6799
Part Number: ECL-0019-0025-S15 (10 Pcs) E-Clips Retaining Rings - 2.5x1.9x0.5 mm Basic - Stainless Steel Grade PH15-7 Mo E-Clip 6 units (60 pcs) Available Now \| Further orders can be expected around Sat, Sep 27, 2025 Regular price $12.95 AUD Regular price Sale price $12.95 AUD Unit price per Per 10 Quantity Required 6 units (60 pcs) Available Now. Backorder if more than 6.
Minimum Rec. Shaft Dia (S) 2.50 mm _{+ 0.50 / - 0.00} (Equiv. 0.098 in.)	Groove Dia. (Dg) 1.90 mm _{+ 0.00 / - 0.06} (Equiv. 0.075 in.)	Clip Thickness (T) 0.50 mm _{+/ - 0.02} (Equiv. 0.02 in.)	Clip OD Loose (D1) 4.40 mm
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 0.54 mm Maximum Rec. Shaft Dia (S): 3.00 Clip OD in groove (C1): 4.80 mm Loose Clip ID (A): 1.61 mm Min. Extension (n): 1.00 Additional Info: RRA-719 Applicator Standard: DIN6799
Part Number: ECL-0019-0025-S15 (10 Pcs) E-Clips Retaining Rings - 2.5x1.9x0.5 mm Basic - Stainless Steel Grade PH15-7 Mo E-Clip 6 units (60 pcs) Available Now \| Further orders can be expected around Sat, Sep 27, 2025 Regular price $12.95 AUD Regular price Sale price $12.95 AUD Unit price per Per 10 Quantity Required 6 units (60 pcs) Available Now. Backorder if more than 6.
ECL-0019-0025-S15 (10 Pcs) --- E-Clips Retaining Rings - 2.5x1.9x0.5 mm Basic - Stainless Steel Grade PH15-7 Mo E-Clip ECL-0019-0025-S15 (10 Pcs) --- E-Clips Retaining Rings - 2.5x1.9x0.5 mm Basic - Stainless Steel Grade PH15-7 Mo E-Clip Regular price $12.95 AUD Regular price Sale price $12.95 AUD Unit price per 6 Available Now
Minimum Rec. Shaft Dia (S) 3.00 mm _{+ 1.00 / - 0.00} (Equiv. 0.118 in.)	Groove Dia. (Dg) 2.30 mm _{+ 0.00 / - 0.06} (Equiv. 0.091 in.)	Clip Thickness (T) 0.60 mm _{+/ - 0.02} (Equiv. 0.024 in.)	Clip OD Loose (D1) 5.90 mm	Groove Width (W) 0.64 mm
Material: Stainless Steel Grade PH15-7 Mo Maximum Rec. Shaft Dia (S): 4.00 Clip OD in groove (C1): 7.30 mm Loose Clip ID (A): 1.94 mm Min. Extension (n): 1.00 Additional Info: RRA-723 Applicator Standard: DIN6799
Part Number: ECL-0023-0030-S15 (10 Pcs) E-Clips Retaining Rings - 3x2.3x0.6 mm Basic - Stainless Steel Grade PH15-7 Mo E-Clip Out of Stock \| Backorder Now \| More stock due: 30 (300 pcs) around Mon, Sep 08, 2025 \| Further orders can be expected around Sat, Sep 27, 2025 Regular price $9.86 AUD Regular price Sale price $9.86 AUD Unit price per Per 10 Quantity Required Backorder: Out of Stock.
Minimum Rec. Shaft Dia (S) 3.00 mm _{+ 1.00 / - 0.00} (Equiv. 0.118 in.)	Groove Dia. (Dg) 2.30 mm _{+ 0.00 / - 0.06} (Equiv. 0.091 in.)	Clip Thickness (T) 0.60 mm _{+/ - 0.02} (Equiv. 0.024 in.)	Clip OD Loose (D1) 5.90 mm
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 0.64 mm Maximum Rec. Shaft Dia (S): 4.00 Clip OD in groove (C1): 7.30 mm Loose Clip ID (A): 1.94 mm Min. Extension (n): 1.00 Additional Info: RRA-723 Applicator Standard: DIN6799
Part Number: ECL-0023-0030-S15 (10 Pcs) E-Clips Retaining Rings - 3x2.3x0.6 mm Basic - Stainless Steel Grade PH15-7 Mo E-Clip Out of Stock \| Backorder Now \| More stock due: 30 (300 pcs) around Mon, Sep 08, 2025 \| Further orders can be expected around Sat, Sep 27, 2025 Regular price $9.86 AUD Regular price Sale price $9.86 AUD Unit price per Per 10 Quantity Required Backorder: Out of Stock.
ECL-0023-0030-S15 (10 Pcs) --- E-Clips Retaining Rings - 3x2.3x0.6 mm Basic - Stainless Steel Grade PH15-7 Mo E-Clip ECL-0023-0030-S15 (10 Pcs) --- E-Clips Retaining Rings - 3x2.3x0.6 mm Basic - Stainless Steel Grade PH15-7 Mo E-Clip Regular price $9.86 AUD Regular price Sale price $9.86 AUD Unit price per Out of stock! Backorder Now
Minimum Rec. Shaft Dia (S) 3.18 mm _{+ 1.02 / - 0.00} (Equiv. 0.125 in.)	Groove Dia. (Dg) 2.41 mm _{+ 0.051 / - 0.000} (Equiv. 0.095 in.)	Clip Thickness (T) 0.38 mm _{+/ - 0.050} (Equiv. 0.015 in.)	Clip OD Loose (D1) 5.84 mm	Groove Width (W) 0.46 mm
Material: Stainless Steel Grade PH15-7 Mo Maximum Rec. Shaft Dia (S): 4.20 Clip OD in groove (C1): 6.10 mm Min. Extension (n): 1.00 Standard: MIL-16633
Part Number: ECL-0024-0032A-S15 (20 Pcs) E-Clips Retaining Rings - 3.18x2.41x0.38 mm Basic - Stainless Steel Grade PH15-7 Mo E-Clip 89 units (1780 pcs) Available Now \| Further orders can be expected around Sat, Sep 27, 2025 Regular price $9.95 AUD Regular price Sale price $9.95 AUD Unit price per Per 20 Quantity Required 89 units (1780 pcs) Available Now. Backorder if more than 89.
Minimum Rec. Shaft Dia (S) 3.18 mm _{+ 1.02 / - 0.00} (Equiv. 0.125 in.)	Groove Dia. (Dg) 2.41 mm _{+ 0.051 / - 0.000} (Equiv. 0.095 in.)	Clip Thickness (T) 0.38 mm _{+/ - 0.050} (Equiv. 0.015 in.)	Clip OD Loose (D1) 5.84 mm
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 0.46 mm Maximum Rec. Shaft Dia (S): 4.20 Clip OD in groove (C1): 6.10 mm Min. Extension (n): 1.00 Standard: MIL-16633
Part Number: ECL-0024-0032A-S15 (20 Pcs) E-Clips Retaining Rings - 3.18x2.41x0.38 mm Basic - Stainless Steel Grade PH15-7 Mo E-Clip 89 units (1780 pcs) Available Now \| Further orders can be expected around Sat, Sep 27, 2025 Regular price $9.95 AUD Regular price Sale price $9.95 AUD Unit price per Per 20 Quantity Required 89 units (1780 pcs) Available Now. Backorder if more than 89.
ECL-0024-0032A-S15 (20 Pcs) --- E-Clips Retaining Rings - 3.18x2.41x0.38 mm Basic - Stainless Steel Grade PH15-7 Mo E-Clip ECL-0024-0032A-S15 (20 Pcs) --- E-Clips Retaining Rings - 3.18x2.41x0.38 mm Basic - Stainless Steel Grade PH15-7 Mo E-Clip Regular price $9.95 AUD Regular price Sale price $9.95 AUD Unit price per 89 Available Now
Minimum Rec. Shaft Dia (S) 3.56 mm _{+ 1.02 / - 0.00} (Equiv. 0.14 in.)	Groove Dia. (Dg) 2.67 mm _{+ 0.051 / - 0.000} (Equiv. 0.105 in.)	Clip Thickness (T) 0.64 mm _{+/ - 0.050} (Equiv. 0.025 in.)	Clip OD Loose (D1) 6.85 mm	Groove Width (W) 0.74 mm
Material: Stainless Steel Grade PH15-7 Mo Maximum Rec. Shaft Dia (S): 4.58 Clip OD in groove (C1): 7.24 mm Loose Clip ID (A): 2.59 mm Min. Extension (n): 1.00 Standard: MIL-16633
Part Number: ECL-0027-0036-S15 (20 Pcs) E-Clips Retaining Rings - 3.56x2.67x0.64 mm Basic - Stainless Steel Grade PH15-7 Mo E-Clip 2 units (40 pcs) Available Now \| Further orders can be expected around Sat, Sep 27, 2025 Regular price $12.32 AUD Regular price Sale price $12.32 AUD Unit price per Per 20 Quantity Required 2 units (40 pcs) Available Now. Backorder if more than 2.
Minimum Rec. Shaft Dia (S) 3.56 mm _{+ 1.02 / - 0.00} (Equiv. 0.14 in.)	Groove Dia. (Dg) 2.67 mm _{+ 0.051 / - 0.000} (Equiv. 0.105 in.)	Clip Thickness (T) 0.64 mm _{+/ - 0.050} (Equiv. 0.025 in.)	Clip OD Loose (D1) 6.85 mm
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 0.74 mm Maximum Rec. Shaft Dia (S): 4.58 Clip OD in groove (C1): 7.24 mm Loose Clip ID (A): 2.59 mm Min. Extension (n): 1.00 Standard: MIL-16633
Part Number: ECL-0027-0036-S15 (20 Pcs) E-Clips Retaining Rings - 3.56x2.67x0.64 mm Basic - Stainless Steel Grade PH15-7 Mo E-Clip 2 units (40 pcs) Available Now \| Further orders can be expected around Sat, Sep 27, 2025 Regular price $12.32 AUD Regular price Sale price $12.32 AUD Unit price per Per 20 Quantity Required 2 units (40 pcs) Available Now. Backorder if more than 2.
ECL-0027-0036-S15 (20 Pcs) --- E-Clips Retaining Rings - 3.56x2.67x0.64 mm Basic - Stainless Steel Grade PH15-7 Mo E-Clip ECL-0027-0036-S15 (20 Pcs) --- E-Clips Retaining Rings - 3.56x2.67x0.64 mm Basic - Stainless Steel Grade PH15-7 Mo E-Clip Regular price $12.32 AUD Regular price Sale price $12.32 AUD Unit price per 2 Available Now
Minimum Rec. Shaft Dia (S) 3.97 mm _{+ 1.26 / - 0.00} (Equiv. 0.156 in.)	Groove Dia. (Dg) 2.95 mm _{+ 0.051 / - 0.000} (Equiv. 0.116 in.)	Clip Thickness (T) 0.64 mm _{+/ - 0.050} (Equiv. 0.025 in.)	Clip OD Loose (D1) 7.16 mm	Groove Width (W) 0.74 mm
Material: Stainless Steel Grade PH15-7 Mo Maximum Rec. Shaft Dia (S): 5.23 Clip OD in groove (C1): 7.49 mm Min. Extension (n): 1.00 Standard: MIL-16633
Part Number: ECL-0029-0040A-S15 (50 Pcs) E-Clips Retaining Rings - 3.97x2.95x0.64 mm Basic - Stainless Steel Grade PH15-7 Mo E-Clip 2 units (100 pcs) Available Now \| Further orders can be expected around Sat, Sep 27, 2025 Regular price $27.05 AUD Regular price Sale price $27.05 AUD Unit price per Per 50 Quantity Required 2 units (100 pcs) Available Now. Backorder if more than 2.
Minimum Rec. Shaft Dia (S) 3.97 mm _{+ 1.26 / - 0.00} (Equiv. 0.156 in.)	Groove Dia. (Dg) 2.95 mm _{+ 0.051 / - 0.000} (Equiv. 0.116 in.)	Clip Thickness (T) 0.64 mm _{+/ - 0.050} (Equiv. 0.025 in.)	Clip OD Loose (D1) 7.16 mm
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 0.74 mm Maximum Rec. Shaft Dia (S): 5.23 Clip OD in groove (C1): 7.49 mm Min. Extension (n): 1.00 Standard: MIL-16633
Part Number: ECL-0029-0040A-S15 (50 Pcs) E-Clips Retaining Rings - 3.97x2.95x0.64 mm Basic - Stainless Steel Grade PH15-7 Mo E-Clip 2 units (100 pcs) Available Now \| Further orders can be expected around Sat, Sep 27, 2025 Regular price $27.05 AUD Regular price Sale price $27.05 AUD Unit price per Per 50 Quantity Required 2 units (100 pcs) Available Now. Backorder if more than 2.
ECL-0029-0040A-S15 (50 Pcs) --- E-Clips Retaining Rings - 3.97x2.95x0.64 mm Basic - Stainless Steel Grade PH15-7 Mo E-Clip ECL-0029-0040A-S15 (50 Pcs) --- E-Clips Retaining Rings - 3.97x2.95x0.64 mm Basic - Stainless Steel Grade PH15-7 Mo E-Clip Regular price $27.05 AUD Regular price Sale price $27.05 AUD Unit price per 2 Available Now
Minimum Rec. Shaft Dia (S) 4.45 mm _{+ 0.55 / - 0.00} (Equiv. 0.175 in.)	Groove Dia. (Dg) 3.20 mm _{+ 0.00 / - 0.075} (Equiv. 0.126 in.)	Clip Thickness (T) 0.60 mm _{+/ - 0.02} (Equiv. 0.024 in.)	Clip OD Loose (D1) 6.80 mm	Groove Width (W) 0.64 mm
Material: Stainless Steel Grade PH15-7 Mo Maximum Rec. Shaft Dia (S): 5.00 Clip OD in groove (C1): 7.30 mm Loose Clip ID (A): 2.70 mm Min. Extension (n): 1.00 Additional Info: RRA-310 Applicator Standard: DIN6799
Part Number: ECL-0032-0045-S15 (50 Pcs) E-Clips Retaining Rings - 4.45x3.2x0.6 mm Basic - Stainless Steel Grade PH15-7 Mo E-Clip Out of Stock \| Backorder Now \| Orders can be expected around Sat, Sep 27, 2025 Regular price $10.32 AUD Regular price Sale price $10.32 AUD Unit price per Per 50 Quantity Required Backorder: Out of Stock.
Minimum Rec. Shaft Dia (S) 4.45 mm _{+ 0.55 / - 0.00} (Equiv. 0.175 in.)	Groove Dia. (Dg) 3.20 mm _{+ 0.00 / - 0.075} (Equiv. 0.126 in.)	Clip Thickness (T) 0.60 mm _{+/ - 0.02} (Equiv. 0.024 in.)	Clip OD Loose (D1) 6.80 mm
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 0.64 mm Maximum Rec. Shaft Dia (S): 5.00 Clip OD in groove (C1): 7.30 mm Loose Clip ID (A): 2.70 mm Min. Extension (n): 1.00 Additional Info: RRA-310 Applicator Standard: DIN6799
Part Number: ECL-0032-0045-S15 (50 Pcs) E-Clips Retaining Rings - 4.45x3.2x0.6 mm Basic - Stainless Steel Grade PH15-7 Mo E-Clip Out of Stock \| Backorder Now \| Orders can be expected around Sat, Sep 27, 2025 Regular price $10.32 AUD Regular price Sale price $10.32 AUD Unit price per Per 50 Quantity Required Backorder: Out of Stock.
ECL-0032-0045-S15 (50 Pcs) --- E-Clips Retaining Rings - 4.45x3.2x0.6 mm Basic - Stainless Steel Grade PH15-7 Mo E-Clip ECL-0032-0045-S15 (50 Pcs) --- E-Clips Retaining Rings - 4.45x3.2x0.6 mm Basic - Stainless Steel Grade PH15-7 Mo E-Clip Regular price $10.32 AUD Regular price Sale price $10.32 AUD Unit price per Out of stock! Backorder Now
Minimum Rec. Shaft Dia (S) 4.78 mm _{+ 1.52 / - 0.00} (Equiv. 0.188 in.)	Groove Dia. (Dg) 3.73 mm _{+ 0.051 / - 0.000} (Equiv. 0.147 in.)	Clip Thickness (T) 0.64 mm _{+/ - 0.050} (Equiv. 0.025 in.)	Clip OD Loose (D1) 8.51 mm	Groove Width (W) 0.74 mm
Material: Stainless Steel Grade PH15-7 Mo Maximum Rec. Shaft Dia (S): 6.30 Clip OD in groove (C1): 8.89 mm Loose Clip ID (A): 3.68 mm Min. Extension (n): 1.10 Standard: MIL-16633
Part Number: ECL-0037-0048A-S15 (20 Pcs) E-Clips Retaining Rings - 4.78x3.73x0.64 mm Basic - Stainless Steel Grade PH15-7 Mo E-Clip 10 units (200 pcs) Available Now \| Further orders can be expected around Sat, Sep 27, 2025 Regular price $11.41 AUD Regular price Sale price $11.41 AUD Unit price per Per 20 Quantity Required 10 units (200 pcs) Available Now. Backorder if more than 10.
Minimum Rec. Shaft Dia (S) 4.78 mm _{+ 1.52 / - 0.00} (Equiv. 0.188 in.)	Groove Dia. (Dg) 3.73 mm _{+ 0.051 / - 0.000} (Equiv. 0.147 in.)	Clip Thickness (T) 0.64 mm _{+/ - 0.050} (Equiv. 0.025 in.)	Clip OD Loose (D1) 8.51 mm
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 0.74 mm Maximum Rec. Shaft Dia (S): 6.30 Clip OD in groove (C1): 8.89 mm Loose Clip ID (A): 3.68 mm Min. Extension (n): 1.10 Standard: MIL-16633
Part Number: ECL-0037-0048A-S15 (20 Pcs) E-Clips Retaining Rings - 4.78x3.73x0.64 mm Basic - Stainless Steel Grade PH15-7 Mo E-Clip 10 units (200 pcs) Available Now \| Further orders can be expected around Sat, Sep 27, 2025 Regular price $11.41 AUD Regular price Sale price $11.41 AUD Unit price per Per 20 Quantity Required 10 units (200 pcs) Available Now. Backorder if more than 10.
ECL-0037-0048A-S15 (20 Pcs) --- E-Clips Retaining Rings - 4.78x3.73x0.64 mm Basic - Stainless Steel Grade PH15-7 Mo E-Clip ECL-0037-0048A-S15 (20 Pcs) --- E-Clips Retaining Rings - 4.78x3.73x0.64 mm Basic - Stainless Steel Grade PH15-7 Mo E-Clip Regular price $11.41 AUD Regular price Sale price $11.41 AUD Unit price per 10 Available Now
Minimum Rec. Shaft Dia (S) 5.00 mm _{+ 2.00 / - 0.00} (Equiv. 0.197 in.)	Groove Dia. (Dg) 4.00 mm _{+ 0.00 / - 0.075} (Equiv. 0.157 in.)	Clip Thickness (T) 0.70 mm _{+/ - 0.02} (Equiv. 0.028 in.)	Clip OD Loose (D1) 8.80 mm	Groove Width (W) 0.74 mm
Material: Stainless Steel Grade PH15-7 Mo Maximum Rec. Shaft Dia (S): 7.00 Clip OD in groove (C1): 9.30 mm Loose Clip ID (A): 3.40 mm Min. Extension (n): 1.20 Standard: DIN6799
Part Number: ECL-0040-0050-S15 (5 Pcs) E-Clips Retaining Rings - 5x4x0.7 mm Basic - Stainless Steel Grade PH15-7 Mo E-Clip 34 units (170 pcs) Available Now \| Further orders can be expected around Sat, Sep 27, 2025 Regular price $2.32 AUD Regular price Sale price $2.32 AUD Unit price per Per 5 Quantity Required 34 units (170 pcs) Available Now. Backorder if more than 34.
Minimum Rec. Shaft Dia (S) 5.00 mm _{+ 2.00 / - 0.00} (Equiv. 0.197 in.)	Groove Dia. (Dg) 4.00 mm _{+ 0.00 / - 0.075} (Equiv. 0.157 in.)	Clip Thickness (T) 0.70 mm _{+/ - 0.02} (Equiv. 0.028 in.)	Clip OD Loose (D1) 8.80 mm
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 0.74 mm Maximum Rec. Shaft Dia (S): 7.00 Clip OD in groove (C1): 9.30 mm Loose Clip ID (A): 3.40 mm Min. Extension (n): 1.20 Standard: DIN6799
Part Number: ECL-0040-0050-S15 (5 Pcs) E-Clips Retaining Rings - 5x4x0.7 mm Basic - Stainless Steel Grade PH15-7 Mo E-Clip 34 units (170 pcs) Available Now \| Further orders can be expected around Sat, Sep 27, 2025 Regular price $2.32 AUD Regular price Sale price $2.32 AUD Unit price per Per 5 Quantity Required 34 units (170 pcs) Available Now. Backorder if more than 34.
ECL-0040-0050-S15 (5 Pcs) --- E-Clips Retaining Rings - 5x4x0.7 mm Basic - Stainless Steel Grade PH15-7 Mo E-Clip ECL-0040-0050-S15 (5 Pcs) --- E-Clips Retaining Rings - 5x4x0.7 mm Basic - Stainless Steel Grade PH15-7 Mo E-Clip Regular price $2.32 AUD Regular price Sale price $2.32 AUD Unit price per 34 Available Now
Minimum Rec. Shaft Dia (S) 5.56 mm _{+ 2.54 / - 0.00} (Equiv. 0.219 in.)	Groove Dia. (Dg) 4.76 mm _{+ 0.051 / - 0.000} (Equiv. 0.187 in.)	Clip Thickness (T) 0.64 mm _{+/ - 0.050} (Equiv. 0.025 in.)	Clip OD Loose (D1) 11.10 mm	Groove Width (W) 0.74 mm
Material: Stainless Steel Grade PH15-7 Mo Maximum Rec. Shaft Dia (S): 8.10 Clip OD in groove (C1): 11.43 mm Loose Clip ID (A): 4.70 mm
Part Number: ECL-0048-0056A-S15 E-Clips Retaining Rings - 5.56x4.76x0.64 mm Basic - Stainless Steel Grade PH15-7 Mo E-Clip 1018 Available Now \| Further orders can be expected around Sat, Sep 27, 2025 Regular price $0.59 AUD Regular price ~~$1.41 AUD~~ Sale price $0.59 AUD Unit price per Each Quantity Required 1018 Available Now. Backorder if more than 1018.
Minimum Rec. Shaft Dia (S) 5.56 mm _{+ 2.54 / - 0.00} (Equiv. 0.219 in.)	Groove Dia. (Dg) 4.76 mm _{+ 0.051 / - 0.000} (Equiv. 0.187 in.)	Clip Thickness (T) 0.64 mm _{+/ - 0.050} (Equiv. 0.025 in.)	Clip OD Loose (D1) 11.10 mm
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 0.74 mm Maximum Rec. Shaft Dia (S): 8.10 Clip OD in groove (C1): 11.43 mm Loose Clip ID (A): 4.70 mm
Part Number: ECL-0048-0056A-S15 E-Clips Retaining Rings - 5.56x4.76x0.64 mm Basic - Stainless Steel Grade PH15-7 Mo E-Clip 1018 Available Now \| Further orders can be expected around Sat, Sep 27, 2025 Regular price $0.59 AUD Regular price ~~$1.41 AUD~~ Sale price $0.59 AUD Unit price per Each Quantity Required 1018 Available Now. Backorder if more than 1018.
ECL-0048-0056A-S15 --- E-Clips Retaining Rings - 5.56x4.76x0.64 mm Basic - Stainless Steel Grade PH15-7 Mo E-Clip Sale ECL-0048-0056A-S15 --- E-Clips Retaining Rings - 5.56x4.76x0.64 mm Basic - Stainless Steel Grade PH15-7 Mo E-Clip Regular price $0.59 AUD Regular price ~~$1.41 AUD~~ Sale price $0.59 AUD Unit price per 1018 Available Now Sale
Minimum Rec. Shaft Dia (S) 6.00 mm _{+ 2.00 / - 0.00} (Equiv. 0.236 in.)	Groove Dia. (Dg) 5.00 mm _{+ 0.00 / - 0.075} (Equiv. 0.197 in.)	Clip Thickness (T) 0.70 mm _{+/ - 0.02} (Equiv. 0.028 in.)	Clip OD Loose (D1) 10.75 mm	Groove Width (W) 0.74 mm
Material: Stainless Steel Grade PH15-7 Mo Maximum Rec. Shaft Dia (S): 8.00 Clip OD in groove (C1): 11.30 mm Loose Clip ID (A): 4.11 mm Min. Extension (n): 1.20 Additional Info: RRA-605 Applicator Standard: DIN6799
Part Number: ECL-0050-0060-S15 (20 Pcs) E-Clips Retaining Rings - 6x5x0.7 mm Basic - Stainless Steel Grade PH15-7 Mo E-Clip 22 units (440 pcs) Available Now \| Further orders can be expected around Sat, Sep 27, 2025 Regular price $11.77 AUD Regular price Sale price $11.77 AUD Unit price per Per 20 Quantity Required 22 units (440 pcs) Available Now. Backorder if more than 22.
Minimum Rec. Shaft Dia (S) 6.00 mm _{+ 2.00 / - 0.00} (Equiv. 0.236 in.)	Groove Dia. (Dg) 5.00 mm _{+ 0.00 / - 0.075} (Equiv. 0.197 in.)	Clip Thickness (T) 0.70 mm _{+/ - 0.02} (Equiv. 0.028 in.)	Clip OD Loose (D1) 10.75 mm
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 0.74 mm Maximum Rec. Shaft Dia (S): 8.00 Clip OD in groove (C1): 11.30 mm Loose Clip ID (A): 4.11 mm Min. Extension (n): 1.20 Additional Info: RRA-605 Applicator Standard: DIN6799
Part Number: ECL-0050-0060-S15 (20 Pcs) E-Clips Retaining Rings - 6x5x0.7 mm Basic - Stainless Steel Grade PH15-7 Mo E-Clip 22 units (440 pcs) Available Now \| Further orders can be expected around Sat, Sep 27, 2025 Regular price $11.77 AUD Regular price Sale price $11.77 AUD Unit price per Per 20 Quantity Required 22 units (440 pcs) Available Now. Backorder if more than 22.
ECL-0050-0060-S15 (20 Pcs) --- E-Clips Retaining Rings - 6x5x0.7 mm Basic - Stainless Steel Grade PH15-7 Mo E-Clip ECL-0050-0060-S15 (20 Pcs) --- E-Clips Retaining Rings - 6x5x0.7 mm Basic - Stainless Steel Grade PH15-7 Mo E-Clip Regular price $11.77 AUD Regular price Sale price $11.77 AUD Unit price per 22 Available Now
Minimum Rec. Shaft Dia (S) 6.35 mm _{+ 2.54 / - 0.00} (Equiv. 0.25 in.)	Groove Dia. (Dg) 5.33 mm _{+/- 0.051} (Equiv. 0.21 in.)	Clip Thickness (T) 0.64 mm _{+/ - 0.052} (Equiv. 0.025 in.)	Clip OD Loose (D1) 13.11 mm	Groove Width (W) 0.74 mm
Material: Stainless Steel Grade PH15-7 Mo Maximum Rec. Shaft Dia (S): 8.89 Clip OD in groove (C1): 13.46 mm Additional Info: RRA-160 Applicator
Part Number: ECL-0053-0064B-S15 (50 Pcs) E-Clips Retaining Rings - 6.35x5.33x0.64 mm Basic - Stainless Steel Grade PH15-7 Mo E-Clip Out of Stock \| Backorder Now \| Orders can be expected around Sat, Sep 27, 2025 Regular price $30.32 AUD Regular price ~~$71.00 AUD~~ Sale price $30.32 AUD Unit price per Per 50 Quantity Required Backorder: Out of Stock.
Minimum Rec. Shaft Dia (S) 6.35 mm _{+ 2.54 / - 0.00} (Equiv. 0.25 in.)	Groove Dia. (Dg) 5.33 mm _{+/- 0.051} (Equiv. 0.21 in.)	Clip Thickness (T) 0.64 mm _{+/ - 0.052} (Equiv. 0.025 in.)	Clip OD Loose (D1) 13.11 mm
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 0.74 mm Maximum Rec. Shaft Dia (S): 8.89 Clip OD in groove (C1): 13.46 mm Additional Info: RRA-160 Applicator
Part Number: ECL-0053-0064B-S15 (50 Pcs) E-Clips Retaining Rings - 6.35x5.33x0.64 mm Basic - Stainless Steel Grade PH15-7 Mo E-Clip Out of Stock \| Backorder Now \| Orders can be expected around Sat, Sep 27, 2025 Regular price $30.32 AUD Regular price ~~$71.00 AUD~~ Sale price $30.32 AUD Unit price per Per 50 Quantity Required Backorder: Out of Stock.
ECL-0053-0064B-S15 (50 Pcs) --- E-Clips Retaining Rings - 6.35x5.33x0.64 mm Basic - Stainless Steel Grade PH15-7 Mo E-Clip Sale ECL-0053-0064B-S15 (50 Pcs) --- E-Clips Retaining Rings - 6.35x5.33x0.64 mm Basic - Stainless Steel Grade PH15-7 Mo E-Clip Regular price $30.32 AUD Regular price ~~$71.00 AUD~~ Sale price $30.32 AUD Unit price per Out of stock! Backorder Now Sale
Minimum Rec. Shaft Dia (S) 6.35 mm _{+ 2.54 / - 0.00} (Equiv. 0.25 in.)	Groove Dia. (Dg) 5.33 mm _{+ 0.076 / - 0.000} (Equiv. 0.21 in.)	Clip Thickness (T) 0.64 mm _{+/ - 0.050} (Equiv. 0.025 in.)	Clip OD Loose (D1) 13.39 mm	Groove Width (W) 0.74 mm
Material: Stainless Steel Grade PH15-7 Mo Maximum Rec. Shaft Dia (S): 8.89 Clip OD in groove (C1): 13.72 mm Min. Extension (n): 1.20 Standard: MIL-16633
Part Number: ECL-0053-0064A-S15 (10 Pcs) E-Clips Retaining Rings - 6.35x5.33x0.64 mm Basic - Stainless Steel Grade PH15-7 Mo E-Clip 18 units (180 pcs) Available Now \| Further orders can be expected around Sat, Sep 27, 2025 Regular price $8.23 AUD Regular price Sale price $8.23 AUD Unit price per Per 10 Quantity Required 18 units (180 pcs) Available Now. Backorder if more than 18.
Minimum Rec. Shaft Dia (S) 6.35 mm _{+ 2.54 / - 0.00} (Equiv. 0.25 in.)	Groove Dia. (Dg) 5.33 mm _{+ 0.076 / - 0.000} (Equiv. 0.21 in.)	Clip Thickness (T) 0.64 mm _{+/ - 0.050} (Equiv. 0.025 in.)	Clip OD Loose (D1) 13.39 mm
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 0.74 mm Maximum Rec. Shaft Dia (S): 8.89 Clip OD in groove (C1): 13.72 mm Min. Extension (n): 1.20 Standard: MIL-16633
Part Number: ECL-0053-0064A-S15 (10 Pcs) E-Clips Retaining Rings - 6.35x5.33x0.64 mm Basic - Stainless Steel Grade PH15-7 Mo E-Clip 18 units (180 pcs) Available Now \| Further orders can be expected around Sat, Sep 27, 2025 Regular price $8.23 AUD Regular price Sale price $8.23 AUD Unit price per Per 10 Quantity Required 18 units (180 pcs) Available Now. Backorder if more than 18.
ECL-0053-0064A-S15 (10 Pcs) --- E-Clips Retaining Rings - 6.35x5.33x0.64 mm Basic - Stainless Steel Grade PH15-7 Mo E-Clip ECL-0053-0064A-S15 (10 Pcs) --- E-Clips Retaining Rings - 6.35x5.33x0.64 mm Basic - Stainless Steel Grade PH15-7 Mo E-Clip Regular price $8.23 AUD Regular price Sale price $8.23 AUD Unit price per 18 Available Now
Minimum Rec. Shaft Dia (S) 7.00 mm _{+ 2.00 / - 0.00} (Equiv. 0.276 in.)	Groove Dia. (Dg) 6.00 mm _{+ 0.00 / - 0.075} (Equiv. 0.236 in.)	Clip Thickness (T) 0.70 mm _{+/ - 0.02} (Equiv. 0.028 in.)	Clip OD Loose (D1) 11.75 mm	Groove Width (W) 0.74 mm
Material: Stainless Steel Grade PH15-7 Mo Maximum Rec. Shaft Dia (S): 9.00 Clip OD in groove (C1): 12.30 mm Loose Clip ID (A): 5.26 mm Min. Extension (n): 1.20 Standard: DIN6799
Part Number: ECL-0060-0070-S15 (5 Pcs) E-Clips Retaining Rings - 7x6x0.7 mm Basic - Stainless Steel Grade PH15-7 Mo E-Clip 29 units (145 pcs) Available Now \| Further orders can be expected around Sat, Sep 27, 2025 Regular price $6.95 AUD Regular price Sale price $6.95 AUD Unit price per Per 5 Quantity Required 29 units (145 pcs) Available Now. Backorder if more than 29.
Minimum Rec. Shaft Dia (S) 7.00 mm _{+ 2.00 / - 0.00} (Equiv. 0.276 in.)	Groove Dia. (Dg) 6.00 mm _{+ 0.00 / - 0.075} (Equiv. 0.236 in.)	Clip Thickness (T) 0.70 mm _{+/ - 0.02} (Equiv. 0.028 in.)	Clip OD Loose (D1) 11.75 mm
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 0.74 mm Maximum Rec. Shaft Dia (S): 9.00 Clip OD in groove (C1): 12.30 mm Loose Clip ID (A): 5.26 mm Min. Extension (n): 1.20 Standard: DIN6799
Part Number: ECL-0060-0070-S15 (5 Pcs) E-Clips Retaining Rings - 7x6x0.7 mm Basic - Stainless Steel Grade PH15-7 Mo E-Clip 29 units (145 pcs) Available Now \| Further orders can be expected around Sat, Sep 27, 2025 Regular price $6.95 AUD Regular price Sale price $6.95 AUD Unit price per Per 5 Quantity Required 29 units (145 pcs) Available Now. Backorder if more than 29.
ECL-0060-0070-S15 (5 Pcs) --- E-Clips Retaining Rings - 7x6x0.7 mm Basic - Stainless Steel Grade PH15-7 Mo E-Clip ECL-0060-0070-S15 (5 Pcs) --- E-Clips Retaining Rings - 7x6x0.7 mm Basic - Stainless Steel Grade PH15-7 Mo E-Clip Regular price $6.95 AUD Regular price Sale price $6.95 AUD Unit price per 29 Available Now
Minimum Rec. Shaft Dia (S) 7.94 mm _{+ 2.54 / - 0.00} (Equiv. 0.313 in.)	Groove Dia. (Dg) 6.35 mm _{+ 0.076 / - 0.000} (Equiv. 0.25 in.)	Clip Thickness (T) 0.64 mm _{+/ - 0.050} (Equiv. 0.025 in.)	Clip OD Loose (D1) 12.70 mm	Groove Width (W) 0.74 mm
Material: Stainless Steel Grade PH15-7 Mo Maximum Rec. Shaft Dia (S): 10.48 Clip OD in groove (C1): 13.21 mm
Part Number: ECL-0064-0079A-S15 (10 Pcs) E-Clips Retaining Rings - 7.94x6.35x0.64 mm Basic - Stainless Steel Grade PH15-7 Mo E-Clip 6 units (60 pcs) Available Now \| Further orders can be expected around Wed, Oct 08, 2025 Regular price $25.23 AUD Regular price Sale price $25.23 AUD Unit price per Per 10 Quantity Required 6 units (60 pcs) Available Now. Backorder if more than 6.
Minimum Rec. Shaft Dia (S) 7.94 mm _{+ 2.54 / - 0.00} (Equiv. 0.313 in.)	Groove Dia. (Dg) 6.35 mm _{+ 0.076 / - 0.000} (Equiv. 0.25 in.)	Clip Thickness (T) 0.64 mm _{+/ - 0.050} (Equiv. 0.025 in.)	Clip OD Loose (D1) 12.70 mm
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 0.74 mm Maximum Rec. Shaft Dia (S): 10.48 Clip OD in groove (C1): 13.21 mm
Part Number: ECL-0064-0079A-S15 (10 Pcs) E-Clips Retaining Rings - 7.94x6.35x0.64 mm Basic - Stainless Steel Grade PH15-7 Mo E-Clip 6 units (60 pcs) Available Now \| Further orders can be expected around Wed, Oct 08, 2025 Regular price $25.23 AUD Regular price Sale price $25.23 AUD Unit price per Per 10 Quantity Required 6 units (60 pcs) Available Now. Backorder if more than 6.
ECL-0064-0079A-S15 (10 Pcs) --- E-Clips Retaining Rings - 7.94x6.35x0.64 mm Basic - Stainless Steel Grade PH15-7 Mo E-Clip ECL-0064-0079A-S15 (10 Pcs) --- E-Clips Retaining Rings - 7.94x6.35x0.64 mm Basic - Stainless Steel Grade PH15-7 Mo E-Clip Regular price $25.23 AUD Regular price Sale price $25.23 AUD Unit price per 6 Available Now
Minimum Rec. Shaft Dia (S) 8.00 mm _{+ 3.00 / - 0.00} (Equiv. 0.315 in.)	Groove Dia. (Dg) 7.00 mm _{+ 0.00 / - 0.09} (Equiv. 0.276 in.)	Clip Thickness (T) 0.90 mm _{+/ - 0.02} (Equiv. 0.035 in.)	Clip OD Loose (D1) 13.80 mm	Groove Width (W) 0.94 mm
Material: Stainless Steel Grade PH15-7 Mo Maximum Rec. Shaft Dia (S): 11.00 Clip OD in groove (C1): 14.30 mm Loose Clip ID (A): 5.84 mm Min. Extension (n): 1.50 Standard: DIN6799
Part Number: ECL-0070-0080-S15 (20 Pcs) E-Clips Retaining Rings - 8x7x0.9 mm Basic - Stainless Steel Grade PH15-7 Mo E-Clip 12 units (240 pcs) Available Now \| Further orders can be expected around Sat, Sep 27, 2025 Regular price $19.77 AUD Regular price Sale price $19.77 AUD Unit price per Per 20 Quantity Required 12 units (240 pcs) Available Now. Backorder if more than 12.
Minimum Rec. Shaft Dia (S) 8.00 mm _{+ 3.00 / - 0.00} (Equiv. 0.315 in.)	Groove Dia. (Dg) 7.00 mm _{+ 0.00 / - 0.09} (Equiv. 0.276 in.)	Clip Thickness (T) 0.90 mm _{+/ - 0.02} (Equiv. 0.035 in.)	Clip OD Loose (D1) 13.80 mm
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 0.94 mm Maximum Rec. Shaft Dia (S): 11.00 Clip OD in groove (C1): 14.30 mm Loose Clip ID (A): 5.84 mm Min. Extension (n): 1.50 Standard: DIN6799
Part Number: ECL-0070-0080-S15 (20 Pcs) E-Clips Retaining Rings - 8x7x0.9 mm Basic - Stainless Steel Grade PH15-7 Mo E-Clip 12 units (240 pcs) Available Now \| Further orders can be expected around Sat, Sep 27, 2025 Regular price $19.77 AUD Regular price Sale price $19.77 AUD Unit price per Per 20 Quantity Required 12 units (240 pcs) Available Now. Backorder if more than 12.
ECL-0070-0080-S15 (20 Pcs) --- E-Clips Retaining Rings - 8x7x0.9 mm Basic - Stainless Steel Grade PH15-7 Mo E-Clip ECL-0070-0080-S15 (20 Pcs) --- E-Clips Retaining Rings - 8x7x0.9 mm Basic - Stainless Steel Grade PH15-7 Mo E-Clip Regular price $19.77 AUD Regular price Sale price $19.77 AUD Unit price per 12 Available Now
Minimum Rec. Shaft Dia (S) 9.00 mm _{+ 3.00 / - 0.00} (Equiv. 0.354 in.)	Groove Dia. (Dg) 8.00 mm _{+ 0.00 / - 0.09} (Equiv. 0.315 in.)	Clip Thickness (T) 1.00 mm _{+/ - 0.03} (Equiv. 0.039 in.)	Clip OD Loose (D1) 15.60 mm	Groove Width (W) 1.05 mm
Material: Stainless Steel Grade PH15-7 Mo Maximum Rec. Shaft Dia (S): 12.00 Clip OD in groove (C1): 16.30 mm Loose Clip ID (A): 6.52 mm Min. Extension (n): 1.80 Additional Info: RRA-608 Applicator Standard: DIN6799
Part Number: ECL-0080-0090-S15 (5 Pcs) E-Clips Retaining Rings - 9x8x1 mm Basic - Stainless Steel Grade PH15-7 Mo E-Clip 46 units (230 pcs) Available Now \| Further orders can be expected around Sat, Sep 27, 2025 Regular price $12.50 AUD Regular price Sale price $12.50 AUD Unit price per Per 5 Quantity Required 46 units (230 pcs) Available Now. Backorder if more than 46.
Minimum Rec. Shaft Dia (S) 9.00 mm _{+ 3.00 / - 0.00} (Equiv. 0.354 in.)	Groove Dia. (Dg) 8.00 mm _{+ 0.00 / - 0.09} (Equiv. 0.315 in.)	Clip Thickness (T) 1.00 mm _{+/ - 0.03} (Equiv. 0.039 in.)	Clip OD Loose (D1) 15.60 mm
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 1.05 mm Maximum Rec. Shaft Dia (S): 12.00 Clip OD in groove (C1): 16.30 mm Loose Clip ID (A): 6.52 mm Min. Extension (n): 1.80 Additional Info: RRA-608 Applicator Standard: DIN6799
Part Number: ECL-0080-0090-S15 (5 Pcs) E-Clips Retaining Rings - 9x8x1 mm Basic - Stainless Steel Grade PH15-7 Mo E-Clip 46 units (230 pcs) Available Now \| Further orders can be expected around Sat, Sep 27, 2025 Regular price $12.50 AUD Regular price Sale price $12.50 AUD Unit price per Per 5 Quantity Required 46 units (230 pcs) Available Now. Backorder if more than 46.
ECL-0080-0090-S15 (5 Pcs) --- E-Clips Retaining Rings - 9x8x1 mm Basic - Stainless Steel Grade PH15-7 Mo E-Clip ECL-0080-0090-S15 (5 Pcs) --- E-Clips Retaining Rings - 9x8x1 mm Basic - Stainless Steel Grade PH15-7 Mo E-Clip Regular price $12.50 AUD Regular price Sale price $12.50 AUD Unit price per 46 Available Now
Minimum Rec. Shaft Dia (S) 9.53 mm _{+ 2.54 / - 0.00} (Equiv. 0.375 in.)	Groove Dia. (Dg) 7.70 mm _{+ 0.076 / - 0.000} (Equiv. 0.303 in.)	Clip Thickness (T) 0.89 mm _{+/ - 0.050} (Equiv. 0.035 in.)	Clip OD Loose (D1) 16.76 mm	Groove Width (W) 0.99 mm
Material: Stainless Steel Grade PH15-7 Mo Maximum Rec. Shaft Dia (S): 12.07 Clip OD in groove (C1): 17.27 mm Standard: MIL-16633
Part Number: ECL-0077-0095-S15 (5 Pcs) E-Clips Retaining Rings - 9.53x7.7x0.89 mm Basic - Stainless Steel Grade PH15-7 Mo E-Clip 4 units (20 pcs) Available Now \| Further orders can be expected around Sat, Sep 27, 2025 Regular price $6.32 AUD Regular price Sale price $6.32 AUD Unit price per Per 5 Quantity Required 4 units (20 pcs) Available Now. Backorder if more than 4.
Minimum Rec. Shaft Dia (S) 9.53 mm _{+ 2.54 / - 0.00} (Equiv. 0.375 in.)	Groove Dia. (Dg) 7.70 mm _{+ 0.076 / - 0.000} (Equiv. 0.303 in.)	Clip Thickness (T) 0.89 mm _{+/ - 0.050} (Equiv. 0.035 in.)	Clip OD Loose (D1) 16.76 mm
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 0.99 mm Maximum Rec. Shaft Dia (S): 12.07 Clip OD in groove (C1): 17.27 mm Standard: MIL-16633
Part Number: ECL-0077-0095-S15 (5 Pcs) E-Clips Retaining Rings - 9.53x7.7x0.89 mm Basic - Stainless Steel Grade PH15-7 Mo E-Clip 4 units (20 pcs) Available Now \| Further orders can be expected around Sat, Sep 27, 2025 Regular price $6.32 AUD Regular price Sale price $6.32 AUD Unit price per Per 5 Quantity Required 4 units (20 pcs) Available Now. Backorder if more than 4.
ECL-0077-0095-S15 (5 Pcs) --- E-Clips Retaining Rings - 9.53x7.7x0.89 mm Basic - Stainless Steel Grade PH15-7 Mo E-Clip ECL-0077-0095-S15 (5 Pcs) --- E-Clips Retaining Rings - 9.53x7.7x0.89 mm Basic - Stainless Steel Grade PH15-7 Mo E-Clip Regular price $6.32 AUD Regular price Sale price $6.32 AUD Unit price per 4 Available Now
Minimum Rec. Shaft Dia (S) 10.00 mm _{+ 4.00 / - 0.00} (Equiv. 0.394 in.)	Groove Dia. (Dg) 9.00 mm _{+ 0.00 / - 0.09} (Equiv. 0.354 in.)	Clip Thickness (T) 1.10 mm _{+/ - 0.03} (Equiv. 0.043 in.)	Clip OD Loose (D1) 18.20 mm	Groove Width (W) 1.15 mm
Material: Stainless Steel Grade PH15-7 Mo Maximum Rec. Shaft Dia (S): 14.00 Clip OD in groove (C1): 18.80 mm Loose Clip ID (A): 7.63 mm Min. Extension (n): 2.00 Standard: DIN6799
Part Number: ECL-0090-0100-S15 (5 Pcs) E-Clips Retaining Rings - 10x9x1.1 mm Basic - Stainless Steel Grade PH15-7 Mo E-Clip 48 units (240 pcs) Available Now \| Further orders can be expected around Sat, Sep 27, 2025 Regular price $17.05 AUD Regular price Sale price $17.05 AUD Unit price per Per 5 Quantity Required 48 units (240 pcs) Available Now. Backorder if more than 48.
Minimum Rec. Shaft Dia (S) 10.00 mm _{+ 4.00 / - 0.00} (Equiv. 0.394 in.)	Groove Dia. (Dg) 9.00 mm _{+ 0.00 / - 0.09} (Equiv. 0.354 in.)	Clip Thickness (T) 1.10 mm _{+/ - 0.03} (Equiv. 0.043 in.)	Clip OD Loose (D1) 18.20 mm
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 1.15 mm Maximum Rec. Shaft Dia (S): 14.00 Clip OD in groove (C1): 18.80 mm Loose Clip ID (A): 7.63 mm Min. Extension (n): 2.00 Standard: DIN6799
Part Number: ECL-0090-0100-S15 (5 Pcs) E-Clips Retaining Rings - 10x9x1.1 mm Basic - Stainless Steel Grade PH15-7 Mo E-Clip 48 units (240 pcs) Available Now \| Further orders can be expected around Sat, Sep 27, 2025 Regular price $17.05 AUD Regular price Sale price $17.05 AUD Unit price per Per 5 Quantity Required 48 units (240 pcs) Available Now. Backorder if more than 48.
ECL-0090-0100-S15 (5 Pcs) --- E-Clips Retaining Rings - 10x9x1.1 mm Basic - Stainless Steel Grade PH15-7 Mo E-Clip ECL-0090-0100-S15 (5 Pcs) --- E-Clips Retaining Rings - 10x9x1.1 mm Basic - Stainless Steel Grade PH15-7 Mo E-Clip Regular price $17.05 AUD Regular price Sale price $17.05 AUD Unit price per 48 Available Now
Minimum Rec. Shaft Dia (S) 11.00 mm _{+ 4.00 / - 0.00} (Equiv. 0.433 in.)	Groove Dia. (Dg) 10.00 mm _{+ 0.00 / - 0.09} (Equiv. 0.394 in.)	Clip Thickness (T) 1.20 mm _{+/ - 0.03} (Equiv. 0.047 in.)	Clip OD Loose (D1) 19.65 mm	Groove Width (W) 1.25 mm
Material: Stainless Steel Grade PH15-7 Mo Maximum Rec. Shaft Dia (S): 15.00 Clip OD in groove (C1): 20.40 mm Loose Clip ID (A): 8.32 mm Min. Extension (n): 2.00 Standard: DIN6799
Part Number: ECL-0100-0110-S15 (2 Pcs) E-Clips Retaining Rings - 11x10x1.2 mm Basic - Stainless Steel Grade PH15-7 Mo E-Clip 4 units (8 pcs) Available Now \| Further orders can be expected around Sat, Sep 27, 2025 Regular price $3.14 AUD Regular price ~~$8.63 AUD~~ Sale price $3.14 AUD Unit price per Per 2 Quantity Required 4 units (8 pcs) Available Now. Backorder if more than 4.
Minimum Rec. Shaft Dia (S) 11.00 mm _{+ 4.00 / - 0.00} (Equiv. 0.433 in.)	Groove Dia. (Dg) 10.00 mm _{+ 0.00 / - 0.09} (Equiv. 0.394 in.)	Clip Thickness (T) 1.20 mm _{+/ - 0.03} (Equiv. 0.047 in.)	Clip OD Loose (D1) 19.65 mm
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 1.25 mm Maximum Rec. Shaft Dia (S): 15.00 Clip OD in groove (C1): 20.40 mm Loose Clip ID (A): 8.32 mm Min. Extension (n): 2.00 Standard: DIN6799
Part Number: ECL-0100-0110-S15 (2 Pcs) E-Clips Retaining Rings - 11x10x1.2 mm Basic - Stainless Steel Grade PH15-7 Mo E-Clip 4 units (8 pcs) Available Now \| Further orders can be expected around Sat, Sep 27, 2025 Regular price $3.14 AUD Regular price ~~$8.63 AUD~~ Sale price $3.14 AUD Unit price per Per 2 Quantity Required 4 units (8 pcs) Available Now. Backorder if more than 4.
ECL-0100-0110-S15 (2 Pcs) --- E-Clips Retaining Rings - 11x10x1.2 mm Basic - Stainless Steel Grade PH15-7 Mo E-Clip Sale ECL-0100-0110-S15 (2 Pcs) --- E-Clips Retaining Rings - 11x10x1.2 mm Basic - Stainless Steel Grade PH15-7 Mo E-Clip Regular price $3.14 AUD Regular price ~~$8.63 AUD~~ Sale price $3.14 AUD Unit price per 4 Available Now Sale
Minimum Rec. Shaft Dia (S) 11.11 mm _{+ 2.54 / - 0.00} (Equiv. 0.437 in.)	Groove Dia. (Dg) 8.74 mm _{+ 0.076 / - 0.000} (Equiv. 0.344 in.)	Clip Thickness (T) 0.89 mm _{+/ - 0.050} (Equiv. 0.035 in.)	Clip OD Loose (D1) 17.45 mm	Groove Width (W) 0.99 mm
Material: Stainless Steel Grade PH15-7 Mo Maximum Rec. Shaft Dia (S): 13.65 Clip OD in groove (C1): 18.03 mm Loose Clip ID (A): 8.56 mm Standard: MIL-16633
Part Number: ECL-0087-0111A-S15 (5 Pcs) E-Clips Retaining Rings - 11.11x8.74x0.89 mm Basic - Stainless Steel Grade PH15-7 Mo E-Clip 16 units (80 pcs) Available Now \| Further orders can be expected around Sat, Sep 27, 2025 Regular price $2.50 AUD Regular price ~~$7.00 AUD~~ Sale price $2.50 AUD Unit price per Per 5 Quantity Required 16 units (80 pcs) Available Now. Backorder if more than 16.
Minimum Rec. Shaft Dia (S) 11.11 mm _{+ 2.54 / - 0.00} (Equiv. 0.437 in.)	Groove Dia. (Dg) 8.74 mm _{+ 0.076 / - 0.000} (Equiv. 0.344 in.)	Clip Thickness (T) 0.89 mm _{+/ - 0.050} (Equiv. 0.035 in.)	Clip OD Loose (D1) 17.45 mm
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 0.99 mm Maximum Rec. Shaft Dia (S): 13.65 Clip OD in groove (C1): 18.03 mm Loose Clip ID (A): 8.56 mm Standard: MIL-16633
Part Number: ECL-0087-0111A-S15 (5 Pcs) E-Clips Retaining Rings - 11.11x8.74x0.89 mm Basic - Stainless Steel Grade PH15-7 Mo E-Clip 16 units (80 pcs) Available Now \| Further orders can be expected around Sat, Sep 27, 2025 Regular price $2.50 AUD Regular price ~~$7.00 AUD~~ Sale price $2.50 AUD Unit price per Per 5 Quantity Required 16 units (80 pcs) Available Now. Backorder if more than 16.
ECL-0087-0111A-S15 (5 Pcs) --- E-Clips Retaining Rings - 11.11x8.74x0.89 mm Basic - Stainless Steel Grade PH15-7 Mo E-Clip Sale ECL-0087-0111A-S15 (5 Pcs) --- E-Clips Retaining Rings - 11.11x8.74x0.89 mm Basic - Stainless Steel Grade PH15-7 Mo E-Clip Regular price $2.50 AUD Regular price ~~$7.00 AUD~~ Sale price $2.50 AUD Unit price per 16 Available Now Sale

Country/region

Collection: Retaining Rings - E-Clips - Basic - Stainless Steel

Category Details

Filter

Filter

Subscribe to our emails
