Collection: Pulleys - Metric Timing - 1.000mm Pitch
Pulleys -> Metric Timing -> 1.000mm PitchThere are 2 products in the sub-categories of Pulleys - Metric Timing - 1.000mm Pitch. Browse the Pulleys - Metric Timing - 1.000mm Pitch products table. To narrow down the selection, please choose a sub-category from the links below.
Pulleys - Metric Timing - 1.000mm Pitch - 3mm Wide
A selection of 3mm Wide 1.000mm Pitch Metric Timing Pulleys. Timing Pulleys...
Pulleys - Metric Timing - 1.000mm Pitch - 6mm Wide
A selection of 6mm Wide 1.000mm Pitch Metric Timing Pulleys. Timing Pulleys...
Category Details
This category includes various types of metric timing pulleys.
- Timing pulleys combined with timing belts, provide power transmission without slippage.
- Timing pulleys are toothed pulleys used with timing belts to synchronize the movement of different mechanical components, ensuring precise timing and coordination.
- Some uses for timing pulleys include 3D printers, CNC machines, robotics and automation components, textile machinery, office equipment such as scanners and copiers, and medical devices requiring precise movement control.
Miniature Bearings Australia - MBA Minibearings
Additional resources:
A more concise listing may be found in the Pulleys - Metric Timing - 1.000mm Pitch category on the Small Parts & Bearings online store.
| Number of Teeth | Max Belt Width | Bore (d) | Bore Type | Locking Type |

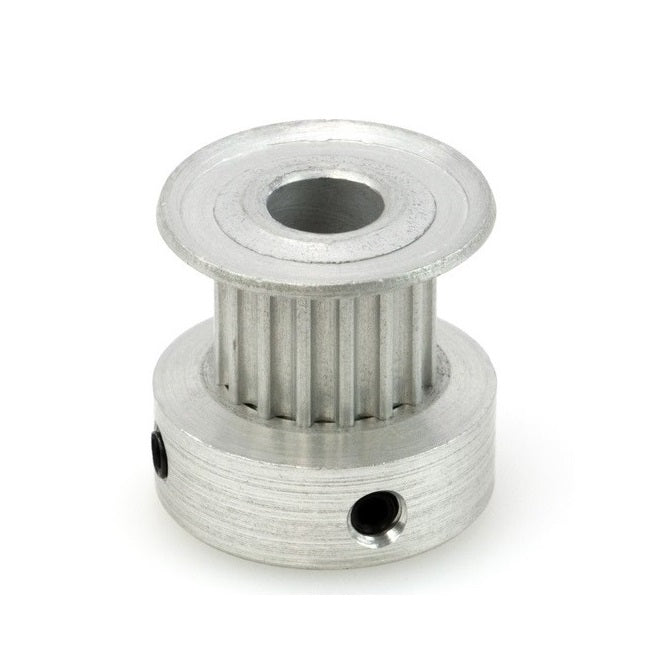

Indicative Image |
|---|---|---|---|---|---|
|
Number of Teeth
40
|
Max Belt Width
6.00
mm (Equiv. 0.236 in.) |
Bore (d)
4.000
mm (Equiv. 0.157 in.) |
Bore Type
Finished
|
Locking Type
Set Screw M2
|
|
|
Material: Aluminium
Type: 1
Pitch Dia. (PD): 12.73 mm
Category: Pulleys - Metric Timing - 1.000mm Pitch - 6mm Wide |
|||||
|
Part Number: P-010T-040-060FH-AL-G-040
Metric Timing Pulleys - 40 tooth - 6x4 mm 1mm Pitch - Aluminium Pulley 1 Available Now | Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price
$19.00 AUD
Regular price
Unit price
per
Excludes GST and overseas Taxes & Duties Each
|
|||||
| Number of Teeth | Max Belt Width | Bore (d) | Bore Type |

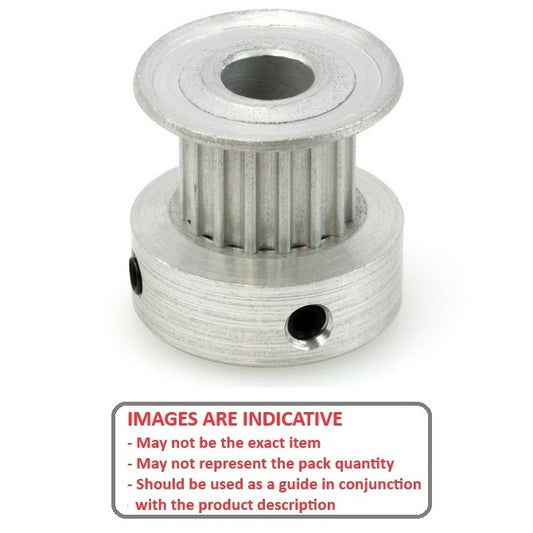

Indicative Image |
|
|
Number of Teeth
40
|
Max Belt Width
6.00
mm (Equiv. 0.236 in.) |
Bore (d)
4.000
mm (Equiv. 0.157 in.) |
Bore Type
Finished
|
|
|
|
Material: Aluminium
Locking Type: Set Screw M2
Type: 1
Pitch Dia. (PD): 12.73 mm
Category: Pulleys - Metric Timing - 1.000mm Pitch - 6mm Wide |
|||||
|
Part Number: P-010T-040-060FH-AL-G-040
Metric Timing Pulleys - 40 tooth - 6x4 mm 1mm Pitch - Aluminium Pulley 1 Available Now | Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price
$19.00 AUD
Regular price
Unit price
per
Excludes GST and overseas Taxes & Duties Each
|
|||||
|
|||||
|
Number of Teeth
45
|
Max Belt Width
3.00
mm (Equiv. 0.118 in.) |
Bore (d)
3.000
mm (Equiv. 0.118 in.) |
Bore Type
Finished
|
Locking Type
Set Screw M2
|
|
|
Material: Aluminium
Type: 1
Pitch Dia. (PD): 14.32 mm
Category: Pulleys - Metric Timing - 1.000mm Pitch - 3mm Wide |
|||||
|
Part Number: P-010T-045-030FH-AL-G-030
Metric Timing Pulleys - 45 tooth - 3x3 mm 1mm Pitch - Aluminium Pulley 1 Available Now | Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price
$20.00 AUD
Regular price
Unit price
per
Excludes GST and overseas Taxes & Duties Each
|
|||||
|
Number of Teeth
45
|
Max Belt Width
3.00
mm (Equiv. 0.118 in.) |
Bore (d)
3.000
mm (Equiv. 0.118 in.) |
Bore Type
Finished
|
|
|
|
Material: Aluminium
Locking Type: Set Screw M2
Type: 1
Pitch Dia. (PD): 14.32 mm
Category: Pulleys - Metric Timing - 1.000mm Pitch - 3mm Wide |
|||||
|
Part Number: P-010T-045-030FH-AL-G-030
Metric Timing Pulleys - 45 tooth - 3x3 mm 1mm Pitch - Aluminium Pulley 1 Available Now | Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price
$20.00 AUD
Regular price
Unit price
per
Excludes GST and overseas Taxes & Duties Each
|
|||||
|
|||||
