Plungers - Ball Push Fit - Stainless Body - Nylon Ball

Plungers -> Ball Push Fit -> Stainless Body -> Nylon Ball

There are 8 products in the sub-categories of Plungers - Ball Push Fit - Stainless Body - Nylon Ball. Browse the Plungers - Ball Push Fit - Stainless Body - Nylon Ball products table.

Category Details

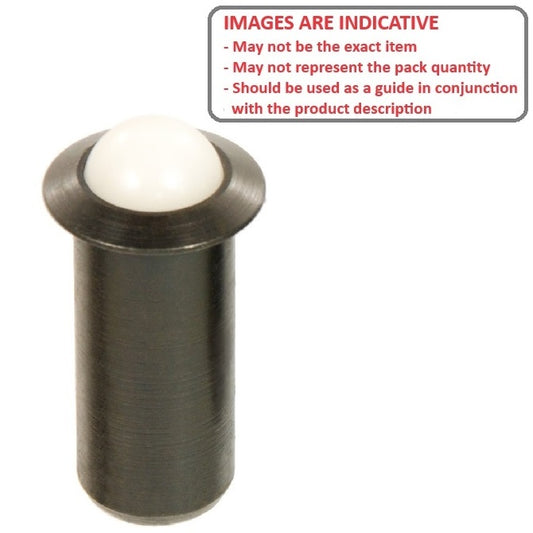

A selection of Nylon Ball Stainless Body Ball Push Fit Plungers. Unthreaded.

    Miniature Bearings Australia - MBA Minibearings

    Additional resources:


    A more concise listing may be found in the Plungers - Ball Push Fit - Stainless Body - Nylon Ball category on the Small Parts & Bearings online store.
    Body Diameter (D) Length (L) Initial Pressure (F1) Final Pressure (F2) Ball Diameter (D1) Ball Height (H) Indicative
    Body Diameter (D)
    3.18
    mm
    + 0.1 / - 0.0
    (Equiv. 0.125 in.)
    Length (L)
    6.4
    mm

    (Equiv. 0.252 in.)
    Initial Pressure (F1)
    1.8
    N
    Final Pressure (F2)
    5.8
    N
    Ball Diameter (D1)
    2.4
    mm
    Ball Height (H)
    0.9
    mm
    		Ball Push Fit Plungers - 3.18x6.4 mm - 1.8 N Stainless Body - Nylon Polyamide 6/6
    Material: Nylon (Polyamide 6/6)    Shoulder Diameter (S): 4.8 mm
    Part Number: PLBP-032-064-SN-006
    Ball Push Fit Plungers - 3.18x6.4 mm - 1.8 N Stainless Body - Nylon Polyamide 6/6 Plunger
    Out of Stock | Backorder Now | Orders can be expected around Thu, Sep 25, 2025
    $10.41 AUD
    $10.41 AUD
    Excludes GST and overseas Taxes & Duties
    Each
    Quantity Required

    Backorder: Out of Stock.
    Body Diameter (D) Length (L) Initial Pressure (F1) Final Pressure (F2) Indicative
    Body Diameter (D)
    3.18
    mm
    + 0.1 / - 0.0
    (Equiv. 0.125 in.)
    Length (L)
    6.4
    mm

    (Equiv. 0.252 in.)
    Initial Pressure (F1)
    1.8
    N
    Final Pressure (F2)
    5.8
    N
    		Ball Push Fit Plungers - 3.18x6.4 mm - 1.8 N Stainless Body - Nylon Polyamide 6/6
    Material: Nylon (Polyamide 6/6)    Ball Diameter (D1): 2.4 mm    Ball Height (H): 0.9 mm    Shoulder Diameter (S): 4.8 mm
    Part Number: PLBP-032-064-SN-006
    Ball Push Fit Plungers - 3.18x6.4 mm - 1.8 N Stainless Body - Nylon Polyamide 6/6 Plunger
    Out of Stock | Backorder Now | Orders can be expected around Thu, Sep 25, 2025
    $10.41 AUD
    $10.41 AUD
    Excludes GST and overseas Taxes & Duties
    Each
    Quantity Required

    Backorder: Out of Stock.
    Body Diameter (D)
    3.18
    mm
    + 0.1 / - 0.0
    (Equiv. 0.125 in.)
    Length (L)
    6.4
    mm

    (Equiv. 0.252 in.)
    Initial Pressure (F1)
    3.3
    N
    Final Pressure (F2)
    11.1
    N
    Ball Diameter (D1)
    2.4
    mm
    Ball Height (H)
    0.9
    mm
    		Ball Push Fit Plungers - 3.18x6.4 mm - 3.3 N Stainless Body - Nylon Polyamide 6/6
    Material: Nylon (Polyamide 6/6)    Shoulder Diameter (S): 4.8 mm
    Part Number: PLBP-032-064-SN-011
    Ball Push Fit Plungers - 3.18x6.4 mm - 3.3 N Stainless Body - Nylon Polyamide 6/6 Plunger
    Out of Stock | Backorder Now | Orders can be expected around Thu, Sep 25, 2025
    $16.05 AUD
    $19.25 AUD $16.05 AUD
    Excludes GST and overseas Taxes & Duties
    Each
    Quantity Required

    Backorder: Out of Stock.
    Body Diameter (D)
    3.18
    mm
    + 0.1 / - 0.0
    (Equiv. 0.125 in.)
    Length (L)
    6.4
    mm

    (Equiv. 0.252 in.)
    Initial Pressure (F1)
    3.3
    N
    Final Pressure (F2)
    11.1
    N
    		Ball Push Fit Plungers - 3.18x6.4 mm - 3.3 N Stainless Body - Nylon Polyamide 6/6
    Material: Nylon (Polyamide 6/6)    Ball Diameter (D1): 2.4 mm    Ball Height (H): 0.9 mm    Shoulder Diameter (S): 4.8 mm
    Part Number: PLBP-032-064-SN-011
    Ball Push Fit Plungers - 3.18x6.4 mm - 3.3 N Stainless Body - Nylon Polyamide 6/6 Plunger
    Out of Stock | Backorder Now | Orders can be expected around Thu, Sep 25, 2025
    $16.05 AUD
    $19.25 AUD $16.05 AUD
    Excludes GST and overseas Taxes & Duties
    Each
    Quantity Required

    Backorder: Out of Stock.
    Body Diameter (D)
    4.78
    mm
    + 0.1 / - 0.0
    (Equiv. 0.188 in.)
    Length (L)
    10.0
    mm

    (Equiv. 0.394 in.)
    Initial Pressure (F1)
    8.9
    N
    Final Pressure (F2)
    22.2
    N
    Ball Diameter (D1)
    4.0
    mm
    Ball Height (H)
    1.5
    mm
    		Ball Push Fit Plungers - 4.78x10 mm - 8.9 N Stainless Body - Nylon Polyamide 6/6
    Material: Nylon (Polyamide 6/6)    Shoulder Diameter (S): 6.4 mm
    Part Number: PLBP-048-100-SN-022
    Ball Push Fit Plungers - 4.78x10 mm - 8.9 N Stainless Body - Nylon Polyamide 6/6 Plunger
    Out of Stock | Backorder Now | Orders can be expected around Thu, Sep 25, 2025
    $11.23 AUD
    $13.47 AUD $11.23 AUD
    Excludes GST and overseas Taxes & Duties
    Each
    Quantity Required

    Backorder: Out of Stock.
    Body Diameter (D)
    4.78
    mm
    + 0.1 / - 0.0
    (Equiv. 0.188 in.)
    Length (L)
    10.0
    mm

    (Equiv. 0.394 in.)
    Initial Pressure (F1)
    8.9
    N
    Final Pressure (F2)
    22.2
    N
    		Ball Push Fit Plungers - 4.78x10 mm - 8.9 N Stainless Body - Nylon Polyamide 6/6
    Material: Nylon (Polyamide 6/6)    Ball Diameter (D1): 4.0 mm    Ball Height (H): 1.5 mm    Shoulder Diameter (S): 6.4 mm
    Part Number: PLBP-048-100-SN-022
    Ball Push Fit Plungers - 4.78x10 mm - 8.9 N Stainless Body - Nylon Polyamide 6/6 Plunger
    Out of Stock | Backorder Now | Orders can be expected around Thu, Sep 25, 2025
    $11.23 AUD
    $13.47 AUD $11.23 AUD
    Excludes GST and overseas Taxes & Duties
    Each
    Quantity Required

    Backorder: Out of Stock.
    Body Diameter (D)
    4.78
    mm
    + 0.1 / - 0.0
    (Equiv. 0.188 in.)
    Length (L)
    10.3
    mm

    (Equiv. 0.406 in.)
    Initial Pressure (F1)
    4.5
    N
    Final Pressure (F2)
    11.1
    N
    Ball Diameter (D1)
    4.0
    mm
    Ball Height (H)
    1.5
    mm
    		Ball Push Fit Plungers - 4.78x10.3 mm - 4.5 N Stainless Body - Nylon Polyamide 6/6
    Material: Nylon (Polyamide 6/6)    Shoulder Diameter (S): 6.4 mm
    Part Number: PLBP-048-103-SN-011
    Ball Push Fit Plungers - 4.78x10.3 mm - 4.5 N Stainless Body - Nylon Polyamide 6/6 Plunger
    Out of Stock | Backorder Now | Orders can be expected around Thu, Sep 25, 2025
    $10.32 AUD
    $12.38 AUD $10.32 AUD
    Excludes GST and overseas Taxes & Duties
    Each
    Quantity Required

    Backorder: Out of Stock.
    Body Diameter (D)
    4.78
    mm
    + 0.1 / - 0.0
    (Equiv. 0.188 in.)
    Length (L)
    10.3
    mm

    (Equiv. 0.406 in.)
    Initial Pressure (F1)
    4.5
    N
    Final Pressure (F2)
    11.1
    N
    		Ball Push Fit Plungers - 4.78x10.3 mm - 4.5 N Stainless Body - Nylon Polyamide 6/6
    Material: Nylon (Polyamide 6/6)    Ball Diameter (D1): 4.0 mm    Ball Height (H): 1.5 mm    Shoulder Diameter (S): 6.4 mm
    Part Number: PLBP-048-103-SN-011
    Ball Push Fit Plungers - 4.78x10.3 mm - 4.5 N Stainless Body - Nylon Polyamide 6/6 Plunger
    Out of Stock | Backorder Now | Orders can be expected around Thu, Sep 25, 2025
    $10.32 AUD
    $12.38 AUD $10.32 AUD
    Excludes GST and overseas Taxes & Duties
    Each
    Quantity Required

    Backorder: Out of Stock.
    Body Diameter (D)
    6.35
    mm
    + 0.1 / - 0.0
    (Equiv. 0.25 in.)
    Length (L)
    12.0
    mm

    (Equiv. 0.472 in.)
    Initial Pressure (F1)
    13.4
    N
    Final Pressure (F2)
    31.1
    N
    Ball Diameter (D1)
    4.8
    mm
    Ball Height (H)
    1.8
    mm
    		Ball Push Fit Plungers - 6.35x12 mm - 13.4 N Stainless Body - Nylon Polyamide 6/6
    Material: Nylon (Polyamide 6/6)    Shoulder Diameter (S): 7.9 mm
    Part Number: PLBP-064-120-SN-031
    Ball Push Fit Plungers - 6.35x12 mm - 13.4 N Stainless Body - Nylon Polyamide 6/6 Plunger
    Out of Stock | Backorder Now | Orders can be expected around Thu, Sep 25, 2025
    $10.77 AUD
    $12.93 AUD $10.77 AUD
    Excludes GST and overseas Taxes & Duties
    Each
    Quantity Required

    Backorder: Out of Stock.
    Body Diameter (D)
    6.35
    mm
    + 0.1 / - 0.0
    (Equiv. 0.25 in.)
    Length (L)
    12.0
    mm

    (Equiv. 0.472 in.)
    Initial Pressure (F1)
    13.4
    N
    Final Pressure (F2)
    31.1
    N
    		Ball Push Fit Plungers - 6.35x12 mm - 13.4 N Stainless Body - Nylon Polyamide 6/6
    Material: Nylon (Polyamide 6/6)    Ball Diameter (D1): 4.8 mm    Ball Height (H): 1.8 mm    Shoulder Diameter (S): 7.9 mm
    Part Number: PLBP-064-120-SN-031
    Ball Push Fit Plungers - 6.35x12 mm - 13.4 N Stainless Body - Nylon Polyamide 6/6 Plunger
    Out of Stock | Backorder Now | Orders can be expected around Thu, Sep 25, 2025
    $10.77 AUD
    $12.93 AUD $10.77 AUD
    Excludes GST and overseas Taxes & Duties
    Each
    Quantity Required

    Backorder: Out of Stock.
    Body Diameter (D)
    6.35
    mm
    + 0.1 / - 0.0
    (Equiv. 0.25 in.)
    Length (L)
    12.2
    mm

    (Equiv. 0.48 in.)
    Initial Pressure (F1)
    6.7
    N
    Final Pressure (F2)
    15.6
    N
    Ball Diameter (D1)
    4.8
    mm
    Ball Height (H)
    1.8
    mm
    		Ball Push Fit Plungers - 6.35x12.2 mm - 6.7 N Stainless Body - Nylon Polyamide 6/6
    Material: Nylon (Polyamide 6/6)    Shoulder Diameter (S): 7.9 mm
    Part Number: PLBP-064-122-SN-016
    Ball Push Fit Plungers - 6.35x12.2 mm - 6.7 N Stainless Body - Nylon Polyamide 6/6 Plunger
    Out of Stock | Backorder Now | Orders can be expected around Thu, Sep 25, 2025
    $10.86 AUD
    $13.04 AUD $10.86 AUD
    Excludes GST and overseas Taxes & Duties
    Each
    Quantity Required

    Backorder: Out of Stock.
    Body Diameter (D)
    6.35
    mm
    + 0.1 / - 0.0
    (Equiv. 0.25 in.)
    Length (L)
    12.2
    mm

    (Equiv. 0.48 in.)
    Initial Pressure (F1)
    6.7
    N
    Final Pressure (F2)
    15.6
    N
    		Ball Push Fit Plungers - 6.35x12.2 mm - 6.7 N Stainless Body - Nylon Polyamide 6/6
    Material: Nylon (Polyamide 6/6)    Ball Diameter (D1): 4.8 mm    Ball Height (H): 1.8 mm    Shoulder Diameter (S): 7.9 mm
    Part Number: PLBP-064-122-SN-016
    Ball Push Fit Plungers - 6.35x12.2 mm - 6.7 N Stainless Body - Nylon Polyamide 6/6 Plunger
    Out of Stock | Backorder Now | Orders can be expected around Thu, Sep 25, 2025
    $10.86 AUD
    $13.04 AUD $10.86 AUD
    Excludes GST and overseas Taxes & Duties
    Each
    Quantity Required

    Backorder: Out of Stock.
    Body Diameter (D)
    9.53
    mm
    + 0.1 / - 0.0
    (Equiv. 0.375 in.)
    Length (L)
    19.9
    mm

    (Equiv. 0.783 in.)
    Initial Pressure (F1)
    11.1
    N
    Final Pressure (F2)
    31.1
    N
    Ball Diameter (D1)
    7.9
    mm
    Ball Height (H)
    2.8
    mm
    		Ball Push Fit Plungers - 9.53x19.9 mm - 11.1 N Stainless Body - Nylon Polyamide 6/6
    Material: Nylon (Polyamide 6/6)    Shoulder Diameter (S): 12.7 mm
    Part Number: PLBP-095-199-SN-031
    Ball Push Fit Plungers - 9.53x19.9 mm - 11.1 N Stainless Body - Nylon Polyamide 6/6 Plunger
    Out of Stock | Backorder Now | Orders can be expected around Thu, Sep 25, 2025
    $12.05 AUD
    $14.45 AUD $12.05 AUD
    Excludes GST and overseas Taxes & Duties
    Each
    Quantity Required

    Backorder: Out of Stock.
    Body Diameter (D)
    9.53
    mm
    + 0.1 / - 0.0
    (Equiv. 0.375 in.)
    Length (L)
    19.9
    mm

    (Equiv. 0.783 in.)
    Initial Pressure (F1)
    11.1
    N
    Final Pressure (F2)
    31.1
    N
    		Ball Push Fit Plungers - 9.53x19.9 mm - 11.1 N Stainless Body - Nylon Polyamide 6/6
    Material: Nylon (Polyamide 6/6)    Ball Diameter (D1): 7.9 mm    Ball Height (H): 2.8 mm    Shoulder Diameter (S): 12.7 mm
    Part Number: PLBP-095-199-SN-031
    Ball Push Fit Plungers - 9.53x19.9 mm - 11.1 N Stainless Body - Nylon Polyamide 6/6 Plunger
    Out of Stock | Backorder Now | Orders can be expected around Thu, Sep 25, 2025
    $12.05 AUD
    $14.45 AUD $12.05 AUD
    Excludes GST and overseas Taxes & Duties
    Each
    Quantity Required

    Backorder: Out of Stock.
    Body Diameter (D)
    9.53
    mm
    + 0.1 / - 0.0
    (Equiv. 0.375 in.)
    Length (L)
    20.0
    mm

    (Equiv. 0.787 in.)
    Initial Pressure (F1)
    22.2
    N
    Final Pressure (F2)
    62.3
    N
    Ball Diameter (D1)
    7.9
    mm
    Ball Height (H)
    2.8
    mm
    		Ball Push Fit Plungers - 9.53x20 mm - 22.2 N Stainless Body - Nylon Polyamide 6/6
    Material: Nylon (Polyamide 6/6)    Shoulder Diameter (S): 12.7 mm
    Part Number: PLBP-095-200-SN-062
    Ball Push Fit Plungers - 9.53x20 mm - 22.2 N Stainless Body - Nylon Polyamide 6/6 Plunger
    Out of Stock | Backorder Now | Orders can be expected around Thu, Sep 25, 2025
    $12.41 AUD
    $14.89 AUD $12.41 AUD
    Excludes GST and overseas Taxes & Duties
    Each
    Quantity Required

    Backorder: Out of Stock.
    Body Diameter (D)
    9.53
    mm
    + 0.1 / - 0.0
    (Equiv. 0.375 in.)
    Length (L)
    20.0
    mm

    (Equiv. 0.787 in.)
    Initial Pressure (F1)
    22.2
    N
    Final Pressure (F2)
    62.3
    N
    		Ball Push Fit Plungers - 9.53x20 mm - 22.2 N Stainless Body - Nylon Polyamide 6/6
    Material: Nylon (Polyamide 6/6)    Ball Diameter (D1): 7.9 mm    Ball Height (H): 2.8 mm    Shoulder Diameter (S): 12.7 mm
    Part Number: PLBP-095-200-SN-062
    Ball Push Fit Plungers - 9.53x20 mm - 22.2 N Stainless Body - Nylon Polyamide 6/6 Plunger
    Out of Stock | Backorder Now | Orders can be expected around Thu, Sep 25, 2025
    $12.41 AUD
    $14.89 AUD $12.41 AUD
    Excludes GST and overseas Taxes & Duties
    Each
    Quantity Required

    Backorder: Out of Stock.
