Collection: Pins - Dowel - Stepped - Chamfered Ends

Pins -> Dowel -> Stepped -> Chamfered Ends

There are 38 products in the sub-categories of Pins - Dowel - Stepped - Chamfered Ends. Scroll down or follow the link to Pins - Dowel - Stepped - Chamfered Ends in the products table to see all these items combined into a handy table with filters. To narrow down the selection, please choose a sub-category from the links below.

Dowel Pins - 5x15x15 mm - Stainless Steel AISI 440C

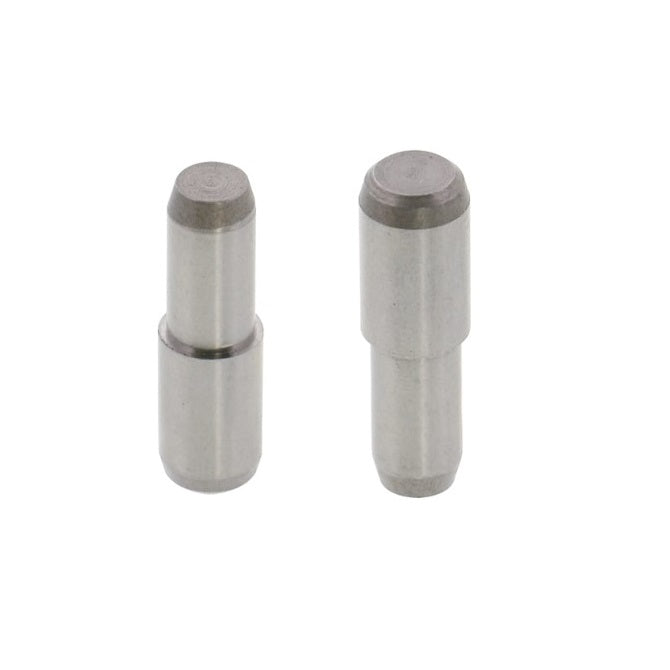

Pins - Dowel - Stepped - Chamfered Ends - 440 Stainless Steel

A selection of 440 Stainless Steel Chamfered Ends Stepped Dowel Pins. Precision...

Pins - Dowel - Stepped - Chamfered Ends - 440 Stainless Steel

Pins - Dowel - Stepped - Chamfered Ends - Carbon Steel

A selection of Carbon Steel Chamfered Ends Stepped Dowel Pins. Precision Dowel...

Pins - Dowel - Stepped - Chamfered Ends - Carbon Steel

Dowel Pins - 6x30x30 mm - Stainless Steel AISI 440C

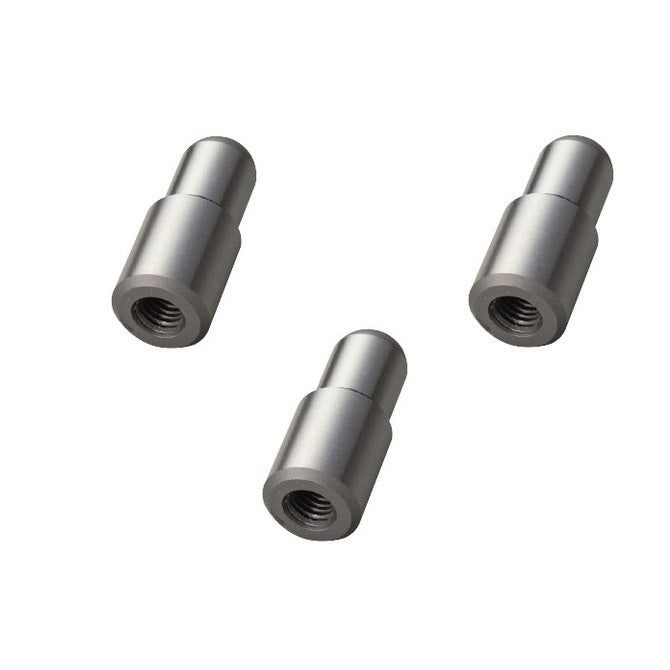

Pins - Dowel - Stepped - Chamfered Ends - Extractable

This category includes various types of dowel pins. Also known as parallel...

Pins - Dowel - Stepped - Chamfered Ends - Extractable

Category Details

This category includes various types of dowel pins.

Also known as parallel pins
Dowel pins are not used as bearing shafts under normal circumstances, due to their oversized tolerances
An expanded range may be available on special order. Please enquire.

Miniature Bearings Australia - MBA Minibearings

Additional resources:

A more concise listing may be found in the Pins - Dowel - Stepped - Chamfered Ends category on the Small Parts & Bearings online store.

Diameter (D)	Length (L)	Approx. Overall Length	Type
Diameter (D) 5.000 mm _{+ 0.005 / + 0.010} (Equiv. 0.197 in.)	Length (L) 15.00 mm _{+ 0.005 / + 0.010} (Equiv. 0.591 in.)	Approx. Overall Length 15.00 mm (Equiv. 0.591 in.)	Type 2 (Chamfer Both Ends)
Material: Stainless Steel AISI 440C Step Diameter (d): 4.000 mm Step Length (L1): 5.00 mm Category: Pins - Dowel - Stepped - Chamfered Ends - 440 Stainless Steel
Part Number: DPS050-015-440-1 Dowel Pins - 5x15 Stepped - Stainless Steel AISI 440C Pin Out of Stock \| Backorder Now \| Orders can be expected around Sun, Oct 05, 2025 Regular price $29.05 AUD Regular price Sale price $29.05 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Diameter (D)	Length (L)	Approx. Overall Length	Indicative Image
Diameter (D) 5.000 mm _{+ 0.005 / + 0.010} (Equiv. 0.197 in.)	Length (L) 15.00 mm _{+ 0.005 / + 0.010} (Equiv. 0.591 in.)	Approx. Overall Length 15.00 mm (Equiv. 0.591 in.)
Material: Stainless Steel AISI 440C Type: 2 (Chamfer Both Ends) Step Diameter (d): 4.000 mm Step Length (L1): 5.00 mm Category: Pins - Dowel - Stepped - Chamfered Ends - 440 Stainless Steel
Part Number: DPS050-015-440-1 Dowel Pins - 5x15 Stepped - Stainless Steel AISI 440C Pin Out of Stock \| Backorder Now \| Orders can be expected around Sun, Oct 05, 2025 Regular price $29.05 AUD Regular price Sale price $29.05 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
DPS050-015-440-1 --- Dowel Pins - 5x15 Stepped - Stainless Steel AISI 440C Pin DPS050-015-440-1 --- Dowel Pins - 5x15 Stepped - Stainless Steel AISI 440C Pin Regular price $29.05 AUD Regular price Sale price $29.05 AUD Unit price per Out of stock! Backorder Now
Diameter (D) 5.000 mm _{+ 0.005 / + 0.010} (Equiv. 0.197 in.)	Length (L) 15.00 mm _{+ 0.005 / + 0.010} (Equiv. 0.591 in.)	Approx. Overall Length 15.00 mm (Equiv. 0.591 in.)	Type 2 (Chamfer Both Ends)
Material: Carbon Steel Step Diameter (d): 4.000 mm Step Length (L1): 5.00 mm Category: Pins - Dowel - Stepped - Chamfered Ends - 440 Stainless Steel
Part Number: DPS050-015-CH-1 Dowel Pins - 5x15 Stepped - Carbon Steel Pin Out of Stock \| Backorder Now \| Orders can be expected around Sun, Oct 05, 2025 Regular price $18.95 AUD Regular price ~~$22.75 AUD~~ Sale price $18.95 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Diameter (D) 5.000 mm _{+ 0.005 / + 0.010} (Equiv. 0.197 in.)	Length (L) 15.00 mm _{+ 0.005 / + 0.010} (Equiv. 0.591 in.)	Approx. Overall Length 15.00 mm (Equiv. 0.591 in.)
Material: Carbon Steel Type: 2 (Chamfer Both Ends) Step Diameter (d): 4.000 mm Step Length (L1): 5.00 mm Category: Pins - Dowel - Stepped - Chamfered Ends - 440 Stainless Steel
Part Number: DPS050-015-CH-1 Dowel Pins - 5x15 Stepped - Carbon Steel Pin Out of Stock \| Backorder Now \| Orders can be expected around Sun, Oct 05, 2025 Regular price $18.95 AUD Regular price ~~$22.75 AUD~~ Sale price $18.95 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
DPS050-015-CH-1 --- Dowel Pins - 5x15 Stepped - Carbon Steel Pin Sale DPS050-015-CH-1 --- Dowel Pins - 5x15 Stepped - Carbon Steel Pin Regular price $18.95 AUD Regular price ~~$22.75 AUD~~ Sale price $18.95 AUD Unit price per Out of stock! Backorder Now Sale
Diameter (D) 5.000 mm _{+ 0.005 / + 0.010} (Equiv. 0.197 in.)	Length (L) 25.00 mm _{+ 0.005 / + 0.010} (Equiv. 0.984 in.)	Approx. Overall Length 25.00 mm (Equiv. 0.984 in.)	Type 2 (Chamfer Both Ends)
Material: Carbon Steel Step Diameter (d): 4.000 mm Step Length (L1): 10.00 mm Category: Pins - Dowel - Stepped - Chamfered Ends - Carbon Steel
Part Number: DPS050-025-CH-1 Dowel Pins - 5x25 Stepped - Carbon Steel Pin Out of Stock \| Backorder Now \| Orders can be expected around Sun, Oct 05, 2025 Regular price $28.05 AUD Regular price Sale price $28.05 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Diameter (D) 5.000 mm _{+ 0.005 / + 0.010} (Equiv. 0.197 in.)	Length (L) 25.00 mm _{+ 0.005 / + 0.010} (Equiv. 0.984 in.)	Approx. Overall Length 25.00 mm (Equiv. 0.984 in.)
Material: Carbon Steel Type: 2 (Chamfer Both Ends) Step Diameter (d): 4.000 mm Step Length (L1): 10.00 mm Category: Pins - Dowel - Stepped - Chamfered Ends - Carbon Steel
Part Number: DPS050-025-CH-1 Dowel Pins - 5x25 Stepped - Carbon Steel Pin Out of Stock \| Backorder Now \| Orders can be expected around Sun, Oct 05, 2025 Regular price $28.05 AUD Regular price Sale price $28.05 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
DPS050-025-CH-1 --- Dowel Pins - 5x25 Stepped - Carbon Steel Pin DPS050-025-CH-1 --- Dowel Pins - 5x25 Stepped - Carbon Steel Pin Regular price $28.05 AUD Regular price Sale price $28.05 AUD Unit price per Out of stock! Backorder Now
Diameter (D) 5.000 mm _{+ 0.005 / + 0.010} (Equiv. 0.197 in.)	Length (L) 25.00 mm _{+ 0.005 / + 0.010} (Equiv. 0.984 in.)	Approx. Overall Length 25.00 mm (Equiv. 0.984 in.)	Type 2 (Chamfer Both Ends)
Material: Stainless Steel AISI 440C Step Diameter (d): 4.000 mm Step Length (L1): 10.00 mm Category: Pins - Dowel - Stepped - Chamfered Ends - 440 Stainless Steel
Part Number: DPS050-025-440-1 Dowel Pins - 5x25 Stepped - Stainless Steel AISI 440C Pin Out of Stock \| Backorder Now \| Orders can be expected around Sun, Oct 05, 2025 Regular price $19.59 AUD Regular price ~~$23.51 AUD~~ Sale price $19.59 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Diameter (D) 5.000 mm _{+ 0.005 / + 0.010} (Equiv. 0.197 in.)	Length (L) 25.00 mm _{+ 0.005 / + 0.010} (Equiv. 0.984 in.)	Approx. Overall Length 25.00 mm (Equiv. 0.984 in.)
Material: Stainless Steel AISI 440C Type: 2 (Chamfer Both Ends) Step Diameter (d): 4.000 mm Step Length (L1): 10.00 mm Category: Pins - Dowel - Stepped - Chamfered Ends - 440 Stainless Steel
Part Number: DPS050-025-440-1 Dowel Pins - 5x25 Stepped - Stainless Steel AISI 440C Pin Out of Stock \| Backorder Now \| Orders can be expected around Sun, Oct 05, 2025 Regular price $19.59 AUD Regular price ~~$23.51 AUD~~ Sale price $19.59 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
DPS050-025-440-1 --- Dowel Pins - 5x25 Stepped - Stainless Steel AISI 440C Pin Sale DPS050-025-440-1 --- Dowel Pins - 5x25 Stepped - Stainless Steel AISI 440C Pin Regular price $19.59 AUD Regular price ~~$23.51 AUD~~ Sale price $19.59 AUD Unit price per Out of stock! Backorder Now Sale
Diameter (D) 6.000 mm _{+ 0.005 / + 0.010} (Equiv. 0.236 in.)	Length (L) 20.00 mm _{+ 0.005 / + 0.010} (Equiv. 0.787 in.)	Approx. Overall Length 20.00 mm (Equiv. 0.787 in.)	Type 2 (Chamfer Both Ends)
Material: Stainless Steel AISI 440C Step Diameter (d): 5.000 mm Step Length (L1): 10.00 mm Category: Pins - Dowel - Stepped - Chamfered Ends - 440 Stainless Steel
Part Number: DPS060-020-440-1 Dowel Pins - 6x20 Stepped - Stainless Steel AISI 440C Pin Out of Stock \| Backorder Now \| Orders can be expected around Sun, Oct 05, 2025 Regular price $21.32 AUD Regular price ~~$25.58 AUD~~ Sale price $21.32 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Diameter (D) 6.000 mm _{+ 0.005 / + 0.010} (Equiv. 0.236 in.)	Length (L) 20.00 mm _{+ 0.005 / + 0.010} (Equiv. 0.787 in.)	Approx. Overall Length 20.00 mm (Equiv. 0.787 in.)
Material: Stainless Steel AISI 440C Type: 2 (Chamfer Both Ends) Step Diameter (d): 5.000 mm Step Length (L1): 10.00 mm Category: Pins - Dowel - Stepped - Chamfered Ends - 440 Stainless Steel
Part Number: DPS060-020-440-1 Dowel Pins - 6x20 Stepped - Stainless Steel AISI 440C Pin Out of Stock \| Backorder Now \| Orders can be expected around Sun, Oct 05, 2025 Regular price $21.32 AUD Regular price ~~$25.58 AUD~~ Sale price $21.32 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
DPS060-020-440-1 --- Dowel Pins - 6x20 Stepped - Stainless Steel AISI 440C Pin Sale DPS060-020-440-1 --- Dowel Pins - 6x20 Stepped - Stainless Steel AISI 440C Pin Regular price $21.32 AUD Regular price ~~$25.58 AUD~~ Sale price $21.32 AUD Unit price per Out of stock! Backorder Now Sale
Diameter (D) 6.000 mm _{+ 0.005 / + 0.010} (Equiv. 0.236 in.)	Length (L) 20.00 mm _{+ 0.005 / + 0.010} (Equiv. 0.787 in.)	Approx. Overall Length 20.00 mm (Equiv. 0.787 in.)	Type 2 (Chamfer Both Ends)
Material: Carbon Steel Step Diameter (d): 5.000 mm Step Length (L1): 10.00 mm Category: Pins - Dowel - Stepped - Chamfered Ends - Carbon Steel
Part Number: DPS060-020-CH-1 Dowel Pins - 6x20 Stepped - Carbon Steel Pin Out of Stock \| Backorder Now \| Orders can be expected around Sun, Oct 05, 2025 Regular price $20.59 AUD Regular price ~~$24.71 AUD~~ Sale price $20.59 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Diameter (D) 6.000 mm _{+ 0.005 / + 0.010} (Equiv. 0.236 in.)	Length (L) 20.00 mm _{+ 0.005 / + 0.010} (Equiv. 0.787 in.)	Approx. Overall Length 20.00 mm (Equiv. 0.787 in.)
Material: Carbon Steel Type: 2 (Chamfer Both Ends) Step Diameter (d): 5.000 mm Step Length (L1): 10.00 mm Category: Pins - Dowel - Stepped - Chamfered Ends - Carbon Steel
Part Number: DPS060-020-CH-1 Dowel Pins - 6x20 Stepped - Carbon Steel Pin Out of Stock \| Backorder Now \| Orders can be expected around Sun, Oct 05, 2025 Regular price $20.59 AUD Regular price ~~$24.71 AUD~~ Sale price $20.59 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
DPS060-020-CH-1 --- Dowel Pins - 6x20 Stepped - Carbon Steel Pin Sale DPS060-020-CH-1 --- Dowel Pins - 6x20 Stepped - Carbon Steel Pin Regular price $20.59 AUD Regular price ~~$24.71 AUD~~ Sale price $20.59 AUD Unit price per Out of stock! Backorder Now Sale
Diameter (D) 6.000 mm _{+ 0.005 / + 0.010} (Equiv. 0.236 in.)	Length (L) 30.00 mm _{+ 0.005 / + 0.010} (Equiv. 1.181 in.)	Approx. Overall Length 30.00 mm (Equiv. 1.181 in.)	Type 2 (Chamfer Both Ends)
Material: Stainless Steel AISI 440C Step Diameter (d): 5.000 mm Step Length (L1): 15.00 mm Category: Pins - Dowel - Stepped - Chamfered Ends - Extractable
Part Number: DPS060-030-440-1-E Dowel Pins - 6x30 Stepped - Stainless Steel AISI 440C Pin Out of Stock \| Backorder Now \| Orders can be expected around Sun, Oct 05, 2025 Regular price $35.50 AUD Regular price Sale price $35.50 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Diameter (D) 6.000 mm _{+ 0.005 / + 0.010} (Equiv. 0.236 in.)	Length (L) 30.00 mm _{+ 0.005 / + 0.010} (Equiv. 1.181 in.)	Approx. Overall Length 30.00 mm (Equiv. 1.181 in.)
Material: Stainless Steel AISI 440C Type: 2 (Chamfer Both Ends) Step Diameter (d): 5.000 mm Step Length (L1): 15.00 mm Category: Pins - Dowel - Stepped - Chamfered Ends - Extractable
Part Number: DPS060-030-440-1-E Dowel Pins - 6x30 Stepped - Stainless Steel AISI 440C Pin Out of Stock \| Backorder Now \| Orders can be expected around Sun, Oct 05, 2025 Regular price $35.50 AUD Regular price Sale price $35.50 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
DPS060-030-440-1-E --- Dowel Pins - 6x30 Stepped - Stainless Steel AISI 440C Pin DPS060-030-440-1-E --- Dowel Pins - 6x30 Stepped - Stainless Steel AISI 440C Pin Regular price $35.50 AUD Regular price Sale price $35.50 AUD Unit price per Out of stock! Backorder Now
Diameter (D) 6.000 mm _{+ 0.005 / + 0.010} (Equiv. 0.236 in.)	Length (L) 30.00 mm _{+ 0.005 / + 0.010} (Equiv. 1.181 in.)	Approx. Overall Length 30.00 mm (Equiv. 1.181 in.)	Type 2 (Chamfer Both Ends)
Material: Carbon Steel Step Diameter (d): 5.000 mm Step Length (L1): 15.00 mm Category: Pins - Dowel - Stepped - Chamfered Ends - Carbon Steel
Part Number: DPS060-030-CH-1 Dowel Pins - 6x30 Stepped - Carbon Steel Pin Out of Stock \| Backorder Now \| Orders can be expected around Sun, Oct 05, 2025 Regular price $20.59 AUD Regular price ~~$24.71 AUD~~ Sale price $20.59 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Diameter (D) 6.000 mm _{+ 0.005 / + 0.010} (Equiv. 0.236 in.)	Length (L) 30.00 mm _{+ 0.005 / + 0.010} (Equiv. 1.181 in.)	Approx. Overall Length 30.00 mm (Equiv. 1.181 in.)
Material: Carbon Steel Type: 2 (Chamfer Both Ends) Step Diameter (d): 5.000 mm Step Length (L1): 15.00 mm Category: Pins - Dowel - Stepped - Chamfered Ends - Carbon Steel
Part Number: DPS060-030-CH-1 Dowel Pins - 6x30 Stepped - Carbon Steel Pin Out of Stock \| Backorder Now \| Orders can be expected around Sun, Oct 05, 2025 Regular price $20.59 AUD Regular price ~~$24.71 AUD~~ Sale price $20.59 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
DPS060-030-CH-1 --- Dowel Pins - 6x30 Stepped - Carbon Steel Pin Sale DPS060-030-CH-1 --- Dowel Pins - 6x30 Stepped - Carbon Steel Pin Regular price $20.59 AUD Regular price ~~$24.71 AUD~~ Sale price $20.59 AUD Unit price per Out of stock! Backorder Now Sale
Diameter (D) 6.000 mm _{+ 0.005 / + 0.010} (Equiv. 0.236 in.)	Length (L) 30.00 mm _{+ 0.005 / + 0.010} (Equiv. 1.181 in.)	Approx. Overall Length 30.00 mm (Equiv. 1.181 in.)	Type 2 (Chamfer Both Ends)
Material: Carbon Steel Step Diameter (d): 5.000 mm Step Length (L1): 15.00 mm Category: Pins - Dowel - Stepped - Chamfered Ends - Extractable
Part Number: DPS060-030-CH-1-E Dowel Pins - 6x30 Stepped - Carbon Steel Pin Out of Stock \| Backorder Now \| Orders can be expected around Sun, Oct 05, 2025 Regular price $34.41 AUD Regular price Sale price $34.41 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Diameter (D) 6.000 mm _{+ 0.005 / + 0.010} (Equiv. 0.236 in.)	Length (L) 30.00 mm _{+ 0.005 / + 0.010} (Equiv. 1.181 in.)	Approx. Overall Length 30.00 mm (Equiv. 1.181 in.)
Material: Carbon Steel Type: 2 (Chamfer Both Ends) Step Diameter (d): 5.000 mm Step Length (L1): 15.00 mm Category: Pins - Dowel - Stepped - Chamfered Ends - Extractable
Part Number: DPS060-030-CH-1-E Dowel Pins - 6x30 Stepped - Carbon Steel Pin Out of Stock \| Backorder Now \| Orders can be expected around Sun, Oct 05, 2025 Regular price $34.41 AUD Regular price Sale price $34.41 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
DPS060-030-CH-1-E --- Dowel Pins - 6x30 Stepped - Carbon Steel Pin DPS060-030-CH-1-E --- Dowel Pins - 6x30 Stepped - Carbon Steel Pin Regular price $34.41 AUD Regular price Sale price $34.41 AUD Unit price per Out of stock! Backorder Now
Diameter (D) 6.000 mm _{+ 0.005 / + 0.010} (Equiv. 0.236 in.)	Length (L) 30.00 mm _{+ 0.005 / + 0.010} (Equiv. 1.181 in.)	Approx. Overall Length 30.00 mm (Equiv. 1.181 in.)	Type 2 (Chamfer Both Ends)
Material: Stainless Steel AISI 440C Step Diameter (d): 5.000 mm Step Length (L1): 15.00 mm Category: Pins - Dowel - Stepped - Chamfered Ends - 440 Stainless Steel
Part Number: DPS060-030-440-1 Dowel Pins - 6x30 Stepped - Stainless Steel AISI 440C Pin Out of Stock \| Backorder Now \| Orders can be expected around Sun, Oct 05, 2025 Regular price $21.32 AUD Regular price ~~$25.58 AUD~~ Sale price $21.32 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Diameter (D) 6.000 mm _{+ 0.005 / + 0.010} (Equiv. 0.236 in.)	Length (L) 30.00 mm _{+ 0.005 / + 0.010} (Equiv. 1.181 in.)	Approx. Overall Length 30.00 mm (Equiv. 1.181 in.)
Material: Stainless Steel AISI 440C Type: 2 (Chamfer Both Ends) Step Diameter (d): 5.000 mm Step Length (L1): 15.00 mm Category: Pins - Dowel - Stepped - Chamfered Ends - 440 Stainless Steel
Part Number: DPS060-030-440-1 Dowel Pins - 6x30 Stepped - Stainless Steel AISI 440C Pin Out of Stock \| Backorder Now \| Orders can be expected around Sun, Oct 05, 2025 Regular price $21.32 AUD Regular price ~~$25.58 AUD~~ Sale price $21.32 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
DPS060-030-440-1 --- Dowel Pins - 6x30 Stepped - Stainless Steel AISI 440C Pin Sale DPS060-030-440-1 --- Dowel Pins - 6x30 Stepped - Stainless Steel AISI 440C Pin Regular price $21.32 AUD Regular price ~~$25.58 AUD~~ Sale price $21.32 AUD Unit price per Out of stock! Backorder Now Sale
Diameter (D) 8.000 mm _{+ 0.005 / + 0.010} (Equiv. 0.315 in.)	Length (L) 25.00 mm _{+ 0.005 / + 0.010} (Equiv. 0.984 in.)	Approx. Overall Length 25.00 mm (Equiv. 0.984 in.)	Type 2 (Chamfer Both Ends)
Material: Stainless Steel AISI 440C Step Diameter (d): 6.000 mm Step Length (L1): 10.00 mm Category: Pins - Dowel - Stepped - Chamfered Ends - Extractable
Part Number: DPS080-025-440-1-E Dowel Pins - 8x25 Stepped - Stainless Steel AISI 440C Pin Out of Stock \| Backorder Now \| Orders can be expected around Sun, Oct 05, 2025 Regular price $27.86 AUD Regular price ~~$33.44 AUD~~ Sale price $27.86 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Diameter (D) 8.000 mm _{+ 0.005 / + 0.010} (Equiv. 0.315 in.)	Length (L) 25.00 mm _{+ 0.005 / + 0.010} (Equiv. 0.984 in.)	Approx. Overall Length 25.00 mm (Equiv. 0.984 in.)
Material: Stainless Steel AISI 440C Type: 2 (Chamfer Both Ends) Step Diameter (d): 6.000 mm Step Length (L1): 10.00 mm Category: Pins - Dowel - Stepped - Chamfered Ends - Extractable
Part Number: DPS080-025-440-1-E Dowel Pins - 8x25 Stepped - Stainless Steel AISI 440C Pin Out of Stock \| Backorder Now \| Orders can be expected around Sun, Oct 05, 2025 Regular price $27.86 AUD Regular price ~~$33.44 AUD~~ Sale price $27.86 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
DPS080-025-440-1-E --- Dowel Pins - 8x25 Stepped - Stainless Steel AISI 440C Pin Sale DPS080-025-440-1-E --- Dowel Pins - 8x25 Stepped - Stainless Steel AISI 440C Pin Regular price $27.86 AUD Regular price ~~$33.44 AUD~~ Sale price $27.86 AUD Unit price per Out of stock! Backorder Now Sale
Diameter (D) 8.000 mm _{+ 0.005 / + 0.010} (Equiv. 0.315 in.)	Length (L) 25.00 mm _{+ 0.005 / + 0.010} (Equiv. 0.984 in.)	Approx. Overall Length 25.00 mm (Equiv. 0.984 in.)	Type 2 (Chamfer Both Ends)
Material: Stainless Steel AISI 440C Step Diameter (d): 6.000 mm Step Length (L1): 10.00 mm Category: Pins - Dowel - Stepped - Chamfered Ends - 440 Stainless Steel
Part Number: DPS080-025-440-1 Dowel Pins - 8x25 Stepped - Stainless Steel AISI 440C Pin Out of Stock \| Backorder Now \| Orders can be expected around Sun, Oct 05, 2025 Regular price $25.41 AUD Regular price ~~$30.49 AUD~~ Sale price $25.41 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Diameter (D) 8.000 mm _{+ 0.005 / + 0.010} (Equiv. 0.315 in.)	Length (L) 25.00 mm _{+ 0.005 / + 0.010} (Equiv. 0.984 in.)	Approx. Overall Length 25.00 mm (Equiv. 0.984 in.)
Material: Stainless Steel AISI 440C Type: 2 (Chamfer Both Ends) Step Diameter (d): 6.000 mm Step Length (L1): 10.00 mm Category: Pins - Dowel - Stepped - Chamfered Ends - 440 Stainless Steel
Part Number: DPS080-025-440-1 Dowel Pins - 8x25 Stepped - Stainless Steel AISI 440C Pin Out of Stock \| Backorder Now \| Orders can be expected around Sun, Oct 05, 2025 Regular price $25.41 AUD Regular price ~~$30.49 AUD~~ Sale price $25.41 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
DPS080-025-440-1 --- Dowel Pins - 8x25 Stepped - Stainless Steel AISI 440C Pin Sale DPS080-025-440-1 --- Dowel Pins - 8x25 Stepped - Stainless Steel AISI 440C Pin Regular price $25.41 AUD Regular price ~~$30.49 AUD~~ Sale price $25.41 AUD Unit price per Out of stock! Backorder Now Sale
Diameter (D) 8.000 mm _{+ 0.005 / + 0.010} (Equiv. 0.315 in.)	Length (L) 25.00 mm _{+ 0.005 / + 0.010} (Equiv. 0.984 in.)	Approx. Overall Length 25.00 mm (Equiv. 0.984 in.)	Type 2 (Chamfer Both Ends)
Material: Carbon Steel Step Diameter (d): 6.000 mm Step Length (L1): 10.00 mm Category: Pins - Dowel - Stepped - Chamfered Ends - Extractable
Part Number: DPS080-025-CH-1-E Dowel Pins - 8x25 Stepped - Carbon Steel Pin Out of Stock \| Backorder Now \| Orders can be expected around Sun, Oct 05, 2025 Regular price $27.14 AUD Regular price ~~$32.56 AUD~~ Sale price $27.14 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Diameter (D) 8.000 mm _{+ 0.005 / + 0.010} (Equiv. 0.315 in.)	Length (L) 25.00 mm _{+ 0.005 / + 0.010} (Equiv. 0.984 in.)	Approx. Overall Length 25.00 mm (Equiv. 0.984 in.)
Material: Carbon Steel Type: 2 (Chamfer Both Ends) Step Diameter (d): 6.000 mm Step Length (L1): 10.00 mm Category: Pins - Dowel - Stepped - Chamfered Ends - Extractable
Part Number: DPS080-025-CH-1-E Dowel Pins - 8x25 Stepped - Carbon Steel Pin Out of Stock \| Backorder Now \| Orders can be expected around Sun, Oct 05, 2025 Regular price $27.14 AUD Regular price ~~$32.56 AUD~~ Sale price $27.14 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
DPS080-025-CH-1-E --- Dowel Pins - 8x25 Stepped - Carbon Steel Pin Sale DPS080-025-CH-1-E --- Dowel Pins - 8x25 Stepped - Carbon Steel Pin Regular price $27.14 AUD Regular price ~~$32.56 AUD~~ Sale price $27.14 AUD Unit price per Out of stock! Backorder Now Sale
Diameter (D) 8.000 mm _{+ 0.005 / + 0.010} (Equiv. 0.315 in.)	Length (L) 25.00 mm _{+ 0.005 / + 0.010} (Equiv. 0.984 in.)	Approx. Overall Length 25.00 mm (Equiv. 0.984 in.)	Type 2 (Chamfer Both Ends)
Material: Carbon Steel Step Diameter (d): 6.000 mm Step Length (L1): 10.00 mm Category: Pins - Dowel - Stepped - Chamfered Ends - Carbon Steel
Part Number: DPS080-025-CH-1 Dowel Pins - 8x25 Stepped - Carbon Steel Pin Out of Stock \| Backorder Now \| Orders can be expected around Sun, Oct 05, 2025 Regular price $24.68 AUD Regular price ~~$29.62 AUD~~ Sale price $24.68 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Diameter (D) 8.000 mm _{+ 0.005 / + 0.010} (Equiv. 0.315 in.)	Length (L) 25.00 mm _{+ 0.005 / + 0.010} (Equiv. 0.984 in.)	Approx. Overall Length 25.00 mm (Equiv. 0.984 in.)
Material: Carbon Steel Type: 2 (Chamfer Both Ends) Step Diameter (d): 6.000 mm Step Length (L1): 10.00 mm Category: Pins - Dowel - Stepped - Chamfered Ends - Carbon Steel
Part Number: DPS080-025-CH-1 Dowel Pins - 8x25 Stepped - Carbon Steel Pin Out of Stock \| Backorder Now \| Orders can be expected around Sun, Oct 05, 2025 Regular price $24.68 AUD Regular price ~~$29.62 AUD~~ Sale price $24.68 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
DPS080-025-CH-1 --- Dowel Pins - 8x25 Stepped - Carbon Steel Pin Sale DPS080-025-CH-1 --- Dowel Pins - 8x25 Stepped - Carbon Steel Pin Regular price $24.68 AUD Regular price ~~$29.62 AUD~~ Sale price $24.68 AUD Unit price per Out of stock! Backorder Now Sale
Diameter (D) 8.000 mm _{+ 0.005 / + 0.010} (Equiv. 0.315 in.)	Length (L) 35.00 mm _{+ 0.005 / + 0.010} (Equiv. 1.378 in.)	Approx. Overall Length 35.00 mm (Equiv. 1.378 in.)	Type 2 (Chamfer Both Ends)
Material: Stainless Steel AISI 440C Step Diameter (d): 6.000 mm Step Length (L1): 15.00 mm Category: Pins - Dowel - Stepped - Chamfered Ends - 440 Stainless Steel
Part Number: DPS080-035-440-1 Dowel Pins - 8x35 Stepped - Stainless Steel AISI 440C Pin Out of Stock \| Backorder Now \| Orders can be expected around Sun, Oct 05, 2025 Regular price $25.41 AUD Regular price ~~$30.49 AUD~~ Sale price $25.41 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Diameter (D) 8.000 mm _{+ 0.005 / + 0.010} (Equiv. 0.315 in.)	Length (L) 35.00 mm _{+ 0.005 / + 0.010} (Equiv. 1.378 in.)	Approx. Overall Length 35.00 mm (Equiv. 1.378 in.)
Material: Stainless Steel AISI 440C Type: 2 (Chamfer Both Ends) Step Diameter (d): 6.000 mm Step Length (L1): 15.00 mm Category: Pins - Dowel - Stepped - Chamfered Ends - 440 Stainless Steel
Part Number: DPS080-035-440-1 Dowel Pins - 8x35 Stepped - Stainless Steel AISI 440C Pin Out of Stock \| Backorder Now \| Orders can be expected around Sun, Oct 05, 2025 Regular price $25.41 AUD Regular price ~~$30.49 AUD~~ Sale price $25.41 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
DPS080-035-440-1 --- Dowel Pins - 8x35 Stepped - Stainless Steel AISI 440C Pin Sale DPS080-035-440-1 --- Dowel Pins - 8x35 Stepped - Stainless Steel AISI 440C Pin Regular price $25.41 AUD Regular price ~~$30.49 AUD~~ Sale price $25.41 AUD Unit price per Out of stock! Backorder Now Sale
Diameter (D) 8.000 mm _{+ 0.005 / + 0.010} (Equiv. 0.315 in.)	Length (L) 35.00 mm _{+ 0.005 / + 0.010} (Equiv. 1.378 in.)	Approx. Overall Length 35.00 mm (Equiv. 1.378 in.)	Type 2 (Chamfer Both Ends)
Material: Stainless Steel AISI 440C Step Diameter (d): 6.000 mm Step Length (L1): 15.00 mm Category: Pins - Dowel - Stepped - Chamfered Ends - Extractable
Part Number: DPS080-035-440-1-E Dowel Pins - 8x35 Stepped - Stainless Steel AISI 440C Pin Out of Stock \| Backorder Now \| Orders can be expected around Sun, Oct 05, 2025 Regular price $27.86 AUD Regular price ~~$33.44 AUD~~ Sale price $27.86 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Diameter (D) 8.000 mm _{+ 0.005 / + 0.010} (Equiv. 0.315 in.)	Length (L) 35.00 mm _{+ 0.005 / + 0.010} (Equiv. 1.378 in.)	Approx. Overall Length 35.00 mm (Equiv. 1.378 in.)
Material: Stainless Steel AISI 440C Type: 2 (Chamfer Both Ends) Step Diameter (d): 6.000 mm Step Length (L1): 15.00 mm Category: Pins - Dowel - Stepped - Chamfered Ends - Extractable
Part Number: DPS080-035-440-1-E Dowel Pins - 8x35 Stepped - Stainless Steel AISI 440C Pin Out of Stock \| Backorder Now \| Orders can be expected around Sun, Oct 05, 2025 Regular price $27.86 AUD Regular price ~~$33.44 AUD~~ Sale price $27.86 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
DPS080-035-440-1-E --- Dowel Pins - 8x35 Stepped - Stainless Steel AISI 440C Pin Sale DPS080-035-440-1-E --- Dowel Pins - 8x35 Stepped - Stainless Steel AISI 440C Pin Regular price $27.86 AUD Regular price ~~$33.44 AUD~~ Sale price $27.86 AUD Unit price per Out of stock! Backorder Now Sale
Diameter (D) 8.000 mm _{+ 0.005 / + 0.010} (Equiv. 0.315 in.)	Length (L) 35.00 mm _{+ 0.005 / + 0.010} (Equiv. 1.378 in.)	Approx. Overall Length 35.00 mm (Equiv. 1.378 in.)	Type 2 (Chamfer Both Ends)
Material: Carbon Steel Step Diameter (d): 6.000 mm Step Length (L1): 15.00 mm Category: Pins - Dowel - Stepped - Chamfered Ends - Extractable
Part Number: DPS080-035-CH-1-E Dowel Pins - 8x35 Stepped - Carbon Steel Pin Out of Stock \| Backorder Now \| Orders can be expected around Sun, Oct 05, 2025 Regular price $27.14 AUD Regular price ~~$32.56 AUD~~ Sale price $27.14 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Diameter (D) 8.000 mm _{+ 0.005 / + 0.010} (Equiv. 0.315 in.)	Length (L) 35.00 mm _{+ 0.005 / + 0.010} (Equiv. 1.378 in.)	Approx. Overall Length 35.00 mm (Equiv. 1.378 in.)
Material: Carbon Steel Type: 2 (Chamfer Both Ends) Step Diameter (d): 6.000 mm Step Length (L1): 15.00 mm Category: Pins - Dowel - Stepped - Chamfered Ends - Extractable
Part Number: DPS080-035-CH-1-E Dowel Pins - 8x35 Stepped - Carbon Steel Pin Out of Stock \| Backorder Now \| Orders can be expected around Sun, Oct 05, 2025 Regular price $27.14 AUD Regular price ~~$32.56 AUD~~ Sale price $27.14 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
DPS080-035-CH-1-E --- Dowel Pins - 8x35 Stepped - Carbon Steel Pin Sale DPS080-035-CH-1-E --- Dowel Pins - 8x35 Stepped - Carbon Steel Pin Regular price $27.14 AUD Regular price ~~$32.56 AUD~~ Sale price $27.14 AUD Unit price per Out of stock! Backorder Now Sale
Diameter (D) 8.000 mm _{+ 0.005 / + 0.010} (Equiv. 0.315 in.)	Length (L) 35.00 mm _{+ 0.005 / + 0.010} (Equiv. 1.378 in.)	Approx. Overall Length 35.00 mm (Equiv. 1.378 in.)	Type 2 (Chamfer Both Ends)
Material: Carbon Steel Step Diameter (d): 6.000 mm Step Length (L1): 15.00 mm Category: Pins - Dowel - Stepped - Chamfered Ends - Carbon Steel
Part Number: DPS080-035-CH-1 Dowel Pins - 8x35 Stepped - Carbon Steel Pin Out of Stock \| Backorder Now \| Orders can be expected around Sun, Oct 05, 2025 Regular price $24.68 AUD Regular price ~~$29.62 AUD~~ Sale price $24.68 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Diameter (D) 8.000 mm _{+ 0.005 / + 0.010} (Equiv. 0.315 in.)	Length (L) 35.00 mm _{+ 0.005 / + 0.010} (Equiv. 1.378 in.)	Approx. Overall Length 35.00 mm (Equiv. 1.378 in.)
Material: Carbon Steel Type: 2 (Chamfer Both Ends) Step Diameter (d): 6.000 mm Step Length (L1): 15.00 mm Category: Pins - Dowel - Stepped - Chamfered Ends - Carbon Steel
Part Number: DPS080-035-CH-1 Dowel Pins - 8x35 Stepped - Carbon Steel Pin Out of Stock \| Backorder Now \| Orders can be expected around Sun, Oct 05, 2025 Regular price $24.68 AUD Regular price ~~$29.62 AUD~~ Sale price $24.68 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
DPS080-035-CH-1 --- Dowel Pins - 8x35 Stepped - Carbon Steel Pin Sale DPS080-035-CH-1 --- Dowel Pins - 8x35 Stepped - Carbon Steel Pin Regular price $24.68 AUD Regular price ~~$29.62 AUD~~ Sale price $24.68 AUD Unit price per Out of stock! Backorder Now Sale
Diameter (D) 10.000 mm _{+ 0.005 / + 0.010} (Equiv. 0.394 in.)	Length (L) 35.00 mm _{+ 0.005 / + 0.010} (Equiv. 1.378 in.)	Approx. Overall Length 35.00 mm (Equiv. 1.378 in.)	Type 2 (Chamfer Both Ends)
Material: Carbon Steel Step Diameter (d): 8.000 mm Step Length (L1): 15.00 mm Category: Pins - Dowel - Stepped - Chamfered Ends - Carbon Steel
Part Number: DPS100-035-CH-1 Dowel Pins - 10x35 Stepped - Carbon Steel Pin Out of Stock \| Backorder Now \| Orders can be expected around Sun, Oct 05, 2025 Regular price $33.59 AUD Regular price ~~$40.31 AUD~~ Sale price $33.59 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Diameter (D) 10.000 mm _{+ 0.005 / + 0.010} (Equiv. 0.394 in.)	Length (L) 35.00 mm _{+ 0.005 / + 0.010} (Equiv. 1.378 in.)	Approx. Overall Length 35.00 mm (Equiv. 1.378 in.)
Material: Carbon Steel Type: 2 (Chamfer Both Ends) Step Diameter (d): 8.000 mm Step Length (L1): 15.00 mm Category: Pins - Dowel - Stepped - Chamfered Ends - Carbon Steel
Part Number: DPS100-035-CH-1 Dowel Pins - 10x35 Stepped - Carbon Steel Pin Out of Stock \| Backorder Now \| Orders can be expected around Sun, Oct 05, 2025 Regular price $33.59 AUD Regular price ~~$40.31 AUD~~ Sale price $33.59 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
DPS100-035-CH-1 --- Dowel Pins - 10x35 Stepped - Carbon Steel Pin Sale DPS100-035-CH-1 --- Dowel Pins - 10x35 Stepped - Carbon Steel Pin Regular price $33.59 AUD Regular price ~~$40.31 AUD~~ Sale price $33.59 AUD Unit price per Out of stock! Backorder Now Sale
Diameter (D) 10.000 mm _{+ 0.005 / + 0.010} (Equiv. 0.394 in.)	Length (L) 35.00 mm _{+ 0.005 / + 0.010} (Equiv. 1.378 in.)	Approx. Overall Length 35.00 mm (Equiv. 1.378 in.)	Type 2 (Chamfer Both Ends)
Material: Stainless Steel AISI 440C Step Diameter (d): 8.000 mm Step Length (L1): 15.00 mm Category: Pins - Dowel - Stepped - Chamfered Ends - Extractable
Part Number: DPS100-035-440-1-E Dowel Pins - 10x35 Stepped - Stainless Steel AISI 440C Pin Out of Stock \| Backorder Now \| Orders can be expected around Sun, Oct 05, 2025 Regular price $37.41 AUD Regular price ~~$44.89 AUD~~ Sale price $37.41 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Diameter (D) 10.000 mm _{+ 0.005 / + 0.010} (Equiv. 0.394 in.)	Length (L) 35.00 mm _{+ 0.005 / + 0.010} (Equiv. 1.378 in.)	Approx. Overall Length 35.00 mm (Equiv. 1.378 in.)
Material: Stainless Steel AISI 440C Type: 2 (Chamfer Both Ends) Step Diameter (d): 8.000 mm Step Length (L1): 15.00 mm Category: Pins - Dowel - Stepped - Chamfered Ends - Extractable
Part Number: DPS100-035-440-1-E Dowel Pins - 10x35 Stepped - Stainless Steel AISI 440C Pin Out of Stock \| Backorder Now \| Orders can be expected around Sun, Oct 05, 2025 Regular price $37.41 AUD Regular price ~~$44.89 AUD~~ Sale price $37.41 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
DPS100-035-440-1-E --- Dowel Pins - 10x35 Stepped - Stainless Steel AISI 440C Pin Sale DPS100-035-440-1-E --- Dowel Pins - 10x35 Stepped - Stainless Steel AISI 440C Pin Regular price $37.41 AUD Regular price ~~$44.89 AUD~~ Sale price $37.41 AUD Unit price per Out of stock! Backorder Now Sale
Diameter (D) 10.000 mm _{+ 0.005 / + 0.010} (Equiv. 0.394 in.)	Length (L) 35.00 mm _{+ 0.005 / + 0.010} (Equiv. 1.378 in.)	Approx. Overall Length 35.00 mm (Equiv. 1.378 in.)	Type 2 (Chamfer Both Ends)
Material: Stainless Steel AISI 440C Step Diameter (d): 8.000 mm Step Length (L1): 15.00 mm Category: Pins - Dowel - Stepped - Chamfered Ends - 440 Stainless Steel
Part Number: DPS100-035-440-1 Dowel Pins - 10x35 Stepped - Stainless Steel AISI 440C Pin Out of Stock \| Backorder Now \| Orders can be expected around Sun, Oct 05, 2025 Regular price $34.50 AUD Regular price ~~$41.40 AUD~~ Sale price $34.50 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Diameter (D) 10.000 mm _{+ 0.005 / + 0.010} (Equiv. 0.394 in.)	Length (L) 35.00 mm _{+ 0.005 / + 0.010} (Equiv. 1.378 in.)	Approx. Overall Length 35.00 mm (Equiv. 1.378 in.)
Material: Stainless Steel AISI 440C Type: 2 (Chamfer Both Ends) Step Diameter (d): 8.000 mm Step Length (L1): 15.00 mm Category: Pins - Dowel - Stepped - Chamfered Ends - 440 Stainless Steel
Part Number: DPS100-035-440-1 Dowel Pins - 10x35 Stepped - Stainless Steel AISI 440C Pin Out of Stock \| Backorder Now \| Orders can be expected around Sun, Oct 05, 2025 Regular price $34.50 AUD Regular price ~~$41.40 AUD~~ Sale price $34.50 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
DPS100-035-440-1 --- Dowel Pins - 10x35 Stepped - Stainless Steel AISI 440C Pin Sale DPS100-035-440-1 --- Dowel Pins - 10x35 Stepped - Stainless Steel AISI 440C Pin Regular price $34.50 AUD Regular price ~~$41.40 AUD~~ Sale price $34.50 AUD Unit price per Out of stock! Backorder Now Sale
Diameter (D) 10.000 mm _{+ 0.005 / + 0.010} (Equiv. 0.394 in.)	Length (L) 35.00 mm _{+ 0.005 / + 0.010} (Equiv. 1.378 in.)	Approx. Overall Length 35.00 mm (Equiv. 1.378 in.)	Type 2 (Chamfer Both Ends)
Material: Carbon Steel Step Diameter (d): 8.000 mm Step Length (L1): 15.00 mm Category: Pins - Dowel - Stepped - Chamfered Ends - Extractable
Part Number: DPS100-035-CH-1-E Dowel Pins - 10x35 Stepped - Carbon Steel Pin Out of Stock \| Backorder Now \| Orders can be expected around Sun, Oct 05, 2025 Regular price $36.50 AUD Regular price ~~$43.80 AUD~~ Sale price $36.50 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Diameter (D) 10.000 mm _{+ 0.005 / + 0.010} (Equiv. 0.394 in.)	Length (L) 35.00 mm _{+ 0.005 / + 0.010} (Equiv. 1.378 in.)	Approx. Overall Length 35.00 mm (Equiv. 1.378 in.)
Material: Carbon Steel Type: 2 (Chamfer Both Ends) Step Diameter (d): 8.000 mm Step Length (L1): 15.00 mm Category: Pins - Dowel - Stepped - Chamfered Ends - Extractable
Part Number: DPS100-035-CH-1-E Dowel Pins - 10x35 Stepped - Carbon Steel Pin Out of Stock \| Backorder Now \| Orders can be expected around Sun, Oct 05, 2025 Regular price $36.50 AUD Regular price ~~$43.80 AUD~~ Sale price $36.50 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
DPS100-035-CH-1-E --- Dowel Pins - 10x35 Stepped - Carbon Steel Pin Sale DPS100-035-CH-1-E --- Dowel Pins - 10x35 Stepped - Carbon Steel Pin Regular price $36.50 AUD Regular price ~~$43.80 AUD~~ Sale price $36.50 AUD Unit price per Out of stock! Backorder Now Sale
Diameter (D) 10.000 mm _{+ 0.005 / + 0.010} (Equiv. 0.394 in.)	Length (L) 40.00 mm _{+ 0.005 / + 0.010} (Equiv. 1.575 in.)	Approx. Overall Length 40.00 mm (Equiv. 1.575 in.)	Type 2 (Chamfer Both Ends)
Material: Carbon Steel Step Diameter (d): 8.000 mm Step Length (L1): 15.00 mm Category: Pins - Dowel - Stepped - Chamfered Ends - Carbon Steel
Part Number: DPS100-040-CH-1 Dowel Pins - 10x40 Stepped - Carbon Steel Pin Out of Stock \| Backorder Now \| Orders can be expected around Sun, Oct 05, 2025 Regular price $33.59 AUD Regular price ~~$40.31 AUD~~ Sale price $33.59 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Diameter (D) 10.000 mm _{+ 0.005 / + 0.010} (Equiv. 0.394 in.)	Length (L) 40.00 mm _{+ 0.005 / + 0.010} (Equiv. 1.575 in.)	Approx. Overall Length 40.00 mm (Equiv. 1.575 in.)
Material: Carbon Steel Type: 2 (Chamfer Both Ends) Step Diameter (d): 8.000 mm Step Length (L1): 15.00 mm Category: Pins - Dowel - Stepped - Chamfered Ends - Carbon Steel
Part Number: DPS100-040-CH-1 Dowel Pins - 10x40 Stepped - Carbon Steel Pin Out of Stock \| Backorder Now \| Orders can be expected around Sun, Oct 05, 2025 Regular price $33.59 AUD Regular price ~~$40.31 AUD~~ Sale price $33.59 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
DPS100-040-CH-1 --- Dowel Pins - 10x40 Stepped - Carbon Steel Pin Sale DPS100-040-CH-1 --- Dowel Pins - 10x40 Stepped - Carbon Steel Pin Regular price $33.59 AUD Regular price ~~$40.31 AUD~~ Sale price $33.59 AUD Unit price per Out of stock! Backorder Now Sale
Diameter (D) 10.000 mm _{+ 0.005 / + 0.010} (Equiv. 0.394 in.)	Length (L) 40.00 mm _{+ 0.005 / + 0.010} (Equiv. 1.575 in.)	Approx. Overall Length 40.00 mm (Equiv. 1.575 in.)	Type 2 (Chamfer Both Ends)
Material: Stainless Steel AISI 440C Step Diameter (d): 8.000 mm Step Length (L1): 15.00 mm Category: Pins - Dowel - Stepped - Chamfered Ends - Extractable
Part Number: DPS100-040-440-1-E Dowel Pins - 10x40 Stepped - Stainless Steel AISI 440C Pin Out of Stock \| Backorder Now \| Orders can be expected around Sun, Oct 05, 2025 Regular price $37.41 AUD Regular price ~~$44.89 AUD~~ Sale price $37.41 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Diameter (D) 10.000 mm _{+ 0.005 / + 0.010} (Equiv. 0.394 in.)	Length (L) 40.00 mm _{+ 0.005 / + 0.010} (Equiv. 1.575 in.)	Approx. Overall Length 40.00 mm (Equiv. 1.575 in.)
Material: Stainless Steel AISI 440C Type: 2 (Chamfer Both Ends) Step Diameter (d): 8.000 mm Step Length (L1): 15.00 mm Category: Pins - Dowel - Stepped - Chamfered Ends - Extractable
Part Number: DPS100-040-440-1-E Dowel Pins - 10x40 Stepped - Stainless Steel AISI 440C Pin Out of Stock \| Backorder Now \| Orders can be expected around Sun, Oct 05, 2025 Regular price $37.41 AUD Regular price ~~$44.89 AUD~~ Sale price $37.41 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
DPS100-040-440-1-E --- Dowel Pins - 10x40 Stepped - Stainless Steel AISI 440C Pin Sale DPS100-040-440-1-E --- Dowel Pins - 10x40 Stepped - Stainless Steel AISI 440C Pin Regular price $37.41 AUD Regular price ~~$44.89 AUD~~ Sale price $37.41 AUD Unit price per Out of stock! Backorder Now Sale

Country/region

Collection: Pins - Dowel - Stepped - Chamfered Ends

Category Details

Filter

Filter

Subscribe to our emails
