Collection: Pins - Dowel - Stepped - Chamfered Ends - Carbon Steel

Pins -> Dowel -> Stepped -> Chamfered Ends -> Carbon Steel

There are 11 products in the sub-categories of Pins - Dowel - Stepped - Chamfered Ends - Carbon Steel. Browse the Pins - Dowel - Stepped - Chamfered Ends - Carbon Steel products table.

Category Details

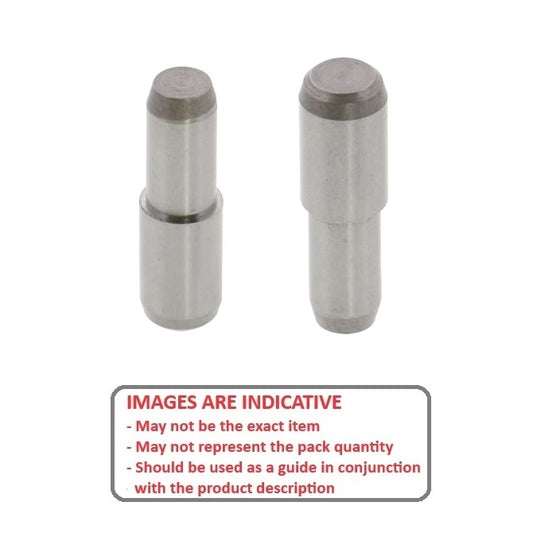

A selection of Carbon Steel Chamfered Ends Stepped Dowel Pins. Precision Dowel Pins with a Step

Also known as parallel pins
Dowel pins are not used as bearing shafts under normal circumstances, due to their oversized tolerances
An expanded range may be available on special order. Please enquire.

Miniature Bearings Australia - MBA Minibearings

Additional resources:

A more concise listing may be found in the Pins - Dowel - Stepped - Chamfered Ends - Carbon Steel category on the Small Parts & Bearings online store.

Diameter (D)	Length (L)	Approx. Overall Length	Type
Diameter (D) 5.000 mm _{+ 0.005 / + 0.010} (Equiv. 0.197 in.)	Length (L) 15.00 mm _{+ 0.005 / + 0.010} (Equiv. 0.591 in.)	Approx. Overall Length 15.00 mm (Equiv. 0.591 in.)	Type 2 (Chamfer Both Ends)
Material: Carbon Steel Step Diameter (d): 4.000 mm Step Length (L1): 5.00 mm
Part Number: DPS050-015-CH-1 Dowel Pins - 5x15 Stepped - Carbon Steel Pin Out of Stock \| Backorder Now \| Orders can be expected around Sun, Oct 05, 2025 Regular price $18.95 AUD Regular price ~~$22.75 AUD~~ Sale price $18.95 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Diameter (D)	Length (L)	Approx. Overall Length	Indicative Image
Diameter (D) 5.000 mm _{+ 0.005 / + 0.010} (Equiv. 0.197 in.)	Length (L) 15.00 mm _{+ 0.005 / + 0.010} (Equiv. 0.591 in.)	Approx. Overall Length 15.00 mm (Equiv. 0.591 in.)
Material: Carbon Steel Type: 2 (Chamfer Both Ends) Step Diameter (d): 4.000 mm Step Length (L1): 5.00 mm
Part Number: DPS050-015-CH-1 Dowel Pins - 5x15 Stepped - Carbon Steel Pin Out of Stock \| Backorder Now \| Orders can be expected around Sun, Oct 05, 2025 Regular price $18.95 AUD Regular price ~~$22.75 AUD~~ Sale price $18.95 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
DPS050-015-CH-1 --- Dowel Pins - 5x15 Stepped - Carbon Steel Pin Sale DPS050-015-CH-1 --- Dowel Pins - 5x15 Stepped - Carbon Steel Pin Regular price $18.95 AUD Regular price ~~$22.75 AUD~~ Sale price $18.95 AUD Unit price per Out of stock! Backorder Now Sale
Diameter (D) 5.000 mm _{+ 0.005 / + 0.010} (Equiv. 0.197 in.)	Length (L) 25.00 mm _{+ 0.005 / + 0.010} (Equiv. 0.984 in.)	Approx. Overall Length 25.00 mm (Equiv. 0.984 in.)	Type 2 (Chamfer Both Ends)
Material: Carbon Steel Step Diameter (d): 4.000 mm Step Length (L1): 10.00 mm
Part Number: DPS050-025-CH-1 Dowel Pins - 5x25 Stepped - Carbon Steel Pin Out of Stock \| Backorder Now \| Orders can be expected around Sun, Oct 05, 2025 Regular price $28.05 AUD Regular price Sale price $28.05 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Diameter (D) 5.000 mm _{+ 0.005 / + 0.010} (Equiv. 0.197 in.)	Length (L) 25.00 mm _{+ 0.005 / + 0.010} (Equiv. 0.984 in.)	Approx. Overall Length 25.00 mm (Equiv. 0.984 in.)
Material: Carbon Steel Type: 2 (Chamfer Both Ends) Step Diameter (d): 4.000 mm Step Length (L1): 10.00 mm
Part Number: DPS050-025-CH-1 Dowel Pins - 5x25 Stepped - Carbon Steel Pin Out of Stock \| Backorder Now \| Orders can be expected around Sun, Oct 05, 2025 Regular price $28.05 AUD Regular price Sale price $28.05 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
DPS050-025-CH-1 --- Dowel Pins - 5x25 Stepped - Carbon Steel Pin DPS050-025-CH-1 --- Dowel Pins - 5x25 Stepped - Carbon Steel Pin Regular price $28.05 AUD Regular price Sale price $28.05 AUD Unit price per Out of stock! Backorder Now
Diameter (D) 6.000 mm _{+ 0.005 / + 0.010} (Equiv. 0.236 in.)	Length (L) 20.00 mm _{+ 0.005 / + 0.010} (Equiv. 0.787 in.)	Approx. Overall Length 20.00 mm (Equiv. 0.787 in.)	Type 2 (Chamfer Both Ends)
Material: Carbon Steel Step Diameter (d): 5.000 mm Step Length (L1): 10.00 mm
Part Number: DPS060-020-CH-1 Dowel Pins - 6x20 Stepped - Carbon Steel Pin Out of Stock \| Backorder Now \| Orders can be expected around Sun, Oct 05, 2025 Regular price $20.59 AUD Regular price ~~$24.71 AUD~~ Sale price $20.59 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Diameter (D) 6.000 mm _{+ 0.005 / + 0.010} (Equiv. 0.236 in.)	Length (L) 20.00 mm _{+ 0.005 / + 0.010} (Equiv. 0.787 in.)	Approx. Overall Length 20.00 mm (Equiv. 0.787 in.)
Material: Carbon Steel Type: 2 (Chamfer Both Ends) Step Diameter (d): 5.000 mm Step Length (L1): 10.00 mm
Part Number: DPS060-020-CH-1 Dowel Pins - 6x20 Stepped - Carbon Steel Pin Out of Stock \| Backorder Now \| Orders can be expected around Sun, Oct 05, 2025 Regular price $20.59 AUD Regular price ~~$24.71 AUD~~ Sale price $20.59 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
DPS060-020-CH-1 --- Dowel Pins - 6x20 Stepped - Carbon Steel Pin Sale DPS060-020-CH-1 --- Dowel Pins - 6x20 Stepped - Carbon Steel Pin Regular price $20.59 AUD Regular price ~~$24.71 AUD~~ Sale price $20.59 AUD Unit price per Out of stock! Backorder Now Sale
Diameter (D) 6.000 mm _{+ 0.005 / + 0.010} (Equiv. 0.236 in.)	Length (L) 30.00 mm _{+ 0.005 / + 0.010} (Equiv. 1.181 in.)	Approx. Overall Length 30.00 mm (Equiv. 1.181 in.)	Type 2 (Chamfer Both Ends)
Material: Carbon Steel Step Diameter (d): 5.000 mm Step Length (L1): 15.00 mm
Part Number: DPS060-030-CH-1 Dowel Pins - 6x30 Stepped - Carbon Steel Pin Out of Stock \| Backorder Now \| Orders can be expected around Sun, Oct 05, 2025 Regular price $20.59 AUD Regular price ~~$24.71 AUD~~ Sale price $20.59 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Diameter (D) 6.000 mm _{+ 0.005 / + 0.010} (Equiv. 0.236 in.)	Length (L) 30.00 mm _{+ 0.005 / + 0.010} (Equiv. 1.181 in.)	Approx. Overall Length 30.00 mm (Equiv. 1.181 in.)
Material: Carbon Steel Type: 2 (Chamfer Both Ends) Step Diameter (d): 5.000 mm Step Length (L1): 15.00 mm
Part Number: DPS060-030-CH-1 Dowel Pins - 6x30 Stepped - Carbon Steel Pin Out of Stock \| Backorder Now \| Orders can be expected around Sun, Oct 05, 2025 Regular price $20.59 AUD Regular price ~~$24.71 AUD~~ Sale price $20.59 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
DPS060-030-CH-1 --- Dowel Pins - 6x30 Stepped - Carbon Steel Pin Sale DPS060-030-CH-1 --- Dowel Pins - 6x30 Stepped - Carbon Steel Pin Regular price $20.59 AUD Regular price ~~$24.71 AUD~~ Sale price $20.59 AUD Unit price per Out of stock! Backorder Now Sale
Diameter (D) 8.000 mm _{+ 0.005 / + 0.010} (Equiv. 0.315 in.)	Length (L) 25.00 mm _{+ 0.005 / + 0.010} (Equiv. 0.984 in.)	Approx. Overall Length 25.00 mm (Equiv. 0.984 in.)	Type 2 (Chamfer Both Ends)
Material: Carbon Steel Step Diameter (d): 6.000 mm Step Length (L1): 10.00 mm
Part Number: DPS080-025-CH-1 Dowel Pins - 8x25 Stepped - Carbon Steel Pin Out of Stock \| Backorder Now \| Orders can be expected around Sun, Oct 05, 2025 Regular price $24.68 AUD Regular price ~~$29.62 AUD~~ Sale price $24.68 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Diameter (D) 8.000 mm _{+ 0.005 / + 0.010} (Equiv. 0.315 in.)	Length (L) 25.00 mm _{+ 0.005 / + 0.010} (Equiv. 0.984 in.)	Approx. Overall Length 25.00 mm (Equiv. 0.984 in.)
Material: Carbon Steel Type: 2 (Chamfer Both Ends) Step Diameter (d): 6.000 mm Step Length (L1): 10.00 mm
Part Number: DPS080-025-CH-1 Dowel Pins - 8x25 Stepped - Carbon Steel Pin Out of Stock \| Backorder Now \| Orders can be expected around Sun, Oct 05, 2025 Regular price $24.68 AUD Regular price ~~$29.62 AUD~~ Sale price $24.68 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
DPS080-025-CH-1 --- Dowel Pins - 8x25 Stepped - Carbon Steel Pin Sale DPS080-025-CH-1 --- Dowel Pins - 8x25 Stepped - Carbon Steel Pin Regular price $24.68 AUD Regular price ~~$29.62 AUD~~ Sale price $24.68 AUD Unit price per Out of stock! Backorder Now Sale
Diameter (D) 8.000 mm _{+ 0.005 / + 0.010} (Equiv. 0.315 in.)	Length (L) 35.00 mm _{+ 0.005 / + 0.010} (Equiv. 1.378 in.)	Approx. Overall Length 35.00 mm (Equiv. 1.378 in.)	Type 2 (Chamfer Both Ends)
Material: Carbon Steel Step Diameter (d): 6.000 mm Step Length (L1): 15.00 mm
Part Number: DPS080-035-CH-1 Dowel Pins - 8x35 Stepped - Carbon Steel Pin Out of Stock \| Backorder Now \| Orders can be expected around Sun, Oct 05, 2025 Regular price $24.68 AUD Regular price ~~$29.62 AUD~~ Sale price $24.68 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Diameter (D) 8.000 mm _{+ 0.005 / + 0.010} (Equiv. 0.315 in.)	Length (L) 35.00 mm _{+ 0.005 / + 0.010} (Equiv. 1.378 in.)	Approx. Overall Length 35.00 mm (Equiv. 1.378 in.)
Material: Carbon Steel Type: 2 (Chamfer Both Ends) Step Diameter (d): 6.000 mm Step Length (L1): 15.00 mm
Part Number: DPS080-035-CH-1 Dowel Pins - 8x35 Stepped - Carbon Steel Pin Out of Stock \| Backorder Now \| Orders can be expected around Sun, Oct 05, 2025 Regular price $24.68 AUD Regular price ~~$29.62 AUD~~ Sale price $24.68 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
DPS080-035-CH-1 --- Dowel Pins - 8x35 Stepped - Carbon Steel Pin Sale DPS080-035-CH-1 --- Dowel Pins - 8x35 Stepped - Carbon Steel Pin Regular price $24.68 AUD Regular price ~~$29.62 AUD~~ Sale price $24.68 AUD Unit price per Out of stock! Backorder Now Sale
Diameter (D) 10.000 mm _{+ 0.005 / + 0.010} (Equiv. 0.394 in.)	Length (L) 35.00 mm _{+ 0.005 / + 0.010} (Equiv. 1.378 in.)	Approx. Overall Length 35.00 mm (Equiv. 1.378 in.)	Type 2 (Chamfer Both Ends)
Material: Carbon Steel Step Diameter (d): 8.000 mm Step Length (L1): 15.00 mm
Part Number: DPS100-035-CH-1 Dowel Pins - 10x35 Stepped - Carbon Steel Pin Out of Stock \| Backorder Now \| Orders can be expected around Sun, Oct 05, 2025 Regular price $33.59 AUD Regular price ~~$40.31 AUD~~ Sale price $33.59 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Diameter (D) 10.000 mm _{+ 0.005 / + 0.010} (Equiv. 0.394 in.)	Length (L) 35.00 mm _{+ 0.005 / + 0.010} (Equiv. 1.378 in.)	Approx. Overall Length 35.00 mm (Equiv. 1.378 in.)
Material: Carbon Steel Type: 2 (Chamfer Both Ends) Step Diameter (d): 8.000 mm Step Length (L1): 15.00 mm
Part Number: DPS100-035-CH-1 Dowel Pins - 10x35 Stepped - Carbon Steel Pin Out of Stock \| Backorder Now \| Orders can be expected around Sun, Oct 05, 2025 Regular price $33.59 AUD Regular price ~~$40.31 AUD~~ Sale price $33.59 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
DPS100-035-CH-1 --- Dowel Pins - 10x35 Stepped - Carbon Steel Pin Sale DPS100-035-CH-1 --- Dowel Pins - 10x35 Stepped - Carbon Steel Pin Regular price $33.59 AUD Regular price ~~$40.31 AUD~~ Sale price $33.59 AUD Unit price per Out of stock! Backorder Now Sale
Diameter (D) 10.000 mm _{+ 0.005 / + 0.010} (Equiv. 0.394 in.)	Length (L) 40.00 mm _{+ 0.005 / + 0.010} (Equiv. 1.575 in.)	Approx. Overall Length 40.00 mm (Equiv. 1.575 in.)	Type 2 (Chamfer Both Ends)
Material: Carbon Steel Step Diameter (d): 8.000 mm Step Length (L1): 15.00 mm
Part Number: DPS100-040-CH-1 Dowel Pins - 10x40 Stepped - Carbon Steel Pin Out of Stock \| Backorder Now \| Orders can be expected around Sun, Oct 05, 2025 Regular price $33.59 AUD Regular price ~~$40.31 AUD~~ Sale price $33.59 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Diameter (D) 10.000 mm _{+ 0.005 / + 0.010} (Equiv. 0.394 in.)	Length (L) 40.00 mm _{+ 0.005 / + 0.010} (Equiv. 1.575 in.)	Approx. Overall Length 40.00 mm (Equiv. 1.575 in.)
Material: Carbon Steel Type: 2 (Chamfer Both Ends) Step Diameter (d): 8.000 mm Step Length (L1): 15.00 mm
Part Number: DPS100-040-CH-1 Dowel Pins - 10x40 Stepped - Carbon Steel Pin Out of Stock \| Backorder Now \| Orders can be expected around Sun, Oct 05, 2025 Regular price $33.59 AUD Regular price ~~$40.31 AUD~~ Sale price $33.59 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
DPS100-040-CH-1 --- Dowel Pins - 10x40 Stepped - Carbon Steel Pin Sale DPS100-040-CH-1 --- Dowel Pins - 10x40 Stepped - Carbon Steel Pin Regular price $33.59 AUD Regular price ~~$40.31 AUD~~ Sale price $33.59 AUD Unit price per Out of stock! Backorder Now Sale
Diameter (D) 13.000 mm _{+ 0.005 / + 0.010} (Equiv. 0.512 in.)	Length (L) 45.00 mm _{+ 0.005 / + 0.010} (Equiv. 1.772 in.)	Approx. Overall Length 45.00 mm (Equiv. 1.772 in.)	Type 2 (Chamfer Both Ends)
Material: Carbon Steel Step Diameter (d): 10.000 mm Step Length (L1): 20.00 mm
Part Number: DPS130-045-CH-1 Dowel Pins - 13x45 Stepped - Carbon Steel Pin Out of Stock \| Backorder Now \| Orders can be expected around Sun, Oct 05, 2025 Regular price $47.86 AUD Regular price ~~$57.44 AUD~~ Sale price $47.86 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Diameter (D) 13.000 mm _{+ 0.005 / + 0.010} (Equiv. 0.512 in.)	Length (L) 45.00 mm _{+ 0.005 / + 0.010} (Equiv. 1.772 in.)	Approx. Overall Length 45.00 mm (Equiv. 1.772 in.)
Material: Carbon Steel Type: 2 (Chamfer Both Ends) Step Diameter (d): 10.000 mm Step Length (L1): 20.00 mm
Part Number: DPS130-045-CH-1 Dowel Pins - 13x45 Stepped - Carbon Steel Pin Out of Stock \| Backorder Now \| Orders can be expected around Sun, Oct 05, 2025 Regular price $47.86 AUD Regular price ~~$57.44 AUD~~ Sale price $47.86 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
DPS130-045-CH-1 --- Dowel Pins - 13x45 Stepped - Carbon Steel Pin Sale DPS130-045-CH-1 --- Dowel Pins - 13x45 Stepped - Carbon Steel Pin Regular price $47.86 AUD Regular price ~~$57.44 AUD~~ Sale price $47.86 AUD Unit price per Out of stock! Backorder Now Sale
Diameter (D) 13.000 mm _{+ 0.005 / + 0.010} (Equiv. 0.512 in.)	Length (L) 55.00 mm _{+ 0.005 / + 0.010} (Equiv. 2.165 in.)	Approx. Overall Length 55.00 mm (Equiv. 2.165 in.)	Type 2 (Chamfer Both Ends)
Material: Carbon Steel Step Diameter (d): 10.000 mm Step Length (L1): 25.00 mm
Part Number: DPS130-055-CH-1 Dowel Pins - 13x55 Stepped - Carbon Steel Pin Out of Stock \| Backorder Now \| Orders can be expected around Sun, Oct 05, 2025 Regular price $47.86 AUD Regular price ~~$57.44 AUD~~ Sale price $47.86 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Diameter (D) 13.000 mm _{+ 0.005 / + 0.010} (Equiv. 0.512 in.)	Length (L) 55.00 mm _{+ 0.005 / + 0.010} (Equiv. 2.165 in.)	Approx. Overall Length 55.00 mm (Equiv. 2.165 in.)
Material: Carbon Steel Type: 2 (Chamfer Both Ends) Step Diameter (d): 10.000 mm Step Length (L1): 25.00 mm
Part Number: DPS130-055-CH-1 Dowel Pins - 13x55 Stepped - Carbon Steel Pin Out of Stock \| Backorder Now \| Orders can be expected around Sun, Oct 05, 2025 Regular price $47.86 AUD Regular price ~~$57.44 AUD~~ Sale price $47.86 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
DPS130-055-CH-1 --- Dowel Pins - 13x55 Stepped - Carbon Steel Pin Sale DPS130-055-CH-1 --- Dowel Pins - 13x55 Stepped - Carbon Steel Pin Regular price $47.86 AUD Regular price ~~$57.44 AUD~~ Sale price $47.86 AUD Unit price per Out of stock! Backorder Now Sale
Diameter (D) 13.000 mm _{+ 0.005 / + 0.010} (Equiv. 0.512 in.)	Length (L) 70.00 mm _{+ 0.005 / + 0.010} (Equiv. 2.756 in.)	Approx. Overall Length 70.00 mm (Equiv. 2.756 in.)	Type 2 (Chamfer Both Ends)
Material: Carbon Steel Step Diameter (d): 10.000 mm Step Length (L1): 30.00 mm
Part Number: DPS130-070-CH-1 Dowel Pins - 13x70 Stepped - Carbon Steel Pin Out of Stock \| Backorder Now \| Orders can be expected around Sun, Oct 05, 2025 Regular price $47.86 AUD Regular price ~~$57.44 AUD~~ Sale price $47.86 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Diameter (D) 13.000 mm _{+ 0.005 / + 0.010} (Equiv. 0.512 in.)	Length (L) 70.00 mm _{+ 0.005 / + 0.010} (Equiv. 2.756 in.)	Approx. Overall Length 70.00 mm (Equiv. 2.756 in.)
Material: Carbon Steel Type: 2 (Chamfer Both Ends) Step Diameter (d): 10.000 mm Step Length (L1): 30.00 mm
Part Number: DPS130-070-CH-1 Dowel Pins - 13x70 Stepped - Carbon Steel Pin Out of Stock \| Backorder Now \| Orders can be expected around Sun, Oct 05, 2025 Regular price $47.86 AUD Regular price ~~$57.44 AUD~~ Sale price $47.86 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
DPS130-070-CH-1 --- Dowel Pins - 13x70 Stepped - Carbon Steel Pin Sale DPS130-070-CH-1 --- Dowel Pins - 13x70 Stepped - Carbon Steel Pin Regular price $47.86 AUD Regular price ~~$57.44 AUD~~ Sale price $47.86 AUD Unit price per Out of stock! Backorder Now Sale
