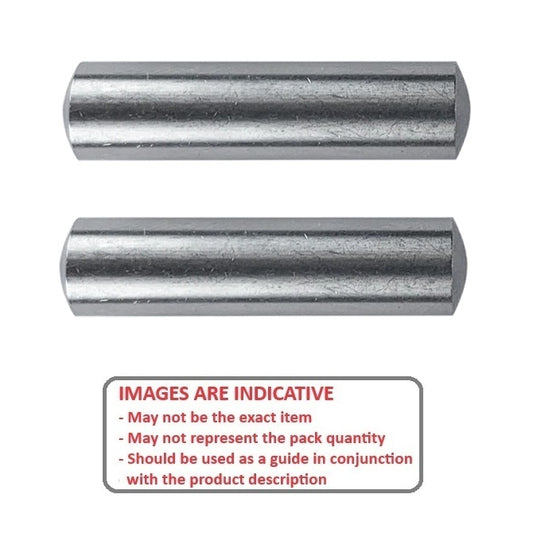

Pins - Dowel - Standard - Rounded Ends - 316 Stainless

55 Products in this selection
  • Also known as parallel pins
  • Dowel pins are not used as bearing shafts under normal circumstances, due to their oversized tolerances
  • Precision Dowel Pins - 316 Grade - Based on DIN7
  • Rounded end dowel pins are measured from the start of the edge rounding. This allows the pin to completely fill the hole after you grind off the rounded end.
  • Diameter tolerances are m6 unless otherwise listed
Additional resources:
Dowel Pins Catalogue PDF
Master Pins Catalogue PDF
A more concise listing may be found on the Smallparts store at Pins - Dowel - Standard - Rounded Ends - 316 Stainless. Smallparts promote the most popular MBA products.
Diameter (D) Length (L) Approx. Overall Length Type Indicative
Diameter (D)
1.500
mm
+ 0.002 / + 0.008
(0.059 in.)
Length (L)
6.00
mm
+/- 0.254
(0.236 in.)
Approx. Overall Length
6.46
mm
+/- 0.254
(0.254 in.)
Type
3 (Rounded Ends)
Dowel Pins - 1.5x6x6.46 mm - Stainless Steel 316 (Similar to A4, 18-10)
Material: Stainless Steel 316 (Similar to A4, 18-10)    Standard: Based on DIN 7
Part Number: DP015-006-316-3 (500 Pcs) Dowel Pins - 1.5x6x6.46 mm - Stainless Steel 316 Similar to A4, 18-10
Contact Us | Item Discontinued - Please contact us if you need a large quantity
Diameter (D) Length (L) Approx. Overall Length Indicative
Diameter (D)
1.500
mm
+ 0.002 / + 0.008
(0.059 in.)
Length (L)
6.00
mm
+/- 0.254
(0.236 in.)
Approx. Overall Length
6.46
mm
+/- 0.254
(0.254 in.)
Dowel Pins - 1.5x6x6.46 mm - Stainless Steel 316 (Similar to A4, 18-10)
Material: Stainless Steel 316 (Similar to A4, 18-10)    Type: 3 (Rounded Ends)    Standard: Based on DIN 7
Part Number: DP015-006-316-3 (500 Pcs) Dowel Pins - 1.5x6x6.46 mm - Stainless Steel 316 Similar to A4, 18-10
Contact Us | Item Discontinued - Please contact us if you need a large quantity
Diameter (D)
1.500
mm
+ 0.002 / + 0.008
(0.059 in.)
Length (L)
8.00
mm
+/- 0.254
(0.315 in.)
Approx. Overall Length
8.46
mm
+/- 0.254
(0.333 in.)
Type
3 (Rounded Ends)
Dowel Pins - 1.5 mm x 8 mm x 8.46 mm
Material: Stainless Steel 316 (Similar to A4, 18-10)    Standard: Based on DIN 7
Part Number: DP015-008-316-3 (10 Pcs) Dowel Pins - 1.5x8x8.46 mm - Stainless Steel 316 Similar to A4, 18-10
210 units (2100 pcs) Available Immediately | Further orders can be expected around Sun, Jul 13, 2025
$4.86 AUD
$4.86 AUD
Per 10
Diameter (D)
1.500
mm
+ 0.002 / + 0.008
(0.059 in.)
Length (L)
8.00
mm
+/- 0.254
(0.315 in.)
Approx. Overall Length
8.46
mm
+/- 0.254
(0.333 in.)
Dowel Pins - 1.5 mm x 8 mm x 8.46 mm
Material: Stainless Steel 316 (Similar to A4, 18-10)    Type: 3 (Rounded Ends)    Standard: Based on DIN 7
Part Number: DP015-008-316-3 (10 Pcs) Dowel Pins - 1.5x8x8.46 mm - Stainless Steel 316 Similar to A4, 18-10
210 units (2100 pcs) Available Immediately | Further orders can be expected around Sun, Jul 13, 2025
$4.86 AUD
$4.86 AUD
Per 10
View the product page first if you are unsure.
Diameter (D)
1.500
mm
+ 0.002 / + 0.008
(0.059 in.)
Length (L)
9.00
mm
+/- 0.254
(0.354 in.)
Approx. Overall Length
9.45
mm
+/- 0.254
(0.372 in.)
Type
3 (Rounded Ends)
Dowel Pins - 1.5 mm x 9 mm x 9.45 mm
Material: Stainless Steel 316 (Similar to A4, 18-10)    Standard: Based on DIN 7
Part Number: DP015-009-316-3 (2500 Pcs) Dowel Pins - 1.5x9x9.45 mm - Stainless Steel 316 Similar to A4, 18-10
Out of Stock | Backorder Now | Orders can be expected around Sun, Jul 13, 2025
$709.14 AUD
$709.14 AUD
Per 2500
Diameter (D)
1.500
mm
+ 0.002 / + 0.008
(0.059 in.)
Length (L)
9.00
mm
+/- 0.254
(0.354 in.)
Approx. Overall Length
9.45
mm
+/- 0.254
(0.372 in.)
Dowel Pins - 1.5 mm x 9 mm x 9.45 mm
Material: Stainless Steel 316 (Similar to A4, 18-10)    Type: 3 (Rounded Ends)    Standard: Based on DIN 7
Part Number: DP015-009-316-3 (2500 Pcs) Dowel Pins - 1.5x9x9.45 mm - Stainless Steel 316 Similar to A4, 18-10
Out of Stock | Backorder Now | Orders can be expected around Sun, Jul 13, 2025
$709.14 AUD
$709.14 AUD
Per 2500
View the product page first if you are unsure.
Diameter (D)
1.500
mm
+ 0.002 / + 0.008
(0.059 in.)
Length (L)
10.00
mm
+/- 0.254
(0.394 in.)
Approx. Overall Length
10.46
mm
+/- 0.350
(0.412 in.)
Type
3 (Rounded Ends)
Dowel Pins - 1.5x10x10.46 mm - Stainless Steel 316 (Similar to A4, 18-10)
Material: Stainless Steel 316 (Similar to A4, 18-10)    Standard: Based on DIN 7
Part Number: DP015-010-316-3 (500 Pcs) Dowel Pins - 1.5x10x10.46 mm - Stainless Steel 316 Similar to A4, 18-10
Contact Us | Item Discontinued - Please contact us if you need a large quantity
Diameter (D)
1.500
mm
+ 0.002 / + 0.008
(0.059 in.)
Length (L)
10.00
mm
+/- 0.254
(0.394 in.)
Approx. Overall Length
10.46
mm
+/- 0.350
(0.412 in.)
Dowel Pins - 1.5x10x10.46 mm - Stainless Steel 316 (Similar to A4, 18-10)
Material: Stainless Steel 316 (Similar to A4, 18-10)    Type: 3 (Rounded Ends)    Standard: Based on DIN 7
Part Number: DP015-010-316-3 (500 Pcs) Dowel Pins - 1.5x10x10.46 mm - Stainless Steel 316 Similar to A4, 18-10
Contact Us | Item Discontinued - Please contact us if you need a large quantity
Diameter (D)
1.500
mm
+ 0.002 / + 0.008
(0.059 in.)
Length (L)
12.00
mm
+/- 0.350
(0.472 in.)
Approx. Overall Length
12.46
mm
+/- 0.350
(0.491 in.)
Type
3 (Rounded Ends)
Dowel Pins - 1.5x12x12.46 mm - Stainless Steel 316 (Similar to A4, 18-10)
Material: Stainless Steel 316 (Similar to A4, 18-10)    Standard: Based on DIN 7
Part Number: DP015-012-316-3 (50 Pcs) Dowel Pins - 1.5x12x12.46 mm - Stainless Steel 316 Similar to A4, 18-10
32 units (1600 pcs) Available Immediately | Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity
$3.00 AUD
$5.70 AUD $3.00 AUD
Per 50
Diameter (D)
1.500
mm
+ 0.002 / + 0.008
(0.059 in.)
Length (L)
12.00
mm
+/- 0.350
(0.472 in.)
Approx. Overall Length
12.46
mm
+/- 0.350
(0.491 in.)
Dowel Pins - 1.5x12x12.46 mm - Stainless Steel 316 (Similar to A4, 18-10)
Material: Stainless Steel 316 (Similar to A4, 18-10)    Type: 3 (Rounded Ends)    Standard: Based on DIN 7
Part Number: DP015-012-316-3 (50 Pcs) Dowel Pins - 1.5x12x12.46 mm - Stainless Steel 316 Similar to A4, 18-10
32 units (1600 pcs) Available Immediately | Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity
$3.00 AUD
$5.70 AUD $3.00 AUD
Per 50
Diameter (D)
1.500
mm
+ 0.002 / + 0.008
(0.059 in.)
Length (L)
16.00
mm
+/- 0.350
(0.63 in.)
Approx. Overall Length
16.46
mm
+/- 0.350
(0.648 in.)
Type
3 (Rounded Ends)
Dowel Pins - 1.5x16x16.46 mm - Stainless Steel 316 (Similar to A4, 18-10)
Material: Stainless Steel 316 (Similar to A4, 18-10)    Standard: Based on DIN 7
Part Number: DP015-016-316-3 (500 Pcs) Dowel Pins - 1.5x16x16.46 mm - Stainless Steel 316 Similar to A4, 18-10
Contact Us | Item Discontinued - Please contact us if you need a large quantity
Diameter (D)
1.500
mm
+ 0.002 / + 0.008
(0.059 in.)
Length (L)
16.00
mm
+/- 0.350
(0.63 in.)
Approx. Overall Length
16.46
mm
+/- 0.350
(0.648 in.)
Dowel Pins - 1.5x16x16.46 mm - Stainless Steel 316 (Similar to A4, 18-10)
Material: Stainless Steel 316 (Similar to A4, 18-10)    Type: 3 (Rounded Ends)    Standard: Based on DIN 7
Part Number: DP015-016-316-3 (500 Pcs) Dowel Pins - 1.5x16x16.46 mm - Stainless Steel 316 Similar to A4, 18-10
Contact Us | Item Discontinued - Please contact us if you need a large quantity
Diameter (D)
1.588
mm
+ 0.002 / + 0.008
(0.063 in.)
Length (L)
22.23
mm
+/- 0.420
(0.875 in.)
Approx. Overall Length
22.69
mm
+/- 0.420
(0.893 in.)
Type
3 (Rounded Ends)
Dowel Pins - 1.588 mm x 22.23 mm x 22.69 mm
Material: Stainless Steel 316 (Similar to A4, 18-10)    Standard: Based on DIN 7
Part Number: DP016-022-316-3 (2500 Pcs) Dowel Pins - 1.588x22.23x22.69 mm - Stainless Steel 316 Similar to A4, 18-10
Out of Stock | Backorder Now | Orders can be expected around Sun, Jul 13, 2025
$1,983.68 AUD
$1,983.68 AUD
Per 2500
Diameter (D)
1.588
mm
+ 0.002 / + 0.008
(0.063 in.)
Length (L)
22.23
mm
+/- 0.420
(0.875 in.)
Approx. Overall Length
22.69
mm
+/- 0.420
(0.893 in.)
Dowel Pins - 1.588 mm x 22.23 mm x 22.69 mm
Material: Stainless Steel 316 (Similar to A4, 18-10)    Type: 3 (Rounded Ends)    Standard: Based on DIN 7
Part Number: DP016-022-316-3 (2500 Pcs) Dowel Pins - 1.588x22.23x22.69 mm - Stainless Steel 316 Similar to A4, 18-10
Out of Stock | Backorder Now | Orders can be expected around Sun, Jul 13, 2025
$1,983.68 AUD
$1,983.68 AUD
Per 2500
View the product page first if you are unsure.
Diameter (D)
2.000
mm
+ 0.002 / + 0.008
(0.079 in.)
Length (L)
4.00
mm
+/- 0.254
(0.157 in.)
Approx. Overall Length
4.60
mm
+/- 0.254
(0.181 in.)
Type
3 (Rounded Ends)
Dowel Pins - 2 mm x 4 mm x 4.6 mm
Material: Stainless Steel 316 (Similar to A4, 18-10)    Standard: Based on DIN 7
Part Number: DP020-004-316-3 (10 Pcs) Dowel Pins - 2x4x4.6 mm - Stainless Steel 316 Similar to A4, 18-10
129 units (1290 pcs) Available Immediately | Further orders can be expected around Sun, Jul 13, 2025
$5.14 AUD
$5.14 AUD
Per 10
Diameter (D)
2.000
mm
+ 0.002 / + 0.008
(0.079 in.)
Length (L)
4.00
mm
+/- 0.254
(0.157 in.)
Approx. Overall Length
4.60
mm
+/- 0.254
(0.181 in.)
Dowel Pins - 2 mm x 4 mm x 4.6 mm
Material: Stainless Steel 316 (Similar to A4, 18-10)    Type: 3 (Rounded Ends)    Standard: Based on DIN 7
Part Number: DP020-004-316-3 (10 Pcs) Dowel Pins - 2x4x4.6 mm - Stainless Steel 316 Similar to A4, 18-10
129 units (1290 pcs) Available Immediately | Further orders can be expected around Sun, Jul 13, 2025
$5.14 AUD
$5.14 AUD
Per 10
View the product page first if you are unsure.
Diameter (D)
2.000
mm
+ 0.002 / + 0.008
(0.079 in.)
Length (L)
6.00
mm
+/- 0.254
(0.236 in.)
Approx. Overall Length
6.60
mm
+/ - 0.254
(0.26 in.)
Type
3 (Rounded Ends)
Dowel Pins - 2x6x6.6 mm - Stainless Steel 316 (Similar to A4, 18-10)
Material: Stainless Steel 316 (Similar to A4, 18-10)    Standard: Based on DIN 7
Part Number: DP020-006-316-3 (20 Pcs) Dowel Pins - 2x6x6.6 mm - Stainless Steel 316 Similar to A4, 18-10
48 units (960 pcs) Available Immediately | Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity
$9.00 AUD
$17.10 AUD $9.00 AUD
Per 20
Diameter (D)
2.000
mm
+ 0.002 / + 0.008
(0.079 in.)
Length (L)
6.00
mm
+/- 0.254
(0.236 in.)
Approx. Overall Length
6.60
mm
+/ - 0.254
(0.26 in.)
Dowel Pins - 2x6x6.6 mm - Stainless Steel 316 (Similar to A4, 18-10)
Material: Stainless Steel 316 (Similar to A4, 18-10)    Type: 3 (Rounded Ends)    Standard: Based on DIN 7
Part Number: DP020-006-316-3 (20 Pcs) Dowel Pins - 2x6x6.6 mm - Stainless Steel 316 Similar to A4, 18-10
48 units (960 pcs) Available Immediately | Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity
$9.00 AUD
$17.10 AUD $9.00 AUD
Per 20
Diameter (D)
2.000
mm
+ 0.002 / + 0.008
(0.079 in.)
Length (L)
8.00
mm
+/- 0.254
(0.315 in.)
Approx. Overall Length
8.60
mm
+/ - 0.254
(0.339 in.)
Type
3 (Rounded Ends)
Dowel Pins - 2x8x8.6 mm - Stainless Steel 316 (Similar to A4, 18-10)
Material: Stainless Steel 316 (Similar to A4, 18-10)    Standard: Based on DIN 7
Part Number: DP020-008-316-3 (500 Pcs) Dowel Pins - 2x8x8.6 mm - Stainless Steel 316 Similar to A4, 18-10
Contact Us | Item Discontinued - Please contact us if you need a large quantity
Diameter (D)
2.000
mm
+ 0.002 / + 0.008
(0.079 in.)
Length (L)
8.00
mm
+/- 0.254
(0.315 in.)
Approx. Overall Length
8.60
mm
+/ - 0.254
(0.339 in.)
Dowel Pins - 2x8x8.6 mm - Stainless Steel 316 (Similar to A4, 18-10)
Material: Stainless Steel 316 (Similar to A4, 18-10)    Type: 3 (Rounded Ends)    Standard: Based on DIN 7
Part Number: DP020-008-316-3 (500 Pcs) Dowel Pins - 2x8x8.6 mm - Stainless Steel 316 Similar to A4, 18-10
Contact Us | Item Discontinued - Please contact us if you need a large quantity
Diameter (D)
2.000
mm
+ 0.002 / + 0.008
(0.079 in.)
Length (L)
9.00
mm
+/- 0.254
(0.354 in.)
Approx. Overall Length
9.60
mm
+/ - 0.254
(0.378 in.)
Type
3 (Rounded Ends)
Dowel Pins - 2 mm x 9 mm x 9.6 mm
Material: Stainless Steel 316 (Similar to A4, 18-10)    Standard: Based on DIN 7
Part Number: DP020-009-316-3 (50 Pcs) Dowel Pins - 2x9x9.6 mm - Stainless Steel 316 Similar to A4, 18-10
35 units (1750 pcs) Available Immediately | Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity
$7.09 AUD
$23.49 AUD $7.09 AUD
Per 50
Diameter (D)
2.000
mm
+ 0.002 / + 0.008
(0.079 in.)
Length (L)
9.00
mm
+/- 0.254
(0.354 in.)
Approx. Overall Length
9.60
mm
+/ - 0.254
(0.378 in.)
Dowel Pins - 2 mm x 9 mm x 9.6 mm
Material: Stainless Steel 316 (Similar to A4, 18-10)    Type: 3 (Rounded Ends)    Standard: Based on DIN 7
Part Number: DP020-009-316-3 (50 Pcs) Dowel Pins - 2x9x9.6 mm - Stainless Steel 316 Similar to A4, 18-10
35 units (1750 pcs) Available Immediately | Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity
$7.09 AUD
$23.49 AUD $7.09 AUD
Per 50
Diameter (D)
2.000
mm
+ 0.002 / + 0.008
(0.079 in.)
Length (L)
9.00
mm
+/- 0.254
(0.354 in.)
Approx. Overall Length
10.00
mm
+/ - 0.254
(0.394 in.)
Type
3 (Rounded Ends)
1039480 | DP020-009-316-3-L10 (10 Pcs) --- Dowel Pins - 2x9x10 mm - Stainless Steel 316 Similar to A4, 18-10
Material: Stainless Steel 316 (Similar to A4, 18-10)    Notes: Special Oversized Overall Length 10mm. DIN7 is 9.60    Standard: Modified
Part Number: DP020-009-316-3-L10 (10 Pcs) Dowel Pins - 2x9x10 mm - Stainless Steel 316 Similar to A4, 18-10
206 units (2060 pcs) Available Immediately | Further orders can be expected around Sun, Jul 13, 2025
$5.68 AUD
$5.68 AUD
Per 10
Diameter (D)
2.000
mm
+ 0.002 / + 0.008
(0.079 in.)
Length (L)
9.00
mm
+/- 0.254
(0.354 in.)
Approx. Overall Length
10.00
mm
+/ - 0.254
(0.394 in.)
1039480 | DP020-009-316-3-L10 (10 Pcs) --- Dowel Pins - 2x9x10 mm - Stainless Steel 316 Similar to A4, 18-10
Material: Stainless Steel 316 (Similar to A4, 18-10)    Type: 3 (Rounded Ends)    Notes: Special Oversized Overall Length 10mm. DIN7 is 9.60    Standard: Modified
Part Number: DP020-009-316-3-L10 (10 Pcs) Dowel Pins - 2x9x10 mm - Stainless Steel 316 Similar to A4, 18-10
206 units (2060 pcs) Available Immediately | Further orders can be expected around Sun, Jul 13, 2025
$5.68 AUD
$5.68 AUD
Per 10
View the product page first if you are unsure.
Diameter (D)
2.000
mm
+ 0.002 / + 0.008
(0.079 in.)
Length (L)
10.00
mm
+/- 0.254
(0.394 in.)
Approx. Overall Length
10.60
mm
+/ - 0.350
(0.417 in.)
Type
3 (Rounded Ends)
Dowel Pins - 2 mm x 10 mm x 10.6 mm
Material: Stainless Steel 316 (Similar to A4, 18-10)    Standard: Based on DIN 7
Part Number: DP020-010-316-3 Dowel Pins - 2x10x10.6 mm - Stainless Steel 316 Similar to A4, 18-10
Contact Us | Item Discontinued - Please contact us if you need a large quantity
Diameter (D)
2.000
mm
+ 0.002 / + 0.008
(0.079 in.)
Length (L)
10.00
mm
+/- 0.254
(0.394 in.)
Approx. Overall Length
10.60
mm
+/ - 0.350
(0.417 in.)
Dowel Pins - 2 mm x 10 mm x 10.6 mm
Material: Stainless Steel 316 (Similar to A4, 18-10)    Type: 3 (Rounded Ends)    Standard: Based on DIN 7
Part Number: DP020-010-316-3 Dowel Pins - 2x10x10.6 mm - Stainless Steel 316 Similar to A4, 18-10
Contact Us | Item Discontinued - Please contact us if you need a large quantity
Diameter (D)
2.000
mm
+ 0.002 / + 0.008
(0.079 in.)
Length (L)
11.00
mm
+/- 0.350
(0.433 in.)
Approx. Overall Length
11.60
mm
+/ - 0.350
(0.457 in.)
Type
3 (Rounded Ends)
Dowel Pins - 2x11x11.6 mm - Stainless Steel 316 (Similar to A4, 18-10)
Material: Stainless Steel 316 (Similar to A4, 18-10)    Standard: Based on DIN 7
Part Number: DP020-011-316-3 (20 Pcs) Dowel Pins - 2x11x11.6 mm - Stainless Steel 316 Similar to A4, 18-10
12 units (240 pcs) Available Immediately | Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity
$8.00 AUD
$15.20 AUD $8.00 AUD
Per 20
Diameter (D)
2.000
mm
+ 0.002 / + 0.008
(0.079 in.)
Length (L)
11.00
mm
+/- 0.350
(0.433 in.)
Approx. Overall Length
11.60
mm
+/ - 0.350
(0.457 in.)
Dowel Pins - 2x11x11.6 mm - Stainless Steel 316 (Similar to A4, 18-10)
Material: Stainless Steel 316 (Similar to A4, 18-10)    Type: 3 (Rounded Ends)    Standard: Based on DIN 7
Part Number: DP020-011-316-3 (20 Pcs) Dowel Pins - 2x11x11.6 mm - Stainless Steel 316 Similar to A4, 18-10
12 units (240 pcs) Available Immediately | Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity
$8.00 AUD
$15.20 AUD $8.00 AUD
Per 20
Diameter (D)
2.000
mm
+ 0.002 / + 0.008
(0.079 in.)
Length (L)
12.00
mm
+/- 0.350
(0.472 in.)
Approx. Overall Length
12.60
mm
+/ - 0.350
(0.496 in.)
Type
3 (Rounded Ends)
Dowel Pins - 2x12x12.6 mm - Stainless Steel 316 (Similar to A4, 18-10)
Material: Stainless Steel 316 (Similar to A4, 18-10)    Standard: Based on DIN 7
Part Number: DP020-012-316-3 (500 Pcs) Dowel Pins - 2x12x12.6 mm - Stainless Steel 316 Similar to A4, 18-10
Contact Us | Item Discontinued - Please contact us if you need a large quantity
Diameter (D)
2.000
mm
+ 0.002 / + 0.008
(0.079 in.)
Length (L)
12.00
mm
+/- 0.350
(0.472 in.)
Approx. Overall Length
12.60
mm
+/ - 0.350
(0.496 in.)
Dowel Pins - 2x12x12.6 mm - Stainless Steel 316 (Similar to A4, 18-10)
Material: Stainless Steel 316 (Similar to A4, 18-10)    Type: 3 (Rounded Ends)    Standard: Based on DIN 7
Part Number: DP020-012-316-3 (500 Pcs) Dowel Pins - 2x12x12.6 mm - Stainless Steel 316 Similar to A4, 18-10
Contact Us | Item Discontinued - Please contact us if you need a large quantity
Diameter (D)
2.000
mm
+ 0.002 / + 0.008
(0.079 in.)
Length (L)
16.00
mm
+/- 0.350
(0.63 in.)
Approx. Overall Length
16.60
mm
+/ - 0.350
(0.654 in.)
Type
3 (Rounded Ends)
Dowel Pins - 2x16x16.6 mm - Stainless Steel 316 (Similar to A4, 18-10)
Material: Stainless Steel 316 (Similar to A4, 18-10)    Standard: Based on DIN 7
Part Number: DP020-016-316-3 (50 Pcs) Dowel Pins - 2x16x16.6 mm - Stainless Steel 316 Similar to A4, 18-10
36 units (1800 pcs) Available Immediately | Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity
$7.00 AUD
$13.30 AUD $7.00 AUD
Per 50
Diameter (D)
2.000
mm
+ 0.002 / + 0.008
(0.079 in.)
Length (L)
16.00
mm
+/- 0.350
(0.63 in.)
Approx. Overall Length
16.60
mm
+/ - 0.350
(0.654 in.)
Dowel Pins - 2x16x16.6 mm - Stainless Steel 316 (Similar to A4, 18-10)
Material: Stainless Steel 316 (Similar to A4, 18-10)    Type: 3 (Rounded Ends)    Standard: Based on DIN 7
Part Number: DP020-016-316-3 (50 Pcs) Dowel Pins - 2x16x16.6 mm - Stainless Steel 316 Similar to A4, 18-10
36 units (1800 pcs) Available Immediately | Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity
$7.00 AUD
$13.30 AUD $7.00 AUD
Per 50
Diameter (D)
2.500
mm
+ 0.002 / + 0.008
(0.098 in.)
Length (L)
10.00
mm
+/- 0.254
(0.394 in.)
Approx. Overall Length
10.80
mm
+/ - 0.254
(0.425 in.)
Type
3 (Rounded Ends)
Dowel Pins - 2.5 mm x 10 mm x 10.8 mm
Material: Stainless Steel 316 (Similar to A4, 18-10)    Standard: DIN 7
Part Number: DP025-010-316-3 (10 Pcs) Dowel Pins - 2.5x10x10.8 mm - Stainless Steel 316 Similar to A4, 18-10
276 units (2760 pcs) Available Immediately | Further orders can be expected around Wed, Jul 23, 2025
$5.14 AUD
$5.14 AUD
Per 10
Diameter (D)
2.500
mm
+ 0.002 / + 0.008
(0.098 in.)
Length (L)
10.00
mm
+/- 0.254
(0.394 in.)
Approx. Overall Length
10.80
mm
+/ - 0.254
(0.425 in.)
Dowel Pins - 2.5 mm x 10 mm x 10.8 mm
Material: Stainless Steel 316 (Similar to A4, 18-10)    Type: 3 (Rounded Ends)    Standard: DIN 7
Part Number: DP025-010-316-3 (10 Pcs) Dowel Pins - 2.5x10x10.8 mm - Stainless Steel 316 Similar to A4, 18-10
276 units (2760 pcs) Available Immediately | Further orders can be expected around Wed, Jul 23, 2025
$5.14 AUD
$5.14 AUD
Per 10
View the product page first if you are unsure.
Diameter (D)
3.000
mm
+ 0.004 / + 0.012
(0.118 in.)
Length (L)
6.00
mm
+/- 0.254
(0.236 in.)
Approx. Overall Length
6.90
mm
+/ - 0.254
(0.272 in.)
Type
3 (Rounded Ends)
Dowel Pins - 3 mm x 6 mm x 6.9 mm
Material: Stainless Steel 316 (Similar to A4, 18-10)    Standard: Based on DIN 7
Part Number: DP030-006-316-3 (5 Pcs) Dowel Pins - 3x6x6.9 mm - Stainless Steel 316 Similar to A4, 18-10
9 units (45 pcs) Available Immediately | Further orders can be expected around Sun, Jun 08, 2025
$5.77 AUD
$5.77 AUD
Per 5
Diameter (D)
3.000
mm
+ 0.004 / + 0.012
(0.118 in.)
Length (L)
6.00
mm
+/- 0.254
(0.236 in.)
Approx. Overall Length
6.90
mm
+/ - 0.254
(0.272 in.)
Dowel Pins - 3 mm x 6 mm x 6.9 mm
Material: Stainless Steel 316 (Similar to A4, 18-10)    Type: 3 (Rounded Ends)    Standard: Based on DIN 7
Part Number: DP030-006-316-3 (5 Pcs) Dowel Pins - 3x6x6.9 mm - Stainless Steel 316 Similar to A4, 18-10
9 units (45 pcs) Available Immediately | Further orders can be expected around Sun, Jun 08, 2025
$5.77 AUD
$5.77 AUD
Per 5
View the product page first if you are unsure.
Diameter (D)
3.000
mm
+ 0.004 / + 0.012
(0.118 in.)
Length (L)
8.00
mm
+/- 0.254
(0.315 in.)
Approx. Overall Length
8.90
mm
+/ - 0.254
(0.35 in.)
Type
3 (Rounded Ends)
Dowel Pins - 3 mm x 8 mm x 8.9 mm
Material: Stainless Steel 316 (Similar to A4, 18-10)    Standard: Based on DIN 7
Part Number: DP030-008-316-3 (10 Pcs) Dowel Pins - 3x8x8.9 mm - Stainless Steel 316 Similar to A4, 18-10
82 units (820 pcs) Available Immediately | Further orders can be expected around Sat, Aug 09, 2025
$6.59 AUD
$6.59 AUD
Per 10
Diameter (D)
3.000
mm
+ 0.004 / + 0.012
(0.118 in.)
Length (L)
8.00
mm
+/- 0.254
(0.315 in.)
Approx. Overall Length
8.90
mm
+/ - 0.254
(0.35 in.)
Dowel Pins - 3 mm x 8 mm x 8.9 mm
Material: Stainless Steel 316 (Similar to A4, 18-10)    Type: 3 (Rounded Ends)    Standard: Based on DIN 7
Part Number: DP030-008-316-3 (10 Pcs) Dowel Pins - 3x8x8.9 mm - Stainless Steel 316 Similar to A4, 18-10
82 units (820 pcs) Available Immediately | Further orders can be expected around Sat, Aug 09, 2025
$6.59 AUD
$6.59 AUD
Per 10
View the product page first if you are unsure.
Diameter (D)
3.000
mm
+ 0.004 / + 0.012
(0.118 in.)
Length (L)
8.00
mm
+/- 0.254
(0.315 in.)
Approx. Overall Length
10.00
mm
+/ - 0.254
(0.394 in.)
Type
3 (Rounded Ends)
1044893 | DP030-008-316-3-L10 (10 Pcs) --- Dowel Pins - 3x8x10 mm - Stainless Steel 316 Similar to A4, 18-10
Material: Stainless Steel 316 (Similar to A4, 18-10)    Notes: Special Oversize Overall Length 10mm. DIN7 is 8.90    Standard: Modified
Part Number: DP030-008-316-3-L10 (10 Pcs) Dowel Pins - 3x8x10 mm - Stainless Steel 316 Similar to A4, 18-10
Out of Stock | Backorder Now | More stock due: 300 (3000 pcs) around Thu, May 22, 2025 | Further orders can be expected around Sun, Jul 13, 2025
$11.32 AUD
$11.32 AUD
Per 10
Diameter (D)
3.000
mm
+ 0.004 / + 0.012
(0.118 in.)
Length (L)
8.00
mm
+/- 0.254
(0.315 in.)
Approx. Overall Length
10.00
mm
+/ - 0.254
(0.394 in.)
1044893 | DP030-008-316-3-L10 (10 Pcs) --- Dowel Pins - 3x8x10 mm - Stainless Steel 316 Similar to A4, 18-10
Material: Stainless Steel 316 (Similar to A4, 18-10)    Type: 3 (Rounded Ends)    Notes: Special Oversize Overall Length 10mm. DIN7 is 8.90    Standard: Modified
Part Number: DP030-008-316-3-L10 (10 Pcs) Dowel Pins - 3x8x10 mm - Stainless Steel 316 Similar to A4, 18-10
Out of Stock | Backorder Now | More stock due: 300 (3000 pcs) around Thu, May 22, 2025 | Further orders can be expected around Sun, Jul 13, 2025
$11.32 AUD
$11.32 AUD
Per 10
View the product page first if you are unsure.
Diameter (D)
3.000
mm
+ 0.004 / + 0.012
(0.118 in.)
Length (L)
10.00
mm
+/- 0.350
(0.394 in.)
Approx. Overall Length
10.90
mm
+/ - 0.350
(0.429 in.)
Type
3 (Rounded Ends)
Dowel Pins - 3 mm x 10 mm x 10.9 mm
Material: Stainless Steel 316 (Similar to A4, 18-10)    Standard: Based on DIN 7
Part Number: DP030-010-316-3 (10 Pcs) Dowel Pins - 3x10x10.9 mm - Stainless Steel 316 Similar to A4, 18-10
153 units (1530 pcs) Available Immediately | Further orders can be expected around Sun, Jul 13, 2025
$6.32 AUD
$6.32 AUD
Per 10
Diameter (D)
3.000
mm
+ 0.004 / + 0.012
(0.118 in.)
Length (L)
10.00
mm
+/- 0.350
(0.394 in.)
Approx. Overall Length
10.90
mm
+/ - 0.350
(0.429 in.)
Dowel Pins - 3 mm x 10 mm x 10.9 mm
Material: Stainless Steel 316 (Similar to A4, 18-10)    Type: 3 (Rounded Ends)    Standard: Based on DIN 7
Part Number: DP030-010-316-3 (10 Pcs) Dowel Pins - 3x10x10.9 mm - Stainless Steel 316 Similar to A4, 18-10
153 units (1530 pcs) Available Immediately | Further orders can be expected around Sun, Jul 13, 2025
$6.32 AUD
$6.32 AUD
Per 10
View the product page first if you are unsure.
Diameter (D)
3.000
mm
+ 0.004 / + 0.012
(0.118 in.)
Length (L)
11.00
mm
+/- 0.350
(0.433 in.)
Approx. Overall Length
11.90
mm
+/ - 0.350
(0.469 in.)
Type
3 (Rounded Ends)
Dowel Pins - 3x11x11.9 mm - Stainless Steel 316 (Similar to A4, 18-10)
Material: Stainless Steel 316 (Similar to A4, 18-10)    Standard: Based on DIN 7
Part Number: DP030-011-316-3 (50 Pcs) Dowel Pins - 3x11x11.9 mm - Stainless Steel 316 Similar to A4, 18-10
Contact Us | Item Discontinued - Please contact us if you need a large quantity
Diameter (D)
3.000
mm
+ 0.004 / + 0.012
(0.118 in.)
Length (L)
11.00
mm
+/- 0.350
(0.433 in.)
Approx. Overall Length
11.90
mm
+/ - 0.350
(0.469 in.)
Dowel Pins - 3x11x11.9 mm - Stainless Steel 316 (Similar to A4, 18-10)
Material: Stainless Steel 316 (Similar to A4, 18-10)    Type: 3 (Rounded Ends)    Standard: Based on DIN 7
Part Number: DP030-011-316-3 (50 Pcs) Dowel Pins - 3x11x11.9 mm - Stainless Steel 316 Similar to A4, 18-10
Contact Us | Item Discontinued - Please contact us if you need a large quantity
Diameter (D)
3.000
mm
+ 0.004 / + 0.012
(0.118 in.)
Length (L)
12.00
mm
+/- 0.350
(0.472 in.)
Approx. Overall Length
12.90
mm
+/ - 0.350
(0.508 in.)
Type
3 (Rounded Ends)
Dowel Pins - 3 mm x 12 mm x 12.9 mm
Material: Stainless Steel 316 (Similar to A4, 18-10)    Standard: Based on DIN 7
Part Number: DP030-012-316-3 (10 Pcs) Dowel Pins - 3x12x12.9 mm - Stainless Steel 316 Similar to A4, 18-10
288 units (2880 pcs) Available Immediately | Further orders can be expected around Sun, Jul 13, 2025
$6.95 AUD
$6.95 AUD
Per 10
Diameter (D)
3.000
mm
+ 0.004 / + 0.012
(0.118 in.)
Length (L)
12.00
mm
+/- 0.350
(0.472 in.)
Approx. Overall Length
12.90
mm
+/ - 0.350
(0.508 in.)
Dowel Pins - 3 mm x 12 mm x 12.9 mm
Material: Stainless Steel 316 (Similar to A4, 18-10)    Type: 3 (Rounded Ends)    Standard: Based on DIN 7
Part Number: DP030-012-316-3 (10 Pcs) Dowel Pins - 3x12x12.9 mm - Stainless Steel 316 Similar to A4, 18-10
288 units (2880 pcs) Available Immediately | Further orders can be expected around Sun, Jul 13, 2025
$6.95 AUD
$6.95 AUD
Per 10
View the product page first if you are unsure.
Diameter (D)
3.000
mm
+ 0.004 / + 0.012
(0.118 in.)
Length (L)
16.00
mm
+/- 0.350
(0.63 in.)
Approx. Overall Length
16.90
mm
+/ - 0.350
(0.665 in.)
Type
3 (Rounded Ends)
Dowel Pins - 3x16x16.9 mm - Stainless Steel 316 (Similar to A4, 18-10)
Material: Stainless Steel 316 (Similar to A4, 18-10)    Standard: Based on DIN 7
Part Number: DP030-016-316-3 (500 Pcs) Dowel Pins - 3x16x16.9 mm - Stainless Steel 316 Similar to A4, 18-10
Contact Us | Item Discontinued - Please contact us if you need a large quantity
Diameter (D)
3.000
mm
+ 0.004 / + 0.012
(0.118 in.)
Length (L)
16.00
mm
+/- 0.350
(0.63 in.)
Approx. Overall Length
16.90
mm
+/ - 0.350
(0.665 in.)
Dowel Pins - 3x16x16.9 mm - Stainless Steel 316 (Similar to A4, 18-10)
Material: Stainless Steel 316 (Similar to A4, 18-10)    Type: 3 (Rounded Ends)    Standard: Based on DIN 7
Part Number: DP030-016-316-3 (500 Pcs) Dowel Pins - 3x16x16.9 mm - Stainless Steel 316 Similar to A4, 18-10
Contact Us | Item Discontinued - Please contact us if you need a large quantity
