Mounts - Levelling Socket - Swivel - 316 Stainless

Mounts -> Levelling Socket -> Swivel -> 316 Stainless

There are 2 products in the sub-categories of Mounts - Levelling Socket - Swivel - 316 Stainless. Browse the Mounts - Levelling Socket - Swivel - 316 Stainless products table.

Category Details

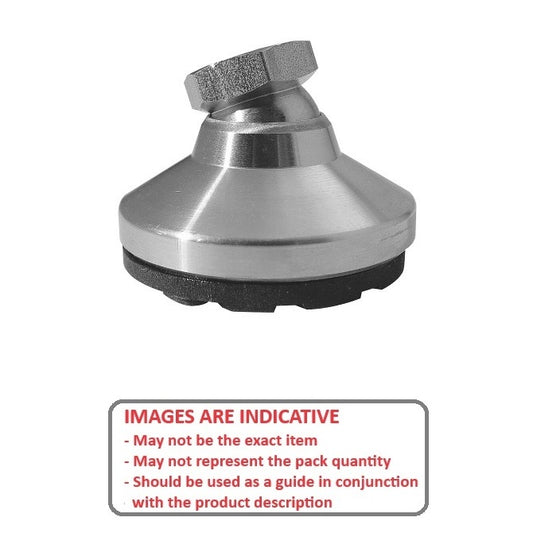

A selection of 316 Stainless Swivel Levelling Socket Mounts. Levelling adjusters. 15o swivel off centreline to adjust to uneven surfaces and level machine tools, electronic racks and benches.

  • An expanded range may be available on special order. Please enquire.

Miniature Bearings Australia - MBA Minibearings

Additional resources:


A more concise listing may be found in the Mounts - Levelling Socket - Swivel - 316 Stainless category on the Small Parts & Bearings online store.
Thread Size (A) Base Diameter (D) Foot Height (C) Min. Thread Depth Base Height (E) Overall Height Indicative
Levelling Socket Mounts - 10-32 UNF - 4.76mm - 19.1x13.5 mm Swivel - Stainless Steel 316 Similar to A4, 18-10 Mount
Thread Size (A)
10-32 UNF (4.76mm)
Base Diameter (D)
19.1
mm
Foot Height (C)
13.5
mm
Min. Thread Depth
4.3
mm
Base Height (E)
2.79
mm
Levelling Socket Mounts - 10-32 UNF -4.76mm- 19.1x13.5 mm - Stainless Steel 316 Similar to A4, 18-10
Material: Stainless Steel 316 (Similar to A4 or 18-10)    Load Rating: 240 Kg    Pad Thickness: 3.2 mm    Pad Material: Elastomer    Hex Flats (B): 9.53 mm
Part Number: MSF-048F-S6RP (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Jun 27, 2026
$23.68 AUD
$23.68 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Thread Size (A) Base Diameter (D) Foot Height (C) Min. Thread Depth Indicative
Levelling Socket Mounts - 10-32 UNF - 4.76mm - 19.1x13.5 mm Swivel - Stainless Steel 316 Similar to A4, 18-10 Mount
Thread Size (A)
10-32 UNF (4.76mm)
Base Diameter (D)
19.1
mm
Foot Height (C)
13.5
mm
Min. Thread Depth
4.3
mm
Levelling Socket Mounts - 10-32 UNF -4.76mm- 19.1x13.5 mm - Stainless Steel 316 Similar to A4, 18-10
Material: Stainless Steel 316 (Similar to A4 or 18-10)    Base Height (E): 2.79 mm    Load Rating: 240 Kg    Pad Thickness: 3.2 mm    Pad Material: Elastomer    Hex Flats (B): 9.53 mm
Part Number: MSF-048F-S6RP (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Jun 27, 2026
$23.68 AUD
$23.68 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Levelling Socket Mounts - 1-8 UNC - 25.4mm - 101.6x47.6 mm Swivel - Stainless Steel 316 Similar to A4, 18-10 Mount
Thread Size (A)
1-8 UNC (25.4mm)
Base Diameter (D)
101.6
mm
Foot Height (C)
47.6
mm
Min. Thread Depth
20.6
mm
Base Height (E)
13.49
mm
Levelling Socket Mounts - 1-8 UNC -25.4mm- 101.6x47.6 mm - Stainless Steel 316 Similar to A4, 18-10
Material: Stainless Steel 316 (Similar to A4 or 18-10)    Load Rating: 6800 Kg    Pad Thickness: 3.2 mm    Pad Material: Elastomer    Hex Flats (B): 34.93 mm
Part Number: MSF-254C-S6RP (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Jun 27, 2026
$302.68 AUD
$363.22 AUD $302.68 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Levelling Socket Mounts - 1-8 UNC - 25.4mm - 101.6x47.6 mm Swivel - Stainless Steel 316 Similar to A4, 18-10 Mount
Thread Size (A)
1-8 UNC (25.4mm)
Base Diameter (D)
101.6
mm
Foot Height (C)
47.6
mm
Min. Thread Depth
20.6
mm
Levelling Socket Mounts - 1-8 UNC -25.4mm- 101.6x47.6 mm - Stainless Steel 316 Similar to A4, 18-10
Material: Stainless Steel 316 (Similar to A4 or 18-10)    Base Height (E): 13.49 mm    Load Rating: 6800 Kg    Pad Thickness: 3.2 mm    Pad Material: Elastomer    Hex Flats (B): 34.93 mm
Part Number: MSF-254C-S6RP (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Jun 27, 2026
$302.68 AUD
$363.22 AUD $302.68 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
