Bushes - Unflanged - Plastic - Iglidur F

Bushes -> Unflanged -> Plastic -> Iglidur F

There is only 1 product in the sub-categories of Bushes - Unflanged - Plastic - Iglidur F. Browse the Bushes - Unflanged - Plastic - Iglidur F products table.

Category Details

A selection of Iglidur F Plastic Unflanged Bushes. Electrically conductive. High Compressive Strength. High Temp. Resistant to Chemicals.

  • An expanded range may be available on special order. Please enquire.
  • Specific Gravity 1.25 g/cm3.
  • Operating Temp 180 C short term / 140 C long term.
  • Tensile Strength at 20 Deg C = 260 Mpa.
  • Hardness 84 Shore D (DIN53505).
  • Bushing bore tolerance shown is after a H7 press fit.

Miniature Bearings Australia - MBA Minibearings

Additional resources:


A more concise listing may be found in the Bushes - Unflanged - Plastic - Iglidur F category on the Small Parts & Bearings online store.
Nominal Inside Diameter (d) Nominal Outside Diameter (D) Length (s) Indicative
Nominal Inside Diameter (d)
8.000
mm
+ 0.040 / + 0.130
(Equiv. 0.315 in.)
Nominal Outside Diameter (D)
10.000
mm

(Equiv. 0.394 in.)
Length (s)
15.000
mm
+ 0.000 / - 0.270
(Equiv. 0.591 in.)

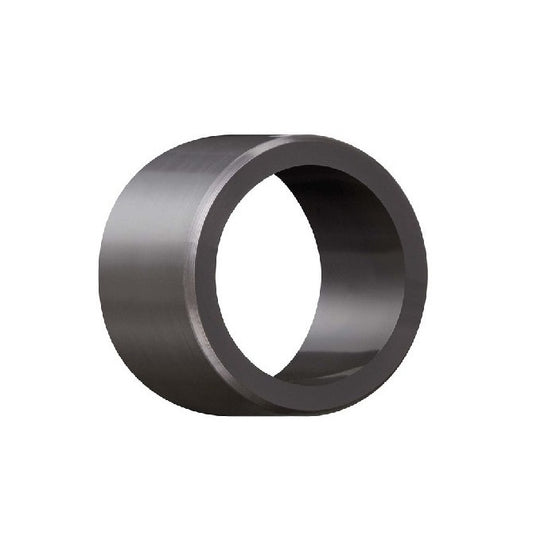

Unflanged Bushes - 8x10x15 mm - Iglidur F
Material: Iglidur F
Part Number: BP0080-0100-0150-PF (5 Pcs)
Unflanged Bushes - 8x10x15 mm Plastic - Iglidur F Bush
1 pack (5 pcs) Available Now | Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity
$7.50 AUD
$14.25 AUD $7.50 AUD
Per 5
Quantity Required

1 pack (5 pcs) Available Now. These are priced to quit. Please contact us for a quote if you require more.
Nominal Inside Diameter (d) Nominal Outside Diameter (D) Length (s) Indicative
Nominal Inside Diameter (d)
8.000
mm
+ 0.040 / + 0.130
(Equiv. 0.315 in.)
Nominal Outside Diameter (D)
10.000
mm

(Equiv. 0.394 in.)
Length (s)
15.000
mm
+ 0.000 / - 0.270
(Equiv. 0.591 in.)

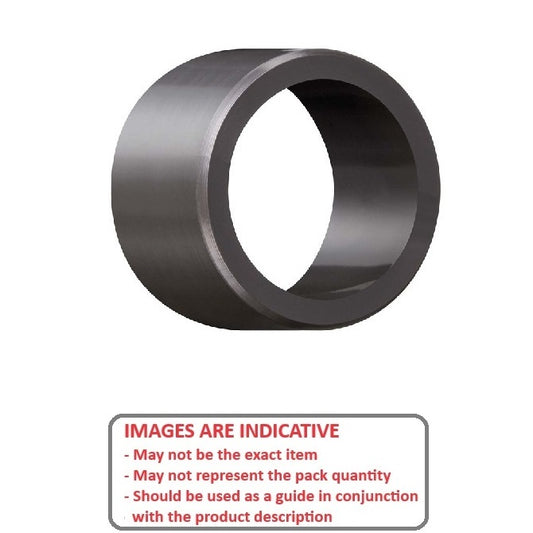

Unflanged Bushes - 8x10x15 mm - Iglidur F
Material: Iglidur F
Part Number: BP0080-0100-0150-PF (5 Pcs)
Unflanged Bushes - 8x10x15 mm Plastic - Iglidur F Bush
1 pack (5 pcs) Available Now | Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity
$7.50 AUD
$14.25 AUD $7.50 AUD
Per 5
Quantity Required

1 pack (5 pcs) Available Now. These are priced to quit. Please contact us for a quote if you require more.
