| ID (d) | OD (D) | Width (B) | Inner Ring Width (Bn) | Flange Diameter (DF) | Flange Width (BF) |

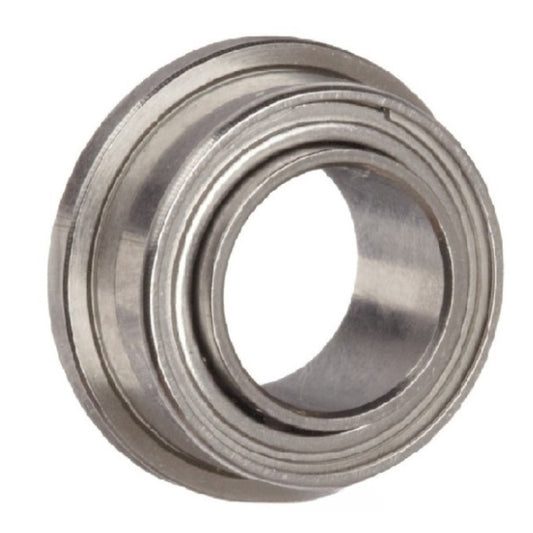

Indicative Image |
|---|---|---|---|---|---|---|
|
ID (d)
8.000
mm + 0.000 / - 0.0075
(Equiv. 0.315 in.) |
OD (D)
16.000
mm + 0.000 / - 0.0075 (Equiv. 0.63 in.) |
Width (B)
6.000
mm + 0.000 / - 0.125 (Equiv. 0.236 in.) |
Inner Ring Width (Bn)
6.800
mm |
Flange Diameter (DF)
18.000
mm |
Flange Width (BF)
1.300
mm |
|
| Material: Stainless Steel AISI 440C Precision Grade: Abec 1 Closure Type: ZZ Bearing Type: Radial Flanged with Extended Inner | ||||||
|
Part Number: SFW688B-ZZ-MC3
Single Row Ball Bearings - 8x16x6 mm / 6.8 mm Flanged - Stainless Steel AISI 440C Bearing Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
| ID (d) | OD (D) | Width (B) | Inner Ring Width (Bn) |
Indicative Image |
||
|
ID (d)
8.000
mm + 0.000 / - 0.0075 (Equiv. 0.315 in.) |
OD (D)
16.000
mm + 0.000 / - 0.0075 (Equiv. 0.63 in.) |
Width (B)
6.000
mm + 0.000 / - 0.125 (Equiv. 0.236 in.) |
Inner Ring Width (Bn)
6.800
mm |
|
||
| Material: Stainless Steel AISI 440C Flange Diameter (DF): 18.000 mm Flange Width (BF): 1.300 mm Precision Grade: Abec 1 Closure Type: ZZ Bearing Type: Radial Flanged with Extended Inner | ||||||
|
Part Number: SFW688B-ZZ-MC3
Single Row Ball Bearings - 8x16x6 mm / 6.8 mm Flanged - Stainless Steel AISI 440C Bearing Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
ID (d)
8.000
mm + 0.000 / - 0.0075
(Equiv. 0.315 in.) |
OD (D)
19.000
mm + 0.000 / - 0.010 (Equiv. 0.748 in.) |
Width (B)
6.000
mm + 0.000 / - 0.125 (Equiv. 0.236 in.) |
Inner Ring Width (Bn)
6.800
mm |
Flange Diameter (DF)
22.000
mm |
Flange Width (BF)
1.500
mm |
|
| Material: Stainless Steel AISI 440C Precision Grade: Abec 1 Closure Type: ZZ Bearing Type: Radial Flanged with Extended Inner | ||||||
|
Part Number: SFW698-ZZ-MC3
Single Row Ball Bearings - 8x19x6 mm / 6.8 mm Flanged - Stainless Steel AISI 440C Bearing Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
ID (d)
8.000
mm + 0.000 / - 0.0075 (Equiv. 0.315 in.) |
OD (D)
19.000
mm + 0.000 / - 0.010 (Equiv. 0.748 in.) |
Width (B)
6.000
mm + 0.000 / - 0.125 (Equiv. 0.236 in.) |
Inner Ring Width (Bn)
6.800
mm |
|
||
| Material: Stainless Steel AISI 440C Flange Diameter (DF): 22.000 mm Flange Width (BF): 1.500 mm Precision Grade: Abec 1 Closure Type: ZZ Bearing Type: Radial Flanged with Extended Inner | ||||||
|
Part Number: SFW698-ZZ-MC3
Single Row Ball Bearings - 8x19x6 mm / 6.8 mm Flanged - Stainless Steel AISI 440C Bearing Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
ID (d)
9.000
mm + 0.000 / - 0.0075
(Equiv. 0.354 in.) |
OD (D)
17.000
mm + 0.000 / - 0.0075 (Equiv. 0.669 in.) |
Width (B)
6.000
mm + 0.000 / - 0.125 (Equiv. 0.236 in.) |
Inner Ring Width (Bn)
6.800
mm |
Flange Diameter (DF)
19.000
mm |
Flange Width (BF)
1.300
mm |
|
| Material: Stainless Steel AISI 440C Precision Grade: Abec 1 Closure Type: ZZ Bearing Type: Radial Flanged with Extended Inner | ||||||
|
Part Number: SFW689B-ZZ-MC3
Single Row Ball Bearings - 9x17x6 mm / 6.8 mm Flanged - Stainless Steel AISI 440C Bearing Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
ID (d)
9.000
mm + 0.000 / - 0.0075 (Equiv. 0.354 in.) |
OD (D)
17.000
mm + 0.000 / - 0.0075 (Equiv. 0.669 in.) |
Width (B)
6.000
mm + 0.000 / - 0.125 (Equiv. 0.236 in.) |
Inner Ring Width (Bn)
6.800
mm |
|
||
| Material: Stainless Steel AISI 440C Flange Diameter (DF): 19.000 mm Flange Width (BF): 1.300 mm Precision Grade: Abec 1 Closure Type: ZZ Bearing Type: Radial Flanged with Extended Inner | ||||||
|
Part Number: SFW689B-ZZ-MC3
Single Row Ball Bearings - 9x17x6 mm / 6.8 mm Flanged - Stainless Steel AISI 440C Bearing Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
ID (d)
9.000
mm + 0.000 / - 0.0075
(Equiv. 0.354 in.) |
OD (D)
30.000
mm + 0.000 / - 0.010 (Equiv. 1.181 in.) |
Width (B)
12.000
mm + 0.000 / - 0.125 (Equiv. 0.472 in.) |
Inner Ring Width (Bn)
10.000
mm |
Flange Diameter (DF)
35.000
mm |
Flange Width (BF)
Special
mm |
|

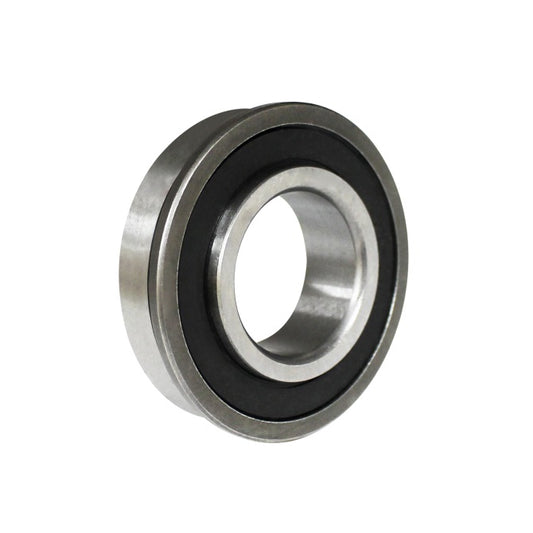

| Material: Chrome Steel SAE 52100 Precision Grade: Abec 1 Closure Type: 2RS Bearing Type: 1503-90 | ||||||
|
Part Number: F639BWC-2RS-MC34
Single Row Ball Bearings - 9x30x12 mm / 10 mm Flanged - Chrome Steel SAE 52100 Bearing Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
ID (d)
9.000
mm + 0.000 / - 0.0075 (Equiv. 0.354 in.) |
OD (D)
30.000
mm + 0.000 / - 0.010 (Equiv. 1.181 in.) |
Width (B)
12.000
mm + 0.000 / - 0.125 (Equiv. 0.472 in.) |
Inner Ring Width (Bn)
10.000
mm |
|
||
| Material: Chrome Steel SAE 52100 Flange Diameter (DF): 35.000 mm Flange Width (BF): Special mm Precision Grade: Abec 1 Closure Type: 2RS Bearing Type: 1503-90 | ||||||
|
Part Number: F639BWC-2RS-MC34
Single Row Ball Bearings - 9x30x12 mm / 10 mm Flanged - Chrome Steel SAE 52100 Bearing Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
ID (d)
10.000
mm + 0.000 / - 0.0075
(Equiv. 0.394 in.) |
OD (D)
19.000
mm + 0.000 / - 0.010 (Equiv. 0.748 in.) |
Width (B)
7.000
mm + 0.000 / - 0.125 (Equiv. 0.276 in.) |
Inner Ring Width (Bn)
7.800
mm |
Flange Diameter (DF)
21.000
mm |
Flange Width (BF)
1.500
mm |
|
| Material: Stainless Steel AISI 440C Precision Grade: Abec 1 Closure Type: ZZ Bearing Type: Radial Flanged with Extended Inner | ||||||
|
Part Number: SFW6800B-ZZ
Single Row Ball Bearings - 10x19x7 mm / 7.8 mm Flanged - Stainless Steel AISI 440C Bearing Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
ID (d)
10.000
mm + 0.000 / - 0.0075 (Equiv. 0.394 in.) |
OD (D)
19.000
mm + 0.000 / - 0.010 (Equiv. 0.748 in.) |
Width (B)
7.000
mm + 0.000 / - 0.125 (Equiv. 0.276 in.) |
Inner Ring Width (Bn)
7.800
mm |
|
||
| Material: Stainless Steel AISI 440C Flange Diameter (DF): 21.000 mm Flange Width (BF): 1.500 mm Precision Grade: Abec 1 Closure Type: ZZ Bearing Type: Radial Flanged with Extended Inner | ||||||
|
Part Number: SFW6800B-ZZ
Single Row Ball Bearings - 10x19x7 mm / 7.8 mm Flanged - Stainless Steel AISI 440C Bearing Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
