Collection: Bearings - Single Row Ball - Flanged - Precision - Extended Inner

Bearings -> Single Row Ball -> Flanged -> Precision -> Extended Inner

There are 77 products in the sub-categories of Bearings - Single Row Ball - Flanged - Precision - Extended Inner. Scroll down or follow the link to Bearings - Single Row Ball - Flanged - Precision - Extended Inner in the products table to see all these items combined into a handy table with filters.

Category Details

A selection of Extended Inner Precision Flanged Single Row Ball Bearings. Single row radial ball bearings with flanges and extended inner rings (wide inner rings).

Single row radial ball bearings are arguably the most common, widely used type of bearing. They consist of an inner ring, an outer ring, a set of balls, and a cage that retains the balls in a circular path.
Single row radial ball bearings are commonly used in a wide range of applications, including electric motors, fans, pumps, gearboxes, agricultural equipment, appliances, and automotive components.
They are versatile, cost-effective bearings that provide reliable support for radial loads and some axial loads in one direction. An expanded range may be available on special order. Please enquire.
If the size you require is not available, you might consider using a standard bearing with shim washers.

Miniature Bearings Australia - MBA Minibearings

Additional resources:

A more concise listing may be found in the Bearings - Single Row Ball - Flanged - Precision - Extended Inner category on the Small Parts & Bearings online store.

ID (d)	OD (D)	Width (B)	Inner Ring Width (Bn)	Flange Diameter (DF)	Flange Width (BF)

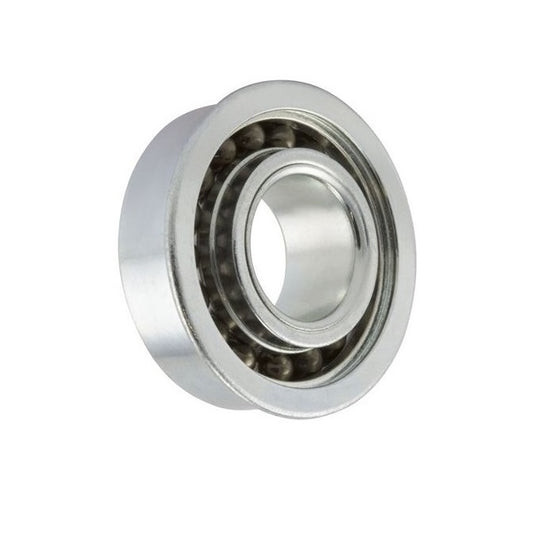

ID (d) 1.016 mm _{+ 0.000 / - 0.007} (Equiv. 0.04 in.)	OD (D) 3.175 mm _{+ 0.000 / - 0.007} (Equiv. 0.125 in.)	Width (B) 1.191 mm _{+ 0.000 / - 0.040} (Equiv. 0.047 in.)	Inner Ring Width (Bn) 1.984 mm	Flange Diameter (DF) 4.343 mm	Flange Width (BF) 0.330 mm
Material: Stainless Steel AISI 440C Precision Grade: P6 Closure Type: Open Bearing Type: Radial Flanged with Extended Inner
Part Number: SFWR09-MC3-JP6 Single Row Ball Bearings - 1.016x3.175x1.191 mm / 1.984 mm Flanged - Stainless Steel AISI 440C Bearing Contact Us \| Item Discontinued - Please contact us if you need a large quantity Quantity Required Contact Us. These are priced to quit. Please contact us for a quote if you require more.

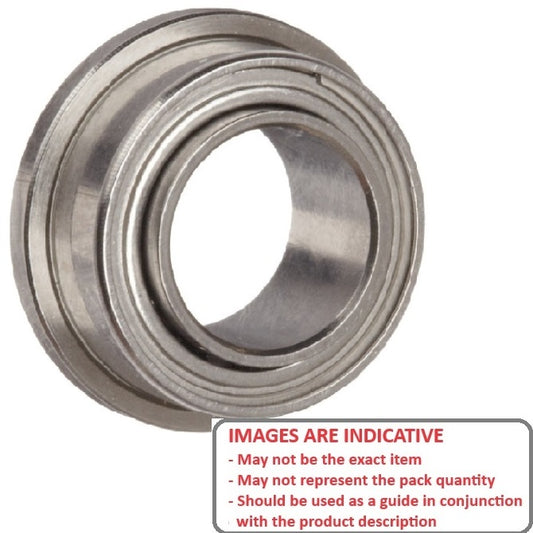

ID (d)	OD (D)	Width (B)	Inner Ring Width (Bn)	Indicative Image
ID (d) 1.016 mm _{+ 0.000 / - 0.007} (Equiv. 0.04 in.)	OD (D) 3.175 mm _{+ 0.000 / - 0.007} (Equiv. 0.125 in.)	Width (B) 1.191 mm _{+ 0.000 / - 0.040} (Equiv. 0.047 in.)	Inner Ring Width (Bn) 1.984 mm
Material: Stainless Steel AISI 440C Flange Diameter (DF): 4.343 mm Flange Width (BF): 0.330 mm Precision Grade: P6 Closure Type: Open Bearing Type: Radial Flanged with Extended Inner
Part Number: SFWR09-MC3-JP6 Single Row Ball Bearings - 1.016x3.175x1.191 mm / 1.984 mm Flanged - Stainless Steel AISI 440C Bearing Contact Us \| Item Discontinued - Please contact us if you need a large quantity Quantity Required Contact Us. These are priced to quit. Please contact us for a quote if you require more.
ID (d) 1.191 mm _{+ 0.000 / - 0.005} (Equiv. 0.047 in.)	OD (D) 3.967 mm _{+ 0.000 / - 0.0075} (Equiv. 0.156 in.)	Width (B) 1.588 mm _{+ 0.000 / - 0.125} (Equiv. 0.063 in.)	Inner Ring Width (Bn) 2.381 mm	Flange Diameter (DF) 5.156 mm	Flange Width (BF) 0.330 mm
Material: Stainless Steel AISI 440C Precision Grade: Abec 3 Closure Type: Open Bearing Type: Radial Flanged with Extended Inner
Part Number: SFWR0-MC34-U3-AF12 Single Row Ball Bearings - 1.191x3.967x1.588 mm / 2.381 mm Flanged - Stainless Steel AISI 440C Bearing Contact Us \| Item Discontinued - Please contact us if you need a large quantity Quantity Required Contact Us. These are priced to quit. Please contact us for a quote if you require more.
ID (d) 1.191 mm _{+ 0.000 / - 0.005} (Equiv. 0.047 in.)	OD (D) 3.967 mm _{+ 0.000 / - 0.0075} (Equiv. 0.156 in.)	Width (B) 1.588 mm _{+ 0.000 / - 0.125} (Equiv. 0.063 in.)	Inner Ring Width (Bn) 2.381 mm
Material: Stainless Steel AISI 440C Flange Diameter (DF): 5.156 mm Flange Width (BF): 0.330 mm Precision Grade: Abec 3 Closure Type: Open Bearing Type: Radial Flanged with Extended Inner
Part Number: SFWR0-MC34-U3-AF12 Single Row Ball Bearings - 1.191x3.967x1.588 mm / 2.381 mm Flanged - Stainless Steel AISI 440C Bearing Contact Us \| Item Discontinued - Please contact us if you need a large quantity Quantity Required Contact Us. These are priced to quit. Please contact us for a quote if you require more.
ID (d) 1.191 mm _{+ 0.000 / - 0.0075} (Equiv. 0.047 in.)	OD (D) 3.967 mm _{+ 0.000 / - 0.0075} (Equiv. 0.156 in.)	Width (B) 2.381 mm _{+ 0.000 / - 0.125} (Equiv. 0.094 in.)	Inner Ring Width (Bn) 3.175 mm	Flange Diameter (DF) 5.156 mm	Flange Width (BF) 0.787 mm
Material: Stainless Steel AISI 440C Precision Grade: Abec 1 Closure Type: ZZ Bearing Type: Radial Flanged with Extended Inner

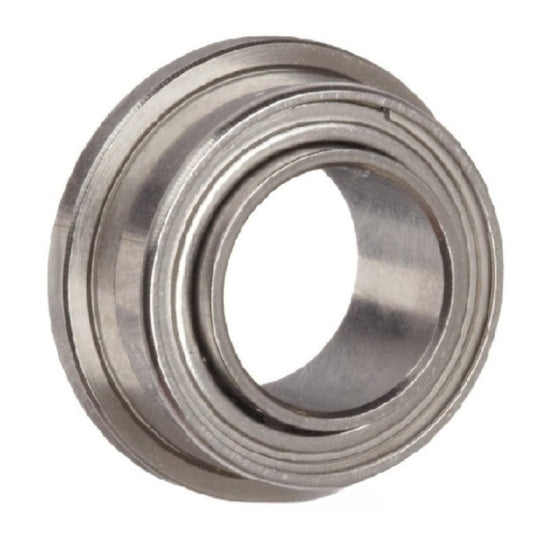

Part Number: SFWR0A-ZZ-MC3 Single Row Ball Bearings - 1.191x3.967x2.381 mm / 3.175 mm Flanged - Stainless Steel AISI 440C Bearing Out of Stock \| Backorder Now \| Orders can be expected around Tue, Oct 07, 2025 Regular price $112.05 AUD Regular price ~~$235.07 AUD~~ Sale price $112.05 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
ID (d) 1.191 mm _{+ 0.000 / - 0.0075} (Equiv. 0.047 in.)	OD (D) 3.967 mm _{+ 0.000 / - 0.0075} (Equiv. 0.156 in.)	Width (B) 2.381 mm _{+ 0.000 / - 0.125} (Equiv. 0.094 in.)	Inner Ring Width (Bn) 3.175 mm
Material: Stainless Steel AISI 440C Flange Diameter (DF): 5.156 mm Flange Width (BF): 0.787 mm Precision Grade: Abec 1 Closure Type: ZZ Bearing Type: Radial Flanged with Extended Inner
Part Number: SFWR0A-ZZ-MC3 Single Row Ball Bearings - 1.191x3.967x2.381 mm / 3.175 mm Flanged - Stainless Steel AISI 440C Bearing Out of Stock \| Backorder Now \| Orders can be expected around Tue, Oct 07, 2025 Regular price $112.05 AUD Regular price ~~$235.07 AUD~~ Sale price $112.05 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
SFWR0A-ZZ-MC3 --- Single Row Ball Bearings - 1.191x3.967x2.381 mm / 3.175 mm Flanged - Stainless Steel AISI 440C Bearing Sale SFWR0A-ZZ-MC3 --- Single Row Ball Bearings - 1.191x3.967x2.381 mm / 3.175 mm Flanged - Stainless Steel AISI 440C Bearing Regular price $112.05 AUD Regular price ~~$235.07 AUD~~ Sale price $112.05 AUD Unit price per Out of stock! Backorder Now Sale
ID (d) 1.191 mm _{+ 0.000 / - 0.0075} (Equiv. 0.047 in.)	OD (D) 3.967 mm _{+ 0.000 / - 0.0075} (Equiv. 0.156 in.)	Width (B) 2.381 mm _{+ 0.000 / - 0.125} (Equiv. 0.094 in.)	Inner Ring Width (Bn) 3.175 mm	Flange Diameter (DF) 5.156 mm	Flange Width (BF) 0.787 mm
Material: Stainless Steel AISI 440C Precision Grade: Abec 3 Closure Type: ZZ Bearing Type: Radial Flanged with Extended Inner
Part Number: SFWR0A-ZZ-MC3-J3-G5 (500 Pcs) Single Row Ball Bearings - 1.191x3.967x2.381 mm / 3.175 mm Flanged - Stainless Steel AISI 440C Bearing Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 02, 2025 Regular price $5,379.86 AUD Regular price ~~$11,390.40 AUD~~ Sale price $5,379.86 AUD Unit price per Per 500 Quantity Required Backorder: Out of Stock.
ID (d) 1.191 mm _{+ 0.000 / - 0.0075} (Equiv. 0.047 in.)	OD (D) 3.967 mm _{+ 0.000 / - 0.0075} (Equiv. 0.156 in.)	Width (B) 2.381 mm _{+ 0.000 / - 0.125} (Equiv. 0.094 in.)	Inner Ring Width (Bn) 3.175 mm
Material: Stainless Steel AISI 440C Flange Diameter (DF): 5.156 mm Flange Width (BF): 0.787 mm Precision Grade: Abec 3 Closure Type: ZZ Bearing Type: Radial Flanged with Extended Inner
Part Number: SFWR0A-ZZ-MC3-J3-G5 (500 Pcs) Single Row Ball Bearings - 1.191x3.967x2.381 mm / 3.175 mm Flanged - Stainless Steel AISI 440C Bearing Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 02, 2025 Regular price $5,379.86 AUD Regular price ~~$11,390.40 AUD~~ Sale price $5,379.86 AUD Unit price per Per 500 Quantity Required Backorder: Out of Stock.
SFWR0A-ZZ-MC3-J3-G5 (500 Pcs) --- Single Row Ball Bearings - 1.191x3.967x2.381 mm / 3.175 mm Flanged - Stainless Steel AISI 440C Bearing Sale SFWR0A-ZZ-MC3-J3-G5 (500 Pcs) --- Single Row Ball Bearings - 1.191x3.967x2.381 mm / 3.175 mm Flanged - Stainless Steel AISI 440C Bearing Regular price $5,379.86 AUD Regular price ~~$11,390.40 AUD~~ Sale price $5,379.86 AUD Unit price per Out of stock! Backorder Now Sale
ID (d) 1.191 mm _{+ 0.000 / - 0.005} (Equiv. 0.047 in.)	OD (D) 3.967 mm _{+ 0.000 / - 0.0075} (Equiv. 0.156 in.)	Width (B) 2.381 mm _{+ 0.000 / - 0.125} (Equiv. 0.094 in.)	Inner Ring Width (Bn) 3.175 mm	Flange Diameter (DF) 5.156 mm	Flange Width (BF) 0.787 mm
Material: Stainless Steel AISI 440C Precision Grade: Abec 3 Closure Type: ZZS Bearing Type: Radial Flanged with Extended Inner
Part Number: SFWR0A-ZZS-MC34-U3-AF12 Single Row Ball Bearings - 1.191x3.967x2.381 mm / 3.175 mm Flanged - Stainless Steel AISI 440C Bearing Contact Us \| Item Discontinued - Please contact us if you need a large quantity Quantity Required Contact Us. These are priced to quit. Please contact us for a quote if you require more.
ID (d) 1.191 mm _{+ 0.000 / - 0.005} (Equiv. 0.047 in.)	OD (D) 3.967 mm _{+ 0.000 / - 0.0075} (Equiv. 0.156 in.)	Width (B) 2.381 mm _{+ 0.000 / - 0.125} (Equiv. 0.094 in.)	Inner Ring Width (Bn) 3.175 mm
Material: Stainless Steel AISI 440C Flange Diameter (DF): 5.156 mm Flange Width (BF): 0.787 mm Precision Grade: Abec 3 Closure Type: ZZS Bearing Type: Radial Flanged with Extended Inner
Part Number: SFWR0A-ZZS-MC34-U3-AF12 Single Row Ball Bearings - 1.191x3.967x2.381 mm / 3.175 mm Flanged - Stainless Steel AISI 440C Bearing Contact Us \| Item Discontinued - Please contact us if you need a large quantity Quantity Required Contact Us. These are priced to quit. Please contact us for a quote if you require more.
ID (d) 1.397 mm _{+ 0.000 / - 0.005} (Equiv. 0.055 in.)	OD (D) 4.763 mm _{+ 0.000 / - 0.0075} (Equiv. 0.188 in.)	Width (B) 1.984 mm _{+ 0.000 / - 0.125} (Equiv. 0.078 in.)	Inner Ring Width (Bn) 2.779 mm	Flange Diameter (DF) 5.156 mm	Flange Width (BF) 0.584 mm
Material: Stainless Steel AISI 440C Precision Grade: Abec 3 Closure Type: Open Bearing Type: Radial Flanged with Extended Inner
Part Number: SFWR1-MC34-U3-AF12 Single Row Ball Bearings - 1.397x4.763x1.984 mm / 2.779 mm Flanged - Stainless Steel AISI 440C Bearing Contact Us \| Item Discontinued - Please contact us if you need a large quantity Quantity Required Contact Us. These are priced to quit. Please contact us for a quote if you require more.
ID (d) 1.397 mm _{+ 0.000 / - 0.005} (Equiv. 0.055 in.)	OD (D) 4.763 mm _{+ 0.000 / - 0.0075} (Equiv. 0.188 in.)	Width (B) 1.984 mm _{+ 0.000 / - 0.125} (Equiv. 0.078 in.)	Inner Ring Width (Bn) 2.779 mm
Material: Stainless Steel AISI 440C Flange Diameter (DF): 5.156 mm Flange Width (BF): 0.584 mm Precision Grade: Abec 3 Closure Type: Open Bearing Type: Radial Flanged with Extended Inner
Part Number: SFWR1-MC34-U3-AF12 Single Row Ball Bearings - 1.397x4.763x1.984 mm / 2.779 mm Flanged - Stainless Steel AISI 440C Bearing Contact Us \| Item Discontinued - Please contact us if you need a large quantity Quantity Required Contact Us. These are priced to quit. Please contact us for a quote if you require more.
ID (d) 1.397 mm _{+ 0.000 / - 0.005} (Equiv. 0.055 in.)	OD (D) 4.763 mm _{+ 0.000 / - 0.0075} (Equiv. 0.188 in.)	Width (B) 2.779 mm _{+ 0.000 / - 0.125} (Equiv. 0.109 in.)	Inner Ring Width (Bn) 3.571 mm	Flange Diameter (DF) 5.944 mm	Flange Width (BF) 0.787 mm
Material: Stainless Steel AISI 440C Precision Grade: Abec 3 Closure Type: ZZS Bearing Type: Radial Flanged with Extended Inner
Part Number: SFWR1B-ZZS-MC34-U3-AF12 Single Row Ball Bearings - 1.397x4.763x2.779 mm / 3.571 mm Flanged - Stainless Steel AISI 440C Bearing Contact Us \| Item Discontinued - Please contact us if you need a large quantity Quantity Required Contact Us. These are priced to quit. Please contact us for a quote if you require more.
ID (d) 1.397 mm _{+ 0.000 / - 0.005} (Equiv. 0.055 in.)	OD (D) 4.763 mm _{+ 0.000 / - 0.0075} (Equiv. 0.188 in.)	Width (B) 2.779 mm _{+ 0.000 / - 0.125} (Equiv. 0.109 in.)	Inner Ring Width (Bn) 3.571 mm
Material: Stainless Steel AISI 440C Flange Diameter (DF): 5.944 mm Flange Width (BF): 0.787 mm Precision Grade: Abec 3 Closure Type: ZZS Bearing Type: Radial Flanged with Extended Inner
Part Number: SFWR1B-ZZS-MC34-U3-AF12 Single Row Ball Bearings - 1.397x4.763x2.779 mm / 3.571 mm Flanged - Stainless Steel AISI 440C Bearing Contact Us \| Item Discontinued - Please contact us if you need a large quantity Quantity Required Contact Us. These are priced to quit. Please contact us for a quote if you require more.
ID (d) 1.397 mm (Equiv. 0.055 in.)	OD (D) 4.763 mm (Equiv. 0.188 in.)	Width (B) 2.779 mm (Equiv. 0.109 in.)	Inner Ring Width (Bn) 3.571 mm	Flange Diameter (DF) 5.944 mm	Flange Width (BF) 0.787 mm
Material: Stainless Steel AISI 440C Precision Grade: Economy Closure Type: ZZ Bearing Type: Radial Flanged with Extended Inner
Part Number: SFWR1B-ZZ-ECO Single Row Ball Bearings - 1.397x4.763x2.779 mm / 3.571 mm Flanged - Stainless Steel AISI 440C Bearing Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 10, 2025 Regular price $22.41 AUD Regular price ~~$45.39 AUD~~ Sale price $22.41 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
ID (d) 1.397 mm (Equiv. 0.055 in.)	OD (D) 4.763 mm (Equiv. 0.188 in.)	Width (B) 2.779 mm (Equiv. 0.109 in.)	Inner Ring Width (Bn) 3.571 mm
Material: Stainless Steel AISI 440C Flange Diameter (DF): 5.944 mm Flange Width (BF): 0.787 mm Precision Grade: Economy Closure Type: ZZ Bearing Type: Radial Flanged with Extended Inner
Part Number: SFWR1B-ZZ-ECO Single Row Ball Bearings - 1.397x4.763x2.779 mm / 3.571 mm Flanged - Stainless Steel AISI 440C Bearing Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 10, 2025 Regular price $22.41 AUD Regular price ~~$45.39 AUD~~ Sale price $22.41 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
SFWR1B-ZZ-ECO --- Single Row Ball Bearings - 1.397x4.763x2.779 mm / 3.571 mm Flanged - Stainless Steel AISI 440C Bearing Sale SFWR1B-ZZ-ECO --- Single Row Ball Bearings - 1.397x4.763x2.779 mm / 3.571 mm Flanged - Stainless Steel AISI 440C Bearing Regular price $22.41 AUD Regular price ~~$45.39 AUD~~ Sale price $22.41 AUD Unit price per Out of stock! Backorder Now Sale
ID (d) 1.984 mm _{+ 0.000 / - 0.005} (Equiv. 0.078 in.)	OD (D) 6.350 mm _{+ 0.000 / - 0.0075} (Equiv. 0.25 in.)	Width (B) 2.381 mm _{+ 0.000 / - 0.125} (Equiv. 0.094 in.)	Inner Ring Width (Bn) 3.175 mm	Flange Diameter (DF) 7.518 mm	Flange Width (BF) 0.584 mm
Material: Stainless Steel AISI 440C Precision Grade: Abec 3 Closure Type: Open Bearing Type: Radial Flanged with Extended Inner
Part Number: SFWR1-4-MC34-U3-AF12 Single Row Ball Bearings - 1.984x6.35x2.381 mm / 3.175 mm Flanged - Stainless Steel AISI 440C Bearing Contact Us \| Item Discontinued - Please contact us if you need a large quantity Quantity Required Contact Us. These are priced to quit. Please contact us for a quote if you require more.
ID (d) 1.984 mm _{+ 0.000 / - 0.005} (Equiv. 0.078 in.)	OD (D) 6.350 mm _{+ 0.000 / - 0.0075} (Equiv. 0.25 in.)	Width (B) 2.381 mm _{+ 0.000 / - 0.125} (Equiv. 0.094 in.)	Inner Ring Width (Bn) 3.175 mm
Material: Stainless Steel AISI 440C Flange Diameter (DF): 7.518 mm Flange Width (BF): 0.584 mm Precision Grade: Abec 3 Closure Type: Open Bearing Type: Radial Flanged with Extended Inner
Part Number: SFWR1-4-MC34-U3-AF12 Single Row Ball Bearings - 1.984x6.35x2.381 mm / 3.175 mm Flanged - Stainless Steel AISI 440C Bearing Contact Us \| Item Discontinued - Please contact us if you need a large quantity Quantity Required Contact Us. These are priced to quit. Please contact us for a quote if you require more.
ID (d) 1.984 mm _{+ 0.000 / - 0.005} (Equiv. 0.078 in.)	OD (D) 6.350 mm _{+ 0.000 / - 0.0075} (Equiv. 0.25 in.)	Width (B) 3.571 mm _{+ 0.000 / - 0.125} (Equiv. 0.141 in.)	Inner Ring Width (Bn) 4.366 mm	Flange Diameter (DF) 7.518 mm	Flange Width (BF) 0.787 mm
Material: Stainless Steel AISI 440C Precision Grade: Abec 3 Closure Type: ZZS Bearing Type: Radial Flanged with Extended Inner
Part Number: SFWR1-4B-ZZS-MC34-U3-AF12 Single Row Ball Bearings - 1.984x6.35x3.571 mm / 4.366 mm Flanged - Stainless Steel AISI 440C Bearing Contact Us \| Item Discontinued - Please contact us if you need a large quantity Quantity Required Contact Us. These are priced to quit. Please contact us for a quote if you require more.
ID (d) 1.984 mm _{+ 0.000 / - 0.005} (Equiv. 0.078 in.)	OD (D) 6.350 mm _{+ 0.000 / - 0.0075} (Equiv. 0.25 in.)	Width (B) 3.571 mm _{+ 0.000 / - 0.125} (Equiv. 0.141 in.)	Inner Ring Width (Bn) 4.366 mm
Material: Stainless Steel AISI 440C Flange Diameter (DF): 7.518 mm Flange Width (BF): 0.787 mm Precision Grade: Abec 3 Closure Type: ZZS Bearing Type: Radial Flanged with Extended Inner
Part Number: SFWR1-4B-ZZS-MC34-U3-AF12 Single Row Ball Bearings - 1.984x6.35x3.571 mm / 4.366 mm Flanged - Stainless Steel AISI 440C Bearing Contact Us \| Item Discontinued - Please contact us if you need a large quantity Quantity Required Contact Us. These are priced to quit. Please contact us for a quote if you require more.
ID (d) 1.984 mm _{+ 0.000 / - 0.0075} (Equiv. 0.078 in.)	OD (D) 6.350 mm _{+ 0.000 / - 0.0075} (Equiv. 0.25 in.)	Width (B) 3.571 mm _{+ 0.000 / - 0.125} (Equiv. 0.141 in.)	Inner Ring Width (Bn) 4.366 mm	Flange Diameter (DF) 7.518 mm	Flange Width (BF) 0.787 mm
Material: Stainless Steel AISI 440C Precision Grade: Abec 1 Closure Type: ZZS Bearing Type: Radial Flanged with Extended Inner
Part Number: SFWR1-4B-ZZS-MC3 Single Row Ball Bearings - 1.984x6.35x3.571 mm / 4.366 mm Flanged - Stainless Steel AISI 440C Bearing Out of Stock \| Backorder Now \| Orders can be expected around Tue, Oct 07, 2025 Regular price $39.41 AUD Regular price ~~$81.26 AUD~~ Sale price $39.41 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
ID (d) 1.984 mm _{+ 0.000 / - 0.0075} (Equiv. 0.078 in.)	OD (D) 6.350 mm _{+ 0.000 / - 0.0075} (Equiv. 0.25 in.)	Width (B) 3.571 mm _{+ 0.000 / - 0.125} (Equiv. 0.141 in.)	Inner Ring Width (Bn) 4.366 mm
Material: Stainless Steel AISI 440C Flange Diameter (DF): 7.518 mm Flange Width (BF): 0.787 mm Precision Grade: Abec 1 Closure Type: ZZS Bearing Type: Radial Flanged with Extended Inner
Part Number: SFWR1-4B-ZZS-MC3 Single Row Ball Bearings - 1.984x6.35x3.571 mm / 4.366 mm Flanged - Stainless Steel AISI 440C Bearing Out of Stock \| Backorder Now \| Orders can be expected around Tue, Oct 07, 2025 Regular price $39.41 AUD Regular price ~~$81.26 AUD~~ Sale price $39.41 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
SFWR1-4B-ZZS-MC3 --- Single Row Ball Bearings - 1.984x6.35x3.571 mm / 4.366 mm Flanged - Stainless Steel AISI 440C Bearing Sale SFWR1-4B-ZZS-MC3 --- Single Row Ball Bearings - 1.984x6.35x3.571 mm / 4.366 mm Flanged - Stainless Steel AISI 440C Bearing Regular price $39.41 AUD Regular price ~~$81.26 AUD~~ Sale price $39.41 AUD Unit price per Out of stock! Backorder Now Sale
ID (d) 2.381 mm _{+ 0.000 / - 0.005} (Equiv. 0.094 in.)	OD (D) 4.763 mm _{+ 0.000 / - 0.0075} (Equiv. 0.188 in.)	Width (B) 1.588 mm _{+ 0.000 / - 0.125} (Equiv. 0.063 in.)	Inner Ring Width (Bn) 2.381 mm	Flange Diameter (DF) 5.156 mm	Flange Width (BF) 0.457 mm
Material: Stainless Steel AISI 440C Precision Grade: Abec 3 Closure Type: Open Bearing Type: Radial Flanged with Extended Inner
Part Number: SFWR133-MC34-U3-AF12 Single Row Ball Bearings - 2.381x4.763x1.588 mm / 2.381 mm Flanged - Stainless Steel AISI 440C Bearing Contact Us \| Item Discontinued - Please contact us if you need a large quantity Quantity Required Contact Us. These are priced to quit. Please contact us for a quote if you require more.
ID (d) 2.381 mm _{+ 0.000 / - 0.005} (Equiv. 0.094 in.)	OD (D) 4.763 mm _{+ 0.000 / - 0.0075} (Equiv. 0.188 in.)	Width (B) 1.588 mm _{+ 0.000 / - 0.125} (Equiv. 0.063 in.)	Inner Ring Width (Bn) 2.381 mm
Material: Stainless Steel AISI 440C Flange Diameter (DF): 5.156 mm Flange Width (BF): 0.457 mm Precision Grade: Abec 3 Closure Type: Open Bearing Type: Radial Flanged with Extended Inner
Part Number: SFWR133-MC34-U3-AF12 Single Row Ball Bearings - 2.381x4.763x1.588 mm / 2.381 mm Flanged - Stainless Steel AISI 440C Bearing Contact Us \| Item Discontinued - Please contact us if you need a large quantity Quantity Required Contact Us. These are priced to quit. Please contact us for a quote if you require more.
ID (d) 2.381 mm _{+ 0.000 / - 0.0075} (Equiv. 0.094 in.)	OD (D) 4.763 mm _{+ 0.000 / - 0.0075} (Equiv. 0.188 in.)	Width (B) 2.381 mm _{+ 0.000 / - 0.125} (Equiv. 0.094 in.)	Inner Ring Width (Bn) 3.175 mm	Flange Diameter (DF) 5.944 mm	Flange Width (BF) 0.787 mm
Material: Stainless Steel AISI 440C Precision Grade: Abec 1 Closure Type: ZZ Bearing Type: Radial Flanged with Extended Inner
Part Number: SFWR133A-ZZ-MC3 Single Row Ball Bearings - 2.381x4.763x2.381 mm / 3.175 mm Flanged - Stainless Steel AISI 440C Bearing Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 10, 2025 Regular price $20.50 AUD Regular price ~~$41.31 AUD~~ Sale price $20.50 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
ID (d) 2.381 mm _{+ 0.000 / - 0.0075} (Equiv. 0.094 in.)	OD (D) 4.763 mm _{+ 0.000 / - 0.0075} (Equiv. 0.188 in.)	Width (B) 2.381 mm _{+ 0.000 / - 0.125} (Equiv. 0.094 in.)	Inner Ring Width (Bn) 3.175 mm
Material: Stainless Steel AISI 440C Flange Diameter (DF): 5.944 mm Flange Width (BF): 0.787 mm Precision Grade: Abec 1 Closure Type: ZZ Bearing Type: Radial Flanged with Extended Inner
Part Number: SFWR133A-ZZ-MC3 Single Row Ball Bearings - 2.381x4.763x2.381 mm / 3.175 mm Flanged - Stainless Steel AISI 440C Bearing Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 10, 2025 Regular price $20.50 AUD Regular price ~~$41.31 AUD~~ Sale price $20.50 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
SFWR133A-ZZ-MC3 --- Single Row Ball Bearings - 2.381x4.763x2.381 mm / 3.175 mm Flanged - Stainless Steel AISI 440C Bearing Sale SFWR133A-ZZ-MC3 --- Single Row Ball Bearings - 2.381x4.763x2.381 mm / 3.175 mm Flanged - Stainless Steel AISI 440C Bearing Regular price $20.50 AUD Regular price ~~$41.31 AUD~~ Sale price $20.50 AUD Unit price per Out of stock! Backorder Now Sale
ID (d) 2.381 mm _{+ 0.000 / - 0.007} (Equiv. 0.094 in.)	OD (D) 4.763 mm _{+ 0.000 / - 0.007} (Equiv. 0.188 in.)	Width (B) 2.381 mm _{+ 0.000 / - 0.040} (Equiv. 0.094 in.)	Inner Ring Width (Bn) 3.175 mm	Flange Diameter (DF) 5.944 mm	Flange Width (BF) 0.787 mm
Material: Stainless Steel AISI 440C Precision Grade: P6 Closure Type: ZZ Bearing Type: Radial Flanged with Extended Inner
Part Number: SFWR133A-ZZ-MC3-JP6 Single Row Ball Bearings - 2.381x4.763x2.381 mm / 3.175 mm Flanged - Stainless Steel AISI 440C Bearing Contact Us \| Item Discontinued - Please contact us if you need a large quantity Quantity Required Contact Us. These are priced to quit. Please contact us for a quote if you require more.
ID (d) 2.381 mm _{+ 0.000 / - 0.007} (Equiv. 0.094 in.)	OD (D) 4.763 mm _{+ 0.000 / - 0.007} (Equiv. 0.188 in.)	Width (B) 2.381 mm _{+ 0.000 / - 0.040} (Equiv. 0.094 in.)	Inner Ring Width (Bn) 3.175 mm
Material: Stainless Steel AISI 440C Flange Diameter (DF): 5.944 mm Flange Width (BF): 0.787 mm Precision Grade: P6 Closure Type: ZZ Bearing Type: Radial Flanged with Extended Inner
Part Number: SFWR133A-ZZ-MC3-JP6 Single Row Ball Bearings - 2.381x4.763x2.381 mm / 3.175 mm Flanged - Stainless Steel AISI 440C Bearing Contact Us \| Item Discontinued - Please contact us if you need a large quantity Quantity Required Contact Us. These are priced to quit. Please contact us for a quote if you require more.
ID (d) 2.381 mm _{+ 0.000 / - 0.005} (Equiv. 0.094 in.)	OD (D) 4.763 mm _{+ 0.000 / - 0.0075} (Equiv. 0.188 in.)	Width (B) 2.381 mm _{+ 0.000 / - 0.125} (Equiv. 0.094 in.)	Inner Ring Width (Bn) 3.175 mm	Flange Diameter (DF) 5.944 mm	Flange Width (BF) 0.787 mm
Material: Stainless Steel AISI 440C Precision Grade: Abec 3 Closure Type: ZZS Bearing Type: Radial Flanged with Extended Inner
Part Number: SFWR133A-ZZS-MC34-U3-AF12 Single Row Ball Bearings - 2.381x4.763x2.381 mm / 3.175 mm Flanged - Stainless Steel AISI 440C Bearing Contact Us \| Item Discontinued - Please contact us if you need a large quantity Quantity Required Contact Us. These are priced to quit. Please contact us for a quote if you require more.
ID (d) 2.381 mm _{+ 0.000 / - 0.005} (Equiv. 0.094 in.)	OD (D) 4.763 mm _{+ 0.000 / - 0.0075} (Equiv. 0.188 in.)	Width (B) 2.381 mm _{+ 0.000 / - 0.125} (Equiv. 0.094 in.)	Inner Ring Width (Bn) 3.175 mm
Material: Stainless Steel AISI 440C Flange Diameter (DF): 5.944 mm Flange Width (BF): 0.787 mm Precision Grade: Abec 3 Closure Type: ZZS Bearing Type: Radial Flanged with Extended Inner
Part Number: SFWR133A-ZZS-MC34-U3-AF12 Single Row Ball Bearings - 2.381x4.763x2.381 mm / 3.175 mm Flanged - Stainless Steel AISI 440C Bearing Contact Us \| Item Discontinued - Please contact us if you need a large quantity Quantity Required Contact Us. These are priced to quit. Please contact us for a quote if you require more.
ID (d) 2.381 mm _{+ 0.000 / - 0.005} (Equiv. 0.094 in.)	OD (D) 7.938 mm _{+ 0.000 / - 0.0075} (Equiv. 0.313 in.)	Width (B) 2.779 mm _{+ 0.000 / - 0.125} (Equiv. 0.109 in.)	Inner Ring Width (Bn) 3.571 mm	Flange Diameter (DF) 9.119 mm	Flange Width (BF) 0.584 mm
Material: Stainless Steel AISI 440C Precision Grade: Abec 3 Closure Type: Open Bearing Type: Radial Flanged with Extended Inner
Part Number: SFWR1-5-MC34-U3-AF12 Single Row Ball Bearings - 2.381x7.938x2.779 mm / 3.571 mm Flanged - Stainless Steel AISI 440C Bearing Contact Us \| Item Discontinued - Please contact us if you need a large quantity Quantity Required Contact Us. These are priced to quit. Please contact us for a quote if you require more.
ID (d) 2.381 mm _{+ 0.000 / - 0.005} (Equiv. 0.094 in.)	OD (D) 7.938 mm _{+ 0.000 / - 0.0075} (Equiv. 0.313 in.)	Width (B) 2.779 mm _{+ 0.000 / - 0.125} (Equiv. 0.109 in.)	Inner Ring Width (Bn) 3.571 mm
Material: Stainless Steel AISI 440C Flange Diameter (DF): 9.119 mm Flange Width (BF): 0.584 mm Precision Grade: Abec 3 Closure Type: Open Bearing Type: Radial Flanged with Extended Inner
Part Number: SFWR1-5-MC34-U3-AF12 Single Row Ball Bearings - 2.381x7.938x2.779 mm / 3.571 mm Flanged - Stainless Steel AISI 440C Bearing Contact Us \| Item Discontinued - Please contact us if you need a large quantity Quantity Required Contact Us. These are priced to quit. Please contact us for a quote if you require more.
ID (d) 2.381 mm _{+ 0.000 / - 0.005} (Equiv. 0.094 in.)	OD (D) 7.938 mm _{+ 0.000 / - 0.0075} (Equiv. 0.313 in.)	Width (B) 3.571 mm _{+ 0.000 / - 0.125} (Equiv. 0.141 in.)	Inner Ring Width (Bn) 4.366 mm	Flange Diameter (DF) 9.119 mm	Flange Width (BF) 0.787 mm
Material: Stainless Steel AISI 440C Precision Grade: Abec 3 Closure Type: ZZS Bearing Type: Radial Flanged with Extended Inner
Part Number: SFWR1-5A-ZZS-MC34-U3-AF12 Single Row Ball Bearings - 2.381x7.938x3.571 mm / 4.366 mm Flanged - Stainless Steel AISI 440C Bearing Contact Us \| Item Discontinued - Please contact us if you need a large quantity Quantity Required Contact Us. These are priced to quit. Please contact us for a quote if you require more.
ID (d) 2.381 mm _{+ 0.000 / - 0.005} (Equiv. 0.094 in.)	OD (D) 7.938 mm _{+ 0.000 / - 0.0075} (Equiv. 0.313 in.)	Width (B) 3.571 mm _{+ 0.000 / - 0.125} (Equiv. 0.141 in.)	Inner Ring Width (Bn) 4.366 mm
Material: Stainless Steel AISI 440C Flange Diameter (DF): 9.119 mm Flange Width (BF): 0.787 mm Precision Grade: Abec 3 Closure Type: ZZS Bearing Type: Radial Flanged with Extended Inner
Part Number: SFWR1-5A-ZZS-MC34-U3-AF12 Single Row Ball Bearings - 2.381x7.938x3.571 mm / 4.366 mm Flanged - Stainless Steel AISI 440C Bearing Contact Us \| Item Discontinued - Please contact us if you need a large quantity Quantity Required Contact Us. These are priced to quit. Please contact us for a quote if you require more.
ID (d) 2.381 mm _{+ 0.000 / - 0.0075} (Equiv. 0.094 in.)	OD (D) 7.938 mm _{+ 0.000 / - 0.0075} (Equiv. 0.313 in.)	Width (B) 3.571 mm _{+ 0.000 / - 0.125} (Equiv. 0.141 in.)	Inner Ring Width (Bn) 4.366 mm	Flange Diameter (DF) 9.119 mm	Flange Width (BF) 0.787 mm
Material: Stainless Steel AISI 440C Precision Grade: Abec 1 Closure Type: ZZS Bearing Type: Radial Flanged with Extended Inner
Part Number: SFWR1-5A-ZZS-MC3 Single Row Ball Bearings - 2.381x7.938x3.571 mm / 4.366 mm Flanged - Stainless Steel AISI 440C Bearing Out of Stock \| Backorder Now \| Orders can be expected around Tue, Oct 07, 2025 Regular price $49.59 AUD Regular price ~~$102.94 AUD~~ Sale price $49.59 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
ID (d) 2.381 mm _{+ 0.000 / - 0.0075} (Equiv. 0.094 in.)	OD (D) 7.938 mm _{+ 0.000 / - 0.0075} (Equiv. 0.313 in.)	Width (B) 3.571 mm _{+ 0.000 / - 0.125} (Equiv. 0.141 in.)	Inner Ring Width (Bn) 4.366 mm
Material: Stainless Steel AISI 440C Flange Diameter (DF): 9.119 mm Flange Width (BF): 0.787 mm Precision Grade: Abec 1 Closure Type: ZZS Bearing Type: Radial Flanged with Extended Inner
Part Number: SFWR1-5A-ZZS-MC3 Single Row Ball Bearings - 2.381x7.938x3.571 mm / 4.366 mm Flanged - Stainless Steel AISI 440C Bearing Out of Stock \| Backorder Now \| Orders can be expected around Tue, Oct 07, 2025 Regular price $49.59 AUD Regular price ~~$102.94 AUD~~ Sale price $49.59 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
SFWR1-5A-ZZS-MC3 --- Single Row Ball Bearings - 2.381x7.938x3.571 mm / 4.366 mm Flanged - Stainless Steel AISI 440C Bearing Sale SFWR1-5A-ZZS-MC3 --- Single Row Ball Bearings - 2.381x7.938x3.571 mm / 4.366 mm Flanged - Stainless Steel AISI 440C Bearing Regular price $49.59 AUD Regular price ~~$102.94 AUD~~ Sale price $49.59 AUD Unit price per Out of stock! Backorder Now Sale
ID (d) 3.175 mm _{+ 0.000 / - 0.005} (Equiv. 0.125 in.)	OD (D) 6.350 mm _{+ 0.000 / - 0.0075} (Equiv. 0.25 in.)	Width (B) 2.381 mm _{+ 0.000 / - 0.125} (Equiv. 0.094 in.)	Inner Ring Width (Bn) 3.175 mm	Flange Diameter (DF) 7.518 mm	Flange Width (BF) 0.584 mm
Material: Stainless Steel AISI 440C Precision Grade: Abec 3 Closure Type: Open Bearing Type: Radial Flanged with Extended Inner
Part Number: SFWR144-MC34-U3-AF12 Single Row Ball Bearings - 3.175x6.35x2.381 mm / 3.175 mm Flanged - Stainless Steel AISI 440C Bearing Contact Us \| Item Discontinued - Please contact us if you need a large quantity Quantity Required Contact Us. These are priced to quit. Please contact us for a quote if you require more.
ID (d) 3.175 mm _{+ 0.000 / - 0.005} (Equiv. 0.125 in.)	OD (D) 6.350 mm _{+ 0.000 / - 0.0075} (Equiv. 0.25 in.)	Width (B) 2.381 mm _{+ 0.000 / - 0.125} (Equiv. 0.094 in.)	Inner Ring Width (Bn) 3.175 mm
Material: Stainless Steel AISI 440C Flange Diameter (DF): 7.518 mm Flange Width (BF): 0.584 mm Precision Grade: Abec 3 Closure Type: Open Bearing Type: Radial Flanged with Extended Inner
Part Number: SFWR144-MC34-U3-AF12 Single Row Ball Bearings - 3.175x6.35x2.381 mm / 3.175 mm Flanged - Stainless Steel AISI 440C Bearing Contact Us \| Item Discontinued - Please contact us if you need a large quantity Quantity Required Contact Us. These are priced to quit. Please contact us for a quote if you require more.
ID (d) 3.175 mm _{+ 0.000 / - 0.005} (Equiv. 0.125 in.)	OD (D) 6.350 mm _{+ 0.000 / - 0.0075} (Equiv. 0.25 in.)	Width (B) 2.779 mm _{+ 0.000 / - 0.125} (Equiv. 0.109 in.)	Inner Ring Width (Bn) 3.571 mm	Flange Diameter (DF) 7.518 mm	Flange Width (BF) 0.787 mm
Material: Stainless Steel AISI 440C Precision Grade: Abec 3 Closure Type: ZZS Bearing Type: Radial Flanged with Extended Inner
Part Number: SFWR144A-ZZS-MC34-U3-AF12 Single Row Ball Bearings - 3.175x6.35x2.779 mm / 3.571 mm Flanged - Stainless Steel AISI 440C Bearing Contact Us \| Item Discontinued - Please contact us if you need a large quantity Quantity Required Contact Us. These are priced to quit. Please contact us for a quote if you require more.
ID (d) 3.175 mm _{+ 0.000 / - 0.005} (Equiv. 0.125 in.)	OD (D) 6.350 mm _{+ 0.000 / - 0.0075} (Equiv. 0.25 in.)	Width (B) 2.779 mm _{+ 0.000 / - 0.125} (Equiv. 0.109 in.)	Inner Ring Width (Bn) 3.571 mm
Material: Stainless Steel AISI 440C Flange Diameter (DF): 7.518 mm Flange Width (BF): 0.787 mm Precision Grade: Abec 3 Closure Type: ZZS Bearing Type: Radial Flanged with Extended Inner
Part Number: SFWR144A-ZZS-MC34-U3-AF12 Single Row Ball Bearings - 3.175x6.35x2.779 mm / 3.571 mm Flanged - Stainless Steel AISI 440C Bearing Contact Us \| Item Discontinued - Please contact us if you need a large quantity Quantity Required Contact Us. These are priced to quit. Please contact us for a quote if you require more.
ID (d) 3.175 mm _{+ 0.000 / - 0.0075} (Equiv. 0.125 in.)	OD (D) 6.350 mm _{+ 0.000 / - 0.0075} (Equiv. 0.25 in.)	Width (B) 2.779 mm _{+ 0.000 / - 0.125} (Equiv. 0.109 in.)	Inner Ring Width (Bn) 3.571 mm	Flange Diameter (DF) 7.518 mm	Flange Width (BF) 0.787 mm
Material: Stainless Steel AISI 440C Precision Grade: Abec 1 Closure Type: ZZS Bearing Type: Radial Flanged with Extended Inner
Part Number: SFWR144A-ZZS-MC3 Single Row Ball Bearings - 3.175x6.35x2.779 mm / 3.571 mm Flanged - Stainless Steel AISI 440C Bearing Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $19.41 AUD Regular price ~~$38.85 AUD~~ Sale price $19.41 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
ID (d) 3.175 mm _{+ 0.000 / - 0.0075} (Equiv. 0.125 in.)	OD (D) 6.350 mm _{+ 0.000 / - 0.0075} (Equiv. 0.25 in.)	Width (B) 2.779 mm _{+ 0.000 / - 0.125} (Equiv. 0.109 in.)	Inner Ring Width (Bn) 3.571 mm
Material: Stainless Steel AISI 440C Flange Diameter (DF): 7.518 mm Flange Width (BF): 0.787 mm Precision Grade: Abec 1 Closure Type: ZZS Bearing Type: Radial Flanged with Extended Inner
Part Number: SFWR144A-ZZS-MC3 Single Row Ball Bearings - 3.175x6.35x2.779 mm / 3.571 mm Flanged - Stainless Steel AISI 440C Bearing Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $19.41 AUD Regular price ~~$38.85 AUD~~ Sale price $19.41 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
SFWR144A-ZZS-MC3 --- Single Row Ball Bearings - 3.175x6.35x2.779 mm / 3.571 mm Flanged - Stainless Steel AISI 440C Bearing Sale SFWR144A-ZZS-MC3 --- Single Row Ball Bearings - 3.175x6.35x2.779 mm / 3.571 mm Flanged - Stainless Steel AISI 440C Bearing Regular price $19.41 AUD Regular price ~~$38.85 AUD~~ Sale price $19.41 AUD Unit price per Out of stock! Backorder Now Sale
ID (d) 3.175 mm _{+ 0.000 / - 0.005} (Equiv. 0.125 in.)	OD (D) 7.938 mm _{+ 0.000 / - 0.0075} (Equiv. 0.313 in.)	Width (B) 2.779 mm _{+ 0.000 / - 0.125} (Equiv. 0.109 in.)	Inner Ring Width (Bn) 3.571 mm	Flange Diameter (DF) 9.119 mm	Flange Width (BF) 0.584 mm
Material: Stainless Steel AISI 440C Precision Grade: Abec 3 Closure Type: Open Bearing Type: Radial Flanged with Extended Inner
Part Number: SFWR2-5-MC34-U3-AF12 Single Row Ball Bearings - 3.175x7.938x2.779 mm / 3.571 mm Flanged - Stainless Steel AISI 440C Bearing Contact Us \| Item Discontinued - Please contact us if you need a large quantity Quantity Required Contact Us. These are priced to quit. Please contact us for a quote if you require more.
ID (d) 3.175 mm _{+ 0.000 / - 0.005} (Equiv. 0.125 in.)	OD (D) 7.938 mm _{+ 0.000 / - 0.0075} (Equiv. 0.313 in.)	Width (B) 2.779 mm _{+ 0.000 / - 0.125} (Equiv. 0.109 in.)	Inner Ring Width (Bn) 3.571 mm
Material: Stainless Steel AISI 440C Flange Diameter (DF): 9.119 mm Flange Width (BF): 0.584 mm Precision Grade: Abec 3 Closure Type: Open Bearing Type: Radial Flanged with Extended Inner
Part Number: SFWR2-5-MC34-U3-AF12 Single Row Ball Bearings - 3.175x7.938x2.779 mm / 3.571 mm Flanged - Stainless Steel AISI 440C Bearing Contact Us \| Item Discontinued - Please contact us if you need a large quantity Quantity Required Contact Us. These are priced to quit. Please contact us for a quote if you require more.
ID (d) 3.175 mm _{+ 0.000 / - 0.0075} (Equiv. 0.125 in.)	OD (D) 7.938 mm _{+ 0.000 / - 0.0075} (Equiv. 0.313 in.)	Width (B) 3.571 mm _{+ 0.000 / - 0.125} (Equiv. 0.141 in.)	Inner Ring Width (Bn) 4.366 mm	Flange Diameter (DF) 9.119 mm	Flange Width (BF) 0.787 mm
Material: Stainless Steel AISI 440C Precision Grade: Abec 1 Closure Type: ZZ Bearing Type: Radial Flanged with Extended Inner
Part Number: SFWR2-5A-ZZ-MC3 Single Row Ball Bearings - 3.175x7.938x3.571 mm / 4.366 mm Flanged - Stainless Steel AISI 440C Bearing Out of Stock \| Backorder Now \| Orders can be expected around Tue, Oct 07, 2025 Regular price $33.41 AUD Regular price ~~$68.53 AUD~~ Sale price $33.41 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
ID (d) 3.175 mm _{+ 0.000 / - 0.0075} (Equiv. 0.125 in.)	OD (D) 7.938 mm _{+ 0.000 / - 0.0075} (Equiv. 0.313 in.)	Width (B) 3.571 mm _{+ 0.000 / - 0.125} (Equiv. 0.141 in.)	Inner Ring Width (Bn) 4.366 mm
Material: Stainless Steel AISI 440C Flange Diameter (DF): 9.119 mm Flange Width (BF): 0.787 mm Precision Grade: Abec 1 Closure Type: ZZ Bearing Type: Radial Flanged with Extended Inner
Part Number: SFWR2-5A-ZZ-MC3 Single Row Ball Bearings - 3.175x7.938x3.571 mm / 4.366 mm Flanged - Stainless Steel AISI 440C Bearing Out of Stock \| Backorder Now \| Orders can be expected around Tue, Oct 07, 2025 Regular price $33.41 AUD Regular price ~~$68.53 AUD~~ Sale price $33.41 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
SFWR2-5A-ZZ-MC3 --- Single Row Ball Bearings - 3.175x7.938x3.571 mm / 4.366 mm Flanged - Stainless Steel AISI 440C Bearing Sale SFWR2-5A-ZZ-MC3 --- Single Row Ball Bearings - 3.175x7.938x3.571 mm / 4.366 mm Flanged - Stainless Steel AISI 440C Bearing Regular price $33.41 AUD Regular price ~~$68.53 AUD~~ Sale price $33.41 AUD Unit price per Out of stock! Backorder Now Sale
ID (d) 3.175 mm _{+ 0.000 / - 0.005} (Equiv. 0.125 in.)	OD (D) 7.938 mm _{+ 0.000 / - 0.0075} (Equiv. 0.313 in.)	Width (B) 3.571 mm _{+ 0.000 / - 0.125} (Equiv. 0.141 in.)	Inner Ring Width (Bn) 4.367 mm	Flange Diameter (DF) 9.119 mm	Flange Width (BF) 0.787 mm
Material: Stainless Steel AISI 440C Precision Grade: Abec 3 Closure Type: ZZS Bearing Type: Radial Flanged with Extended Inner
Part Number: SFWR2-5A-ZZS-MC34-U3-AF12 Single Row Ball Bearings - 3.175x7.938x3.571 mm / 4.367 mm Flanged - Stainless Steel AISI 440C Bearing Contact Us \| Item Discontinued - Please contact us if you need a large quantity Quantity Required Contact Us. These are priced to quit. Please contact us for a quote if you require more.
ID (d) 3.175 mm _{+ 0.000 / - 0.005} (Equiv. 0.125 in.)	OD (D) 7.938 mm _{+ 0.000 / - 0.0075} (Equiv. 0.313 in.)	Width (B) 3.571 mm _{+ 0.000 / - 0.125} (Equiv. 0.141 in.)	Inner Ring Width (Bn) 4.367 mm
Material: Stainless Steel AISI 440C Flange Diameter (DF): 9.119 mm Flange Width (BF): 0.787 mm Precision Grade: Abec 3 Closure Type: ZZS Bearing Type: Radial Flanged with Extended Inner
Part Number: SFWR2-5A-ZZS-MC34-U3-AF12 Single Row Ball Bearings - 3.175x7.938x3.571 mm / 4.367 mm Flanged - Stainless Steel AISI 440C Bearing Contact Us \| Item Discontinued - Please contact us if you need a large quantity Quantity Required Contact Us. These are priced to quit. Please contact us for a quote if you require more.

Collection: Bearings - Single Row Ball - Flanged - Precision - Extended Inner

Category Details

Filter:

SFWR0A-ZZ-MC3 --- Single Row Ball Bearings - 1.191x3.967x2.381 mm / 3.175 mm Flanged - Stainless Steel AISI 440C Bearing

SFWR0A-ZZ-MC3 --- Single Row Ball Bearings - 1.191x3.967x2.381 mm / 3.175 mm Flanged - Stainless Steel AISI 440C Bearing

SFWR0A-ZZ-MC3-J3-G5 (500 Pcs) --- Single Row Ball Bearings - 1.191x3.967x2.381 mm / 3.175 mm Flanged - Stainless Steel AISI 440C Bearing

SFWR0A-ZZ-MC3-J3-G5 (500 Pcs) --- Single Row Ball Bearings - 1.191x3.967x2.381 mm / 3.175 mm Flanged - Stainless Steel AISI 440C Bearing

SFWR1B-ZZ-ECO --- Single Row Ball Bearings - 1.397x4.763x2.779 mm / 3.571 mm Flanged - Stainless Steel AISI 440C Bearing

SFWR1B-ZZ-ECO --- Single Row Ball Bearings - 1.397x4.763x2.779 mm / 3.571 mm Flanged - Stainless Steel AISI 440C Bearing

SFWR1-4B-ZZS-MC3 --- Single Row Ball Bearings - 1.984x6.35x3.571 mm / 4.366 mm Flanged - Stainless Steel AISI 440C Bearing

SFWR1-4B-ZZS-MC3 --- Single Row Ball Bearings - 1.984x6.35x3.571 mm / 4.366 mm Flanged - Stainless Steel AISI 440C Bearing

SFWR133A-ZZ-MC3 --- Single Row Ball Bearings - 2.381x4.763x2.381 mm / 3.175 mm Flanged - Stainless Steel AISI 440C Bearing

SFWR133A-ZZ-MC3 --- Single Row Ball Bearings - 2.381x4.763x2.381 mm / 3.175 mm Flanged - Stainless Steel AISI 440C Bearing

SFWR1-5A-ZZS-MC3 --- Single Row Ball Bearings - 2.381x7.938x3.571 mm / 4.366 mm Flanged - Stainless Steel AISI 440C Bearing

SFWR1-5A-ZZS-MC3 --- Single Row Ball Bearings - 2.381x7.938x3.571 mm / 4.366 mm Flanged - Stainless Steel AISI 440C Bearing

SFWR144A-ZZS-MC3 --- Single Row Ball Bearings - 3.175x6.35x2.779 mm / 3.571 mm Flanged - Stainless Steel AISI 440C Bearing

SFWR144A-ZZS-MC3 --- Single Row Ball Bearings - 3.175x6.35x2.779 mm / 3.571 mm Flanged - Stainless Steel AISI 440C Bearing

SFWR2-5A-ZZ-MC3 --- Single Row Ball Bearings - 3.175x7.938x3.571 mm / 4.366 mm Flanged - Stainless Steel AISI 440C Bearing

SFWR2-5A-ZZ-MC3 --- Single Row Ball Bearings - 3.175x7.938x3.571 mm / 4.366 mm Flanged - Stainless Steel AISI 440C Bearing

Country/region

Country/region

Collection: Bearings - Single Row Ball - Flanged - Precision - Extended Inner

Category Details

Filter

Filter

Subscribe to our emails
