CC-053-060-C (10 Pcs)

Name: CC-053-060-C (10 Pack) - Crescent Retaining Rings - 5.28x5.99x0.64 mm - Carbon Spring Steel Self Finish
Brand: MBA
SKU: CC053060C
Price: 3.32 AUD
Availability: InStock

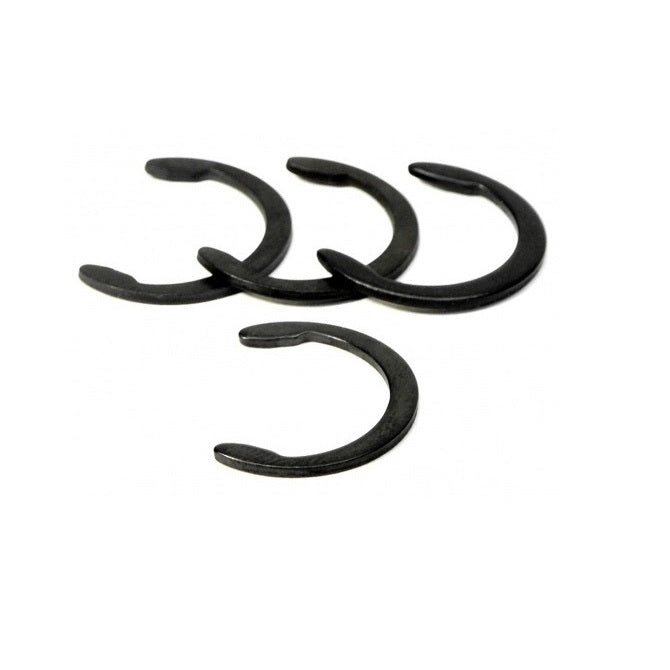

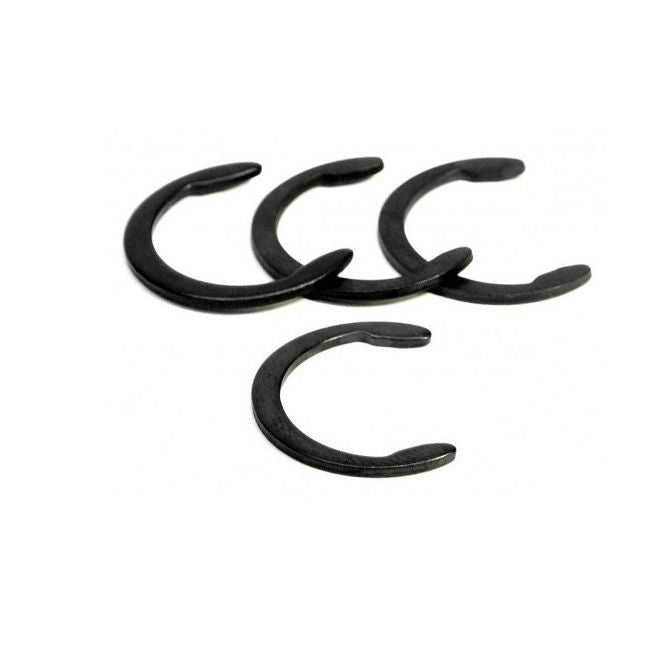

Crescent Retaining Rings - 5.28x5.99x0.64 mm - Carbon Spring Steel Self Finish

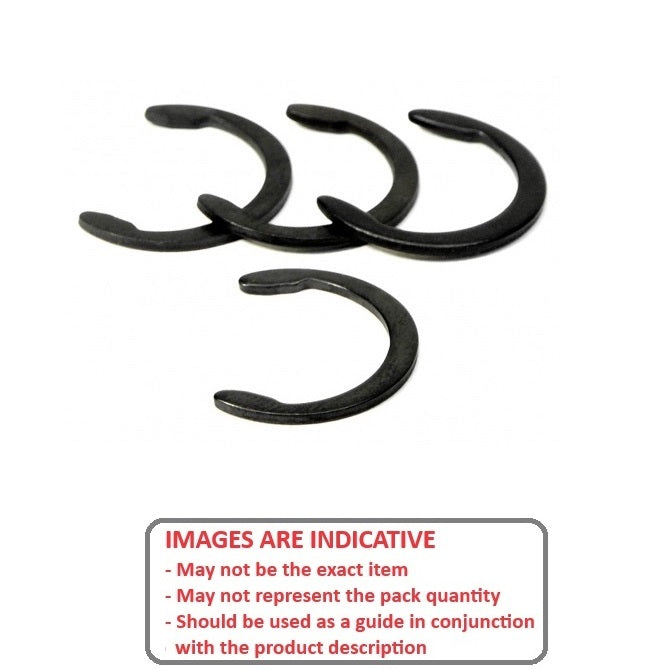

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.

1 4

MBA

Store: Minibearings - Miniature Bearings Australia - Retail & Wholesale

Category: Retaining Rings - Crescent

Price:

$3.32 AUD

10 Per Sell Unit

Excludes GST and overseas Taxes & Duties

Qty: 90 available now
Order 50 or more for $2.99 AUD

Product Details

Additional stock available from USA subject to Prior Sale = 8325

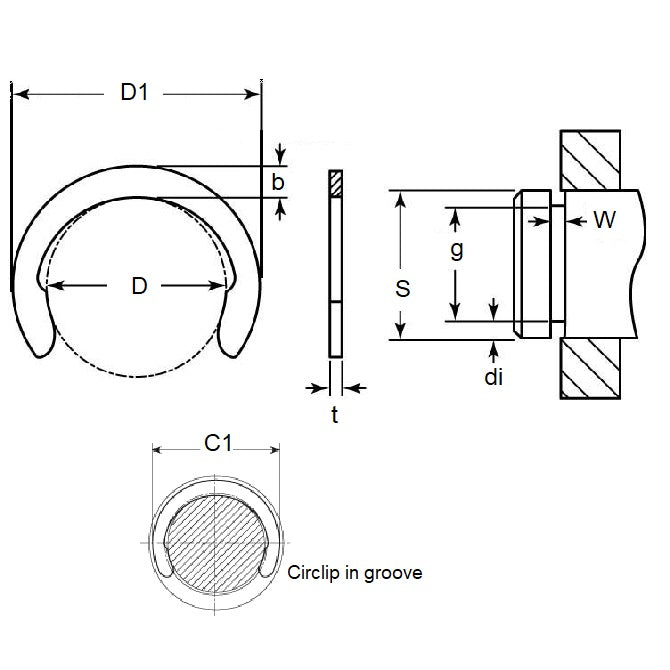

Groove Diameter (G): 5.28mm
_{(5.28mm is 0.208 in.)}

Carbon Spring Steel Self Finish

Groove Diameter (G): 5.28mm
_{(5.28mm is 0.208 in.)}
Shaft Diameter (S): 5.99mm
_{(5.99mm is 0.236 in.)}
Thickness (t): 0.64mm
_{(0.64mm is 0.025 in.)}
Clip OD in groove (C1): 7.87mm
Clip OD Loose (D1): 7.49mm
Groove Width (W): 0.74

Brand: MBA
Country of Origin: US

Product Compliance and Data

Similar to

Military 16632-023
Military 16632-023/B
Military 16632-023-B
Waldes 5103-023
Waldes 5103-023/B
Waldes 5103-023-B
Ellison 9103-023
Ellison 9103-023/B
Ellison 9103-023-B
NoCor C-023
Rotor Clip C-023
NoCor C-023/B
Rotor Clip C-023/B
NoCor C-023-B
Rotor Clip C-023-B
N1800-023
N1800-023-B
N1800023B
N1800023/B
N18000023APP
N1800-0023APP
N1800-023/B
16632023
16632023/B
16632023B
9103023/B
9103023B
5103023
5103023/B
5103023B
C023/B
C023B

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
