Washers - Flat - Commercial - Titanium

Washers -> Flat -> Commercial -> Titanium

There are 5 products in the sub-categories of Washers - Flat - Commercial - Titanium. Browse the Washers - Flat - Commercial - Titanium products table. To narrow down the selection, please choose a sub-category from the links below.

Category Details

This category includes various types of flat washers.
  • Flat washers are available in many different materials, and can be used for spacing and shimming nuts and bolts, bearing shaft and all types of mechanical applications. An expanded range may be available on special order. Please enquire.
  • Flat plain washers distrubute the load of screws and other fasteners, which prevents the fastener from indenting the material being fastened. Commercial washers have wide tolerances, whilst precision washers have precise tolerances.
  • Washers also increase the surface area, reducing the risk of loosening. Note that the Nominal ID is the shaft, bolt or screw size that the washer is designed to fit over. The washer ID will have clearance on that size. See tolerances and standards listed.

Miniature Bearings Australia - MBA Minibearings

Additional resources:


A more concise listing may be found in the Washers - Flat - Commercial - Titanium category on the Small Parts & Bearings online store.
Nominal Inside Diameter (d) Nominal Outside Diameter (D) Thickness (T) Other Indicative
Nominal Inside Diameter (d)
4.00
mm
AS1237 / DIN125
(Equiv. 0.157 in.)
Nominal Outside Diameter (D)
9.00
mm
AS1237 / DIN125
(Equiv. 0.354 in.)
Thickness (T)
1.00
mm
AS1237 / DIN125
(Equiv. 0.039 in.)
Other
To Suit M4 Screw

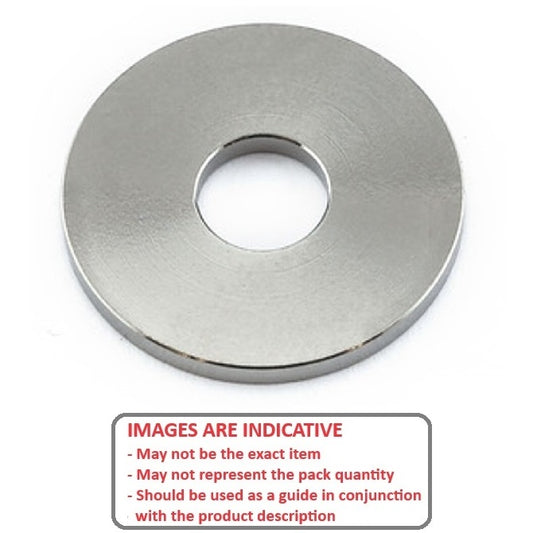

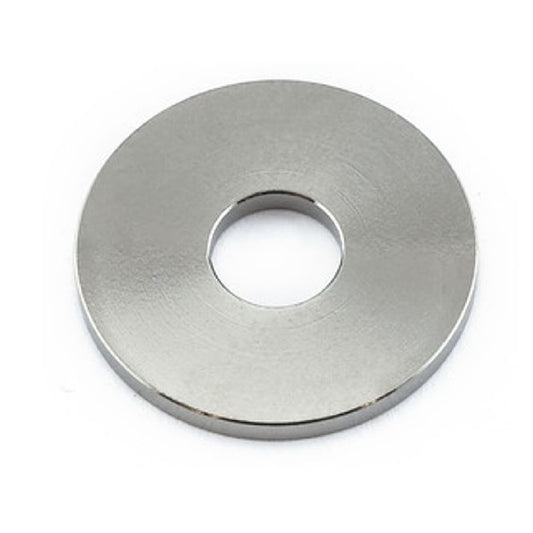

Flat Washers - 4x9x1 mm - Titanium - CP1 Commercially Pure
Material: Titanium - CP1 Commercially Pure
Category: Washers - Flat - Commercial - Titanium - CP Grade 1
Part Number: W0040-F-009-010-TC1 (10 Pcs)
Flat Washers - 4x9x1 mm - Titanium - CP1 Commercially Pure Washer
40 units (400 pcs) Available Now | Item Discontinued - Up to 40 may be ordered online. No backorders. Please contact us if you need a larger quantity
$8.00 AUD
$15.20 AUD $8.00 AUD
Per 10
Quantity Required

40 units (400 pcs) Available Now. These are priced to quit. Please contact us for a quote if you require more.
Nominal Inside Diameter (d) Nominal Outside Diameter (D) Thickness (T) Other Indicative
Nominal Inside Diameter (d)
4.00
mm
AS1237 / DIN125
(Equiv. 0.157 in.)
Nominal Outside Diameter (D)
9.00
mm
AS1237 / DIN125
(Equiv. 0.354 in.)
Thickness (T)
1.00
mm
AS1237 / DIN125
(Equiv. 0.039 in.)
Other
To Suit M4 Screw
Flat Washers - 4x9x1 mm - Titanium - CP1 Commercially Pure
Material: Titanium - CP1 Commercially Pure
Category: Washers - Flat - Commercial - Titanium - CP Grade 1
Part Number: W0040-F-009-010-TC1 (10 Pcs)
Flat Washers - 4x9x1 mm - Titanium - CP1 Commercially Pure Washer
40 units (400 pcs) Available Now | Item Discontinued - Up to 40 may be ordered online. No backorders. Please contact us if you need a larger quantity
$8.00 AUD
$15.20 AUD $8.00 AUD
Per 10
Quantity Required

40 units (400 pcs) Available Now. These are priced to quit. Please contact us for a quote if you require more.
Nominal Inside Diameter (d)
5.00
mm
ASME / ANSI B18.22.1
(Equiv. 0.197 in.)
Nominal Outside Diameter (D)
10.00
mm
ASME / ANSI B18.22.1
(Equiv. 0.394 in.)
Thickness (T)
1.00
mm
ASME / ANSI B18.22.1
(Equiv. 0.039 in.)
Other
To Suit M5 Screw
Flat Washers - 5x10x1 mm - Titanium - CP1 Commercially Pure
Material: Titanium - CP1 Commercially Pure
Category: Washers - Flat - Commercial - Titanium - CP Grade 1
Part Number: W0050-F-010-010-TC1 (10 Pcs)
Flat Washers - 5x10x1 mm - Titanium - CP1 Commercially Pure Washer
6 units (60 pcs) Available Now | Item Discontinued - Up to 6 may be ordered online. No backorders. Please contact us if you need a larger quantity
$8.00 AUD
$15.20 AUD $8.00 AUD
Per 10
Quantity Required

6 units (60 pcs) Available Now. These are priced to quit. Please contact us for a quote if you require more.
Nominal Inside Diameter (d)
5.00
mm
ASME / ANSI B18.22.1
(Equiv. 0.197 in.)
Nominal Outside Diameter (D)
10.00
mm
ASME / ANSI B18.22.1
(Equiv. 0.394 in.)
Thickness (T)
1.00
mm
ASME / ANSI B18.22.1
(Equiv. 0.039 in.)
Other
To Suit M5 Screw
Flat Washers - 5x10x1 mm - Titanium - CP1 Commercially Pure
Material: Titanium - CP1 Commercially Pure
Category: Washers - Flat - Commercial - Titanium - CP Grade 1
Part Number: W0050-F-010-010-TC1 (10 Pcs)
Flat Washers - 5x10x1 mm - Titanium - CP1 Commercially Pure Washer
6 units (60 pcs) Available Now | Item Discontinued - Up to 6 may be ordered online. No backorders. Please contact us if you need a larger quantity
$8.00 AUD
$15.20 AUD $8.00 AUD
Per 10
Quantity Required

6 units (60 pcs) Available Now. These are priced to quit. Please contact us for a quote if you require more.
Nominal Inside Diameter (d)
6.00
mm
AS1237 / DIN125
(Equiv. 0.236 in.)
Nominal Outside Diameter (D)
12.00
mm
AS1237 / DIN125
(Equiv. 0.472 in.)
Thickness (T)
1.60
mm
AS1237 / DIN125
(Equiv. 0.063 in.)
Other
To Suit M6 Screw
Flat Washers - 6x12x1.6 mm - Titanium - CP1 Commercially Pure
Material: Titanium - CP1 Commercially Pure
Category: Washers - Flat - Commercial - Titanium - CP Grade 1
Part Number: W0060-F-012-016-TC1 (10 Pcs)
Flat Washers - 6x12x1.6 mm - Titanium - CP1 Commercially Pure Washer
4 units (40 pcs) Available Now | Item Discontinued - Up to 4 may be ordered online. No backorders. Please contact us if you need a larger quantity
$8.00 AUD
$15.20 AUD $8.00 AUD
Per 10
Quantity Required

4 units (40 pcs) Available Now. These are priced to quit. Please contact us for a quote if you require more.
Nominal Inside Diameter (d)
6.00
mm
AS1237 / DIN125
(Equiv. 0.236 in.)
Nominal Outside Diameter (D)
12.00
mm
AS1237 / DIN125
(Equiv. 0.472 in.)
Thickness (T)
1.60
mm
AS1237 / DIN125
(Equiv. 0.063 in.)
Other
To Suit M6 Screw
Flat Washers - 6x12x1.6 mm - Titanium - CP1 Commercially Pure
Material: Titanium - CP1 Commercially Pure
Category: Washers - Flat - Commercial - Titanium - CP Grade 1
Part Number: W0060-F-012-016-TC1 (10 Pcs)
Flat Washers - 6x12x1.6 mm - Titanium - CP1 Commercially Pure Washer
4 units (40 pcs) Available Now | Item Discontinued - Up to 4 may be ordered online. No backorders. Please contact us if you need a larger quantity
$8.00 AUD
$15.20 AUD $8.00 AUD
Per 10
Quantity Required

4 units (40 pcs) Available Now. These are priced to quit. Please contact us for a quote if you require more.
Nominal Inside Diameter (d)
8.00
mm
AS1237 / DIN125
(Equiv. 0.315 in.)
Nominal Outside Diameter (D)
16.00
mm
AS1237 / DIN125
(Equiv. 0.63 in.)
Thickness (T)
1.60
mm
AS1237 / DIN125
(Equiv. 0.063 in.)
Other
To Suit M8 Screw
Flat Washers - 8x16x1.6 mm - Titanium - CP1 Commercially Pure
Material: Titanium - CP1 Commercially Pure
Category: Washers - Flat - Commercial - Titanium - CP Grade 1
Part Number: W0080-F-016-016-TC1 (10 Pcs)
Flat Washers - 8x16x1.6 mm - Titanium - CP1 Commercially Pure Washer
7 units (70 pcs) Available Now | Item Discontinued - Up to 7 may be ordered online. No backorders. Please contact us if you need a larger quantity
$8.00 AUD
$15.20 AUD $8.00 AUD
Per 10
Quantity Required

7 units (70 pcs) Available Now. These are priced to quit. Please contact us for a quote if you require more.
Nominal Inside Diameter (d)
8.00
mm
AS1237 / DIN125
(Equiv. 0.315 in.)
Nominal Outside Diameter (D)
16.00
mm
AS1237 / DIN125
(Equiv. 0.63 in.)
Thickness (T)
1.60
mm
AS1237 / DIN125
(Equiv. 0.063 in.)
Other
To Suit M8 Screw
Flat Washers - 8x16x1.6 mm - Titanium - CP1 Commercially Pure
Material: Titanium - CP1 Commercially Pure
Category: Washers - Flat - Commercial - Titanium - CP Grade 1
Part Number: W0080-F-016-016-TC1 (10 Pcs)
Flat Washers - 8x16x1.6 mm - Titanium - CP1 Commercially Pure Washer
7 units (70 pcs) Available Now | Item Discontinued - Up to 7 may be ordered online. No backorders. Please contact us if you need a larger quantity
$8.00 AUD
$15.20 AUD $8.00 AUD
Per 10
Quantity Required

7 units (70 pcs) Available Now. These are priced to quit. Please contact us for a quote if you require more.
Nominal Inside Diameter (d)
10.00
mm
AS1237 / DIN125
(Equiv. 0.394 in.)
Nominal Outside Diameter (D)
20.00
mm
AS1237 / DIN125
(Equiv. 0.787 in.)
Thickness (T)
2.00
mm
AS1237 / DIN125
(Equiv. 0.079 in.)
Other
To Suit M10 Screw
Flat Washers - 10x20x2 mm - Titanium - CP1 Commercially Pure
Material: Titanium - CP1 Commercially Pure
Category: Washers - Flat - Commercial - Titanium - CP Grade 1
Part Number: W0100-F-020-020-TC1 (10 Pcs)
Flat Washers - 10x20x2 mm - Titanium - CP1 Commercially Pure Washer
5 units (50 pcs) Available Now | Item Discontinued - Up to 5 may be ordered online. No backorders. Please contact us if you need a larger quantity
$8.00 AUD
$15.20 AUD $8.00 AUD
Per 10
Quantity Required

5 units (50 pcs) Available Now. These are priced to quit. Please contact us for a quote if you require more.
Nominal Inside Diameter (d)
10.00
mm
AS1237 / DIN125
(Equiv. 0.394 in.)
Nominal Outside Diameter (D)
20.00
mm
AS1237 / DIN125
(Equiv. 0.787 in.)
Thickness (T)
2.00
mm
AS1237 / DIN125
(Equiv. 0.079 in.)
Other
To Suit M10 Screw
Flat Washers - 10x20x2 mm - Titanium - CP1 Commercially Pure
Material: Titanium - CP1 Commercially Pure
Category: Washers - Flat - Commercial - Titanium - CP Grade 1
Part Number: W0100-F-020-020-TC1 (10 Pcs)
Flat Washers - 10x20x2 mm - Titanium - CP1 Commercially Pure Washer
5 units (50 pcs) Available Now | Item Discontinued - Up to 5 may be ordered online. No backorders. Please contact us if you need a larger quantity
$8.00 AUD
$15.20 AUD $8.00 AUD
Per 10
Quantity Required

5 units (50 pcs) Available Now. These are priced to quit. Please contact us for a quote if you require more.
