24 Products in this selection

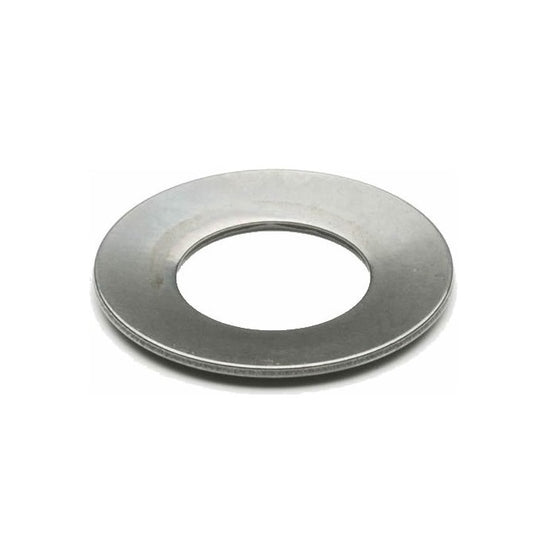

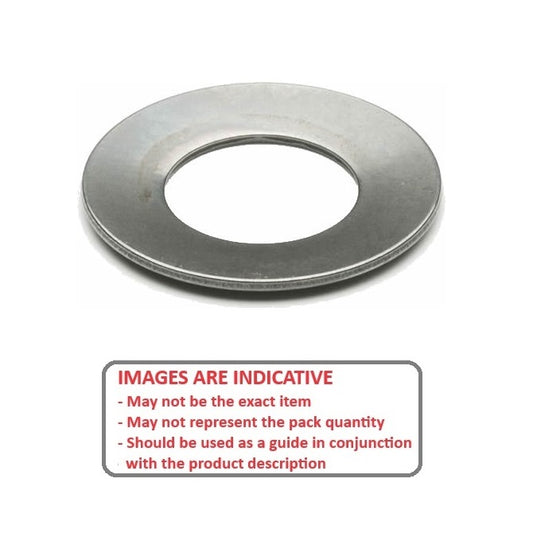

Specially designed for preloading the outer ring of ball bearings. C1075 steel. Includes disc springs to DIN 2093.
Ensures perfect bearing positioning with no sideways play
May be used to provide bearing preload
Load tolerance +/- 20% of load shown.

Additional resources:
Disc Spring Washers PDF
Screws

A more concise listing may be found on the Smallparts store at Washers - Disc Spring - Ball Bearing Type. Smallparts promote the most popular MBA products.

Nominal OD (A)	Nominal ID (B)	Thickness (C)	Load to flatten	Indicative Image
Nominal OD (A) 9.30 mm _{(0.366 in.)}	Nominal ID (B) 5.60 mm + 0.20 / - 0.00 _{(0.22 in.)}	Thickness (C) 0.20 mm _{(0.008 in.)}
Material: Carbon Steel Suits Bearing Size: R2 Load at 0.75 height: 2.67 Kg Free Height (E): 0.40 mm Inside Height (D): 0.20 mm
Part Number: W0058-D-009-002-BB-C Disc Spring Washers - 9.3x5.6x0.2 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $5.68 AUD Regular price Sale price $5.68 AUD Unit price per Each
Nominal OD (A)	Nominal ID (B)	Thickness (C)	Load to flatten	Indicative Image
Nominal OD (A) 9.30 mm _{(0.366 in.)}	Nominal ID (B) 5.60 mm + 0.20 / - 0.00 _{(0.22 in.)}	Thickness (C) 0.20 mm _{(0.008 in.)}
Material: Carbon Steel Suits Bearing Size: R2 Load at 0.75 height: 2.67 Kg Free Height (E): 0.40 mm Inside Height (D): 0.20 mm
Part Number: W0058-D-009-002-BB-C Disc Spring Washers - 9.3x5.6x0.2 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $5.68 AUD Regular price Sale price $5.68 AUD Unit price per Each View the product page first if you are unsure.
W0058-D-009-002-BB-C --- Disc Spring Washers - 9.3x5.6x0.2 mm - Carbon Steel W0058-D-009-002-BB-C --- Disc Spring Washers - 9.3x5.6x0.2 mm - Carbon Steel Regular price $5.68 AUD Regular price Sale price $5.68 AUD Unit price per Out of stock! Backorder Now
Nominal OD (A) 9.80 mm _{(0.386 in.)}	Nominal ID (B) 6.00 mm + 0.20 / - 0.00 _{(0.236 in.)}	Thickness (C) 0.20 mm _{(0.008 in.)}
Material: Carbon Steel Suits Bearing Size: 623 Inside Height (D): 1.60 mm
Part Number: W0062-D-010-020-BB-C (10 Pcs) Disc Spring Washers - 9.8x6x0.2 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jun 19, 2025 Regular price $16.05 AUD Regular price Sale price $16.05 AUD Unit price per Per 10
Nominal OD (A) 9.80 mm _{(0.386 in.)}	Nominal ID (B) 6.00 mm + 0.20 / - 0.00 _{(0.236 in.)}	Thickness (C) 0.20 mm _{(0.008 in.)}
Material: Carbon Steel Suits Bearing Size: 623 Inside Height (D): 1.60 mm
Part Number: W0062-D-010-020-BB-C (10 Pcs) Disc Spring Washers - 9.8x6x0.2 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jun 19, 2025 Regular price $16.05 AUD Regular price Sale price $16.05 AUD Unit price per Per 10 View the product page first if you are unsure.
W0062-D-010-020-BB-C (10 Pcs) --- Disc Spring Washers - 9.8x6x0.2 mm - Carbon Steel W0062-D-010-020-BB-C (10 Pcs) --- Disc Spring Washers - 9.8x6x0.2 mm - Carbon Steel Regular price $16.05 AUD Regular price Sale price $16.05 AUD Unit price per Out of stock! Backorder Now
Nominal OD (A) 12.80 mm _{(0.504 in.)}	Nominal ID (B) 7.00 mm + 0.20 / - 0.00 _{(0.276 in.)}	Thickness (C) 0.25 mm _{(0.01 in.)}
Material: Carbon Steel Suits Bearing Size: 624 / EL-4 Load at 0.75 height: 3.04 Kg Free Height (E): 0.50 mm Inside Height (D): 0.25 mm
Part Number: W0072-D-013-002-BB-C (2 Pcs) Disc Spring Washers - 12.8x7x0.25 mm - Carbon Steel 10 units (20 pcs) Available Immediately \| Further orders can be expected around Thu, Jun 19, 2025 Regular price $4.77 AUD Regular price Sale price $4.77 AUD Unit price per Per 2
Nominal OD (A) 12.80 mm _{(0.504 in.)}	Nominal ID (B) 7.00 mm + 0.20 / - 0.00 _{(0.276 in.)}	Thickness (C) 0.25 mm _{(0.01 in.)}
Material: Carbon Steel Suits Bearing Size: 624 / EL-4 Load at 0.75 height: 3.04 Kg Free Height (E): 0.50 mm Inside Height (D): 0.25 mm
Part Number: W0072-D-013-002-BB-C (2 Pcs) Disc Spring Washers - 12.8x7x0.25 mm - Carbon Steel 10 units (20 pcs) Available Immediately \| Further orders can be expected around Thu, Jun 19, 2025 Regular price $4.77 AUD Regular price Sale price $4.77 AUD Unit price per Per 2 View the product page first if you are unsure.
W0072-D-013-002-BB-C (2 Pcs) --- Disc Spring Washers - 12.8x7x0.25 mm - Carbon Steel W0072-D-013-002-BB-C (2 Pcs) --- Disc Spring Washers - 12.8x7x0.25 mm - Carbon Steel Regular price $4.77 AUD Regular price Sale price $4.77 AUD Unit price per 10 Available Now
Nominal OD (A) 15.80 mm _{(0.622 in.)}	Nominal ID (B) 8.00 mm + 0.20 / - 0.00 _{(0.315 in.)}	Thickness (C) 0.25 mm _{(0.01 in.)}
Material: Carbon Steel Suits Bearing Size: 625 / 634 / EL-5 Load at 0.75 height: 2.40 Kg Free Height (E): 0.55 mm Inside Height (D): 0.30 mm
Part Number: W0082-D-016-002-BB-C (5 Pcs) Disc Spring Washers - 15.8x8x0.25 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jun 19, 2025 Regular price $9.77 AUD Regular price Sale price $9.77 AUD Unit price per Per 5
Nominal OD (A) 15.80 mm _{(0.622 in.)}	Nominal ID (B) 8.00 mm + 0.20 / - 0.00 _{(0.315 in.)}	Thickness (C) 0.25 mm _{(0.01 in.)}
Material: Carbon Steel Suits Bearing Size: 625 / 634 / EL-5 Load at 0.75 height: 2.40 Kg Free Height (E): 0.55 mm Inside Height (D): 0.30 mm
Part Number: W0082-D-016-002-BB-C (5 Pcs) Disc Spring Washers - 15.8x8x0.25 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jun 19, 2025 Regular price $9.77 AUD Regular price Sale price $9.77 AUD Unit price per Per 5 View the product page first if you are unsure.
W0082-D-016-002-BB-C (5 Pcs) --- Disc Spring Washers - 15.8x8x0.25 mm - Carbon Steel W0082-D-016-002-BB-C (5 Pcs) --- Disc Spring Washers - 15.8x8x0.25 mm - Carbon Steel Regular price $9.77 AUD Regular price Sale price $9.77 AUD Unit price per Out of stock! Backorder Now
Nominal OD (A) 18.80 mm _{(0.74 in.)}	Nominal ID (B) 9.00 mm + 0.20 / - 0.00 _{(0.354 in.)}	Thickness (C) 0.30 mm _{(0.012 in.)}
Material: Carbon Steel Suits Bearing Size: 626, 635 Inside Height (D): 1.60 mm
Part Number: W0092-D-019-030-BB-C (10 Pcs) Disc Spring Washers - 18.8x9x0.3 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jun 19, 2025 Regular price $18.95 AUD Regular price Sale price $18.95 AUD Unit price per Per 10
Nominal OD (A) 18.80 mm _{(0.74 in.)}	Nominal ID (B) 9.00 mm + 0.20 / - 0.00 _{(0.354 in.)}	Thickness (C) 0.30 mm _{(0.012 in.)}
Material: Carbon Steel Suits Bearing Size: 626, 635 Inside Height (D): 1.60 mm
Part Number: W0092-D-019-030-BB-C (10 Pcs) Disc Spring Washers - 18.8x9x0.3 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jun 19, 2025 Regular price $18.95 AUD Regular price Sale price $18.95 AUD Unit price per Per 10 View the product page first if you are unsure.
W0092-D-019-030-BB-C (10 Pcs) --- Disc Spring Washers - 18.8x9x0.3 mm - Carbon Steel W0092-D-019-030-BB-C (10 Pcs) --- Disc Spring Washers - 18.8x9x0.3 mm - Carbon Steel Regular price $18.95 AUD Regular price Sale price $18.95 AUD Unit price per Out of stock! Backorder Now
Nominal OD (A) 21.80 mm _{(0.858 in.)}	Nominal ID (B) 12.10 mm + 0.20 / - 0.00 _{(0.476 in.)}	Thickness (C) 0.35 mm _{(0.014 in.)}
Material: Carbon Steel Suits Bearing Size: 608, 627 Inside Height (D): 1.60 mm
Part Number: W0123-D-022-035-BB-C (5 Pcs) Disc Spring Washers - 21.8x12.1x0.35 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jun 19, 2025 Regular price $19.86 AUD Regular price Sale price $19.86 AUD Unit price per Per 10
Nominal OD (A) 21.80 mm _{(0.858 in.)}	Nominal ID (B) 12.10 mm + 0.20 / - 0.00 _{(0.476 in.)}	Thickness (C) 0.35 mm _{(0.014 in.)}
Material: Carbon Steel Suits Bearing Size: 608, 627 Inside Height (D): 1.60 mm
Part Number: W0123-D-022-035-BB-C (5 Pcs) Disc Spring Washers - 21.8x12.1x0.35 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jun 19, 2025 Regular price $19.86 AUD Regular price Sale price $19.86 AUD Unit price per Per 10 View the product page first if you are unsure.
W0123-D-022-035-BB-C (5 Pcs) --- Disc Spring Washers - 21.8x12.1x0.35 mm - Carbon Steel W0123-D-022-035-BB-C (5 Pcs) --- Disc Spring Washers - 21.8x12.1x0.35 mm - Carbon Steel Regular price $19.86 AUD Regular price Sale price $19.86 AUD Unit price per Out of stock! Backorder Now
Nominal OD (A) 21.90 mm _{(0.862 in.)}	Nominal ID (B) 13.50 mm + 0.20 / - 0.00 _{(0.531 in.)}	Thickness (C) 0.35 mm _{(0.014 in.)}
Material: Carbon Steel Suits Bearing Size: R6 Load at 0.75 height: 5.35 Kg Free Height (E): 0.75 mm Inside Height (D): 0.40 mm
Part Number: W0137-D-022-004-BB-C Disc Spring Washers - 21.9x13.5x0.35 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $10.59 AUD Regular price Sale price $10.59 AUD Unit price per Each
Nominal OD (A) 21.90 mm _{(0.862 in.)}	Nominal ID (B) 13.50 mm + 0.20 / - 0.00 _{(0.531 in.)}	Thickness (C) 0.35 mm _{(0.014 in.)}
Material: Carbon Steel Suits Bearing Size: R6 Load at 0.75 height: 5.35 Kg Free Height (E): 0.75 mm Inside Height (D): 0.40 mm
Part Number: W0137-D-022-004-BB-C Disc Spring Washers - 21.9x13.5x0.35 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $10.59 AUD Regular price Sale price $10.59 AUD Unit price per Each View the product page first if you are unsure.
W0137-D-022-004-BB-C --- Disc Spring Washers - 21.9x13.5x0.35 mm - Carbon Steel W0137-D-022-004-BB-C --- Disc Spring Washers - 21.9x13.5x0.35 mm - Carbon Steel Regular price $10.59 AUD Regular price Sale price $10.59 AUD Unit price per Out of stock! Backorder Now
Nominal OD (A) 23.70 mm _{(0.933 in.)}	Nominal ID (B) 14.00 mm + 0.30 / - 0.00 _{(0.551 in.)}	Thickness (C) 0.40 mm _{(0.016 in.)}
Material: Carbon Steel Suits Bearing Size: 609 / EL-9 Load at 0.75 height: 8.39 Kg Free Height (E): 0.90 mm Inside Height (D): 0.50 mm
Part Number: W0143-D-024-004-BB-C Disc Spring Washers - 23.7x14x0.4 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $6.68 AUD Regular price Sale price $6.68 AUD Unit price per Each
Nominal OD (A) 23.70 mm _{(0.933 in.)}	Nominal ID (B) 14.00 mm + 0.30 / - 0.00 _{(0.551 in.)}	Thickness (C) 0.40 mm _{(0.016 in.)}
Material: Carbon Steel Suits Bearing Size: 609 / EL-9 Load at 0.75 height: 8.39 Kg Free Height (E): 0.90 mm Inside Height (D): 0.50 mm
Part Number: W0143-D-024-004-BB-C Disc Spring Washers - 23.7x14x0.4 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $6.68 AUD Regular price Sale price $6.68 AUD Unit price per Each View the product page first if you are unsure.
W0143-D-024-004-BB-C --- Disc Spring Washers - 23.7x14x0.4 mm - Carbon Steel W0143-D-024-004-BB-C --- Disc Spring Washers - 23.7x14x0.4 mm - Carbon Steel Regular price $6.68 AUD Regular price Sale price $6.68 AUD Unit price per Out of stock! Backorder Now
Nominal OD (A) 27.71 mm _{(1.091 in.)}	Nominal ID (B) 17.00 mm + 0.30 / - 0.00 _{(0.669 in.)}	Thickness (C) 0.40 mm _{(0.016 in.)}
Material: Carbon Steel Suits Bearing Size: 6001 Load at 0.75 height: 8.35 Kg Free Height (E): 1.00 mm Inside Height (D): 0.61 mm
Part Number: W0173-D-026-004-BB-C Disc Spring Washers - 27.71x17x0.4 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $8.23 AUD Regular price Sale price $8.23 AUD Unit price per Each
Nominal OD (A) 27.71 mm _{(1.091 in.)}	Nominal ID (B) 17.00 mm + 0.30 / - 0.00 _{(0.669 in.)}	Thickness (C) 0.40 mm _{(0.016 in.)}
Material: Carbon Steel Suits Bearing Size: 6001 Load at 0.75 height: 8.35 Kg Free Height (E): 1.00 mm Inside Height (D): 0.61 mm
Part Number: W0173-D-026-004-BB-C Disc Spring Washers - 27.71x17x0.4 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $8.23 AUD Regular price Sale price $8.23 AUD Unit price per Each View the product page first if you are unsure.
W0173-D-026-004-BB-C --- Disc Spring Washers - 27.71x17x0.4 mm - Carbon Steel W0173-D-026-004-BB-C --- Disc Spring Washers - 27.71x17x0.4 mm - Carbon Steel Regular price $8.23 AUD Regular price Sale price $8.23 AUD Unit price per Out of stock! Backorder Now
Nominal OD (A) 29.70 mm _{(1.169 in.)}	Nominal ID (B) 17.00 mm + 0.30 / - 0.00 _{(0.669 in.)}	Thickness (C) 0.40 mm _{(0.016 in.)}
Material: Carbon Steel Suits Bearing Size: 6200 Load at 0.75 height: 8.62 Kg Free Height (E): 1.10 mm Inside Height (D): 0.70 mm
Part Number: W0173-D-030-004-BB-C Disc Spring Washers - 29.7x17x0.4 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $2.68 AUD Regular price Sale price $2.68 AUD Unit price per Each
Nominal OD (A) 29.70 mm _{(1.169 in.)}	Nominal ID (B) 17.00 mm + 0.30 / - 0.00 _{(0.669 in.)}	Thickness (C) 0.40 mm _{(0.016 in.)}
Material: Carbon Steel Suits Bearing Size: 6200 Load at 0.75 height: 8.62 Kg Free Height (E): 1.10 mm Inside Height (D): 0.70 mm
Part Number: W0173-D-030-004-BB-C Disc Spring Washers - 29.7x17x0.4 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $2.68 AUD Regular price Sale price $2.68 AUD Unit price per Each View the product page first if you are unsure.
W0173-D-030-004-BB-C --- Disc Spring Washers - 29.7x17x0.4 mm - Carbon Steel W0173-D-030-004-BB-C --- Disc Spring Washers - 29.7x17x0.4 mm - Carbon Steel Regular price $2.68 AUD Regular price Sale price $2.68 AUD Unit price per Out of stock! Backorder Now
Nominal OD (A) 31.70 mm _{(1.248 in.)}	Nominal ID (B) 20.00 mm + 0.40 / - 0.00 _{(0.787 in.)}	Thickness (C) 0.40 mm _{(0.016 in.)}
Material: Carbon Steel Suits Bearing Size: 6002 / 6201 Load at 0.75 height: 8.44 Kg Free Height (E): 1.10 mm Inside Height (D): 0.70 mm
Part Number: W0204-D-032-004-BB-C Disc Spring Washers - 31.7x20x0.4 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $12.23 AUD Regular price Sale price $12.23 AUD Unit price per Each
Nominal OD (A) 31.70 mm _{(1.248 in.)}	Nominal ID (B) 20.00 mm + 0.40 / - 0.00 _{(0.787 in.)}	Thickness (C) 0.40 mm _{(0.016 in.)}
Material: Carbon Steel Suits Bearing Size: 6002 / 6201 Load at 0.75 height: 8.44 Kg Free Height (E): 1.10 mm Inside Height (D): 0.70 mm
Part Number: W0204-D-032-004-BB-C Disc Spring Washers - 31.7x20x0.4 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $12.23 AUD Regular price Sale price $12.23 AUD Unit price per Each View the product page first if you are unsure.
W0204-D-032-004-BB-C --- Disc Spring Washers - 31.7x20x0.4 mm - Carbon Steel W0204-D-032-004-BB-C --- Disc Spring Washers - 31.7x20x0.4 mm - Carbon Steel Regular price $12.23 AUD Regular price Sale price $12.23 AUD Unit price per Out of stock! Backorder Now
Nominal OD (A) 34.50 mm _{(1.358 in.)}	Nominal ID (B) 25.00 mm + 0.40 / - 0.00 _{(0.984 in.)}	Thickness (C) 0.50 mm _{(0.02 in.)}
Material: Carbon Steel Suits Bearing Size: R10 Load at 0.75 height: 15.78 Kg Free Height (E): 1.88 mm Inside Height (D): 0.70 mm
Part Number: W0254-D-035-005-BB-C Disc Spring Washers - 34.5x25x0.5 mm - Carbon Steel 416 Available Immediately \| Further orders can be expected around Tue, Jun 03, 2025 Regular price $5.68 AUD Regular price ~~$6.82 AUD~~ Sale price $5.68 AUD Unit price per Each
Nominal OD (A) 34.50 mm _{(1.358 in.)}	Nominal ID (B) 25.00 mm + 0.40 / - 0.00 _{(0.984 in.)}	Thickness (C) 0.50 mm _{(0.02 in.)}
Material: Carbon Steel Suits Bearing Size: R10 Load at 0.75 height: 15.78 Kg Free Height (E): 1.88 mm Inside Height (D): 0.70 mm
Part Number: W0254-D-035-005-BB-C Disc Spring Washers - 34.5x25x0.5 mm - Carbon Steel 416 Available Immediately \| Further orders can be expected around Tue, Jun 03, 2025 Regular price $5.68 AUD Regular price ~~$6.82 AUD~~ Sale price $5.68 AUD Unit price per Each View the product page first if you are unsure.
W0254-D-035-005-BB-C --- Disc Spring Washers - 34.5x25x0.5 mm - Carbon Steel Sale W0254-D-035-005-BB-C --- Disc Spring Washers - 34.5x25x0.5 mm - Carbon Steel Regular price $5.68 AUD Regular price ~~$6.82 AUD~~ Sale price $5.68 AUD Unit price per 416 Available Now Sale
Nominal OD (A) 34.60 mm _{(1.362 in.)}	Nominal ID (B) 20.00 mm + 0.40 / - 0.00 _{(0.787 in.)}	Thickness (C) 0.40 mm _{(0.016 in.)}
Material: Carbon Steel Suits Bearing Size: 6300 Inside Height (D): 1.60 mm
Part Number: W0204-D-035-040-BB-C Disc Spring Washers - 34.6x20x0.4 mm - Carbon Steel 5 Available Immediately \| Further orders can be expected around Thu, Jun 19, 2025 Regular price $5.14 AUD Regular price Sale price $5.14 AUD Unit price per Each
Nominal OD (A) 34.60 mm _{(1.362 in.)}	Nominal ID (B) 20.00 mm + 0.40 / - 0.00 _{(0.787 in.)}	Thickness (C) 0.40 mm _{(0.016 in.)}
Material: Carbon Steel Suits Bearing Size: 6300 Inside Height (D): 1.60 mm
Part Number: W0204-D-035-040-BB-C Disc Spring Washers - 34.6x20x0.4 mm - Carbon Steel 5 Available Immediately \| Further orders can be expected around Thu, Jun 19, 2025 Regular price $5.14 AUD Regular price Sale price $5.14 AUD Unit price per Each View the product page first if you are unsure.
W0204-D-035-040-BB-C --- Disc Spring Washers - 34.6x20x0.4 mm - Carbon Steel W0204-D-035-040-BB-C --- Disc Spring Washers - 34.6x20x0.4 mm - Carbon Steel Regular price $5.14 AUD Regular price Sale price $5.14 AUD Unit price per 5 Available Now
Nominal OD (A) 34.60 mm _{(1.362 in.)}	Nominal ID (B) 22.00 mm + 0.40 / - 0.00 _{(0.866 in.)}	Thickness (C) 0.50 mm _{(0.02 in.)}
Material: Carbon Steel Suits Bearing Size: 6003 / 6202 Load at 0.75 height: 12.38 Kg Free Height (E): 1.88 mm Inside Height (D): 0.70 mm
Part Number: W0224-D-035-005-BB-C (26 Pcs) Disc Spring Washers - 34.6x22x0.5 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $265.59 AUD Regular price Sale price $265.59 AUD Unit price per Per 26
Nominal OD (A) 34.60 mm _{(1.362 in.)}	Nominal ID (B) 22.00 mm + 0.40 / - 0.00 _{(0.866 in.)}	Thickness (C) 0.50 mm _{(0.02 in.)}
Material: Carbon Steel Suits Bearing Size: 6003 / 6202 Load at 0.75 height: 12.38 Kg Free Height (E): 1.88 mm Inside Height (D): 0.70 mm
Part Number: W0224-D-035-005-BB-C (26 Pcs) Disc Spring Washers - 34.6x22x0.5 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $265.59 AUD Regular price Sale price $265.59 AUD Unit price per Per 26 View the product page first if you are unsure.
W0224-D-035-005-BB-C (26 Pcs) --- Disc Spring Washers - 34.6x22x0.5 mm - Carbon Steel W0224-D-035-005-BB-C (26 Pcs) --- Disc Spring Washers - 34.6x22x0.5 mm - Carbon Steel Regular price $265.59 AUD Regular price Sale price $265.59 AUD Unit price per Out of stock! Backorder Now
Nominal OD (A) 36.60 mm _{(1.441 in.)}	Nominal ID (B) 20.40 mm + 0.40 / - 0.00 _{(0.803 in.)}	Thickness (C) 0.50 mm _{(0.02 in.)}
Material: Carbon Steel Suits Bearing Size: 6301 Inside Height (D): 1.60 mm
Part Number: W0204-D-037-040-BB-C (10 Pcs) Disc Spring Washers - 36.6x20.4x0.5 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jun 19, 2025 Regular price $30.77 AUD Regular price Sale price $30.77 AUD Unit price per Per 10
Nominal OD (A) 36.60 mm _{(1.441 in.)}	Nominal ID (B) 20.40 mm + 0.40 / - 0.00 _{(0.803 in.)}	Thickness (C) 0.50 mm _{(0.02 in.)}
Material: Carbon Steel Suits Bearing Size: 6301 Inside Height (D): 1.60 mm
Part Number: W0204-D-037-040-BB-C (10 Pcs) Disc Spring Washers - 36.6x20.4x0.5 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jun 19, 2025 Regular price $30.77 AUD Regular price Sale price $30.77 AUD Unit price per Per 10 View the product page first if you are unsure.
W0204-D-037-040-BB-C (10 Pcs) --- Disc Spring Washers - 36.6x20.4x0.5 mm - Carbon Steel W0204-D-037-040-BB-C (10 Pcs) --- Disc Spring Washers - 36.6x20.4x0.5 mm - Carbon Steel Regular price $30.77 AUD Regular price Sale price $30.77 AUD Unit price per Out of stock! Backorder Now
Nominal OD (A) 39.60 mm _{(1.559 in.)}	Nominal ID (B) 25.00 mm + 0.40 / - 0.00 _{(0.984 in.)}	Thickness (C) 0.50 mm _{(0.02 in.)}
Material: Carbon Steel Suits Bearing Size: 6203 Load at 0.75 height: 11.47 Kg Free Height (E): 1.30 mm Inside Height (D): 0.80 mm
Part Number: W0255-D-040-005-BB-C Disc Spring Washers - 39.6x25x0.5 mm - Carbon Steel 10 Available Immediately \| Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price $4.00 AUD Regular price ~~$7.60 AUD~~ Sale price $4.00 AUD Unit price per Each
Nominal OD (A) 39.60 mm _{(1.559 in.)}	Nominal ID (B) 25.00 mm + 0.40 / - 0.00 _{(0.984 in.)}	Thickness (C) 0.50 mm _{(0.02 in.)}
Material: Carbon Steel Suits Bearing Size: 6203 Load at 0.75 height: 11.47 Kg Free Height (E): 1.30 mm Inside Height (D): 0.80 mm
Part Number: W0255-D-040-005-BB-C Disc Spring Washers - 39.6x25x0.5 mm - Carbon Steel 10 Available Immediately \| Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price $4.00 AUD Regular price ~~$7.60 AUD~~ Sale price $4.00 AUD Unit price per Each
W0255-D-040-005-BB-C --- Disc Spring Washers - 39.6x25x0.5 mm - Carbon Steel Sale W0255-D-040-005-BB-C --- Disc Spring Washers - 39.6x25x0.5 mm - Carbon Steel Regular price $4.00 AUD Regular price ~~$7.60 AUD~~ Sale price $4.00 AUD Unit price per 10 Available Now Sale
Nominal OD (A) 40.50 mm _{(1.594 in.)}	Nominal ID (B) 54.00 mm + 0.50 / - 0.00 _{(2.126 in.)}	Thickness (C) 0.60 mm _{(0.024 in.)}
Material: Carbon Steel Suits Bearing Size: 6006 Inside Height (D): 1.60 mm
Part Number: W0405-D-055-060-BB-C (5 Pcs) Disc Spring Washers - 40.5x54x0.6 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jun 19, 2025 Regular price $50.23 AUD Regular price Sale price $50.23 AUD Unit price per Per 5
Nominal OD (A) 40.50 mm _{(1.594 in.)}	Nominal ID (B) 54.00 mm + 0.50 / - 0.00 _{(2.126 in.)}	Thickness (C) 0.60 mm _{(0.024 in.)}
Material: Carbon Steel Suits Bearing Size: 6006 Inside Height (D): 1.60 mm
Part Number: W0405-D-055-060-BB-C (5 Pcs) Disc Spring Washers - 40.5x54x0.6 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jun 19, 2025 Regular price $50.23 AUD Regular price Sale price $50.23 AUD Unit price per Per 5 View the product page first if you are unsure.
W0405-D-055-060-BB-C (5 Pcs) --- Disc Spring Washers - 40.5x54x0.6 mm - Carbon Steel W0405-D-055-060-BB-C (5 Pcs) --- Disc Spring Washers - 40.5x54x0.6 mm - Carbon Steel Regular price $50.23 AUD Regular price Sale price $50.23 AUD Unit price per Out of stock! Backorder Now
Nominal OD (A) 41.60 mm _{(1.638 in.)}	Nominal ID (B) 25.00 mm + 0.40 / - 0.00 _{(0.984 in.)}	Thickness (C) 0.50 mm _{(0.02 in.)}
Material: Carbon Steel Suits Bearing Size: 6004 / 6302 Load at 0.75 height: 11.83 Kg Free Height (E): 1.40 mm Inside Height (D): 0.90 mm
Part Number: W0255-D-042-005-BB-C Disc Spring Washers - 41.6x25x0.5 mm - Carbon Steel 48 Available Immediately \| Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price $1.32 AUD Regular price ~~$2.50 AUD~~ Sale price $1.32 AUD Unit price per Each
Nominal OD (A) 41.60 mm _{(1.638 in.)}	Nominal ID (B) 25.00 mm + 0.40 / - 0.00 _{(0.984 in.)}	Thickness (C) 0.50 mm _{(0.02 in.)}
Material: Carbon Steel Suits Bearing Size: 6004 / 6302 Load at 0.75 height: 11.83 Kg Free Height (E): 1.40 mm Inside Height (D): 0.90 mm
Part Number: W0255-D-042-005-BB-C Disc Spring Washers - 41.6x25x0.5 mm - Carbon Steel 48 Available Immediately \| Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price $1.32 AUD Regular price ~~$2.50 AUD~~ Sale price $1.32 AUD Unit price per Each
W0255-D-042-005-BB-C --- Disc Spring Washers - 41.6x25x0.5 mm - Carbon Steel Sale W0255-D-042-005-BB-C --- Disc Spring Washers - 41.6x25x0.5 mm - Carbon Steel Regular price $1.32 AUD Regular price ~~$2.50 AUD~~ Sale price $1.32 AUD Unit price per 48 Available Now Sale
Nominal OD (A) 46.50 mm _{(1.831 in.)}	Nominal ID (B) 30.00 mm + 0.50 / - 0.00 _{(1.181 in.)}	Thickness (C) 0.60 mm _{(0.024 in.)}
Material: Carbon Steel Suits Bearing Size: 6005, 6204, 6303 Inside Height (D): 1.60 mm
Part Number: W0304-D-047-060-BB-C (10 Pcs) Disc Spring Washers - 46.5x30x0.6 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jun 19, 2025 Regular price $30.77 AUD Regular price Sale price $30.77 AUD Unit price per Per 10
Nominal OD (A) 46.50 mm _{(1.831 in.)}	Nominal ID (B) 30.00 mm + 0.50 / - 0.00 _{(1.181 in.)}	Thickness (C) 0.60 mm _{(0.024 in.)}
Material: Carbon Steel Suits Bearing Size: 6005, 6204, 6303 Inside Height (D): 1.60 mm
Part Number: W0304-D-047-060-BB-C (10 Pcs) Disc Spring Washers - 46.5x30x0.6 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jun 19, 2025 Regular price $30.77 AUD Regular price Sale price $30.77 AUD Unit price per Per 10 View the product page first if you are unsure.
W0304-D-047-060-BB-C (10 Pcs) --- Disc Spring Washers - 46.5x30x0.6 mm - Carbon Steel W0304-D-047-060-BB-C (10 Pcs) --- Disc Spring Washers - 46.5x30x0.6 mm - Carbon Steel Regular price $30.77 AUD Regular price Sale price $30.77 AUD Unit price per Out of stock! Backorder Now
Nominal OD (A) 51.50 mm _{(2.028 in.)}	Nominal ID (B) 35.50 mm _{(1.398 in.)}	Thickness (C) 0.60 mm _{(0.024 in.)}
Material: Carbon Steel Suits Bearing Size: 6205 / 6304 Load at 0.75 height: 14.10 Kg Free Height (E): 1.50 mm Inside Height (D): 0.91 mm
Part Number: W0350-D-052-006-BB-C Disc Spring Washers - 51.5x35.5x0.6 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $14.59 AUD Regular price Sale price $14.59 AUD Unit price per Each
Nominal OD (A) 51.50 mm _{(2.028 in.)}	Nominal ID (B) 35.50 mm _{(1.398 in.)}	Thickness (C) 0.60 mm _{(0.024 in.)}
Material: Carbon Steel Suits Bearing Size: 6205 / 6304 Load at 0.75 height: 14.10 Kg Free Height (E): 1.50 mm Inside Height (D): 0.91 mm
Part Number: W0350-D-052-006-BB-C Disc Spring Washers - 51.5x35.5x0.6 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $14.59 AUD Regular price Sale price $14.59 AUD Unit price per Each View the product page first if you are unsure.
W0350-D-052-006-BB-C --- Disc Spring Washers - 51.5x35.5x0.6 mm - Carbon Steel W0350-D-052-006-BB-C --- Disc Spring Washers - 51.5x35.5x0.6 mm - Carbon Steel Regular price $14.59 AUD Regular price Sale price $14.59 AUD Unit price per Out of stock! Backorder Now
Nominal OD (A) 61.50 mm _{(2.421 in.)}	Nominal ID (B) 40.00 mm + 0.50 / - 0.00 _{(1.575 in.)}	Thickness (C) 0.70 mm _{(0.028 in.)}
Material: Carbon Steel Suits Bearing Size: 6007, 6206, 6305 Inside Height (D): 1.60 mm
Part Number: W0405-D-062-070-BB-C (2 Pcs) Disc Spring Washers - 61.5x40x0.7 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jun 19, 2025 Regular price $27.05 AUD Regular price Sale price $27.05 AUD Unit price per Per 2
Nominal OD (A) 61.50 mm _{(2.421 in.)}	Nominal ID (B) 40.00 mm + 0.50 / - 0.00 _{(1.575 in.)}	Thickness (C) 0.70 mm _{(0.028 in.)}
Material: Carbon Steel Suits Bearing Size: 6007, 6206, 6305 Inside Height (D): 1.60 mm
Part Number: W0405-D-062-070-BB-C (2 Pcs) Disc Spring Washers - 61.5x40x0.7 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jun 19, 2025 Regular price $27.05 AUD Regular price Sale price $27.05 AUD Unit price per Per 2 View the product page first if you are unsure.
W0405-D-062-070-BB-C (2 Pcs) --- Disc Spring Washers - 61.5x40x0.7 mm - Carbon Steel W0405-D-062-070-BB-C (2 Pcs) --- Disc Spring Washers - 61.5x40x0.7 mm - Carbon Steel Regular price $27.05 AUD Regular price Sale price $27.05 AUD Unit price per Out of stock! Backorder Now
Nominal OD (A) 67.50 mm _{(2.657 in.)}	Nominal ID (B) 50.00 mm + 0.50 / - 0.00 _{(1.969 in.)}	Thickness (C) 0.70 mm _{(0.028 in.)}
Material: Carbon Steel Suits Bearing Size: 6008 Inside Height (D): 1.60 mm
Part Number: W0505-D-068-070-BB-C (2 Pcs) Disc Spring Washers - 67.5x50x0.7 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jun 19, 2025 Regular price $31.95 AUD Regular price Sale price $31.95 AUD Unit price per Per 2
Nominal OD (A) 67.50 mm _{(2.657 in.)}	Nominal ID (B) 50.00 mm + 0.50 / - 0.00 _{(1.969 in.)}	Thickness (C) 0.70 mm _{(0.028 in.)}
Material: Carbon Steel Suits Bearing Size: 6008 Inside Height (D): 1.60 mm
Part Number: W0505-D-068-070-BB-C (2 Pcs) Disc Spring Washers - 67.5x50x0.7 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jun 19, 2025 Regular price $31.95 AUD Regular price Sale price $31.95 AUD Unit price per Per 2 View the product page first if you are unsure.
W0505-D-068-070-BB-C (2 Pcs) --- Disc Spring Washers - 67.5x50x0.7 mm - Carbon Steel W0505-D-068-070-BB-C (2 Pcs) --- Disc Spring Washers - 67.5x50x0.7 mm - Carbon Steel Regular price $31.95 AUD Regular price Sale price $31.95 AUD Unit price per Out of stock! Backorder Now
Nominal OD (A) 71.50 mm _{(2.815 in.)}	Nominal ID (B) 45.00 mm + 0.50 / - 0.00 _{(1.772 in.)}	Thickness (C) 0.70 mm _{(0.028 in.)}
Material: Carbon Steel Suits Bearing Size: 6306 Inside Height (D): 1.60 mm
Part Number: W0455-D-072-070-BB-C (2 Pcs) Disc Spring Washers - 71.5x45x0.7 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jun 19, 2025 Regular price $35.41 AUD Regular price Sale price $35.41 AUD Unit price per Per 2
Nominal OD (A) 71.50 mm _{(2.815 in.)}	Nominal ID (B) 45.00 mm + 0.50 / - 0.00 _{(1.772 in.)}	Thickness (C) 0.70 mm _{(0.028 in.)}
Material: Carbon Steel Suits Bearing Size: 6306 Inside Height (D): 1.60 mm
Part Number: W0455-D-072-070-BB-C (2 Pcs) Disc Spring Washers - 71.5x45x0.7 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jun 19, 2025 Regular price $35.41 AUD Regular price Sale price $35.41 AUD Unit price per Per 2 View the product page first if you are unsure.
W0455-D-072-070-BB-C (2 Pcs) --- Disc Spring Washers - 71.5x45x0.7 mm - Carbon Steel W0455-D-072-070-BB-C (2 Pcs) --- Disc Spring Washers - 71.5x45x0.7 mm - Carbon Steel Regular price $35.41 AUD Regular price Sale price $35.41 AUD Unit price per Out of stock! Backorder Now
Nominal OD (A) 99.00 mm _{(3.898 in.)}	Nominal ID (B) 65.50 mm + 0.50 / - 0.00 _{(2.579 in.)}	Thickness (C) 1.00 mm _{(0.039 in.)}
Material: Carbon Steel Suits Bearing Size: 6309 Free Height (E): 2.60 mm Inside Height (D): 1.60 mm
Part Number: W0665-D-099-010-BB-C Disc Spring Washers - 99x65.5x1 mm - Carbon Steel 21 Available Immediately \| Further orders can be expected around Thu, Aug 14, 2025 Regular price $10.50 AUD Regular price Sale price $10.50 AUD Unit price per Each
Nominal OD (A) 99.00 mm _{(3.898 in.)}	Nominal ID (B) 65.50 mm + 0.50 / - 0.00 _{(2.579 in.)}	Thickness (C) 1.00 mm _{(0.039 in.)}
Material: Carbon Steel Suits Bearing Size: 6309 Free Height (E): 2.60 mm Inside Height (D): 1.60 mm
Part Number: W0665-D-099-010-BB-C Disc Spring Washers - 99x65.5x1 mm - Carbon Steel 21 Available Immediately \| Further orders can be expected around Thu, Aug 14, 2025 Regular price $10.50 AUD Regular price Sale price $10.50 AUD Unit price per Each View the product page first if you are unsure.
W0665-D-099-010-BB-C --- Disc Spring Washers - 99x65.5x1 mm - Carbon Steel W0665-D-099-010-BB-C --- Disc Spring Washers - 99x65.5x1 mm - Carbon Steel Regular price $10.50 AUD Regular price Sale price $10.50 AUD Unit price per 21 Available Now

Country/region

Country/region

Collection: Washers - Disc Spring - Ball Bearing Type

Filter

Filter

Subscribe to our emails
