Tensioner - Adjustable Screw

Tensioner -> Adjustable Screw

There is only 1 product in the sub-categories of Tensioner - Adjustable Screw. Browse the Tensioner - Adjustable Screw products table.

Category Details

A selection of Adjustable Screw Tensioner. Use with idler shafts and idler pulleys. Uses a screw adjustment for positive precise tensioning.

  • Idler shaft and pulleys not included with tensioner

Miniature Bearings Australia - MBA Minibearings

Additional resources:


A more concise listing may be found in the Tensioner - Adjustable Screw category on the Small Parts & Bearings online store.
Bore (C) Overall Height (D) Housing Height (E) Overall Length (F) Bolt Centres (G) Shaft Diameter (H) Indicative
Bore (C)
25.400
mm

(Equiv. 1 in.)
Overall Height (D)
63.500
mm

(Equiv. 2.5 in.)
Housing Height (E)
38.100
mm

(Equiv. 1.5 in.)
Overall Length (F)
238.125
mm
Bolt Centres (G)
212.725
mm
Shaft Diameter (H)
19.050
mm

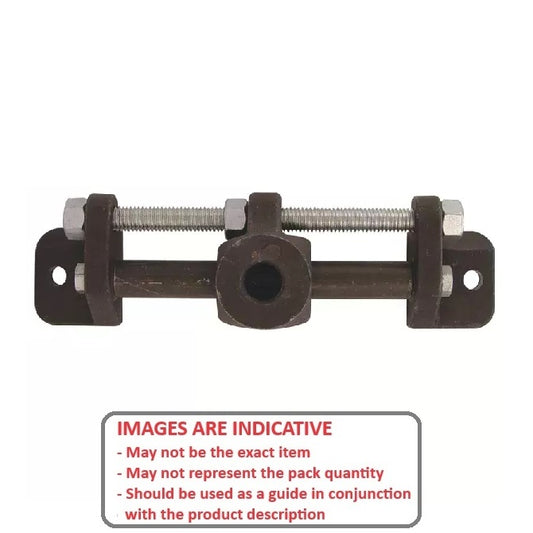

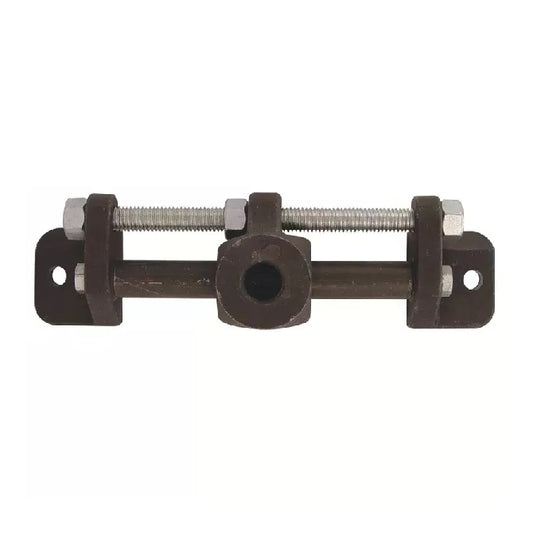

Adjustable Screw Tensioner - 25.4x63.5x38.1 mm
I: 12.700 mm    Housing Width (J): 60.325 mm    Housing Bolt Centre (K): 25.400 mm    Bolt Size (L): 3/4-16 x 9.53    M / N: 101.600 / 55.550 mm    Approx Weight: 1.95 Kg
Part Number: IDC-82RS
Adjustable Screw Tensioner - 25.4x63.5x38.1 mm
Out of Stock | Backorder Now | Orders can be expected around Mon, Nov 17, 2025
$498.23 AUD
$498.23 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Bore (C) Overall Height (D) Housing Height (E) Overall Length (F) Indicative
Bore (C)
25.400
mm

(Equiv. 1 in.)
Overall Height (D)
63.500
mm

(Equiv. 2.5 in.)
Housing Height (E)
38.100
mm

(Equiv. 1.5 in.)
Overall Length (F)
238.125
mm
Adjustable Screw Tensioner - 25.4x63.5x38.1 mm
Bolt Centres (G): 212.725 mm    Shaft Diameter (H): 19.050 mm    I: 12.700 mm    Housing Width (J): 60.325 mm    Housing Bolt Centre (K): 25.400 mm    Bolt Size (L): 3/4-16 x 9.53    M / N: 101.600 / 55.550 mm    Approx Weight: 1.95 Kg
Part Number: IDC-82RS
Adjustable Screw Tensioner - 25.4x63.5x38.1 mm
Out of Stock | Backorder Now | Orders can be expected around Mon, Nov 17, 2025
$498.23 AUD
$498.23 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
