Collection: Springs - Die - Imperial - Heavy Duty - Standard

Springs -> Die -> Imperial -> Heavy Duty -> Standard

There are 38 products in the sub-categories of Springs - Die - Imperial - Heavy Duty - Standard. Scroll down or follow the link to Springs - Die - Imperial - Heavy Duty - Standard in the products table to see all these items combined into a handy table with filters.

Category Details

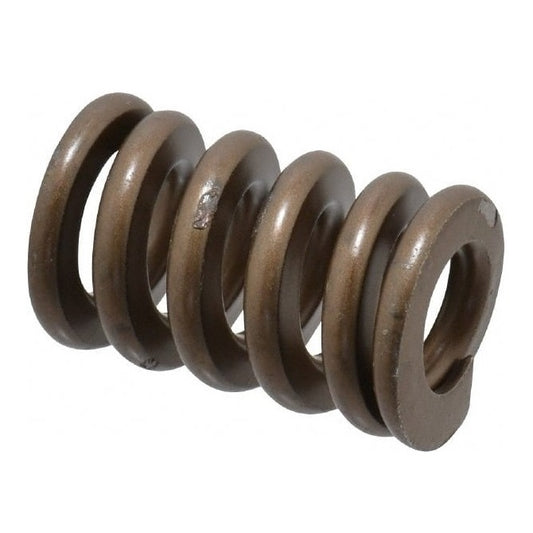

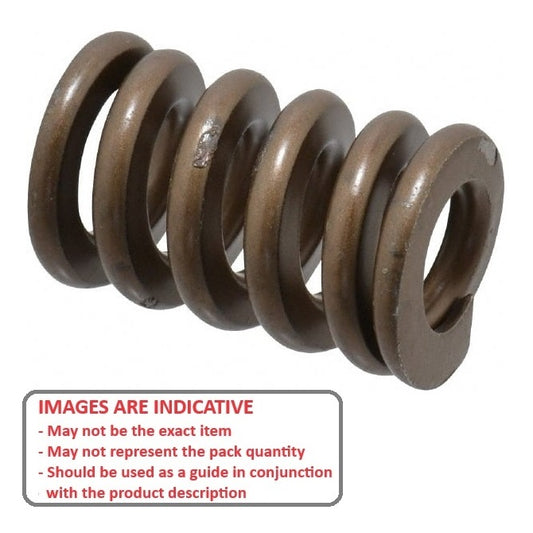

A selection of Standard Heavy Duty Imperial Die Springs. Colour coded gold. Vapor degassed high tensile strength chromium alloy steel.

Heavy duty, high-stress compression springs designed to handle large loads and high temperatures in demanding applications like metalworking dies and production tooling.
Unlike standard compression springs, die springs are typically made from rectangular or square wire, offering greater strength and deflection capabilities.
Many die springs are colour-coded to indicate their load capacity, allowing for easy identification and selection. An expanded range may be available on special order. Please enquire.
Designed for long life cycle with constant high end deflections and shot peened to increase fatigue life.
Maximum deflection is 30 percent of the length
Efficient operating range is 15 to 25 percent of the length
Spring Ends: Squared and ground.

Miniature Bearings Australia - MBA Minibearings

Additional resources:

Spings Catalogue PDF

A more concise listing may be found in the Springs - Die - Imperial - Heavy Duty - Standard category on the Small Parts & Bearings online store.

Hole Diameter (B)	Rod Diameter (A)	Length (L)	Optimum Deflection	Optimum Deflection	Load at Optimal
Die Springs - 9.53x4.763x25.4 mm Imperial - Carbon Spring Steel
Hole Diameter (B) 9.53 mm	Rod Diameter (A) 4.763 mm	Length (L) 25.400 mm	Optimum Deflection 15 Percent	Optimum Deflection 3.8 mm	Load at Optimal 77.1 N
Material: Carbon Spring Steel Maximum Deflection: 25 Percent Maximum Deflection: 6.4 mm Load at Maximum: 129.9 N Spring Rate: 20.3 N/mm Colour Code: Gold
Part Number: DS-095-025-HD (Each) 2 Available Now \| Further orders can be expected around Sat, Jun 27, 2026 Regular price $6.32 AUD Regular price ~~$7.58 AUD~~ Sale price $6.32 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Larger quantities than the 2 available can be backordered.
Hole Diameter (B)	Rod Diameter (A)	Length (L)	Optimum Deflection	Indicative Image
Die Springs - 9.53x4.763x25.4 mm Imperial - Carbon Spring Steel
Hole Diameter (B) 9.53 mm	Rod Diameter (A) 4.763 mm	Length (L) 25.400 mm	Optimum Deflection 15 Percent
Material: Carbon Spring Steel Optimum Deflection: 3.8 mm Load at Optimal: 77.1 N Maximum Deflection: 25 Percent Maximum Deflection: 6.4 mm Load at Maximum: 129.9 N Spring Rate: 20.3 N/mm Colour Code: Gold
Part Number: DS-095-025-HD (Each) 2 Available Now \| Further orders can be expected around Sat, Jun 27, 2026 Regular price $6.32 AUD Regular price ~~$7.58 AUD~~ Sale price $6.32 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required 2 Available Now. Backorder if more than 2.
DS-095-025-HD (Each) --- Die Springs - 9.53x4.763x25.4 mm Imperial - Carbon Spring Steel Sale DS-095-025-HD (Each) --- Die Springs - 9.53x4.763x25.4 mm Imperial - Carbon Spring Steel Regular price $6.32 AUD Regular price ~~$7.58 AUD~~ Sale price $6.32 AUD Unit price per Each Excludes GST and overseas Taxes & Duties 2 Available Now Sale
Die Springs - 9.53x4.763x38.1 mm Imperial - Carbon Spring Steel
Hole Diameter (B) 9.53 mm	Rod Diameter (A) 4.763 mm	Length (L) 38.100 mm	Optimum Deflection 15 Percent	Optimum Deflection 5.7 mm	Load at Optimal 79.8 N
Material: Carbon Spring Steel Maximum Deflection: 25 Percent Maximum Deflection: 9.5 mm Load at Maximum: 133.0 N Spring Rate: 14.0 N/mm Colour Code: Gold
Part Number: DS-095-038-HD (Each) Out of Stock \| Backorder Now \| Backorder now for delivery around Sat, Jun 27, 2026 Regular price $8.50 AUD Regular price ~~$10.20 AUD~~ Sale price $8.50 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Die Springs - 9.53x4.763x38.1 mm Imperial - Carbon Spring Steel
Hole Diameter (B) 9.53 mm	Rod Diameter (A) 4.763 mm	Length (L) 38.100 mm	Optimum Deflection 15 Percent
Material: Carbon Spring Steel Optimum Deflection: 5.7 mm Load at Optimal: 79.8 N Maximum Deflection: 25 Percent Maximum Deflection: 9.5 mm Load at Maximum: 133.0 N Spring Rate: 14.0 N/mm Colour Code: Gold
Part Number: DS-095-038-HD (Each) Out of Stock \| Backorder Now \| Backorder now for delivery around Sat, Jun 27, 2026 Regular price $8.50 AUD Regular price ~~$10.20 AUD~~ Sale price $8.50 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
DS-095-038-HD (Each) --- Die Springs - 9.53x4.763x38.1 mm Imperial - Carbon Spring Steel Sale DS-095-038-HD (Each) --- Die Springs - 9.53x4.763x38.1 mm Imperial - Carbon Spring Steel Regular price $8.50 AUD Regular price ~~$10.20 AUD~~ Sale price $8.50 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Die Springs - 9.53x4.763x50.8 mm Imperial - Carbon Spring Steel
Hole Diameter (B) 9.53 mm	Rod Diameter (A) 4.763 mm	Length (L) 50.800 mm	Optimum Deflection 15 Percent	Optimum Deflection 7.6 mm	Load at Optimal 82.8 N
Material: Carbon Spring Steel Maximum Deflection: 25 Percent Maximum Deflection: 12.7 mm Load at Maximum: 138.4 N Spring Rate: 10.9 N/mm Colour Code: Gold
Part Number: DS-095-051-HD (Each) Out of Stock \| Backorder Now \| Backorder now for delivery around Sat, Jun 27, 2026 Regular price $12.77 AUD Regular price ~~$15.33 AUD~~ Sale price $12.77 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Die Springs - 9.53x4.763x50.8 mm Imperial - Carbon Spring Steel
Hole Diameter (B) 9.53 mm	Rod Diameter (A) 4.763 mm	Length (L) 50.800 mm	Optimum Deflection 15 Percent
Material: Carbon Spring Steel Optimum Deflection: 7.6 mm Load at Optimal: 82.8 N Maximum Deflection: 25 Percent Maximum Deflection: 12.7 mm Load at Maximum: 138.4 N Spring Rate: 10.9 N/mm Colour Code: Gold
Part Number: DS-095-051-HD (Each) Out of Stock \| Backorder Now \| Backorder now for delivery around Sat, Jun 27, 2026 Regular price $12.77 AUD Regular price ~~$15.33 AUD~~ Sale price $12.77 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
DS-095-051-HD (Each) --- Die Springs - 9.53x4.763x50.8 mm Imperial - Carbon Spring Steel Sale DS-095-051-HD (Each) --- Die Springs - 9.53x4.763x50.8 mm Imperial - Carbon Spring Steel Regular price $12.77 AUD Regular price ~~$15.33 AUD~~ Sale price $12.77 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Die Springs - 9.53x4.763x63.5 mm Imperial - Carbon Spring Steel
Hole Diameter (B) 9.53 mm	Rod Diameter (A) 4.763 mm	Length (L) 63.500 mm	Optimum Deflection 15 Percent	Optimum Deflection 9.5 mm	Load at Optimal 83.6 N
Material: Carbon Spring Steel Maximum Deflection: 25 Percent Maximum Deflection: 15.9 mm Load at Maximum: 139.9 N Spring Rate: 8.8 N/mm Colour Code: Gold
Part Number: DS-095-064-HD (Each) Out of Stock \| Backorder Now \| Backorder now for delivery around Wed, Jul 22, 2026 Regular price $13.68 AUD Regular price ~~$16.42 AUD~~ Sale price $13.68 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Die Springs - 9.53x4.763x63.5 mm Imperial - Carbon Spring Steel
Hole Diameter (B) 9.53 mm	Rod Diameter (A) 4.763 mm	Length (L) 63.500 mm	Optimum Deflection 15 Percent
Material: Carbon Spring Steel Optimum Deflection: 9.5 mm Load at Optimal: 83.6 N Maximum Deflection: 25 Percent Maximum Deflection: 15.9 mm Load at Maximum: 139.9 N Spring Rate: 8.8 N/mm Colour Code: Gold
Part Number: DS-095-064-HD (Each) Out of Stock \| Backorder Now \| Backorder now for delivery around Wed, Jul 22, 2026 Regular price $13.68 AUD Regular price ~~$16.42 AUD~~ Sale price $13.68 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
DS-095-064-HD (Each) --- Die Springs - 9.53x4.763x63.5 mm Imperial - Carbon Spring Steel Sale DS-095-064-HD (Each) --- Die Springs - 9.53x4.763x63.5 mm Imperial - Carbon Spring Steel Regular price $13.68 AUD Regular price ~~$16.42 AUD~~ Sale price $13.68 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Die Springs - 9.53x4.763x76.2 mm Imperial - Carbon Spring Steel
Hole Diameter (B) 9.53 mm	Rod Diameter (A) 4.763 mm	Length (L) 76.200 mm	Optimum Deflection 15 Percent	Optimum Deflection 11.4 mm	Load at Optimal 82.1 N
Material: Carbon Spring Steel Maximum Deflection: 25 Percent Maximum Deflection: 19.1 mm Load at Maximum: 137.5 N Spring Rate: 7.2 N/mm Colour Code: Gold
Part Number: DS-095-076-HD (Each) Out of Stock \| Backorder Now \| Backorder now for delivery around Sat, Jun 27, 2026 Regular price $15.59 AUD Regular price ~~$18.71 AUD~~ Sale price $15.59 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Die Springs - 9.53x4.763x76.2 mm Imperial - Carbon Spring Steel
Hole Diameter (B) 9.53 mm	Rod Diameter (A) 4.763 mm	Length (L) 76.200 mm	Optimum Deflection 15 Percent
Material: Carbon Spring Steel Optimum Deflection: 11.4 mm Load at Optimal: 82.1 N Maximum Deflection: 25 Percent Maximum Deflection: 19.1 mm Load at Maximum: 137.5 N Spring Rate: 7.2 N/mm Colour Code: Gold
Part Number: DS-095-076-HD (Each) Out of Stock \| Backorder Now \| Backorder now for delivery around Sat, Jun 27, 2026 Regular price $15.59 AUD Regular price ~~$18.71 AUD~~ Sale price $15.59 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
DS-095-076-HD (Each) --- Die Springs - 9.53x4.763x76.2 mm Imperial - Carbon Spring Steel Sale DS-095-076-HD (Each) --- Die Springs - 9.53x4.763x76.2 mm Imperial - Carbon Spring Steel Regular price $15.59 AUD Regular price ~~$18.71 AUD~~ Sale price $15.59 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Die Springs - 12.7x7.144x25.4 mm Imperial - Carbon Spring Steel
Hole Diameter (B) 12.70 mm	Rod Diameter (A) 7.144 mm	Length (L) 25.400 mm	Optimum Deflection 15 Percent	Optimum Deflection 3.8 mm	Load at Optimal 149.7 N
Material: Carbon Spring Steel Maximum Deflection: 25 Percent Maximum Deflection: 6.4 mm Load at Maximum: 252.2 N Spring Rate: 39.4 N/mm Colour Code: Gold
Part Number: DS-127-025-HD (Each) Out of Stock \| Backorder Now \| Backorder now for delivery around Sat, Jun 27, 2026 Regular price $10.77 AUD Regular price ~~$12.93 AUD~~ Sale price $10.77 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Die Springs - 12.7x7.144x25.4 mm Imperial - Carbon Spring Steel
Hole Diameter (B) 12.70 mm	Rod Diameter (A) 7.144 mm	Length (L) 25.400 mm	Optimum Deflection 15 Percent
Material: Carbon Spring Steel Optimum Deflection: 3.8 mm Load at Optimal: 149.7 N Maximum Deflection: 25 Percent Maximum Deflection: 6.4 mm Load at Maximum: 252.2 N Spring Rate: 39.4 N/mm Colour Code: Gold
Part Number: DS-127-025-HD (Each) Out of Stock \| Backorder Now \| Backorder now for delivery around Sat, Jun 27, 2026 Regular price $10.77 AUD Regular price ~~$12.93 AUD~~ Sale price $10.77 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
DS-127-025-HD (Each) --- Die Springs - 12.7x7.144x25.4 mm Imperial - Carbon Spring Steel Sale DS-127-025-HD (Each) --- Die Springs - 12.7x7.144x25.4 mm Imperial - Carbon Spring Steel Regular price $10.77 AUD Regular price ~~$12.93 AUD~~ Sale price $10.77 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Die Springs - 12.7x7.144x31.75 mm Imperial - Carbon Spring Steel
Hole Diameter (B) 12.70 mm	Rod Diameter (A) 7.144 mm	Length (L) 31.750 mm	Optimum Deflection 15 Percent	Optimum Deflection 4.8 mm	Load at Optimal 153.1 N
Material: Carbon Spring Steel Maximum Deflection: 25 Percent Maximum Deflection: 7.9 mm Load at Maximum: 252.0 N Spring Rate: 31.9 N/mm Colour Code: Gold
Part Number: DS-127-032-HD (Each) Out of Stock \| Backorder Now \| Backorder now for delivery around Sat, Jun 27, 2026 Regular price $12.86 AUD Regular price ~~$15.44 AUD~~ Sale price $12.86 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Die Springs - 12.7x7.144x31.75 mm Imperial - Carbon Spring Steel
Hole Diameter (B) 12.70 mm	Rod Diameter (A) 7.144 mm	Length (L) 31.750 mm	Optimum Deflection 15 Percent
Material: Carbon Spring Steel Optimum Deflection: 4.8 mm Load at Optimal: 153.1 N Maximum Deflection: 25 Percent Maximum Deflection: 7.9 mm Load at Maximum: 252.0 N Spring Rate: 31.9 N/mm Colour Code: Gold
Part Number: DS-127-032-HD (Each) Out of Stock \| Backorder Now \| Backorder now for delivery around Sat, Jun 27, 2026 Regular price $12.86 AUD Regular price ~~$15.44 AUD~~ Sale price $12.86 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
DS-127-032-HD (Each) --- Die Springs - 12.7x7.144x31.75 mm Imperial - Carbon Spring Steel Sale DS-127-032-HD (Each) --- Die Springs - 12.7x7.144x31.75 mm Imperial - Carbon Spring Steel Regular price $12.86 AUD Regular price ~~$15.44 AUD~~ Sale price $12.86 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Die Springs - 12.7x7.144x38.1 mm Imperial - Carbon Spring Steel
Hole Diameter (B) 12.70 mm	Rod Diameter (A) 7.144 mm	Length (L) 38.100 mm	Optimum Deflection 15 Percent	Optimum Deflection 5.7 mm	Load at Optimal 147.6 N
Material: Carbon Spring Steel Maximum Deflection: 25 Percent Maximum Deflection: 9.5 mm Load at Maximum: 246.1 N Spring Rate: 25.9 N/mm Colour Code: Gold
Part Number: DS-127-038-HD (Each) Out of Stock \| Backorder Now \| Backorder now for delivery around Sat, Jun 27, 2026 Regular price $11.32 AUD Regular price ~~$13.58 AUD~~ Sale price $11.32 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Die Springs - 12.7x7.144x38.1 mm Imperial - Carbon Spring Steel
Hole Diameter (B) 12.70 mm	Rod Diameter (A) 7.144 mm	Length (L) 38.100 mm	Optimum Deflection 15 Percent
Material: Carbon Spring Steel Optimum Deflection: 5.7 mm Load at Optimal: 147.6 N Maximum Deflection: 25 Percent Maximum Deflection: 9.5 mm Load at Maximum: 246.1 N Spring Rate: 25.9 N/mm Colour Code: Gold
Part Number: DS-127-038-HD (Each) Out of Stock \| Backorder Now \| Backorder now for delivery around Sat, Jun 27, 2026 Regular price $11.32 AUD Regular price ~~$13.58 AUD~~ Sale price $11.32 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
DS-127-038-HD (Each) --- Die Springs - 12.7x7.144x38.1 mm Imperial - Carbon Spring Steel Sale DS-127-038-HD (Each) --- Die Springs - 12.7x7.144x38.1 mm Imperial - Carbon Spring Steel Regular price $11.32 AUD Regular price ~~$13.58 AUD~~ Sale price $11.32 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Die Springs - 12.7x7.144x44.45 mm Imperial - Carbon Spring Steel
Hole Diameter (B) 12.70 mm	Rod Diameter (A) 7.144 mm	Length (L) 44.450 mm	Optimum Deflection 15 Percent	Optimum Deflection 6.7 mm	Load at Optimal 148.1 N
Material: Carbon Spring Steel Maximum Deflection: 25 Percent Maximum Deflection: 11.1 mm Load at Maximum: 245.3 N Spring Rate: 22.1 N/mm Colour Code: Gold
Part Number: DS-127-044-HD (Each) Out of Stock \| Backorder Now \| Backorder now for delivery around Sat, Jun 27, 2026 Regular price $13.23 AUD Regular price ~~$15.87 AUD~~ Sale price $13.23 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Die Springs - 12.7x7.144x44.45 mm Imperial - Carbon Spring Steel
Hole Diameter (B) 12.70 mm	Rod Diameter (A) 7.144 mm	Length (L) 44.450 mm	Optimum Deflection 15 Percent
Material: Carbon Spring Steel Optimum Deflection: 6.7 mm Load at Optimal: 148.1 N Maximum Deflection: 25 Percent Maximum Deflection: 11.1 mm Load at Maximum: 245.3 N Spring Rate: 22.1 N/mm Colour Code: Gold
Part Number: DS-127-044-HD (Each) Out of Stock \| Backorder Now \| Backorder now for delivery around Sat, Jun 27, 2026 Regular price $13.23 AUD Regular price ~~$15.87 AUD~~ Sale price $13.23 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
DS-127-044-HD (Each) --- Die Springs - 12.7x7.144x44.45 mm Imperial - Carbon Spring Steel Sale DS-127-044-HD (Each) --- Die Springs - 12.7x7.144x44.45 mm Imperial - Carbon Spring Steel Regular price $13.23 AUD Regular price ~~$15.87 AUD~~ Sale price $13.23 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Die Springs - 12.7x7.144x50.8 mm Imperial - Carbon Spring Steel
Hole Diameter (B) 12.70 mm	Rod Diameter (A) 7.144 mm	Length (L) 50.800 mm	Optimum Deflection 15 Percent	Optimum Deflection 7.6 mm	Load at Optimal 146.7 N
Material: Carbon Spring Steel Maximum Deflection: 25 Percent Maximum Deflection: 12.7 mm Load at Maximum: 245.1 N Spring Rate: 19.3 N/mm Colour Code: Gold
Part Number: DS-127-051-HD (Each) Out of Stock \| Backorder Now \| Backorder now for delivery around Sat, Jun 27, 2026 Regular price $13.95 AUD Regular price ~~$16.75 AUD~~ Sale price $13.95 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Die Springs - 12.7x7.144x50.8 mm Imperial - Carbon Spring Steel
Hole Diameter (B) 12.70 mm	Rod Diameter (A) 7.144 mm	Length (L) 50.800 mm	Optimum Deflection 15 Percent
Material: Carbon Spring Steel Optimum Deflection: 7.6 mm Load at Optimal: 146.7 N Maximum Deflection: 25 Percent Maximum Deflection: 12.7 mm Load at Maximum: 245.1 N Spring Rate: 19.3 N/mm Colour Code: Gold
Part Number: DS-127-051-HD (Each) Out of Stock \| Backorder Now \| Backorder now for delivery around Sat, Jun 27, 2026 Regular price $13.95 AUD Regular price ~~$16.75 AUD~~ Sale price $13.95 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
DS-127-051-HD (Each) --- Die Springs - 12.7x7.144x50.8 mm Imperial - Carbon Spring Steel Sale DS-127-051-HD (Each) --- Die Springs - 12.7x7.144x50.8 mm Imperial - Carbon Spring Steel Regular price $13.95 AUD Regular price ~~$16.75 AUD~~ Sale price $13.95 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Die Springs - 15.88x8.731x25.4 mm Imperial - Carbon Spring Steel
Hole Diameter (B) 15.88 mm	Rod Diameter (A) 8.731 mm	Length (L) 25.400 mm	Optimum Deflection 15 Percent	Optimum Deflection 3.8 mm	Load at Optimal 282.0 N
Material: Carbon Spring Steel Maximum Deflection: 25 Percent Maximum Deflection: 6.4 mm Load at Maximum: 474.9 N Spring Rate: 74.2 N/mm Colour Code: Gold
Part Number: DS-159-025-HD (Each) Out of Stock \| Backorder Now \| Backorder now for delivery around Sat, Jun 27, 2026 Regular price $12.14 AUD Regular price ~~$14.56 AUD~~ Sale price $12.14 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Die Springs - 15.88x8.731x25.4 mm Imperial - Carbon Spring Steel
Hole Diameter (B) 15.88 mm	Rod Diameter (A) 8.731 mm	Length (L) 25.400 mm	Optimum Deflection 15 Percent
Material: Carbon Spring Steel Optimum Deflection: 3.8 mm Load at Optimal: 282.0 N Maximum Deflection: 25 Percent Maximum Deflection: 6.4 mm Load at Maximum: 474.9 N Spring Rate: 74.2 N/mm Colour Code: Gold
Part Number: DS-159-025-HD (Each) Out of Stock \| Backorder Now \| Backorder now for delivery around Sat, Jun 27, 2026 Regular price $12.14 AUD Regular price ~~$14.56 AUD~~ Sale price $12.14 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
DS-159-025-HD (Each) --- Die Springs - 15.88x8.731x25.4 mm Imperial - Carbon Spring Steel Sale DS-159-025-HD (Each) --- Die Springs - 15.88x8.731x25.4 mm Imperial - Carbon Spring Steel Regular price $12.14 AUD Regular price ~~$14.56 AUD~~ Sale price $12.14 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Die Springs - 15.88x8.731x31.75 mm Imperial - Carbon Spring Steel
Hole Diameter (B) 15.88 mm	Rod Diameter (A) 8.731 mm	Length (L) 31.750 mm	Optimum Deflection 15 Percent	Optimum Deflection 4.8 mm	Load at Optimal 273.1 N
Material: Carbon Spring Steel Maximum Deflection: 25 Percent Maximum Deflection: 7.9 mm Load at Maximum: 449.5 N Spring Rate: 56.9 N/mm Colour Code: Gold
Part Number: DS-159-032-HD (Each) Out of Stock \| Backorder Now \| Backorder now for delivery around Sat, Jun 27, 2026 Regular price $12.68 AUD Regular price ~~$15.22 AUD~~ Sale price $12.68 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Die Springs - 15.88x8.731x31.75 mm Imperial - Carbon Spring Steel
Hole Diameter (B) 15.88 mm	Rod Diameter (A) 8.731 mm	Length (L) 31.750 mm	Optimum Deflection 15 Percent
Material: Carbon Spring Steel Optimum Deflection: 4.8 mm Load at Optimal: 273.1 N Maximum Deflection: 25 Percent Maximum Deflection: 7.9 mm Load at Maximum: 449.5 N Spring Rate: 56.9 N/mm Colour Code: Gold
Part Number: DS-159-032-HD (Each) Out of Stock \| Backorder Now \| Backorder now for delivery around Sat, Jun 27, 2026 Regular price $12.68 AUD Regular price ~~$15.22 AUD~~ Sale price $12.68 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
DS-159-032-HD (Each) --- Die Springs - 15.88x8.731x31.75 mm Imperial - Carbon Spring Steel Sale DS-159-032-HD (Each) --- Die Springs - 15.88x8.731x31.75 mm Imperial - Carbon Spring Steel Regular price $12.68 AUD Regular price ~~$15.22 AUD~~ Sale price $12.68 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Die Springs - 15.88x8.731x38.1 mm Imperial - Carbon Spring Steel
Hole Diameter (B) 15.88 mm	Rod Diameter (A) 8.731 mm	Length (L) 38.100 mm	Optimum Deflection 15 Percent	Optimum Deflection 5.7 mm	Load at Optimal 279.3 N
Material: Carbon Spring Steel Maximum Deflection: 25 Percent Maximum Deflection: 9.5 mm Load at Maximum: 465.5 N Spring Rate: 49.0 N/mm Colour Code: Gold
Part Number: DS-159-038-HD (Each) Out of Stock \| Backorder Now \| Backorder now for delivery around Sat, Jun 27, 2026 Regular price $13.95 AUD Regular price ~~$16.75 AUD~~ Sale price $13.95 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Die Springs - 15.88x8.731x38.1 mm Imperial - Carbon Spring Steel
Hole Diameter (B) 15.88 mm	Rod Diameter (A) 8.731 mm	Length (L) 38.100 mm	Optimum Deflection 15 Percent
Material: Carbon Spring Steel Optimum Deflection: 5.7 mm Load at Optimal: 279.3 N Maximum Deflection: 25 Percent Maximum Deflection: 9.5 mm Load at Maximum: 465.5 N Spring Rate: 49.0 N/mm Colour Code: Gold
Part Number: DS-159-038-HD (Each) Out of Stock \| Backorder Now \| Backorder now for delivery around Sat, Jun 27, 2026 Regular price $13.95 AUD Regular price ~~$16.75 AUD~~ Sale price $13.95 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
DS-159-038-HD (Each) --- Die Springs - 15.88x8.731x38.1 mm Imperial - Carbon Spring Steel Sale DS-159-038-HD (Each) --- Die Springs - 15.88x8.731x38.1 mm Imperial - Carbon Spring Steel Regular price $13.95 AUD Regular price ~~$16.75 AUD~~ Sale price $13.95 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Die Springs - 15.88x8.731x44.45 mm Imperial - Carbon Spring Steel
Hole Diameter (B) 15.88 mm	Rod Diameter (A) 8.731 mm	Length (L) 44.450 mm	Optimum Deflection 15 Percent	Optimum Deflection 6.7 mm	Load at Optimal 281.4 N
Material: Carbon Spring Steel Maximum Deflection: 25 Percent Maximum Deflection: 11.1 mm Load at Maximum: 466.2 N Spring Rate: 42.0 N/mm Colour Code: Gold
Part Number: DS-159-044-HD (Each) Out of Stock \| Backorder Now \| Backorder now for delivery around Sat, Jun 27, 2026 Regular price $14.50 AUD Regular price ~~$17.40 AUD~~ Sale price $14.50 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Die Springs - 15.88x8.731x44.45 mm Imperial - Carbon Spring Steel
Hole Diameter (B) 15.88 mm	Rod Diameter (A) 8.731 mm	Length (L) 44.450 mm	Optimum Deflection 15 Percent
Material: Carbon Spring Steel Optimum Deflection: 6.7 mm Load at Optimal: 281.4 N Maximum Deflection: 25 Percent Maximum Deflection: 11.1 mm Load at Maximum: 466.2 N Spring Rate: 42.0 N/mm Colour Code: Gold
Part Number: DS-159-044-HD (Each) Out of Stock \| Backorder Now \| Backorder now for delivery around Sat, Jun 27, 2026 Regular price $14.50 AUD Regular price ~~$17.40 AUD~~ Sale price $14.50 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
DS-159-044-HD (Each) --- Die Springs - 15.88x8.731x44.45 mm Imperial - Carbon Spring Steel Sale DS-159-044-HD (Each) --- Die Springs - 15.88x8.731x44.45 mm Imperial - Carbon Spring Steel Regular price $14.50 AUD Regular price ~~$17.40 AUD~~ Sale price $14.50 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Die Springs - 15.88x8.731x50.8 mm Imperial - Carbon Spring Steel
Hole Diameter (B) 15.88 mm	Rod Diameter (A) 8.731 mm	Length (L) 50.800 mm	Optimum Deflection 15 Percent	Optimum Deflection 7.6 mm	Load at Optimal 276.6 N
Material: Carbon Spring Steel Maximum Deflection: 25 Percent Maximum Deflection: 12.7 mm Load at Maximum: 462.3 N Spring Rate: 36.4 N/mm Colour Code: Gold
Part Number: DS-159-051-HD (Each) Out of Stock \| Backorder Now \| Backorder now for delivery around Sat, Jun 27, 2026 Regular price $16.41 AUD Regular price ~~$19.69 AUD~~ Sale price $16.41 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Die Springs - 15.88x8.731x50.8 mm Imperial - Carbon Spring Steel
Hole Diameter (B) 15.88 mm	Rod Diameter (A) 8.731 mm	Length (L) 50.800 mm	Optimum Deflection 15 Percent
Material: Carbon Spring Steel Optimum Deflection: 7.6 mm Load at Optimal: 276.6 N Maximum Deflection: 25 Percent Maximum Deflection: 12.7 mm Load at Maximum: 462.3 N Spring Rate: 36.4 N/mm Colour Code: Gold
Part Number: DS-159-051-HD (Each) Out of Stock \| Backorder Now \| Backorder now for delivery around Sat, Jun 27, 2026 Regular price $16.41 AUD Regular price ~~$19.69 AUD~~ Sale price $16.41 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
DS-159-051-HD (Each) --- Die Springs - 15.88x8.731x50.8 mm Imperial - Carbon Spring Steel Sale DS-159-051-HD (Each) --- Die Springs - 15.88x8.731x50.8 mm Imperial - Carbon Spring Steel Regular price $16.41 AUD Regular price ~~$19.69 AUD~~ Sale price $16.41 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Die Springs - 15.88x8.731x63.5 mm Imperial - Carbon Spring Steel
Hole Diameter (B) 15.88 mm	Rod Diameter (A) 8.731 mm	Length (L) 63.500 mm	Optimum Deflection 15 Percent	Optimum Deflection 9.5 mm	Load at Optimal 283.1 N
Material: Carbon Spring Steel Maximum Deflection: 25 Percent Maximum Deflection: 15.9 mm Load at Maximum: 473.8 N Spring Rate: 29.8 N/mm Colour Code: Gold
Part Number: DS-159-064-HD (Each) Out of Stock \| Backorder Now \| Backorder now for delivery around Sat, Jun 27, 2026 Regular price $17.95 AUD Regular price ~~$21.55 AUD~~ Sale price $17.95 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Die Springs - 15.88x8.731x63.5 mm Imperial - Carbon Spring Steel
Hole Diameter (B) 15.88 mm	Rod Diameter (A) 8.731 mm	Length (L) 63.500 mm	Optimum Deflection 15 Percent
Material: Carbon Spring Steel Optimum Deflection: 9.5 mm Load at Optimal: 283.1 N Maximum Deflection: 25 Percent Maximum Deflection: 15.9 mm Load at Maximum: 473.8 N Spring Rate: 29.8 N/mm Colour Code: Gold
Part Number: DS-159-064-HD (Each) Out of Stock \| Backorder Now \| Backorder now for delivery around Sat, Jun 27, 2026 Regular price $17.95 AUD Regular price ~~$21.55 AUD~~ Sale price $17.95 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
DS-159-064-HD (Each) --- Die Springs - 15.88x8.731x63.5 mm Imperial - Carbon Spring Steel Sale DS-159-064-HD (Each) --- Die Springs - 15.88x8.731x63.5 mm Imperial - Carbon Spring Steel Regular price $17.95 AUD Regular price ~~$21.55 AUD~~ Sale price $17.95 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Die Springs - 19.05x9.525x25.4 mm Imperial - Carbon Spring Steel
Hole Diameter (B) 19.05 mm	Rod Diameter (A) 9.525 mm	Length (L) 25.400 mm	Optimum Deflection 15 Percent	Optimum Deflection 3.8 mm	Load at Optimal 718.6 N
Material: Carbon Spring Steel Maximum Deflection: 25 Percent Maximum Deflection: 6.4 mm Load at Maximum: 1210.2 N Spring Rate: 189.1 N/mm Colour Code: Gold
Part Number: DS-191-025-HD (Each) Out of Stock \| Backorder Now \| Backorder now for delivery around Sat, Jun 27, 2026 Regular price $16.41 AUD Regular price ~~$19.69 AUD~~ Sale price $16.41 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Die Springs - 19.05x9.525x25.4 mm Imperial - Carbon Spring Steel
Hole Diameter (B) 19.05 mm	Rod Diameter (A) 9.525 mm	Length (L) 25.400 mm	Optimum Deflection 15 Percent
Material: Carbon Spring Steel Optimum Deflection: 3.8 mm Load at Optimal: 718.6 N Maximum Deflection: 25 Percent Maximum Deflection: 6.4 mm Load at Maximum: 1210.2 N Spring Rate: 189.1 N/mm Colour Code: Gold
Part Number: DS-191-025-HD (Each) Out of Stock \| Backorder Now \| Backorder now for delivery around Sat, Jun 27, 2026 Regular price $16.41 AUD Regular price ~~$19.69 AUD~~ Sale price $16.41 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
DS-191-025-HD (Each) --- Die Springs - 19.05x9.525x25.4 mm Imperial - Carbon Spring Steel Sale DS-191-025-HD (Each) --- Die Springs - 19.05x9.525x25.4 mm Imperial - Carbon Spring Steel Regular price $16.41 AUD Regular price ~~$19.69 AUD~~ Sale price $16.41 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Die Springs - 19.05x9.525x31.75 mm Imperial - Carbon Spring Steel
Hole Diameter (B) 19.05 mm	Rod Diameter (A) 9.525 mm	Length (L) 31.750 mm	Optimum Deflection 15 Percent	Optimum Deflection 4.8 mm	Load at Optimal 739.7 N
Material: Carbon Spring Steel Maximum Deflection: 25 Percent Maximum Deflection: 7.9 mm Load at Maximum: 1217.4 N Spring Rate: 154.1 N/mm Colour Code: Gold
Part Number: DS-191-032-HD (Each) Out of Stock \| Backorder Now \| Backorder now for delivery around Sat, Jun 27, 2026 Regular price $18.50 AUD Regular price ~~$22.20 AUD~~ Sale price $18.50 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Die Springs - 19.05x9.525x31.75 mm Imperial - Carbon Spring Steel
Hole Diameter (B) 19.05 mm	Rod Diameter (A) 9.525 mm	Length (L) 31.750 mm	Optimum Deflection 15 Percent
Material: Carbon Spring Steel Optimum Deflection: 4.8 mm Load at Optimal: 739.7 N Maximum Deflection: 25 Percent Maximum Deflection: 7.9 mm Load at Maximum: 1217.4 N Spring Rate: 154.1 N/mm Colour Code: Gold
Part Number: DS-191-032-HD (Each) Out of Stock \| Backorder Now \| Backorder now for delivery around Sat, Jun 27, 2026 Regular price $18.50 AUD Regular price ~~$22.20 AUD~~ Sale price $18.50 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
DS-191-032-HD (Each) --- Die Springs - 19.05x9.525x31.75 mm Imperial - Carbon Spring Steel Sale DS-191-032-HD (Each) --- Die Springs - 19.05x9.525x31.75 mm Imperial - Carbon Spring Steel Regular price $18.50 AUD Regular price ~~$22.20 AUD~~ Sale price $18.50 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Die Springs - 19.05x9.525x38.1 mm Imperial - Carbon Spring Steel
Hole Diameter (B) 19.05 mm	Rod Diameter (A) 9.525 mm	Length (L) 38.100 mm	Optimum Deflection 15 Percent	Optimum Deflection 5.7 mm	Load at Optimal 688.6 N
Material: Carbon Spring Steel Maximum Deflection: 25 Percent Maximum Deflection: 9.5 mm Load at Maximum: 1147.6 N Spring Rate: 120.8 N/mm Colour Code: Gold
Part Number: DS-191-038-HD (Each) Out of Stock \| Backorder Now \| Backorder now for delivery around Sat, Jun 27, 2026 Regular price $19.23 AUD Regular price ~~$23.07 AUD~~ Sale price $19.23 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Die Springs - 19.05x9.525x38.1 mm Imperial - Carbon Spring Steel
Hole Diameter (B) 19.05 mm	Rod Diameter (A) 9.525 mm	Length (L) 38.100 mm	Optimum Deflection 15 Percent
Material: Carbon Spring Steel Optimum Deflection: 5.7 mm Load at Optimal: 688.6 N Maximum Deflection: 25 Percent Maximum Deflection: 9.5 mm Load at Maximum: 1147.6 N Spring Rate: 120.8 N/mm Colour Code: Gold
Part Number: DS-191-038-HD (Each) Out of Stock \| Backorder Now \| Backorder now for delivery around Sat, Jun 27, 2026 Regular price $19.23 AUD Regular price ~~$23.07 AUD~~ Sale price $19.23 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
DS-191-038-HD (Each) --- Die Springs - 19.05x9.525x38.1 mm Imperial - Carbon Spring Steel Sale DS-191-038-HD (Each) --- Die Springs - 19.05x9.525x38.1 mm Imperial - Carbon Spring Steel Regular price $19.23 AUD Regular price ~~$23.07 AUD~~ Sale price $19.23 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Die Springs - 19.05x9.525x44.45 mm Imperial - Carbon Spring Steel
Hole Diameter (B) 19.05 mm	Rod Diameter (A) 9.525 mm	Length (L) 44.450 mm	Optimum Deflection 15 Percent	Optimum Deflection 6.7 mm	Load at Optimal 704.2 N
Material: Carbon Spring Steel Maximum Deflection: 25 Percent Maximum Deflection: 11.1 mm Load at Maximum: 1166.6 N Spring Rate: 105.1 N/mm Colour Code: Gold
Part Number: DS-191-044-HD (Each) Out of Stock \| Backorder Now \| Backorder now for delivery around Sat, Jun 27, 2026 Regular price $20.68 AUD Regular price ~~$24.82 AUD~~ Sale price $20.68 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Die Springs - 19.05x9.525x44.45 mm Imperial - Carbon Spring Steel
Hole Diameter (B) 19.05 mm	Rod Diameter (A) 9.525 mm	Length (L) 44.450 mm	Optimum Deflection 15 Percent
Material: Carbon Spring Steel Optimum Deflection: 6.7 mm Load at Optimal: 704.2 N Maximum Deflection: 25 Percent Maximum Deflection: 11.1 mm Load at Maximum: 1166.6 N Spring Rate: 105.1 N/mm Colour Code: Gold
Part Number: DS-191-044-HD (Each) Out of Stock \| Backorder Now \| Backorder now for delivery around Sat, Jun 27, 2026 Regular price $20.68 AUD Regular price ~~$24.82 AUD~~ Sale price $20.68 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
DS-191-044-HD (Each) --- Die Springs - 19.05x9.525x44.45 mm Imperial - Carbon Spring Steel Sale DS-191-044-HD (Each) --- Die Springs - 19.05x9.525x44.45 mm Imperial - Carbon Spring Steel Regular price $20.68 AUD Regular price ~~$24.82 AUD~~ Sale price $20.68 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Die Springs - 19.05x9.525x50.8 mm Imperial - Carbon Spring Steel
Hole Diameter (B) 19.05 mm	Rod Diameter (A) 9.525 mm	Length (L) 50.800 mm	Optimum Deflection 15 Percent	Optimum Deflection 7.6 mm	Load at Optimal 685.5 N
Material: Carbon Spring Steel Maximum Deflection: 25 Percent Maximum Deflection: 12.7 mm Load at Maximum: 1145.5 N Spring Rate: 90.2 N/mm Colour Code: Gold
Part Number: DS-191-051-HD (Each) Out of Stock \| Backorder Now \| Backorder now for delivery around Sat, Jun 27, 2026 Regular price $22.50 AUD Regular price ~~$27.00 AUD~~ Sale price $22.50 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Die Springs - 19.05x9.525x50.8 mm Imperial - Carbon Spring Steel
Hole Diameter (B) 19.05 mm	Rod Diameter (A) 9.525 mm	Length (L) 50.800 mm	Optimum Deflection 15 Percent
Material: Carbon Spring Steel Optimum Deflection: 7.6 mm Load at Optimal: 685.5 N Maximum Deflection: 25 Percent Maximum Deflection: 12.7 mm Load at Maximum: 1145.5 N Spring Rate: 90.2 N/mm Colour Code: Gold
Part Number: DS-191-051-HD (Each) Out of Stock \| Backorder Now \| Backorder now for delivery around Sat, Jun 27, 2026 Regular price $22.50 AUD Regular price ~~$27.00 AUD~~ Sale price $22.50 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
DS-191-051-HD (Each) --- Die Springs - 19.05x9.525x50.8 mm Imperial - Carbon Spring Steel Sale DS-191-051-HD (Each) --- Die Springs - 19.05x9.525x50.8 mm Imperial - Carbon Spring Steel Regular price $22.50 AUD Regular price ~~$27.00 AUD~~ Sale price $22.50 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Die Springs - 19.05x9.525x63.5 mm Imperial - Carbon Spring Steel
Hole Diameter (B) 19.05 mm	Rod Diameter (A) 9.525 mm	Length (L) 63.500 mm	Optimum Deflection 15 Percent	Optimum Deflection 9.5 mm	Load at Optimal 665.0 N
Material: Carbon Spring Steel Maximum Deflection: 25 Percent Maximum Deflection: 15.9 mm Load at Maximum: 1113.0 N Spring Rate: 70.0 N/mm Colour Code: Gold
Part Number: DS-191-064-HD (Each) Out of Stock \| Backorder Now \| Backorder now for delivery around Sat, Jun 27, 2026 Regular price $28.23 AUD Regular price ~~$33.87 AUD~~ Sale price $28.23 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Die Springs - 19.05x9.525x63.5 mm Imperial - Carbon Spring Steel
Hole Diameter (B) 19.05 mm	Rod Diameter (A) 9.525 mm	Length (L) 63.500 mm	Optimum Deflection 15 Percent
Material: Carbon Spring Steel Optimum Deflection: 9.5 mm Load at Optimal: 665.0 N Maximum Deflection: 25 Percent Maximum Deflection: 15.9 mm Load at Maximum: 1113.0 N Spring Rate: 70.0 N/mm Colour Code: Gold
Part Number: DS-191-064-HD (Each) Out of Stock \| Backorder Now \| Backorder now for delivery around Sat, Jun 27, 2026 Regular price $28.23 AUD Regular price ~~$33.87 AUD~~ Sale price $28.23 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
DS-191-064-HD (Each) --- Die Springs - 19.05x9.525x63.5 mm Imperial - Carbon Spring Steel Sale DS-191-064-HD (Each) --- Die Springs - 19.05x9.525x63.5 mm Imperial - Carbon Spring Steel Regular price $28.23 AUD Regular price ~~$33.87 AUD~~ Sale price $28.23 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Die Springs - 19.05x9.525x76.2 mm Imperial - Carbon Spring Steel
Hole Diameter (B) 19.05 mm	Rod Diameter (A) 9.525 mm	Length (L) 76.200 mm	Optimum Deflection 15 Percent	Optimum Deflection 11.4 mm	Load at Optimal 658.9 N
Material: Carbon Spring Steel Maximum Deflection: 25 Percent Maximum Deflection: 19.1 mm Load at Maximum: 1104.0 N Spring Rate: 57.8 N/mm Colour Code: Gold
Part Number: DS-191-076-HD (Each) Out of Stock \| Backorder Now \| Backorder now for delivery around Sat, Jun 27, 2026 Regular price $25.86 AUD Regular price ~~$31.04 AUD~~ Sale price $25.86 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Die Springs - 19.05x9.525x76.2 mm Imperial - Carbon Spring Steel
Hole Diameter (B) 19.05 mm	Rod Diameter (A) 9.525 mm	Length (L) 76.200 mm	Optimum Deflection 15 Percent
Material: Carbon Spring Steel Optimum Deflection: 11.4 mm Load at Optimal: 658.9 N Maximum Deflection: 25 Percent Maximum Deflection: 19.1 mm Load at Maximum: 1104.0 N Spring Rate: 57.8 N/mm Colour Code: Gold
Part Number: DS-191-076-HD (Each) Out of Stock \| Backorder Now \| Backorder now for delivery around Sat, Jun 27, 2026 Regular price $25.86 AUD Regular price ~~$31.04 AUD~~ Sale price $25.86 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
DS-191-076-HD (Each) --- Die Springs - 19.05x9.525x76.2 mm Imperial - Carbon Spring Steel Sale DS-191-076-HD (Each) --- Die Springs - 19.05x9.525x76.2 mm Imperial - Carbon Spring Steel Regular price $25.86 AUD Regular price ~~$31.04 AUD~~ Sale price $25.86 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Die Springs - 25.4x12.7x25.4 mm Imperial - Carbon Spring Steel
Hole Diameter (B) 25.40 mm	Rod Diameter (A) 12.700 mm	Length (L) 25.400 mm	Optimum Deflection 15 Percent	Optimum Deflection 3.8 mm	Load at Optimal 1285.5 N
Material: Carbon Spring Steel Maximum Deflection: 25 Percent Maximum Deflection: 6.4 mm Load at Maximum: 2165.1 N Spring Rate: 338.3 N/mm Colour Code: Gold
Part Number: DS-254-025-HD (Each) Out of Stock \| Backorder Now \| Backorder now for delivery around Sat, Jun 27, 2026 Regular price $21.95 AUD Regular price ~~$26.35 AUD~~ Sale price $21.95 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Die Springs - 25.4x12.7x25.4 mm Imperial - Carbon Spring Steel
Hole Diameter (B) 25.40 mm	Rod Diameter (A) 12.700 mm	Length (L) 25.400 mm	Optimum Deflection 15 Percent
Material: Carbon Spring Steel Optimum Deflection: 3.8 mm Load at Optimal: 1285.5 N Maximum Deflection: 25 Percent Maximum Deflection: 6.4 mm Load at Maximum: 2165.1 N Spring Rate: 338.3 N/mm Colour Code: Gold
Part Number: DS-254-025-HD (Each) Out of Stock \| Backorder Now \| Backorder now for delivery around Sat, Jun 27, 2026 Regular price $21.95 AUD Regular price ~~$26.35 AUD~~ Sale price $21.95 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
DS-254-025-HD (Each) --- Die Springs - 25.4x12.7x25.4 mm Imperial - Carbon Spring Steel Sale DS-254-025-HD (Each) --- Die Springs - 25.4x12.7x25.4 mm Imperial - Carbon Spring Steel Regular price $21.95 AUD Regular price ~~$26.35 AUD~~ Sale price $21.95 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale

Country/region

Miniature Bearings Australia

Collection: Springs - Die - Imperial - Heavy Duty - Standard

Category Details

Filter

Filter

Subscribe to our emails
