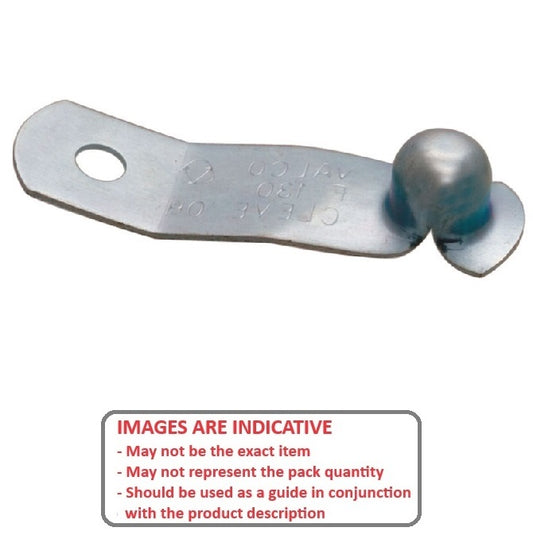

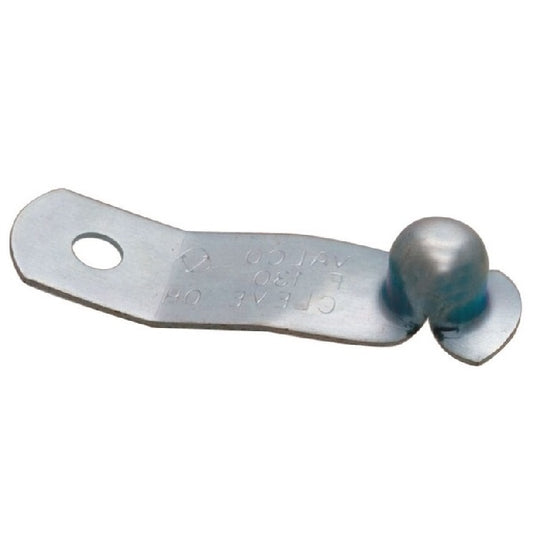

Snap Buttons - Flat Type

1 Item Available
  • Fasteners for telescoping tubing help reduce assembly time whilst improving your product functionality. Also called button clips or spring buttons.
  • Eliminates the need for rivets and screws.
  • Simply snap into place in square or round tubing.
  • Made from 1050 heat treated spring steel with minimum 0.005mm (0.0002 inch) zinc plating
Additional resources:
Tubing
A more concise listing may be found on the Smallparts store at Snap Buttons - Flat Type. Smallparts promote the most popular MBA products.
Button Diameter (A) Button Height (B) Material Thickness Clip Width Hole Diameter Centre Distrnce (C) Indicative
Button Diameter (A)
6.35
mm

(0.25 in.)
Button Height (B)
5.33
mm

(0.21 in.)
Material Thickness
0.457
mm

(0.018 in.)
Clip Width
9.27
mm
Hole Diameter
3.25
mm
Centre Distrnce (C)
21.3
mm
Flat Type Snap Buttons - 6.35x5.33x0.457 mm
Material: Spring Steel    Length (D): 31.750 mm
Part Number: SBTN-0635-FL Flat Type Snap Buttons - 6.35x5.33x0.457 mm
49 Available Immediately | Further orders can be expected around Sat, Jun 28, 2025
$3.59 AUD
$3.59 AUD
Each
Button Diameter (A) Button Height (B) Material Thickness Clip Width Indicative
Button Diameter (A)
6.35
mm

(0.25 in.)
Button Height (B)
5.33
mm

(0.21 in.)
Material Thickness
0.457
mm

(0.018 in.)
Clip Width
9.27
mm
Flat Type Snap Buttons - 6.35x5.33x0.457 mm
Material: Spring Steel    Hole Diameter: 3.25 mm    Centre Distrnce (C): 21.3 mm    Length (D): 31.750 mm
Part Number: SBTN-0635-FL Flat Type Snap Buttons - 6.35x5.33x0.457 mm
49 Available Immediately | Further orders can be expected around Sat, Jun 28, 2025
$3.59 AUD
$3.59 AUD
Each
View the product page first if you are unsure.
