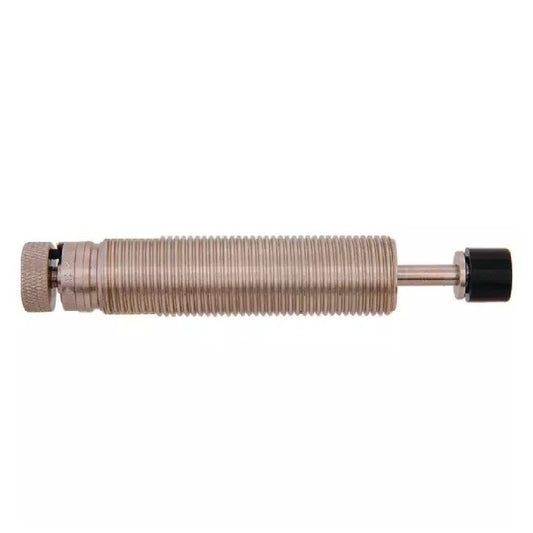

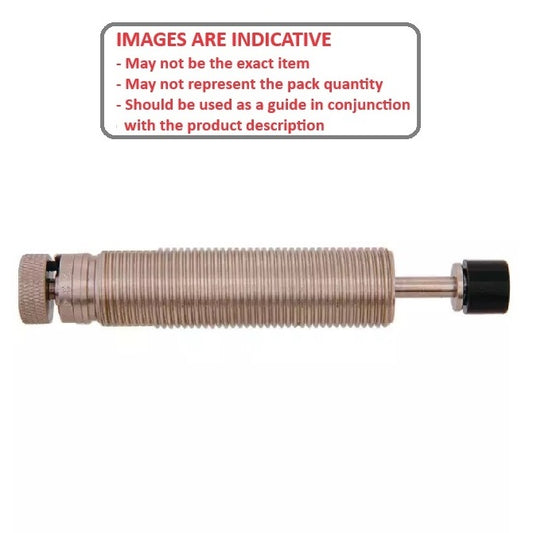

Shock Absorbers - Small Hydraulic Adjustable

Shock Absorbers -> Small Hydraulic Adjustable

There are 4 products in the sub-categories of Shock Absorbers - Small Hydraulic Adjustable. Browse the Shock Absorbers - Small Hydraulic Adjustable products table.

Category Details

A selection of Small Hydraulic Adjustable Shock Absorbers. This is the main category in this series

    Miniature Bearings Australia - MBA Minibearings

    Additional resources:


    A more concise listing may be found in the Shock Absorbers - Small Hydraulic Adjustable category on the Small Parts & Bearings online store.
    Stroke Thread (C) Type Length (A/F) Shaft Diameter (D) Max. Shock Force Indicative
    Stroke
    12.7
    mm

    (Equiv. 0.5 in.)
    Thread (C)
    3/4-16 UNF

    Type
    Standard

    Length (A/F)
    110.49 / 84.07
    mm
    Shaft Diameter (D)
    5
    mm
    Max. Shock Force
    352
    KG
    		Small Hydraulic Adjustable Shock Absorbers - 12.7 mm 3/4-16 UNF - Standard
    Max. Propelling Force: 68 KG    Nom. Coil Spring Force Exten: 1 KG    Nom. Coil Spring Force Compres: 1 KG    More Information: For more information please contact us.
    Part Number: ED1RS
    Small Hydraulic Adjustable Shock Absorbers - 12.7 mm 3/4-16 UNF - Standard
    Out of Stock | Backorder Now | Orders can be expected around Sun, Sep 21, 2025
    $458.68 AUD
    $458.68 AUD
    Each
    Quantity Required

    Backorder: Out of Stock.
    Stroke Thread (C) Type Length (A/F) Indicative
    Stroke
    12.7
    mm

    (Equiv. 0.5 in.)
    Thread (C)
    3/4-16 UNF

    Type
    Standard

    Length (A/F)
    110.49 / 84.07
    mm
    		Small Hydraulic Adjustable Shock Absorbers - 12.7 mm 3/4-16 UNF - Standard
    Shaft Diameter (D): 5 mm    Max. Shock Force: 352 KG    Max. Propelling Force: 68 KG    Nom. Coil Spring Force Exten: 1 KG    Nom. Coil Spring Force Compres: 1 KG    More Information: For more information please contact us.
    Part Number: ED1RS
    Small Hydraulic Adjustable Shock Absorbers - 12.7 mm 3/4-16 UNF - Standard
    Out of Stock | Backorder Now | Orders can be expected around Sun, Sep 21, 2025
    $458.68 AUD
    $458.68 AUD
    Each
    Quantity Required

    Backorder: Out of Stock.
    Stroke
    25.4
    mm

    (Equiv. 1 in.)
    Thread (C)
    1-12 UNF (25.4mm)

    Type
    Standard

    Length (A/F)
    142.75 / 103.89
    mm
    Shaft Diameter (D)
    6
    mm
    Max. Shock Force
    454
    KG
    		Small Hydraulic Adjustable Shock Absorbers - 25.4 mm 1-12 UNF -25.4mm- - Standard
    Max. Propelling Force: 136 KG    Nom. Coil Spring Force Exten: 1 KG    Nom. Coil Spring Force Compres: 3 KG    More Information: For more information please contact us.
    Part Number: ED2RRS
    Small Hydraulic Adjustable Shock Absorbers - 25.4 mm 1-12 UNF - 25.4mm - - Standard
    Out of Stock | Backorder Now | Orders can be expected around Sun, Sep 21, 2025
    $523.59 AUD
    $628.31 AUD $523.59 AUD
    Each
    Quantity Required

    Backorder: Out of Stock.
    Stroke
    25.4
    mm

    (Equiv. 1 in.)
    Thread (C)
    1-12 UNF (25.4mm)

    Type
    Standard

    Length (A/F)
    142.75 / 103.89
    mm
    		Small Hydraulic Adjustable Shock Absorbers - 25.4 mm 1-12 UNF -25.4mm- - Standard
    Shaft Diameter (D): 6 mm    Max. Shock Force: 454 KG    Max. Propelling Force: 136 KG    Nom. Coil Spring Force Exten: 1 KG    Nom. Coil Spring Force Compres: 3 KG    More Information: For more information please contact us.
    Part Number: ED2RRS
    Small Hydraulic Adjustable Shock Absorbers - 25.4 mm 1-12 UNF - 25.4mm - - Standard
    Out of Stock | Backorder Now | Orders can be expected around Sun, Sep 21, 2025
    $523.59 AUD
    $628.31 AUD $523.59 AUD
    Each
    Quantity Required

    Backorder: Out of Stock.
    Stroke
    25.4
    mm

    (Equiv. 1 in.)
    Thread (C)
    1.3/8-12 UNF

    Type
    Spring

    Length (A/F)
    155.45 / 96.77
    mm
    Shaft Diameter (D)
    10
    mm
    Max. Shock Force
    1134
    KG
    		Small Hydraulic Adjustable Shock Absorbers - 25.4 mm 1.3/8-12 UNF - Spring
    Max. Propelling Force: 227 KG    Nom. Coil Spring Force Exten: 4 KG    Nom. Coil Spring Force Compres: 6 KG    More Information: For more information please contact us.
    Part Number: ED3RS
    Small Hydraulic Adjustable Shock Absorbers - 25.4 mm 1.3/8-12 UNF - Spring
    Out of Stock | Backorder Now | Orders can be expected around Sun, Sep 21, 2025
    $766.95 AUD
    $920.35 AUD $766.95 AUD
    Each
    Quantity Required

    Backorder: Out of Stock.
    Stroke
    25.4
    mm

    (Equiv. 1 in.)
    Thread (C)
    1.3/8-12 UNF

    Type
    Spring

    Length (A/F)
    155.45 / 96.77
    mm
    		Small Hydraulic Adjustable Shock Absorbers - 25.4 mm 1.3/8-12 UNF - Spring
    Shaft Diameter (D): 10 mm    Max. Shock Force: 1134 KG    Max. Propelling Force: 227 KG    Nom. Coil Spring Force Exten: 4 KG    Nom. Coil Spring Force Compres: 6 KG    More Information: For more information please contact us.
    Part Number: ED3RS
    Small Hydraulic Adjustable Shock Absorbers - 25.4 mm 1.3/8-12 UNF - Spring
    Out of Stock | Backorder Now | Orders can be expected around Sun, Sep 21, 2025
    $766.95 AUD
    $920.35 AUD $766.95 AUD
    Each
    Quantity Required

    Backorder: Out of Stock.
    Stroke
    50.8
    mm

    (Equiv. 2 in.)
    Thread (C)
    1.3/8-12 UNF

    Type
    Spring

    Length (A/F)
    222.00 / 137.92
    mm
    Shaft Diameter (D)
    9
    mm
    Max. Shock Force
    1134
    KG
    		Small Hydraulic Adjustable Shock Absorbers - 50.8 mm 1.3/8-12 UNF - Spring
    Max. Propelling Force: 227 KG    Nom. Coil Spring Force Exten: 2 KG    Nom. Coil Spring Force Compres: 6 KG    More Information: For more information please contact us.
    Part Number: ED4RS
    Small Hydraulic Adjustable Shock Absorbers - 50.8 mm 1.3/8-12 UNF - Spring
    Out of Stock | Backorder Now | Orders can be expected around Sun, Sep 21, 2025
    $833.59 AUD
    $1,000.31 AUD $833.59 AUD
    Each
    Quantity Required

    Backorder: Out of Stock.
    Stroke
    50.8
    mm

    (Equiv. 2 in.)
    Thread (C)
    1.3/8-12 UNF

    Type
    Spring

    Length (A/F)
    222.00 / 137.92
    mm
    		Small Hydraulic Adjustable Shock Absorbers - 50.8 mm 1.3/8-12 UNF - Spring
    Shaft Diameter (D): 9 mm    Max. Shock Force: 1134 KG    Max. Propelling Force: 227 KG    Nom. Coil Spring Force Exten: 2 KG    Nom. Coil Spring Force Compres: 6 KG    More Information: For more information please contact us.
    Part Number: ED4RS
    Small Hydraulic Adjustable Shock Absorbers - 50.8 mm 1.3/8-12 UNF - Spring
    Out of Stock | Backorder Now | Orders can be expected around Sun, Sep 21, 2025
    $833.59 AUD
    $1,000.31 AUD $833.59 AUD
    Each
    Quantity Required

    Backorder: Out of Stock.
