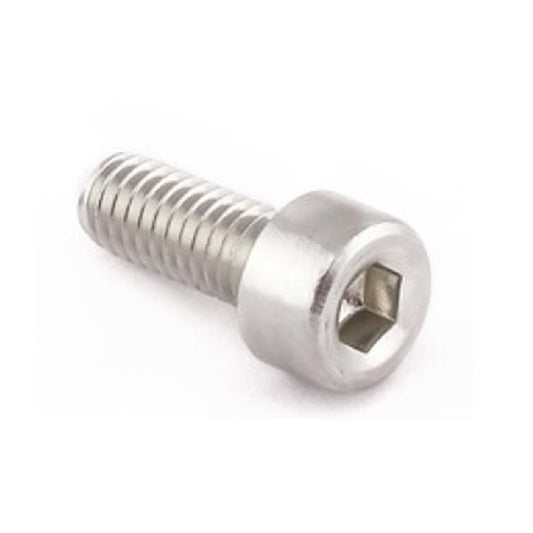

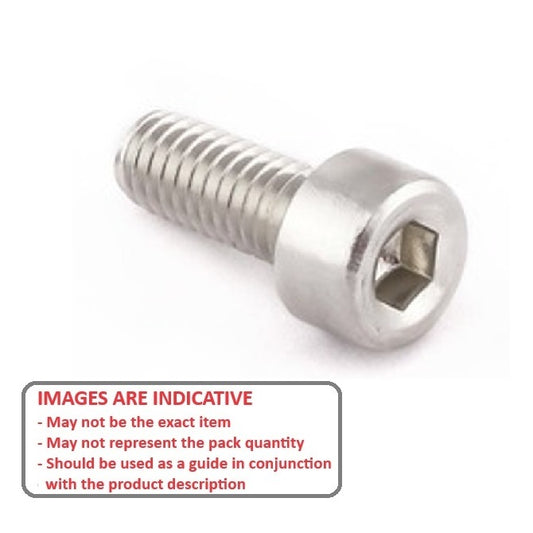

Screws - Socket Cap - Titanium - Ti-Gr5 Ti-6Al4v DIN912

3 Products in this selection
  • Metric Sizes to DIN912. Grade 5 6Al-4V is a high strength titanium alloy. Tensile Strength 91.5kgf / mm2. Yield Strength 84.5kgf / mm2. Elongation 10 Percent.
  • Used in critical aircraft structural components. UNS R56400.
  • Composition Percentage: Al 5.5-6.75, V 3.5-4.5, N 0.05, C 0.08, H 0.015, Fe 0.40, O 0.2, Ti Balance
  • Grade 5 6Al-4V is a high strength titanium alloy. Tensile Strength 91.5kgf / mm2. Yield Strength 84.5kgf / mm2. Elongation 10 Percent.
Additional resources:
PDF Screws Catalogue
Washers
Nuts
A more concise listing may be found on the Smallparts store at Screws - Socket Cap - Titanium - Ti-Gr5 Ti-6Al4v DIN912. Smallparts promote the most popular MBA products.
Thread Size (C) Thread Length (L) Material Head Length (B Max.) Head Diameter (A Max.) Drive Depth (E) Indicative
M5 (5x0.8mm)
10
mm 		6AL-4V Titanium Grade5
5.0
mm 		8.5
mm 		2.50
mm 		1062996 | SC050M-010-C-SK-T5 --- Socket Cap Screws - M5 -5x0.8mm- 10 mm - 6AL-4V Titanium Grade5
Material: Titanium High Strength    Shank Diameter (C): 4.82 - 5.00 mm    Hex Key (D): 4.00 mm    Pitch: 0.800 mm    Threads Per Inch: 31.75 TPI    Min thread Length: 10 mm
Part Number: SC050M-010-C-SK-T5 Socket Cap Screws - M5 -5x0.8mm- 10 mm - 6AL-4V Titanium Grade5
387 Available Immediately | Further orders can be expected around Tue, Jun 17, 2025
$7.14 AUD
$7.14 AUD
Each
Thread Size (C) Thread Length (L) Material Head Length (B Max.) Indicative
M5 (5x0.8mm)
10
mm 		6AL-4V Titanium Grade5
5.0
mm 		1062996 | SC050M-010-C-SK-T5 --- Socket Cap Screws - M5 -5x0.8mm- 10 mm - 6AL-4V Titanium Grade5
Material: Titanium High Strength    Head Diameter (A Max.): 8.5 mm    Drive Depth (E): 2.50 mm    Shank Diameter (C): 4.82 - 5.00 mm    Hex Key (D): 4.00 mm    Pitch: 0.800 mm    Threads Per Inch: 31.75 TPI    Min thread Length: 10 mm
Part Number: SC050M-010-C-SK-T5 Socket Cap Screws - M5 -5x0.8mm- 10 mm - 6AL-4V Titanium Grade5
387 Available Immediately | Further orders can be expected around Tue, Jun 17, 2025
$7.14 AUD
$7.14 AUD
Each
View the product page first if you are unsure.
M6 (6x1mm)
10
mm 		6AL-4V Titanium Grade5
6.0
mm 		10.0
mm 		3.00
mm 		1067824 | SC060M-010-C-SK-T5 --- Socket Cap Screws - M6 -6x1mm- 10 mm - 6AL-4V Titanium Grade5
Material: Titanium High Strength    Shank Diameter (C): 5.82 - 6.00 mm    Hex Key (D): 5.00 mm    Pitch: 1.000 mm    Threads Per Inch: 25.4 TPI    Min thread Length: 10 mm
Part Number: SC060M-010-C-SK-T5 Socket Cap Screws - M6 -6x1mm- 10 mm - 6AL-4V Titanium Grade5
200 Available Immediately | Further orders can be expected around Tue, Jun 17, 2025
$7.50 AUD
$7.50 AUD
Each
M6 (6x1mm)
10
mm 		6AL-4V Titanium Grade5
6.0
mm 		1067824 | SC060M-010-C-SK-T5 --- Socket Cap Screws - M6 -6x1mm- 10 mm - 6AL-4V Titanium Grade5
Material: Titanium High Strength    Head Diameter (A Max.): 10.0 mm    Drive Depth (E): 3.00 mm    Shank Diameter (C): 5.82 - 6.00 mm    Hex Key (D): 5.00 mm    Pitch: 1.000 mm    Threads Per Inch: 25.4 TPI    Min thread Length: 10 mm
Part Number: SC060M-010-C-SK-T5 Socket Cap Screws - M6 -6x1mm- 10 mm - 6AL-4V Titanium Grade5
200 Available Immediately | Further orders can be expected around Tue, Jun 17, 2025
$7.50 AUD
$7.50 AUD
Each
View the product page first if you are unsure.
M8 (8x1.25mm)
10
mm 		6AL-4V Titanium Grade5
8.0
mm 		13.0
mm 		4.00
mm 		1081661 | SC080M-010-C-SK-T5 (100 Pcs) --- Socket Cap Screws - M8 -8x1.25mm- 10 mm - 6AL-4V Titanium Grade5
Material: Titanium High Strength    Shank Diameter (C): 7.78 - 8.00 mm    Hex Key (D): 6.00 mm    Pitch: 1.250 mm    Threads Per Inch: 20.32 TPI    Min thread Length: 10 mm
Part Number: SC080M-010-C-SK-T5 (100 Pcs) Socket Cap Screws - M8 -8x1.25mm- 10 mm - 6AL-4V Titanium Grade5
Out of Stock | Backorder Now | Orders can be expected around Tue, Jun 17, 2025
$578.59 AUD
$578.59 AUD
Per 100
M8 (8x1.25mm)
10
mm 		6AL-4V Titanium Grade5
8.0
mm 		1081661 | SC080M-010-C-SK-T5 (100 Pcs) --- Socket Cap Screws - M8 -8x1.25mm- 10 mm - 6AL-4V Titanium Grade5
Material: Titanium High Strength    Head Diameter (A Max.): 13.0 mm    Drive Depth (E): 4.00 mm    Shank Diameter (C): 7.78 - 8.00 mm    Hex Key (D): 6.00 mm    Pitch: 1.250 mm    Threads Per Inch: 20.32 TPI    Min thread Length: 10 mm
Part Number: SC080M-010-C-SK-T5 (100 Pcs) Socket Cap Screws - M8 -8x1.25mm- 10 mm - 6AL-4V Titanium Grade5
Out of Stock | Backorder Now | Orders can be expected around Tue, Jun 17, 2025
$578.59 AUD
$578.59 AUD
Per 100
View the product page first if you are unsure.
