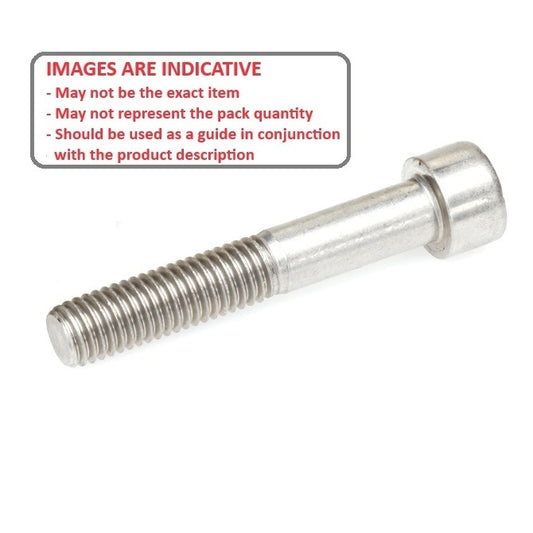

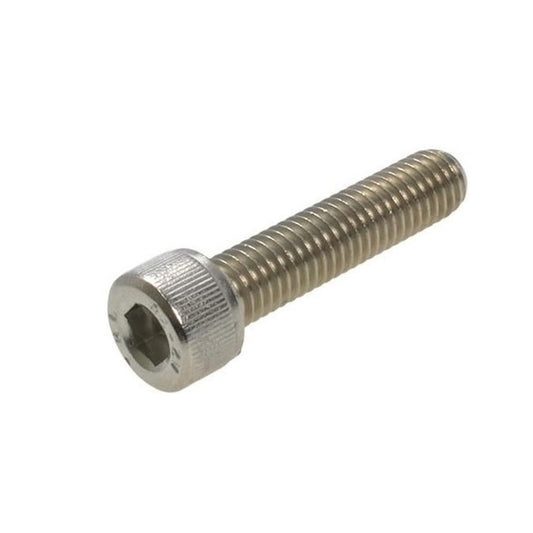

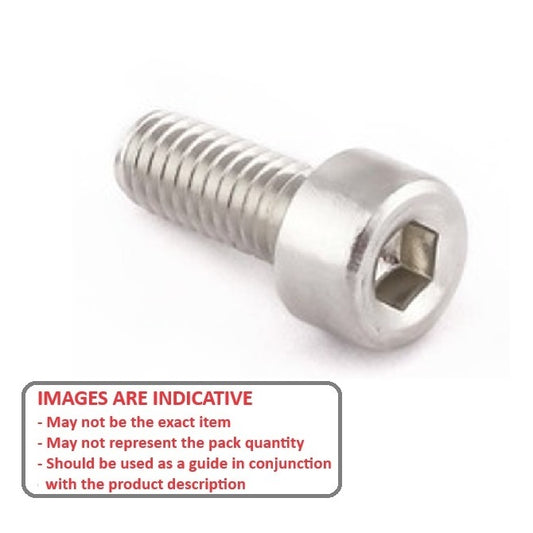

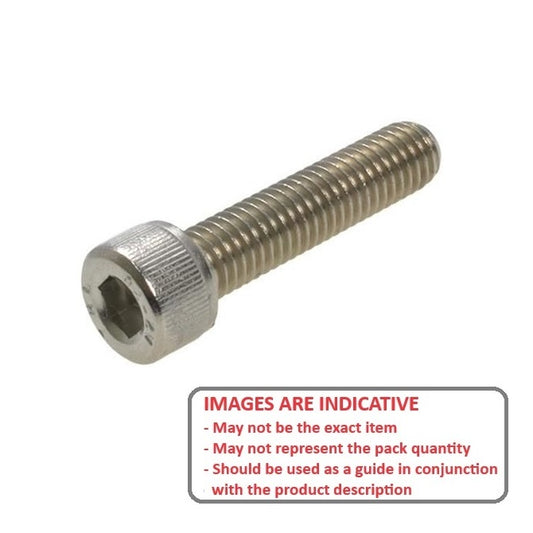

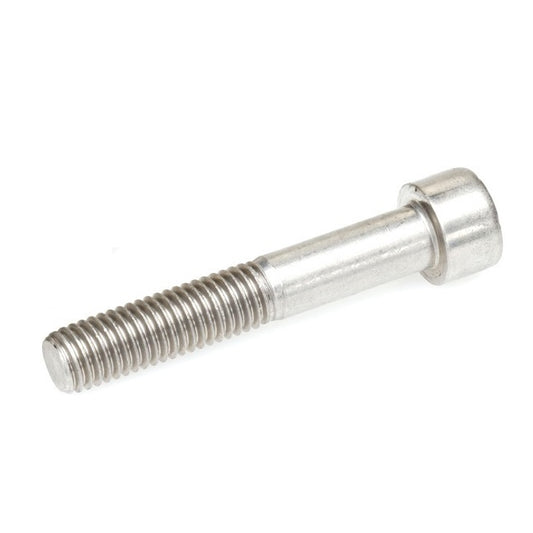

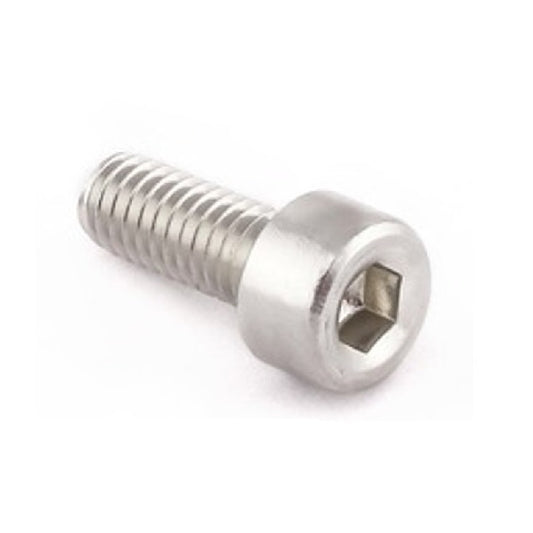

Screws - Socket Cap - Titanium - CP Grade 1 DIN912

6 Products in this selection
  • Metric Sizes to DIN912. CP1 Commercially Pure Titanium Grade 1. Tensile Strength 24.6 kgf/mm2. Yield Strength 17.6 kgf/mm2. Elongation 24 Percent.
  • Commercially pure for general industrial corrosion applications. UNS R50250.
  • Widely used in power generation, chemical processing, aerospace and medical applications.
  • Composition Percentage: Al 0, V 0, N 0.03, C 0.08, H 0.015, Fe 0.2, O 0.18, Ti Balance
Additional resources:
PDF Screws Catalogue
Washers
Nuts
A more concise listing may be found on the Smallparts store at Screws - Socket Cap - Titanium - CP Grade 1 DIN912. Smallparts promote the most popular MBA products.
Thread Size (C) Thread Length (L) Material Head Length (B Max.) Head Diameter (A Max.) Drive Depth (E) Indicative
M4 (4x0.7mm)
6
mm 		Titanium CP Grade 1
4.0
mm 		7.0
mm 		2.00
mm 		1053690 | SC040M-006-C-SK-TC1 (10 Pcs) --- Socket Cap Screws - M4 -4x0.7mm- 6 mm - Titanium CP Grade 1
Material: Titanium - CP1 Commercially Pure    Shank Diameter (C): 3.82 - 4.00 mm    Hex Key (D): 3.00 mm    Pitch: 0.700 mm    Threads Per Inch: 36.29 TPI    Min thread Length: 6 mm
Part Number: SC040M-006-C-SK-TC1 (10 Pcs) Socket Cap Screws - M4 -4x0.7mm- 6 mm - Titanium CP Grade 1
10 units (100 pcs) Available Immediately | Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity
$8.00 AUD
$15.20 AUD $8.00 AUD
Per 10
Thread Size (C) Thread Length (L) Material Head Length (B Max.) Indicative
M4 (4x0.7mm)
6
mm 		Titanium CP Grade 1
4.0
mm 		1053690 | SC040M-006-C-SK-TC1 (10 Pcs) --- Socket Cap Screws - M4 -4x0.7mm- 6 mm - Titanium CP Grade 1
Material: Titanium - CP1 Commercially Pure    Head Diameter (A Max.): 7.0 mm    Drive Depth (E): 2.00 mm    Shank Diameter (C): 3.82 - 4.00 mm    Hex Key (D): 3.00 mm    Pitch: 0.700 mm    Threads Per Inch: 36.29 TPI    Min thread Length: 6 mm
Part Number: SC040M-006-C-SK-TC1 (10 Pcs) Socket Cap Screws - M4 -4x0.7mm- 6 mm - Titanium CP Grade 1
10 units (100 pcs) Available Immediately | Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity
$8.00 AUD
$15.20 AUD $8.00 AUD
Per 10
M4 (4x0.7mm)
8
mm 		Titanium CP Grade 1
4.0
mm 		7.0
mm 		2.00
mm 		1054105 | SC040M-008-C-SK-TC1 (10 Pcs) --- Socket Cap Screws - M4 -4x0.7mm- 8 mm - Titanium CP Grade 1
Material: Titanium - CP1 Commercially Pure    Shank Diameter (C): 3.82 - 4.00 mm    Hex Key (D): 3.00 mm    Pitch: 0.700 mm    Threads Per Inch: 36.29 TPI    Min thread Length: 8 mm
Part Number: SC040M-008-C-SK-TC1 (10 Pcs) Socket Cap Screws - M4 -4x0.7mm- 8 mm - Titanium CP Grade 1
10 units (100 pcs) Available Immediately | Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity
$10.14 AUD
$19.26 AUD $10.14 AUD
Per 10
M4 (4x0.7mm)
8
mm 		Titanium CP Grade 1
4.0
mm 		1054105 | SC040M-008-C-SK-TC1 (10 Pcs) --- Socket Cap Screws - M4 -4x0.7mm- 8 mm - Titanium CP Grade 1
Material: Titanium - CP1 Commercially Pure    Head Diameter (A Max.): 7.0 mm    Drive Depth (E): 2.00 mm    Shank Diameter (C): 3.82 - 4.00 mm    Hex Key (D): 3.00 mm    Pitch: 0.700 mm    Threads Per Inch: 36.29 TPI    Min thread Length: 8 mm
Part Number: SC040M-008-C-SK-TC1 (10 Pcs) Socket Cap Screws - M4 -4x0.7mm- 8 mm - Titanium CP Grade 1
10 units (100 pcs) Available Immediately | Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity
$10.14 AUD
$19.26 AUD $10.14 AUD
Per 10
M4 (4x0.7mm)
10
mm 		Titanium CP Grade 1
4.0
mm 		7.0
mm 		2.00
mm 		1054470 | SC040M-010-C-SK-TC1 (10 Pcs) --- Socket Cap Screws - M4 -4x0.7mm- 10 mm - Titanium CP Grade 1
Material: Titanium - CP1 Commercially Pure    Shank Diameter (C): 3.82 - 4.00 mm    Hex Key (D): 3.00 mm    Pitch: 0.700 mm    Threads Per Inch: 36.29 TPI    Min thread Length: 10 mm
Part Number: SC040M-010-C-SK-TC1 (10 Pcs) Socket Cap Screws - M4 -4x0.7mm- 10 mm - Titanium CP Grade 1
88 units (880 pcs) Available Immediately | Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity
$8.00 AUD
$15.20 AUD $8.00 AUD
Per 10
M4 (4x0.7mm)
10
mm 		Titanium CP Grade 1
4.0
mm 		1054470 | SC040M-010-C-SK-TC1 (10 Pcs) --- Socket Cap Screws - M4 -4x0.7mm- 10 mm - Titanium CP Grade 1
Material: Titanium - CP1 Commercially Pure    Head Diameter (A Max.): 7.0 mm    Drive Depth (E): 2.00 mm    Shank Diameter (C): 3.82 - 4.00 mm    Hex Key (D): 3.00 mm    Pitch: 0.700 mm    Threads Per Inch: 36.29 TPI    Min thread Length: 10 mm
Part Number: SC040M-010-C-SK-TC1 (10 Pcs) Socket Cap Screws - M4 -4x0.7mm- 10 mm - Titanium CP Grade 1
88 units (880 pcs) Available Immediately | Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity
$8.00 AUD
$15.20 AUD $8.00 AUD
Per 10
M4 (4x0.7mm)
12
mm 		Titanium CP Grade 1
4.0
mm 		7.0
mm 		2.00
mm 		1054726 | SC040M-012-C-SK-TC1 (10 Pcs) --- Socket Cap Screws - M4 -4x0.7mm- 12 mm - Titanium CP Grade 1
Material: Titanium - CP1 Commercially Pure    Shank Diameter (C): 3.82 - 4.00 mm    Hex Key (D): 3.00 mm    Pitch: 0.700 mm    Threads Per Inch: 36.29 TPI    Min thread Length: 12 mm
Part Number: SC040M-012-C-SK-TC1 (10 Pcs) Socket Cap Screws - M4 -4x0.7mm- 12 mm - Titanium CP Grade 1
44 units (440 pcs) Available Immediately | Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity
$8.00 AUD
$15.20 AUD $8.00 AUD
Per 10
M4 (4x0.7mm)
12
mm 		Titanium CP Grade 1
4.0
mm 		1054726 | SC040M-012-C-SK-TC1 (10 Pcs) --- Socket Cap Screws - M4 -4x0.7mm- 12 mm - Titanium CP Grade 1
Material: Titanium - CP1 Commercially Pure    Head Diameter (A Max.): 7.0 mm    Drive Depth (E): 2.00 mm    Shank Diameter (C): 3.82 - 4.00 mm    Hex Key (D): 3.00 mm    Pitch: 0.700 mm    Threads Per Inch: 36.29 TPI    Min thread Length: 12 mm
Part Number: SC040M-012-C-SK-TC1 (10 Pcs) Socket Cap Screws - M4 -4x0.7mm- 12 mm - Titanium CP Grade 1
44 units (440 pcs) Available Immediately | Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity
$8.00 AUD
$15.20 AUD $8.00 AUD
Per 10
M4 (4x0.7mm)
15
mm 		Titanium CP Grade 1
4.0
mm 		7.0
mm 		2.00
mm 		1055003 | SC040M-015-C-SK-TC1 (10 Pcs) --- Socket Cap Screws - M4 -4x0.7mm- 15 mm - Titanium CP Grade 1
Material: Titanium - CP1 Commercially Pure    Shank Diameter (C): 3.82 - 4.00 mm    Hex Key (D): 3.00 mm    Pitch: 0.700 mm    Threads Per Inch: 36.29 TPI    Min thread Length: 15 mm
Part Number: SC040M-015-C-SK-TC1 (10 Pcs) Socket Cap Screws - M4 -4x0.7mm- 15 mm - Titanium CP Grade 1
83 units (830 pcs) Available Immediately | Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity
$8.00 AUD
$15.20 AUD $8.00 AUD
Per 10
M4 (4x0.7mm)
15
mm 		Titanium CP Grade 1
4.0
mm 		1055003 | SC040M-015-C-SK-TC1 (10 Pcs) --- Socket Cap Screws - M4 -4x0.7mm- 15 mm - Titanium CP Grade 1
Material: Titanium - CP1 Commercially Pure    Head Diameter (A Max.): 7.0 mm    Drive Depth (E): 2.00 mm    Shank Diameter (C): 3.82 - 4.00 mm    Hex Key (D): 3.00 mm    Pitch: 0.700 mm    Threads Per Inch: 36.29 TPI    Min thread Length: 15 mm
Part Number: SC040M-015-C-SK-TC1 (10 Pcs) Socket Cap Screws - M4 -4x0.7mm- 15 mm - Titanium CP Grade 1
83 units (830 pcs) Available Immediately | Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity
$8.00 AUD
$15.20 AUD $8.00 AUD
Per 10
M4 (4x0.7mm)
25
mm 		Titanium CP Grade 1
4.0
mm 		7.0
mm 		2.00
mm 		1055538 | SC040M-025-C-SK-TC1 (10 Pcs) --- Socket Cap Screws - M4 -4x0.7mm- 25 mm - Titanium CP Grade 1
Material: Titanium - CP1 Commercially Pure    Shank Diameter (C): 3.82 - 4.00 mm    Hex Key (D): 3.00 mm    Pitch: 0.700 mm    Threads Per Inch: 36.29 TPI    Min thread Length: 20 mm
Part Number: SC040M-025-C-SK-TC1 (10 Pcs) Socket Cap Screws - M4 -4x0.7mm- 25 mm - Titanium CP Grade 1
9 units (90 pcs) Available Immediately | Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity
$8.00 AUD
$15.20 AUD $8.00 AUD
Per 10
M4 (4x0.7mm)
25
mm 		Titanium CP Grade 1
4.0
mm 		1055538 | SC040M-025-C-SK-TC1 (10 Pcs) --- Socket Cap Screws - M4 -4x0.7mm- 25 mm - Titanium CP Grade 1
Material: Titanium - CP1 Commercially Pure    Head Diameter (A Max.): 7.0 mm    Drive Depth (E): 2.00 mm    Shank Diameter (C): 3.82 - 4.00 mm    Hex Key (D): 3.00 mm    Pitch: 0.700 mm    Threads Per Inch: 36.29 TPI    Min thread Length: 20 mm
Part Number: SC040M-025-C-SK-TC1 (10 Pcs) Socket Cap Screws - M4 -4x0.7mm- 25 mm - Titanium CP Grade 1
9 units (90 pcs) Available Immediately | Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity
$8.00 AUD
$15.20 AUD $8.00 AUD
Per 10
