Screws - Shoulder - Jig and Fixture

10 Products in this selection

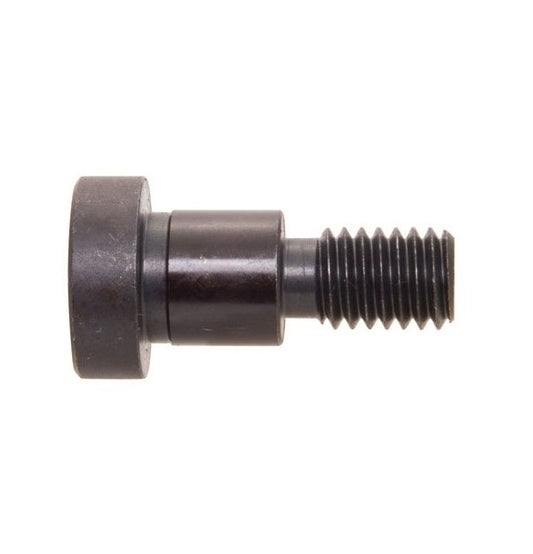

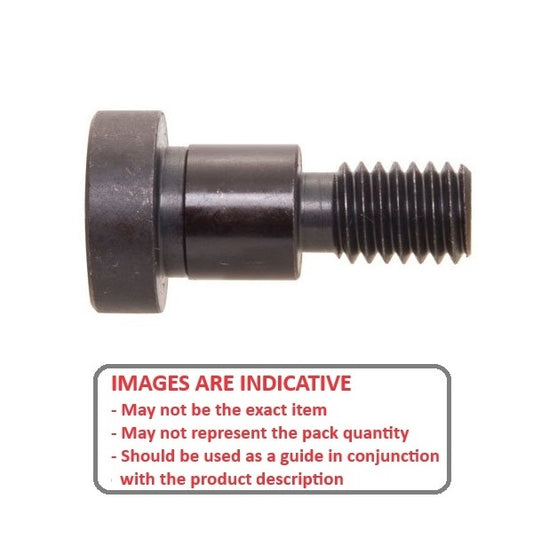

  • Also known as Pivot Pin, Fulcrum Screw, Stripper Bolt, Stepped Screw and Shoulder Socket Cap Screw
  • Used in construction of tool, jig and fixture work. 4140L heat treated steel with black oxide finish.
Additional resources:
PDF Screws Catalogue
Washers
Nuts
A more concise listing may be found on the Smallparts store at Screws - Shoulder - Jig and Fixture. Smallparts promote the most popular MBA products.
Shoulder Diameter (E) Shoulder Length (A) Thread (D) Max. Thread Length (C) Head Height (B) Head Diameter (F) Indicative
6.350
mm
- 0.051 / - 0.102 		6.350
mm 		10-24 UNC
9.53
mm 		4.76
mm 		9.53
mm 		1071904 | SHLD064-006-SKT-J-C --- Shoulder Screws - 6.35x6.35 mm - 10-24 UNC - Steel 4140L Heat Treated
Material: Steel 4140L Heat Treated    Hex Key Size: 3.18 mm
Part Number: SHLD064-006-SKT-J-C Shoulder Screws - 6.35x6.35 mm - 10-24 UNC - Steel 4140L Heat Treated
Out of Stock | Backorder Now | Orders can be expected around Wed, May 14, 2025
$14.41 AUD
$14.41 AUD
Each
Shoulder Diameter (E) Shoulder Length (A) Thread (D) Max. Thread Length (C) Indicative
6.350
mm
- 0.051 / - 0.102 		6.350
mm 		10-24 UNC
9.53
mm 		1071904 | SHLD064-006-SKT-J-C --- Shoulder Screws - 6.35x6.35 mm - 10-24 UNC - Steel 4140L Heat Treated
Material: Steel 4140L Heat Treated    Head Height (B): 4.76 mm    Head Diameter (F): 9.53 mm    Hex Key Size: 3.18 mm
Part Number: SHLD064-006-SKT-J-C Shoulder Screws - 6.35x6.35 mm - 10-24 UNC - Steel 4140L Heat Treated
Out of Stock | Backorder Now | Orders can be expected around Wed, May 14, 2025
$14.41 AUD
$14.41 AUD
Each
View the product page first if you are unsure.
7.938
mm
- 0.051 / - 0.102 		6.350
mm 		1/4-20 UNC
11.10
mm 		5.56
mm 		11.10
mm 		1077856 | SHLD079-006-SKT-J-C --- Shoulder Screws - 7.938x6.35 mm - 1/4-20 UNC - Steel 4140L Heat Treated
Material: Steel 4140L Heat Treated    Hex Key Size: 3.96 mm
Part Number: SHLD079-006-SKT-J-C Shoulder Screws - 7.938x6.35 mm - 1/4-20 UNC - Steel 4140L Heat Treated
Out of Stock | Backorder Now | Orders can be expected around Wed, May 14, 2025
$24.23 AUD
$24.23 AUD
Each
7.938
mm
- 0.051 / - 0.102 		6.350
mm 		1/4-20 UNC
11.10
mm 		1077856 | SHLD079-006-SKT-J-C --- Shoulder Screws - 7.938x6.35 mm - 1/4-20 UNC - Steel 4140L Heat Treated
Material: Steel 4140L Heat Treated    Head Height (B): 5.56 mm    Head Diameter (F): 11.10 mm    Hex Key Size: 3.96 mm
Part Number: SHLD079-006-SKT-J-C Shoulder Screws - 7.938x6.35 mm - 1/4-20 UNC - Steel 4140L Heat Treated
Out of Stock | Backorder Now | Orders can be expected around Wed, May 14, 2025
$24.23 AUD
$24.23 AUD
Each
View the product page first if you are unsure.
7.938
mm
- 0.051 / - 0.102 		7.938
mm 		1/4-20 UNC
11.10
mm 		5.56
mm 		11.10
mm 		1077892 | SHLD079-008-SKT-J-C --- Shoulder Screws - 7.938x7.938 mm - 1/4-20 UNC - Steel 4140L Heat Treated
Material: Steel 4140L Heat Treated    Hex Key Size: 3.96 mm
Part Number: SHLD079-008-SKT-J-C Shoulder Screws - 7.938x7.938 mm - 1/4-20 UNC - Steel 4140L Heat Treated
Out of Stock | Backorder Now | Orders can be expected around Wed, May 14, 2025
$22.95 AUD
$22.95 AUD
Each
7.938
mm
- 0.051 / - 0.102 		7.938
mm 		1/4-20 UNC
11.10
mm 		1077892 | SHLD079-008-SKT-J-C --- Shoulder Screws - 7.938x7.938 mm - 1/4-20 UNC - Steel 4140L Heat Treated
Material: Steel 4140L Heat Treated    Head Height (B): 5.56 mm    Head Diameter (F): 11.10 mm    Hex Key Size: 3.96 mm
Part Number: SHLD079-008-SKT-J-C Shoulder Screws - 7.938x7.938 mm - 1/4-20 UNC - Steel 4140L Heat Treated
Out of Stock | Backorder Now | Orders can be expected around Wed, May 14, 2025
$22.95 AUD
$22.95 AUD
Each
View the product page first if you are unsure.
9.525
mm
- 0.051 / - 0.102 		6.350
mm 		1/4-20 UNC
9.53
mm 		4.76
mm 		15.88
mm 		1086638 | SHLD095-006-SKT-J-C --- Shoulder Screws - 9.525x6.35 mm - 1/4-20 UNC - Steel 4140L Heat Treated
Material: Steel 4140L Heat Treated    Hex Key Size: 4.75 mm
Part Number: SHLD095-006-SKT-J-C Shoulder Screws - 9.525x6.35 mm - 1/4-20 UNC - Steel 4140L Heat Treated
Out of Stock | Backorder Now | Orders can be expected around Wed, May 14, 2025
$33.14 AUD
$33.14 AUD
Each
9.525
mm
- 0.051 / - 0.102 		6.350
mm 		1/4-20 UNC
9.53
mm 		1086638 | SHLD095-006-SKT-J-C --- Shoulder Screws - 9.525x6.35 mm - 1/4-20 UNC - Steel 4140L Heat Treated
Material: Steel 4140L Heat Treated    Head Height (B): 4.76 mm    Head Diameter (F): 15.88 mm    Hex Key Size: 4.75 mm
Part Number: SHLD095-006-SKT-J-C Shoulder Screws - 9.525x6.35 mm - 1/4-20 UNC - Steel 4140L Heat Treated
Out of Stock | Backorder Now | Orders can be expected around Wed, May 14, 2025
$33.14 AUD
$33.14 AUD
Each
View the product page first if you are unsure.
9.525
mm
- 0.051 / - 0.102 		7.938
mm 		1/4-20 UNC
9.53
mm 		4.76
mm 		15.88
mm 		1086664 | SHLD095-008-SKT-J-C (250 Pcs) --- Shoulder Screws - 9.525x7.938 mm - 1/4-20 UNC - Steel 4140L Heat Treated
Material: Steel 4140L Heat Treated    Hex Key Size: 4.75 mm
Part Number: SHLD095-008-SKT-J-C (250 Pcs) Shoulder Screws - 9.525x7.938 mm - 1/4-20 UNC - Steel 4140L Heat Treated
Out of Stock | Backorder Now | Orders can be expected around Wed, May 14, 2025
$6,233.23 AUD
$6,233.23 AUD
Per 250
9.525
mm
- 0.051 / - 0.102 		7.938
mm 		1/4-20 UNC
9.53
mm 		1086664 | SHLD095-008-SKT-J-C (250 Pcs) --- Shoulder Screws - 9.525x7.938 mm - 1/4-20 UNC - Steel 4140L Heat Treated
Material: Steel 4140L Heat Treated    Head Height (B): 4.76 mm    Head Diameter (F): 15.88 mm    Hex Key Size: 4.75 mm
Part Number: SHLD095-008-SKT-J-C (250 Pcs) Shoulder Screws - 9.525x7.938 mm - 1/4-20 UNC - Steel 4140L Heat Treated
Out of Stock | Backorder Now | Orders can be expected around Wed, May 14, 2025
$6,233.23 AUD
$6,233.23 AUD
Per 250
View the product page first if you are unsure.
12.700
mm
- 0.051 / - 0.102 		9.525
mm 		5/16-18 UNC
12.70
mm 		6.35
mm 		19.05
mm 		1102239 | SHLD127-010-SKT-J-C --- Shoulder Screws - 12.7x9.525 mm - 5/16-18 UNC - Steel 4140L Heat Treated
Material: Steel 4140L Heat Treated    Hex Key Size: 6.35 mm
Part Number: SHLD127-010-SKT-J-C Shoulder Screws - 12.7x9.525 mm - 5/16-18 UNC - Steel 4140L Heat Treated
Out of Stock | Backorder Now | Orders can be expected around Wed, May 14, 2025
$21.14 AUD
$21.14 AUD
Each
12.700
mm
- 0.051 / - 0.102 		9.525
mm 		5/16-18 UNC
12.70
mm 		1102239 | SHLD127-010-SKT-J-C --- Shoulder Screws - 12.7x9.525 mm - 5/16-18 UNC - Steel 4140L Heat Treated
Material: Steel 4140L Heat Treated    Head Height (B): 6.35 mm    Head Diameter (F): 19.05 mm    Hex Key Size: 6.35 mm
Part Number: SHLD127-010-SKT-J-C Shoulder Screws - 12.7x9.525 mm - 5/16-18 UNC - Steel 4140L Heat Treated
Out of Stock | Backorder Now | Orders can be expected around Wed, May 14, 2025
$21.14 AUD
$21.14 AUD
Each
View the product page first if you are unsure.
12.700
mm
- 0.051 / - 0.102 		12.700
mm 		3/8-16 UNC
15.88
mm 		6.35
mm 		19.05
mm 		1102361 | SHLD127-013-SKT-J-C --- Shoulder Screws - 12.7x12.7 mm - 3/8-16 UNC - Steel 4140L Heat Treated
Material: Steel 4140L Heat Treated    Hex Key Size: 6.35 mm
Part Number: SHLD127-013-SKT-J-C Shoulder Screws - 12.7x12.7 mm - 3/8-16 UNC - Steel 4140L Heat Treated
Out of Stock | Backorder Now | Orders can be expected around Wed, May 14, 2025
$37.59 AUD
$37.59 AUD
Each
12.700
mm
- 0.051 / - 0.102 		12.700
mm 		3/8-16 UNC
15.88
mm 		1102361 | SHLD127-013-SKT-J-C --- Shoulder Screws - 12.7x12.7 mm - 3/8-16 UNC - Steel 4140L Heat Treated
Material: Steel 4140L Heat Treated    Head Height (B): 6.35 mm    Head Diameter (F): 19.05 mm    Hex Key Size: 6.35 mm
Part Number: SHLD127-013-SKT-J-C Shoulder Screws - 12.7x12.7 mm - 3/8-16 UNC - Steel 4140L Heat Treated
Out of Stock | Backorder Now | Orders can be expected around Wed, May 14, 2025
$37.59 AUD
$37.59 AUD
Each
View the product page first if you are unsure.
12.700
mm
- 0.051 / - 0.102 		15.875
mm 		3/8-16 UNC
15.88
mm 		6.35
mm 		19.05
mm 		1102777 | SHLD127-016-SKT-J-C --- Shoulder Screws - 12.7x15.875 mm - 3/8-16 UNC - Steel 4140L Heat Treated
Material: Steel 4140L Heat Treated    Hex Key Size: 6.35 mm
Part Number: SHLD127-016-SKT-J-C Shoulder Screws - 12.7x15.875 mm - 3/8-16 UNC - Steel 4140L Heat Treated
Out of Stock | Backorder Now | Orders can be expected around Wed, May 14, 2025
$42.86 AUD
$42.86 AUD
Each
12.700
mm
- 0.051 / - 0.102 		15.875
mm 		3/8-16 UNC
15.88
mm 		1102777 | SHLD127-016-SKT-J-C --- Shoulder Screws - 12.7x15.875 mm - 3/8-16 UNC - Steel 4140L Heat Treated
Material: Steel 4140L Heat Treated    Head Height (B): 6.35 mm    Head Diameter (F): 19.05 mm    Hex Key Size: 6.35 mm
Part Number: SHLD127-016-SKT-J-C Shoulder Screws - 12.7x15.875 mm - 3/8-16 UNC - Steel 4140L Heat Treated
Out of Stock | Backorder Now | Orders can be expected around Wed, May 14, 2025
$42.86 AUD
$42.86 AUD
Each
View the product page first if you are unsure.
12.700
mm
- 0.051 / - 0.102 		19.050
mm 		3/8-16 UNC
15.88
mm 		6.35
mm 		19.05
mm 		1103164 | SHLD127-019-SKT-J-C --- Shoulder Screws - 12.7x19.05 mm - 3/8-16 UNC - Steel 4140L Heat Treated
Material: Steel 4140L Heat Treated    Hex Key Size: 6.35 mm
Part Number: SHLD127-019-SKT-J-C Shoulder Screws - 12.7x19.05 mm - 3/8-16 UNC - Steel 4140L Heat Treated
Out of Stock | Backorder Now | Orders can be expected around Wed, May 14, 2025
$37.50 AUD
$37.50 AUD
Each
12.700
mm
- 0.051 / - 0.102 		19.050
mm 		3/8-16 UNC
15.88
mm 		1103164 | SHLD127-019-SKT-J-C --- Shoulder Screws - 12.7x19.05 mm - 3/8-16 UNC - Steel 4140L Heat Treated
Material: Steel 4140L Heat Treated    Head Height (B): 6.35 mm    Head Diameter (F): 19.05 mm    Hex Key Size: 6.35 mm
Part Number: SHLD127-019-SKT-J-C Shoulder Screws - 12.7x19.05 mm - 3/8-16 UNC - Steel 4140L Heat Treated
Out of Stock | Backorder Now | Orders can be expected around Wed, May 14, 2025
$37.50 AUD
$37.50 AUD
Each
View the product page first if you are unsure.
15.875
mm
- 0.051 / - 0.102 		25.400
mm 		1/2-13 UNC
19.05
mm 		9.53
mm 		22.23
mm 		1112081 | SHLD159-025-SKT-J-C --- Shoulder Screws - 15.875x25.4 mm - 1/2-13 UNC - Steel 4140L Heat Treated
Material: Steel 4140L Heat Treated    Hex Key Size: 7.93 mm
Part Number: SHLD159-025-SKT-J-C Shoulder Screws - 15.875x25.4 mm - 1/2-13 UNC - Steel 4140L Heat Treated
Out of Stock | Backorder Now | Orders can be expected around Wed, May 14, 2025
$45.77 AUD
$45.77 AUD
Each
15.875
mm
- 0.051 / - 0.102 		25.400
mm 		1/2-13 UNC
19.05
mm 		1112081 | SHLD159-025-SKT-J-C --- Shoulder Screws - 15.875x25.4 mm - 1/2-13 UNC - Steel 4140L Heat Treated
Material: Steel 4140L Heat Treated    Head Height (B): 9.53 mm    Head Diameter (F): 22.23 mm    Hex Key Size: 7.93 mm
Part Number: SHLD159-025-SKT-J-C Shoulder Screws - 15.875x25.4 mm - 1/2-13 UNC - Steel 4140L Heat Treated
Out of Stock | Backorder Now | Orders can be expected around Wed, May 14, 2025
$45.77 AUD
$45.77 AUD
Each
View the product page first if you are unsure.
