Screws - Countersunk - Socket - Titanium Ti-Gr5 Ti-6Al4v - DIN7991

2 Products in this selection
  • Flat Head Countersunk. Grade 5 6Al-4V is a high strength titanium alloy. Tensile Strength 91.5kgf / mm2. Yield Strength 84.5kgf / mm2. Elongation 10 Percent.
  • Metric Sizes to DIN7991. Used in critical aircraft structural components. UNS R56400.
  • ISO 10642
  • Composition Percentage: Al 5.5-6.75, V 3.5-4.5, N 0.05, C 0.08, H 0.015, Fe 0.40, O 0.2, Ti Balance
  • Grade 5 6Al-4V is a high strength titanium alloy. Tensile Strength 91.5kgf / mm2. Yield Strength 84.5kgf / mm2. Elongation 10 Percent.
  • The thread length indicated is the minimum. Some batches may be produced with longer threaded sections or even full threaded shanks.
Additional resources:
PDF Screws Catalogue
Washers
Nuts
A more concise listing may be found on the Smallparts store at Screws - Countersunk - Socket - Titanium Ti-Gr5 Ti-6Al4v - DIN7991. Smallparts promote the most popular MBA products.
Thread Size (C) Overall Length (L) Material Max Head Diameter Max Head Height Minimum Thread Length (l) Indicative
M3 (3x0.5mm)
6
mm
+/- 0.25 		Ti-6al4v Grade 5
6.0
mm 		1.7

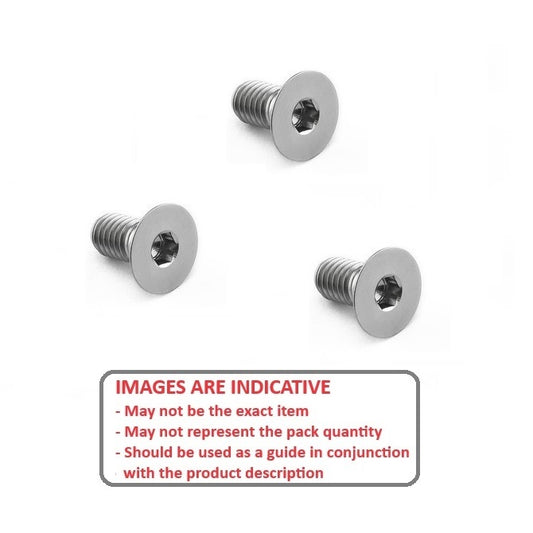

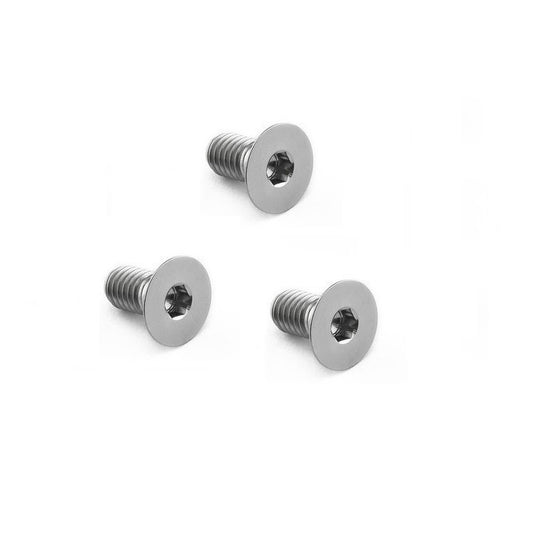

mm 		1046365 | SK030M-006-SK-T5 (500 Pcs) --- Countersunk Screws - M3 -3x0.5mm- 6 mm - Ti-6al4v Grade 5
Material: Titanium Ti-Gr-5 - 6AL-4V    Hex Key (s): 2.00 mm    Countersunk Angle: 90 °    Pitch: 0.500 mm    Threads Per Inch: 50.8 TPI
Part Number: SK030M-006-SK-T5 (500 Pcs) Countersunk Screws - M3 -3x0.5mm- 6 mm - Ti-6al4v Grade 5
Out of Stock | Backorder Now | Orders can be expected around Tue, Jun 17, 2025
$2,818.86 AUD
$2,818.86 AUD
Per 500
Thread Size (C) Overall Length (L) Material Max Head Diameter Indicative
M3 (3x0.5mm)
6
mm
+/- 0.25 		Ti-6al4v Grade 5
6.0
mm 		1046365 | SK030M-006-SK-T5 (500 Pcs) --- Countersunk Screws - M3 -3x0.5mm- 6 mm - Ti-6al4v Grade 5
Material: Titanium Ti-Gr-5 - 6AL-4V    Max Head Height: 1.7 mm    Hex Key (s): 2.00 mm    Countersunk Angle: 90 °    Pitch: 0.500 mm    Threads Per Inch: 50.8 TPI
Part Number: SK030M-006-SK-T5 (500 Pcs) Countersunk Screws - M3 -3x0.5mm- 6 mm - Ti-6al4v Grade 5
Out of Stock | Backorder Now | Orders can be expected around Tue, Jun 17, 2025
$2,818.86 AUD
$2,818.86 AUD
Per 500
View the product page first if you are unsure.
M4 (4x0.7mm)
30
mm
+/- 0.25 		Ti-6al4v Grade 5
7.5
mm 		2.3

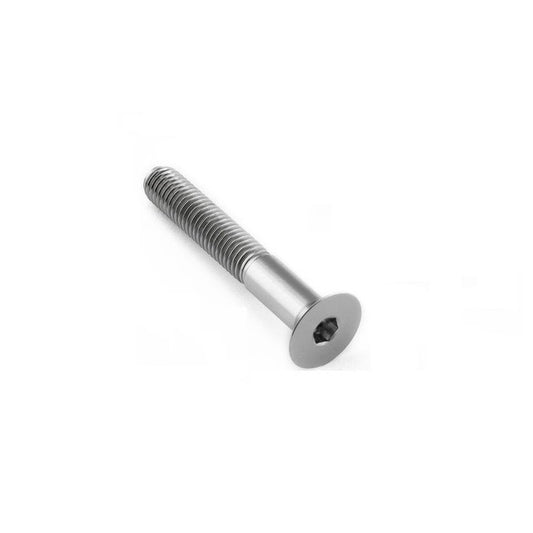

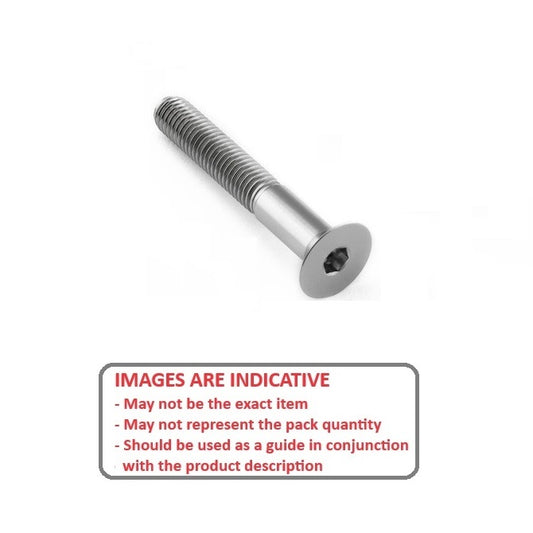

mm 		1055689 | SK040M-030-SK-T5 (100 Pcs) --- Countersunk Screws - M4 -4x0.7mm- 30 mm - Ti-6al4v Grade 5
Material: Titanium Ti-Gr-5 - 6AL-4V    Hex Key (s): 2.50 mm    Countersunk Angle: 90 °    Pitch: 0.700 mm    Threads Per Inch: 36.29 TPI
Part Number: SK040M-030-SK-T5 (100 Pcs) Countersunk Screws - M4 -4x0.7mm- 30 mm - Ti-6al4v Grade 5
Out of Stock | Backorder Now | Orders can be expected around Tue, Jun 17, 2025
$631.23 AUD
$631.23 AUD
Per 100
M4 (4x0.7mm)
30
mm
+/- 0.25 		Ti-6al4v Grade 5
7.5
mm 		1055689 | SK040M-030-SK-T5 (100 Pcs) --- Countersunk Screws - M4 -4x0.7mm- 30 mm - Ti-6al4v Grade 5
Material: Titanium Ti-Gr-5 - 6AL-4V    Max Head Height: 2.3 mm    Hex Key (s): 2.50 mm    Countersunk Angle: 90 °    Pitch: 0.700 mm    Threads Per Inch: 36.29 TPI
Part Number: SK040M-030-SK-T5 (100 Pcs) Countersunk Screws - M4 -4x0.7mm- 30 mm - Ti-6al4v Grade 5
Out of Stock | Backorder Now | Orders can be expected around Tue, Jun 17, 2025
$631.23 AUD
$631.23 AUD
Per 100
View the product page first if you are unsure.
