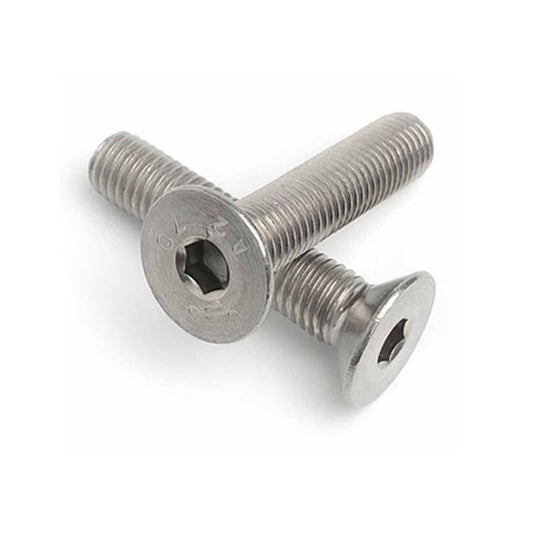

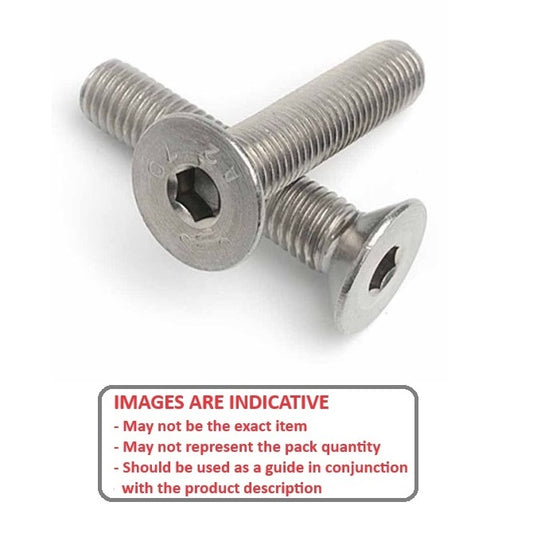

Screws - Countersunk - Socket - Aluminium

1 Item Available
  • Flat Head Countersunk UNC - UNF - METRIC.
  • Imperial Sizes to ANSI B18.3.
  • Metric Sizes to DIN7991.
  • ISO 10642
Additional resources:
PDF Screws Catalogue
Washers
Nuts
A more concise listing may be found on the Smallparts store at Screws - Countersunk - Socket - Aluminium. Smallparts promote the most popular MBA products.
Thread Size (C) Overall Length (L) Material Max Head Diameter Max Head Height Minimum Thread Length (l) Indicative
8-32 UNC (4.17mm)
19.1
mm
+ 0.0 / - 0.76 		Aluminium
9.1
mm 		2.8
mm 		Full Thread
mm 		1056940 | SK042C-019-SK-A --- Countersunk Screws - 8-32 UNC -4.17mm- 19.1 mm - Aluminium
Material: Aluminium    Hex Key (s): 2.38 (3/32) mm    Countersunk Angle: 82 °    Pitch: 0.794 mm    Threads Per Inch: 32 TPI
Part Number: SK042C-019-SK-A Countersunk Screws - 8-32 UNC -4.17mm- 19.1 mm - Aluminium
Out of Stock | Backorder Now | Orders can be expected around Fri, May 30, 2025
$9.86 AUD
$9.86 AUD
Each
Thread Size (C) Overall Length (L) Material Max Head Diameter Indicative
8-32 UNC (4.17mm)
19.1
mm
+ 0.0 / - 0.76 		Aluminium
9.1
mm 		1056940 | SK042C-019-SK-A --- Countersunk Screws - 8-32 UNC -4.17mm- 19.1 mm - Aluminium
Material: Aluminium    Max Head Height: 2.8 mm    Minimum Thread Length (l): Full Thread mm    Hex Key (s): 2.38 (3/32) mm    Countersunk Angle: 82 °    Pitch: 0.794 mm    Threads Per Inch: 32 TPI
Part Number: SK042C-019-SK-A Countersunk Screws - 8-32 UNC -4.17mm- 19.1 mm - Aluminium
Out of Stock | Backorder Now | Orders can be expected around Fri, May 30, 2025
$9.86 AUD
$9.86 AUD
Each
View the product page first if you are unsure.
