Rod Ends - Male - Steel - Bronze Lined - Ferrobal Narrow Hea

Rod Ends -> Male -> Steel -> Bronze Lined -> Ferrobal Narrow Hea

There are 6 products in the sub-categories of Rod Ends - Male - Steel - Bronze Lined - Ferrobal Narrow Hea. Browse the Rod Ends - Male - Steel - Bronze Lined - Ferrobal Narrow Hea products table.

Category Details

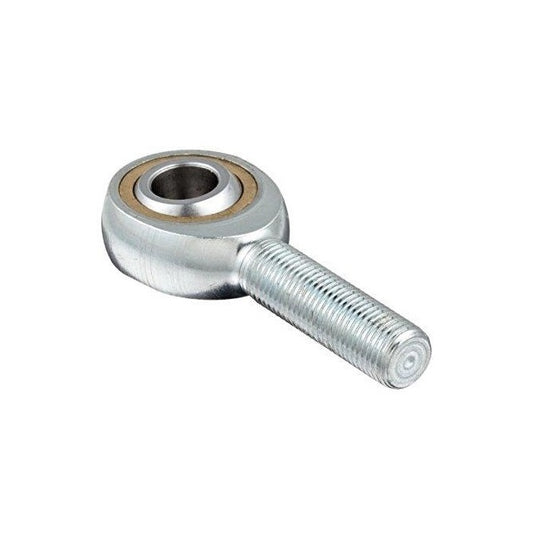

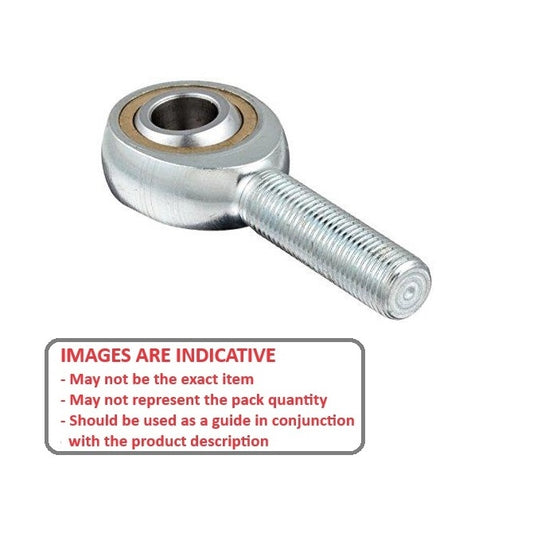

A selection of Ferrobal Narrow Hea Bronze Lined Steel Male Rod Ends. Bearing Steel, hardened, ground and chromium plated Inner ring, Heavy duty bronze with embedded bronze - PTFE fabric Outter ring. Steel/Bronze - PTFE fabric Sliding Combination.

  • An expanded range may be available on special order. Please enquire.
  • Maintenance free and no lubrication necessary.
  • Also known as Heim Joints

Miniature Bearings Australia - MBA Minibearings

Additional resources:


A more concise listing may be found in the Rod Ends - Male - Steel - Bronze Lined - Ferrobal Narrow Hea category on the Small Parts & Bearings online store.
Eye Size (d1) Overall Length (L) Thread Size Min. Thread Length (l2) Head Width (W) Eye Width (W1) Indicative
Eye Size (d1)
8
mm

(Equiv. 0.315 in.)
Overall Length (L)
54.00
mm

(Equiv. 2.126 in.)
Thread Size
M8x1.25 Left

Min. Thread Length (l2)
42.00
mm
Head Width (W)
6.00
mm
Eye Width (W1)
8.00
mm
Male Rod Ends - 8x54 mm - M8x1.25 Left - Bronze Lined Steel
Material: Bronze Lined Steel    Head Diameter: 22.00 mm    Centre Height: 13.00 mm    Grease Nipple: No
Part Number: REM-080-L-CB-N
Male Rod Ends - 8x54 mm - M8x1.25 Left - Bronze Lined Steel Rod End
Out of Stock | Backorder Now | Orders can be expected around Sat, Oct 11, 2025
$68.41 AUD
$68.41 AUD
Excludes GST and overseas Taxes & Duties
Each
Quantity Required

Backorder: Out of Stock.
Eye Size (d1) Overall Length (L) Thread Size Min. Thread Length (l2) Indicative
Eye Size (d1)
8
mm

(Equiv. 0.315 in.)
Overall Length (L)
54.00
mm

(Equiv. 2.126 in.)
Thread Size
M8x1.25 Left

Min. Thread Length (l2)
42.00
mm
Male Rod Ends - 8x54 mm - M8x1.25 Left - Bronze Lined Steel
Material: Bronze Lined Steel    Head Width (W): 6.00 mm    Eye Width (W1): 8.00 mm    Head Diameter: 22.00 mm    Centre Height: 13.00 mm    Grease Nipple: No
Part Number: REM-080-L-CB-N
Male Rod Ends - 8x54 mm - M8x1.25 Left - Bronze Lined Steel Rod End
Out of Stock | Backorder Now | Orders can be expected around Sat, Oct 11, 2025
$68.41 AUD
$68.41 AUD
Excludes GST and overseas Taxes & Duties
Each
Quantity Required

Backorder: Out of Stock.
Eye Size (d1)
8
mm

(Equiv. 0.315 in.)
Overall Length (L)
54.00
mm

(Equiv. 2.126 in.)
Thread Size
M8x1.25 Right

Min. Thread Length (l2)
42.00
mm
Head Width (W)
6.00
mm
Eye Width (W1)
8.00
mm
Male Rod Ends - 8x54 mm - M8x1.25 Right - Bronze Lined Steel
Material: Bronze Lined Steel    Head Diameter: 22.00 mm    Centre Height: 13.00 mm    Grease Nipple: No
Part Number: REM-080-R-CB-N
Male Rod Ends - 8x54 mm - M8x1.25 Right - Bronze Lined Steel Rod End
Out of Stock | Backorder Now | Orders can be expected around Sat, Oct 11, 2025
$61.41 AUD
$73.69 AUD $61.41 AUD
Excludes GST and overseas Taxes & Duties
Each
Quantity Required

Backorder: Out of Stock.
Eye Size (d1)
8
mm

(Equiv. 0.315 in.)
Overall Length (L)
54.00
mm

(Equiv. 2.126 in.)
Thread Size
M8x1.25 Right

Min. Thread Length (l2)
42.00
mm
Male Rod Ends - 8x54 mm - M8x1.25 Right - Bronze Lined Steel
Material: Bronze Lined Steel    Head Width (W): 6.00 mm    Eye Width (W1): 8.00 mm    Head Diameter: 22.00 mm    Centre Height: 13.00 mm    Grease Nipple: No
Part Number: REM-080-R-CB-N
Male Rod Ends - 8x54 mm - M8x1.25 Right - Bronze Lined Steel Rod End
Out of Stock | Backorder Now | Orders can be expected around Sat, Oct 11, 2025
$61.41 AUD
$73.69 AUD $61.41 AUD
Excludes GST and overseas Taxes & Duties
Each
Quantity Required

Backorder: Out of Stock.
Eye Size (d1)
10
mm

(Equiv. 0.394 in.)
Overall Length (L)
62.50
mm

(Equiv. 2.461 in.)
Thread Size
M10x1.5 Left

Min. Thread Length (l2)
48.00
mm
Head Width (W)
7.00
mm
Eye Width (W1)
9.00
mm
Male Rod Ends - 10x62.5 mm - M10x1.5 Left - Bronze Lined Steel
Material: Bronze Lined Steel    Head Diameter: 26.00 mm    Centre Height: 16.00 mm    Grease Nipple: No
Part Number: REM-100-L-CB-N
Male Rod Ends - 10x62.5 mm - M10x1.5 Left - Bronze Lined Steel Rod End
Out of Stock | Backorder Now | Orders can be expected around Sat, Oct 11, 2025
$70.59 AUD
$84.71 AUD $70.59 AUD
Excludes GST and overseas Taxes & Duties
Each
Quantity Required

Backorder: Out of Stock.
Eye Size (d1)
10
mm

(Equiv. 0.394 in.)
Overall Length (L)
62.50
mm

(Equiv. 2.461 in.)
Thread Size
M10x1.5 Left

Min. Thread Length (l2)
48.00
mm
Male Rod Ends - 10x62.5 mm - M10x1.5 Left - Bronze Lined Steel
Material: Bronze Lined Steel    Head Width (W): 7.00 mm    Eye Width (W1): 9.00 mm    Head Diameter: 26.00 mm    Centre Height: 16.00 mm    Grease Nipple: No
Part Number: REM-100-L-CB-N
Male Rod Ends - 10x62.5 mm - M10x1.5 Left - Bronze Lined Steel Rod End
Out of Stock | Backorder Now | Orders can be expected around Sat, Oct 11, 2025
$70.59 AUD
$84.71 AUD $70.59 AUD
Excludes GST and overseas Taxes & Duties
Each
Quantity Required

Backorder: Out of Stock.
Eye Size (d1)
10
mm

(Equiv. 0.394 in.)
Overall Length (L)
62.50
mm

(Equiv. 2.461 in.)
Thread Size
M10x1.5 Right

Min. Thread Length (l2)
48.00
mm
Head Width (W)
7.00
mm
Eye Width (W1)
9.00
mm
Male Rod Ends - 10x62.5 mm - M10x1.5 Right - Bronze Lined Steel
Material: Bronze Lined Steel    Head Diameter: 26.00 mm    Centre Height: 16.00 mm    Grease Nipple: No
Part Number: REM-100-R-CB-N
Male Rod Ends - 10x62.5 mm - M10x1.5 Right - Bronze Lined Steel Rod End
Out of Stock | Backorder Now | Orders can be expected around Sat, Oct 11, 2025
$70.59 AUD
$84.71 AUD $70.59 AUD
Excludes GST and overseas Taxes & Duties
Each
Quantity Required

Backorder: Out of Stock.
Eye Size (d1)
10
mm

(Equiv. 0.394 in.)
Overall Length (L)
62.50
mm

(Equiv. 2.461 in.)
Thread Size
M10x1.5 Right

Min. Thread Length (l2)
48.00
mm
Male Rod Ends - 10x62.5 mm - M10x1.5 Right - Bronze Lined Steel
Material: Bronze Lined Steel    Head Width (W): 7.00 mm    Eye Width (W1): 9.00 mm    Head Diameter: 26.00 mm    Centre Height: 16.00 mm    Grease Nipple: No
Part Number: REM-100-R-CB-N
Male Rod Ends - 10x62.5 mm - M10x1.5 Right - Bronze Lined Steel Rod End
Out of Stock | Backorder Now | Orders can be expected around Sat, Oct 11, 2025
$70.59 AUD
$84.71 AUD $70.59 AUD
Excludes GST and overseas Taxes & Duties
Each
Quantity Required

Backorder: Out of Stock.
Eye Size (d1)
12
mm

(Equiv. 0.472 in.)
Overall Length (L)
71.00
mm

(Equiv. 2.795 in.)
Thread Size
M12x1.75 Right

Min. Thread Length (l2)
54.00
mm
Head Width (W)
8.00
mm
Eye Width (W1)
10.00
mm
Male Rod Ends - 12x71 mm - M12x1.75 Right - Bronze Lined Steel
Material: Bronze Lined Steel    Head Diameter: 28.00 mm    Centre Height: 18.00 mm    Grease Nipple: No
Part Number: REM-120-R-CB-N
Male Rod Ends - 12x71 mm - M12x1.75 Right - Bronze Lined Steel Rod End
Out of Stock | Backorder Now | Orders can be expected around Sat, Oct 11, 2025
$100.95 AUD
$121.15 AUD $100.95 AUD
Excludes GST and overseas Taxes & Duties
Each
Quantity Required

Backorder: Out of Stock.
Eye Size (d1)
12
mm

(Equiv. 0.472 in.)
Overall Length (L)
71.00
mm

(Equiv. 2.795 in.)
Thread Size
M12x1.75 Right

Min. Thread Length (l2)
54.00
mm
Male Rod Ends - 12x71 mm - M12x1.75 Right - Bronze Lined Steel
Material: Bronze Lined Steel    Head Width (W): 8.00 mm    Eye Width (W1): 10.00 mm    Head Diameter: 28.00 mm    Centre Height: 18.00 mm    Grease Nipple: No
Part Number: REM-120-R-CB-N
Male Rod Ends - 12x71 mm - M12x1.75 Right - Bronze Lined Steel Rod End
Out of Stock | Backorder Now | Orders can be expected around Sat, Oct 11, 2025
$100.95 AUD
$121.15 AUD $100.95 AUD
Excludes GST and overseas Taxes & Duties
Each
Quantity Required

Backorder: Out of Stock.
Eye Size (d1)
12
mm

(Equiv. 0.472 in.)
Overall Length (L)
71.00
mm

(Equiv. 2.795 in.)
Thread Size
M12x1.75 Left

Min. Thread Length (l2)
54.00
mm
Head Width (W)
8.00
mm
Eye Width (W1)
10.00
mm
Male Rod Ends - 12x71 mm - M12x1.75 Left - Bronze Lined Steel
Material: Bronze Lined Steel    Head Diameter: 28.00 mm    Centre Height: 18.00 mm    Grease Nipple: No
Part Number: REM-120-L-CB-N
Male Rod Ends - 12x71 mm - M12x1.75 Left - Bronze Lined Steel Rod End
Out of Stock | Backorder Now | Orders can be expected around Sat, Oct 11, 2025
$100.95 AUD
$121.15 AUD $100.95 AUD
Excludes GST and overseas Taxes & Duties
Each
Quantity Required

Backorder: Out of Stock.
Eye Size (d1)
12
mm

(Equiv. 0.472 in.)
Overall Length (L)
71.00
mm

(Equiv. 2.795 in.)
Thread Size
M12x1.75 Left

Min. Thread Length (l2)
54.00
mm
Male Rod Ends - 12x71 mm - M12x1.75 Left - Bronze Lined Steel
Material: Bronze Lined Steel    Head Width (W): 8.00 mm    Eye Width (W1): 10.00 mm    Head Diameter: 28.00 mm    Centre Height: 18.00 mm    Grease Nipple: No
Part Number: REM-120-L-CB-N
Male Rod Ends - 12x71 mm - M12x1.75 Left - Bronze Lined Steel Rod End
Out of Stock | Backorder Now | Orders can be expected around Sat, Oct 11, 2025
$100.95 AUD
$121.15 AUD $100.95 AUD
Excludes GST and overseas Taxes & Duties
Each
Quantity Required

Backorder: Out of Stock.
