Collection: Rod Ends - Female - Steel - Studded - Nylon Seat

Rod Ends -> Female -> Steel -> Studded -> Nylon Seat

There are 7 products in the sub-categories of Rod Ends - Female - Steel - Studded - Nylon Seat. Browse the Rod Ends - Female - Steel - Studded - Nylon Seat products table.

Category Details

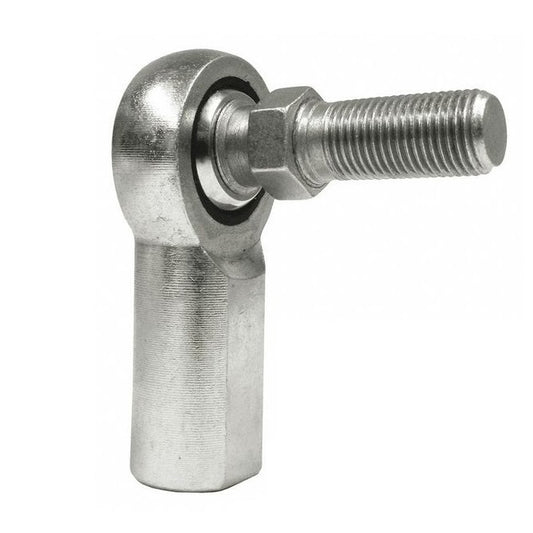

A selection of Nylon Seat Studded Steel Female Rod Ends. Housing is plated and dichromate treated steel.

An expanded range may be available on special order. Please enquire.
Ball is case hardened and plated
Stud is permanently affixed and made from heat treated alloy steel, zinc plated.

Miniature Bearings Australia - MBA Minibearings

Additional resources:

A more concise listing may be found in the Rod Ends - Female - Steel - Studded - Nylon Seat category on the Small Parts & Bearings online store.

Thread Size	Thread Length (H)	Thread Length (C)	Head Diameter (E)	Centre Height (G)	Top Width (M)
Thread Size 4.764	Thread Length (H) 14.28 mm (Equiv. 0.562 in.)	Thread Length (C) 11.10 mm (Equiv. 0.437 in.)	Head Diameter (E) 15.88 mm	Centre Height (G) 26.98 mm	Top Width (M) 6.35 mm
Material: Steel with Nylon Seat Ball Width (L): 7.93 mm Base Width: 10.31 mm Base Length (P): 7.93 mm
Part Number: SPF3SRS Female Rod Ends - 4.764 - 14.28x11.1 mm - Steel with Nylon Seat Rod End 2 Available Now \| Item Discontinued - Up to 2 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $11.51 AUD Regular price ~~$33.91 AUD~~ Sale price $11.51 AUD Unit price per Excludes GST and overseas Taxes & Duties Each Quantity Required 2 Available Now. These are priced to quit. Please contact us for a quote if you require more.
Thread Size	Thread Length (H)	Thread Length (C)	Head Diameter (E)	Indicative Image
Thread Size 4.764	Thread Length (H) 14.28 mm (Equiv. 0.562 in.)	Thread Length (C) 11.10 mm (Equiv. 0.437 in.)	Head Diameter (E) 15.88 mm
Material: Steel with Nylon Seat Centre Height (G): 26.98 mm Top Width (M): 6.35 mm Ball Width (L): 7.93 mm Base Width: 10.31 mm Base Length (P): 7.93 mm
Part Number: SPF3SRS Female Rod Ends - 4.764 - 14.28x11.1 mm - Steel with Nylon Seat Rod End 2 Available Now \| Item Discontinued - Up to 2 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $11.51 AUD Regular price ~~$33.91 AUD~~ Sale price $11.51 AUD Unit price per Excludes GST and overseas Taxes & Duties Each Quantity Required 2 Available Now. These are priced to quit. Please contact us for a quote if you require more.
SPF3SRS --- Female Rod Ends - 4.764 - 14.28x11.1 mm - Steel with Nylon Seat Rod End Sale SPF3SRS --- Female Rod Ends - 4.764 - 14.28x11.1 mm - Steel with Nylon Seat Rod End Regular price $11.51 AUD Regular price ~~$33.91 AUD~~ Sale price $11.51 AUD Unit price per Excludes GST and overseas Taxes & Duties 2 Available Now Sale
Thread Size 1/4-28 UNF (6.35mm) Right Hand	Thread Length (H) 19.05 mm (Equiv. 0.75 in.)	Thread Length (C) 14.28 mm (Equiv. 0.562 in.)	Head Diameter (E) 19.05 mm	Centre Height (G) 33.33 mm	Top Width (M) 07.14 mm
Ball Width (L): 09.53 mm Base Width: 11.91 mm Base Length (P): 09.53 mm
Part Number: SPF4SRS (50 Pcs) Female Rod Ends - 1/4-28 UNF - 6.35mm - Right Hand 19.05x14.28 mm Steel Contact Us \| Item Discontinued - Please contact us if you need a large quantity Quantity Required Contact Us. These are priced to quit. Please contact us for a quote if you require more.
Thread Size 1/4-28 UNF (6.35mm) Right Hand	Thread Length (H) 19.05 mm (Equiv. 0.75 in.)	Thread Length (C) 14.28 mm (Equiv. 0.562 in.)	Head Diameter (E) 19.05 mm
Centre Height (G): 33.33 mm Top Width (M): 07.14 mm Ball Width (L): 09.53 mm Base Width: 11.91 mm Base Length (P): 09.53 mm
Part Number: SPF4SRS (50 Pcs) Female Rod Ends - 1/4-28 UNF - 6.35mm - Right Hand 19.05x14.28 mm Steel Contact Us \| Item Discontinued - Please contact us if you need a large quantity Quantity Required Contact Us. These are priced to quit. Please contact us for a quote if you require more.
Thread Size 5/16-24 UNF (7.94mm) Right Hand	Thread Length (H) 19.05 mm (Equiv. 0.75 in.)	Thread Length (C) 17.45 mm (Equiv. 0.687 in.)	Head Diameter (E) 22.23 mm	Centre Height (G) 34.93 mm	Top Width (M) 08.74 mm
Ball Width (L): 11.10 mm Base Width: 12.70 mm Base Length (P): 11.10 mm
Part Number: SPF5SRS (50 Pcs) Female Rod Ends - 5/16-24 UNF - 7.94mm - Right Hand 19.05x17.45 mm Steel Contact Us \| Item Discontinued - Please contact us if you need a large quantity Quantity Required Contact Us. These are priced to quit. Please contact us for a quote if you require more.
Thread Size 5/16-24 UNF (7.94mm) Right Hand	Thread Length (H) 19.05 mm (Equiv. 0.75 in.)	Thread Length (C) 17.45 mm (Equiv. 0.687 in.)	Head Diameter (E) 22.23 mm
Centre Height (G): 34.93 mm Top Width (M): 08.74 mm Ball Width (L): 11.10 mm Base Width: 12.70 mm Base Length (P): 11.10 mm
Part Number: SPF5SRS (50 Pcs) Female Rod Ends - 5/16-24 UNF - 7.94mm - Right Hand 19.05x17.45 mm Steel Contact Us \| Item Discontinued - Please contact us if you need a large quantity Quantity Required Contact Us. These are priced to quit. Please contact us for a quote if you require more.
Thread Size 3/8-24 UNF (9.53mm) Right Hand	Thread Length (H) 23.80 mm (Equiv. 0.937 in.)	Thread Length (C) 22.23 mm (Equiv. 0.875 in.)	Head Diameter (E) 25.40 mm	Centre Height (G) 41.28 mm	Top Width (M) 10.31 mm
Ball Width (L): 12.70 mm Base Width: 17.45 mm Base Length (P): 14.28 mm
Part Number: SPF6SRS Female Rod Ends - 3/8-24 UNF - 9.53mm - Right Hand 23.8x22.23 mm Steel Contact Us \| Item Discontinued - Please contact us if you need a large quantity Quantity Required Contact Us. These are priced to quit. Please contact us for a quote if you require more.
Thread Size 3/8-24 UNF (9.53mm) Right Hand	Thread Length (H) 23.80 mm (Equiv. 0.937 in.)	Thread Length (C) 22.23 mm (Equiv. 0.875 in.)	Head Diameter (E) 25.40 mm
Centre Height (G): 41.28 mm Top Width (M): 10.31 mm Ball Width (L): 12.70 mm Base Width: 17.45 mm Base Length (P): 14.28 mm
Part Number: SPF6SRS Female Rod Ends - 3/8-24 UNF - 9.53mm - Right Hand 23.8x22.23 mm Steel Contact Us \| Item Discontinued - Please contact us if you need a large quantity Quantity Required Contact Us. These are priced to quit. Please contact us for a quote if you require more.
Thread Size 7/16-20 UNF (11.11mm) Right Hand	Thread Length (H) 26.19 mm (Equiv. 1.031 in.)	Thread Length (C) 26.98 mm (Equiv. 1.062 in.)	Head Diameter (E) 28.58 mm	Centre Height (G) 46.03 mm	Top Width (M) 11.10 mm
Ball Width (L): 14.28 mm Base Width: 19.05 mm Base Length (P): 15.88 mm
Part Number: SPF7SRS (50 Pcs) Female Rod Ends - 7/16-20 UNF - 11.11mm - Right Hand 26.19x26.98 mm Steel Contact Us \| Item Discontinued - Please contact us if you need a large quantity Quantity Required Contact Us. These are priced to quit. Please contact us for a quote if you require more.
Thread Size 7/16-20 UNF (11.11mm) Right Hand	Thread Length (H) 26.19 mm (Equiv. 1.031 in.)	Thread Length (C) 26.98 mm (Equiv. 1.062 in.)	Head Diameter (E) 28.58 mm
Centre Height (G): 46.03 mm Top Width (M): 11.10 mm Ball Width (L): 14.28 mm Base Width: 19.05 mm Base Length (P): 15.88 mm
Part Number: SPF7SRS (50 Pcs) Female Rod Ends - 7/16-20 UNF - 11.11mm - Right Hand 26.19x26.98 mm Steel Contact Us \| Item Discontinued - Please contact us if you need a large quantity Quantity Required Contact Us. These are priced to quit. Please contact us for a quote if you require more.
Thread Size 1/2-20 UNF (12.7mm) Right Hand	Thread Length (H) 47.50 mm (Equiv. 1.87 in.)	Thread Length (C) 28.58 mm (Equiv. 1.125 in.)	Head Diameter (E) 33.33 mm	Centre Height (G) 53.98 mm	Top Width (M) 12.70 mm
Ball Width (L): 15.88 mm Base Width: 22.23 mm Base Length (P): 19.05 mm
Part Number: SPF8SRS (50 Pcs) Female Rod Ends - 1/2-20 UNF - 12.7mm - Right Hand 47.5x28.58 mm Steel Contact Us \| Item Discontinued - Please contact us if you need a large quantity Quantity Required Contact Us. These are priced to quit. Please contact us for a quote if you require more.
Thread Size 1/2-20 UNF (12.7mm) Right Hand	Thread Length (H) 47.50 mm (Equiv. 1.87 in.)	Thread Length (C) 28.58 mm (Equiv. 1.125 in.)	Head Diameter (E) 33.33 mm
Centre Height (G): 53.98 mm Top Width (M): 12.70 mm Ball Width (L): 15.88 mm Base Width: 22.23 mm Base Length (P): 19.05 mm
Part Number: SPF8SRS (50 Pcs) Female Rod Ends - 1/2-20 UNF - 12.7mm - Right Hand 47.5x28.58 mm Steel Contact Us \| Item Discontinued - Please contact us if you need a large quantity Quantity Required Contact Us. These are priced to quit. Please contact us for a quote if you require more.
Thread Size 3/4-16 UNF (19.05mm) Right Hand	Thread Length (H) 39.68 mm (Equiv. 1.562 in.)	Thread Length (C) 46.03 mm (Equiv. 1.812 in.)	Head Diameter (E) 44.45 mm	Centre Height (G) 73.03 mm	Top Width (M) 17.45 mm
Ball Width (L): 22.23 mm Base Width: 28.58 mm Base Length (P): 25.40 mm
Part Number: SPF12SRS (50 Pcs) Female Rod Ends - 3/4-16 UNF - 19.05mm - Right Hand 39.68x46.03 mm Steel Contact Us \| Item Discontinued - Please contact us if you need a large quantity Quantity Required Contact Us. These are priced to quit. Please contact us for a quote if you require more.
Thread Size 3/4-16 UNF (19.05mm) Right Hand	Thread Length (H) 39.68 mm (Equiv. 1.562 in.)	Thread Length (C) 46.03 mm (Equiv. 1.812 in.)	Head Diameter (E) 44.45 mm
Centre Height (G): 73.03 mm Top Width (M): 17.45 mm Ball Width (L): 22.23 mm Base Width: 28.58 mm Base Length (P): 25.40 mm
Part Number: SPF12SRS (50 Pcs) Female Rod Ends - 3/4-16 UNF - 19.05mm - Right Hand 39.68x46.03 mm Steel Contact Us \| Item Discontinued - Please contact us if you need a large quantity Quantity Required Contact Us. These are priced to quit. Please contact us for a quote if you require more.
