Rod Ends - Female - Steel - Plain - PTFE Lined - Tempered Steel

Rod Ends -> Female -> Steel -> Plain -> PTFE Lined -> Tempered Steel

There are 16 products in the sub-categories of Rod Ends - Female - Steel - Plain - PTFE Lined - Tempered Steel. Browse the Rod Ends - Female - Steel - Plain - PTFE Lined - Tempered Steel products table.

Category Details

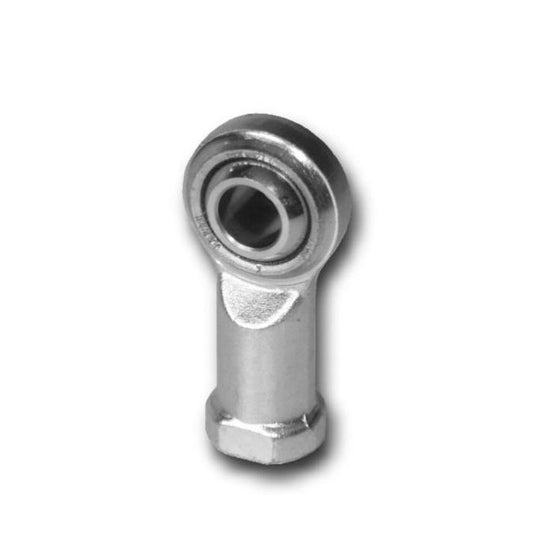

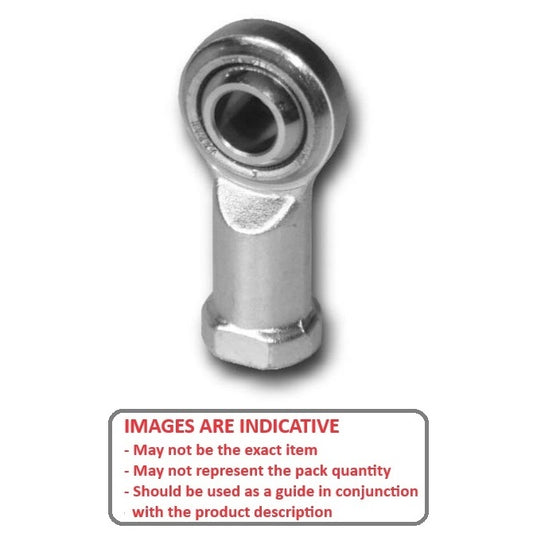

A selection of Tempered Steel PTFE Lined Plain Steel Female Rod Ends. Imperial and Metric. Forged tempered steel. Rolled thread. Surface galvanised. Also known as Heim Joints. Nylon - ptfe - glass compound race.

  • An expanded range may be available on special order. Please enquire.
  • Dimensions not shown are available on request.

Miniature Bearings Australia - MBA Minibearings

Additional resources:


A more concise listing may be found in the Rod Ends - Female - Steel - Plain - PTFE Lined - Tempered Steel category on the Small Parts & Bearings online store.
Eye Size (d1) Overall Length (L) Thread Size Thread Length (l2) Head Width (W) Eye Width (W1) Indicative
Eye Size (d1)
6
mm

(Equiv. 0.236 in.)
Overall Length (L)
40.500
mm

(Equiv. 1.594 in.)
Thread Size
M6x1.0 Left

Thread Length (l2)
12.00
mm
Head Width (W)
6.75
mm
Eye Width (W1)
9.00
mm
Female Rod Ends - 6x40.5 mm - M6x1.0 Left - Tempered Steel with PTFE
Material: Tempered Steel with PTFE    Centre Height (l1): 30.00 mm    Grease Nipple: No    Body Width/Flange Width(W2/D3): 11.00 / 13.00 mm
Part Number: REF-060-L-CT
Female Rod Ends - 6x40.5 mm - M6x1.0 Left - Tempered Steel with PTFE Rod End
Out of Stock | Backorder Now | Orders can be expected around Mon, Oct 13, 2025
$4.77 AUD
$4.77 AUD
Excludes GST and overseas Taxes & Duties
Each
Quantity Required

Backorder: Out of Stock.
Eye Size (d1) Overall Length (L) Thread Size Thread Length (l2) Indicative
Eye Size (d1)
6
mm

(Equiv. 0.236 in.)
Overall Length (L)
40.500
mm

(Equiv. 1.594 in.)
Thread Size
M6x1.0 Left

Thread Length (l2)
12.00
mm
Female Rod Ends - 6x40.5 mm - M6x1.0 Left - Tempered Steel with PTFE
Material: Tempered Steel with PTFE    Head Width (W): 6.75 mm    Eye Width (W1): 9.00 mm    Centre Height (l1): 30.00 mm    Grease Nipple: No    Body Width/Flange Width(W2/D3): 11.00 / 13.00 mm
Part Number: REF-060-L-CT
Female Rod Ends - 6x40.5 mm - M6x1.0 Left - Tempered Steel with PTFE Rod End
Out of Stock | Backorder Now | Orders can be expected around Mon, Oct 13, 2025
$4.77 AUD
$4.77 AUD
Excludes GST and overseas Taxes & Duties
Each
Quantity Required

Backorder: Out of Stock.
Eye Size (d1)
6
mm

(Equiv. 0.236 in.)
Overall Length (L)
40.500
mm

(Equiv. 1.594 in.)
Thread Size
M6x1.0 Right

Thread Length (l2)
12.00
mm
Head Width (W)
6.75
mm
Eye Width (W1)
9.00
mm
Female Rod Ends - 6x40.5 mm - M6x1.0 Right - Tempered Steel with PTFE
Material: Tempered Steel with PTFE    Centre Height (l1): 30.00 mm    Grease Nipple: No    Body Width/Flange Width(W2/D3): 11.00 / 13.00 mm
Part Number: REF-060-R-CT
Female Rod Ends - 6x40.5 mm - M6x1.0 Right - Tempered Steel with PTFE Rod End
Out of Stock | Backorder Now | Orders can be expected around Mon, Oct 13, 2025
$4.50 AUD
$5.40 AUD $4.50 AUD
Excludes GST and overseas Taxes & Duties
Each
Quantity Required

Backorder: Out of Stock.
Eye Size (d1)
6
mm

(Equiv. 0.236 in.)
Overall Length (L)
40.500
mm

(Equiv. 1.594 in.)
Thread Size
M6x1.0 Right

Thread Length (l2)
12.00
mm
Female Rod Ends - 6x40.5 mm - M6x1.0 Right - Tempered Steel with PTFE
Material: Tempered Steel with PTFE    Head Width (W): 6.75 mm    Eye Width (W1): 9.00 mm    Centre Height (l1): 30.00 mm    Grease Nipple: No    Body Width/Flange Width(W2/D3): 11.00 / 13.00 mm
Part Number: REF-060-R-CT
Female Rod Ends - 6x40.5 mm - M6x1.0 Right - Tempered Steel with PTFE Rod End
Out of Stock | Backorder Now | Orders can be expected around Mon, Oct 13, 2025
$4.50 AUD
$5.40 AUD $4.50 AUD
Excludes GST and overseas Taxes & Duties
Each
Quantity Required

Backorder: Out of Stock.
Eye Size (d1)
8
mm

(Equiv. 0.315 in.)
Overall Length (L)
48.500
mm

(Equiv. 1.909 in.)
Thread Size
M8x1.25 Left

Thread Length (l2)
16.00
mm
Head Width (W)
9.00
mm
Eye Width (W1)
12.00
mm
Female Rod Ends - 8x48.5 mm - M8x1.25 Left - Tempered Steel with PTFE
Material: Tempered Steel with PTFE    Centre Height (l1): 36.00 mm    Grease Nipple: No    Body Width/Flange Width(W2/D3): 14.00 / 16.00 mm
Part Number: REF-080-L-CT
Female Rod Ends - 8x48.5 mm - M8x1.25 Left - Tempered Steel with PTFE Rod End
Out of Stock | Backorder Now | Orders can be expected around Mon, Oct 13, 2025
$5.50 AUD
$6.60 AUD $5.50 AUD
Excludes GST and overseas Taxes & Duties
Each
Quantity Required

Backorder: Out of Stock.
Eye Size (d1)
8
mm

(Equiv. 0.315 in.)
Overall Length (L)
48.500
mm

(Equiv. 1.909 in.)
Thread Size
M8x1.25 Left

Thread Length (l2)
16.00
mm
Female Rod Ends - 8x48.5 mm - M8x1.25 Left - Tempered Steel with PTFE
Material: Tempered Steel with PTFE    Head Width (W): 9.00 mm    Eye Width (W1): 12.00 mm    Centre Height (l1): 36.00 mm    Grease Nipple: No    Body Width/Flange Width(W2/D3): 14.00 / 16.00 mm
Part Number: REF-080-L-CT
Female Rod Ends - 8x48.5 mm - M8x1.25 Left - Tempered Steel with PTFE Rod End
Out of Stock | Backorder Now | Orders can be expected around Mon, Oct 13, 2025
$5.50 AUD
$6.60 AUD $5.50 AUD
Excludes GST and overseas Taxes & Duties
Each
Quantity Required

Backorder: Out of Stock.
Eye Size (d1)
8
mm

(Equiv. 0.315 in.)
Overall Length (L)
48.500
mm

(Equiv. 1.909 in.)
Thread Size
M8x1.25 Right

Thread Length (l2)
16.00
mm
Head Width (W)
9.00
mm
Eye Width (W1)
12.00
mm
Female Rod Ends - 8x48.5 mm - M8x1.25 Right - Tempered Steel with PTFE
Material: Tempered Steel with PTFE    Centre Height (l1): 36.00 mm    Grease Nipple: No    Body Width/Flange Width(W2/D3): 14.00 / 16.00 mm
Part Number: REF-080-R-CT
Female Rod Ends - 8x48.5 mm - M8x1.25 Right - Tempered Steel with PTFE Rod End
Out of Stock | Backorder Now | Orders can be expected around Mon, Oct 13, 2025
$5.50 AUD
$6.60 AUD $5.50 AUD
Excludes GST and overseas Taxes & Duties
Each
Quantity Required

Backorder: Out of Stock.
Eye Size (d1)
8
mm

(Equiv. 0.315 in.)
Overall Length (L)
48.500
mm

(Equiv. 1.909 in.)
Thread Size
M8x1.25 Right

Thread Length (l2)
16.00
mm
Female Rod Ends - 8x48.5 mm - M8x1.25 Right - Tempered Steel with PTFE
Material: Tempered Steel with PTFE    Head Width (W): 9.00 mm    Eye Width (W1): 12.00 mm    Centre Height (l1): 36.00 mm    Grease Nipple: No    Body Width/Flange Width(W2/D3): 14.00 / 16.00 mm
Part Number: REF-080-R-CT
Female Rod Ends - 8x48.5 mm - M8x1.25 Right - Tempered Steel with PTFE Rod End
Out of Stock | Backorder Now | Orders can be expected around Mon, Oct 13, 2025
$5.50 AUD
$6.60 AUD $5.50 AUD
Excludes GST and overseas Taxes & Duties
Each
Quantity Required

Backorder: Out of Stock.
Eye Size (d1)
10
mm

(Equiv. 0.394 in.)
Overall Length (L)
57.500
mm

(Equiv. 2.264 in.)
Thread Size
M10x1.25 Left

Thread Length (l2)
20.00
mm
Head Width (W)
10.50
mm
Eye Width (W1)
14.00
mm
Female Rod Ends - 10x57.5 mm - M10x1.25 Left - Tempered Steel with PTFE
Material: Tempered Steel with PTFE    Centre Height (l1): 43.00 mm    Grease Nipple: No    Body Width/Flange Width(W2/D3): 17.00 / 19.00 mm
Part Number: REF-100-L-CT-F
Female Rod Ends - 10x57.5 mm - M10x1.25 Left - Tempered Steel with PTFE Rod End
Out of Stock | Backorder Now | Orders can be expected around Mon, Oct 13, 2025
$7.32 AUD
$8.78 AUD $7.32 AUD
Excludes GST and overseas Taxes & Duties
Each
Quantity Required

Backorder: Out of Stock.
Eye Size (d1)
10
mm

(Equiv. 0.394 in.)
Overall Length (L)
57.500
mm

(Equiv. 2.264 in.)
Thread Size
M10x1.25 Left

Thread Length (l2)
20.00
mm
Female Rod Ends - 10x57.5 mm - M10x1.25 Left - Tempered Steel with PTFE
Material: Tempered Steel with PTFE    Head Width (W): 10.50 mm    Eye Width (W1): 14.00 mm    Centre Height (l1): 43.00 mm    Grease Nipple: No    Body Width/Flange Width(W2/D3): 17.00 / 19.00 mm
Part Number: REF-100-L-CT-F
Female Rod Ends - 10x57.5 mm - M10x1.25 Left - Tempered Steel with PTFE Rod End
Out of Stock | Backorder Now | Orders can be expected around Mon, Oct 13, 2025
$7.32 AUD
$8.78 AUD $7.32 AUD
Excludes GST and overseas Taxes & Duties
Each
Quantity Required

Backorder: Out of Stock.
Eye Size (d1)
10
mm

(Equiv. 0.394 in.)
Overall Length (L)
57.500
mm

(Equiv. 2.264 in.)
Thread Size
M10x1.25 Right

Thread Length (l2)
20.00
mm
Head Width (W)
10.50
mm
Eye Width (W1)
14.00
mm
Female Rod Ends - 10x57.5 mm - M10x1.25 Right - Tempered Steel with PTFE
Material: Tempered Steel with PTFE    Centre Height (l1): 43.00 mm    Grease Nipple: No    Body Width/Flange Width(W2/D3): 17.00 / 19.00 mm
Part Number: REF-100-R-CT-F
Female Rod Ends - 10x57.5 mm - M10x1.25 Right - Tempered Steel with PTFE Rod End
Out of Stock | Backorder Now | Orders can be expected around Mon, Oct 13, 2025
$7.32 AUD
$8.78 AUD $7.32 AUD
Excludes GST and overseas Taxes & Duties
Each
Quantity Required

Backorder: Out of Stock.
Eye Size (d1)
10
mm

(Equiv. 0.394 in.)
Overall Length (L)
57.500
mm

(Equiv. 2.264 in.)
Thread Size
M10x1.25 Right

Thread Length (l2)
20.00
mm
Female Rod Ends - 10x57.5 mm - M10x1.25 Right - Tempered Steel with PTFE
Material: Tempered Steel with PTFE    Head Width (W): 10.50 mm    Eye Width (W1): 14.00 mm    Centre Height (l1): 43.00 mm    Grease Nipple: No    Body Width/Flange Width(W2/D3): 17.00 / 19.00 mm
Part Number: REF-100-R-CT-F
Female Rod Ends - 10x57.5 mm - M10x1.25 Right - Tempered Steel with PTFE Rod End
Out of Stock | Backorder Now | Orders can be expected around Mon, Oct 13, 2025
$7.32 AUD
$8.78 AUD $7.32 AUD
Excludes GST and overseas Taxes & Duties
Each
Quantity Required

Backorder: Out of Stock.
Eye Size (d1)
10
mm

(Equiv. 0.394 in.)
Overall Length (L)
57.500
mm

(Equiv. 2.264 in.)
Thread Size
M10x1.5 Left

Thread Length (l2)
20.00
mm
Head Width (W)
10.50
mm
Eye Width (W1)
14.00
mm
Female Rod Ends - 10x57.5 mm - M10x1.5 Left - Tempered Steel with PTFE
Material: Tempered Steel with PTFE    Centre Height (l1): 43.00 mm    Grease Nipple: No    Body Width/Flange Width(W2/D3): 17.00 / 19.00 mm
Part Number: REF-100-L-CT
Female Rod Ends - 10x57.5 mm - M10x1.5 Left - Tempered Steel with PTFE Rod End
Out of Stock | Backorder Now | Orders can be expected around Mon, Oct 13, 2025
$7.32 AUD
$8.78 AUD $7.32 AUD
Excludes GST and overseas Taxes & Duties
Each
Quantity Required

Backorder: Out of Stock.
Eye Size (d1)
10
mm

(Equiv. 0.394 in.)
Overall Length (L)
57.500
mm

(Equiv. 2.264 in.)
Thread Size
M10x1.5 Left

Thread Length (l2)
20.00
mm
Female Rod Ends - 10x57.5 mm - M10x1.5 Left - Tempered Steel with PTFE
Material: Tempered Steel with PTFE    Head Width (W): 10.50 mm    Eye Width (W1): 14.00 mm    Centre Height (l1): 43.00 mm    Grease Nipple: No    Body Width/Flange Width(W2/D3): 17.00 / 19.00 mm
Part Number: REF-100-L-CT
Female Rod Ends - 10x57.5 mm - M10x1.5 Left - Tempered Steel with PTFE Rod End
Out of Stock | Backorder Now | Orders can be expected around Mon, Oct 13, 2025
$7.32 AUD
$8.78 AUD $7.32 AUD
Excludes GST and overseas Taxes & Duties
Each
Quantity Required

Backorder: Out of Stock.
Eye Size (d1)
10
mm

(Equiv. 0.394 in.)
Overall Length (L)
57.500
mm

(Equiv. 2.264 in.)
Thread Size
M10x1.5 Right

Thread Length (l2)
20.00
mm
Head Width (W)
10.50
mm
Eye Width (W1)
14.00
mm
Female Rod Ends - 10x57.5 mm - M10x1.5 Right - Tempered Steel with PTFE
Material: Tempered Steel with PTFE    Centre Height (l1): 43.00 mm    Grease Nipple: No    Body Width/Flange Width(W2/D3): 17.00 / 19.00 mm
Part Number: REF-100-R-CT
Female Rod Ends - 10x57.5 mm - M10x1.5 Right - Tempered Steel with PTFE Rod End
Out of Stock | Backorder Now | Orders can be expected around Mon, Oct 13, 2025
$7.32 AUD
$8.78 AUD $7.32 AUD
Excludes GST and overseas Taxes & Duties
Each
Quantity Required

Backorder: Out of Stock.
Eye Size (d1)
10
mm

(Equiv. 0.394 in.)
Overall Length (L)
57.500
mm

(Equiv. 2.264 in.)
Thread Size
M10x1.5 Right

Thread Length (l2)
20.00
mm
Female Rod Ends - 10x57.5 mm - M10x1.5 Right - Tempered Steel with PTFE
Material: Tempered Steel with PTFE    Head Width (W): 10.50 mm    Eye Width (W1): 14.00 mm    Centre Height (l1): 43.00 mm    Grease Nipple: No    Body Width/Flange Width(W2/D3): 17.00 / 19.00 mm
Part Number: REF-100-R-CT
Female Rod Ends - 10x57.5 mm - M10x1.5 Right - Tempered Steel with PTFE Rod End
Out of Stock | Backorder Now | Orders can be expected around Mon, Oct 13, 2025
$7.32 AUD
$8.78 AUD $7.32 AUD
Excludes GST and overseas Taxes & Duties
Each
Quantity Required

Backorder: Out of Stock.
Eye Size (d1)
12
mm

(Equiv. 0.472 in.)
Overall Length (L)
66.500
mm

(Equiv. 2.618 in.)
Thread Size
M12x1.75 Left

Thread Length (l2)
22.00
mm
Head Width (W)
12.00
mm
Eye Width (W1)
16.00
mm
Female Rod Ends - 12x66.5 mm - M12x1.75 Left - Tempered Steel with PTFE
Material: Tempered Steel with PTFE    Centre Height (l1): 50.00 mm    Grease Nipple: No    Body Width/Flange Width(W2/D3): 19.00 / 22.00 mm
Part Number: REF-120-L-CT (10 Pcs)
Female Rod Ends - 12x66.5 mm - M12x1.75 Left - Tempered Steel with PTFE Rod End
Out of Stock | Backorder Now | Orders can be expected around Mon, Oct 13, 2025
$79.86 AUD
$95.84 AUD $79.86 AUD
Excludes GST and overseas Taxes & Duties
Per 10
Quantity Required

Backorder: Out of Stock.
Eye Size (d1)
12
mm

(Equiv. 0.472 in.)
Overall Length (L)
66.500
mm

(Equiv. 2.618 in.)
Thread Size
M12x1.75 Left

Thread Length (l2)
22.00
mm
Female Rod Ends - 12x66.5 mm - M12x1.75 Left - Tempered Steel with PTFE
Material: Tempered Steel with PTFE    Head Width (W): 12.00 mm    Eye Width (W1): 16.00 mm    Centre Height (l1): 50.00 mm    Grease Nipple: No    Body Width/Flange Width(W2/D3): 19.00 / 22.00 mm
Part Number: REF-120-L-CT (10 Pcs)
Female Rod Ends - 12x66.5 mm - M12x1.75 Left - Tempered Steel with PTFE Rod End
Out of Stock | Backorder Now | Orders can be expected around Mon, Oct 13, 2025
$79.86 AUD
$95.84 AUD $79.86 AUD
Excludes GST and overseas Taxes & Duties
Per 10
Quantity Required

Backorder: Out of Stock.
Eye Size (d1)
12
mm

(Equiv. 0.472 in.)
Overall Length (L)
66.500
mm

(Equiv. 2.618 in.)
Thread Size
M12x1.75 Right

Thread Length (l2)
22.00
mm
Head Width (W)
12.00
mm
Eye Width (W1)
16.00
mm
Female Rod Ends - 12x66.5 mm - M12x1.75 Right - Tempered Steel with PTFE
Material: Tempered Steel with PTFE    Centre Height (l1): 50.00 mm    Grease Nipple: No    Body Width/Flange Width(W2/D3): 19.00 / 22.00 mm
Part Number: REF-120-R-CT
Female Rod Ends - 12x66.5 mm - M12x1.75 Right - Tempered Steel with PTFE Rod End
Out of Stock | Backorder Now | Orders can be expected around Mon, Oct 13, 2025
$8.86 AUD
$10.64 AUD $8.86 AUD
Excludes GST and overseas Taxes & Duties
Each
Quantity Required

Backorder: Out of Stock.
Eye Size (d1)
12
mm

(Equiv. 0.472 in.)
Overall Length (L)
66.500
mm

(Equiv. 2.618 in.)
Thread Size
M12x1.75 Right

Thread Length (l2)
22.00
mm
Female Rod Ends - 12x66.5 mm - M12x1.75 Right - Tempered Steel with PTFE
Material: Tempered Steel with PTFE    Head Width (W): 12.00 mm    Eye Width (W1): 16.00 mm    Centre Height (l1): 50.00 mm    Grease Nipple: No    Body Width/Flange Width(W2/D3): 19.00 / 22.00 mm
Part Number: REF-120-R-CT
Female Rod Ends - 12x66.5 mm - M12x1.75 Right - Tempered Steel with PTFE Rod End
Out of Stock | Backorder Now | Orders can be expected around Mon, Oct 13, 2025
$8.86 AUD
$10.64 AUD $8.86 AUD
Excludes GST and overseas Taxes & Duties
Each
Quantity Required

Backorder: Out of Stock.
Eye Size (d1)
14
mm

(Equiv. 0.551 in.)
Overall Length (L)
75.000
mm

(Equiv. 2.953 in.)
Thread Size
M14x1.5 Left

Thread Length (l2)
25.00
mm
Head Width (W)
13.50
mm
Eye Width (W1)
19.00
mm
Female Rod Ends - 14x75 mm - M14x1.5 Left - Tempered Steel with PTFE
Material: Tempered Steel with PTFE    Centre Height (l1): 57.00 mm    Grease Nipple: No    Body Width/Flange Width(W2/D3): 22.00 / 25.00 mm
Part Number: REF-140-L-CT-F
Female Rod Ends - 14x75 mm - M14x1.5 Left - Tempered Steel with PTFE Rod End
Out of Stock | Backorder Now | Orders can be expected around Mon, Oct 13, 2025
$11.59 AUD
$13.91 AUD $11.59 AUD
Excludes GST and overseas Taxes & Duties
Each
Quantity Required

Backorder: Out of Stock.
Eye Size (d1)
14
mm

(Equiv. 0.551 in.)
Overall Length (L)
75.000
mm

(Equiv. 2.953 in.)
Thread Size
M14x1.5 Left

Thread Length (l2)
25.00
mm
Female Rod Ends - 14x75 mm - M14x1.5 Left - Tempered Steel with PTFE
Material: Tempered Steel with PTFE    Head Width (W): 13.50 mm    Eye Width (W1): 19.00 mm    Centre Height (l1): 57.00 mm    Grease Nipple: No    Body Width/Flange Width(W2/D3): 22.00 / 25.00 mm
Part Number: REF-140-L-CT-F
Female Rod Ends - 14x75 mm - M14x1.5 Left - Tempered Steel with PTFE Rod End
Out of Stock | Backorder Now | Orders can be expected around Mon, Oct 13, 2025
$11.59 AUD
$13.91 AUD $11.59 AUD
Excludes GST and overseas Taxes & Duties
Each
Quantity Required

Backorder: Out of Stock.
Eye Size (d1)
14
mm

(Equiv. 0.551 in.)
Overall Length (L)
75.000
mm

(Equiv. 2.953 in.)
Thread Size
M14x1.5 Right

Thread Length (l2)
25.00
mm
Head Width (W)
13.50
mm
Eye Width (W1)
19.00
mm
Female Rod Ends - 14x75 mm - M14x1.5 Right - Tempered Steel with PTFE
Material: Tempered Steel with PTFE    Centre Height (l1): 57.00 mm    Grease Nipple: No    Body Width/Flange Width(W2/D3): 22.00 / 25.00 mm
Part Number: REF-140-R-CT-F
Female Rod Ends - 14x75 mm - M14x1.5 Right - Tempered Steel with PTFE Rod End
Out of Stock | Backorder Now | Orders can be expected around Mon, Oct 13, 2025
$11.59 AUD
$13.91 AUD $11.59 AUD
Excludes GST and overseas Taxes & Duties
Each
Quantity Required

Backorder: Out of Stock.
Eye Size (d1)
14
mm

(Equiv. 0.551 in.)
Overall Length (L)
75.000
mm

(Equiv. 2.953 in.)
Thread Size
M14x1.5 Right

Thread Length (l2)
25.00
mm
Female Rod Ends - 14x75 mm - M14x1.5 Right - Tempered Steel with PTFE
Material: Tempered Steel with PTFE    Head Width (W): 13.50 mm    Eye Width (W1): 19.00 mm    Centre Height (l1): 57.00 mm    Grease Nipple: No    Body Width/Flange Width(W2/D3): 22.00 / 25.00 mm
Part Number: REF-140-R-CT-F
Female Rod Ends - 14x75 mm - M14x1.5 Right - Tempered Steel with PTFE Rod End
Out of Stock | Backorder Now | Orders can be expected around Mon, Oct 13, 2025
$11.59 AUD
$13.91 AUD $11.59 AUD
Excludes GST and overseas Taxes & Duties
Each
Quantity Required

Backorder: Out of Stock.
Eye Size (d1)
16
mm

(Equiv. 0.63 in.)
Overall Length (L)
85.500
mm

(Equiv. 3.366 in.)
Thread Size
M16x2.0 Left

Thread Length (l2)
28.00
mm
Head Width (W)
15.00
mm
Eye Width (W1)
21.00
mm
Female Rod Ends - 16x85.5 mm - M16x2.0 Left - Tempered Steel with PTFE
Material: Tempered Steel with PTFE    Centre Height (l1): 64.00 mm    Grease Nipple: No    Body Width/Flange Width(W2/D3): 24.00 / 27.00 mm
Part Number: REF-160-L-CT (5 Pcs)
Female Rod Ends - 16x85.5 mm - M16x2.0 Left - Tempered Steel with PTFE Rod End
Out of Stock | Backorder Now | Orders can be expected around Mon, Oct 13, 2025
$70.50 AUD
$84.60 AUD $70.50 AUD
Excludes GST and overseas Taxes & Duties
Per 5
Quantity Required

Backorder: Out of Stock.
Eye Size (d1)
16
mm

(Equiv. 0.63 in.)
Overall Length (L)
85.500
mm

(Equiv. 3.366 in.)
Thread Size
M16x2.0 Left

Thread Length (l2)
28.00
mm
Female Rod Ends - 16x85.5 mm - M16x2.0 Left - Tempered Steel with PTFE
Material: Tempered Steel with PTFE    Head Width (W): 15.00 mm    Eye Width (W1): 21.00 mm    Centre Height (l1): 64.00 mm    Grease Nipple: No    Body Width/Flange Width(W2/D3): 24.00 / 27.00 mm
Part Number: REF-160-L-CT (5 Pcs)
Female Rod Ends - 16x85.5 mm - M16x2.0 Left - Tempered Steel with PTFE Rod End
Out of Stock | Backorder Now | Orders can be expected around Mon, Oct 13, 2025
$70.50 AUD
$84.60 AUD $70.50 AUD
Excludes GST and overseas Taxes & Duties
Per 5
Quantity Required

Backorder: Out of Stock.
Eye Size (d1)
16
mm

(Equiv. 0.63 in.)
Overall Length (L)
85.500
mm

(Equiv. 3.366 in.)
Thread Size
M16x2.0 Right

Thread Length (l2)
28.00
mm
Head Width (W)
15.00
mm
Eye Width (W1)
21.00
mm
Female Rod Ends - 16x85.5 mm - M16x2.0 Right - Tempered Steel with PTFE
Material: Tempered Steel with PTFE    Centre Height (l1): 64.00 mm    Grease Nipple: No    Body Width/Flange Width(W2/D3): 24.00 / 27.00 mm
Part Number: REF-160-R-CT (5 Pcs)
Female Rod Ends - 16x85.5 mm - M16x2.0 Right - Tempered Steel with PTFE Rod End
Out of Stock | Backorder Now | Orders can be expected around Mon, Oct 13, 2025
$70.50 AUD
$84.60 AUD $70.50 AUD
Excludes GST and overseas Taxes & Duties
Per 5
Quantity Required

Backorder: Out of Stock.
Eye Size (d1)
16
mm

(Equiv. 0.63 in.)
Overall Length (L)
85.500
mm

(Equiv. 3.366 in.)
Thread Size
M16x2.0 Right

Thread Length (l2)
28.00
mm
Female Rod Ends - 16x85.5 mm - M16x2.0 Right - Tempered Steel with PTFE
Material: Tempered Steel with PTFE    Head Width (W): 15.00 mm    Eye Width (W1): 21.00 mm    Centre Height (l1): 64.00 mm    Grease Nipple: No    Body Width/Flange Width(W2/D3): 24.00 / 27.00 mm
Part Number: REF-160-R-CT (5 Pcs)
Female Rod Ends - 16x85.5 mm - M16x2.0 Right - Tempered Steel with PTFE Rod End
Out of Stock | Backorder Now | Orders can be expected around Mon, Oct 13, 2025
$70.50 AUD
$84.60 AUD $70.50 AUD
Excludes GST and overseas Taxes & Duties
Per 5
Quantity Required

Backorder: Out of Stock.
Eye Size (d1)
20
mm

(Equiv. 0.787 in.)
Overall Length (L)
102.500
mm

(Equiv. 4.035 in.)
Thread Size
M20x1.5 Left

Thread Length (l2)
33.00
mm
Head Width (W)
18.00
mm
Eye Width (W1)
25.00
mm
Female Rod Ends - 20x102.5 mm - M20x1.5 Left - Tempered Steel with PTFE
Material: Tempered Steel with PTFE    Centre Height (l1): 77.00 mm    Grease Nipple: No    Body Width/Flange Width(W2/D3): 30.00 / 34.00 mm
Part Number: REF-200-L-CT (5 Pcs)
Female Rod Ends - 20x102.5 mm - M20x1.5 Left - Tempered Steel with PTFE Rod End
Out of Stock | Backorder Now | Orders can be expected around Mon, Oct 13, 2025
$112.14 AUD
$134.56 AUD $112.14 AUD
Excludes GST and overseas Taxes & Duties
Per 5
Quantity Required

Backorder: Out of Stock.
Eye Size (d1)
20
mm

(Equiv. 0.787 in.)
Overall Length (L)
102.500
mm

(Equiv. 4.035 in.)
Thread Size
M20x1.5 Left

Thread Length (l2)
33.00
mm
Female Rod Ends - 20x102.5 mm - M20x1.5 Left - Tempered Steel with PTFE
Material: Tempered Steel with PTFE    Head Width (W): 18.00 mm    Eye Width (W1): 25.00 mm    Centre Height (l1): 77.00 mm    Grease Nipple: No    Body Width/Flange Width(W2/D3): 30.00 / 34.00 mm
Part Number: REF-200-L-CT (5 Pcs)
Female Rod Ends - 20x102.5 mm - M20x1.5 Left - Tempered Steel with PTFE Rod End
Out of Stock | Backorder Now | Orders can be expected around Mon, Oct 13, 2025
$112.14 AUD
$134.56 AUD $112.14 AUD
Excludes GST and overseas Taxes & Duties
Per 5
Quantity Required

Backorder: Out of Stock.
Eye Size (d1)
20
mm

(Equiv. 0.787 in.)
Overall Length (L)
102.500
mm

(Equiv. 4.035 in.)
Thread Size
M20x1.5 Right

Thread Length (l2)
33.00
mm
Head Width (W)
18.00
mm
Eye Width (W1)
25.00
mm
Female Rod Ends - 20x102.5 mm - M20x1.5 Right - Tempered Steel with PTFE
Material: Tempered Steel with PTFE    Centre Height (l1): 77.00 mm    Grease Nipple: No    Body Width/Flange Width(W2/D3): 30.00 / 34.00 mm
Part Number: REF-200-R-CT
Female Rod Ends - 20x102.5 mm - M20x1.5 Right - Tempered Steel with PTFE Rod End
Out of Stock | Backorder Now | Orders can be expected around Mon, Oct 13, 2025
$23.23 AUD
$27.87 AUD $23.23 AUD
Excludes GST and overseas Taxes & Duties
Each
Quantity Required

Backorder: Out of Stock.
Eye Size (d1)
20
mm

(Equiv. 0.787 in.)
Overall Length (L)
102.500
mm

(Equiv. 4.035 in.)
Thread Size
M20x1.5 Right

Thread Length (l2)
33.00
mm
Female Rod Ends - 20x102.5 mm - M20x1.5 Right - Tempered Steel with PTFE
Material: Tempered Steel with PTFE    Head Width (W): 18.00 mm    Eye Width (W1): 25.00 mm    Centre Height (l1): 77.00 mm    Grease Nipple: No    Body Width/Flange Width(W2/D3): 30.00 / 34.00 mm
Part Number: REF-200-R-CT
Female Rod Ends - 20x102.5 mm - M20x1.5 Right - Tempered Steel with PTFE Rod End
Out of Stock | Backorder Now | Orders can be expected around Mon, Oct 13, 2025
$23.23 AUD
$27.87 AUD $23.23 AUD
Excludes GST and overseas Taxes & Duties
Each
Quantity Required

Backorder: Out of Stock.
