Collection: Rod Ends - Female - Plastic

Rod Ends -> Female -> Plastic

There are 50 products in the sub-categories of Rod Ends - Female - Plastic. Scroll down or follow the link to Rod Ends - Female - Plastic in the products table to see all these items combined into a handy table with filters.

Category Details

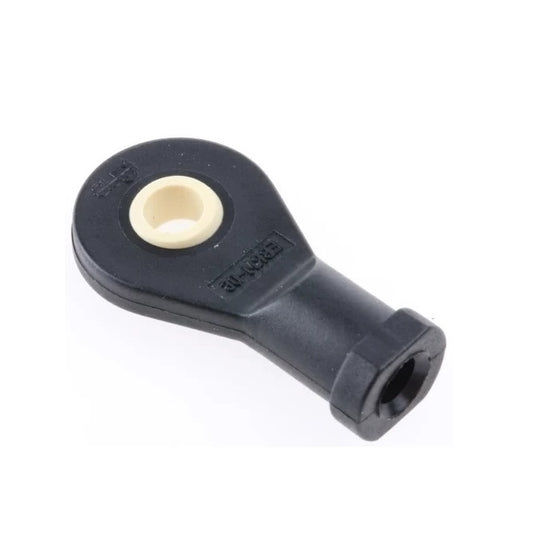

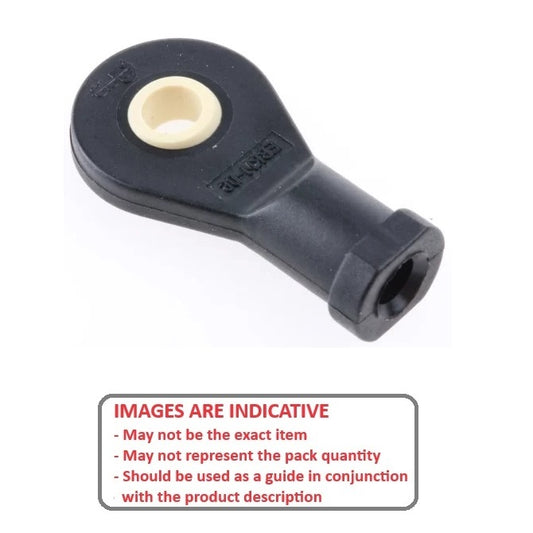

A selection of Plastic Female Rod Ends. Thermoplastic Body / L280^(R) Polymer Ball. Also known as Heim Joints

An expanded range may be available on special order. Please enquire.
Dimensions not shown are available on request.

Miniature Bearings Australia - MBA Minibearings

Additional resources:

A more concise listing may be found in the Rod Ends - Female - Plastic category on the Small Parts & Bearings online store.

Eye Size (d1)	Overall Length (L)	Thread Size	Thread Length (l2)	Head Width (W)	Eye Width (W1)
Eye Size (d1) 2.000 mm _{+0.014 / +0.054} (Equiv. 0.079 in.)	Overall Length (L) 17.00 mm (Equiv. 0.669 in.)	Thread Size M2x0.4 Left	Thread Length (l2) 6.00 mm	Head Width (W) 3.00 mm	Eye Width (W1) 4.00 mm
Head Diameter (D1): 9.00 mm Centre Height (l1): 12.50 mm Grease Nipple: No Max Angle of Pivot: 30 ° Max Torque Strength: 1.00 n.m Body Width/Flange Width(W2/D3): 4.00 / 4.60 mm
Part Number: REF-020-L-PP (10 Pcs) Female Rod Ends - 2x17 mm - M2x0.4 Left Plastic Out of Stock \| Backorder Now \| Orders can be expected around Mon, Oct 20, 2025 Regular price $108.77 AUD Regular price ~~$184.49 AUD~~ Sale price $108.77 AUD Unit price per Excludes GST and overseas Taxes & Duties Per 10 Quantity Required Backorder: Out of Stock.
Eye Size (d1)	Overall Length (L)	Thread Size	Thread Length (l2)	Indicative Image
Eye Size (d1) 2.000 mm _{+0.014 / +0.054} (Equiv. 0.079 in.)	Overall Length (L) 17.00 mm (Equiv. 0.669 in.)	Thread Size M2x0.4 Left	Thread Length (l2) 6.00 mm
Head Width (W): 3.00 mm Eye Width (W1): 4.00 mm Head Diameter (D1): 9.00 mm Centre Height (l1): 12.50 mm Grease Nipple: No Max Angle of Pivot: 30 ° Max Torque Strength: 1.00 n.m Body Width/Flange Width(W2/D3): 4.00 / 4.60 mm
Part Number: REF-020-L-PP (10 Pcs) Female Rod Ends - 2x17 mm - M2x0.4 Left Plastic Out of Stock \| Backorder Now \| Orders can be expected around Mon, Oct 20, 2025 Regular price $108.77 AUD Regular price ~~$184.49 AUD~~ Sale price $108.77 AUD Unit price per Excludes GST and overseas Taxes & Duties Per 10 Quantity Required Backorder: Out of Stock.
REF-020-L-PP (10 Pcs) --- Female Rod Ends - 2x17 mm - M2x0.4 Left Plastic Sale REF-020-L-PP (10 Pcs) --- Female Rod Ends - 2x17 mm - M2x0.4 Left Plastic Regular price $108.77 AUD Regular price ~~$184.49 AUD~~ Sale price $108.77 AUD Unit price per Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Eye Size (d1) 2.000 mm _{+0.014 / +0.054} (Equiv. 0.079 in.)	Overall Length (L) 17.00 mm (Equiv. 0.669 in.)	Thread Size M2x0.4 Right	Thread Length (l2) 6.00 mm	Head Width (W) 3.00 mm	Eye Width (W1) 4.00 mm
Head Diameter (D1): 9.00 mm Centre Height (l1): 12.50 mm Grease Nipple: No Max Angle of Pivot: 30 ° Max Torque Strength: 1.00 n.m Body Width/Flange Width(W2/D3): 4.00 / 4.60 mm
Part Number: REF-020-R-PP (10 Pcs) Female Rod Ends - 2x17 mm - M2x0.4 Right Plastic Out of Stock \| Backorder Now \| Orders can be expected around Mon, Oct 20, 2025 Regular price $108.77 AUD Regular price ~~$184.49 AUD~~ Sale price $108.77 AUD Unit price per Excludes GST and overseas Taxes & Duties Per 10 Quantity Required Backorder: Out of Stock.
Eye Size (d1) 2.000 mm _{+0.014 / +0.054} (Equiv. 0.079 in.)	Overall Length (L) 17.00 mm (Equiv. 0.669 in.)	Thread Size M2x0.4 Right	Thread Length (l2) 6.00 mm
Head Width (W): 3.00 mm Eye Width (W1): 4.00 mm Head Diameter (D1): 9.00 mm Centre Height (l1): 12.50 mm Grease Nipple: No Max Angle of Pivot: 30 ° Max Torque Strength: 1.00 n.m Body Width/Flange Width(W2/D3): 4.00 / 4.60 mm
Part Number: REF-020-R-PP (10 Pcs) Female Rod Ends - 2x17 mm - M2x0.4 Right Plastic Out of Stock \| Backorder Now \| Orders can be expected around Mon, Oct 20, 2025 Regular price $108.77 AUD Regular price ~~$184.49 AUD~~ Sale price $108.77 AUD Unit price per Excludes GST and overseas Taxes & Duties Per 10 Quantity Required Backorder: Out of Stock.
REF-020-R-PP (10 Pcs) --- Female Rod Ends - 2x17 mm - M2x0.4 Right Plastic Sale REF-020-R-PP (10 Pcs) --- Female Rod Ends - 2x17 mm - M2x0.4 Right Plastic Regular price $108.77 AUD Regular price ~~$184.49 AUD~~ Sale price $108.77 AUD Unit price per Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Eye Size (d1) 4.000 mm _{+0.020 / +0.068} (Equiv. 0.157 in.)	Overall Length (L) 30.00 mm (Equiv. 1.181 in.)	Thread Size M4x0.7 Left	Thread Length (l2) 9.50 mm	Head Width (W) 3.50 mm	Eye Width (W1) 5.00 mm
Head Diameter (D1): 15.00 mm Centre Height (l1): 22.25 mm Grease Nipple: No Max Angle of Pivot: 33 ° Max Torque Strength: 2.00 n.m Body Width/Flange Width(W2/D3): 8.00 / 9.20 mm
Part Number: REF-040-L-PP (10 Pcs) Female Rod Ends - 4x30 mm - M4x0.7 Left Plastic Out of Stock \| Backorder Now \| Orders can be expected around Mon, Oct 20, 2025 Regular price $178.50 AUD Regular price ~~$303.80 AUD~~ Sale price $178.50 AUD Unit price per Excludes GST and overseas Taxes & Duties Per 10 Quantity Required Backorder: Out of Stock.
Eye Size (d1) 4.000 mm _{+0.020 / +0.068} (Equiv. 0.157 in.)	Overall Length (L) 30.00 mm (Equiv. 1.181 in.)	Thread Size M4x0.7 Left	Thread Length (l2) 9.50 mm
Head Width (W): 3.50 mm Eye Width (W1): 5.00 mm Head Diameter (D1): 15.00 mm Centre Height (l1): 22.25 mm Grease Nipple: No Max Angle of Pivot: 33 ° Max Torque Strength: 2.00 n.m Body Width/Flange Width(W2/D3): 8.00 / 9.20 mm
Part Number: REF-040-L-PP (10 Pcs) Female Rod Ends - 4x30 mm - M4x0.7 Left Plastic Out of Stock \| Backorder Now \| Orders can be expected around Mon, Oct 20, 2025 Regular price $178.50 AUD Regular price ~~$303.80 AUD~~ Sale price $178.50 AUD Unit price per Excludes GST and overseas Taxes & Duties Per 10 Quantity Required Backorder: Out of Stock.
REF-040-L-PP (10 Pcs) --- Female Rod Ends - 4x30 mm - M4x0.7 Left Plastic Sale REF-040-L-PP (10 Pcs) --- Female Rod Ends - 4x30 mm - M4x0.7 Left Plastic Regular price $178.50 AUD Regular price ~~$303.80 AUD~~ Sale price $178.50 AUD Unit price per Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Eye Size (d1) 4.000 mm _{+0.020 / +0.068} (Equiv. 0.157 in.)	Overall Length (L) 30.00 mm (Equiv. 1.181 in.)	Thread Size M4x0.7 Right	Thread Length (l2) 9.50 mm	Head Width (W) 3.50 mm	Eye Width (W1) 5.00 mm
Head Diameter (D1): 15.00 mm Centre Height (l1): 22.25 mm Grease Nipple: No Max Angle of Pivot: 33 ° Max Torque Strength: 2.00 n.m Body Width/Flange Width(W2/D3): 8.00 / 9.20 mm
Part Number: REF-040-R-PP (10 Pcs) Female Rod Ends - 4x30 mm - M4x0.7 Right Plastic Out of Stock \| Backorder Now \| Orders can be expected around Mon, Oct 20, 2025 Regular price $178.50 AUD Regular price ~~$303.80 AUD~~ Sale price $178.50 AUD Unit price per Excludes GST and overseas Taxes & Duties Per 10 Quantity Required Backorder: Out of Stock.
Eye Size (d1) 4.000 mm _{+0.020 / +0.068} (Equiv. 0.157 in.)	Overall Length (L) 30.00 mm (Equiv. 1.181 in.)	Thread Size M4x0.7 Right	Thread Length (l2) 9.50 mm
Head Width (W): 3.50 mm Eye Width (W1): 5.00 mm Head Diameter (D1): 15.00 mm Centre Height (l1): 22.25 mm Grease Nipple: No Max Angle of Pivot: 33 ° Max Torque Strength: 2.00 n.m Body Width/Flange Width(W2/D3): 8.00 / 9.20 mm
Part Number: REF-040-R-PP (10 Pcs) Female Rod Ends - 4x30 mm - M4x0.7 Right Plastic Out of Stock \| Backorder Now \| Orders can be expected around Mon, Oct 20, 2025 Regular price $178.50 AUD Regular price ~~$303.80 AUD~~ Sale price $178.50 AUD Unit price per Excludes GST and overseas Taxes & Duties Per 10 Quantity Required Backorder: Out of Stock.
REF-040-R-PP (10 Pcs) --- Female Rod Ends - 4x30 mm - M4x0.7 Right Plastic Sale REF-040-R-PP (10 Pcs) --- Female Rod Ends - 4x30 mm - M4x0.7 Right Plastic Regular price $178.50 AUD Regular price ~~$303.80 AUD~~ Sale price $178.50 AUD Unit price per Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Eye Size (d1) 4.763 mm (Equiv. 0.188 in.)	Overall Length (L) 34.90 mm (Equiv. 1.374 in.)	Thread Size 10-32 UNF Left	Thread Length (l2) 12.70 mm	Head Width (W) 5.94 mm	Eye Width (W1) 7.92 mm
Material: Plastic Head Diameter (D1): 14.29 mm Centre Height (l1): 26.97 mm Grease Nipple: No Max Angle of Pivot: 25 ° Max Torque Strength: 2.00 n.m Body Width/Flange Width(W2/D3): 10.31 / 12.70 mm
Part Number: REF-048-L-PP Female Rod Ends - 4.763x34.9 mm - 10-32 UNF Left - Plastic Rod End Out of Stock \| Backorder Now \| Orders can be expected around Tue, Oct 14, 2025 Regular price $24.95 AUD Regular price ~~$29.95 AUD~~ Sale price $24.95 AUD Unit price per Excludes GST and overseas Taxes & Duties Each Quantity Required Backorder: Out of Stock.
Eye Size (d1) 4.763 mm (Equiv. 0.188 in.)	Overall Length (L) 34.90 mm (Equiv. 1.374 in.)	Thread Size 10-32 UNF Left	Thread Length (l2) 12.70 mm
Material: Plastic Head Width (W): 5.94 mm Eye Width (W1): 7.92 mm Head Diameter (D1): 14.29 mm Centre Height (l1): 26.97 mm Grease Nipple: No Max Angle of Pivot: 25 ° Max Torque Strength: 2.00 n.m Body Width/Flange Width(W2/D3): 10.31 / 12.70 mm
Part Number: REF-048-L-PP Female Rod Ends - 4.763x34.9 mm - 10-32 UNF Left - Plastic Rod End Out of Stock \| Backorder Now \| Orders can be expected around Tue, Oct 14, 2025 Regular price $24.95 AUD Regular price ~~$29.95 AUD~~ Sale price $24.95 AUD Unit price per Excludes GST and overseas Taxes & Duties Each Quantity Required Backorder: Out of Stock.
REF-048-L-PP --- Female Rod Ends - 4.763x34.9 mm - 10-32 UNF Left - Plastic Rod End Sale REF-048-L-PP --- Female Rod Ends - 4.763x34.9 mm - 10-32 UNF Left - Plastic Rod End Regular price $24.95 AUD Regular price ~~$29.95 AUD~~ Sale price $24.95 AUD Unit price per Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Eye Size (d1) 4.763 mm (Equiv. 0.188 in.)	Overall Length (L) 34.90 mm (Equiv. 1.374 in.)	Thread Size 10-32 UNF Right	Thread Length (l2) 12.70 mm	Head Width (W) 5.94 mm	Eye Width (W1) 7.92 mm
Material: Plastic Head Diameter (D1): 14.29 mm Centre Height (l1): 26.97 mm Grease Nipple: No Max Angle of Pivot: 25 ° Max Torque Strength: 2.00 n.m Body Width/Flange Width(W2/D3): 10.31 / 12.70 mm
Part Number: REF-048-R-PP Female Rod Ends - 4.763x34.9 mm - 10-32 UNF Right - Plastic Rod End Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 28, 2025 Regular price $9.95 AUD Regular price ~~$11.95 AUD~~ Sale price $9.95 AUD Unit price per Excludes GST and overseas Taxes & Duties Each Quantity Required Backorder: Out of Stock.
Eye Size (d1) 4.763 mm (Equiv. 0.188 in.)	Overall Length (L) 34.90 mm (Equiv. 1.374 in.)	Thread Size 10-32 UNF Right	Thread Length (l2) 12.70 mm
Material: Plastic Head Width (W): 5.94 mm Eye Width (W1): 7.92 mm Head Diameter (D1): 14.29 mm Centre Height (l1): 26.97 mm Grease Nipple: No Max Angle of Pivot: 25 ° Max Torque Strength: 2.00 n.m Body Width/Flange Width(W2/D3): 10.31 / 12.70 mm
Part Number: REF-048-R-PP Female Rod Ends - 4.763x34.9 mm - 10-32 UNF Right - Plastic Rod End Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 28, 2025 Regular price $9.95 AUD Regular price ~~$11.95 AUD~~ Sale price $9.95 AUD Unit price per Excludes GST and overseas Taxes & Duties Each Quantity Required Backorder: Out of Stock.
REF-048-R-PP --- Female Rod Ends - 4.763x34.9 mm - 10-32 UNF Right - Plastic Rod End Sale REF-048-R-PP --- Female Rod Ends - 4.763x34.9 mm - 10-32 UNF Right - Plastic Rod End Regular price $9.95 AUD Regular price ~~$11.95 AUD~~ Sale price $9.95 AUD Unit price per Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Eye Size (d1) 5.000 mm _{+0.020 / +0.068} (Equiv. 0.197 in.)	Overall Length (L) 36.00 mm (Equiv. 1.417 in.)	Thread Size M4x0.7 Right	Thread Length (l2) 10.00 mm	Head Width (W) 8.00 mm	Eye Width (W1) 6.00 mm
Head Diameter (D1): 13.00 mm Centre Height (l1): 27.00 mm Grease Nipple: No Max Angle of Pivot: 30 ° Max Torque Strength: 5.00 n.m Body Width/Flange Width(W2/D3): 9.00 / 12.00 mm
Part Number: REF-050-R-PP-040 (10 Pcs) Female Rod Ends - 5x36 mm - M4x0.7 Right Plastic Out of Stock \| Backorder Now \| Orders can be expected around Mon, Oct 20, 2025 Regular price $190.77 AUD Regular price ~~$324.76 AUD~~ Sale price $190.77 AUD Unit price per Excludes GST and overseas Taxes & Duties Per 10 Quantity Required Backorder: Out of Stock.
Eye Size (d1) 5.000 mm _{+0.020 / +0.068} (Equiv. 0.197 in.)	Overall Length (L) 36.00 mm (Equiv. 1.417 in.)	Thread Size M4x0.7 Right	Thread Length (l2) 10.00 mm
Head Width (W): 8.00 mm Eye Width (W1): 6.00 mm Head Diameter (D1): 13.00 mm Centre Height (l1): 27.00 mm Grease Nipple: No Max Angle of Pivot: 30 ° Max Torque Strength: 5.00 n.m Body Width/Flange Width(W2/D3): 9.00 / 12.00 mm
Part Number: REF-050-R-PP-040 (10 Pcs) Female Rod Ends - 5x36 mm - M4x0.7 Right Plastic Out of Stock \| Backorder Now \| Orders can be expected around Mon, Oct 20, 2025 Regular price $190.77 AUD Regular price ~~$324.76 AUD~~ Sale price $190.77 AUD Unit price per Excludes GST and overseas Taxes & Duties Per 10 Quantity Required Backorder: Out of Stock.
REF-050-R-PP-040 (10 Pcs) --- Female Rod Ends - 5x36 mm - M4x0.7 Right Plastic Sale REF-050-R-PP-040 (10 Pcs) --- Female Rod Ends - 5x36 mm - M4x0.7 Right Plastic Regular price $190.77 AUD Regular price ~~$324.76 AUD~~ Sale price $190.77 AUD Unit price per Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Eye Size (d1) 5.000 mm (Equiv. 0.197 in.)	Overall Length (L) 36.00 mm (Equiv. 1.417 in.)	Thread Size M5x0.8 Right	Thread Length (l2) 10.00 mm	Head Width (W) 6.00 mm	Eye Width (W1) 8.00 mm
Material: Plastic Head Diameter (D1): 18.00 mm Centre Height (l1): 27.00 mm Grease Nipple: No Max Angle of Pivot: 30 ° Max Torque Strength: 5.00 n.m Body Width/Flange Width(W2/D3): 9.00 / 12.00 mm
Part Number: REF-050-R-PP Female Rod Ends - 5x36 mm - M5x0.8 Right - Plastic Rod End Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 28, 2025 Regular price $15.95 AUD Regular price ~~$19.15 AUD~~ Sale price $15.95 AUD Unit price per Excludes GST and overseas Taxes & Duties Each Quantity Required Backorder: Out of Stock.
Eye Size (d1) 5.000 mm (Equiv. 0.197 in.)	Overall Length (L) 36.00 mm (Equiv. 1.417 in.)	Thread Size M5x0.8 Right	Thread Length (l2) 10.00 mm
Material: Plastic Head Width (W): 6.00 mm Eye Width (W1): 8.00 mm Head Diameter (D1): 18.00 mm Centre Height (l1): 27.00 mm Grease Nipple: No Max Angle of Pivot: 30 ° Max Torque Strength: 5.00 n.m Body Width/Flange Width(W2/D3): 9.00 / 12.00 mm
Part Number: REF-050-R-PP Female Rod Ends - 5x36 mm - M5x0.8 Right - Plastic Rod End Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 28, 2025 Regular price $15.95 AUD Regular price ~~$19.15 AUD~~ Sale price $15.95 AUD Unit price per Excludes GST and overseas Taxes & Duties Each Quantity Required Backorder: Out of Stock.
REF-050-R-PP --- Female Rod Ends - 5x36 mm - M5x0.8 Right - Plastic Rod End Sale REF-050-R-PP --- Female Rod Ends - 5x36 mm - M5x0.8 Right - Plastic Rod End Regular price $15.95 AUD Regular price ~~$19.15 AUD~~ Sale price $15.95 AUD Unit price per Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Eye Size (d1) 5.000 mm _{+0.020 / +0.068} (Equiv. 0.197 in.)	Overall Length (L) 39.50 mm (Equiv. 1.555 in.)	Thread Size M5x0.8 Left	Thread Length (l2) 12.00 mm	Head Width (W) 6.00 mm	Eye Width (W1) 4.40 mm
Head Diameter (D1): 19.00 mm Centre Height (l1): 30.00 mm Grease Nipple: No Max Angle of Pivot: 33 ° Max Torque Strength: 2.00 n.m Body Width/Flange Width(W2/D3): 9.00 / 11.00 mm
Part Number: REF-050-L-PP-N (10 Pcs) Female Rod Ends - 5x39.5 mm - M5x0.8 Left Plastic Out of Stock \| Backorder Now \| Orders can be expected around Mon, Oct 20, 2025 Regular price $208.41 AUD Regular price ~~$355.02 AUD~~ Sale price $208.41 AUD Unit price per Excludes GST and overseas Taxes & Duties Per 10 Quantity Required Backorder: Out of Stock.
Eye Size (d1) 5.000 mm _{+0.020 / +0.068} (Equiv. 0.197 in.)	Overall Length (L) 39.50 mm (Equiv. 1.555 in.)	Thread Size M5x0.8 Left	Thread Length (l2) 12.00 mm
Head Width (W): 6.00 mm Eye Width (W1): 4.40 mm Head Diameter (D1): 19.00 mm Centre Height (l1): 30.00 mm Grease Nipple: No Max Angle of Pivot: 33 ° Max Torque Strength: 2.00 n.m Body Width/Flange Width(W2/D3): 9.00 / 11.00 mm
Part Number: REF-050-L-PP-N (10 Pcs) Female Rod Ends - 5x39.5 mm - M5x0.8 Left Plastic Out of Stock \| Backorder Now \| Orders can be expected around Mon, Oct 20, 2025 Regular price $208.41 AUD Regular price ~~$355.02 AUD~~ Sale price $208.41 AUD Unit price per Excludes GST and overseas Taxes & Duties Per 10 Quantity Required Backorder: Out of Stock.
REF-050-L-PP-N (10 Pcs) --- Female Rod Ends - 5x39.5 mm - M5x0.8 Left Plastic Sale REF-050-L-PP-N (10 Pcs) --- Female Rod Ends - 5x39.5 mm - M5x0.8 Left Plastic Regular price $208.41 AUD Regular price ~~$355.02 AUD~~ Sale price $208.41 AUD Unit price per Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Eye Size (d1) 5.000 mm _{+0.020 / +0.068} (Equiv. 0.197 in.)	Overall Length (L) 39.50 mm (Equiv. 1.555 in.)	Thread Size M5x0.8 Right	Thread Length (l2) 12.00 mm	Head Width (W) 6.00 mm	Eye Width (W1) 4.40 mm
Head Diameter (D1): 19.00 mm Centre Height (l1): 30.00 mm Grease Nipple: No Max Angle of Pivot: 33 ° Max Torque Strength: 2.00 n.m Body Width/Flange Width(W2/D3): 9.00 / 11.00 mm
Part Number: REF-050-R-PP-N (10 Pcs) Female Rod Ends - 5x39.5 mm - M5x0.8 Right Plastic Out of Stock \| Backorder Now \| Orders can be expected around Mon, Oct 20, 2025 Regular price $208.41 AUD Regular price ~~$355.02 AUD~~ Sale price $208.41 AUD Unit price per Excludes GST and overseas Taxes & Duties Per 10 Quantity Required Backorder: Out of Stock.
Eye Size (d1) 5.000 mm _{+0.020 / +0.068} (Equiv. 0.197 in.)	Overall Length (L) 39.50 mm (Equiv. 1.555 in.)	Thread Size M5x0.8 Right	Thread Length (l2) 12.00 mm
Head Width (W): 6.00 mm Eye Width (W1): 4.40 mm Head Diameter (D1): 19.00 mm Centre Height (l1): 30.00 mm Grease Nipple: No Max Angle of Pivot: 33 ° Max Torque Strength: 2.00 n.m Body Width/Flange Width(W2/D3): 9.00 / 11.00 mm
Part Number: REF-050-R-PP-N (10 Pcs) Female Rod Ends - 5x39.5 mm - M5x0.8 Right Plastic Out of Stock \| Backorder Now \| Orders can be expected around Mon, Oct 20, 2025 Regular price $208.41 AUD Regular price ~~$355.02 AUD~~ Sale price $208.41 AUD Unit price per Excludes GST and overseas Taxes & Duties Per 10 Quantity Required Backorder: Out of Stock.
REF-050-R-PP-N (10 Pcs) --- Female Rod Ends - 5x39.5 mm - M5x0.8 Right Plastic Sale REF-050-R-PP-N (10 Pcs) --- Female Rod Ends - 5x39.5 mm - M5x0.8 Right Plastic Regular price $208.41 AUD Regular price ~~$355.02 AUD~~ Sale price $208.41 AUD Unit price per Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Eye Size (d1) 6.000 mm _{+0.020 / +0.068} (Equiv. 0.236 in.)	Overall Length (L) 40.50 mm (Equiv. 1.594 in.)	Thread Size M6x1 Left	Thread Length (l2) 12.00 mm	Head Width (W) 6.00 mm	Eye Width (W1) 4.40 mm
Head Diameter (D1): 21.00 mm Centre Height (l1): 30.00 mm Grease Nipple: No Max Angle of Pivot: 27 ° Max Torque Strength: 2.50 n.m Body Width/Flange Width(W2/D3): 11.00 / 13.00 mm
Part Number: REF-060-L-PP-N (10 Pcs) Female Rod Ends - 6x40.5 mm - M6x1 Left Plastic Out of Stock \| Backorder Now \| Orders can be expected around Mon, Oct 20, 2025 Regular price $189.41 AUD Regular price ~~$322.43 AUD~~ Sale price $189.41 AUD Unit price per Excludes GST and overseas Taxes & Duties Per 10 Quantity Required Backorder: Out of Stock.
Eye Size (d1) 6.000 mm _{+0.020 / +0.068} (Equiv. 0.236 in.)	Overall Length (L) 40.50 mm (Equiv. 1.594 in.)	Thread Size M6x1 Left	Thread Length (l2) 12.00 mm
Head Width (W): 6.00 mm Eye Width (W1): 4.40 mm Head Diameter (D1): 21.00 mm Centre Height (l1): 30.00 mm Grease Nipple: No Max Angle of Pivot: 27 ° Max Torque Strength: 2.50 n.m Body Width/Flange Width(W2/D3): 11.00 / 13.00 mm
Part Number: REF-060-L-PP-N (10 Pcs) Female Rod Ends - 6x40.5 mm - M6x1 Left Plastic Out of Stock \| Backorder Now \| Orders can be expected around Mon, Oct 20, 2025 Regular price $189.41 AUD Regular price ~~$322.43 AUD~~ Sale price $189.41 AUD Unit price per Excludes GST and overseas Taxes & Duties Per 10 Quantity Required Backorder: Out of Stock.
REF-060-L-PP-N (10 Pcs) --- Female Rod Ends - 6x40.5 mm - M6x1 Left Plastic Sale REF-060-L-PP-N (10 Pcs) --- Female Rod Ends - 6x40.5 mm - M6x1 Left Plastic Regular price $189.41 AUD Regular price ~~$322.43 AUD~~ Sale price $189.41 AUD Unit price per Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Eye Size (d1) 6.000 mm _{+0.020 / +0.068} (Equiv. 0.236 in.)	Overall Length (L) 40.50 mm (Equiv. 1.594 in.)	Thread Size M6x1 Right	Thread Length (l2) 12.00 mm	Head Width (W) 6.00 mm	Eye Width (W1) 4.40 mm
Head Diameter (D1): 21.00 mm Centre Height (l1): 30.00 mm Grease Nipple: No Max Angle of Pivot: 27 ° Max Torque Strength: 2.50 n.m Body Width/Flange Width(W2/D3): 11.00 / 13.00 mm
Part Number: REF-060-R-PP-N (10 Pcs) Female Rod Ends - 6x40.5 mm - M6x1 Right Plastic Out of Stock \| Backorder Now \| Orders can be expected around Mon, Oct 20, 2025 Regular price $209.77 AUD Regular price ~~$357.35 AUD~~ Sale price $209.77 AUD Unit price per Excludes GST and overseas Taxes & Duties Per 10 Quantity Required Backorder: Out of Stock.
Eye Size (d1) 6.000 mm _{+0.020 / +0.068} (Equiv. 0.236 in.)	Overall Length (L) 40.50 mm (Equiv. 1.594 in.)	Thread Size M6x1 Right	Thread Length (l2) 12.00 mm
Head Width (W): 6.00 mm Eye Width (W1): 4.40 mm Head Diameter (D1): 21.00 mm Centre Height (l1): 30.00 mm Grease Nipple: No Max Angle of Pivot: 27 ° Max Torque Strength: 2.50 n.m Body Width/Flange Width(W2/D3): 11.00 / 13.00 mm
Part Number: REF-060-R-PP-N (10 Pcs) Female Rod Ends - 6x40.5 mm - M6x1 Right Plastic Out of Stock \| Backorder Now \| Orders can be expected around Mon, Oct 20, 2025 Regular price $209.77 AUD Regular price ~~$357.35 AUD~~ Sale price $209.77 AUD Unit price per Excludes GST and overseas Taxes & Duties Per 10 Quantity Required Backorder: Out of Stock.
REF-060-R-PP-N (10 Pcs) --- Female Rod Ends - 6x40.5 mm - M6x1 Right Plastic Sale REF-060-R-PP-N (10 Pcs) --- Female Rod Ends - 6x40.5 mm - M6x1 Right Plastic Regular price $209.77 AUD Regular price ~~$357.35 AUD~~ Sale price $209.77 AUD Unit price per Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Eye Size (d1) 6.350 mm (Equiv. 0.25 in.)	Overall Length (L) 42.85 mm (Equiv. 1.687 in.)	Thread Size 1/4-28 UNF Left	Thread Length (l2) 17.45 mm	Head Width (W) 9.27 mm	Eye Width (W1) 6.35 mm
Material: Plastic Head Diameter (D1): 16.67 mm Centre Height (l1): 33.32 mm Grease Nipple: No Max Angle of Pivot: 25 ° Max Torque Strength: 5.00 n.m Body Width/Flange Width(W2/D3): 11.91 / 17.45 mm
Part Number: REF-064-L-PP-A Female Rod Ends - 6.35x42.85 mm - 1/4-28 UNF Left - Plastic Rod End Out of Stock \| Backorder Now \| Orders can be expected around Tue, Oct 14, 2025 Regular price $25.95 AUD Regular price ~~$31.15 AUD~~ Sale price $25.95 AUD Unit price per Excludes GST and overseas Taxes & Duties Each Quantity Required Backorder: Out of Stock.
Eye Size (d1) 6.350 mm (Equiv. 0.25 in.)	Overall Length (L) 42.85 mm (Equiv. 1.687 in.)	Thread Size 1/4-28 UNF Left	Thread Length (l2) 17.45 mm
Material: Plastic Head Width (W): 9.27 mm Eye Width (W1): 6.35 mm Head Diameter (D1): 16.67 mm Centre Height (l1): 33.32 mm Grease Nipple: No Max Angle of Pivot: 25 ° Max Torque Strength: 5.00 n.m Body Width/Flange Width(W2/D3): 11.91 / 17.45 mm
Part Number: REF-064-L-PP-A Female Rod Ends - 6.35x42.85 mm - 1/4-28 UNF Left - Plastic Rod End Out of Stock \| Backorder Now \| Orders can be expected around Tue, Oct 14, 2025 Regular price $25.95 AUD Regular price ~~$31.15 AUD~~ Sale price $25.95 AUD Unit price per Excludes GST and overseas Taxes & Duties Each Quantity Required Backorder: Out of Stock.
REF-064-L-PP-A --- Female Rod Ends - 6.35x42.85 mm - 1/4-28 UNF Left - Plastic Rod End Sale REF-064-L-PP-A --- Female Rod Ends - 6.35x42.85 mm - 1/4-28 UNF Left - Plastic Rod End Regular price $25.95 AUD Regular price ~~$31.15 AUD~~ Sale price $25.95 AUD Unit price per Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Eye Size (d1) 6.350 mm (Equiv. 0.25 in.)	Overall Length (L) 42.85 mm (Equiv. 1.687 in.)	Thread Size 1/4-28 UNF Right	Thread Length (l2) 17.45 mm	Head Width (W) 9.27 mm	Eye Width (W1) 6.35 mm
Material: Plastic Head Diameter (D1): 16.67 mm Centre Height (l1): 33.32 mm Grease Nipple: No Max Angle of Pivot: 25 ° Max Torque Strength: 5.00 n.m Body Width/Flange Width(W2/D3): 11.91 / 17.45 mm
Part Number: REF-064-R-PP-A Female Rod Ends - 6.35x42.85 mm - 1/4-28 UNF Right - Plastic Rod End Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 28, 2025 Regular price $21.68 AUD Regular price ~~$26.02 AUD~~ Sale price $21.68 AUD Unit price per Excludes GST and overseas Taxes & Duties Each Quantity Required Backorder: Out of Stock.
Eye Size (d1) 6.350 mm (Equiv. 0.25 in.)	Overall Length (L) 42.85 mm (Equiv. 1.687 in.)	Thread Size 1/4-28 UNF Right	Thread Length (l2) 17.45 mm
Material: Plastic Head Width (W): 9.27 mm Eye Width (W1): 6.35 mm Head Diameter (D1): 16.67 mm Centre Height (l1): 33.32 mm Grease Nipple: No Max Angle of Pivot: 25 ° Max Torque Strength: 5.00 n.m Body Width/Flange Width(W2/D3): 11.91 / 17.45 mm
Part Number: REF-064-R-PP-A Female Rod Ends - 6.35x42.85 mm - 1/4-28 UNF Right - Plastic Rod End Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 28, 2025 Regular price $21.68 AUD Regular price ~~$26.02 AUD~~ Sale price $21.68 AUD Unit price per Excludes GST and overseas Taxes & Duties Each Quantity Required Backorder: Out of Stock.
REF-064-R-PP-A --- Female Rod Ends - 6.35x42.85 mm - 1/4-28 UNF Right - Plastic Rod End Sale REF-064-R-PP-A --- Female Rod Ends - 6.35x42.85 mm - 1/4-28 UNF Right - Plastic Rod End Regular price $21.68 AUD Regular price ~~$26.02 AUD~~ Sale price $21.68 AUD Unit price per Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Eye Size (d1) 7.938 mm (Equiv. 0.313 in.)	Overall Length (L) 46.05 mm (Equiv. 1.813 in.)	Thread Size 5/16-24 UNF Left	Thread Length (l2) 17.45 mm	Head Width (W) 11.10 mm	Eye Width (W1) 7.92 mm
Material: Plastic Head Diameter (D1): 19.05 mm Centre Height (l1): 34.93 mm Grease Nipple: No Max Angle of Pivot: 25 ° Max Torque Strength: 6.00 n.m Body Width/Flange Width(W2/D3): 12.70 / 17.45 mm
Part Number: REF-079-L-PP-A Female Rod Ends - 7.938x46.05 mm - 5/16-24 UNF Left - Plastic Rod End Out of Stock \| Backorder Now \| Orders can be expected around Tue, Oct 14, 2025 Regular price $26.41 AUD Regular price ~~$31.69 AUD~~ Sale price $26.41 AUD Unit price per Excludes GST and overseas Taxes & Duties Each Quantity Required Backorder: Out of Stock.
Eye Size (d1) 7.938 mm (Equiv. 0.313 in.)	Overall Length (L) 46.05 mm (Equiv. 1.813 in.)	Thread Size 5/16-24 UNF Left	Thread Length (l2) 17.45 mm
Material: Plastic Head Width (W): 11.10 mm Eye Width (W1): 7.92 mm Head Diameter (D1): 19.05 mm Centre Height (l1): 34.93 mm Grease Nipple: No Max Angle of Pivot: 25 ° Max Torque Strength: 6.00 n.m Body Width/Flange Width(W2/D3): 12.70 / 17.45 mm
Part Number: REF-079-L-PP-A Female Rod Ends - 7.938x46.05 mm - 5/16-24 UNF Left - Plastic Rod End Out of Stock \| Backorder Now \| Orders can be expected around Tue, Oct 14, 2025 Regular price $26.41 AUD Regular price ~~$31.69 AUD~~ Sale price $26.41 AUD Unit price per Excludes GST and overseas Taxes & Duties Each Quantity Required Backorder: Out of Stock.
REF-079-L-PP-A --- Female Rod Ends - 7.938x46.05 mm - 5/16-24 UNF Left - Plastic Rod End Sale REF-079-L-PP-A --- Female Rod Ends - 7.938x46.05 mm - 5/16-24 UNF Left - Plastic Rod End Regular price $26.41 AUD Regular price ~~$31.69 AUD~~ Sale price $26.41 AUD Unit price per Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Eye Size (d1) 7.938 mm (Equiv. 0.313 in.)	Overall Length (L) 46.05 mm (Equiv. 1.813 in.)	Thread Size 5/16-24 UNF Right	Thread Length (l2) 17.45 mm	Head Width (W) 11.10 mm	Eye Width (W1) 7.92 mm
Material: Plastic Head Diameter (D1): 19.05 mm Centre Height (l1): 34.93 mm Grease Nipple: No Max Angle of Pivot: 25 ° Max Torque Strength: 6.00 n.m Body Width/Flange Width(W2/D3): 12.70 / 17.45 mm
Part Number: REF-079-R-PP-A Female Rod Ends - 7.938x46.05 mm - 5/16-24 UNF Right - Plastic Rod End Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 28, 2025 Regular price $17.41 AUD Regular price ~~$20.89 AUD~~ Sale price $17.41 AUD Unit price per Excludes GST and overseas Taxes & Duties Each Quantity Required Backorder: Out of Stock.
Eye Size (d1) 7.938 mm (Equiv. 0.313 in.)	Overall Length (L) 46.05 mm (Equiv. 1.813 in.)	Thread Size 5/16-24 UNF Right	Thread Length (l2) 17.45 mm
Material: Plastic Head Width (W): 11.10 mm Eye Width (W1): 7.92 mm Head Diameter (D1): 19.05 mm Centre Height (l1): 34.93 mm Grease Nipple: No Max Angle of Pivot: 25 ° Max Torque Strength: 6.00 n.m Body Width/Flange Width(W2/D3): 12.70 / 17.45 mm
Part Number: REF-079-R-PP-A Female Rod Ends - 7.938x46.05 mm - 5/16-24 UNF Right - Plastic Rod End Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 28, 2025 Regular price $17.41 AUD Regular price ~~$20.89 AUD~~ Sale price $17.41 AUD Unit price per Excludes GST and overseas Taxes & Duties Each Quantity Required Backorder: Out of Stock.
REF-079-R-PP-A --- Female Rod Ends - 7.938x46.05 mm - 5/16-24 UNF Right - Plastic Rod End Sale REF-079-R-PP-A --- Female Rod Ends - 7.938x46.05 mm - 5/16-24 UNF Right - Plastic Rod End Regular price $17.41 AUD Regular price ~~$20.89 AUD~~ Sale price $17.41 AUD Unit price per Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Eye Size (d1) 8.000 mm _{+0.025 / +0.083} (Equiv. 0.315 in.)	Overall Length (L) 48.00 mm (Equiv. 1.89 in.)	Thread Size M8x1.25 Left	Thread Length (l2) 16.00 mm	Head Width (W) 8.00 mm	Eye Width (W1) 6.00 mm
Head Diameter (D1): 24.00 mm Centre Height (l1): 36.00 mm Grease Nipple: No Max Angle of Pivot: 24 ° Max Torque Strength: 7.00 n.m Body Width/Flange Width(W2/D3): 13.00 / 16.00 mm
Part Number: REF-080-L-PP-N (10 Pcs) Female Rod Ends - 8x48 mm - M8x1.25 Left Plastic Out of Stock \| Backorder Now \| Orders can be expected around Mon, Oct 20, 2025 Regular price $213.86 AUD Regular price ~~$364.33 AUD~~ Sale price $213.86 AUD Unit price per Excludes GST and overseas Taxes & Duties Per 10 Quantity Required Backorder: Out of Stock.
Eye Size (d1) 8.000 mm _{+0.025 / +0.083} (Equiv. 0.315 in.)	Overall Length (L) 48.00 mm (Equiv. 1.89 in.)	Thread Size M8x1.25 Left	Thread Length (l2) 16.00 mm
Head Width (W): 8.00 mm Eye Width (W1): 6.00 mm Head Diameter (D1): 24.00 mm Centre Height (l1): 36.00 mm Grease Nipple: No Max Angle of Pivot: 24 ° Max Torque Strength: 7.00 n.m Body Width/Flange Width(W2/D3): 13.00 / 16.00 mm
Part Number: REF-080-L-PP-N (10 Pcs) Female Rod Ends - 8x48 mm - M8x1.25 Left Plastic Out of Stock \| Backorder Now \| Orders can be expected around Mon, Oct 20, 2025 Regular price $213.86 AUD Regular price ~~$364.33 AUD~~ Sale price $213.86 AUD Unit price per Excludes GST and overseas Taxes & Duties Per 10 Quantity Required Backorder: Out of Stock.
REF-080-L-PP-N (10 Pcs) --- Female Rod Ends - 8x48 mm - M8x1.25 Left Plastic Sale REF-080-L-PP-N (10 Pcs) --- Female Rod Ends - 8x48 mm - M8x1.25 Left Plastic Regular price $213.86 AUD Regular price ~~$364.33 AUD~~ Sale price $213.86 AUD Unit price per Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Eye Size (d1) 8.000 mm (Equiv. 0.315 in.)	Overall Length (L) 48.00 mm (Equiv. 1.89 in.)	Thread Size M8x1.25 Right	Thread Length (l2) 16.00 mm	Head Width (W) 9.00 mm	Eye Width (W1) 12.00 mm
Material: Plastic Head Diameter (D1): 24.00 mm Centre Height (l1): 36.00 mm Grease Nipple: No Max Angle of Pivot: 25 ° Max Torque Strength: 12.10 n.m Body Width/Flange Width(W2/D3): 13.00 / 16.00 mm
Part Number: REF-080-R-PP Female Rod Ends - 8x48 mm - M8x1.25 Right - Plastic Rod End 2 Available Now \| Further orders can be expected around Sun, Sep 28, 2025 Regular price $8.05 AUD Regular price ~~$16.20 AUD~~ Sale price $8.05 AUD Unit price per Excludes GST and overseas Taxes & Duties Each Quantity Required 2 Available Now. Backorder if more than 2.
Eye Size (d1) 8.000 mm (Equiv. 0.315 in.)	Overall Length (L) 48.00 mm (Equiv. 1.89 in.)	Thread Size M8x1.25 Right	Thread Length (l2) 16.00 mm
Material: Plastic Head Width (W): 9.00 mm Eye Width (W1): 12.00 mm Head Diameter (D1): 24.00 mm Centre Height (l1): 36.00 mm Grease Nipple: No Max Angle of Pivot: 25 ° Max Torque Strength: 12.10 n.m Body Width/Flange Width(W2/D3): 13.00 / 16.00 mm
Part Number: REF-080-R-PP Female Rod Ends - 8x48 mm - M8x1.25 Right - Plastic Rod End 2 Available Now \| Further orders can be expected around Sun, Sep 28, 2025 Regular price $8.05 AUD Regular price ~~$16.20 AUD~~ Sale price $8.05 AUD Unit price per Excludes GST and overseas Taxes & Duties Each Quantity Required 2 Available Now. Backorder if more than 2.
REF-080-R-PP --- Female Rod Ends - 8x48 mm - M8x1.25 Right - Plastic Rod End Sale REF-080-R-PP --- Female Rod Ends - 8x48 mm - M8x1.25 Right - Plastic Rod End Regular price $8.05 AUD Regular price ~~$16.20 AUD~~ Sale price $8.05 AUD Unit price per Excludes GST and overseas Taxes & Duties 2 Available Now Sale
Eye Size (d1) 8.000 mm _{+0.025 / +0.083} (Equiv. 0.315 in.)	Overall Length (L) 48.00 mm (Equiv. 1.89 in.)	Thread Size M8x1.25 Right	Thread Length (l2) 16.00 mm	Head Width (W) 8.00 mm	Eye Width (W1) 6.00 mm
Head Diameter (D1): 24.00 mm Centre Height (l1): 36.00 mm Grease Nipple: No Max Angle of Pivot: 24 ° Max Torque Strength: 7.00 n.m Body Width/Flange Width(W2/D3): 13.00 / 16.00 mm
Part Number: REF-080-R-PP-N (10 Pcs) Female Rod Ends - 8x48 mm - M8x1.25 Right Plastic Out of Stock \| Backorder Now \| Orders can be expected around Mon, Oct 20, 2025 Regular price $213.86 AUD Regular price ~~$364.33 AUD~~ Sale price $213.86 AUD Unit price per Excludes GST and overseas Taxes & Duties Per 10 Quantity Required Backorder: Out of Stock.
Eye Size (d1) 8.000 mm _{+0.025 / +0.083} (Equiv. 0.315 in.)	Overall Length (L) 48.00 mm (Equiv. 1.89 in.)	Thread Size M8x1.25 Right	Thread Length (l2) 16.00 mm
Head Width (W): 8.00 mm Eye Width (W1): 6.00 mm Head Diameter (D1): 24.00 mm Centre Height (l1): 36.00 mm Grease Nipple: No Max Angle of Pivot: 24 ° Max Torque Strength: 7.00 n.m Body Width/Flange Width(W2/D3): 13.00 / 16.00 mm
Part Number: REF-080-R-PP-N (10 Pcs) Female Rod Ends - 8x48 mm - M8x1.25 Right Plastic Out of Stock \| Backorder Now \| Orders can be expected around Mon, Oct 20, 2025 Regular price $213.86 AUD Regular price ~~$364.33 AUD~~ Sale price $213.86 AUD Unit price per Excludes GST and overseas Taxes & Duties Per 10 Quantity Required Backorder: Out of Stock.
REF-080-R-PP-N (10 Pcs) --- Female Rod Ends - 8x48 mm - M8x1.25 Right Plastic Sale REF-080-R-PP-N (10 Pcs) --- Female Rod Ends - 8x48 mm - M8x1.25 Right Plastic Regular price $213.86 AUD Regular price ~~$364.33 AUD~~ Sale price $213.86 AUD Unit price per Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Eye Size (d1) 9.525 mm (Equiv. 0.375 in.)	Overall Length (L) 53.98 mm (Equiv. 2.125 in.)	Thread Size 3/8-24 UNF Left	Thread Length (l2) 20.62 mm	Head Width (W) 12.70 mm	Eye Width (W1) 9.12 mm
Material: Plastic Head Diameter (D1): 20.64 mm Centre Height (l1): 41.28 mm Grease Nipple: No Max Angle of Pivot: 22 ° Max Torque Strength: 7.00 n.m Body Width/Flange Width(W2/D3): 17.45 / 20.62 mm
Part Number: REF-095-L-PP-A Female Rod Ends - 9.525x53.98 mm - 3/8-24 UNF Left - Plastic Rod End Out of Stock \| Backorder Now \| Orders can be expected around Tue, Oct 14, 2025 Regular price $30.77 AUD Regular price ~~$50.89 AUD~~ Sale price $30.77 AUD Unit price per Excludes GST and overseas Taxes & Duties Each Quantity Required Backorder: Out of Stock.
Eye Size (d1) 9.525 mm (Equiv. 0.375 in.)	Overall Length (L) 53.98 mm (Equiv. 2.125 in.)	Thread Size 3/8-24 UNF Left	Thread Length (l2) 20.62 mm
Material: Plastic Head Width (W): 12.70 mm Eye Width (W1): 9.12 mm Head Diameter (D1): 20.64 mm Centre Height (l1): 41.28 mm Grease Nipple: No Max Angle of Pivot: 22 ° Max Torque Strength: 7.00 n.m Body Width/Flange Width(W2/D3): 17.45 / 20.62 mm
Part Number: REF-095-L-PP-A Female Rod Ends - 9.525x53.98 mm - 3/8-24 UNF Left - Plastic Rod End Out of Stock \| Backorder Now \| Orders can be expected around Tue, Oct 14, 2025 Regular price $30.77 AUD Regular price ~~$50.89 AUD~~ Sale price $30.77 AUD Unit price per Excludes GST and overseas Taxes & Duties Each Quantity Required Backorder: Out of Stock.
REF-095-L-PP-A --- Female Rod Ends - 9.525x53.98 mm - 3/8-24 UNF Left - Plastic Rod End Sale REF-095-L-PP-A --- Female Rod Ends - 9.525x53.98 mm - 3/8-24 UNF Left - Plastic Rod End Regular price $30.77 AUD Regular price ~~$50.89 AUD~~ Sale price $30.77 AUD Unit price per Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Eye Size (d1) 9.525 mm (Equiv. 0.375 in.)	Overall Length (L) 53.98 mm (Equiv. 2.125 in.)	Thread Size 3/8-24 UNF Right	Thread Length (l2) 20.62 mm	Head Width (W) 12.70 mm	Eye Width (W1) 9.12 mm
Material: Plastic Head Diameter (D1): 20.64 mm Centre Height (l1): 41.28 mm Grease Nipple: No Max Angle of Pivot: 22 ° Max Torque Strength: 7.00 n.m Body Width/Flange Width(W2/D3): 17.45 / 20.62 mm
Part Number: REF-095-R-PP-A Female Rod Ends - 9.525x53.98 mm - 3/8-24 UNF Right - Plastic Rod End Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 28, 2025 Regular price $22.77 AUD Regular price ~~$27.33 AUD~~ Sale price $22.77 AUD Unit price per Excludes GST and overseas Taxes & Duties Each Quantity Required Backorder: Out of Stock.
Eye Size (d1) 9.525 mm (Equiv. 0.375 in.)	Overall Length (L) 53.98 mm (Equiv. 2.125 in.)	Thread Size 3/8-24 UNF Right	Thread Length (l2) 20.62 mm
Material: Plastic Head Width (W): 12.70 mm Eye Width (W1): 9.12 mm Head Diameter (D1): 20.64 mm Centre Height (l1): 41.28 mm Grease Nipple: No Max Angle of Pivot: 22 ° Max Torque Strength: 7.00 n.m Body Width/Flange Width(W2/D3): 17.45 / 20.62 mm
Part Number: REF-095-R-PP-A Female Rod Ends - 9.525x53.98 mm - 3/8-24 UNF Right - Plastic Rod End Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 28, 2025 Regular price $22.77 AUD Regular price ~~$27.33 AUD~~ Sale price $22.77 AUD Unit price per Excludes GST and overseas Taxes & Duties Each Quantity Required Backorder: Out of Stock.
REF-095-R-PP-A --- Female Rod Ends - 9.525x53.98 mm - 3/8-24 UNF Right - Plastic Rod End Sale REF-095-R-PP-A --- Female Rod Ends - 9.525x53.98 mm - 3/8-24 UNF Right - Plastic Rod End Regular price $22.77 AUD Regular price ~~$27.33 AUD~~ Sale price $22.77 AUD Unit price per Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Eye Size (d1) 10.000 mm _{+0.025 / +0.083} (Equiv. 0.394 in.)	Overall Length (L) 57.50 mm (Equiv. 2.264 in.)	Thread Size M10x1.5 Left	Thread Length (l2) 18.00 mm	Head Width (W) 9.00 mm	Eye Width (W1) 7.00 mm
Head Diameter (D1): 29.00 mm Centre Height (l1): 43.00 mm Grease Nipple: No Max Angle of Pivot: 24 ° Max Torque Strength: 14.00 n.m Body Width/Flange Width(W2/D3): 15.00 / 19.00 mm
Part Number: REF-100-L-PP-N (10 Pcs) Female Rod Ends - 10x57.5 mm - M10x1.5 Left Plastic Out of Stock \| Backorder Now \| Orders can be expected around Mon, Oct 20, 2025 Regular price $230.14 AUD Regular price ~~$392.27 AUD~~ Sale price $230.14 AUD Unit price per Excludes GST and overseas Taxes & Duties Per 10 Quantity Required Backorder: Out of Stock.
Eye Size (d1) 10.000 mm _{+0.025 / +0.083} (Equiv. 0.394 in.)	Overall Length (L) 57.50 mm (Equiv. 2.264 in.)	Thread Size M10x1.5 Left	Thread Length (l2) 18.00 mm
Head Width (W): 9.00 mm Eye Width (W1): 7.00 mm Head Diameter (D1): 29.00 mm Centre Height (l1): 43.00 mm Grease Nipple: No Max Angle of Pivot: 24 ° Max Torque Strength: 14.00 n.m Body Width/Flange Width(W2/D3): 15.00 / 19.00 mm
Part Number: REF-100-L-PP-N (10 Pcs) Female Rod Ends - 10x57.5 mm - M10x1.5 Left Plastic Out of Stock \| Backorder Now \| Orders can be expected around Mon, Oct 20, 2025 Regular price $230.14 AUD Regular price ~~$392.27 AUD~~ Sale price $230.14 AUD Unit price per Excludes GST and overseas Taxes & Duties Per 10 Quantity Required Backorder: Out of Stock.
REF-100-L-PP-N (10 Pcs) --- Female Rod Ends - 10x57.5 mm - M10x1.5 Left Plastic Sale REF-100-L-PP-N (10 Pcs) --- Female Rod Ends - 10x57.5 mm - M10x1.5 Left Plastic Regular price $230.14 AUD Regular price ~~$392.27 AUD~~ Sale price $230.14 AUD Unit price per Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Eye Size (d1) 10.000 mm (Equiv. 0.394 in.)	Overall Length (L) 58.00 mm (Equiv. 2.283 in.)	Thread Size M10x1.25 Right	Thread Length (l2) 20.00 mm	Head Width (W) 14.00 mm	Eye Width (W1) 10.50 mm
Material: Plastic Head Diameter (D1): 30.00 mm Centre Height (l1): 43.00 mm Grease Nipple: No Max Angle of Pivot: 25 ° Max Torque Strength: 20.00 n.m Body Width/Flange Width(W2/D3): 15.00 / 19.00 mm
Part Number: REF-100-R-PP-F Female Rod Ends - 10x58 mm - M10x1.25 Right - Plastic Rod End Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 28, 2025 Regular price $14.05 AUD Regular price ~~$16.85 AUD~~ Sale price $14.05 AUD Unit price per Excludes GST and overseas Taxes & Duties Each Quantity Required Backorder: Out of Stock.
Eye Size (d1) 10.000 mm (Equiv. 0.394 in.)	Overall Length (L) 58.00 mm (Equiv. 2.283 in.)	Thread Size M10x1.25 Right	Thread Length (l2) 20.00 mm
Material: Plastic Head Width (W): 14.00 mm Eye Width (W1): 10.50 mm Head Diameter (D1): 30.00 mm Centre Height (l1): 43.00 mm Grease Nipple: No Max Angle of Pivot: 25 ° Max Torque Strength: 20.00 n.m Body Width/Flange Width(W2/D3): 15.00 / 19.00 mm
Part Number: REF-100-R-PP-F Female Rod Ends - 10x58 mm - M10x1.25 Right - Plastic Rod End Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 28, 2025 Regular price $14.05 AUD Regular price ~~$16.85 AUD~~ Sale price $14.05 AUD Unit price per Excludes GST and overseas Taxes & Duties Each Quantity Required Backorder: Out of Stock.
REF-100-R-PP-F --- Female Rod Ends - 10x58 mm - M10x1.25 Right - Plastic Rod End Sale REF-100-R-PP-F --- Female Rod Ends - 10x58 mm - M10x1.25 Right - Plastic Rod End Regular price $14.05 AUD Regular price ~~$16.85 AUD~~ Sale price $14.05 AUD Unit price per Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Eye Size (d1) 10.000 mm _{+0.025 / +0.083} (Equiv. 0.394 in.)	Overall Length (L) 57.50 mm (Equiv. 2.264 in.)	Thread Size M10x1.5 Right	Thread Length (l2) 18.00 mm	Head Width (W) 9.00 mm	Eye Width (W1) 7.00 mm
Head Diameter (D1): 29.00 mm Centre Height (l1): 43.00 mm Grease Nipple: No Max Angle of Pivot: 24 ° Max Torque Strength: 14.00 n.m Body Width/Flange Width(W2/D3): 15.00 / 19.00 mm
Part Number: REF-100-R-PP-N (10 Pcs) Female Rod Ends - 10x57.5 mm - M10x1.5 Right Plastic Out of Stock \| Backorder Now \| Orders can be expected around Mon, Oct 20, 2025 Regular price $230.14 AUD Regular price ~~$392.27 AUD~~ Sale price $230.14 AUD Unit price per Excludes GST and overseas Taxes & Duties Per 10 Quantity Required Backorder: Out of Stock.
Eye Size (d1) 10.000 mm _{+0.025 / +0.083} (Equiv. 0.394 in.)	Overall Length (L) 57.50 mm (Equiv. 2.264 in.)	Thread Size M10x1.5 Right	Thread Length (l2) 18.00 mm
Head Width (W): 9.00 mm Eye Width (W1): 7.00 mm Head Diameter (D1): 29.00 mm Centre Height (l1): 43.00 mm Grease Nipple: No Max Angle of Pivot: 24 ° Max Torque Strength: 14.00 n.m Body Width/Flange Width(W2/D3): 15.00 / 19.00 mm
Part Number: REF-100-R-PP-N (10 Pcs) Female Rod Ends - 10x57.5 mm - M10x1.5 Right Plastic Out of Stock \| Backorder Now \| Orders can be expected around Mon, Oct 20, 2025 Regular price $230.14 AUD Regular price ~~$392.27 AUD~~ Sale price $230.14 AUD Unit price per Excludes GST and overseas Taxes & Duties Per 10 Quantity Required Backorder: Out of Stock.
REF-100-R-PP-N (10 Pcs) --- Female Rod Ends - 10x57.5 mm - M10x1.5 Right Plastic Sale REF-100-R-PP-N (10 Pcs) --- Female Rod Ends - 10x57.5 mm - M10x1.5 Right Plastic Regular price $230.14 AUD Regular price ~~$392.27 AUD~~ Sale price $230.14 AUD Unit price per Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale

Country/region

Collection: Rod Ends - Female - Plastic

Category Details

Filter

Filter

Subscribe to our emails
