Collection: Retaining Rings - Tolerance

Retaining Rings (With Images)

Tolerance

35 Products in this selection

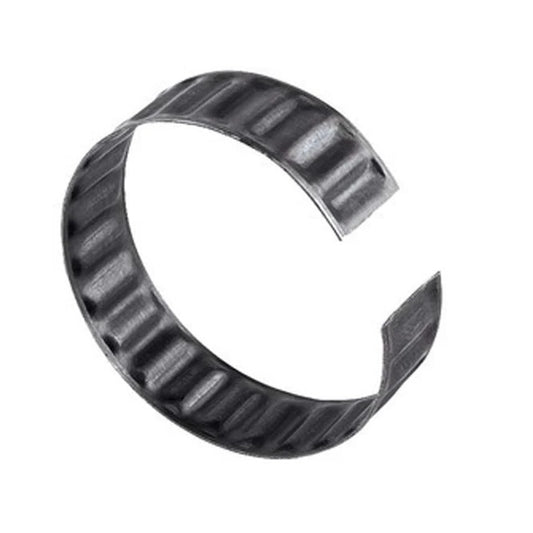

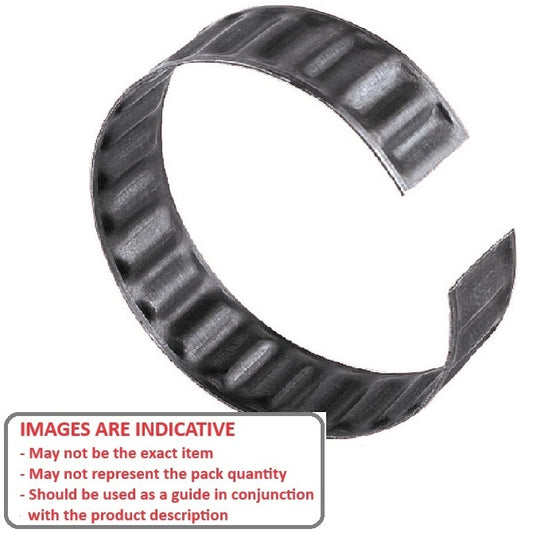

Tolerance rings allow looser tolerances for assembly of parts such as bearings, pulleys and gears.
Allows looser tolerances of components.
Ideal for mounting ball bearings.
Useful for salvaging worn parts.
Permits low cost assembly by eliminating the need for conventional fasteners.
Use Torque Transfer figures for gears and pulleys. Non torque transfer figures are for bearing applications.

Additional resources:

A more concise listing may be found on the Smallparts store at Retaining Rings - Tolerance. Smallparts promote the most popular MBA products.

Inner Part OD (d)	Housing ID (D)	Ring Width (B)	Inner Part OD (dT) mm	Outer Part ID (DT) mm	Max. Design Torque	Indicative Image
Inner Part OD (d) 4.775 to 4.750 mm _{(0.188 in.)}	Housing ID (D) 5.740 to 5.690 mm _{(0.226 in.)}	Ring Width (B) 12.70 mm _{(0.5 in.)}		Outer Part ID (DT) mm 5.613 to 5.563 For Torque Transfer	Max. Design Torque 0.79 N.m
Material: Spring Steel High Carbon Style: For bearing OD Max. Radial Load: 222 N Max. Design Thrust: 334 N To Suit OD of Bearing: R1, R133
Part Number: TR-048-057-127-C Tolerance Retaining Rings - 4.775 to 4.750 5.740 to 5.690 12.7 mm - Spring Steel High Carbon 24 Available Immediately \| Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price $3.80 AUD Regular price ~~$7.22 AUD~~ Sale price $3.80 AUD Unit price per Each
Inner Part OD (d)	Housing ID (D)	Ring Width (B)	Inner Part OD (dT) mm	Indicative Image
Inner Part OD (d) 4.775 to 4.750 mm _{(0.188 in.)}	Housing ID (D) 5.740 to 5.690 mm _{(0.226 in.)}	Ring Width (B) 12.70 mm _{(0.5 in.)}
Material: Spring Steel High Carbon Outer Part ID (DT) mm: 5.613 to 5.563 For Torque Transfer Max. Design Torque: 0.79 N.m Style: For bearing OD Max. Radial Load: 222 N Max. Design Thrust: 334 N To Suit OD of Bearing: R1, R133
Part Number: TR-048-057-127-C Tolerance Retaining Rings - 4.775 to 4.750 5.740 to 5.690 12.7 mm - Spring Steel High Carbon 24 Available Immediately \| Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price $3.80 AUD Regular price ~~$7.22 AUD~~ Sale price $3.80 AUD Unit price per Each
TR-048-057-127-C --- Tolerance Retaining Rings - 4.775 to 4.750 5.740 to 5.690 12.7 mm - Spring Steel High Carbon Sale TR-048-057-127-C --- Tolerance Retaining Rings - 4.775 to 4.750 5.740 to 5.690 12.7 mm - Spring Steel High Carbon Regular price $3.80 AUD Regular price ~~$7.22 AUD~~ Sale price $3.80 AUD Unit price per 24 Available Now Sale
Inner Part OD (d) 9.50 to 9.48 mm _{(0.374 in.)}	Housing ID (D) 10.97 to 10.90 mm _{(0.432 in.)}	Ring Width (B) 4.00 mm _{(0.157 in.)}		Outer Part ID (DT) mm 10.82 to 10.77 For Torque Transfer	Max. Design Torque 0.90 N.m
Material: Stainless Steel 301 (Similar to A2, 302, 304, 18-8) Style: For bearing OD Max. Radial Load: 180 N Max. Design Thrust: 200 N To Suit OD of Bearing: R2
Part Number: TR-095-110-040-S3 Tolerance Retaining Rings - 9.50 to 9.48 10.97 to 10.90 4 mm - Stainless Steel 301 Similar to A2, 302, 304, 18-8 2 Available Immediately \| Further orders can be expected around Wed, Jun 18, 2025 Regular price $93.95 AUD Regular price Sale price $93.95 AUD Unit price per Each
Inner Part OD (d) 9.50 to 9.48 mm _{(0.374 in.)}	Housing ID (D) 10.97 to 10.90 mm _{(0.432 in.)}	Ring Width (B) 4.00 mm _{(0.157 in.)}
Material: Stainless Steel 301 (Similar to A2, 302, 304, 18-8) Outer Part ID (DT) mm: 10.82 to 10.77 For Torque Transfer Max. Design Torque: 0.90 N.m Style: For bearing OD Max. Radial Load: 180 N Max. Design Thrust: 200 N To Suit OD of Bearing: R2
Part Number: TR-095-110-040-S3 Tolerance Retaining Rings - 9.50 to 9.48 10.97 to 10.90 4 mm - Stainless Steel 301 Similar to A2, 302, 304, 18-8 2 Available Immediately \| Further orders can be expected around Wed, Jun 18, 2025 Regular price $93.95 AUD Regular price Sale price $93.95 AUD Unit price per Each View the product page first if you are unsure.
TR-095-110-040-S3 --- Tolerance Retaining Rings - 9.50 to 9.48 10.97 to 10.90 4 mm - Stainless Steel 301 Similar to A2, 302, 304, 18-8 TR-095-110-040-S3 --- Tolerance Retaining Rings - 9.50 to 9.48 10.97 to 10.90 4 mm - Stainless Steel 301 Similar to A2, 302, 304, 18-8 Regular price $93.95 AUD Regular price Sale price $93.95 AUD Unit price per 2 Available Now
Inner Part OD (d) 12.700 to 12.695 mm _{(0.5 in.)}	Housing ID (D) 14.10 to 14.17 mm _{(0.555 in.)}	Ring Width (B) 5.00 mm _{(0.197 in.)}
Material: Stainless Steel 301 (Similar to A2, 302, 304, 18-8) Style: For bearing OD Max. Radial Load: 25 N To Suit OD of Bearing: 12.7mm (R3, R3C)
Part Number: TR-127-141-050-S3 Tolerance Retaining Rings - 12.700 to 12.695 14.10 to 14.17 5 mm - Stainless Steel 301 Similar to A2, 302, 304, 18-8 2 Available Immediately \| Further orders can be expected around Wed, Jun 18, 2025 Regular price $50.14 AUD Regular price ~~$92.96 AUD~~ Sale price $50.14 AUD Unit price per Each
Inner Part OD (d) 12.700 to 12.695 mm _{(0.5 in.)}	Housing ID (D) 14.10 to 14.17 mm _{(0.555 in.)}	Ring Width (B) 5.00 mm _{(0.197 in.)}
Material: Stainless Steel 301 (Similar to A2, 302, 304, 18-8) Style: For bearing OD Max. Radial Load: 25 N To Suit OD of Bearing: 12.7mm (R3, R3C)
Part Number: TR-127-141-050-S3 Tolerance Retaining Rings - 12.700 to 12.695 14.10 to 14.17 5 mm - Stainless Steel 301 Similar to A2, 302, 304, 18-8 2 Available Immediately \| Further orders can be expected around Wed, Jun 18, 2025 Regular price $50.14 AUD Regular price ~~$92.96 AUD~~ Sale price $50.14 AUD Unit price per Each View the product page first if you are unsure.
TR-127-141-050-S3 --- Tolerance Retaining Rings - 12.700 to 12.695 14.10 to 14.17 5 mm - Stainless Steel 301 Similar to A2, 302, 304, 18-8 Sale TR-127-141-050-S3 --- Tolerance Retaining Rings - 12.700 to 12.695 14.10 to 14.17 5 mm - Stainless Steel 301 Similar to A2, 302, 304, 18-8 Regular price $50.14 AUD Regular price ~~$92.96 AUD~~ Sale price $50.14 AUD Unit price per 2 Available Now Sale
Inner Part OD (d) 22.000 to 21.995 mm _{(0.866 in.)}	Housing ID (D) 23.90 to 23.97 mm _{(0.941 in.)}	Ring Width (B) 7.00 mm _{(0.276 in.)}
Material: Stainless Steel 301 (Similar to A2, 302, 304, 18-8) Style: For bearing OD Max. Radial Load: 60 N To Suit OD of Bearing: 22mm (608, 627)
Part Number: TR-220-239-070-S3 Tolerance Retaining Rings - 22.000 to 21.995 23.90 to 23.97 7 mm - Stainless Steel 301 Similar to A2, 302, 304, 18-8 2 Available Immediately \| Further orders can be expected around Wed, Jun 18, 2025 Regular price $56.86 AUD Regular price ~~$105.82 AUD~~ Sale price $56.86 AUD Unit price per Each
Inner Part OD (d) 22.000 to 21.995 mm _{(0.866 in.)}	Housing ID (D) 23.90 to 23.97 mm _{(0.941 in.)}	Ring Width (B) 7.00 mm _{(0.276 in.)}
Material: Stainless Steel 301 (Similar to A2, 302, 304, 18-8) Style: For bearing OD Max. Radial Load: 60 N To Suit OD of Bearing: 22mm (608, 627)
Part Number: TR-220-239-070-S3 Tolerance Retaining Rings - 22.000 to 21.995 23.90 to 23.97 7 mm - Stainless Steel 301 Similar to A2, 302, 304, 18-8 2 Available Immediately \| Further orders can be expected around Wed, Jun 18, 2025 Regular price $56.86 AUD Regular price ~~$105.82 AUD~~ Sale price $56.86 AUD Unit price per Each View the product page first if you are unsure.
TR-220-239-070-S3 --- Tolerance Retaining Rings - 22.000 to 21.995 23.90 to 23.97 7 mm - Stainless Steel 301 Similar to A2, 302, 304, 18-8 Sale TR-220-239-070-S3 --- Tolerance Retaining Rings - 22.000 to 21.995 23.90 to 23.97 7 mm - Stainless Steel 301 Similar to A2, 302, 304, 18-8 Regular price $56.86 AUD Regular price ~~$105.82 AUD~~ Sale price $56.86 AUD Unit price per 2 Available Now Sale
Inner Part OD (d) 22.225 to 22.174 mm _{(0.875 in.)}	Housing ID (D) 24.206 to 24.130 mm _{(0.953 in.)}	Ring Width (B) 6.35 mm _{(0.25 in.)}		Outer Part ID (DT) mm 23.978 to 23.901 For Torque Transfer	Max. Design Torque 11.30 N.m
Material: Stainless Steel 301 (Similar to A2, 302, 304, 18-8) Style: For bearing OD Max. Radial Load: 2580 N Max. Design Thrust: 1023 N To Suit OD of Bearing: R6
Part Number: TR-222-242-064-S3 Tolerance Retaining Rings - 22.225 to 22.174 24.206 to 24.130 6.35 mm - Stainless Steel 301 Similar to A2, 302, 304, 18-8 2 Available Immediately \| Further orders can be expected around Wed, Jun 18, 2025 Regular price $106.86 AUD Regular price Sale price $106.86 AUD Unit price per Each
Inner Part OD (d) 22.225 to 22.174 mm _{(0.875 in.)}	Housing ID (D) 24.206 to 24.130 mm _{(0.953 in.)}	Ring Width (B) 6.35 mm _{(0.25 in.)}
Material: Stainless Steel 301 (Similar to A2, 302, 304, 18-8) Outer Part ID (DT) mm: 23.978 to 23.901 For Torque Transfer Max. Design Torque: 11.30 N.m Style: For bearing OD Max. Radial Load: 2580 N Max. Design Thrust: 1023 N To Suit OD of Bearing: R6
Part Number: TR-222-242-064-S3 Tolerance Retaining Rings - 22.225 to 22.174 24.206 to 24.130 6.35 mm - Stainless Steel 301 Similar to A2, 302, 304, 18-8 2 Available Immediately \| Further orders can be expected around Wed, Jun 18, 2025 Regular price $106.86 AUD Regular price Sale price $106.86 AUD Unit price per Each View the product page first if you are unsure.
TR-222-242-064-S3 --- Tolerance Retaining Rings - 22.225 to 22.174 24.206 to 24.130 6.35 mm - Stainless Steel 301 Similar to A2, 302, 304, 18-8 TR-222-242-064-S3 --- Tolerance Retaining Rings - 22.225 to 22.174 24.206 to 24.130 6.35 mm - Stainless Steel 301 Similar to A2, 302, 304, 18-8 Regular price $106.86 AUD Regular price Sale price $106.86 AUD Unit price per 2 Available Now
Inner Part OD (d) 26.000 to 25.995 mm _{(1.024 in.)}	Housing ID (D) 27.88 to 27.96 mm _{(1.098 in.)}	Ring Width (B) 8.00 mm _{(0.315 in.)}
Material: Stainless Steel 301 (Similar to A2, 302, 304, 18-8) Style: For bearing OD Max. Radial Load: 85 N To Suit OD of Bearing: 26mm (6000)
Part Number: TR-260-279-080-S3 Tolerance Retaining Rings - 26.000 to 25.995 27.88 to 27.96 8 mm - Stainless Steel 301 Similar to A2, 302, 304, 18-8 Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 18, 2025 Regular price $106.86 AUD Regular price Sale price $106.86 AUD Unit price per Each
Inner Part OD (d) 26.000 to 25.995 mm _{(1.024 in.)}	Housing ID (D) 27.88 to 27.96 mm _{(1.098 in.)}	Ring Width (B) 8.00 mm _{(0.315 in.)}
Material: Stainless Steel 301 (Similar to A2, 302, 304, 18-8) Style: For bearing OD Max. Radial Load: 85 N To Suit OD of Bearing: 26mm (6000)
Part Number: TR-260-279-080-S3 Tolerance Retaining Rings - 26.000 to 25.995 27.88 to 27.96 8 mm - Stainless Steel 301 Similar to A2, 302, 304, 18-8 Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 18, 2025 Regular price $106.86 AUD Regular price Sale price $106.86 AUD Unit price per Each View the product page first if you are unsure.
TR-260-279-080-S3 --- Tolerance Retaining Rings - 26.000 to 25.995 27.88 to 27.96 8 mm - Stainless Steel 301 Similar to A2, 302, 304, 18-8 TR-260-279-080-S3 --- Tolerance Retaining Rings - 26.000 to 25.995 27.88 to 27.96 8 mm - Stainless Steel 301 Similar to A2, 302, 304, 18-8 Regular price $106.86 AUD Regular price Sale price $106.86 AUD Unit price per Out of stock! Backorder Now
Inner Part OD (d) 28.575 to 28.524 mm _{(1.125 in.)}	Housing ID (D) 30.556 to 30.455 mm _{(1.203 in.)}	Ring Width (B) 6.35 mm _{(0.25 in.)}		Outer Part ID (DT) mm 30.277 to 30.175 For Torque Transfer	Max. Design Torque 19.21 N.m
Material: Stainless Steel 301 (Similar to A2, 302, 304, 18-8) Style: For bearing OD Max. Radial Load: 3203 N Max. Design Thrust: 1334 N To Suit OD of Bearing: R8
Part Number: TR-286-306-064-S3 Tolerance Retaining Rings - 28.575 to 28.524 30.556 to 30.455 6.35 mm - Stainless Steel 301 Similar to A2, 302, 304, 18-8 2 Available Immediately \| Further orders can be expected around Wed, Jun 18, 2025 Regular price $136.59 AUD Regular price Sale price $136.59 AUD Unit price per Each
Inner Part OD (d) 28.575 to 28.524 mm _{(1.125 in.)}	Housing ID (D) 30.556 to 30.455 mm _{(1.203 in.)}	Ring Width (B) 6.35 mm _{(0.25 in.)}
Material: Stainless Steel 301 (Similar to A2, 302, 304, 18-8) Outer Part ID (DT) mm: 30.277 to 30.175 For Torque Transfer Max. Design Torque: 19.21 N.m Style: For bearing OD Max. Radial Load: 3203 N Max. Design Thrust: 1334 N To Suit OD of Bearing: R8
Part Number: TR-286-306-064-S3 Tolerance Retaining Rings - 28.575 to 28.524 30.556 to 30.455 6.35 mm - Stainless Steel 301 Similar to A2, 302, 304, 18-8 2 Available Immediately \| Further orders can be expected around Wed, Jun 18, 2025 Regular price $136.59 AUD Regular price Sale price $136.59 AUD Unit price per Each View the product page first if you are unsure.
TR-286-306-064-S3 --- Tolerance Retaining Rings - 28.575 to 28.524 30.556 to 30.455 6.35 mm - Stainless Steel 301 Similar to A2, 302, 304, 18-8 TR-286-306-064-S3 --- Tolerance Retaining Rings - 28.575 to 28.524 30.556 to 30.455 6.35 mm - Stainless Steel 301 Similar to A2, 302, 304, 18-8 Regular price $136.59 AUD Regular price Sale price $136.59 AUD Unit price per 2 Available Now
Inner Part OD (d) 30.00 to 29.95 mm _{(1.181 in.)}	Housing ID (D) 31.98 to 31.9 mm _{(1.259 in.)}	Ring Width (B) 9.00 mm _{(0.354 in.)}		Outer Part ID (DT) mm 31.75 to 31.67 For Torque Transfer	Max. Design Torque 31.07 N.m
Material: Stainless Steel 301 (Similar to A2, 302, 304, 18-8) Style: For bearing OD Max. Radial Load: 4360 N Max. Design Thrust: 2070 N
Part Number: TR-300-320-090-S3 Tolerance Retaining Rings - 30.00 to 29.95 31.98 to 31.9 9 mm - Stainless Steel 301 Similar to A2, 302, 304, 18-8 Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 18, 2025 Regular price $106.86 AUD Regular price Sale price $106.86 AUD Unit price per Each
Inner Part OD (d) 30.00 to 29.95 mm _{(1.181 in.)}	Housing ID (D) 31.98 to 31.9 mm _{(1.259 in.)}	Ring Width (B) 9.00 mm _{(0.354 in.)}
Material: Stainless Steel 301 (Similar to A2, 302, 304, 18-8) Outer Part ID (DT) mm: 31.75 to 31.67 For Torque Transfer Max. Design Torque: 31.07 N.m Style: For bearing OD Max. Radial Load: 4360 N Max. Design Thrust: 2070 N
Part Number: TR-300-320-090-S3 Tolerance Retaining Rings - 30.00 to 29.95 31.98 to 31.9 9 mm - Stainless Steel 301 Similar to A2, 302, 304, 18-8 Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 18, 2025 Regular price $106.86 AUD Regular price Sale price $106.86 AUD Unit price per Each View the product page first if you are unsure.
TR-300-320-090-S3 --- Tolerance Retaining Rings - 30.00 to 29.95 31.98 to 31.9 9 mm - Stainless Steel 301 Similar to A2, 302, 304, 18-8 TR-300-320-090-S3 --- Tolerance Retaining Rings - 30.00 to 29.95 31.98 to 31.9 9 mm - Stainless Steel 301 Similar to A2, 302, 304, 18-8 Regular price $106.86 AUD Regular price Sale price $106.86 AUD Unit price per Out of stock! Backorder Now
Inner Part OD (d) 32.000 to 31.989 mm _{(1.26 in.)}	Housing ID (D) 33.88 to 33.98 mm _{(1.334 in.)}	Ring Width (B) 10.00 mm _{(0.394 in.)}
Material: Stainless Steel 301 (Similar to A2, 302, 304, 18-8) Style: For bearing OD Max. Radial Load: 135 N To Suit OD of Bearing: 32mm (6002, 6201)
Part Number: TR-320-339-100-S3 Tolerance Retaining Rings - 32.000 to 31.989 33.88 to 33.98 10 mm - Stainless Steel 301 Similar to A2, 302, 304, 18-8 Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 18, 2025 Regular price $136.59 AUD Regular price Sale price $136.59 AUD Unit price per Each
Inner Part OD (d) 32.000 to 31.989 mm _{(1.26 in.)}	Housing ID (D) 33.88 to 33.98 mm _{(1.334 in.)}	Ring Width (B) 10.00 mm _{(0.394 in.)}
Material: Stainless Steel 301 (Similar to A2, 302, 304, 18-8) Style: For bearing OD Max. Radial Load: 135 N To Suit OD of Bearing: 32mm (6002, 6201)
Part Number: TR-320-339-100-S3 Tolerance Retaining Rings - 32.000 to 31.989 33.88 to 33.98 10 mm - Stainless Steel 301 Similar to A2, 302, 304, 18-8 Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 18, 2025 Regular price $136.59 AUD Regular price Sale price $136.59 AUD Unit price per Each View the product page first if you are unsure.
TR-320-339-100-S3 --- Tolerance Retaining Rings - 32.000 to 31.989 33.88 to 33.98 10 mm - Stainless Steel 301 Similar to A2, 302, 304, 18-8 TR-320-339-100-S3 --- Tolerance Retaining Rings - 32.000 to 31.989 33.88 to 33.98 10 mm - Stainless Steel 301 Similar to A2, 302, 304, 18-8 Regular price $136.59 AUD Regular price Sale price $136.59 AUD Unit price per Out of stock! Backorder Now
Inner Part OD (d) 35.000 to 34.989 mm _{(1.378 in.)}	Housing ID (D) 36.88 to 36.98 mm _{(1.452 in.)}	Ring Width (B) 11.00 mm _{(0.433 in.)}
Material: Stainless Steel 301 (Similar to A2, 302, 304, 18-8) Style: For bearing OD Max. Radial Load: 160 N To Suit OD of Bearing: 35mm (6003, 6202, 6300)
Part Number: TR-350-369-110-S3 Tolerance Retaining Rings - 35.000 to 34.989 36.88 to 36.98 11 mm - Stainless Steel 301 Similar to A2, 302, 304, 18-8 Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 18, 2025 Regular price $106.86 AUD Regular price Sale price $106.86 AUD Unit price per Each
Inner Part OD (d) 35.000 to 34.989 mm _{(1.378 in.)}	Housing ID (D) 36.88 to 36.98 mm _{(1.452 in.)}	Ring Width (B) 11.00 mm _{(0.433 in.)}
Material: Stainless Steel 301 (Similar to A2, 302, 304, 18-8) Style: For bearing OD Max. Radial Load: 160 N To Suit OD of Bearing: 35mm (6003, 6202, 6300)
Part Number: TR-350-369-110-S3 Tolerance Retaining Rings - 35.000 to 34.989 36.88 to 36.98 11 mm - Stainless Steel 301 Similar to A2, 302, 304, 18-8 Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 18, 2025 Regular price $106.86 AUD Regular price Sale price $106.86 AUD Unit price per Each View the product page first if you are unsure.
TR-350-369-110-S3 --- Tolerance Retaining Rings - 35.000 to 34.989 36.88 to 36.98 11 mm - Stainless Steel 301 Similar to A2, 302, 304, 18-8 TR-350-369-110-S3 --- Tolerance Retaining Rings - 35.000 to 34.989 36.88 to 36.98 11 mm - Stainless Steel 301 Similar to A2, 302, 304, 18-8 Regular price $106.86 AUD Regular price Sale price $106.86 AUD Unit price per Out of stock! Backorder Now
Inner Part OD (d) 37.00 mm _{(1.457 in.)}	Housing ID (D) 38.88 to 38.98 mm _{(1.531 in.)}	Ring Width (B) 12.00 mm _{(0.472 in.)}
Material: Stainless Steel 301 (Similar to A2, 302, 304, 18-8) Style: For bearing OD Max. Radial Load: 102 N To Suit OD of Bearing: 6301
Part Number: TR-370-390-120-S3 Tolerance Retaining Rings - 37 38.88 to 38.98 12 mm - Stainless Steel 301 Similar to A2, 302, 304, 18-8 Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 18, 2025 Regular price $136.50 AUD Regular price Sale price $136.50 AUD Unit price per Each
Inner Part OD (d) 37.00 mm _{(1.457 in.)}	Housing ID (D) 38.88 to 38.98 mm _{(1.531 in.)}	Ring Width (B) 12.00 mm _{(0.472 in.)}
Material: Stainless Steel 301 (Similar to A2, 302, 304, 18-8) Style: For bearing OD Max. Radial Load: 102 N To Suit OD of Bearing: 6301
Part Number: TR-370-390-120-S3 Tolerance Retaining Rings - 37 38.88 to 38.98 12 mm - Stainless Steel 301 Similar to A2, 302, 304, 18-8 Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 18, 2025 Regular price $136.50 AUD Regular price Sale price $136.50 AUD Unit price per Each View the product page first if you are unsure.
TR-370-390-120-S3 --- Tolerance Retaining Rings - 37 38.88 to 38.98 12 mm - Stainless Steel 301 Similar to A2, 302, 304, 18-8 TR-370-390-120-S3 --- Tolerance Retaining Rings - 37 38.88 to 38.98 12 mm - Stainless Steel 301 Similar to A2, 302, 304, 18-8 Regular price $136.50 AUD Regular price Sale price $136.50 AUD Unit price per Out of stock! Backorder Now
Inner Part OD (d) 40.000 to 39.989 mm _{(1.575 in.)}	Housing ID (D) 41.88 to 41.98 mm _{(1.649 in.)}	Ring Width (B) 12.00 mm _{(0.472 in.)}
Material: Stainless Steel 301 (Similar to A2, 302, 304, 18-8) Style: For bearing OD Max. Radial Load: 200 N To Suit OD of Bearing: 40mm (6203, 6302)
Part Number: TR-400-419-120-S3 Tolerance Retaining Rings - 40.000 to 39.989 41.88 to 41.98 12 mm - Stainless Steel 301 Similar to A2, 302, 304, 18-8 Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 18, 2025 Regular price $106.86 AUD Regular price Sale price $106.86 AUD Unit price per Each
Inner Part OD (d) 40.000 to 39.989 mm _{(1.575 in.)}	Housing ID (D) 41.88 to 41.98 mm _{(1.649 in.)}	Ring Width (B) 12.00 mm _{(0.472 in.)}
Material: Stainless Steel 301 (Similar to A2, 302, 304, 18-8) Style: For bearing OD Max. Radial Load: 200 N To Suit OD of Bearing: 40mm (6203, 6302)
Part Number: TR-400-419-120-S3 Tolerance Retaining Rings - 40.000 to 39.989 41.88 to 41.98 12 mm - Stainless Steel 301 Similar to A2, 302, 304, 18-8 Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 18, 2025 Regular price $106.86 AUD Regular price Sale price $106.86 AUD Unit price per Each View the product page first if you are unsure.
TR-400-419-120-S3 --- Tolerance Retaining Rings - 40.000 to 39.989 41.88 to 41.98 12 mm - Stainless Steel 301 Similar to A2, 302, 304, 18-8 TR-400-419-120-S3 --- Tolerance Retaining Rings - 40.000 to 39.989 41.88 to 41.98 12 mm - Stainless Steel 301 Similar to A2, 302, 304, 18-8 Regular price $106.86 AUD Regular price Sale price $106.86 AUD Unit price per Out of stock! Backorder Now
Inner Part OD (d) 42.00 to 41.95 mm _{(1.654 in.)}	Housing ID (D) 43.97 to 43.87 mm _{(1.731 in.)}	Ring Width (B) 13.00 mm _{(0.512 in.)}		Outer Part ID (DT) mm 43.69 to 43.59 For Torque Transfer	Max. Design Torque 79.66 N.m
Material: Stainless Steel 301 (Similar to A2, 302, 304, 18-8) Style: For bearing OD Max. Radial Load: 5440 N Max. Design Thrust: 3795 N
Part Number: TR-420-440-130-S3 Tolerance Retaining Rings - 42.00 to 41.95 43.97 to 43.87 13 mm - Stainless Steel 301 Similar to A2, 302, 304, 18-8 Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 18, 2025 Regular price $136.59 AUD Regular price Sale price $136.59 AUD Unit price per Each
Inner Part OD (d) 42.00 to 41.95 mm _{(1.654 in.)}	Housing ID (D) 43.97 to 43.87 mm _{(1.731 in.)}	Ring Width (B) 13.00 mm _{(0.512 in.)}
Material: Stainless Steel 301 (Similar to A2, 302, 304, 18-8) Outer Part ID (DT) mm: 43.69 to 43.59 For Torque Transfer Max. Design Torque: 79.66 N.m Style: For bearing OD Max. Radial Load: 5440 N Max. Design Thrust: 3795 N
Part Number: TR-420-440-130-S3 Tolerance Retaining Rings - 42.00 to 41.95 43.97 to 43.87 13 mm - Stainless Steel 301 Similar to A2, 302, 304, 18-8 Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 18, 2025 Regular price $136.59 AUD Regular price Sale price $136.59 AUD Unit price per Each View the product page first if you are unsure.
TR-420-440-130-S3 --- Tolerance Retaining Rings - 42.00 to 41.95 43.97 to 43.87 13 mm - Stainless Steel 301 Similar to A2, 302, 304, 18-8 TR-420-440-130-S3 --- Tolerance Retaining Rings - 42.00 to 41.95 43.97 to 43.87 13 mm - Stainless Steel 301 Similar to A2, 302, 304, 18-8 Regular price $136.59 AUD Regular price Sale price $136.59 AUD Unit price per Out of stock! Backorder Now
Inner Part OD (d) 47.000 to 46.989 mm _{(1.85 in.)}	Housing ID (D) 48.86 to 48.97 mm _{(1.924 in.)}	Ring Width (B) 14.00 mm _{(0.551 in.)}
Material: Stainless Steel 301 (Similar to A2, 302, 304, 18-8) Style: For bearing OD Max. Radial Load: 290 N To Suit OD of Bearing: 47mm (6005, 6204, 6303)
Part Number: TR-470-489-140-S3 Tolerance Retaining Rings - 47.000 to 46.989 48.86 to 48.97 14 mm - Stainless Steel 301 Similar to A2, 302, 304, 18-8 Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 18, 2025 Regular price $106.86 AUD Regular price Sale price $106.86 AUD Unit price per Each
Inner Part OD (d) 47.000 to 46.989 mm _{(1.85 in.)}	Housing ID (D) 48.86 to 48.97 mm _{(1.924 in.)}	Ring Width (B) 14.00 mm _{(0.551 in.)}
Material: Stainless Steel 301 (Similar to A2, 302, 304, 18-8) Style: For bearing OD Max. Radial Load: 290 N To Suit OD of Bearing: 47mm (6005, 6204, 6303)
Part Number: TR-470-489-140-S3 Tolerance Retaining Rings - 47.000 to 46.989 48.86 to 48.97 14 mm - Stainless Steel 301 Similar to A2, 302, 304, 18-8 Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 18, 2025 Regular price $106.86 AUD Regular price Sale price $106.86 AUD Unit price per Each View the product page first if you are unsure.
TR-470-489-140-S3 --- Tolerance Retaining Rings - 47.000 to 46.989 48.86 to 48.97 14 mm - Stainless Steel 301 Similar to A2, 302, 304, 18-8 TR-470-489-140-S3 --- Tolerance Retaining Rings - 47.000 to 46.989 48.86 to 48.97 14 mm - Stainless Steel 301 Similar to A2, 302, 304, 18-8 Regular price $106.86 AUD Regular price Sale price $106.86 AUD Unit price per Out of stock! Backorder Now
Inner Part OD (d) 52.000 to 51.987 mm _{(2.047 in.)}	Housing ID (D) 54.35 to 54.48 mm _{(2.14 in.)}	Ring Width (B) 15.00 mm _{(0.591 in.)}
Material: Stainless Steel 301 (Similar to A2, 302, 304, 18-8) Style: For bearing OD Max. Radial Load: 335 N To Suit OD of Bearing: 52mm (6006, 6205, 6304)
Part Number: TR-520-544-150-S3 Tolerance Retaining Rings - 52.000 to 51.987 54.35 to 54.48 15 mm - Stainless Steel 301 Similar to A2, 302, 304, 18-8 Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 18, 2025 Regular price $106.86 AUD Regular price Sale price $106.86 AUD Unit price per Each
Inner Part OD (d) 52.000 to 51.987 mm _{(2.047 in.)}	Housing ID (D) 54.35 to 54.48 mm _{(2.14 in.)}	Ring Width (B) 15.00 mm _{(0.591 in.)}
Material: Stainless Steel 301 (Similar to A2, 302, 304, 18-8) Style: For bearing OD Max. Radial Load: 335 N To Suit OD of Bearing: 52mm (6006, 6205, 6304)
Part Number: TR-520-544-150-S3 Tolerance Retaining Rings - 52.000 to 51.987 54.35 to 54.48 15 mm - Stainless Steel 301 Similar to A2, 302, 304, 18-8 Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 18, 2025 Regular price $106.86 AUD Regular price Sale price $106.86 AUD Unit price per Each View the product page first if you are unsure.
TR-520-544-150-S3 --- Tolerance Retaining Rings - 52.000 to 51.987 54.35 to 54.48 15 mm - Stainless Steel 301 Similar to A2, 302, 304, 18-8 TR-520-544-150-S3 --- Tolerance Retaining Rings - 52.000 to 51.987 54.35 to 54.48 15 mm - Stainless Steel 301 Similar to A2, 302, 304, 18-8 Regular price $106.86 AUD Regular price Sale price $106.86 AUD Unit price per Out of stock! Backorder Now
Inner Part OD (d) 62.00 mm _{(2.441 in.)}	Housing ID (D) 64.33 to 64.46 mm _{(2.533 in.)}	Ring Width (B) 16.00 mm _{(0.63 in.)}
Material: Stainless Steel 301 (Similar to A2, 302, 304, 18-8) Style: For bearing OD Max. Radial Load: 226 N To Suit OD of Bearing: 6206, 6305
Part Number: TR-620-645-160-S3 Tolerance Retaining Rings - 62 64.33 to 64.46 16 mm - Stainless Steel 301 Similar to A2, 302, 304, 18-8 Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 18, 2025 Regular price $106.50 AUD Regular price Sale price $106.50 AUD Unit price per Each
Inner Part OD (d) 62.00 mm _{(2.441 in.)}	Housing ID (D) 64.33 to 64.46 mm _{(2.533 in.)}	Ring Width (B) 16.00 mm _{(0.63 in.)}
Material: Stainless Steel 301 (Similar to A2, 302, 304, 18-8) Style: For bearing OD Max. Radial Load: 226 N To Suit OD of Bearing: 6206, 6305
Part Number: TR-620-645-160-S3 Tolerance Retaining Rings - 62 64.33 to 64.46 16 mm - Stainless Steel 301 Similar to A2, 302, 304, 18-8 Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 18, 2025 Regular price $106.50 AUD Regular price Sale price $106.50 AUD Unit price per Each View the product page first if you are unsure.
TR-620-645-160-S3 --- Tolerance Retaining Rings - 62 64.33 to 64.46 16 mm - Stainless Steel 301 Similar to A2, 302, 304, 18-8 TR-620-645-160-S3 --- Tolerance Retaining Rings - 62 64.33 to 64.46 16 mm - Stainless Steel 301 Similar to A2, 302, 304, 18-8 Regular price $106.50 AUD Regular price Sale price $106.50 AUD Unit price per Out of stock! Backorder Now
Inner Part OD (d) 62.000 to 61.987 mm _{(2.441 in.)}	Housing ID (D) 64.33 to 64.46 mm _{(2.533 in.)}	Ring Width (B) 16.00 mm _{(0.63 in.)}
Material: Stainless Steel 301 (Similar to A2, 302, 304, 18-8) Style: For bearing OD Max. Radial Load: 335 N To Suit OD of Bearing: 62mm (6007, 6206, 6305)
Part Number: TR-620-643-160-3 Tolerance Retaining Rings - 62.000 to 61.987 64.33 to 64.46 16 mm - Stainless Steel 301 Similar to A2, 302, 304, 18-8 Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 18, 2025 Regular price $109.86 AUD Regular price Sale price $109.86 AUD Unit price per Each
Inner Part OD (d) 62.000 to 61.987 mm _{(2.441 in.)}	Housing ID (D) 64.33 to 64.46 mm _{(2.533 in.)}	Ring Width (B) 16.00 mm _{(0.63 in.)}
Material: Stainless Steel 301 (Similar to A2, 302, 304, 18-8) Style: For bearing OD Max. Radial Load: 335 N To Suit OD of Bearing: 62mm (6007, 6206, 6305)
Part Number: TR-620-643-160-3 Tolerance Retaining Rings - 62.000 to 61.987 64.33 to 64.46 16 mm - Stainless Steel 301 Similar to A2, 302, 304, 18-8 Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 18, 2025 Regular price $109.86 AUD Regular price Sale price $109.86 AUD Unit price per Each View the product page first if you are unsure.
TR-620-643-160-3 --- Tolerance Retaining Rings - 62.000 to 61.987 64.33 to 64.46 16 mm - Stainless Steel 301 Similar to A2, 302, 304, 18-8 TR-620-643-160-3 --- Tolerance Retaining Rings - 62.000 to 61.987 64.33 to 64.46 16 mm - Stainless Steel 301 Similar to A2, 302, 304, 18-8 Regular price $109.86 AUD Regular price Sale price $109.86 AUD Unit price per Out of stock! Backorder Now
Inner Part OD (d) 62.00 mm _{(2.441 in.)}	Housing ID (D) 64.33 to 64.46 mm _{(2.533 in.)}	Ring Width (B) 23.00 mm _{(0.906 in.)}
Material: Stainless Steel 301 (Similar to A2, 302, 304, 18-8) Style: For bearing OD Max. Radial Load: 407 N To Suit OD of Bearing: 5305
Part Number: TR-620-645-230-S3 Tolerance Retaining Rings - 62 64.33 to 64.46 23 mm - Stainless Steel 301 Similar to A2, 302, 304, 18-8 Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 18, 2025 Regular price $163.41 AUD Regular price Sale price $163.41 AUD Unit price per Each
Inner Part OD (d) 62.00 mm _{(2.441 in.)}	Housing ID (D) 64.33 to 64.46 mm _{(2.533 in.)}	Ring Width (B) 23.00 mm _{(0.906 in.)}
Material: Stainless Steel 301 (Similar to A2, 302, 304, 18-8) Style: For bearing OD Max. Radial Load: 407 N To Suit OD of Bearing: 5305
Part Number: TR-620-645-230-S3 Tolerance Retaining Rings - 62 64.33 to 64.46 23 mm - Stainless Steel 301 Similar to A2, 302, 304, 18-8 Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 18, 2025 Regular price $163.41 AUD Regular price Sale price $163.41 AUD Unit price per Each View the product page first if you are unsure.
TR-620-645-230-S3 --- Tolerance Retaining Rings - 62 64.33 to 64.46 23 mm - Stainless Steel 301 Similar to A2, 302, 304, 18-8 TR-620-645-230-S3 --- Tolerance Retaining Rings - 62 64.33 to 64.46 23 mm - Stainless Steel 301 Similar to A2, 302, 304, 18-8 Regular price $163.41 AUD Regular price Sale price $163.41 AUD Unit price per Out of stock! Backorder Now
Inner Part OD (d) 72.00 mm _{(2.835 in.)}	Housing ID (D) 73.91 to 73.99 mm _{(2.91 in.)}	Ring Width (B) 17.00 mm _{(0.669 in.)}
Material: Stainless Steel 301 (Similar to A2, 302, 304, 18-8) Style: For bearing OD Max. Radial Load: 328 N To Suit OD of Bearing: 6207
Part Number: TR-720-740-170-S3 Tolerance Retaining Rings - 72 73.91 to 73.99 17 mm - Stainless Steel 301 Similar to A2, 302, 304, 18-8 Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 18, 2025 Regular price $163.41 AUD Regular price Sale price $163.41 AUD Unit price per Each
Inner Part OD (d) 72.00 mm _{(2.835 in.)}	Housing ID (D) 73.91 to 73.99 mm _{(2.91 in.)}	Ring Width (B) 17.00 mm _{(0.669 in.)}
Material: Stainless Steel 301 (Similar to A2, 302, 304, 18-8) Style: For bearing OD Max. Radial Load: 328 N To Suit OD of Bearing: 6207
Part Number: TR-720-740-170-S3 Tolerance Retaining Rings - 72 73.91 to 73.99 17 mm - Stainless Steel 301 Similar to A2, 302, 304, 18-8 Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 18, 2025 Regular price $163.41 AUD Regular price Sale price $163.41 AUD Unit price per Each View the product page first if you are unsure.
TR-720-740-170-S3 --- Tolerance Retaining Rings - 72 73.91 to 73.99 17 mm - Stainless Steel 301 Similar to A2, 302, 304, 18-8 TR-720-740-170-S3 --- Tolerance Retaining Rings - 72 73.91 to 73.99 17 mm - Stainless Steel 301 Similar to A2, 302, 304, 18-8 Regular price $163.41 AUD Regular price Sale price $163.41 AUD Unit price per Out of stock! Backorder Now
Inner Part OD (d) 72.00 mm _{(2.835 in.)}	Housing ID (D) 73.91 to 73.99 mm _{(2.91 in.)}	Ring Width (B) 19.00 mm _{(0.748 in.)}
Material: Stainless Steel 301 (Similar to A2, 302, 304, 18-8) Style: For bearing OD Max. Radial Load: 407 N To Suit OD of Bearing: 6306
Part Number: TR-720-740-190-S3 Tolerance Retaining Rings - 72 73.91 to 73.99 19 mm - Stainless Steel 301 Similar to A2, 302, 304, 18-8 Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 18, 2025 Regular price $163.41 AUD Regular price Sale price $163.41 AUD Unit price per Each
Inner Part OD (d) 72.00 mm _{(2.835 in.)}	Housing ID (D) 73.91 to 73.99 mm _{(2.91 in.)}	Ring Width (B) 19.00 mm _{(0.748 in.)}
Material: Stainless Steel 301 (Similar to A2, 302, 304, 18-8) Style: For bearing OD Max. Radial Load: 407 N To Suit OD of Bearing: 6306
Part Number: TR-720-740-190-S3 Tolerance Retaining Rings - 72 73.91 to 73.99 19 mm - Stainless Steel 301 Similar to A2, 302, 304, 18-8 Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 18, 2025 Regular price $163.41 AUD Regular price Sale price $163.41 AUD Unit price per Each View the product page first if you are unsure.
TR-720-740-190-S3 --- Tolerance Retaining Rings - 72 73.91 to 73.99 19 mm - Stainless Steel 301 Similar to A2, 302, 304, 18-8 TR-720-740-190-S3 --- Tolerance Retaining Rings - 72 73.91 to 73.99 19 mm - Stainless Steel 301 Similar to A2, 302, 304, 18-8 Regular price $163.41 AUD Regular price Sale price $163.41 AUD Unit price per Out of stock! Backorder Now
Inner Part OD (d) 80.00 mm _{(3.15 in.)}	Housing ID (D) 81.88 to 81.96 mm _{(3.224 in.)}	Ring Width (B) 18.00 mm _{(0.709 in.)}
Material: Stainless Steel 301 (Similar to A2, 302, 304, 18-8) Style: For bearing OD Max. Radial Load: 37 N To Suit OD of Bearing: 6208
Part Number: TR-800-820-180-S3 Tolerance Retaining Rings - 80 81.88 to 81.96 18 mm - Stainless Steel 301 Similar to A2, 302, 304, 18-8 Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 18, 2025 Regular price $195.59 AUD Regular price Sale price $195.59 AUD Unit price per Each
Inner Part OD (d) 80.00 mm _{(3.15 in.)}	Housing ID (D) 81.88 to 81.96 mm _{(3.224 in.)}	Ring Width (B) 18.00 mm _{(0.709 in.)}
Material: Stainless Steel 301 (Similar to A2, 302, 304, 18-8) Style: For bearing OD Max. Radial Load: 37 N To Suit OD of Bearing: 6208
Part Number: TR-800-820-180-S3 Tolerance Retaining Rings - 80 81.88 to 81.96 18 mm - Stainless Steel 301 Similar to A2, 302, 304, 18-8 Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 18, 2025 Regular price $195.59 AUD Regular price Sale price $195.59 AUD Unit price per Each View the product page first if you are unsure.
TR-800-820-180-S3 --- Tolerance Retaining Rings - 80 81.88 to 81.96 18 mm - Stainless Steel 301 Similar to A2, 302, 304, 18-8 TR-800-820-180-S3 --- Tolerance Retaining Rings - 80 81.88 to 81.96 18 mm - Stainless Steel 301 Similar to A2, 302, 304, 18-8 Regular price $195.59 AUD Regular price Sale price $195.59 AUD Unit price per Out of stock! Backorder Now
Inner Part OD (d) 80.00 mm _{(3.15 in.)}	Housing ID (D) 81.88 to 81.96 mm _{(3.224 in.)}	Ring Width (B) 21.00 mm _{(0.827 in.)}
Material: Stainless Steel 301 (Similar to A2, 302, 304, 18-8) Style: For bearing OD Max. Radial Load: 452 N To Suit OD of Bearing: 6307
Part Number: TR-800-820-210-S3 Tolerance Retaining Rings - 80 81.88 to 81.96 21 mm - Stainless Steel 301 Similar to A2, 302, 304, 18-8 Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 18, 2025 Regular price $195.59 AUD Regular price Sale price $195.59 AUD Unit price per Each
Inner Part OD (d) 80.00 mm _{(3.15 in.)}	Housing ID (D) 81.88 to 81.96 mm _{(3.224 in.)}	Ring Width (B) 21.00 mm _{(0.827 in.)}
Material: Stainless Steel 301 (Similar to A2, 302, 304, 18-8) Style: For bearing OD Max. Radial Load: 452 N To Suit OD of Bearing: 6307
Part Number: TR-800-820-210-S3 Tolerance Retaining Rings - 80 81.88 to 81.96 21 mm - Stainless Steel 301 Similar to A2, 302, 304, 18-8 Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 18, 2025 Regular price $195.59 AUD Regular price Sale price $195.59 AUD Unit price per Each View the product page first if you are unsure.
TR-800-820-210-S3 --- Tolerance Retaining Rings - 80 81.88 to 81.96 21 mm - Stainless Steel 301 Similar to A2, 302, 304, 18-8 TR-800-820-210-S3 --- Tolerance Retaining Rings - 80 81.88 to 81.96 21 mm - Stainless Steel 301 Similar to A2, 302, 304, 18-8 Regular price $195.59 AUD Regular price Sale price $195.59 AUD Unit price per Out of stock! Backorder Now
Inner Part OD (d) 85.00 mm _{(3.346 in.)}	Housing ID (D) 86.91 to 86.99 mm _{(3.422 in.)}	Ring Width (B) 19.00 mm _{(0.748 in.)}
Material: Stainless Steel 301 (Similar to A2, 302, 304, 18-8) Style: For bearing OD Max. Radial Load: 49 N To Suit OD of Bearing: 6209
Part Number: TR-850-870-190-S3 Tolerance Retaining Rings - 85 86.91 to 86.99 19 mm - Stainless Steel 301 Similar to A2, 302, 304, 18-8 Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 18, 2025 Regular price $195.59 AUD Regular price Sale price $195.59 AUD Unit price per Each
Inner Part OD (d) 85.00 mm _{(3.346 in.)}	Housing ID (D) 86.91 to 86.99 mm _{(3.422 in.)}	Ring Width (B) 19.00 mm _{(0.748 in.)}
Material: Stainless Steel 301 (Similar to A2, 302, 304, 18-8) Style: For bearing OD Max. Radial Load: 49 N To Suit OD of Bearing: 6209
Part Number: TR-850-870-190-S3 Tolerance Retaining Rings - 85 86.91 to 86.99 19 mm - Stainless Steel 301 Similar to A2, 302, 304, 18-8 Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 18, 2025 Regular price $195.59 AUD Regular price Sale price $195.59 AUD Unit price per Each View the product page first if you are unsure.
TR-850-870-190-S3 --- Tolerance Retaining Rings - 85 86.91 to 86.99 19 mm - Stainless Steel 301 Similar to A2, 302, 304, 18-8 TR-850-870-190-S3 --- Tolerance Retaining Rings - 85 86.91 to 86.99 19 mm - Stainless Steel 301 Similar to A2, 302, 304, 18-8 Regular price $195.59 AUD Regular price Sale price $195.59 AUD Unit price per Out of stock! Backorder Now
Inner Part OD (d) 90.00 mm _{(3.543 in.)}	Housing ID (D) 91.89 to 91.97 mm _{(3.618 in.)}	Ring Width (B) 20.00 mm _{(0.787 in.)}
Material: Stainless Steel 301 (Similar to A2, 302, 304, 18-8) Style: For bearing OD Max. Radial Load: 514 N To Suit OD of Bearing: 6210
Part Number: TR-900-920-200-S3 Tolerance Retaining Rings - 90 91.89 to 91.97 20 mm - Stainless Steel 301 Similar to A2, 302, 304, 18-8 Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 18, 2025 Regular price $195.41 AUD Regular price Sale price $195.41 AUD Unit price per Each
Inner Part OD (d) 90.00 mm _{(3.543 in.)}	Housing ID (D) 91.89 to 91.97 mm _{(3.618 in.)}	Ring Width (B) 20.00 mm _{(0.787 in.)}
Material: Stainless Steel 301 (Similar to A2, 302, 304, 18-8) Style: For bearing OD Max. Radial Load: 514 N To Suit OD of Bearing: 6210
Part Number: TR-900-920-200-S3 Tolerance Retaining Rings - 90 91.89 to 91.97 20 mm - Stainless Steel 301 Similar to A2, 302, 304, 18-8 Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 18, 2025 Regular price $195.41 AUD Regular price Sale price $195.41 AUD Unit price per Each View the product page first if you are unsure.
TR-900-920-200-S3 --- Tolerance Retaining Rings - 90 91.89 to 91.97 20 mm - Stainless Steel 301 Similar to A2, 302, 304, 18-8 TR-900-920-200-S3 --- Tolerance Retaining Rings - 90 91.89 to 91.97 20 mm - Stainless Steel 301 Similar to A2, 302, 304, 18-8 Regular price $195.41 AUD Regular price Sale price $195.41 AUD Unit price per Out of stock! Backorder Now
