Collection: Retaining Rings - Internal
1202 Products in this selection
This is a combined category of Internal Retaining Rings.
Use the filters in the table below, or the category tree above to refine the selection. To order any item, simply click the part number for a full product page, then add to your cart.
Use the filters in the table below, or the category tree above to refine the selection. To order any item, simply click the part number for a full product page, then add to your cart.
Additional resources:
Anderton Cross Reference PDF
Circlips PDF Catalogue
Circlip Tools
Anderton Cross Reference PDF
Circlips PDF Catalogue
Circlip Tools
A more concise listing may be found on the Smallparts store at Retaining Rings - Internal. Smallparts promote the most popular MBA products.
| Housing Bore (B) | Clip Thickness (T) | Groove Dia. (Dg) | Approx. Loose Circlip OD (Dr) | Radial Wall (S) | Groove Width (W) |

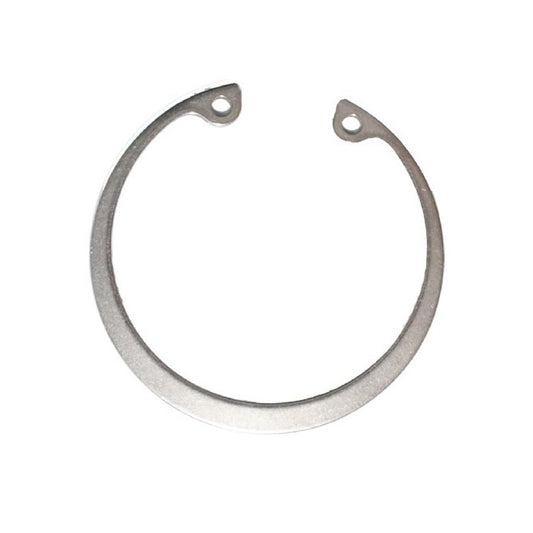

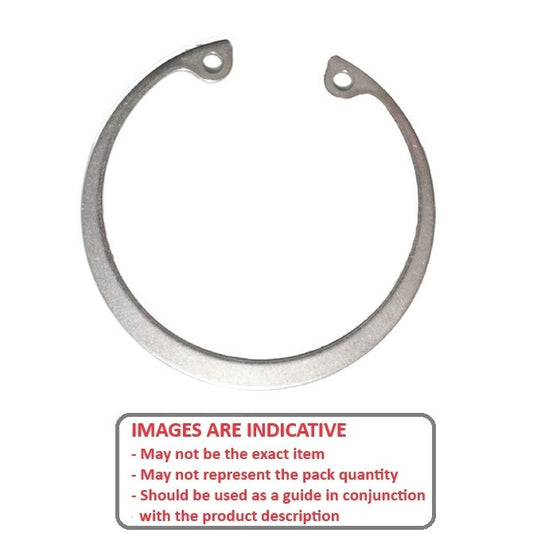

Indicative Image |
|---|---|---|---|---|---|---|
|
Housing Bore (B)
19.74
mm (0.777 in.) |
Clip Thickness (T)
1.07
mm +/- 0.075 (0.042 in.) |
Groove Dia. (Dg)
20.96
mm + 0.00 / - 0.06 (0.825 in.) |
Approx. Loose Circlip OD (Dr)
21.82
mm + 0.25 / - 0.13 |
Groove Width (W)
1.17
mm + 0.08 / - 0.00 |
|
|
|
Material: Stainless Steel Grade PH15-7 Mo
Clearance in Bore (C): 11.94 mm
Clearance in Groove (C1): 13.21 mm
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-01974-S15 (4 Pcs) Internal Retaining Rings - 19.74x1.07x20.96 mm - Stainless Steel Grade PH15-7 Mo
Out of Stock | Backorder Now | Orders can be expected around Sun, Jun 08, 2025 Regular price
$20.50 AUD
Regular price
Unit price
per
Per 4
|
||||||
| Housing Bore (B) | Clip Thickness (T) | Groove Dia. (Dg) | Approx. Loose Circlip OD (Dr) |
Indicative Image |
||
|
Housing Bore (B)
19.74
mm (0.777 in.) |
Clip Thickness (T)
1.07
mm +/- 0.075 (0.042 in.) |
Groove Dia. (Dg)
20.96
mm + 0.00 / - 0.06 (0.825 in.) |
Approx. Loose Circlip OD (Dr)
21.82
mm + 0.25 / - 0.13 |
|
||
|
Material: Stainless Steel Grade PH15-7 Mo
Groove Width (W): 1.17 mm + 0.08 / - 0.00
Clearance in Bore (C): 11.94 mm
Clearance in Groove (C1): 13.21 mm
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-01974-S15 (4 Pcs) Internal Retaining Rings - 19.74x1.07x20.96 mm - Stainless Steel Grade PH15-7 Mo
Out of Stock | Backorder Now | Orders can be expected around Sun, Jun 08, 2025 Regular price
$20.50 AUD
Regular price
Unit price
per
Per 4
|
||||||
|
||||||
|
Housing Bore (B)
19.74
mm (0.777 in.) |
Clip Thickness (T)
1.07
mm +/- 0.075 (0.042 in.) |
Groove Dia. (Dg)
20.96
mm + 0.00 / - 0.06 (0.825 in.) |
Approx. Loose Circlip OD (Dr)
21.82
mm + 0.25 / - 0.13 |
Groove Width (W)
1.17
mm + 0.08 / - 0.00 |
|
|
|
Material: Carbon Steel Zinc Plated
Clearance in Bore (C): 11.94 mm
Clearance in Groove (C1): 13.21 mm
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-01974-CZY (50 Pcs) Internal Retaining Rings - 19.74x1.07x20.96 mm - Carbon Steel Zinc Plated
Out of Stock | Backorder Now | Orders can be expected around Sun, Jun 08, 2025 Regular price
$51.68 AUD
Regular price
Unit price
per
Per 50
|
||||||
|
Housing Bore (B)
19.74
mm (0.777 in.) |
Clip Thickness (T)
1.07
mm +/- 0.075 (0.042 in.) |
Groove Dia. (Dg)
20.96
mm + 0.00 / - 0.06 (0.825 in.) |
Approx. Loose Circlip OD (Dr)
21.82
mm + 0.25 / - 0.13 |
|
||
|
Material: Carbon Steel Zinc Plated
Groove Width (W): 1.17 mm + 0.08 / - 0.00
Clearance in Bore (C): 11.94 mm
Clearance in Groove (C1): 13.21 mm
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-01974-CZY (50 Pcs) Internal Retaining Rings - 19.74x1.07x20.96 mm - Carbon Steel Zinc Plated
Out of Stock | Backorder Now | Orders can be expected around Sun, Jun 08, 2025 Regular price
$51.68 AUD
Regular price
Unit price
per
Per 50
|
||||||
|
||||||
|
Housing Bore (B)
19.74
mm (0.777 in.) |
Clip Thickness (T)
1.07
mm +/- 0.075 (0.042 in.) |
Groove Dia. (Dg)
20.96
mm + 0.00 / - 0.06 (0.825 in.) |
Approx. Loose Circlip OD (Dr)
21.82
mm + 0.25 / - 0.13 |
Groove Width (W)
1.17
mm + 0.08 / - 0.00 |
|
|
|
Material: Carbon Steel
Clearance in Bore (C): 11.94 mm
Clearance in Groove (C1): 13.21 mm
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-01974-C (10 Pcs) Internal Retaining Rings - 19.74x1.07x20.96 mm - Carbon Steel
15 units (150 pcs) Available Immediately | Further orders can be expected around Sun, Jun 08, 2025 Regular price
$6.32 AUD
Regular price
Unit price
per
Per 10
|
||||||
|
Housing Bore (B)
19.74
mm (0.777 in.) |
Clip Thickness (T)
1.07
mm +/- 0.075 (0.042 in.) |
Groove Dia. (Dg)
20.96
mm + 0.00 / - 0.06 (0.825 in.) |
Approx. Loose Circlip OD (Dr)
21.82
mm + 0.25 / - 0.13 |
|
||
|
Material: Carbon Steel
Groove Width (W): 1.17 mm + 0.08 / - 0.00
Clearance in Bore (C): 11.94 mm
Clearance in Groove (C1): 13.21 mm
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-01974-C (10 Pcs) Internal Retaining Rings - 19.74x1.07x20.96 mm - Carbon Steel
15 units (150 pcs) Available Immediately | Further orders can be expected around Sun, Jun 08, 2025 Regular price
$6.32 AUD
Regular price
Unit price
per
Per 10
|
||||||
|
||||||
|
Housing Bore (B)
20.00
mm (0.787 in.) |
Clip Thickness (T)
1.00
mm + 0.13 / - 0.00 (0.039 in.) |
Groove Dia. (Dg)
21.00
mm + 0.00 / - 0.06 (0.827 in.) |
Approx. Loose Circlip OD (Dr)
21.50
mm + 0.42 / - 0.13 |
Groove Width (W)
1.10
mm + 0.08 / - 0.00 |
|
|
|
Material: Stainless Steel Grade PH15-7 Mo
Clearance in Bore (C): 11.20 mm
Clearance in Groove (C1): 12.60 mm
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-02000-S15 (4 Pcs) Internal Retaining Rings - 20x1x21 mm - Stainless Steel Grade PH15-7 Mo
Out of Stock | Backorder Now | Orders can be expected around Sun, Jun 08, 2025 Regular price
$21.23 AUD
Regular price
Unit price
per
Per 4
|
||||||
|
Housing Bore (B)
20.00
mm (0.787 in.) |
Clip Thickness (T)
1.00
mm + 0.13 / - 0.00 (0.039 in.) |
Groove Dia. (Dg)
21.00
mm + 0.00 / - 0.06 (0.827 in.) |
Approx. Loose Circlip OD (Dr)
21.50
mm + 0.42 / - 0.13 |
|
||
|
Material: Stainless Steel Grade PH15-7 Mo
Groove Width (W): 1.10 mm + 0.08 / - 0.00
Clearance in Bore (C): 11.20 mm
Clearance in Groove (C1): 12.60 mm
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-02000-S15 (4 Pcs) Internal Retaining Rings - 20x1x21 mm - Stainless Steel Grade PH15-7 Mo
Out of Stock | Backorder Now | Orders can be expected around Sun, Jun 08, 2025 Regular price
$21.23 AUD
Regular price
Unit price
per
Per 4
|
||||||
|
||||||
|
Housing Bore (B)
20.00
mm (0.787 in.) |
Clip Thickness (T)
1.00
mm + 0.13 / - 0.00 (0.039 in.) |
Groove Dia. (Dg)
21.00
mm + 0.00 / - 0.06 (0.827 in.) |
Approx. Loose Circlip OD (Dr)
21.50
mm + 0.42 / - 0.13 |
Groove Width (W)
1.10
mm + 0.08 / - 0.00 |
|
|
|
Material: Carbon Steel
Clearance in Bore (C): 11.20 mm
Clearance in Groove (C1): 12.60 mm
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-02000-C (20 Pcs) Internal Retaining Rings - 20x1x21 mm - Carbon Steel
38 units (760 pcs) Available Immediately | Further orders can be expected around Sun, Jun 08, 2025 Regular price
$6.23 AUD
Regular price
Unit price
per
Per 20
|
||||||
|
Housing Bore (B)
20.00
mm (0.787 in.) |
Clip Thickness (T)
1.00
mm + 0.13 / - 0.00 (0.039 in.) |
Groove Dia. (Dg)
21.00
mm + 0.00 / - 0.06 (0.827 in.) |
Approx. Loose Circlip OD (Dr)
21.50
mm + 0.42 / - 0.13 |
|
||
|
Material: Carbon Steel
Groove Width (W): 1.10 mm + 0.08 / - 0.00
Clearance in Bore (C): 11.20 mm
Clearance in Groove (C1): 12.60 mm
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-02000-C (20 Pcs) Internal Retaining Rings - 20x1x21 mm - Carbon Steel
38 units (760 pcs) Available Immediately | Further orders can be expected around Sun, Jun 08, 2025 Regular price
$6.23 AUD
Regular price
Unit price
per
Per 20
|
||||||
|
||||||
|
Housing Bore (B)
20.00
mm (0.787 in.) |
Clip Thickness (T)
1.00
mm + 0.15 / - 0.00 (0.039 in.) |
Groove Dia. (Dg)
21.00
mm + 0.00 / - 0.06 (0.827 in.) |
Approx. Loose Circlip OD (Dr)
21.63
mm + 0.42 / - 0.13 |
Radial Wall (S)
2.3 - 2.4
mm |
Groove Width (W)
1.10
mm |
|
|
Material: Carbon Steel
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-02000-C-V (100 Pcs) Internal Retaining Rings - 20x1x21 mm - Carbon Steel
Out of Stock | Backorder Now | Orders can be expected around Sun, Jun 08, 2025 Regular price
$90.95 AUD
Regular price
Unit price
per
Per 100
|
||||||
|
Housing Bore (B)
20.00
mm (0.787 in.) |
Clip Thickness (T)
1.00
mm + 0.15 / - 0.00 (0.039 in.) |
Groove Dia. (Dg)
21.00
mm + 0.00 / - 0.06 (0.827 in.) |
Approx. Loose Circlip OD (Dr)
21.63
mm + 0.42 / - 0.13 |
|
||
|
Material: Carbon Steel
Radial Wall (S): 2.3 - 2.4 mm
Groove Width (W): 1.10 mm
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-02000-C-V (100 Pcs) Internal Retaining Rings - 20x1x21 mm - Carbon Steel
Out of Stock | Backorder Now | Orders can be expected around Sun, Jun 08, 2025 Regular price
$90.95 AUD
Regular price
Unit price
per
Per 100
|
||||||
|
||||||
|
Housing Bore (B)
20.00
mm (0.787 in.) |
Clip Thickness (T)
1.00
mm + 0.00 / - 0.15 (0.039 in.) |
Groove Dia. (Dg)
21.15
mm + 0.00 / - 0.06 (0.833 in.) |
Approx. Loose Circlip OD (Dr)
21.37
mm |
Radial Wall (S)
2.40
mm |
Groove Width (W)
1.10
mm |
|
|
Material: Spring Steel
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: DJK-020 Internal Retaining Rings - 20x1x21.15 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
20.00
mm (0.787 in.) |
Clip Thickness (T)
1.00
mm + 0.00 / - 0.15 (0.039 in.) |
Groove Dia. (Dg)
21.15
mm + 0.00 / - 0.06 (0.833 in.) |
Approx. Loose Circlip OD (Dr)
21.37
mm |
|
||
|
Material: Spring Steel
Radial Wall (S): 2.40 mm
Groove Width (W): 1.10 mm
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: DJK-020 Internal Retaining Rings - 20x1x21.15 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
20.00
mm (0.787 in.) |
Clip Thickness (T)
1.20
mm + 0 / - 0.10 (0.047 in.) |
Groove Dia. (Dg)
20.60
mm + 0.13 / - 0.00 (0.811 in.) |
Approx. Loose Circlip OD (Dr)
21.00
mm |
Radial Wall (S)
1.75
mm + 0 / - 0.10 |
Groove Width (W)
1.30
mm |
|
|
Material: Spring Steel
Clearance in Groove (C1): 17.5 mm
Category: Retaining Rings - Internal - Snap Rings |
||||||
|
Part Number: WRI-0200-LS (250 Pcs) Internal Retaining Rings - 20x1.2x20.6 mm - Spring Steel
Out of Stock | Backorder Now | Orders can be expected around Fri, Aug 08, 2025 Regular price
$279.95 AUD
Regular price
Unit price
per
Per 250
|
||||||
|
Housing Bore (B)
20.00
mm (0.787 in.) |
Clip Thickness (T)
1.20
mm + 0 / - 0.10 (0.047 in.) |
Groove Dia. (Dg)
20.60
mm + 0.13 / - 0.00 (0.811 in.) |
Approx. Loose Circlip OD (Dr)
21.00
mm |
|
||
|
Material: Spring Steel
Radial Wall (S): 1.75 mm + 0 / - 0.10
Groove Width (W): 1.30 mm
Clearance in Groove (C1): 17.5 mm
Category: Retaining Rings - Internal - Snap Rings |
||||||
|
Part Number: WRI-0200-LS (250 Pcs) Internal Retaining Rings - 20x1.2x20.6 mm - Spring Steel
Out of Stock | Backorder Now | Orders can be expected around Fri, Aug 08, 2025 Regular price
$279.95 AUD
Regular price
Unit price
per
Per 250
|
||||||
|
||||||
|
Housing Bore (B)
20.00
mm (0.787 in.) |
Clip Thickness (T)
1.4
mm + 0.08 / - 0.04 (0.055 in.) |
Groove Dia. (Dg)
21.69
mm Min. (0.854 in.) |
Approx. Loose Circlip OD (Dr)
22.50
mm |
Groove Width (W)
1.50
mm + 0.08 / - 0.00 |
|
|
|
Material: Spring Steel
Clearance in Bore (C): 19.7 mm
Category: Retaining Rings - Internal - Round Wire |
||||||
|
Part Number: WRI-0200A-RD Internal Retaining Rings - 20x1.4x21.69 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
20.00
mm (0.787 in.) |
Clip Thickness (T)
1.4
mm + 0.08 / - 0.04 (0.055 in.) |
Groove Dia. (Dg)
21.69
mm Min. (0.854 in.) |
Approx. Loose Circlip OD (Dr)
22.50
mm |
|
||
|
Material: Spring Steel
Groove Width (W): 1.50 mm + 0.08 / - 0.00
Clearance in Bore (C): 19.7 mm
Category: Retaining Rings - Internal - Round Wire |
||||||
|
Part Number: WRI-0200A-RD Internal Retaining Rings - 20x1.4x21.69 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
20.00
mm (0.787 in.) |
Clip Thickness (T)
1.50
mm + 0.15 / - 0.00 (0.059 in.) |
Groove Dia. (Dg)
21.00
mm + 0.00 / - 0.06 (0.827 in.) |
Approx. Loose Circlip OD (Dr)
21.50
mm + 0.42 / - 0.13 |
Groove Width (W)
1.60
mm + 0.08 / - 0.00 |
|
|
|
Material: Carbon Spring Steel Self Finish
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-02000H-C Internal Retaining Rings - 20x1.5x21 mm - Carbon Spring Steel Self Finish
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
20.00
mm (0.787 in.) |
Clip Thickness (T)
1.50
mm + 0.15 / - 0.00 (0.059 in.) |
Groove Dia. (Dg)
21.00
mm + 0.00 / - 0.06 (0.827 in.) |
Approx. Loose Circlip OD (Dr)
21.50
mm + 0.42 / - 0.13 |
|
||
|
Material: Carbon Spring Steel Self Finish
Groove Width (W): 1.60 mm + 0.08 / - 0.00
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-02000H-C Internal Retaining Rings - 20x1.5x21 mm - Carbon Spring Steel Self Finish
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
20.00
mm (0.787 in.) |
Clip Thickness (T)
2.0
mm B DIN 2076 (0.079 in.) |
Groove Dia. (Dg)
22.00
mm + 0.5 / - 0.0 (0.866 in.) |
Approx. Loose Circlip OD (Dr)
22.30
mm |
Groove Width (W)
1.80
mm |
|
|
|
Material: Spring Steel
Clearance in Bore (C): 18.3 mm
Category: Retaining Rings - Internal - Round Wire |
||||||
|
Part Number: WRI-0200-RD Internal Retaining Rings - 20x2x22 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
20.00
mm (0.787 in.) |
Clip Thickness (T)
2.0
mm B DIN 2076 (0.079 in.) |
Groove Dia. (Dg)
22.00
mm + 0.5 / - 0.0 (0.866 in.) |
Approx. Loose Circlip OD (Dr)
22.30
mm |
|
||
|
Material: Spring Steel
Groove Width (W): 1.80 mm
Clearance in Bore (C): 18.3 mm
Category: Retaining Rings - Internal - Round Wire |
||||||
|
Part Number: WRI-0200-RD Internal Retaining Rings - 20x2x22 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
20.64
mm (0.813 in.) |
Clip Thickness (T)
1.07
mm +/- 0.075 (0.042 in.) |
Groove Dia. (Dg)
21.89
mm + 0.00 / - 0.06 (0.862 in.) |
Approx. Loose Circlip OD (Dr)
22.89
mm + 0.38 / - 0.25 |
Groove Width (W)
1.17
mm + 0.08 / - 0.00 |
|
|
|
Material: Carbon Steel
Clearance in Bore (C): 12.45 mm
Clearance in Groove (C1): 13.46 mm
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-02064-C (100 Pcs) Internal Retaining Rings - 20.64x1.07x21.89 mm - Carbon Steel
Out of Stock | Backorder Now | Orders can be expected around Sun, Jun 08, 2025 Regular price
$55.68 AUD
Regular price
Unit price
per
Per 100
|
||||||
|
Housing Bore (B)
20.64
mm (0.813 in.) |
Clip Thickness (T)
1.07
mm +/- 0.075 (0.042 in.) |
Groove Dia. (Dg)
21.89
mm + 0.00 / - 0.06 (0.862 in.) |
Approx. Loose Circlip OD (Dr)
22.89
mm + 0.38 / - 0.25 |
|
||
|
Material: Carbon Steel
Groove Width (W): 1.17 mm + 0.08 / - 0.00
Clearance in Bore (C): 12.45 mm
Clearance in Groove (C1): 13.46 mm
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-02064-C (100 Pcs) Internal Retaining Rings - 20.64x1.07x21.89 mm - Carbon Steel
Out of Stock | Backorder Now | Orders can be expected around Sun, Jun 08, 2025 Regular price
$55.68 AUD
Regular price
Unit price
per
Per 100
|
||||||
|
||||||
|
Housing Bore (B)
20.64
mm (0.813 in.) |
Clip Thickness (T)
1.07
mm +/- 0.075 (0.042 in.) |
Groove Dia. (Dg)
21.89
mm + 0.00 / - 0.06 (0.862 in.) |
Approx. Loose Circlip OD (Dr)
22.89
mm + 0.38 / - 0.25 |
Groove Width (W)
1.17
mm + 0.08 / - 0.00 |
|
|
|
Material: Stainless Steel Grade PH15-7 Mo
Clearance in Bore (C): 12.45 mm
Clearance in Groove (C1): 13.46 mm
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-02064-S15 (4 Pcs) Internal Retaining Rings - 20.64x1.07x21.89 mm - Stainless Steel Grade PH15-7 Mo
Out of Stock | Backorder Now | Orders can be expected around Sun, Jun 08, 2025 Regular price
$20.32 AUD
Regular price
Unit price
per
Per 4
|
||||||
|
Housing Bore (B)
20.64
mm (0.813 in.) |
Clip Thickness (T)
1.07
mm +/- 0.075 (0.042 in.) |
Groove Dia. (Dg)
21.89
mm + 0.00 / - 0.06 (0.862 in.) |
Approx. Loose Circlip OD (Dr)
22.89
mm + 0.38 / - 0.25 |
|
||
|
Material: Stainless Steel Grade PH15-7 Mo
Groove Width (W): 1.17 mm + 0.08 / - 0.00
Clearance in Bore (C): 12.45 mm
Clearance in Groove (C1): 13.46 mm
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-02064-S15 (4 Pcs) Internal Retaining Rings - 20.64x1.07x21.89 mm - Stainless Steel Grade PH15-7 Mo
Out of Stock | Backorder Now | Orders can be expected around Sun, Jun 08, 2025 Regular price
$20.32 AUD
Regular price
Unit price
per
Per 4
|
||||||
|
||||||
|
Housing Bore (B)
20.64
mm (0.813 in.) |
Clip Thickness (T)
1.07
mm +/- 0.075 (0.042 in.) |
Groove Dia. (Dg)
21.89
mm + 0.00 / - 0.06 (0.862 in.) |
Approx. Loose Circlip OD (Dr)
22.89
mm + 0.38 / - 0.25 |
Groove Width (W)
1.17
mm + 0.08 / - 0.00 |
|
|
|
Material: Carbon Steel Zinc Plated
Clearance in Bore (C): 12.45 mm
Clearance in Groove (C1): 13.46 mm
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-02064-CZY (250 Pcs) Internal Retaining Rings - 20.64x1.07x21.89 mm - Carbon Steel Zinc Plated
Out of Stock | Backorder Now | Orders can be expected around Wed, Sep 10, 2025 Regular price
$223.14 AUD
Regular price
Unit price
per
Per 250
|
||||||
|
Housing Bore (B)
20.64
mm (0.813 in.) |
Clip Thickness (T)
1.07
mm +/- 0.075 (0.042 in.) |
Groove Dia. (Dg)
21.89
mm + 0.00 / - 0.06 (0.862 in.) |
Approx. Loose Circlip OD (Dr)
22.89
mm + 0.38 / - 0.25 |
|
||
|
Material: Carbon Steel Zinc Plated
Groove Width (W): 1.17 mm + 0.08 / - 0.00
Clearance in Bore (C): 12.45 mm
Clearance in Groove (C1): 13.46 mm
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-02064-CZY (250 Pcs) Internal Retaining Rings - 20.64x1.07x21.89 mm - Carbon Steel Zinc Plated
Out of Stock | Backorder Now | Orders can be expected around Wed, Sep 10, 2025 Regular price
$223.14 AUD
Regular price
Unit price
per
Per 250
|
||||||
|
||||||
|
Housing Bore (B)
20.64
mm (0.813 in.) |
Clip Thickness (T)
1.07
mm +/- 0.076 (0.042 in.) |
Groove Dia. (Dg)
21.89
mm +/- 0.052 (0.862 in.) |
Approx. Loose Circlip OD (Dr)
22.89
mm |
Radial Wall (S)
1.12 - 2.34
mm |
Groove Width (W)
1.17
mm |
|
|
Material: Carbon Steel
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-02063-C-V (50 Pcs) Internal Retaining Rings - 20.64x1.07x21.89 mm - Carbon Steel
Out of Stock | Backorder Now | Orders can be expected around Sun, Jun 08, 2025 Regular price
$61.14 AUD
Regular price
Unit price
per
Per 50
|
||||||
|
Housing Bore (B)
20.64
mm (0.813 in.) |
Clip Thickness (T)
1.07
mm +/- 0.076 (0.042 in.) |
Groove Dia. (Dg)
21.89
mm +/- 0.052 (0.862 in.) |
Approx. Loose Circlip OD (Dr)
22.89
mm |
|
||
|
Material: Carbon Steel
Radial Wall (S): 1.12 - 2.34 mm
Groove Width (W): 1.17 mm
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-02063-C-V (50 Pcs) Internal Retaining Rings - 20.64x1.07x21.89 mm - Carbon Steel
Out of Stock | Backorder Now | Orders can be expected around Sun, Jun 08, 2025 Regular price
$61.14 AUD
Regular price
Unit price
per
Per 50
|
||||||
|
||||||
|
Housing Bore (B)
21.00
mm (0.827 in.) |
Clip Thickness (T)
1.00
mm + 0.13 / - 0.00 (0.039 in.) |
Groove Dia. (Dg)
22.00
mm + 0.00 / - 0.06 (0.866 in.) |
Approx. Loose Circlip OD (Dr)
22.50
mm + 0.42 / - 0.13 |
Groove Width (W)
1.10
mm + 0.08 / - 0.00 |
|
|
|
Material: Stainless Steel Grade PH15-7 Mo
Clearance in Bore (C): 12.20 mm
Clearance in Groove (C1): 13.60 mm
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-02100-S15 (50 Pcs) Internal Retaining Rings - 21x1x22 mm - Stainless Steel Grade PH15-7 Mo
Out of Stock | Backorder Now | Orders can be expected around Sun, Jun 08, 2025 Regular price
$105.32 AUD
Regular price
Unit price
per
Per 50
|
||||||
|
Housing Bore (B)
21.00
mm (0.827 in.) |
Clip Thickness (T)
1.00
mm + 0.13 / - 0.00 (0.039 in.) |
Groove Dia. (Dg)
22.00
mm + 0.00 / - 0.06 (0.866 in.) |
Approx. Loose Circlip OD (Dr)
22.50
mm + 0.42 / - 0.13 |
|
||
|
Material: Stainless Steel Grade PH15-7 Mo
Groove Width (W): 1.10 mm + 0.08 / - 0.00
Clearance in Bore (C): 12.20 mm
Clearance in Groove (C1): 13.60 mm
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-02100-S15 (50 Pcs) Internal Retaining Rings - 21x1x22 mm - Stainless Steel Grade PH15-7 Mo
Out of Stock | Backorder Now | Orders can be expected around Sun, Jun 08, 2025 Regular price
$105.32 AUD
Regular price
Unit price
per
Per 50
|
||||||
|
||||||
|
Housing Bore (B)
21.00
mm (0.827 in.) |
Clip Thickness (T)
1.00
mm + 0.13 / - 0.00 (0.039 in.) |
Groove Dia. (Dg)
22.00
mm + 0.00 / - 0.06 (0.866 in.) |
Approx. Loose Circlip OD (Dr)
22.50
mm + 0.42 / - 0.13 |
Groove Width (W)
1.10
mm + 0.08 / - 0.00 |
|
|
|
Material: Carbon Steel
Clearance in Bore (C): 12.20 mm
Clearance in Groove (C1): 13.60 mm
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-02100-C (20 Pcs) Internal Retaining Rings - 21x1x22 mm - Carbon Steel
Out of Stock | Backorder Now | Orders can be expected around Sun, Jun 08, 2025 Regular price
$7.23 AUD
Regular price
Unit price
per
Per 20
|
||||||
|
Housing Bore (B)
21.00
mm (0.827 in.) |
Clip Thickness (T)
1.00
mm + 0.13 / - 0.00 (0.039 in.) |
Groove Dia. (Dg)
22.00
mm + 0.00 / - 0.06 (0.866 in.) |
Approx. Loose Circlip OD (Dr)
22.50
mm + 0.42 / - 0.13 |
|
||
|
Material: Carbon Steel
Groove Width (W): 1.10 mm + 0.08 / - 0.00
Clearance in Bore (C): 12.20 mm
Clearance in Groove (C1): 13.60 mm
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-02100-C (20 Pcs) Internal Retaining Rings - 21x1x22 mm - Carbon Steel
Out of Stock | Backorder Now | Orders can be expected around Sun, Jun 08, 2025 Regular price
$7.23 AUD
Regular price
Unit price
per
Per 20
|
||||||
|
||||||
|
Housing Bore (B)
21.00
mm (0.827 in.) |
Clip Thickness (T)
1.00
mm + 0.15 / - 0.00 (0.039 in.) |
Groove Dia. (Dg)
22.00
mm + 0.00 / - 0.06 (0.866 in.) |
Approx. Loose Circlip OD (Dr)
22.50
mm + 0.42 / - 0.13 |
Radial Wall (S)
2.3 - 2.4
mm |
Groove Width (W)
1.10
mm |
|
|
Material: Spring Steel
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-02100-C-V (250 Pcs) Internal Retaining Rings - 21x1x22 mm - Spring Steel
Out of Stock | Backorder Now | Orders can be expected around Fri, Aug 08, 2025 Regular price
$206.14 AUD
Regular price
Unit price
per
Per 250
|
||||||
|
Housing Bore (B)
21.00
mm (0.827 in.) |
Clip Thickness (T)
1.00
mm + 0.15 / - 0.00 (0.039 in.) |
Groove Dia. (Dg)
22.00
mm + 0.00 / - 0.06 (0.866 in.) |
Approx. Loose Circlip OD (Dr)
22.50
mm + 0.42 / - 0.13 |
|
||
|
Material: Spring Steel
Radial Wall (S): 2.3 - 2.4 mm
Groove Width (W): 1.10 mm
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-02100-C-V (250 Pcs) Internal Retaining Rings - 21x1x22 mm - Spring Steel
Out of Stock | Backorder Now | Orders can be expected around Fri, Aug 08, 2025 Regular price
$206.14 AUD
Regular price
Unit price
per
Per 250
|
||||||
|
||||||
|
Housing Bore (B)
21.00
mm (0.827 in.) |
Clip Thickness (T)
1.00
mm + 0.00 / - 0.15 (0.039 in.) |
Groove Dia. (Dg)
22.15
mm + 0.00 / - 0.06 (0.872 in.) |
Approx. Loose Circlip OD (Dr)
22.37 - 22.92
mm |
Radial Wall (S)
2.40
mm |
Groove Width (W)
1.10
mm |
|
|
Material: Spring Steel
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: DJK-021 Internal Retaining Rings - 21x1x22.15 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
21.00
mm (0.827 in.) |
Clip Thickness (T)
1.00
mm + 0.00 / - 0.15 (0.039 in.) |
Groove Dia. (Dg)
22.15
mm + 0.00 / - 0.06 (0.872 in.) |
Approx. Loose Circlip OD (Dr)
22.37 - 22.92
mm |
|
||
|
Material: Spring Steel
Radial Wall (S): 2.40 mm
Groove Width (W): 1.10 mm
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: DJK-021 Internal Retaining Rings - 21x1x22.15 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
21.00
mm (0.827 in.) |
Clip Thickness (T)
1.20
mm + 0 / - 0.10 (0.047 in.) |
Groove Dia. (Dg)
21.60
mm + 0.13 / - 0.00 (0.85 in.) |
Approx. Loose Circlip OD (Dr)
22.00
mm |
Radial Wall (S)
1.75
mm + 0 / - 0.10 |
Groove Width (W)
1.30
mm |
|
|
Material: Spring Steel
Clearance in Groove (C1): 18.5 mm
Category: Retaining Rings - Internal - Snap Rings |
||||||
|
Part Number: WRI-0210-LS Internal Retaining Rings - 21x1.2x21.6 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
21.00
mm (0.827 in.) |
Clip Thickness (T)
1.20
mm + 0 / - 0.10 (0.047 in.) |
Groove Dia. (Dg)
21.60
mm + 0.13 / - 0.00 (0.85 in.) |
Approx. Loose Circlip OD (Dr)
22.00
mm |
|
||
|
Material: Spring Steel
Radial Wall (S): 1.75 mm + 0 / - 0.10
Groove Width (W): 1.30 mm
Clearance in Groove (C1): 18.5 mm
Category: Retaining Rings - Internal - Snap Rings |
||||||
|
Part Number: WRI-0210-LS Internal Retaining Rings - 21x1.2x21.6 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
21.00
mm (0.827 in.) |
Clip Thickness (T)
1.6
mm + 0.08 / - 0.04 (0.063 in.) |
Groove Dia. (Dg)
22.89
mm Min. (0.901 in.) |
Approx. Loose Circlip OD (Dr)
23.70
mm |
Groove Width (W)
1.70
mm + 0.08 / - 0.00 |
|
|
|
Material: Spring Steel
Clearance in Bore (C): 20.5 mm
Category: Retaining Rings - Internal - Round Wire |
||||||
|
Part Number: WRI-0210A-RD Internal Retaining Rings - 21x1.6x22.89 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
21.00
mm (0.827 in.) |
Clip Thickness (T)
1.6
mm + 0.08 / - 0.04 (0.063 in.) |
Groove Dia. (Dg)
22.89
mm Min. (0.901 in.) |
Approx. Loose Circlip OD (Dr)
23.70
mm |
|
||
|
Material: Spring Steel
Groove Width (W): 1.70 mm + 0.08 / - 0.00
Clearance in Bore (C): 20.5 mm
Category: Retaining Rings - Internal - Round Wire |
||||||
|
Part Number: WRI-0210A-RD Internal Retaining Rings - 21x1.6x22.89 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
22.00
mm (0.866 in.) |
Clip Thickness (T)
0.79
mm +/- 0.05 (0.031 in.) |
Groove Dia. (Dg)
22.94
mm (0.903 in.) |
Approx. Loose Circlip OD (Dr)
22.97
mm + 0.33 / - 0.00 |
Radial Wall (S)
1.65
mm +/- 0.10 |
Groove Width (W)
0.95
mm +/- 0.08 |
|
|
Material: Spring Steel
Clearance in Groove (C1): 19.67 mm +/- 0.04
Category: Retaining Rings - Internal - Spiral Rings |
||||||
|
Part Number: RR-086 (6 Pcs) Internal Retaining Rings - 22x0.79x22.94 mm - Spring Steel
Out of Stock | Backorder Now | Orders can be expected around Sun, Jun 08, 2025 Regular price
$14.32 AUD
Regular price
Unit price
per
Per 6
|
||||||
|
Housing Bore (B)
22.00
mm (0.866 in.) |
Clip Thickness (T)
0.79
mm +/- 0.05 (0.031 in.) |
Groove Dia. (Dg)
22.94
mm (0.903 in.) |
Approx. Loose Circlip OD (Dr)
22.97
mm + 0.33 / - 0.00 |
|
||
|
Material: Spring Steel
Radial Wall (S): 1.65 mm +/- 0.10
Groove Width (W): 0.95 mm +/- 0.08
Clearance in Groove (C1): 19.67 mm +/- 0.04
Category: Retaining Rings - Internal - Spiral Rings |
||||||
|
Part Number: RR-086 (6 Pcs) Internal Retaining Rings - 22x0.79x22.94 mm - Spring Steel
Out of Stock | Backorder Now | Orders can be expected around Sun, Jun 08, 2025 Regular price
$14.32 AUD
Regular price
Unit price
per
Per 6
|
||||||
|
||||||
|
Housing Bore (B)
22.00
mm (0.866 in.) |
Clip Thickness (T)
1.00
mm +/- 0.075 (0.039 in.) |
Groove Dia. (Dg)
23.00
mm + 0.00 / - 0.06 (0.906 in.) |
Approx. Loose Circlip OD (Dr)
23.50
mm + 0.38 / - 0.25 |
Groove Width (W)
1.17
mm + 0.08 / - 0.00 |
|
|
|
Material: Carbon Steel Zinc Plated
Clearance in Bore (C): 13.20 mm
Clearance in Groove (C1): 14.60 mm
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-02200N-CZY (50 Pcs) Internal Retaining Rings - 22x1x23 mm - Carbon Steel Zinc Plated
Out of Stock | Backorder Now | Orders can be expected around Sun, Jun 08, 2025 Regular price
$51.95 AUD
Regular price
Unit price
per
Per 50
|
||||||
|
Housing Bore (B)
22.00
mm (0.866 in.) |
Clip Thickness (T)
1.00
mm +/- 0.075 (0.039 in.) |
Groove Dia. (Dg)
23.00
mm + 0.00 / - 0.06 (0.906 in.) |
Approx. Loose Circlip OD (Dr)
23.50
mm + 0.38 / - 0.25 |
|
||
|
Material: Carbon Steel Zinc Plated
Groove Width (W): 1.17 mm + 0.08 / - 0.00
Clearance in Bore (C): 13.20 mm
Clearance in Groove (C1): 14.60 mm
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-02200N-CZY (50 Pcs) Internal Retaining Rings - 22x1x23 mm - Carbon Steel Zinc Plated
Out of Stock | Backorder Now | Orders can be expected around Sun, Jun 08, 2025 Regular price
$51.95 AUD
Regular price
Unit price
per
Per 50
|
||||||
|
||||||
|
Housing Bore (B)
22.00
mm (0.866 in.) |
Clip Thickness (T)
1.00
mm +/- 0.075 (0.039 in.) |
Groove Dia. (Dg)
23.00
mm + 0.00 / - 0.06 (0.906 in.) |
Approx. Loose Circlip OD (Dr)
23.50
mm + 0.38 / - 0.25 |
Groove Width (W)
1.17
mm + 0.08 / - 0.00 |
|
|
|
Material: Carbon Steel
Clearance in Bore (C): 13.20 mm
Clearance in Groove (C1): 14.60 mm
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-02200N-C (10 Pcs) Internal Retaining Rings - 22x1x23 mm - Carbon Steel
7 units (70 pcs) Available Immediately | Further orders can be expected around Sun, Jun 08, 2025 Regular price
$6.14 AUD
Regular price
Unit price
per
Per 10
|
||||||
|
Housing Bore (B)
22.00
mm (0.866 in.) |
Clip Thickness (T)
1.00
mm +/- 0.075 (0.039 in.) |
Groove Dia. (Dg)
23.00
mm + 0.00 / - 0.06 (0.906 in.) |
Approx. Loose Circlip OD (Dr)
23.50
mm + 0.38 / - 0.25 |
|
||
|
Material: Carbon Steel
Groove Width (W): 1.17 mm + 0.08 / - 0.00
Clearance in Bore (C): 13.20 mm
Clearance in Groove (C1): 14.60 mm
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-02200N-C (10 Pcs) Internal Retaining Rings - 22x1x23 mm - Carbon Steel
7 units (70 pcs) Available Immediately | Further orders can be expected around Sun, Jun 08, 2025 Regular price
$6.14 AUD
Regular price
Unit price
per
Per 10
|
||||||
|
||||||
