Collection: Retaining Rings - Internal

Retaining Rings (With Images)

Internal

1202 Products in this selection

This is a combined category of Internal Retaining Rings.
Use the filters in the table below, or the category tree above to refine the selection. To order any item, simply click the part number for a full product page, then add to your cart.

Retaining Rings - Internal

Additional resources:
Anderton Cross Reference PDF
Circlips PDF Catalogue
Circlip Tools

A more concise listing may be found on the Smallparts store at Retaining Rings - Internal. Smallparts promote the most popular MBA products.

Housing Bore (B)	Clip Thickness (T)	Groove Dia. (Dg)	Approx. Loose Circlip OD (Dr)	Radial Wall (S)	Groove Width (W)	Indicative Image
Housing Bore (B) 10.00 mm _{(0.394 in.)}	Clip Thickness (T) 1.00 mm + 0.11 / - 0.00 _{(0.039 in.)}	Groove Dia. (Dg) 10.40 mm + 0.00 / - 0.06 _{(0.409 in.)}	Approx. Loose Circlip OD (Dr) 10.80 mm + 0.36 / - 0.10		Groove Width (W) 1.10 mm + 0.05 / - 0.00
Material: Carbon Steel Clearance in Bore (C): 3.30 mm Clearance in Groove (C1): 4.00 mm Category: Retaining Rings - Internal - Circlips
Part Number: CCI-01000-C (50 Pcs) Internal Retaining Rings - 10x1x10.4 mm - Carbon Steel 18 units (900 pcs) Available Immediately \| Further orders can be expected around Sat, Jun 07, 2025 Regular price $6.14 AUD Regular price Sale price $6.14 AUD Unit price per Per 50
Housing Bore (B)	Clip Thickness (T)	Groove Dia. (Dg)	Approx. Loose Circlip OD (Dr)	Indicative Image
Housing Bore (B) 10.00 mm _{(0.394 in.)}	Clip Thickness (T) 1.00 mm + 0.11 / - 0.00 _{(0.039 in.)}	Groove Dia. (Dg) 10.40 mm + 0.00 / - 0.06 _{(0.409 in.)}	Approx. Loose Circlip OD (Dr) 10.80 mm + 0.36 / - 0.10
Material: Carbon Steel Groove Width (W): 1.10 mm + 0.05 / - 0.00 Clearance in Bore (C): 3.30 mm Clearance in Groove (C1): 4.00 mm Category: Retaining Rings - Internal - Circlips
Part Number: CCI-01000-C (50 Pcs) Internal Retaining Rings - 10x1x10.4 mm - Carbon Steel 18 units (900 pcs) Available Immediately \| Further orders can be expected around Sat, Jun 07, 2025 Regular price $6.14 AUD Regular price Sale price $6.14 AUD Unit price per Per 50 View the product page first if you are unsure.
CCI-01000-C (50 Pcs) --- Internal Retaining Rings - 10x1x10.4 mm - Carbon Steel CCI-01000-C (50 Pcs) --- Internal Retaining Rings - 10x1x10.4 mm - Carbon Steel Regular price $6.14 AUD Regular price Sale price $6.14 AUD Unit price per 18 Available Now
Housing Bore (B) 11.00 mm _{(0.433 in.)}	Clip Thickness (T) 1.00 mm + 0 / - 0.10 _{(0.039 in.)}	Groove Dia. (Dg) 11.40 mm + 0.11 / - 0.00 _{(0.449 in.)}	Approx. Loose Circlip OD (Dr) 11.60 mm	Radial Wall (S) 1.30 mm + 0 / - 0.10	Groove Width (W) 1.10 mm
Material: Spring Steel Clearance in Groove (C1): 9 mm Category: Retaining Rings - Internal - Snap Rings

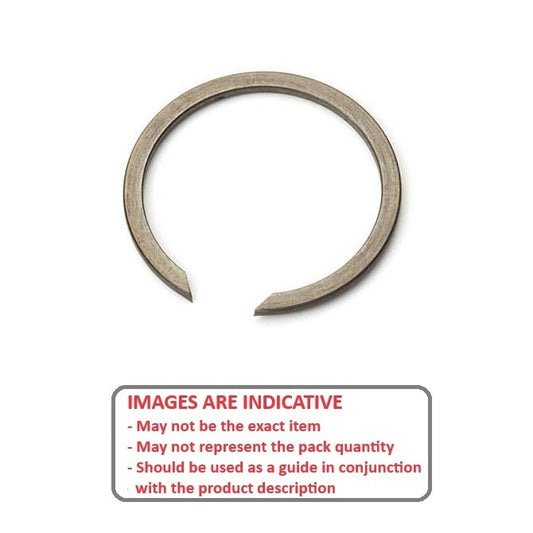

Part Number: WRI-0110-LS Internal Retaining Rings - 11x1x11.4 mm - Spring Steel 178 Available Immediately \| Further orders can be expected around Tue, Jul 01, 2025 Regular price $2.50 AUD Regular price Sale price $2.50 AUD Unit price per Each
Housing Bore (B) 11.00 mm _{(0.433 in.)}	Clip Thickness (T) 1.00 mm + 0 / - 0.10 _{(0.039 in.)}	Groove Dia. (Dg) 11.40 mm + 0.11 / - 0.00 _{(0.449 in.)}	Approx. Loose Circlip OD (Dr) 11.60 mm
Material: Spring Steel Radial Wall (S): 1.30 mm + 0 / - 0.10 Groove Width (W): 1.10 mm Clearance in Groove (C1): 9 mm Category: Retaining Rings - Internal - Snap Rings
Part Number: WRI-0110-LS Internal Retaining Rings - 11x1x11.4 mm - Spring Steel 178 Available Immediately \| Further orders can be expected around Tue, Jul 01, 2025 Regular price $2.50 AUD Regular price Sale price $2.50 AUD Unit price per Each View the product page first if you are unsure.
WRI-0110-LS --- Internal Retaining Rings - 11x1x11.4 mm - Spring Steel WRI-0110-LS --- Internal Retaining Rings - 11x1x11.4 mm - Spring Steel Regular price $2.50 AUD Regular price Sale price $2.50 AUD Unit price per 178 Available Now
Housing Bore (B) 11.00 mm _{(0.433 in.)}	Clip Thickness (T) 1.00 mm + 0.11 / - 0.00 _{(0.039 in.)}	Groove Dia. (Dg) 11.40 mm + 0.00 / - 0.06 _{(0.449 in.)}	Approx. Loose Circlip OD (Dr) 11.80 mm + 0.36 / - 0.10		Groove Width (W) 1.10 mm + 0.05 / - 0.00
Material: Carbon Steel Clearance in Bore (C): 4.10 mm Clearance in Groove (C1): 4.80 mm Category: Retaining Rings - Internal - Circlips
Part Number: CCI-01100-C (50 Pcs) Internal Retaining Rings - 11x1x11.4 mm - Carbon Steel 15 units (750 pcs) Available Immediately \| Further orders can be expected around Sat, Jun 07, 2025 Regular price $6.23 AUD Regular price Sale price $6.23 AUD Unit price per Per 50
Housing Bore (B) 11.00 mm _{(0.433 in.)}	Clip Thickness (T) 1.00 mm + 0.11 / - 0.00 _{(0.039 in.)}	Groove Dia. (Dg) 11.40 mm + 0.00 / - 0.06 _{(0.449 in.)}	Approx. Loose Circlip OD (Dr) 11.80 mm + 0.36 / - 0.10
Material: Carbon Steel Groove Width (W): 1.10 mm + 0.05 / - 0.00 Clearance in Bore (C): 4.10 mm Clearance in Groove (C1): 4.80 mm Category: Retaining Rings - Internal - Circlips
Part Number: CCI-01100-C (50 Pcs) Internal Retaining Rings - 11x1x11.4 mm - Carbon Steel 15 units (750 pcs) Available Immediately \| Further orders can be expected around Sat, Jun 07, 2025 Regular price $6.23 AUD Regular price Sale price $6.23 AUD Unit price per Per 50 View the product page first if you are unsure.
CCI-01100-C (50 Pcs) --- Internal Retaining Rings - 11x1x11.4 mm - Carbon Steel CCI-01100-C (50 Pcs) --- Internal Retaining Rings - 11x1x11.4 mm - Carbon Steel Regular price $6.23 AUD Regular price Sale price $6.23 AUD Unit price per 15 Available Now
Housing Bore (B) 11.00 mm _{(0.433 in.)}	Clip Thickness (T) 1.00 mm + 0.11 / - 0.00 _{(0.039 in.)}	Groove Dia. (Dg) 11.40 mm + 0.00 / - 0.06 _{(0.449 in.)}	Approx. Loose Circlip OD (Dr) 11.80 mm + 0.36 / - 0.10		Groove Width (W) 1.10 mm + 0.05 / - 0.00
Material: Stainless Steel Grade PH15-7 Mo Clearance in Bore (C): 4.10 mm Clearance in Groove (C1): 4.80 mm Category: Retaining Rings - Internal - Circlips

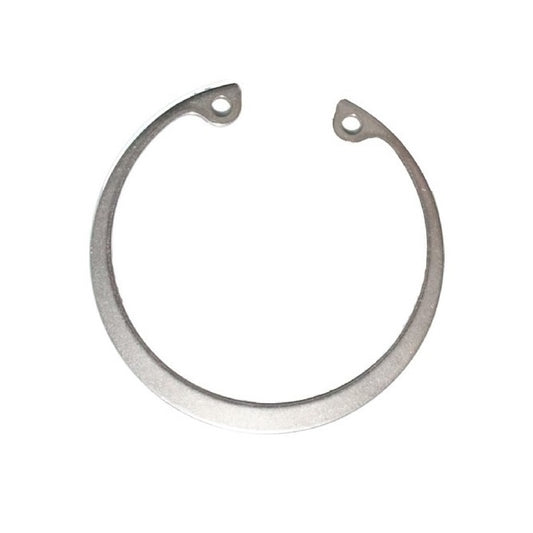

Part Number: CCI-01100-S15 (2 Pcs) Internal Retaining Rings - 11x1x11.4 mm - Stainless Steel Grade PH15-7 Mo 12 units (24 pcs) Available Immediately \| Further orders can be expected around Sat, Jun 07, 2025 Regular price $6.50 AUD Regular price Sale price $6.50 AUD Unit price per Per 2
Housing Bore (B) 11.00 mm _{(0.433 in.)}	Clip Thickness (T) 1.00 mm + 0.11 / - 0.00 _{(0.039 in.)}	Groove Dia. (Dg) 11.40 mm + 0.00 / - 0.06 _{(0.449 in.)}	Approx. Loose Circlip OD (Dr) 11.80 mm + 0.36 / - 0.10
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 1.10 mm + 0.05 / - 0.00 Clearance in Bore (C): 4.10 mm Clearance in Groove (C1): 4.80 mm Category: Retaining Rings - Internal - Circlips
Part Number: CCI-01100-S15 (2 Pcs) Internal Retaining Rings - 11x1x11.4 mm - Stainless Steel Grade PH15-7 Mo 12 units (24 pcs) Available Immediately \| Further orders can be expected around Sat, Jun 07, 2025 Regular price $6.50 AUD Regular price Sale price $6.50 AUD Unit price per Per 2 View the product page first if you are unsure.
CCI-01100-S15 (2 Pcs) --- Internal Retaining Rings - 11x1x11.4 mm - Stainless Steel Grade PH15-7 Mo CCI-01100-S15 (2 Pcs) --- Internal Retaining Rings - 11x1x11.4 mm - Stainless Steel Grade PH15-7 Mo Regular price $6.50 AUD Regular price Sale price $6.50 AUD Unit price per 12 Available Now
Housing Bore (B) 11.11 mm _{(0.437 in.)}	Clip Thickness (T) 0.64 mm +/- 0.050 _{(0.025 in.)}	Groove Dia. (Dg) 11.71 mm + 0.00 / - 0.06 _{(0.461 in.)}	Approx. Loose Circlip OD (Dr) 12.24 mm + 0.25 / - 0.13		Groove Width (W) 0.74 mm + 0.08 / - 0.00
Material: Carbon Steel Clearance in Bore (C): 5.84 mm Clearance in Groove (C1): 6.35 mm Category: Retaining Rings - Internal - Circlips
Part Number: CCI-01111-C (20 Pcs) Internal Retaining Rings - 11.11x0.64x11.71 mm - Carbon Steel 22 units (440 pcs) Available Immediately \| Further orders can be expected around Sat, Jun 07, 2025 Regular price $5.50 AUD Regular price Sale price $5.50 AUD Unit price per Per 20
Housing Bore (B) 11.11 mm _{(0.437 in.)}	Clip Thickness (T) 0.64 mm +/- 0.050 _{(0.025 in.)}	Groove Dia. (Dg) 11.71 mm + 0.00 / - 0.06 _{(0.461 in.)}	Approx. Loose Circlip OD (Dr) 12.24 mm + 0.25 / - 0.13
Material: Carbon Steel Groove Width (W): 0.74 mm + 0.08 / - 0.00 Clearance in Bore (C): 5.84 mm Clearance in Groove (C1): 6.35 mm Category: Retaining Rings - Internal - Circlips
Part Number: CCI-01111-C (20 Pcs) Internal Retaining Rings - 11.11x0.64x11.71 mm - Carbon Steel 22 units (440 pcs) Available Immediately \| Further orders can be expected around Sat, Jun 07, 2025 Regular price $5.50 AUD Regular price Sale price $5.50 AUD Unit price per Per 20 View the product page first if you are unsure.
CCI-01111-C (20 Pcs) --- Internal Retaining Rings - 11.11x0.64x11.71 mm - Carbon Steel CCI-01111-C (20 Pcs) --- Internal Retaining Rings - 11.11x0.64x11.71 mm - Carbon Steel Regular price $5.50 AUD Regular price Sale price $5.50 AUD Unit price per 22 Available Now
Housing Bore (B) 11.11 mm _{(0.437 in.)}	Clip Thickness (T) 0.64 mm +/- 0.050 _{(0.025 in.)}	Groove Dia. (Dg) 11.71 mm + 0.00 / - 0.06 _{(0.461 in.)}	Approx. Loose Circlip OD (Dr) 12.24 mm + 0.25 / - 0.13		Groove Width (W) 0.74 mm + 0.08 / - 0.00
Material: Carbon Steel Zinc Plated Clearance in Bore (C): 5.84 mm Clearance in Groove (C1): 6.35 mm Category: Retaining Rings - Internal - Circlips

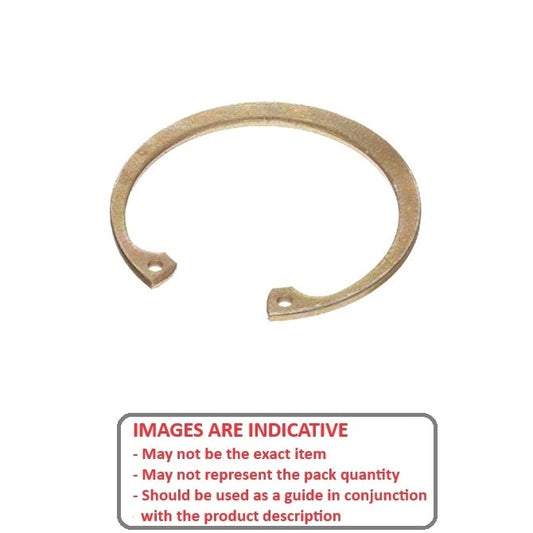

Part Number: CCI-01111-CZY (5 Pcs) Internal Retaining Rings - 11.11x0.64x11.71 mm - Carbon Steel Zinc Plated 40 units (200 pcs) Available Immediately \| Further orders can be expected around Sat, Jun 07, 2025 Regular price $2.68 AUD Regular price Sale price $2.68 AUD Unit price per Per 5
Housing Bore (B) 11.11 mm _{(0.437 in.)}	Clip Thickness (T) 0.64 mm +/- 0.050 _{(0.025 in.)}	Groove Dia. (Dg) 11.71 mm + 0.00 / - 0.06 _{(0.461 in.)}	Approx. Loose Circlip OD (Dr) 12.24 mm + 0.25 / - 0.13
Material: Carbon Steel Zinc Plated Groove Width (W): 0.74 mm + 0.08 / - 0.00 Clearance in Bore (C): 5.84 mm Clearance in Groove (C1): 6.35 mm Category: Retaining Rings - Internal - Circlips
Part Number: CCI-01111-CZY (5 Pcs) Internal Retaining Rings - 11.11x0.64x11.71 mm - Carbon Steel Zinc Plated 40 units (200 pcs) Available Immediately \| Further orders can be expected around Sat, Jun 07, 2025 Regular price $2.68 AUD Regular price Sale price $2.68 AUD Unit price per Per 5 View the product page first if you are unsure.
CCI-01111-CZY (5 Pcs) --- Internal Retaining Rings - 11.11x0.64x11.71 mm - Carbon Steel Zinc Plated CCI-01111-CZY (5 Pcs) --- Internal Retaining Rings - 11.11x0.64x11.71 mm - Carbon Steel Zinc Plated Regular price $2.68 AUD Regular price Sale price $2.68 AUD Unit price per 40 Available Now
Housing Bore (B) 11.11 mm _{(0.437 in.)}	Clip Thickness (T) 0.64 mm +/- 0.050 _{(0.025 in.)}	Groove Dia. (Dg) 11.71 mm + 0.00 / - 0.06 _{(0.461 in.)}	Approx. Loose Circlip OD (Dr) 12.24 mm + 0.25 / - 0.13		Groove Width (W) 0.74 mm + 0.08 / - 0.00
Material: Stainless Steel Grade PH15-7 Mo Clearance in Bore (C): 5.84 mm Clearance in Groove (C1): 6.35 mm Category: Retaining Rings - Internal - Circlips

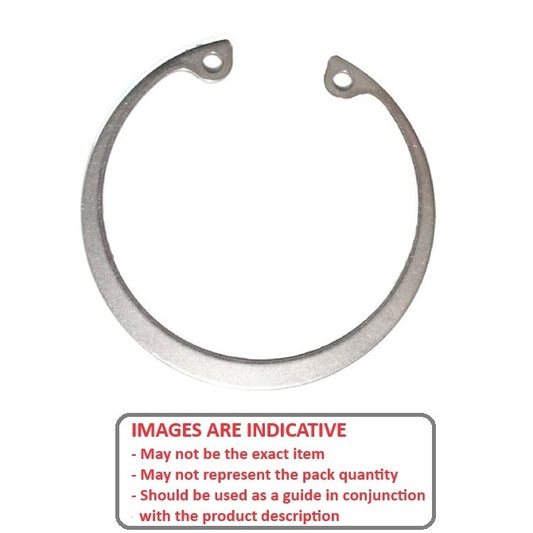

Part Number: CCI-01111-S15 (2 Pcs) Internal Retaining Rings - 11.11x0.64x11.71 mm - Stainless Steel Grade PH15-7 Mo 195 units (390 pcs) Available Immediately \| Further orders can be expected around Sat, Jun 07, 2025 Regular price $6.14 AUD Regular price Sale price $6.14 AUD Unit price per Per 2
Housing Bore (B) 11.11 mm _{(0.437 in.)}	Clip Thickness (T) 0.64 mm +/- 0.050 _{(0.025 in.)}	Groove Dia. (Dg) 11.71 mm + 0.00 / - 0.06 _{(0.461 in.)}	Approx. Loose Circlip OD (Dr) 12.24 mm + 0.25 / - 0.13
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 0.74 mm + 0.08 / - 0.00 Clearance in Bore (C): 5.84 mm Clearance in Groove (C1): 6.35 mm Category: Retaining Rings - Internal - Circlips
Part Number: CCI-01111-S15 (2 Pcs) Internal Retaining Rings - 11.11x0.64x11.71 mm - Stainless Steel Grade PH15-7 Mo 195 units (390 pcs) Available Immediately \| Further orders can be expected around Sat, Jun 07, 2025 Regular price $6.14 AUD Regular price Sale price $6.14 AUD Unit price per Per 2 View the product page first if you are unsure.
CCI-01111-S15 (2 Pcs) --- Internal Retaining Rings - 11.11x0.64x11.71 mm - Stainless Steel Grade PH15-7 Mo CCI-01111-S15 (2 Pcs) --- Internal Retaining Rings - 11.11x0.64x11.71 mm - Stainless Steel Grade PH15-7 Mo Regular price $6.14 AUD Regular price Sale price $6.14 AUD Unit price per 195 Available Now
Housing Bore (B) 11.13 mm _{(0.438 in.)}	Clip Thickness (T) 0.64 mm +/- 0.05 _{(0.025 in.)}	Groove Dia. (Dg) 11.74 mm +/- 0.08 _{(0.462 in.)}	Approx. Loose Circlip OD (Dr) 11.86 mm + 0.51 / - 0.00	Radial Wall (S) 0.89 mm +/- 0.08	Groove Width (W) 0.71 mm
Material: Spring Steel Clearance in Groove (C1): 10.08 mm Category: Retaining Rings - Internal - Snap Rings
Part Number: WRI-0111-LS-O Internal Retaining Rings - 11.13x0.64x11.74 mm - Spring Steel Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Housing Bore (B) 11.13 mm _{(0.438 in.)}	Clip Thickness (T) 0.64 mm +/- 0.05 _{(0.025 in.)}	Groove Dia. (Dg) 11.74 mm +/- 0.08 _{(0.462 in.)}	Approx. Loose Circlip OD (Dr) 11.86 mm + 0.51 / - 0.00
Material: Spring Steel Radial Wall (S): 0.89 mm +/- 0.08 Groove Width (W): 0.71 mm Clearance in Groove (C1): 10.08 mm Category: Retaining Rings - Internal - Snap Rings
Part Number: WRI-0111-LS-O Internal Retaining Rings - 11.13x0.64x11.74 mm - Spring Steel Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Housing Bore (B) 11.51 mm _{(0.453 in.)}	Clip Thickness (T) 0.64 mm +/- 0.050 _{(0.025 in.)}	Groove Dia. (Dg) 12.12 mm + 0.00 / - 0.06 _{(0.477 in.)}	Approx. Loose Circlip OD (Dr) 12.65 mm + 0.25 / - 0.13		Groove Width (W) 0.74 mm + 0.08 / - 0.00
Material: Stainless Steel Grade PH15-7 Mo Clearance in Bore (C): 6.35 mm Clearance in Groove (C1): 6.86 mm Category: Retaining Rings - Internal - Circlips
Part Number: CCI-01151-S15 Internal Retaining Rings - 11.51x0.64x12.12 mm - Stainless Steel Grade PH15-7 Mo 17 Available Immediately \| Further orders can be expected around Sat, Jun 07, 2025 Regular price $4.23 AUD Regular price Sale price $4.23 AUD Unit price per Each
Housing Bore (B) 11.51 mm _{(0.453 in.)}	Clip Thickness (T) 0.64 mm +/- 0.050 _{(0.025 in.)}	Groove Dia. (Dg) 12.12 mm + 0.00 / - 0.06 _{(0.477 in.)}	Approx. Loose Circlip OD (Dr) 12.65 mm + 0.25 / - 0.13
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 0.74 mm + 0.08 / - 0.00 Clearance in Bore (C): 6.35 mm Clearance in Groove (C1): 6.86 mm Category: Retaining Rings - Internal - Circlips
Part Number: CCI-01151-S15 Internal Retaining Rings - 11.51x0.64x12.12 mm - Stainless Steel Grade PH15-7 Mo 17 Available Immediately \| Further orders can be expected around Sat, Jun 07, 2025 Regular price $4.23 AUD Regular price Sale price $4.23 AUD Unit price per Each View the product page first if you are unsure.
CCI-01151-S15 --- Internal Retaining Rings - 11.51x0.64x12.12 mm - Stainless Steel Grade PH15-7 Mo CCI-01151-S15 --- Internal Retaining Rings - 11.51x0.64x12.12 mm - Stainless Steel Grade PH15-7 Mo Regular price $4.23 AUD Regular price Sale price $4.23 AUD Unit price per 17 Available Now
Housing Bore (B) 11.51 mm _{(0.453 in.)}	Clip Thickness (T) 0.64 mm +/- 0.050 _{(0.025 in.)}	Groove Dia. (Dg) 12.12 mm + 0.00 / - 0.06 _{(0.477 in.)}	Approx. Loose Circlip OD (Dr) 12.65 mm + 0.25 / - 0.13		Groove Width (W) 0.74 mm + 0.08 / - 0.00
Material: Carbon Steel Clearance in Bore (C): 6.35 mm Clearance in Groove (C1): 6.86 mm Category: Retaining Rings - Internal - Circlips
Part Number: CCI-01151-C (100 Pcs) Internal Retaining Rings - 11.51x0.64x12.12 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $45.50 AUD Regular price Sale price $45.50 AUD Unit price per Per 100
Housing Bore (B) 11.51 mm _{(0.453 in.)}	Clip Thickness (T) 0.64 mm +/- 0.050 _{(0.025 in.)}	Groove Dia. (Dg) 12.12 mm + 0.00 / - 0.06 _{(0.477 in.)}	Approx. Loose Circlip OD (Dr) 12.65 mm + 0.25 / - 0.13
Material: Carbon Steel Groove Width (W): 0.74 mm + 0.08 / - 0.00 Clearance in Bore (C): 6.35 mm Clearance in Groove (C1): 6.86 mm Category: Retaining Rings - Internal - Circlips
Part Number: CCI-01151-C (100 Pcs) Internal Retaining Rings - 11.51x0.64x12.12 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $45.50 AUD Regular price Sale price $45.50 AUD Unit price per Per 100 View the product page first if you are unsure.
CCI-01151-C (100 Pcs) --- Internal Retaining Rings - 11.51x0.64x12.12 mm - Carbon Steel CCI-01151-C (100 Pcs) --- Internal Retaining Rings - 11.51x0.64x12.12 mm - Carbon Steel Regular price $45.50 AUD Regular price Sale price $45.50 AUD Unit price per Out of stock! Backorder Now
Housing Bore (B) 11.51 mm _{(0.453 in.)}	Clip Thickness (T) 0.64 mm +/- 0.050 _{(0.025 in.)}	Groove Dia. (Dg) 12.12 mm + 0.00 / - 0.06 _{(0.477 in.)}	Approx. Loose Circlip OD (Dr) 12.65 mm + 0.25 / - 0.13		Groove Width (W) 0.74 mm + 0.08 / - 0.00
Material: Carbon Steel Zinc Plated Clearance in Bore (C): 6.35 mm Clearance in Groove (C1): 6.86 mm Category: Retaining Rings - Internal - Circlips

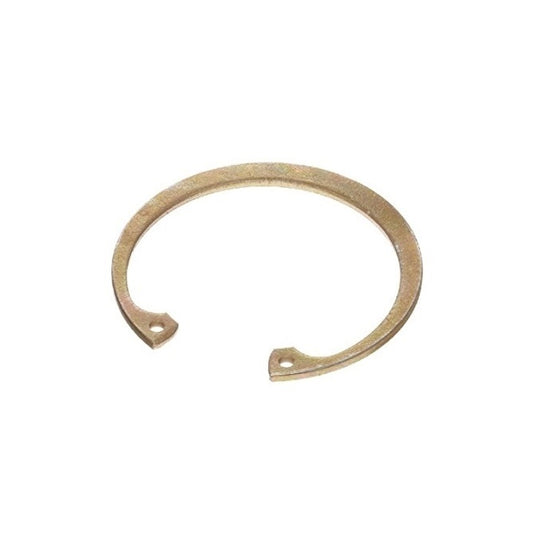

Part Number: CCI-01151-CZY (5 Pcs) Internal Retaining Rings - 11.51x0.64x12.12 mm - Carbon Steel Zinc Plated 40 units (200 pcs) Available Immediately \| Further orders can be expected around Sat, Jun 07, 2025 Regular price $3.95 AUD Regular price Sale price $3.95 AUD Unit price per Per 5
Housing Bore (B) 11.51 mm _{(0.453 in.)}	Clip Thickness (T) 0.64 mm +/- 0.050 _{(0.025 in.)}	Groove Dia. (Dg) 12.12 mm + 0.00 / - 0.06 _{(0.477 in.)}	Approx. Loose Circlip OD (Dr) 12.65 mm + 0.25 / - 0.13
Material: Carbon Steel Zinc Plated Groove Width (W): 0.74 mm + 0.08 / - 0.00 Clearance in Bore (C): 6.35 mm Clearance in Groove (C1): 6.86 mm Category: Retaining Rings - Internal - Circlips
Part Number: CCI-01151-CZY (5 Pcs) Internal Retaining Rings - 11.51x0.64x12.12 mm - Carbon Steel Zinc Plated 40 units (200 pcs) Available Immediately \| Further orders can be expected around Sat, Jun 07, 2025 Regular price $3.95 AUD Regular price Sale price $3.95 AUD Unit price per Per 5 View the product page first if you are unsure.
CCI-01151-CZY (5 Pcs) --- Internal Retaining Rings - 11.51x0.64x12.12 mm - Carbon Steel Zinc Plated CCI-01151-CZY (5 Pcs) --- Internal Retaining Rings - 11.51x0.64x12.12 mm - Carbon Steel Zinc Plated Regular price $3.95 AUD Regular price Sale price $3.95 AUD Unit price per 40 Available Now
Housing Bore (B) 12.00 mm _{(0.472 in.)}	Clip Thickness (T) 0.60 mm + 0.11 / - 0.00 _{(0.024 in.)}	Groove Dia. (Dg) 12.60 mm + 0.00 / - 0.05 _{(0.496 in.)}	Approx. Loose Circlip OD (Dr) 13.10 mm + 0.42 / - 0.13	Radial Wall (S) 1.7 - 1.8 mm	Groove Width (W) 0.70 mm
Material: Carbon Steel Category: Retaining Rings - Internal - Circlips
Part Number: CCI-01200-C-V (250 Pcs) Internal Retaining Rings - 12x0.6x12.6 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Aug 07, 2025 Regular price $101.14 AUD Regular price Sale price $101.14 AUD Unit price per Per 250
Housing Bore (B) 12.00 mm _{(0.472 in.)}	Clip Thickness (T) 0.60 mm + 0.11 / - 0.00 _{(0.024 in.)}	Groove Dia. (Dg) 12.60 mm + 0.00 / - 0.05 _{(0.496 in.)}	Approx. Loose Circlip OD (Dr) 13.10 mm + 0.42 / - 0.13
Material: Carbon Steel Radial Wall (S): 1.7 - 1.8 mm Groove Width (W): 0.70 mm Category: Retaining Rings - Internal - Circlips
Part Number: CCI-01200-C-V (250 Pcs) Internal Retaining Rings - 12x0.6x12.6 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Aug 07, 2025 Regular price $101.14 AUD Regular price Sale price $101.14 AUD Unit price per Per 250 View the product page first if you are unsure.
CCI-01200-C-V (250 Pcs) --- Internal Retaining Rings - 12x0.6x12.6 mm - Carbon Steel CCI-01200-C-V (250 Pcs) --- Internal Retaining Rings - 12x0.6x12.6 mm - Carbon Steel Regular price $101.14 AUD Regular price Sale price $101.14 AUD Unit price per Out of stock! Backorder Now
Housing Bore (B) 12.00 mm _{(0.472 in.)}	Clip Thickness (T) 1.00 mm + 0 / - 0.10 _{(0.039 in.)}	Groove Dia. (Dg) 12.40 mm + 0.11 / - 0.00 _{(0.488 in.)}	Approx. Loose Circlip OD (Dr) 12.70 mm	Radial Wall (S) 1.30 mm + 0 / - 0.10	Groove Width (W) 1.10 mm
Material: Spring Steel Clearance in Groove (C1): 10.1 mm Category: Retaining Rings - Internal - Snap Rings
Part Number: WRI-0120-LS (2 Pcs) Internal Retaining Rings - 12x1x12.4 mm - Spring Steel 388 units (776 pcs) Available Immediately \| Further orders can be expected around Fri, Jan 02, 2026 Regular price $5.05 AUD Regular price Sale price $5.05 AUD Unit price per Per 2
Housing Bore (B) 12.00 mm _{(0.472 in.)}	Clip Thickness (T) 1.00 mm + 0 / - 0.10 _{(0.039 in.)}	Groove Dia. (Dg) 12.40 mm + 0.11 / - 0.00 _{(0.488 in.)}	Approx. Loose Circlip OD (Dr) 12.70 mm
Material: Spring Steel Radial Wall (S): 1.30 mm + 0 / - 0.10 Groove Width (W): 1.10 mm Clearance in Groove (C1): 10.1 mm Category: Retaining Rings - Internal - Snap Rings
Part Number: WRI-0120-LS (2 Pcs) Internal Retaining Rings - 12x1x12.4 mm - Spring Steel 388 units (776 pcs) Available Immediately \| Further orders can be expected around Fri, Jan 02, 2026 Regular price $5.05 AUD Regular price Sale price $5.05 AUD Unit price per Per 2 View the product page first if you are unsure.
WRI-0120-LS (2 Pcs) --- Internal Retaining Rings - 12x1x12.4 mm - Spring Steel WRI-0120-LS (2 Pcs) --- Internal Retaining Rings - 12x1x12.4 mm - Spring Steel Regular price $5.05 AUD Regular price Sale price $5.05 AUD Unit price per 388 Available Now
Housing Bore (B) 12.00 mm _{(0.472 in.)}	Clip Thickness (T) 1.00 mm + 0.11 / - 0.00 _{(0.039 in.)}	Groove Dia. (Dg) 12.50 mm + 0.00 / - 0.06 _{(0.492 in.)}	Approx. Loose Circlip OD (Dr) 13.00 mm + 0.36 / - 0.10		Groove Width (W) 1.10 mm + 0.08 / - 0.00
Material: Stainless Steel Grade PH15-7 Mo Clearance in Bore (C): 4.90 mm Clearance in Groove (C1): 5.70 mm Category: Retaining Rings - Internal - Circlips
Part Number: CCI-01200-S15 (2 Pcs) Internal Retaining Rings - 12x1x12.5 mm - Stainless Steel Grade PH15-7 Mo 6 units (12 pcs) Available Immediately \| Further orders can be expected around Sat, Jun 07, 2025 Regular price $7.14 AUD Regular price Sale price $7.14 AUD Unit price per Per 2
Housing Bore (B) 12.00 mm _{(0.472 in.)}	Clip Thickness (T) 1.00 mm + 0.11 / - 0.00 _{(0.039 in.)}	Groove Dia. (Dg) 12.50 mm + 0.00 / - 0.06 _{(0.492 in.)}	Approx. Loose Circlip OD (Dr) 13.00 mm + 0.36 / - 0.10
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 1.10 mm + 0.08 / - 0.00 Clearance in Bore (C): 4.90 mm Clearance in Groove (C1): 5.70 mm Category: Retaining Rings - Internal - Circlips
Part Number: CCI-01200-S15 (2 Pcs) Internal Retaining Rings - 12x1x12.5 mm - Stainless Steel Grade PH15-7 Mo 6 units (12 pcs) Available Immediately \| Further orders can be expected around Sat, Jun 07, 2025 Regular price $7.14 AUD Regular price Sale price $7.14 AUD Unit price per Per 2 View the product page first if you are unsure.
CCI-01200-S15 (2 Pcs) --- Internal Retaining Rings - 12x1x12.5 mm - Stainless Steel Grade PH15-7 Mo CCI-01200-S15 (2 Pcs) --- Internal Retaining Rings - 12x1x12.5 mm - Stainless Steel Grade PH15-7 Mo Regular price $7.14 AUD Regular price Sale price $7.14 AUD Unit price per 6 Available Now
Housing Bore (B) 12.00 mm _{(0.472 in.)}	Clip Thickness (T) 1.00 mm + 0.11 / - 0.00 _{(0.039 in.)}	Groove Dia. (Dg) 12.50 mm + 0.00 / - 0.06 _{(0.492 in.)}	Approx. Loose Circlip OD (Dr) 13.00 mm + 0.36 / - 0.10		Groove Width (W) 1.10 mm + 0.08 / - 0.00
Material: Carbon Steel Clearance in Bore (C): 4.90 mm Clearance in Groove (C1): 5.70 mm Category: Retaining Rings - Internal - Circlips
Part Number: CCI-01200-C (50 Pcs) Internal Retaining Rings - 12x1x12.5 mm - Carbon Steel 9 units (450 pcs) Available Immediately \| Further orders can be expected around Sat, Jun 07, 2025 Regular price $7.59 AUD Regular price Sale price $7.59 AUD Unit price per Per 50
Housing Bore (B) 12.00 mm _{(0.472 in.)}	Clip Thickness (T) 1.00 mm + 0.11 / - 0.00 _{(0.039 in.)}	Groove Dia. (Dg) 12.50 mm + 0.00 / - 0.06 _{(0.492 in.)}	Approx. Loose Circlip OD (Dr) 13.00 mm + 0.36 / - 0.10
Material: Carbon Steel Groove Width (W): 1.10 mm + 0.08 / - 0.00 Clearance in Bore (C): 4.90 mm Clearance in Groove (C1): 5.70 mm Category: Retaining Rings - Internal - Circlips
Part Number: CCI-01200-C (50 Pcs) Internal Retaining Rings - 12x1x12.5 mm - Carbon Steel 9 units (450 pcs) Available Immediately \| Further orders can be expected around Sat, Jun 07, 2025 Regular price $7.59 AUD Regular price Sale price $7.59 AUD Unit price per Per 50 View the product page first if you are unsure.
CCI-01200-C (50 Pcs) --- Internal Retaining Rings - 12x1x12.5 mm - Carbon Steel CCI-01200-C (50 Pcs) --- Internal Retaining Rings - 12x1x12.5 mm - Carbon Steel Regular price $7.59 AUD Regular price Sale price $7.59 AUD Unit price per 9 Available Now
Housing Bore (B) 12.00 mm _{(0.472 in.)}	Clip Thickness (T) 1.0 mm B DIN 2076 _{(0.039 in.)}	Groove Dia. (Dg) 13.00 mm + 0.4 / - 0.0 _{(0.512 in.)}	Approx. Loose Circlip OD (Dr) 13.20 mm		Groove Width (W) 1.20 mm
Material: Spring Steel Clearance in Bore (C): 11.2 mm Category: Retaining Rings - Internal - Round Wire

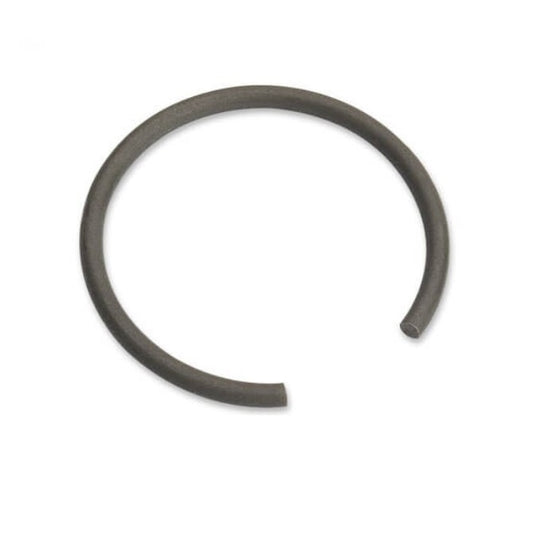

Part Number: WRI-0120-RD (50 Pcs) Internal Retaining Rings - 12x1x13 mm - Spring Steel 9 units (450 pcs) Available Immediately \| Further orders can be expected around Sat, Jun 07, 2025 Regular price $8.86 AUD Regular price Sale price $8.86 AUD Unit price per Per 50
Housing Bore (B) 12.00 mm _{(0.472 in.)}	Clip Thickness (T) 1.0 mm B DIN 2076 _{(0.039 in.)}	Groove Dia. (Dg) 13.00 mm + 0.4 / - 0.0 _{(0.512 in.)}	Approx. Loose Circlip OD (Dr) 13.20 mm
Material: Spring Steel Groove Width (W): 1.20 mm Clearance in Bore (C): 11.2 mm Category: Retaining Rings - Internal - Round Wire
Part Number: WRI-0120-RD (50 Pcs) Internal Retaining Rings - 12x1x13 mm - Spring Steel 9 units (450 pcs) Available Immediately \| Further orders can be expected around Sat, Jun 07, 2025 Regular price $8.86 AUD Regular price Sale price $8.86 AUD Unit price per Per 50 View the product page first if you are unsure.

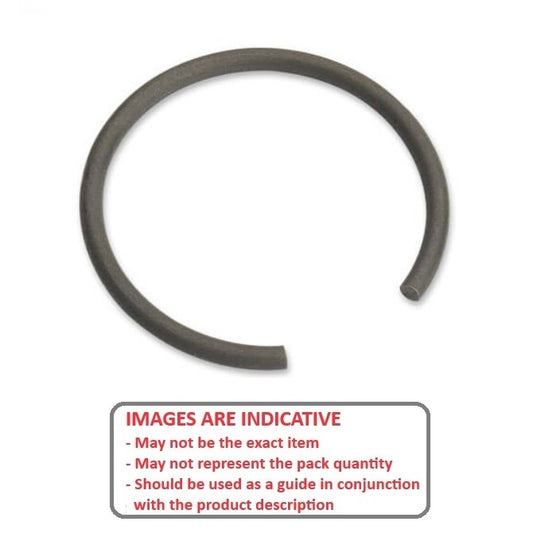

WRI-0120-RD (50 Pcs) --- Internal Retaining Rings - 12x1x13 mm - Spring Steel WRI-0120-RD (50 Pcs) --- Internal Retaining Rings - 12x1x13 mm - Spring Steel Regular price $8.86 AUD Regular price Sale price $8.86 AUD Unit price per 9 Available Now
Housing Bore (B) 12.00 mm _{(0.472 in.)}	Clip Thickness (T) 1.0 mm + 0.08 / - 0.04 _{(0.039 in.)}	Groove Dia. (Dg) 13.28 mm Min. _{(0.523 in.)}	Approx. Loose Circlip OD (Dr) 13.90 mm		Groove Width (W) 1.10 mm + 0.08 / - 0.00
Material: Spring Steel Clearance in Bore (C): 11.9 mm Category: Retaining Rings - Internal - Round Wire
Part Number: WRI-0120A-RD Internal Retaining Rings - 12x1x13.28 mm - Spring Steel Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Housing Bore (B) 12.00 mm _{(0.472 in.)}	Clip Thickness (T) 1.0 mm + 0.08 / - 0.04 _{(0.039 in.)}	Groove Dia. (Dg) 13.28 mm Min. _{(0.523 in.)}	Approx. Loose Circlip OD (Dr) 13.90 mm
Material: Spring Steel Groove Width (W): 1.10 mm + 0.08 / - 0.00 Clearance in Bore (C): 11.9 mm Category: Retaining Rings - Internal - Round Wire
Part Number: WRI-0120A-RD Internal Retaining Rings - 12x1x13.28 mm - Spring Steel Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Housing Bore (B) 12.50 mm _{(0.492 in.)}	Clip Thickness (T) 1.0 mm + 0.08 / - 0.04 _{(0.039 in.)}	Groove Dia. (Dg) 13.79 mm Min. _{(0.543 in.)}	Approx. Loose Circlip OD (Dr) 14.40 mm		Groove Width (W) 1.10 mm + 0.08 / - 0.00
Material: Spring Steel Clearance in Bore (C): 12.4 mm Category: Retaining Rings - Internal - Round Wire
Part Number: WRI-0125A-RD Internal Retaining Rings - 12.5x1x13.79 mm - Spring Steel Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Housing Bore (B) 12.50 mm _{(0.492 in.)}	Clip Thickness (T) 1.0 mm + 0.08 / - 0.04 _{(0.039 in.)}	Groove Dia. (Dg) 13.79 mm Min. _{(0.543 in.)}	Approx. Loose Circlip OD (Dr) 14.40 mm
Material: Spring Steel Groove Width (W): 1.10 mm + 0.08 / - 0.00 Clearance in Bore (C): 12.4 mm Category: Retaining Rings - Internal - Round Wire
Part Number: WRI-0125A-RD Internal Retaining Rings - 12.5x1x13.79 mm - Spring Steel Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Housing Bore (B) 12.70 mm _{(0.5 in.)}	Clip Thickness (T) 0.46 mm +/- 0.04 _{(0.018 in.)}	Groove Dia. (Dg) 13.41 mm _{(0.528 in.)}	Approx. Loose Circlip OD (Dr) 13.31 mm + 0.33 / - 0.00	Radial Wall (S) 1.14 mm + 0.08 / - 0.13	Groove Width (W) 0.56 mm +/- 0.05
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Clearance in Groove (C1): 11.03 mm + + 0.05 / - 0.00 Category: Retaining Rings - Internal - Spiral Rings

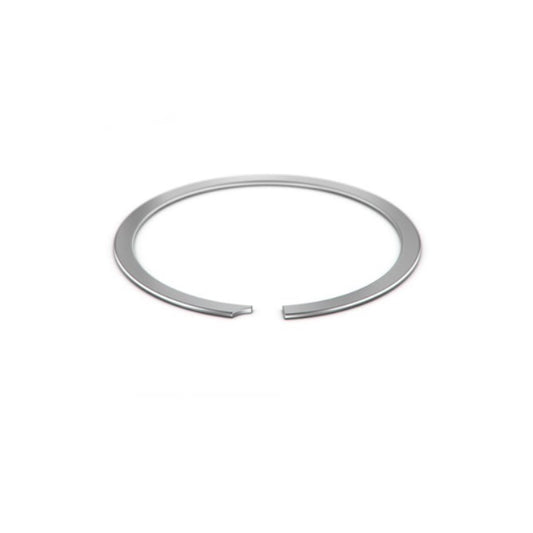

Part Number: UR-050-S02 (8 Pcs) Internal Retaining Rings - 12.7x0.46x13.41 mm - Stainless Steel 302/304 Similar to A2, 18-8 Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $13.50 AUD Regular price Sale price $13.50 AUD Unit price per Per 8
Housing Bore (B) 12.70 mm _{(0.5 in.)}	Clip Thickness (T) 0.46 mm +/- 0.04 _{(0.018 in.)}	Groove Dia. (Dg) 13.41 mm _{(0.528 in.)}	Approx. Loose Circlip OD (Dr) 13.31 mm + 0.33 / - 0.00
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Radial Wall (S): 1.14 mm + 0.08 / - 0.13 Groove Width (W): 0.56 mm +/- 0.05 Clearance in Groove (C1): 11.03 mm + + 0.05 / - 0.00 Category: Retaining Rings - Internal - Spiral Rings
Part Number: UR-050-S02 (8 Pcs) Internal Retaining Rings - 12.7x0.46x13.41 mm - Stainless Steel 302/304 Similar to A2, 18-8 Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $13.50 AUD Regular price Sale price $13.50 AUD Unit price per Per 8 View the product page first if you are unsure.
UR-050-S02 (8 Pcs) --- Internal Retaining Rings - 12.7x0.46x13.41 mm - Stainless Steel 302/304 Similar to A2, 18-8 UR-050-S02 (8 Pcs) --- Internal Retaining Rings - 12.7x0.46x13.41 mm - Stainless Steel 302/304 Similar to A2, 18-8 Regular price $13.50 AUD Regular price Sale price $13.50 AUD Unit price per Out of stock! Backorder Now
Housing Bore (B) 12.70 mm _{(0.5 in.)}	Clip Thickness (T) 0.64 mm +/- 0.06 _{(0.025 in.)}	Groove Dia. (Dg) 13.35 mm _{(0.526 in.)}	Approx. Loose Circlip OD (Dr) 13.26 mm + 0.33 / - 0.00	Radial Wall (S) 1.14 mm +/- 0.10	Groove Width (W) 0.80 mm +/- 0.05
Material: Spring Steel Clearance in Groove (C1): 10.98 mm +/- 0.04 Category: Retaining Rings - Internal - Spiral Rings
Part Number: RR-050 (5 Pcs) Internal Retaining Rings - 12.7x0.64x13.35 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $21.68 AUD Regular price Sale price $21.68 AUD Unit price per Per 5
Housing Bore (B) 12.70 mm _{(0.5 in.)}	Clip Thickness (T) 0.64 mm +/- 0.06 _{(0.025 in.)}	Groove Dia. (Dg) 13.35 mm _{(0.526 in.)}	Approx. Loose Circlip OD (Dr) 13.26 mm + 0.33 / - 0.00
Material: Spring Steel Radial Wall (S): 1.14 mm +/- 0.10 Groove Width (W): 0.80 mm +/- 0.05 Clearance in Groove (C1): 10.98 mm +/- 0.04 Category: Retaining Rings - Internal - Spiral Rings
Part Number: RR-050 (5 Pcs) Internal Retaining Rings - 12.7x0.64x13.35 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $21.68 AUD Regular price Sale price $21.68 AUD Unit price per Per 5 View the product page first if you are unsure.
RR-050 (5 Pcs) --- Internal Retaining Rings - 12.7x0.64x13.35 mm - Spring Steel RR-050 (5 Pcs) --- Internal Retaining Rings - 12.7x0.64x13.35 mm - Spring Steel Regular price $21.68 AUD Regular price Sale price $21.68 AUD Unit price per Out of stock! Backorder Now
Housing Bore (B) 12.70 mm _{(0.5 in.)}	Clip Thickness (T) 0.89 mm +/- 0.05 _{(0.035 in.)}	Groove Dia. (Dg) 13.31 mm +/- 0.08 _{(0.524 in.)}	Approx. Loose Circlip OD (Dr) 13.46 mm + 0.64 / - 0.00	Radial Wall (S) 1.02 mm +/- 0.08	Groove Width (W) 0.99 mm
Material: Spring Steel Clearance in Groove (C1): 11.42 mm Category: Retaining Rings - Internal - Snap Rings
Part Number: WRI-0127-LS-O Internal Retaining Rings - 12.7x0.89x13.31 mm - Spring Steel Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Housing Bore (B) 12.70 mm _{(0.5 in.)}	Clip Thickness (T) 0.89 mm +/- 0.05 _{(0.035 in.)}	Groove Dia. (Dg) 13.31 mm +/- 0.08 _{(0.524 in.)}	Approx. Loose Circlip OD (Dr) 13.46 mm + 0.64 / - 0.00
Material: Spring Steel Radial Wall (S): 1.02 mm +/- 0.08 Groove Width (W): 0.99 mm Clearance in Groove (C1): 11.42 mm Category: Retaining Rings - Internal - Snap Rings
Part Number: WRI-0127-LS-O Internal Retaining Rings - 12.7x0.89x13.31 mm - Spring Steel Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Housing Bore (B) 12.70 mm _{(0.5 in.)}	Clip Thickness (T) 0.89 mm +/- 0.05 _{(0.035 in.)}	Groove Dia. (Dg) 13.46 mm _{(0.53 in.)}	Approx. Loose Circlip OD (Dr) 13.55 mm + 0.33 / - 0.00	Radial Wall (S) 1.14 mm +/- 0.10	Groove Width (W) 1.03 mm +/- 0.05
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Clearance in Groove (C1): 11.27 mm +/- 0.04 Category: Retaining Rings - Internal - Spiral Rings
Part Number: RRN-050-S02 (9 Pcs) Internal Retaining Rings - 12.7x0.89x13.46 mm - Stainless Steel 302/304 Similar to A2, 18-8 Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $14.05 AUD Regular price Sale price $14.05 AUD Unit price per Per 9
Housing Bore (B) 12.70 mm _{(0.5 in.)}	Clip Thickness (T) 0.89 mm +/- 0.05 _{(0.035 in.)}	Groove Dia. (Dg) 13.46 mm _{(0.53 in.)}	Approx. Loose Circlip OD (Dr) 13.55 mm + 0.33 / - 0.00
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Radial Wall (S): 1.14 mm +/- 0.10 Groove Width (W): 1.03 mm +/- 0.05 Clearance in Groove (C1): 11.27 mm +/- 0.04 Category: Retaining Rings - Internal - Spiral Rings
Part Number: RRN-050-S02 (9 Pcs) Internal Retaining Rings - 12.7x0.89x13.46 mm - Stainless Steel 302/304 Similar to A2, 18-8 Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $14.05 AUD Regular price Sale price $14.05 AUD Unit price per Per 9 View the product page first if you are unsure.
RRN-050-S02 (9 Pcs) --- Internal Retaining Rings - 12.7x0.89x13.46 mm - Stainless Steel 302/304 Similar to A2, 18-8 RRN-050-S02 (9 Pcs) --- Internal Retaining Rings - 12.7x0.89x13.46 mm - Stainless Steel 302/304 Similar to A2, 18-8 Regular price $14.05 AUD Regular price Sale price $14.05 AUD Unit price per Out of stock! Backorder Now
Housing Bore (B) 12.70 mm _{(0.5 in.)}	Clip Thickness (T) 0.89 mm +/- 0.050 _{(0.035 in.)}	Groove Dia. (Dg) 13.46 mm + 0.00 / - 0.06 _{(0.53 in.)}	Approx. Loose Circlip OD (Dr) 13.92 mm + 0.25 / - 0.13		Groove Width (W) 0.99 mm + 0.08 / - 0.00
Material: Stainless Steel Grade PH15-7 Mo Clearance in Bore (C): 6.60 mm Clearance in Groove (C1): 7.37 mm Category: Retaining Rings - Internal - Circlips
Part Number: CCI-01270-S15 (2 Pcs) Internal Retaining Rings - 12.7x0.89x13.46 mm - Stainless Steel Grade PH15-7 Mo 12 units (24 pcs) Available Immediately \| Further orders can be expected around Sat, Jun 07, 2025 Regular price $7.05 AUD Regular price Sale price $7.05 AUD Unit price per Per 2
Housing Bore (B) 12.70 mm _{(0.5 in.)}	Clip Thickness (T) 0.89 mm +/- 0.050 _{(0.035 in.)}	Groove Dia. (Dg) 13.46 mm + 0.00 / - 0.06 _{(0.53 in.)}	Approx. Loose Circlip OD (Dr) 13.92 mm + 0.25 / - 0.13
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 0.99 mm + 0.08 / - 0.00 Clearance in Bore (C): 6.60 mm Clearance in Groove (C1): 7.37 mm Category: Retaining Rings - Internal - Circlips
Part Number: CCI-01270-S15 (2 Pcs) Internal Retaining Rings - 12.7x0.89x13.46 mm - Stainless Steel Grade PH15-7 Mo 12 units (24 pcs) Available Immediately \| Further orders can be expected around Sat, Jun 07, 2025 Regular price $7.05 AUD Regular price Sale price $7.05 AUD Unit price per Per 2 View the product page first if you are unsure.
CCI-01270-S15 (2 Pcs) --- Internal Retaining Rings - 12.7x0.89x13.46 mm - Stainless Steel Grade PH15-7 Mo CCI-01270-S15 (2 Pcs) --- Internal Retaining Rings - 12.7x0.89x13.46 mm - Stainless Steel Grade PH15-7 Mo Regular price $7.05 AUD Regular price Sale price $7.05 AUD Unit price per 12 Available Now
Housing Bore (B) 12.70 mm _{(0.5 in.)}	Clip Thickness (T) 0.89 mm +/- 0.050 _{(0.035 in.)}	Groove Dia. (Dg) 13.46 mm + 0.00 / - 0.06 _{(0.53 in.)}	Approx. Loose Circlip OD (Dr) 13.92 mm + 0.25 / - 0.13		Groove Width (W) 0.99 mm + 0.08 / - 0.00
Material: Carbon Steel Zinc Plated Clearance in Bore (C): 6.60 mm Clearance in Groove (C1): 7.37 mm Category: Retaining Rings - Internal - Circlips
Part Number: CCI-01270-CZY (5 Pcs) Internal Retaining Rings - 12.7x0.89x13.46 mm - Carbon Steel Zinc Plated 148 units (740 pcs) Available Immediately \| Further orders can be expected around Sat, Jun 07, 2025 Regular price $3.32 AUD Regular price Sale price $3.32 AUD Unit price per Per 5
Housing Bore (B) 12.70 mm _{(0.5 in.)}	Clip Thickness (T) 0.89 mm +/- 0.050 _{(0.035 in.)}	Groove Dia. (Dg) 13.46 mm + 0.00 / - 0.06 _{(0.53 in.)}	Approx. Loose Circlip OD (Dr) 13.92 mm + 0.25 / - 0.13
Material: Carbon Steel Zinc Plated Groove Width (W): 0.99 mm + 0.08 / - 0.00 Clearance in Bore (C): 6.60 mm Clearance in Groove (C1): 7.37 mm Category: Retaining Rings - Internal - Circlips
Part Number: CCI-01270-CZY (5 Pcs) Internal Retaining Rings - 12.7x0.89x13.46 mm - Carbon Steel Zinc Plated 148 units (740 pcs) Available Immediately \| Further orders can be expected around Sat, Jun 07, 2025 Regular price $3.32 AUD Regular price Sale price $3.32 AUD Unit price per Per 5 View the product page first if you are unsure.
CCI-01270-CZY (5 Pcs) --- Internal Retaining Rings - 12.7x0.89x13.46 mm - Carbon Steel Zinc Plated CCI-01270-CZY (5 Pcs) --- Internal Retaining Rings - 12.7x0.89x13.46 mm - Carbon Steel Zinc Plated Regular price $3.32 AUD Regular price Sale price $3.32 AUD Unit price per 148 Available Now
