Retaining Rings - Internal - Spiral Rings - Medium-Heavy

1 Item Available
This is a combined category of Medium-Heavy Spiral Rings Internal Retaining Rings.
Use the filters in the table below, or the category tree above to refine the selection. To order any item, simply click the part number for a full product page, then add to your cart.
Additional resources:
Spiral Rings and Snap Rings PDF
A more concise listing may be found on the Smallparts store at Retaining Rings - Internal - Spiral Rings - Medium-Heavy. Smallparts promote the most popular MBA products.
Housing Bore (B) Clip Thickness (T) Groove Dia. (Dg) Approx. Loose Circlip OD (Dr) Radial Wall (S) Groove Width (W) Indicative
Housing Bore (B)
31.75
mm

(1.25 in.)
Clip Thickness (T)
1.27
mm
+/- 0.05
(0.05 in.)
Groove Dia. (Dg)
33.53
mm

(1.32 in.)
Approx. Loose Circlip OD (Dr)
33.72
mm
+ 0.38 / - 0.00
Radial Wall (S)
2.36
mm
+/- 0.10
Groove Width (W)
1.47
mm
+/- 0.10

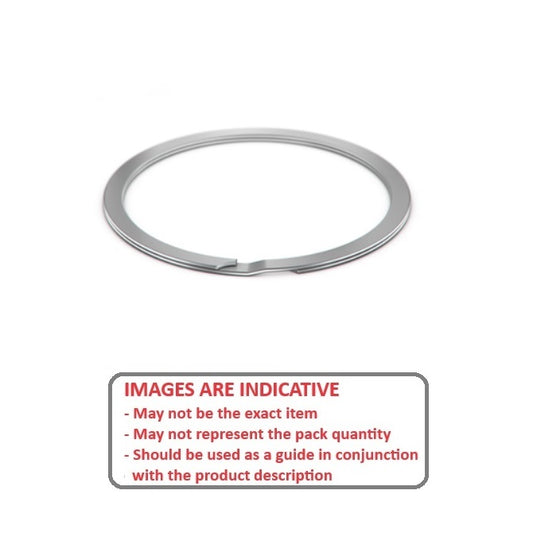

Internal Retaining Rings - 31.75x1.27x33.53 mm - Stainless Steel 302/304 Similar to A2, 18-8
Material: Stainless Steel 302/304 (Similar to A2, 18-8)    Approx. Loose Clip ID: 29 +/- 0.05   Groove Depth (d): 0.89
Category: Retaining Rings - Internal - Spiral Rings - Medium-Heavy - Stainless Steel
Part Number: RRT-125-S02 Internal Retaining Rings - 31.75x1.27x33.53 mm - Stainless Steel 302/304 Similar to A2, 18-8
Out of Stock | Backorder Now | Orders can be expected around Sun, Jun 08, 2025
$8.14 AUD
$8.14 AUD
Each
Housing Bore (B) Clip Thickness (T) Groove Dia. (Dg) Approx. Loose Circlip OD (Dr) Indicative
Housing Bore (B)
31.75
mm

(1.25 in.)
Clip Thickness (T)
1.27
mm
+/- 0.05
(0.05 in.)
Groove Dia. (Dg)
33.53
mm

(1.32 in.)
Approx. Loose Circlip OD (Dr)
33.72
mm
+ 0.38 / - 0.00
Internal Retaining Rings - 31.75x1.27x33.53 mm - Stainless Steel 302/304 Similar to A2, 18-8
Material: Stainless Steel 302/304 (Similar to A2, 18-8)    Radial Wall (S): 2.36 mm +/- 0.10    Groove Width (W): 1.47 mm +/- 0.10   Approx. Loose Clip ID: 29 +/- 0.05   Groove Depth (d): 0.89
Category: Retaining Rings - Internal - Spiral Rings - Medium-Heavy - Stainless Steel
Part Number: RRT-125-S02 Internal Retaining Rings - 31.75x1.27x33.53 mm - Stainless Steel 302/304 Similar to A2, 18-8
Out of Stock | Backorder Now | Orders can be expected around Sun, Jun 08, 2025
$8.14 AUD
$8.14 AUD
Each
View the product page first if you are unsure.
