Collection: Retaining Rings - Internal - Spiral Rings - Heavy Duty
Retaining Rings -> Internal -> Spiral Rings -> Heavy DutyThere are 22 products in the sub-categories of Retaining Rings - Internal - Spiral Rings - Heavy Duty. Scroll down or follow the link to Retaining Rings - Internal - Spiral Rings - Heavy Duty in the products table to see all these items combined into a handy table with filters. To narrow down the selection, please choose a sub-category from the links below.
Retaining Rings - Internal - Spiral Rings - Heavy Duty - Carbon Steel
A selection of Carbon Steel Heavy Duty Spiral Rings Internal Retaining Rings....
Retaining Rings - Internal - Spiral Rings - Heavy Duty - Stainless Steel
A selection of Stainless Steel Heavy Duty Spiral Rings Internal Retaining Rings....
Category Details
This category includes various types of internal retaining rings.
- An expanded range may be available on special order. Please enquire.
Miniature Bearings Australia - MBA Minibearings
Additional resources:
A more concise listing may be found in the Retaining Rings - Internal - Spiral Rings - Heavy Duty category on the Small Parts & Bearings online store.
| Housing Bore (B) | Clip Thickness (T) | Groove Dia. (Dg) | Approx. Loose Circlip OD (Dr) | Radial Wall (S) Approx. | Groove Width (W) |

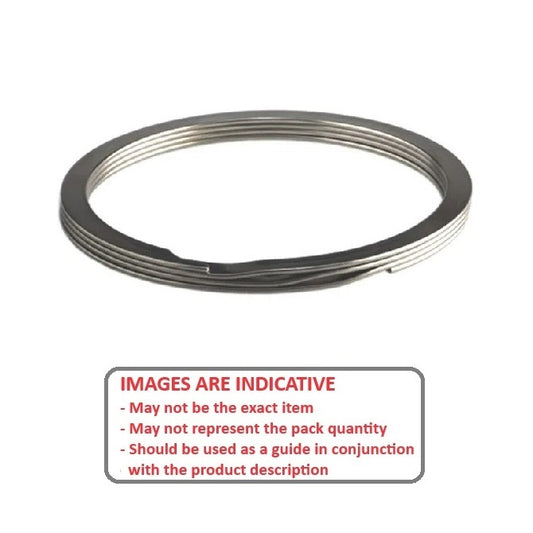

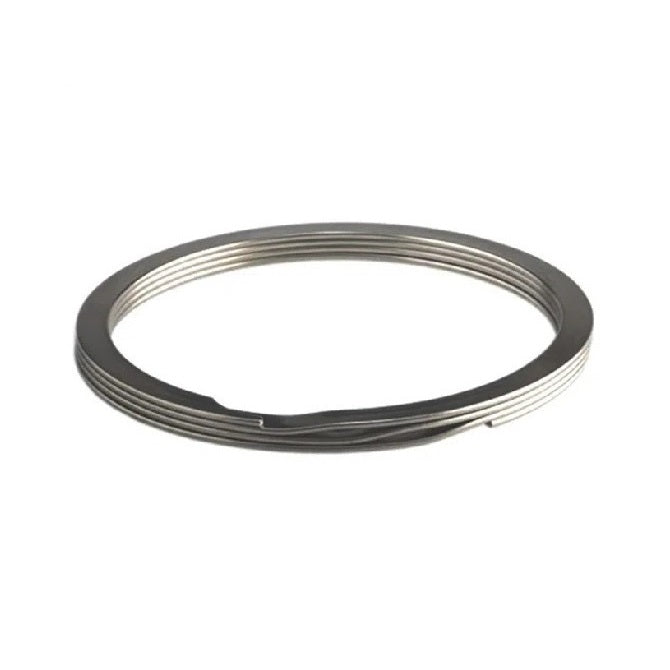

Indicative Image |
|---|---|---|---|---|---|---|
|
Housing Bore (B)
12.70
mm (Equiv. 0.5 in.) |
Clip Thickness (T)
0.89
mm +/- 0.05 (Equiv. 0.035 in.) |
Groove Dia. (Dg)
13.46
mm (Equiv. 0.53 in.) |
Approx. Loose Circlip OD (Dr)
13.55
mm + 0.33 / - 0.00 |
Radial Wall (S) Approx.
1.14
mm +/- 0.10 |
Groove Width (W)
1.03
mm +/- 0.05 |
|
|
Material: Stainless Steel 302/304 (Similar to A2, 18-8)
Approx. Loose Clip ID: 11.27 +/- 0.04
Groove Depth (d): 0.38
Category: Retaining Rings - Internal - Spiral Rings - Heavy Duty - Stainless Steel Additional stock available from USA subject to Prior Sale = 5840 |
||||||
|
Part Number: RRN-050-S02 (9 Pcs)
Internal Retaining Rings - 12.7x0.89x13.46 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring Out of Stock | Backorder Now | Orders can be expected around Sat, Nov 22, 2025 Regular price
$11.59 AUD
Regular price
Unit price
per
9 Per Sell Unit
Excludes GST and overseas Taxes & Duties |
||||||
| Housing Bore (B) | Clip Thickness (T) | Groove Dia. (Dg) | Approx. Loose Circlip OD (Dr) |
Indicative Image |
||
|
Housing Bore (B)
12.70
mm (Equiv. 0.5 in.) |
Clip Thickness (T)
0.89
mm +/- 0.05 (Equiv. 0.035 in.) |
Groove Dia. (Dg)
13.46
mm (Equiv. 0.53 in.) |
Approx. Loose Circlip OD (Dr)
13.55
mm + 0.33 / - 0.00 |
|
||
|
Material: Stainless Steel 302/304 (Similar to A2, 18-8)
Radial Wall (S) Approx.: 1.14 mm +/- 0.10
Groove Width (W): 1.03 mm +/- 0.05
Approx. Loose Clip ID: 11.27 +/- 0.04
Groove Depth (d): 0.38
Category: Retaining Rings - Internal - Spiral Rings - Heavy Duty - Stainless Steel Additional stock available from USA subject to Prior Sale = 5840 |
||||||
|
Part Number: RRN-050-S02 (9 Pcs)
Internal Retaining Rings - 12.7x0.89x13.46 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring Out of Stock | Backorder Now | Orders can be expected around Sat, Nov 22, 2025 Regular price
$11.59 AUD
Regular price
Unit price
per
9 Per Sell Unit
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Housing Bore (B)
15.88
mm (Equiv. 0.625 in.) |
Clip Thickness (T)
0.89
mm +/- 0.05 (Equiv. 0.035 in.) |
Groove Dia. (Dg)
16.89
mm (Equiv. 0.665 in.) |
Approx. Loose Circlip OD (Dr)
16.94
mm + 0.33 / - 0.00 |
Radial Wall (S) Approx.
1.40
mm +/- 0.10 |
Groove Width (W)
1.03
mm +/- 0.05 |
|
|
Material: Stainless Steel 302/304 (Similar to A2, 18-8)
Approx. Loose Clip ID: 14.14 +/- 0.04
Groove Depth (d): 0.51
Category: Retaining Rings - Internal - Spiral Rings - Heavy Duty - Stainless Steel |
||||||
|
Part Number: RRN-062-S02 (200 Pcs)
Internal Retaining Rings - 15.88x0.89x16.89 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring Out of Stock | Backorder Now | Orders can be expected around Sat, Dec 06, 2025 Regular price
$873.68 AUD
Regular price
Unit price
per
200 Per Sell Unit
Excludes GST and overseas Taxes & Duties |
||||||
|
Housing Bore (B)
15.88
mm (Equiv. 0.625 in.) |
Clip Thickness (T)
0.89
mm +/- 0.05 (Equiv. 0.035 in.) |
Groove Dia. (Dg)
16.89
mm (Equiv. 0.665 in.) |
Approx. Loose Circlip OD (Dr)
16.94
mm + 0.33 / - 0.00 |
|
||
|
Material: Stainless Steel 302/304 (Similar to A2, 18-8)
Radial Wall (S) Approx.: 1.40 mm +/- 0.10
Groove Width (W): 1.03 mm +/- 0.05
Approx. Loose Clip ID: 14.14 +/- 0.04
Groove Depth (d): 0.51
Category: Retaining Rings - Internal - Spiral Rings - Heavy Duty - Stainless Steel |
||||||
|
Part Number: RRN-062-S02 (200 Pcs)
Internal Retaining Rings - 15.88x0.89x16.89 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring Out of Stock | Backorder Now | Orders can be expected around Sat, Dec 06, 2025 Regular price
$873.68 AUD
Regular price
Unit price
per
200 Per Sell Unit
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Housing Bore (B)
15.88
mm (Equiv. 0.625 in.) |
Clip Thickness (T)
0.89
mm +/- 0.05 (Equiv. 0.035 in.) |
Groove Dia. (Dg)
16.89
mm (Equiv. 0.665 in.) |
Approx. Loose Circlip OD (Dr)
16.94
mm + 0.33 / - 0.00 |
Radial Wall (S) Approx.
1.40
mm +/- 0.10 |
Groove Width (W)
1.03
mm +/- 0.05 |
|
|
Material: Carbon Spring Steel
Approx. Loose Clip ID: 14.14 +/- 0.04
Groove Depth (d): 0.51
Category: Retaining Rings - Internal - Spiral Rings - Heavy Duty - Carbon Steel Additional stock available from USA subject to Prior Sale = 4394 |
||||||
|
Part Number: RRN-062 (40 Pcs)
Internal Retaining Rings - 15.88x0.89x16.89 mm Spiral Rings - Carbon Spring Steel Spiral Ring Out of Stock | Backorder Now | Orders can be expected around Sat, Nov 22, 2025 Regular price
$9.23 AUD
Regular price
Unit price
per
40 Per Sell Unit
Excludes GST and overseas Taxes & Duties |
||||||
|
Housing Bore (B)
15.88
mm (Equiv. 0.625 in.) |
Clip Thickness (T)
0.89
mm +/- 0.05 (Equiv. 0.035 in.) |
Groove Dia. (Dg)
16.89
mm (Equiv. 0.665 in.) |
Approx. Loose Circlip OD (Dr)
16.94
mm + 0.33 / - 0.00 |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S) Approx.: 1.40 mm +/- 0.10
Groove Width (W): 1.03 mm +/- 0.05
Approx. Loose Clip ID: 14.14 +/- 0.04
Groove Depth (d): 0.51
Category: Retaining Rings - Internal - Spiral Rings - Heavy Duty - Carbon Steel Additional stock available from USA subject to Prior Sale = 4394 |
||||||
|
Part Number: RRN-062 (40 Pcs)
Internal Retaining Rings - 15.88x0.89x16.89 mm Spiral Rings - Carbon Spring Steel Spiral Ring Out of Stock | Backorder Now | Orders can be expected around Sat, Nov 22, 2025 Regular price
$9.23 AUD
Regular price
Unit price
per
40 Per Sell Unit
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Housing Bore (B)
19.05
mm (Equiv. 0.75 in.) |
Clip Thickness (T)
0.89
mm +/- 0.05 (Equiv. 0.035 in.) |
Groove Dia. (Dg)
20.22
mm (Equiv. 0.796 in.) |
Approx. Loose Circlip OD (Dr)
20.33
mm + 0.33 / - 0.00 |
Radial Wall (S) Approx.
1.65
mm +/- 0.10 |
Groove Width (W)
1.03
mm +/- 0.05 |
|
|
Material: Carbon Spring Steel
Approx. Loose Clip ID: 17.03 +/- 0.04
Groove Depth (d): 0.58
Category: Retaining Rings - Internal - Spiral Rings - Heavy Duty - Carbon Steel |
||||||
|
Part Number: RRN-075 (100 Pcs)
Internal Retaining Rings - 19.05x0.89x20.22 mm Spiral Rings - Carbon Spring Steel Spiral Ring Out of Stock | Backorder Now | Orders can be expected around Sat, Nov 22, 2025 Regular price
$13.86 AUD
Regular price
Unit price
per
100 Per Sell Unit
Excludes GST and overseas Taxes & Duties |
||||||
|
Housing Bore (B)
19.05
mm (Equiv. 0.75 in.) |
Clip Thickness (T)
0.89
mm +/- 0.05 (Equiv. 0.035 in.) |
Groove Dia. (Dg)
20.22
mm (Equiv. 0.796 in.) |
Approx. Loose Circlip OD (Dr)
20.33
mm + 0.33 / - 0.00 |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S) Approx.: 1.65 mm +/- 0.10
Groove Width (W): 1.03 mm +/- 0.05
Approx. Loose Clip ID: 17.03 +/- 0.04
Groove Depth (d): 0.58
Category: Retaining Rings - Internal - Spiral Rings - Heavy Duty - Carbon Steel |
||||||
|
Part Number: RRN-075 (100 Pcs)
Internal Retaining Rings - 19.05x0.89x20.22 mm Spiral Rings - Carbon Spring Steel Spiral Ring Out of Stock | Backorder Now | Orders can be expected around Sat, Nov 22, 2025 Regular price
$13.86 AUD
Regular price
Unit price
per
100 Per Sell Unit
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Housing Bore (B)
19.05
mm (Equiv. 0.75 in.) |
Clip Thickness (T)
0.89
mm +/- 0.05 (Equiv. 0.035 in.) |
Groove Dia. (Dg)
20.22
mm (Equiv. 0.796 in.) |
Approx. Loose Circlip OD (Dr)
20.33
mm + 0.33 / - 0.00 |
Radial Wall (S) Approx.
1.65
mm +/- 0.10 |
Groove Width (W)
1.03
mm +/- 0.05 |
|
|
Material: Stainless Steel 302/304 (Similar to A2, 18-8)
Approx. Loose Clip ID: 17.03 +/- 0.04
Groove Depth (d): 0.58
Category: Retaining Rings - Internal - Spiral Rings - Heavy Duty - Stainless Steel Additional stock available from USA subject to Prior Sale = 95 |
||||||
|
Part Number: RRN-075-S02 (3 Pcs)
Internal Retaining Rings - 19.05x0.89x20.22 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring Out of Stock | Backorder Now | Orders can be expected around Sat, Nov 22, 2025 Regular price
$20.86 AUD
Regular price
Unit price
per
3 Per Sell Unit
Excludes GST and overseas Taxes & Duties |
||||||
|
Housing Bore (B)
19.05
mm (Equiv. 0.75 in.) |
Clip Thickness (T)
0.89
mm +/- 0.05 (Equiv. 0.035 in.) |
Groove Dia. (Dg)
20.22
mm (Equiv. 0.796 in.) |
Approx. Loose Circlip OD (Dr)
20.33
mm + 0.33 / - 0.00 |
|
||
|
Material: Stainless Steel 302/304 (Similar to A2, 18-8)
Radial Wall (S) Approx.: 1.65 mm +/- 0.10
Groove Width (W): 1.03 mm +/- 0.05
Approx. Loose Clip ID: 17.03 +/- 0.04
Groove Depth (d): 0.58
Category: Retaining Rings - Internal - Spiral Rings - Heavy Duty - Stainless Steel Additional stock available from USA subject to Prior Sale = 95 |
||||||
|
Part Number: RRN-075-S02 (3 Pcs)
Internal Retaining Rings - 19.05x0.89x20.22 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring Out of Stock | Backorder Now | Orders can be expected around Sat, Nov 22, 2025 Regular price
$20.86 AUD
Regular price
Unit price
per
3 Per Sell Unit
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Housing Bore (B)
22.23
mm (Equiv. 0.875 in.) |
Clip Thickness (T)
1.07
mm +/- 0.05 (Equiv. 0.042 in.) |
Groove Dia. (Dg)
23.65
mm (Equiv. 0.931 in.) |
Approx. Loose Circlip OD (Dr)
23.72
mm + 0.33 / - 0.00 |
Radial Wall (S) Approx.
2.16
mm +/- 0.10 |
Groove Width (W)
1.21
mm +/- 0.07 |
|
|
Material: Carbon Spring Steel
Approx. Loose Clip ID: 19.4 +/- 0.04
Groove Depth (d): 0.71
Category: Retaining Rings - Internal - Spiral Rings - Heavy Duty - Carbon Steel Additional stock available from USA subject to Prior Sale = 22162 |
||||||
|
Part Number: RRN-087 (4 Pcs)
Internal Retaining Rings - 22.23x1.07x23.65 mm Spiral Rings - Carbon Spring Steel Spiral Ring Out of Stock | Backorder Now | Orders can be expected around Sat, Nov 22, 2025 Regular price
$11.14 AUD
Regular price
Unit price
per
4 Per Sell Unit
Excludes GST and overseas Taxes & Duties |
||||||
|
Housing Bore (B)
22.23
mm (Equiv. 0.875 in.) |
Clip Thickness (T)
1.07
mm +/- 0.05 (Equiv. 0.042 in.) |
Groove Dia. (Dg)
23.65
mm (Equiv. 0.931 in.) |
Approx. Loose Circlip OD (Dr)
23.72
mm + 0.33 / - 0.00 |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S) Approx.: 2.16 mm +/- 0.10
Groove Width (W): 1.21 mm +/- 0.07
Approx. Loose Clip ID: 19.4 +/- 0.04
Groove Depth (d): 0.71
Category: Retaining Rings - Internal - Spiral Rings - Heavy Duty - Carbon Steel Additional stock available from USA subject to Prior Sale = 22162 |
||||||
|
Part Number: RRN-087 (4 Pcs)
Internal Retaining Rings - 22.23x1.07x23.65 mm Spiral Rings - Carbon Spring Steel Spiral Ring Out of Stock | Backorder Now | Orders can be expected around Sat, Nov 22, 2025 Regular price
$11.14 AUD
Regular price
Unit price
per
4 Per Sell Unit
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Housing Bore (B)
23.83
mm (Equiv. 0.938 in.) |
Clip Thickness (T)
1.07
mm +/- 0.05 (Equiv. 0.042 in.) |
Groove Dia. (Dg)
25.40
mm (Equiv. 1 in.) |
Approx. Loose Circlip OD (Dr)
25.43
mm + 0.33 / - 0.00 |
Radial Wall (S) Approx.
2.16
mm +/- 0.10 |
Groove Width (W)
1.21
mm +/- 0.08 |
|
|
Material: Carbon Spring Steel
Approx. Loose Clip ID: 21.11 +/- 0.04
Groove Depth (d): 0.79
Category: Retaining Rings - Internal - Spiral Rings - Heavy Duty - Carbon Steel Additional stock available from USA subject to Prior Sale = 20793 |
||||||
|
Part Number: RRN-093 (42 Pcs)
Internal Retaining Rings - 23.83x1.07x25.4 mm Spiral Rings - Carbon Spring Steel Spiral Ring Out of Stock | Backorder Now | Orders can be expected around Sat, Nov 22, 2025 Regular price
$9.50 AUD
Regular price
Unit price
per
42 Per Sell Unit
Excludes GST and overseas Taxes & Duties |
||||||
|
Housing Bore (B)
23.83
mm (Equiv. 0.938 in.) |
Clip Thickness (T)
1.07
mm +/- 0.05 (Equiv. 0.042 in.) |
Groove Dia. (Dg)
25.40
mm (Equiv. 1 in.) |
Approx. Loose Circlip OD (Dr)
25.43
mm + 0.33 / - 0.00 |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S) Approx.: 2.16 mm +/- 0.10
Groove Width (W): 1.21 mm +/- 0.08
Approx. Loose Clip ID: 21.11 +/- 0.04
Groove Depth (d): 0.79
Category: Retaining Rings - Internal - Spiral Rings - Heavy Duty - Carbon Steel Additional stock available from USA subject to Prior Sale = 20793 |
||||||
|
Part Number: RRN-093 (42 Pcs)
Internal Retaining Rings - 23.83x1.07x25.4 mm Spiral Rings - Carbon Spring Steel Spiral Ring Out of Stock | Backorder Now | Orders can be expected around Sat, Nov 22, 2025 Regular price
$9.50 AUD
Regular price
Unit price
per
42 Per Sell Unit
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Housing Bore (B)
25.40
mm (Equiv. 1 in.) |
Clip Thickness (T)
1.07
mm +/- 0.05 (Equiv. 0.042 in.) |
Groove Dia. (Dg)
27.08
mm (Equiv. 1.066 in.) |
Approx. Loose Circlip OD (Dr)
27.10
mm + 0.33 / - 0.00 |
Radial Wall (S) Approx.
2.16
mm +/- 0.10 |
Groove Width (W)
1.21
mm +/- 0.07 |
|
|
Material: Stainless Steel 302/304 (Similar to A2, 18-8)
Approx. Loose Clip ID: 22.78 +/- 0.04
Groove Depth (d): 0.84
Category: Retaining Rings - Internal - Spiral Rings - Heavy Duty - Stainless Steel Additional stock available from USA subject to Prior Sale = 4480 |
||||||
|
Part Number: RRN-100-S02 (5 Pcs)
Internal Retaining Rings - 25.4x1.07x27.08 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring Out of Stock | Backorder Now | Orders can be expected around Sat, Nov 22, 2025 Regular price
$15.59 AUD
Regular price
Unit price
per
5 Per Sell Unit
Excludes GST and overseas Taxes & Duties |
||||||
|
Housing Bore (B)
25.40
mm (Equiv. 1 in.) |
Clip Thickness (T)
1.07
mm +/- 0.05 (Equiv. 0.042 in.) |
Groove Dia. (Dg)
27.08
mm (Equiv. 1.066 in.) |
Approx. Loose Circlip OD (Dr)
27.10
mm + 0.33 / - 0.00 |
|
||
|
Material: Stainless Steel 302/304 (Similar to A2, 18-8)
Radial Wall (S) Approx.: 2.16 mm +/- 0.10
Groove Width (W): 1.21 mm +/- 0.07
Approx. Loose Clip ID: 22.78 +/- 0.04
Groove Depth (d): 0.84
Category: Retaining Rings - Internal - Spiral Rings - Heavy Duty - Stainless Steel Additional stock available from USA subject to Prior Sale = 4480 |
||||||
|
Part Number: RRN-100-S02 (5 Pcs)
Internal Retaining Rings - 25.4x1.07x27.08 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring Out of Stock | Backorder Now | Orders can be expected around Sat, Nov 22, 2025 Regular price
$15.59 AUD
Regular price
Unit price
per
5 Per Sell Unit
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Housing Bore (B)
25.40
mm (Equiv. 1 in.) |
Clip Thickness (T)
1.07
mm +/- 0.05 (Equiv. 0.042 in.) |
Groove Dia. (Dg)
27.08
mm (Equiv. 1.066 in.) |
Approx. Loose Circlip OD (Dr)
27.10
mm + 0.33 / - 0.00 |
Radial Wall (S) Approx.
2.16
mm +/- 0.10 |
Groove Width (W)
1.21
mm +/- 0.07 |
|
|
Material: Carbon Spring Steel
Approx. Loose Clip ID: 22.78 +/- 0.04
Groove Depth (d): 0.84
Category: Retaining Rings - Internal - Spiral Rings - Heavy Duty - Carbon Steel Additional stock available from USA subject to Prior Sale = 17059 |
||||||
|
Part Number: RRN-100 (5 Pcs)
Internal Retaining Rings - 25.4x1.07x27.08 mm Spiral Rings - Carbon Spring Steel Spiral Ring Out of Stock | Backorder Now | Orders can be expected around Sat, Nov 22, 2025 Regular price
$5.86 AUD
Regular price
Unit price
per
5 Per Sell Unit
Excludes GST and overseas Taxes & Duties |
||||||
|
Housing Bore (B)
25.40
mm (Equiv. 1 in.) |
Clip Thickness (T)
1.07
mm +/- 0.05 (Equiv. 0.042 in.) |
Groove Dia. (Dg)
27.08
mm (Equiv. 1.066 in.) |
Approx. Loose Circlip OD (Dr)
27.10
mm + 0.33 / - 0.00 |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S) Approx.: 2.16 mm +/- 0.10
Groove Width (W): 1.21 mm +/- 0.07
Approx. Loose Clip ID: 22.78 +/- 0.04
Groove Depth (d): 0.84
Category: Retaining Rings - Internal - Spiral Rings - Heavy Duty - Carbon Steel Additional stock available from USA subject to Prior Sale = 17059 |
||||||
|
Part Number: RRN-100 (5 Pcs)
Internal Retaining Rings - 25.4x1.07x27.08 mm Spiral Rings - Carbon Spring Steel Spiral Ring Out of Stock | Backorder Now | Orders can be expected around Sat, Nov 22, 2025 Regular price
$5.86 AUD
Regular price
Unit price
per
5 Per Sell Unit
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Housing Bore (B)
25.98
mm (Equiv. 1.023 in.) |
Clip Thickness (T)
1.07
mm +/- 0.05 (Equiv. 0.042 in.) |
Groove Dia. (Dg)
27.72
mm (Equiv. 1.091 in.) |
Approx. Loose Circlip OD (Dr)
27.72
mm + 0.33 / - 0.00 |
Radial Wall (S) Approx.
2.16
mm +/- 0.10 |
Groove Width (W)
1.21
mm +/- 0.07 |
|
|
Material: Stainless Steel 302/304 (Similar to A2, 18-8)
Approx. Loose Clip ID: 23.4 +/- 0.04
Groove Depth (d): 0.86
Category: Retaining Rings - Internal - Spiral Rings - Heavy Duty - Stainless Steel Additional stock available from USA subject to Prior Sale = 152 |
||||||
|
Part Number: RRN-102-S02 (2 Pcs)
Internal Retaining Rings - 25.98x1.07x27.72 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring 5 units (10 pcs) Available Now | Further orders can be expected around Sat, Nov 22, 2025 Regular price
$9.41 AUD
Regular price
Unit price
per
2 Per Sell Unit
Excludes GST and overseas Taxes & Duties |
||||||
|
Housing Bore (B)
25.98
mm (Equiv. 1.023 in.) |
Clip Thickness (T)
1.07
mm +/- 0.05 (Equiv. 0.042 in.) |
Groove Dia. (Dg)
27.72
mm (Equiv. 1.091 in.) |
Approx. Loose Circlip OD (Dr)
27.72
mm + 0.33 / - 0.00 |
|
||
|
Material: Stainless Steel 302/304 (Similar to A2, 18-8)
Radial Wall (S) Approx.: 2.16 mm +/- 0.10
Groove Width (W): 1.21 mm +/- 0.07
Approx. Loose Clip ID: 23.4 +/- 0.04
Groove Depth (d): 0.86
Category: Retaining Rings - Internal - Spiral Rings - Heavy Duty - Stainless Steel Additional stock available from USA subject to Prior Sale = 152 |
||||||
|
Part Number: RRN-102-S02 (2 Pcs)
Internal Retaining Rings - 25.98x1.07x27.72 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring 5 units (10 pcs) Available Now | Further orders can be expected around Sat, Nov 22, 2025 Regular price
$9.41 AUD
Regular price
Unit price
per
2 Per Sell Unit
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Housing Bore (B)
28.58
mm (Equiv. 1.125 in.) |
Clip Thickness (T)
1.27
mm +/- 0.05 (Equiv. 0.05 in.) |
Groove Dia. (Dg)
30.41
mm (Equiv. 1.197 in.) |
Approx. Loose Circlip OD (Dr)
30.49
mm + 0.33 / - 0.00 |
Radial Wall (S) Approx.
2.62
mm +/- 0.11 |
Groove Width (W)
1.47
mm +/- 0.11 |
|
|
Material: Carbon Spring Steel
Approx. Loose Clip ID: 25.25 +/- 0.05
Groove Depth (d): 0.91
Category: Retaining Rings - Internal - Spiral Rings - Heavy Duty - Carbon Steel Additional stock available from USA subject to Prior Sale = 20880 |
||||||
|
Part Number: RRN-112 (6 Pcs)
Internal Retaining Rings - 28.58x1.27x30.41 mm Spiral Rings - Carbon Spring Steel Spiral Ring Out of Stock | Backorder Now | Orders can be expected around Sat, Nov 22, 2025 Regular price
$8.32 AUD
Regular price
Unit price
per
6 Per Sell Unit
Excludes GST and overseas Taxes & Duties |
||||||
|
Housing Bore (B)
28.58
mm (Equiv. 1.125 in.) |
Clip Thickness (T)
1.27
mm +/- 0.05 (Equiv. 0.05 in.) |
Groove Dia. (Dg)
30.41
mm (Equiv. 1.197 in.) |
Approx. Loose Circlip OD (Dr)
30.49
mm + 0.33 / - 0.00 |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S) Approx.: 2.62 mm +/- 0.11
Groove Width (W): 1.47 mm +/- 0.11
Approx. Loose Clip ID: 25.25 +/- 0.05
Groove Depth (d): 0.91
Category: Retaining Rings - Internal - Spiral Rings - Heavy Duty - Carbon Steel Additional stock available from USA subject to Prior Sale = 20880 |
||||||
|
Part Number: RRN-112 (6 Pcs)
Internal Retaining Rings - 28.58x1.27x30.41 mm Spiral Rings - Carbon Spring Steel Spiral Ring Out of Stock | Backorder Now | Orders can be expected around Sat, Nov 22, 2025 Regular price
$8.32 AUD
Regular price
Unit price
per
6 Per Sell Unit
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Housing Bore (B)
30.18
mm (Equiv. 1.188 in.) |
Clip Thickness (T)
1.27
mm +/- 0.05 (Equiv. 0.05 in.) |
Groove Dia. (Dg)
32.06
mm (Equiv. 1.262 in.) |
Approx. Loose Circlip OD (Dr)
32.20
mm + 0.33 / - 0.00 |
Radial Wall (S) Approx.
2.62
mm +/- 0.11 |
Groove Width (W)
1.47
mm +/- 0.10 |
|
|
Material: Carbon Spring Steel
Approx. Loose Clip ID: 26.96 +/- 0.05
Groove Depth (d): 0.94
Category: Retaining Rings - Internal - Spiral Rings - Heavy Duty - Carbon Steel Additional stock available from USA subject to Prior Sale = 1 |
||||||
|
Part Number: RRN-118
Internal Retaining Rings - 30.18x1.27x32.06 mm Spiral Rings - Carbon Spring Steel Spiral Ring Out of Stock | Backorder Now | Orders can be expected around Sat, Nov 22, 2025 Regular price
$11.14 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
Housing Bore (B)
30.18
mm (Equiv. 1.188 in.) |
Clip Thickness (T)
1.27
mm +/- 0.05 (Equiv. 0.05 in.) |
Groove Dia. (Dg)
32.06
mm (Equiv. 1.262 in.) |
Approx. Loose Circlip OD (Dr)
32.20
mm + 0.33 / - 0.00 |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S) Approx.: 2.62 mm +/- 0.11
Groove Width (W): 1.47 mm +/- 0.10
Approx. Loose Clip ID: 26.96 +/- 0.05
Groove Depth (d): 0.94
Category: Retaining Rings - Internal - Spiral Rings - Heavy Duty - Carbon Steel Additional stock available from USA subject to Prior Sale = 1 |
||||||
|
Part Number: RRN-118
Internal Retaining Rings - 30.18x1.27x32.06 mm Spiral Rings - Carbon Spring Steel Spiral Ring Out of Stock | Backorder Now | Orders can be expected around Sat, Nov 22, 2025 Regular price
$11.14 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Housing Bore (B)
31.75
mm (Equiv. 1.25 in.) |
Clip Thickness (T)
1.27
mm +/- 0.05 (Equiv. 0.05 in.) |
Groove Dia. (Dg)
33.78
mm (Equiv. 1.33 in.) |
Approx. Loose Circlip OD (Dr)
33.88
mm + 0.33 / - 0.00 |
Radial Wall (S) Approx.
2.62
mm +/- 0.11 |
Groove Width (W)
1.47
mm +/- 0.10 |
|
|
Material: Carbon Spring Steel
Approx. Loose Clip ID: 28.64 +/- 0.05
Groove Depth (d): 1.02
Category: Retaining Rings - Internal - Spiral Rings - Heavy Duty - Carbon Steel Additional stock available from USA subject to Prior Sale = 4302 |
||||||
|
Part Number: RRN-125 (100 Pcs)
Internal Retaining Rings - 31.75x1.27x33.78 mm Spiral Rings - Carbon Spring Steel Spiral Ring Out of Stock | Backorder Now | Orders can be expected around Sat, Nov 22, 2025 Regular price
$10.32 AUD
Regular price
Unit price
per
100 Per Sell Unit
Excludes GST and overseas Taxes & Duties |
||||||
|
Housing Bore (B)
31.75
mm (Equiv. 1.25 in.) |
Clip Thickness (T)
1.27
mm +/- 0.05 (Equiv. 0.05 in.) |
Groove Dia. (Dg)
33.78
mm (Equiv. 1.33 in.) |
Approx. Loose Circlip OD (Dr)
33.88
mm + 0.33 / - 0.00 |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S) Approx.: 2.62 mm +/- 0.11
Groove Width (W): 1.47 mm +/- 0.10
Approx. Loose Clip ID: 28.64 +/- 0.05
Groove Depth (d): 1.02
Category: Retaining Rings - Internal - Spiral Rings - Heavy Duty - Carbon Steel Additional stock available from USA subject to Prior Sale = 4302 |
||||||
|
Part Number: RRN-125 (100 Pcs)
Internal Retaining Rings - 31.75x1.27x33.78 mm Spiral Rings - Carbon Spring Steel Spiral Ring Out of Stock | Backorder Now | Orders can be expected around Sat, Nov 22, 2025 Regular price
$10.32 AUD
Regular price
Unit price
per
100 Per Sell Unit
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Housing Bore (B)
34.93
mm (Equiv. 1.375 in.) |
Clip Thickness (T)
1.27
mm +/- 0.05 (Equiv. 0.05 in.) |
Groove Dia. (Dg)
37.11
mm (Equiv. 1.461 in.) |
Approx. Loose Circlip OD (Dr)
37.27
mm + 0.33 / - 0.00 |
Radial Wall (S) Approx.
3.00
mm +/- 0.10 |
Groove Width (W)
1.47
mm +/- 0.10 |
|
|
Material: Carbon Spring Steel
Approx. Loose Clip ID: 31.27 +/- 0.05
Groove Depth (d): 1.09
Category: Retaining Rings - Internal - Spiral Rings - Heavy Duty - Carbon Steel Additional stock available from USA subject to Prior Sale = 6138 |
||||||
|
Part Number: RRN-137 (2 Pcs)
Internal Retaining Rings - 34.93x1.27x37.11 mm Spiral Rings - Carbon Spring Steel Spiral Ring Out of Stock | Backorder Now | Orders can be expected around Sat, Nov 22, 2025 Regular price
$7.05 AUD
Regular price
Unit price
per
2 Per Sell Unit
Excludes GST and overseas Taxes & Duties |
||||||
|
Housing Bore (B)
34.93
mm (Equiv. 1.375 in.) |
Clip Thickness (T)
1.27
mm +/- 0.05 (Equiv. 0.05 in.) |
Groove Dia. (Dg)
37.11
mm (Equiv. 1.461 in.) |
Approx. Loose Circlip OD (Dr)
37.27
mm + 0.33 / - 0.00 |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S) Approx.: 3.00 mm +/- 0.10
Groove Width (W): 1.47 mm +/- 0.10
Approx. Loose Clip ID: 31.27 +/- 0.05
Groove Depth (d): 1.09
Category: Retaining Rings - Internal - Spiral Rings - Heavy Duty - Carbon Steel Additional stock available from USA subject to Prior Sale = 6138 |
||||||
|
Part Number: RRN-137 (2 Pcs)
Internal Retaining Rings - 34.93x1.27x37.11 mm Spiral Rings - Carbon Spring Steel Spiral Ring Out of Stock | Backorder Now | Orders can be expected around Sat, Nov 22, 2025 Regular price
$7.05 AUD
Regular price
Unit price
per
2 Per Sell Unit
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Housing Bore (B)
36.55
mm (Equiv. 1.439 in.) |
Clip Thickness (T)
1.27
mm +/- 0.05 (Equiv. 0.05 in.) |
Groove Dia. (Dg)
38.81
mm (Equiv. 1.528 in.) |
Approx. Loose Circlip OD (Dr)
39.00
mm + 0.33 / - 0.00 |
Radial Wall (S) Approx.
3.00
mm +/- 0.10 |
Groove Width (W)
1.47
mm +/- 0.10 |
|
|
Material: Carbon Spring Steel
Approx. Loose Clip ID: 33 +/- 0.05
Groove Depth (d): 1.14
Category: Retaining Rings - Internal - Spiral Rings - Heavy Duty - Carbon Steel Deleted Item. Available while stocks last. |
||||||
|
Part Number: RRN-143
Internal Retaining Rings - 36.55x1.27x38.81 mm Spiral Rings - Carbon Spring Steel Spiral Ring 7 Available Now | Item Discontinued - Up to 7 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price
$3.00 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
Housing Bore (B)
36.55
mm (Equiv. 1.439 in.) |
Clip Thickness (T)
1.27
mm +/- 0.05 (Equiv. 0.05 in.) |
Groove Dia. (Dg)
38.81
mm (Equiv. 1.528 in.) |
Approx. Loose Circlip OD (Dr)
39.00
mm + 0.33 / - 0.00 |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S) Approx.: 3.00 mm +/- 0.10
Groove Width (W): 1.47 mm +/- 0.10
Approx. Loose Clip ID: 33 +/- 0.05
Groove Depth (d): 1.14
Category: Retaining Rings - Internal - Spiral Rings - Heavy Duty - Carbon Steel Deleted Item. Available while stocks last. |
||||||
|
Part Number: RRN-143
Internal Retaining Rings - 36.55x1.27x38.81 mm Spiral Rings - Carbon Spring Steel Spiral Ring 7 Available Now | Item Discontinued - Up to 7 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price
$3.00 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Housing Bore (B)
38.10
mm (Equiv. 1.5 in.) |
Clip Thickness (T)
1.27
mm +/- 0.05 (Equiv. 0.05 in.) |
Groove Dia. (Dg)
40.49
mm (Equiv. 1.594 in.) |
Approx. Loose Circlip OD (Dr)
40.65
mm + 0.33 / - 0.00 |
Radial Wall (S) Approx.
3.00
mm +/- 0.10 |
Groove Width (W)
1.47
mm +/- 0.10 |
|
|
Material: Carbon Spring Steel
Approx. Loose Clip ID: 34.65 +/- 0.05
Groove Depth (d): 1.19
Category: Retaining Rings - Internal - Spiral Rings - Heavy Duty - Carbon Steel Additional stock available from USA subject to Prior Sale = 13465 |
||||||
|
Part Number: RRN-150 (7 Pcs)
Internal Retaining Rings - 38.1x1.27x40.49 mm Spiral Rings - Carbon Spring Steel Spiral Ring Out of Stock | Backorder Now | Orders can be expected around Sat, Nov 22, 2025 Regular price
$10.41 AUD
Regular price
Unit price
per
7 Per Sell Unit
Excludes GST and overseas Taxes & Duties |
||||||
|
Housing Bore (B)
38.10
mm (Equiv. 1.5 in.) |
Clip Thickness (T)
1.27
mm +/- 0.05 (Equiv. 0.05 in.) |
Groove Dia. (Dg)
40.49
mm (Equiv. 1.594 in.) |
Approx. Loose Circlip OD (Dr)
40.65
mm + 0.33 / - 0.00 |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S) Approx.: 3.00 mm +/- 0.10
Groove Width (W): 1.47 mm +/- 0.10
Approx. Loose Clip ID: 34.65 +/- 0.05
Groove Depth (d): 1.19
Category: Retaining Rings - Internal - Spiral Rings - Heavy Duty - Carbon Steel Additional stock available from USA subject to Prior Sale = 13465 |
||||||
|
Part Number: RRN-150 (7 Pcs)
Internal Retaining Rings - 38.1x1.27x40.49 mm Spiral Rings - Carbon Spring Steel Spiral Ring Out of Stock | Backorder Now | Orders can be expected around Sat, Nov 22, 2025 Regular price
$10.41 AUD
Regular price
Unit price
per
7 Per Sell Unit
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Housing Bore (B)
50.80
mm (Equiv. 2 in.) |
Clip Thickness (T)
1.58
mm +/- 0.08 (Equiv. 0.062 in.) |
Groove Dia. (Dg)
53.90
mm (Equiv. 2.122 in.) |
Approx. Loose Circlip OD (Dr)
54.20
mm + 0.51 / - 0.00 |
Radial Wall (S) Approx.
4.01
mm +/- 0.10 |
Groove Width (W)
1.78
mm +/- 0.13 |
|
|
Material: Stainless Steel 302/304 (Similar to A2, 18-8)
Approx. Loose Clip ID: 46.18 +/- 0.05
Groove Depth (d): 1.55
Category: Retaining Rings - Internal - Spiral Rings - Heavy Duty - Stainless Steel Additional stock available from USA subject to Prior Sale = 49 |
||||||
|
Part Number: RRN-200-S02
Internal Retaining Rings - 50.8x1.58x53.9 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring Out of Stock | Backorder Now | Orders can be expected around Sat, Nov 22, 2025 Regular price
$13.32 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
Housing Bore (B)
50.80
mm (Equiv. 2 in.) |
Clip Thickness (T)
1.58
mm +/- 0.08 (Equiv. 0.062 in.) |
Groove Dia. (Dg)
53.90
mm (Equiv. 2.122 in.) |
Approx. Loose Circlip OD (Dr)
54.20
mm + 0.51 / - 0.00 |
|
||
|
Material: Stainless Steel 302/304 (Similar to A2, 18-8)
Radial Wall (S) Approx.: 4.01 mm +/- 0.10
Groove Width (W): 1.78 mm +/- 0.13
Approx. Loose Clip ID: 46.18 +/- 0.05
Groove Depth (d): 1.55
Category: Retaining Rings - Internal - Spiral Rings - Heavy Duty - Stainless Steel Additional stock available from USA subject to Prior Sale = 49 |
||||||
|
Part Number: RRN-200-S02
Internal Retaining Rings - 50.8x1.58x53.9 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring Out of Stock | Backorder Now | Orders can be expected around Sat, Nov 22, 2025 Regular price
$13.32 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Housing Bore (B)
50.80
mm (Equiv. 2 in.) |
Clip Thickness (T)
1.58
mm +/- 0.08 (Equiv. 0.062 in.) |
Groove Dia. (Dg)
53.90
mm (Equiv. 2.122 in.) |
Approx. Loose Circlip OD (Dr)
54.20
mm + 0.51 / - 0.00 |
Radial Wall (S) Approx.
4.01
mm +/- 0.10 |
Groove Width (W)
1.78
mm +/- 0.13 |
|
|
Material: Carbon Spring Steel
Approx. Loose Clip ID: 46.18 +/- 0.05
Groove Depth (d): 1.55
Category: Retaining Rings - Internal - Spiral Rings - Heavy Duty - Carbon Steel Additional stock available from USA subject to Prior Sale = 936 |
||||||
|
Part Number: RRN-200
Internal Retaining Rings - 50.8x1.58x53.9 mm Spiral Rings - Carbon Spring Steel Spiral Ring Out of Stock | Backorder Now | Orders can be expected around Sat, Nov 22, 2025 Regular price
$5.05 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
Housing Bore (B)
50.80
mm (Equiv. 2 in.) |
Clip Thickness (T)
1.58
mm +/- 0.08 (Equiv. 0.062 in.) |
Groove Dia. (Dg)
53.90
mm (Equiv. 2.122 in.) |
Approx. Loose Circlip OD (Dr)
54.20
mm + 0.51 / - 0.00 |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S) Approx.: 4.01 mm +/- 0.10
Groove Width (W): 1.78 mm +/- 0.13
Approx. Loose Clip ID: 46.18 +/- 0.05
Groove Depth (d): 1.55
Category: Retaining Rings - Internal - Spiral Rings - Heavy Duty - Carbon Steel Additional stock available from USA subject to Prior Sale = 936 |
||||||
|
Part Number: RRN-200
Internal Retaining Rings - 50.8x1.58x53.9 mm Spiral Rings - Carbon Spring Steel Spiral Ring Out of Stock | Backorder Now | Orders can be expected around Sat, Nov 22, 2025 Regular price
$5.05 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Housing Bore (B)
57.15
mm (Equiv. 2.25 in.) |
Clip Thickness (T)
1.99
mm +/- 0.08 (Equiv. 0.078 in.) |
Groove Dia. (Dg)
60.51
mm (Equiv. 2.382 in.) |
Approx. Loose Circlip OD (Dr)
60.98
mm + 0.64 / - 0.00 |
Radial Wall (S) Approx.
4.27
mm +/- 0.13 |
Groove Width (W)
2.25
mm +/- 0.15 |
|
|
Material: Carbon Spring Steel
Approx. Loose Clip ID: 52.44 +/- 0.06
Groove Depth (d): 1.68
Category: Retaining Rings - Internal - Spiral Rings - Heavy Duty - Carbon Steel |
||||||
|
Part Number: RRN-225 (4 Pcs)
Internal Retaining Rings - 57.15x1.99x60.51 mm Spiral Rings - Carbon Spring Steel Spiral Ring Out of Stock | Backorder Now | Orders can be expected around Sat, Nov 22, 2025 Regular price
$9.68 AUD
Regular price
Unit price
per
4 Per Sell Unit
Excludes GST and overseas Taxes & Duties |
||||||
|
Housing Bore (B)
57.15
mm (Equiv. 2.25 in.) |
Clip Thickness (T)
1.99
mm +/- 0.08 (Equiv. 0.078 in.) |
Groove Dia. (Dg)
60.51
mm (Equiv. 2.382 in.) |
Approx. Loose Circlip OD (Dr)
60.98
mm + 0.64 / - 0.00 |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S) Approx.: 4.27 mm +/- 0.13
Groove Width (W): 2.25 mm +/- 0.15
Approx. Loose Clip ID: 52.44 +/- 0.06
Groove Depth (d): 1.68
Category: Retaining Rings - Internal - Spiral Rings - Heavy Duty - Carbon Steel |
||||||
|
Part Number: RRN-225 (4 Pcs)
Internal Retaining Rings - 57.15x1.99x60.51 mm Spiral Rings - Carbon Spring Steel Spiral Ring Out of Stock | Backorder Now | Orders can be expected around Sat, Nov 22, 2025 Regular price
$9.68 AUD
Regular price
Unit price
per
4 Per Sell Unit
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Housing Bore (B)
76.20
mm (Equiv. 3 in.) |
Clip Thickness (T)
2.37
mm +/- 0.08 (Equiv. 0.093 in.) |
Groove Dia. (Dg)
80.83
mm (Equiv. 3.182 in.) |
Approx. Loose Circlip OD (Dr)
81.31
mm + 0.76 / - 0.00 |
Radial Wall (S) Approx.
5.72
mm +/- 0.13 |
Groove Width (W)
2.68
mm +/- 0.16 |
|
|
Material: Carbon Spring Steel
Approx. Loose Clip ID: 69.87 +/- 0.06
Groove Depth (d): 2.31
Category: Retaining Rings - Internal - Spiral Rings - Heavy Duty - Carbon Steel Additional stock available from USA subject to Prior Sale = 2 |
||||||
|
Part Number: RRN-300 (2 Pcs)
Internal Retaining Rings - 76.2x2.37x80.83 mm Spiral Rings - Carbon Spring Steel Spiral Ring Out of Stock | Backorder Now | Orders can be expected around Sat, Nov 22, 2025 Regular price
$28.50 AUD
Regular price
Unit price
per
2 Per Sell Unit
Excludes GST and overseas Taxes & Duties |
||||||
|
Housing Bore (B)
76.20
mm (Equiv. 3 in.) |
Clip Thickness (T)
2.37
mm +/- 0.08 (Equiv. 0.093 in.) |
Groove Dia. (Dg)
80.83
mm (Equiv. 3.182 in.) |
Approx. Loose Circlip OD (Dr)
81.31
mm + 0.76 / - 0.00 |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S) Approx.: 5.72 mm +/- 0.13
Groove Width (W): 2.68 mm +/- 0.16
Approx. Loose Clip ID: 69.87 +/- 0.06
Groove Depth (d): 2.31
Category: Retaining Rings - Internal - Spiral Rings - Heavy Duty - Carbon Steel Additional stock available from USA subject to Prior Sale = 2 |
||||||
|
Part Number: RRN-300 (2 Pcs)
Internal Retaining Rings - 76.2x2.37x80.83 mm Spiral Rings - Carbon Spring Steel Spiral Ring Out of Stock | Backorder Now | Orders can be expected around Sat, Nov 22, 2025 Regular price
$28.50 AUD
Regular price
Unit price
per
2 Per Sell Unit
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Housing Bore (B)
89.99
mm (Equiv. 3.543 in.) |
Clip Thickness (T)
2.82
mm +/- 0.08 (Equiv. 0.111 in.) |
Groove Dia. (Dg)
95.38
mm (Equiv. 3.755 in.) |
Approx. Loose Circlip OD (Dr)
96.02
mm + 0.89 / - 0.00 |
Radial Wall (S) Approx.
7.14
mm +/- 0.13 |
Groove Width (W)
3.12
mm +/- 0.16 |
|
|
Material: Carbon Spring Steel
Approx. Loose Clip ID: 81.74 +/- 0.07
Groove Depth (d): 2.69
Category: Retaining Rings - Internal - Spiral Rings - Heavy Duty - Carbon Steel Additional stock available from USA subject to Prior Sale = 674 |
||||||
|
Part Number: RRN-354
Internal Retaining Rings - 89.99x2.82x95.38 mm Spiral Rings - Carbon Spring Steel Spiral Ring Out of Stock | Backorder Now | Orders can be expected around Sat, Nov 22, 2025 Regular price
$12.50 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
Housing Bore (B)
89.99
mm (Equiv. 3.543 in.) |
Clip Thickness (T)
2.82
mm +/- 0.08 (Equiv. 0.111 in.) |
Groove Dia. (Dg)
95.38
mm (Equiv. 3.755 in.) |
Approx. Loose Circlip OD (Dr)
96.02
mm + 0.89 / - 0.00 |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S) Approx.: 7.14 mm +/- 0.13
Groove Width (W): 3.12 mm +/- 0.16
Approx. Loose Clip ID: 81.74 +/- 0.07
Groove Depth (d): 2.69
Category: Retaining Rings - Internal - Spiral Rings - Heavy Duty - Carbon Steel Additional stock available from USA subject to Prior Sale = 674 |
||||||
|
Part Number: RRN-354
Internal Retaining Rings - 89.99x2.82x95.38 mm Spiral Rings - Carbon Spring Steel Spiral Ring Out of Stock | Backorder Now | Orders can be expected around Sat, Nov 22, 2025 Regular price
$12.50 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Housing Bore (B)
109.98
mm (Equiv. 4.33 in.) |
Clip Thickness (T)
2.82
mm +/- 0.08 (Equiv. 0.111 in.) |
Groove Dia. (Dg)
115.72
mm (Equiv. 4.556 in.) |
Approx. Loose Circlip OD (Dr)
117.35
mm + 0.89 / - 0.00 |
Radial Wall (S) Approx.
7.93
mm +/- 0.16 |
Groove Width (W)
3.12
mm +/- 0.15 |
|
|
Material: Carbon Spring Steel
Approx. Loose Clip ID: 101.49 +/- 0.07
Groove Depth (d): 3.05
Category: Retaining Rings - Internal - Spiral Rings - Heavy Duty - Carbon Steel Additional stock available from USA subject to Prior Sale = 4 |
||||||
|
Part Number: RRN-433 (5 Pcs)
Internal Retaining Rings - 109.98x2.82x115.72 mm Spiral Rings - Carbon Spring Steel Spiral Ring Out of Stock | Backorder Now | Orders can be expected around Sat, Nov 22, 2025 Regular price
$236.23 AUD
Regular price
Unit price
per
5 Per Sell Unit
Excludes GST and overseas Taxes & Duties |
||||||
|
Housing Bore (B)
109.98
mm (Equiv. 4.33 in.) |
Clip Thickness (T)
2.82
mm +/- 0.08 (Equiv. 0.111 in.) |
Groove Dia. (Dg)
115.72
mm (Equiv. 4.556 in.) |
Approx. Loose Circlip OD (Dr)
117.35
mm + 0.89 / - 0.00 |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S) Approx.: 7.93 mm +/- 0.16
Groove Width (W): 3.12 mm +/- 0.15
Approx. Loose Clip ID: 101.49 +/- 0.07
Groove Depth (d): 3.05
Category: Retaining Rings - Internal - Spiral Rings - Heavy Duty - Carbon Steel Additional stock available from USA subject to Prior Sale = 4 |
||||||
|
Part Number: RRN-433 (5 Pcs)
Internal Retaining Rings - 109.98x2.82x115.72 mm Spiral Rings - Carbon Spring Steel Spiral Ring Out of Stock | Backorder Now | Orders can be expected around Sat, Nov 22, 2025 Regular price
$236.23 AUD
Regular price
Unit price
per
5 Per Sell Unit
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
