Retaining Rings - Internal - Snap Rings

Retaining Rings -> Internal -> Snap Rings
Housing Bore (B) Clip Thickness (T) Groove Dia. (Dg) Approx. Loose Circlip OD (Dr) Section (Rd) Groove Width (W) Indicative

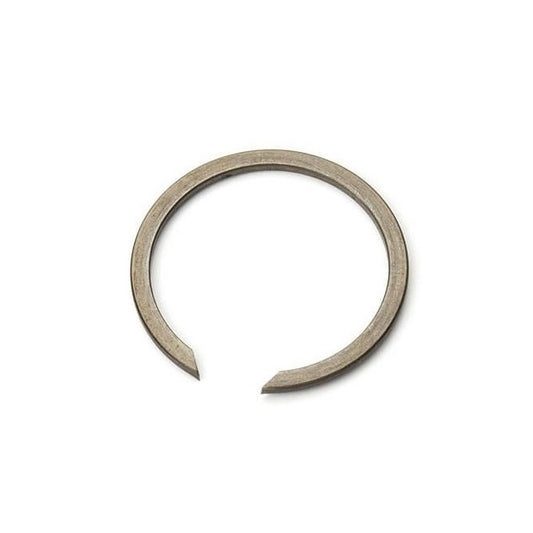

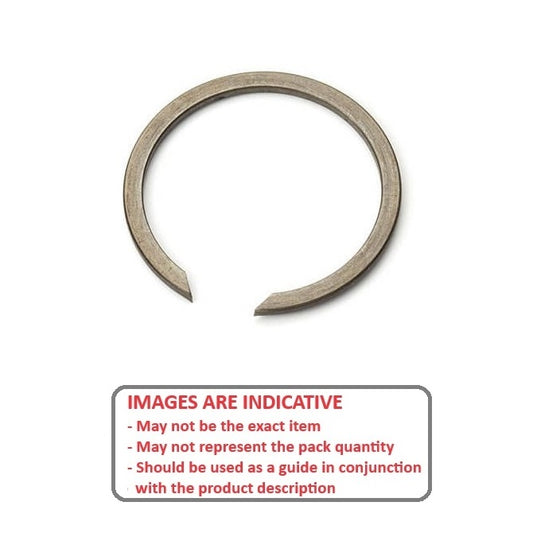

Internal Retaining Rings - 23.83x1.07x25.04 mm Snap Rings - Carbon Spring Steel
Housing Bore (B)
23.83
mm
Clip Thickness (T)
1.07
mm
+/- 0.05
(Equiv. 0.042 in.)
Groove Dia. (Dg)
25.04
mm
+/- 0.08
(Equiv. 0.986 in.)
Approx. Loose Circlip OD (Dr)
25.48
mm
+ 0.79 / - 0.00
Section (Rd)
1.98
mm
+/- 0.08
Groove Width (W)
1.17
mm
Internal Retaining Rings - 23.83x1.07x25.04 mm - Spring Steel
Material: Carbon Spring Steel    Approx. Loose Clip ID: 21.52
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel
Part Number: WRI-0238-LS-O (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity
Housing Bore (B) Clip Thickness (T) Groove Dia. (Dg) Approx. Loose Circlip OD (Dr) Indicative
Internal Retaining Rings - 23.83x1.07x25.04 mm Snap Rings - Carbon Spring Steel
Housing Bore (B)
23.83
mm
Clip Thickness (T)
1.07
mm
+/- 0.05
(Equiv. 0.042 in.)
Groove Dia. (Dg)
25.04
mm
+/- 0.08
(Equiv. 0.986 in.)
Approx. Loose Circlip OD (Dr)
25.48
mm
+ 0.79 / - 0.00
Internal Retaining Rings - 23.83x1.07x25.04 mm - Spring Steel
Material: Carbon Spring Steel    Section (Rd): 1.98 mm +/- 0.08    Groove Width (W): 1.17 mm    Approx. Loose Clip ID: 21.52
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel
Part Number: WRI-0238-LS-O (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Tue, Apr 10, 2029
Internal Retaining Rings - 24x1.2x24.8 mm Snap Rings - Carbon Spring Steel Snap Ring
Housing Bore (B)
24.00
mm
Clip Thickness (T)
1.20
mm
+ 0 / - 0.10
(Equiv. 0.047 in.)
Groove Dia. (Dg)
24.80
mm
+ 0.13 / - 0.00
(Equiv. 0.976 in.)
Approx. Loose Circlip OD (Dr)
25.20
mm
Section (Rd)
1.75
mm
+ 0 / - 0.10
Groove Width (W)
1.30
mm
Internal Retaining Rings - 24x1.2x24.8 mm - Spring Steel
Material: Carbon Spring Steel    Approx. Loose Clip ID: 21.7
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel
Part Number: WRI-0240-LS (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity
Internal Retaining Rings - 24x1.2x24.8 mm Snap Rings - Carbon Spring Steel Snap Ring
Housing Bore (B)
24.00
mm
Clip Thickness (T)
1.20
mm
+ 0 / - 0.10
(Equiv. 0.047 in.)
Groove Dia. (Dg)
24.80
mm
+ 0.13 / - 0.00
(Equiv. 0.976 in.)
Approx. Loose Circlip OD (Dr)
25.20
mm
Internal Retaining Rings - 24x1.2x24.8 mm - Spring Steel
Material: Carbon Spring Steel    Section (Rd): 1.75 mm + 0 / - 0.10    Groove Width (W): 1.30 mm    Approx. Loose Clip ID: 21.7
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel
Part Number: WRI-0240-LS (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Tue, Apr 10, 2029
Internal Retaining Rings - 25x1.2x25.8 mm Snap Rings - Carbon Spring Steel Snap Ring
Housing Bore (B)
25.00
mm
Clip Thickness (T)
1.20
mm
+ 0 / - 0.10
(Equiv. 0.047 in.)
Groove Dia. (Dg)
25.80
mm
+ 0.13 / - 0.00
(Equiv. 1.016 in.)
Approx. Loose Circlip OD (Dr)
26.20
mm
Section (Rd)
1.75
mm
+ 0 / - 0.10
Groove Width (W)
1.30
mm
Internal Retaining Rings - 25x1.2x25.8 mm - Spring Steel
Material: Carbon Spring Steel    Approx. Loose Clip ID: 22.7
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel
Part Number: WRI-0250-LS (Each)
180 Available Now | Further orders can be expected around Wed, Mar 10, 2027
$2.05 AUD
$2.05 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Larger quantities than the 180 available can be backordered.
Internal Retaining Rings - 25x1.2x25.8 mm Snap Rings - Carbon Spring Steel Snap Ring
Housing Bore (B)
25.00
mm
Clip Thickness (T)
1.20
mm
+ 0 / - 0.10
(Equiv. 0.047 in.)
Groove Dia. (Dg)
25.80
mm
+ 0.13 / - 0.00
(Equiv. 1.016 in.)
Approx. Loose Circlip OD (Dr)
26.20
mm
Internal Retaining Rings - 25x1.2x25.8 mm - Spring Steel
Material: Carbon Spring Steel    Section (Rd): 1.75 mm + 0 / - 0.10    Groove Width (W): 1.30 mm    Approx. Loose Clip ID: 22.7
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel
Part Number: WRI-0250-LS (Each)
180 Available Now | Further orders can be expected around Wed, Mar 10, 2027
$2.05 AUD
$2.05 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

180 Available Now. Backorder if more than 180.
Internal Retaining Rings - 22x1.2x22.6 mm Snap Rings - Carbon Spring Steel Snap Ring
Housing Bore (B)
22.00
mm
Clip Thickness (T)
1.20
mm
+ 0 / - 0.10
(Equiv. 0.047 in.)
Groove Dia. (Dg)
22.60
mm
+ 0.13 / - 0.00
(Equiv. 0.89 in.)
Approx. Loose Circlip OD (Dr)
23.00
mm
Section (Rd)
1.75
mm
+ 0 / - 0.10
Groove Width (W)
1.30
mm
Internal Retaining Rings - 22x1.2x22.6 mm - Spring Steel
Material: Carbon Spring Steel    Approx. Loose Clip ID: 19.5
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel
Part Number: WRI-0220-LS (Each)
20 Available Now | Further orders can be expected around Sat, Aug 22, 2026
$2.05 AUD
$2.45 AUD $2.05 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Larger quantities than the 20 available can be backordered.
Internal Retaining Rings - 22x1.2x22.6 mm Snap Rings - Carbon Spring Steel Snap Ring
Housing Bore (B)
22.00
mm
Clip Thickness (T)
1.20
mm
+ 0 / - 0.10
(Equiv. 0.047 in.)
Groove Dia. (Dg)
22.60
mm
+ 0.13 / - 0.00
(Equiv. 0.89 in.)
Approx. Loose Circlip OD (Dr)
23.00
mm
Internal Retaining Rings - 22x1.2x22.6 mm - Spring Steel
Material: Carbon Spring Steel    Section (Rd): 1.75 mm + 0 / - 0.10    Groove Width (W): 1.30 mm    Approx. Loose Clip ID: 19.5
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel
Part Number: WRI-0220-LS (Each)
20 Available Now | Further orders can be expected around Sat, Aug 22, 2026
$2.05 AUD
$2.45 AUD $2.05 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

20 Available Now. Backorder if more than 20.
Internal Retaining Rings - 25.4x1.07x26.72 mm Snap Rings - Carbon Spring Steel
Housing Bore (B)
25.40
mm
Clip Thickness (T)
1.07
mm
+/- 0.05
(Equiv. 0.042 in.)
Groove Dia. (Dg)
26.72
mm
+/- 0.08
(Equiv. 1.052 in.)
Approx. Loose Circlip OD (Dr)
27.18
mm
+ 0.79 / - 0.00
Section (Rd)
1.98
mm
+/- 0.08
Groove Width (W)
1.17
mm
Internal Retaining Rings - 25.4x1.07x26.72 mm - Spring Steel
Material: Carbon Spring Steel    Approx. Loose Clip ID: 23.22
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel
Part Number: WRI-0254-LS-O (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity
Internal Retaining Rings - 25.4x1.07x26.72 mm Snap Rings - Carbon Spring Steel
Housing Bore (B)
25.40
mm
Clip Thickness (T)
1.07
mm
+/- 0.05
(Equiv. 0.042 in.)
Groove Dia. (Dg)
26.72
mm
+/- 0.08
(Equiv. 1.052 in.)
Approx. Loose Circlip OD (Dr)
27.18
mm
+ 0.79 / - 0.00
Internal Retaining Rings - 25.4x1.07x26.72 mm - Spring Steel
Material: Carbon Spring Steel    Section (Rd): 1.98 mm +/- 0.08    Groove Width (W): 1.17 mm    Approx. Loose Clip ID: 23.22
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel
Part Number: WRI-0254-LS-O (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Tue, Apr 10, 2029
Internal Retaining Rings - 25.98x1.07x27.31 mm Snap Rings - Carbon Spring Steel
Housing Bore (B)
25.98
mm
Clip Thickness (T)
1.07
mm
+/- 0.05
(Equiv. 0.042 in.)
Groove Dia. (Dg)
27.31
mm
+/- 0.13
(Equiv. 1.075 in.)
Approx. Loose Circlip OD (Dr)
27.79
mm
+ 0.79 / - 0.00
Section (Rd)
2.36
mm
+/- 0.08
Groove Width (W)
1.17
mm
Internal Retaining Rings - 25.98x1.07x27.31 mm - Spring Steel
Material: Carbon Spring Steel    Approx. Loose Clip ID: 23.07
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel
Part Number: WRI-0260-LS-O (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity
Internal Retaining Rings - 25.98x1.07x27.31 mm Snap Rings - Carbon Spring Steel
Housing Bore (B)
25.98
mm
Clip Thickness (T)
1.07
mm
+/- 0.05
(Equiv. 0.042 in.)
Groove Dia. (Dg)
27.31
mm
+/- 0.13
(Equiv. 1.075 in.)
Approx. Loose Circlip OD (Dr)
27.79
mm
+ 0.79 / - 0.00
Internal Retaining Rings - 25.98x1.07x27.31 mm - Spring Steel
Material: Carbon Spring Steel    Section (Rd): 2.36 mm +/- 0.08    Groove Width (W): 1.17 mm    Approx. Loose Clip ID: 23.07
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel
Part Number: WRI-0260-LS-O (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Tue, Apr 10, 2029
Internal Retaining Rings - 26.98x1.27x28.3 mm Snap Rings - Carbon Spring Steel
Housing Bore (B)
26.98
mm
Clip Thickness (T)
1.27
mm
+/- 0.05
(Equiv. 0.05 in.)
Groove Dia. (Dg)
28.30
mm
+/- 0.13
(Equiv. 1.114 in.)
Approx. Loose Circlip OD (Dr)
28.80
mm
+ 0.79 / - 0.00
Section (Rd)
2.36
mm
+/- 0.08
Groove Width (W)
1.42
mm
Internal Retaining Rings - 26.98x1.27x28.3 mm - Spring Steel
Material: Carbon Spring Steel    Approx. Loose Clip ID: 24.08
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel
Part Number: WRI-0270-LS-O (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity
Internal Retaining Rings - 26.98x1.27x28.3 mm Snap Rings - Carbon Spring Steel
Housing Bore (B)
26.98
mm
Clip Thickness (T)
1.27
mm
+/- 0.05
(Equiv. 0.05 in.)
Groove Dia. (Dg)
28.30
mm
+/- 0.13
(Equiv. 1.114 in.)
Approx. Loose Circlip OD (Dr)
28.80
mm
+ 0.79 / - 0.00
Internal Retaining Rings - 26.98x1.27x28.3 mm - Spring Steel
Material: Carbon Spring Steel    Section (Rd): 2.36 mm +/- 0.08    Groove Width (W): 1.42 mm    Approx. Loose Clip ID: 24.08
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel
Part Number: WRI-0270-LS-O (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Tue, Apr 10, 2029
Internal Retaining Rings - 28x1.2x28.8 mm Snap Rings - Carbon Spring Steel Snap Ring
Housing Bore (B)
28.00
mm
Clip Thickness (T)
1.20
mm
+ 0 / - 0.10
(Equiv. 0.047 in.)
Groove Dia. (Dg)
28.80
mm
+ 0.13 / - 0.00
(Equiv. 1.134 in.)
Approx. Loose Circlip OD (Dr)
29.20
mm
Section (Rd)
1.75
mm
+ 0 / - 0.10
Groove Width (W)
1.30
mm
Internal Retaining Rings - 28x1.2x28.8 mm - Spring Steel
Material: Carbon Spring Steel    Approx. Loose Clip ID: 25.7
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel
Part Number: WRI-0280-LS (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity
Internal Retaining Rings - 28x1.2x28.8 mm Snap Rings - Carbon Spring Steel Snap Ring
Housing Bore (B)
28.00
mm
Clip Thickness (T)
1.20
mm
+ 0 / - 0.10
(Equiv. 0.047 in.)
Groove Dia. (Dg)
28.80
mm
+ 0.13 / - 0.00
(Equiv. 1.134 in.)
Approx. Loose Circlip OD (Dr)
29.20
mm
Internal Retaining Rings - 28x1.2x28.8 mm - Spring Steel
Material: Carbon Spring Steel    Section (Rd): 1.75 mm + 0 / - 0.10    Groove Width (W): 1.30 mm    Approx. Loose Clip ID: 25.7
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel
Part Number: WRI-0280-LS (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Tue, Apr 10, 2029
Internal Retaining Rings - 28.58x1.07x30 mm Snap Rings - Carbon Spring Steel
Housing Bore (B)
28.58
mm
Clip Thickness (T)
1.07
mm
+/- 0.06
(Equiv. 0.042 in.)
Groove Dia. (Dg)
30.00
mm
+/- 0.13
(Equiv. 1.181 in.)
Approx. Loose Circlip OD (Dr)
30.38
mm
+ 0.79 / - 0.00
Section (Rd)
2.36
mm
+/- 0.08
Groove Width (W)
1.17
mm
Internal Retaining Rings - 28.58x1.07x30 mm - Spring Steel
Material: Carbon Spring Steel    Approx. Loose Clip ID: 25.66
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel
Part Number: WRI-0286-LS-O (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity
Internal Retaining Rings - 28.58x1.07x30 mm Snap Rings - Carbon Spring Steel
Housing Bore (B)
28.58
mm
Clip Thickness (T)
1.07
mm
+/- 0.06
(Equiv. 0.042 in.)
Groove Dia. (Dg)
30.00
mm
+/- 0.13
(Equiv. 1.181 in.)
Approx. Loose Circlip OD (Dr)
30.38
mm
+ 0.79 / - 0.00
Internal Retaining Rings - 28.58x1.07x30 mm - Spring Steel
Material: Carbon Spring Steel    Section (Rd): 2.36 mm +/- 0.08    Groove Width (W): 1.17 mm    Approx. Loose Clip ID: 25.66
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel
Part Number: WRI-0286-LS-O (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Tue, Apr 10, 2029
Internal Retaining Rings - 28.58x1.27x30 mm Snap Rings - Carbon Spring Steel
Housing Bore (B)
28.58
mm
Clip Thickness (T)
1.27
mm
+/- 0.05
(Equiv. 0.05 in.)
Groove Dia. (Dg)
30.00
mm
+/- 0.13
(Equiv. 1.181 in.)
Approx. Loose Circlip OD (Dr)
30.53
mm
+ 0.79 / - 0.00
Section (Rd)
2.36
mm
+/- 0.08
Groove Width (W)
1.42
mm
Internal Retaining Rings - 28.58x1.27x30 mm - Spring Steel
Material: Carbon Spring Steel    Approx. Loose Clip ID: 25.81
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel
Part Number: WRI-0286-LS-HO (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity
Internal Retaining Rings - 28.58x1.27x30 mm Snap Rings - Carbon Spring Steel
Housing Bore (B)
28.58
mm
Clip Thickness (T)
1.27
mm
+/- 0.05
(Equiv. 0.05 in.)
Groove Dia. (Dg)
30.00
mm
+/- 0.13
(Equiv. 1.181 in.)
Approx. Loose Circlip OD (Dr)
30.53
mm
+ 0.79 / - 0.00
Internal Retaining Rings - 28.58x1.27x30 mm - Spring Steel
Material: Carbon Spring Steel    Section (Rd): 2.36 mm +/- 0.08    Groove Width (W): 1.42 mm    Approx. Loose Clip ID: 25.81
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel
Part Number: WRI-0286-LS-HO (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Tue, Apr 10, 2029
Internal Retaining Rings - 29x1.2x29.8 mm Snap Rings - Carbon Spring Steel Snap Ring
Housing Bore (B)
29.00
mm
Clip Thickness (T)
1.20
mm
+ 0 / - 0.10
(Equiv. 0.047 in.)
Groove Dia. (Dg)
29.80
mm
+ 0.13 / - 0.00
(Equiv. 1.173 in.)
Approx. Loose Circlip OD (Dr)
30.20
mm
Section (Rd)
1.75
mm
+ 0 / - 0.10
Groove Width (W)
1.30
mm
Internal Retaining Rings - 29x1.2x29.8 mm - Spring Steel
Material: Carbon Spring Steel    Approx. Loose Clip ID: 26.7
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel
Part Number: WRI-0290-LS (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity
Internal Retaining Rings - 29x1.2x29.8 mm Snap Rings - Carbon Spring Steel Snap Ring
Housing Bore (B)
29.00
mm
Clip Thickness (T)
1.20
mm
+ 0 / - 0.10
(Equiv. 0.047 in.)
Groove Dia. (Dg)
29.80
mm
+ 0.13 / - 0.00
(Equiv. 1.173 in.)
Approx. Loose Circlip OD (Dr)
30.20
mm
Internal Retaining Rings - 29x1.2x29.8 mm - Spring Steel
Material: Carbon Spring Steel    Section (Rd): 1.75 mm + 0 / - 0.10    Groove Width (W): 1.30 mm    Approx. Loose Clip ID: 26.7
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel
Part Number: WRI-0290-LS (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Tue, Apr 10, 2029
Internal Retaining Rings - 30.18x1.27x31.7 mm Snap Rings - Carbon Spring Steel
Housing Bore (B)
30.18
mm
Clip Thickness (T)
1.27
mm
+/- 0.05
(Equiv. 0.05 in.)
Groove Dia. (Dg)
31.70
mm
+/- 0.13
(Equiv. 1.248 in.)
Approx. Loose Circlip OD (Dr)
32.26
mm
+ 0.79 / - 0.00
Section (Rd)
2.36
mm
+/- 0.08
Groove Width (W)
1.42
mm
Internal Retaining Rings - 30.18x1.27x31.7 mm - Spring Steel
Material: Carbon Spring Steel    Approx. Loose Clip ID: 27.54
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel
Part Number: WRI-0302-LS-O (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity
Internal Retaining Rings - 30.18x1.27x31.7 mm Snap Rings - Carbon Spring Steel
Housing Bore (B)
30.18
mm
Clip Thickness (T)
1.27
mm
+/- 0.05
(Equiv. 0.05 in.)
Groove Dia. (Dg)
31.70
mm
+/- 0.13
(Equiv. 1.248 in.)
Approx. Loose Circlip OD (Dr)
32.26
mm
+ 0.79 / - 0.00
Internal Retaining Rings - 30.18x1.27x31.7 mm - Spring Steel
Material: Carbon Spring Steel    Section (Rd): 2.36 mm +/- 0.08    Groove Width (W): 1.42 mm    Approx. Loose Clip ID: 27.54
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel
Part Number: WRI-0302-LS-O (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Tue, Apr 10, 2029
Internal Retaining Rings - 31.75x1.07x33.27 mm Snap Rings - Carbon Spring Steel
Housing Bore (B)
31.75
mm
Clip Thickness (T)
1.07
mm
+/- 0.06
(Equiv. 0.042 in.)
Groove Dia. (Dg)
33.27
mm
+/- 0.13
(Equiv. 1.31 in.)
Approx. Loose Circlip OD (Dr)
33.78
mm
+ 0.79 / - 0.00
Section (Rd)
2.36
mm
+/- 0.08
Groove Width (W)
1.17
mm
Internal Retaining Rings - 31.75x1.07x33.27 mm - Spring Steel
Material: Carbon Spring Steel    Approx. Loose Clip ID: 29.06
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel
Part Number: WRI-0318-LS-O (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity
Internal Retaining Rings - 31.75x1.07x33.27 mm Snap Rings - Carbon Spring Steel
Housing Bore (B)
31.75
mm
Clip Thickness (T)
1.07
mm
+/- 0.06
(Equiv. 0.042 in.)
Groove Dia. (Dg)
33.27
mm
+/- 0.13
(Equiv. 1.31 in.)
Approx. Loose Circlip OD (Dr)
33.78
mm
+ 0.79 / - 0.00
Internal Retaining Rings - 31.75x1.07x33.27 mm - Spring Steel
Material: Carbon Spring Steel    Section (Rd): 2.36 mm +/- 0.08    Groove Width (W): 1.17 mm    Approx. Loose Clip ID: 29.06
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel
Part Number: WRI-0318-LS-O (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Tue, Apr 10, 2029
Internal Retaining Rings - 31.75x1.27x33.38 mm Snap Rings - Carbon Spring Steel
Housing Bore (B)
31.75
mm
Clip Thickness (T)
1.27
mm
+/- 0.05
(Equiv. 0.05 in.)
Groove Dia. (Dg)
33.38
mm
+/- 0.13
(Equiv. 1.314 in.)
Approx. Loose Circlip OD (Dr)
33.96
mm
+ 0.79 / - 0.00
Section (Rd)
2.77
mm
+/- 0.08
Groove Width (W)
1.42
mm
Internal Retaining Rings - 31.75x1.27x33.38 mm - Spring Steel
Material: Carbon Spring Steel    Approx. Loose Clip ID: 28.42
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel
Part Number: WRI-0318-LS-HO (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity
Internal Retaining Rings - 31.75x1.27x33.38 mm Snap Rings - Carbon Spring Steel
Housing Bore (B)
31.75
mm
Clip Thickness (T)
1.27
mm
+/- 0.05
(Equiv. 0.05 in.)
Groove Dia. (Dg)
33.38
mm
+/- 0.13
(Equiv. 1.314 in.)
Approx. Loose Circlip OD (Dr)
33.96
mm
+ 0.79 / - 0.00
Internal Retaining Rings - 31.75x1.27x33.38 mm - Spring Steel
Material: Carbon Spring Steel    Section (Rd): 2.77 mm +/- 0.08    Groove Width (W): 1.42 mm    Approx. Loose Clip ID: 28.42
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel
Part Number: WRI-0318-LS-HO (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Tue, Apr 10, 2029
Internal Retaining Rings - 27x1.2x27.8 mm Snap Rings - Carbon Spring Steel Snap Ring
Housing Bore (B)
27.00
mm
Clip Thickness (T)
1.20
mm
+ 0 / - 0.10
(Equiv. 0.047 in.)
Groove Dia. (Dg)
27.80
mm
+ 0.13 / - 0.00
(Equiv. 1.094 in.)
Approx. Loose Circlip OD (Dr)
28.20
mm
Section (Rd)
1.75
mm
+ 0 / - 0.10
Groove Width (W)
1.30
mm
Internal Retaining Rings - 27x1.2x27.8 mm - Spring Steel
Material: Carbon Spring Steel    Approx. Loose Clip ID: 24.7
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel
Part Number: WRI-0270-LS (PK-10)
1 pack (10 pcs) Available Now | More stock due: 10 (100 pcs) around Tue, Jul 21, 2026 | Further orders can be expected around Thu, Aug 13, 2026
$5.95 AUD
$5.95 AUD
Priced, Stocked and Sold Per 10 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Larger quantities than the 1 available can be backordered.
Internal Retaining Rings - 27x1.2x27.8 mm Snap Rings - Carbon Spring Steel Snap Ring
Housing Bore (B)
27.00
mm
Clip Thickness (T)
1.20
mm
+ 0 / - 0.10
(Equiv. 0.047 in.)
Groove Dia. (Dg)
27.80
mm
+ 0.13 / - 0.00
(Equiv. 1.094 in.)
Approx. Loose Circlip OD (Dr)
28.20
mm
Internal Retaining Rings - 27x1.2x27.8 mm - Spring Steel
Material: Carbon Spring Steel    Section (Rd): 1.75 mm + 0 / - 0.10    Groove Width (W): 1.30 mm    Approx. Loose Clip ID: 24.7
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel
Part Number: WRI-0270-LS (PK-10)
1 pack (10 pcs) Available Now | More stock due: 10 (100 pcs) around Tue, Jul 21, 2026 | Further orders can be expected around Thu, Aug 13, 2026
$5.95 AUD
$5.95 AUD
Priced, Stocked and Sold Per 10 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

1 pack (10 pcs) Available Now. Backorder if more than 1.
Internal Retaining Rings - 32x1.5x33 mm Snap Rings - Carbon Spring Steel Snap Ring
Housing Bore (B)
32.00
mm
Clip Thickness (T)
1.50
mm
+ 0 / - 0.10
(Equiv. 0.059 in.)
Groove Dia. (Dg)
33.00
mm
+ 0.16 / - 0.00
(Equiv. 1.299 in.)
Approx. Loose Circlip OD (Dr)
33.40
mm
Section (Rd)
2.30
mm
+ 0 / - 0.10
Groove Width (W)
1.60
mm
Internal Retaining Rings - 32x1.5x33 mm - Spring Steel
Material: Carbon Spring Steel    Approx. Loose Clip ID: 28.8
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel
Deleted Item. Available while stocks last.
Part Number: WRI-0320-LS (PK-10)
95 units (950 pcs) Available Now | Item Discontinued - Up to 95 may be ordered online. No backorders. Please contact us if you need a larger quantity
$20.00 AUD
$38.00 AUD $20.00 AUD
Priced, Stocked and Sold Per 10 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

95 units (950 pcs) Available Now. These are priced to quit. Please contact us for a quote if you require more.
Internal Retaining Rings - 32x1.5x33 mm Snap Rings - Carbon Spring Steel Snap Ring
Housing Bore (B)
32.00
mm
Clip Thickness (T)
1.50
mm
+ 0 / - 0.10
(Equiv. 0.059 in.)
Groove Dia. (Dg)
33.00
mm
+ 0.16 / - 0.00
(Equiv. 1.299 in.)
Approx. Loose Circlip OD (Dr)
33.40
mm
Internal Retaining Rings - 32x1.5x33 mm - Spring Steel
Material: Carbon Spring Steel    Section (Rd): 2.30 mm + 0 / - 0.10    Groove Width (W): 1.60 mm    Approx. Loose Clip ID: 28.8
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel
Deleted Item. Available while stocks last.
Part Number: WRI-0320-LS (PK-10)
95 units (950 pcs) Available Now | Item Discontinued - Up to 95 may be ordered online. No backorders. Please contact us if you need a larger quantity
$20.00 AUD
$38.00 AUD $20.00 AUD
Priced, Stocked and Sold Per 10 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

95 units (950 pcs) Available Now. These are priced to quit. Please contact us for a quote if you require more.
Internal Retaining Rings - 33.33x1.27x35.05 mm Snap Rings - Carbon Spring Steel
Housing Bore (B)
33.33
mm
Clip Thickness (T)
1.27
mm
+/- 0.05
(Equiv. 0.05 in.)
Groove Dia. (Dg)
35.05
mm
+/- 0.13
(Equiv. 1.38 in.)
Approx. Loose Circlip OD (Dr)
35.66
mm
+ 0.79 / - 0.00
Section (Rd)
2.77
mm
+/- 0.08
Groove Width (W)
1.42
mm
Internal Retaining Rings - 33.33x1.27x35.05 mm - Spring Steel
Material: Carbon Spring Steel    Approx. Loose Clip ID: 30.12
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel
Part Number: WRI-0333-LS-O (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity
Internal Retaining Rings - 33.33x1.27x35.05 mm Snap Rings - Carbon Spring Steel
Housing Bore (B)
33.33
mm
Clip Thickness (T)
1.27
mm
+/- 0.05
(Equiv. 0.05 in.)
Groove Dia. (Dg)
35.05
mm
+/- 0.13
(Equiv. 1.38 in.)
Approx. Loose Circlip OD (Dr)
35.66
mm
+ 0.79 / - 0.00
Internal Retaining Rings - 33.33x1.27x35.05 mm - Spring Steel
Material: Carbon Spring Steel    Section (Rd): 2.77 mm +/- 0.08    Groove Width (W): 1.42 mm    Approx. Loose Clip ID: 30.12
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel
Part Number: WRI-0333-LS-O (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Tue, Apr 10, 2029
Internal Retaining Rings - 30x1.5x31 mm Snap Rings - Carbon Spring Steel Snap Ring
Housing Bore (B)
30.00
mm
Clip Thickness (T)
1.50
mm
+ 0 / - 0.10
(Equiv. 0.059 in.)
Groove Dia. (Dg)
31.00
mm
+ 0.16 / - 0.00
(Equiv. 1.22 in.)
Approx. Loose Circlip OD (Dr)
31.40
mm
Section (Rd)
2.30
mm
+ 0 / - 0.10
Groove Width (W)
1.60
mm
Internal Retaining Rings - 30x1.5x31 mm - Spring Steel
Material: Carbon Spring Steel    Approx. Loose Clip ID: 26.8
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel
Part Number: WRI-0300-LS (Each)
180 Available Now | Further orders can be expected around Sat, Aug 22, 2026
$3.14 AUD
$5.46 AUD $3.14 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Larger quantities than the 180 available can be backordered.
Internal Retaining Rings - 30x1.5x31 mm Snap Rings - Carbon Spring Steel Snap Ring
Housing Bore (B)
30.00
mm
Clip Thickness (T)
1.50
mm
+ 0 / - 0.10
(Equiv. 0.059 in.)
Groove Dia. (Dg)
31.00
mm
+ 0.16 / - 0.00
(Equiv. 1.22 in.)
Approx. Loose Circlip OD (Dr)
31.40
mm
Internal Retaining Rings - 30x1.5x31 mm - Spring Steel
Material: Carbon Spring Steel    Section (Rd): 2.30 mm + 0 / - 0.10    Groove Width (W): 1.60 mm    Approx. Loose Clip ID: 26.8
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel
Part Number: WRI-0300-LS (Each)
180 Available Now | Further orders can be expected around Sat, Aug 22, 2026
$3.14 AUD
$5.46 AUD $3.14 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

180 Available Now. Backorder if more than 180.
Internal Retaining Rings - 34.93x1.07x36.45 mm Snap Rings - Carbon Spring Steel
Housing Bore (B)
34.93
mm
Clip Thickness (T)
1.07
mm
+/- 0.06
(Equiv. 0.042 in.)
Groove Dia. (Dg)
36.45
mm
+/- 0.13
(Equiv. 1.435 in.)
Approx. Loose Circlip OD (Dr)
37.08
mm
+ 0.79 / - 0.00
Section (Rd)
2.36
mm
+/- 0.08
Groove Width (W)
1.17
mm
Internal Retaining Rings - 34.93x1.07x36.45 mm - Spring Steel
Material: Carbon Spring Steel    Approx. Loose Clip ID: 32.36
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel
Part Number: WRI-0349-LS-O (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity
Internal Retaining Rings - 34.93x1.07x36.45 mm Snap Rings - Carbon Spring Steel
Housing Bore (B)
34.93
mm
Clip Thickness (T)
1.07
mm
+/- 0.06
(Equiv. 0.042 in.)
Groove Dia. (Dg)
36.45
mm
+/- 0.13
(Equiv. 1.435 in.)
Approx. Loose Circlip OD (Dr)
37.08
mm
+ 0.79 / - 0.00
Internal Retaining Rings - 34.93x1.07x36.45 mm - Spring Steel
Material: Carbon Spring Steel    Section (Rd): 2.36 mm +/- 0.08    Groove Width (W): 1.17 mm    Approx. Loose Clip ID: 32.36
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel
Part Number: WRI-0349-LS-O (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Tue, Apr 10, 2029
Internal Retaining Rings - 31x1.5x32 mm Snap Rings - Carbon Spring Steel Snap Ring
Housing Bore (B)
31.00
mm
Clip Thickness (T)
1.50
mm
+ 0 / - 0.10
(Equiv. 0.059 in.)
Groove Dia. (Dg)
32.00
mm
+ 0.16 / - 0.00
(Equiv. 1.26 in.)
Approx. Loose Circlip OD (Dr)
32.40
mm
Section (Rd)
2.30
mm
+ 0 / - 0.10
Groove Width (W)
1.60
mm
Internal Retaining Rings - 31x1.5x32 mm - Spring Steel
Material: Carbon Spring Steel    Approx. Loose Clip ID: 27.8
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel
Part Number: WRI-0310-LS (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Aug 22, 2026
$6.41 AUD
$7.69 AUD $6.41 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Internal Retaining Rings - 31x1.5x32 mm Snap Rings - Carbon Spring Steel Snap Ring
Housing Bore (B)
31.00
mm
Clip Thickness (T)
1.50
mm
+ 0 / - 0.10
(Equiv. 0.059 in.)
Groove Dia. (Dg)
32.00
mm
+ 0.16 / - 0.00
(Equiv. 1.26 in.)
Approx. Loose Circlip OD (Dr)
32.40
mm
Internal Retaining Rings - 31x1.5x32 mm - Spring Steel
Material: Carbon Spring Steel    Section (Rd): 2.30 mm + 0 / - 0.10    Groove Width (W): 1.60 mm    Approx. Loose Clip ID: 27.8
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel
Part Number: WRI-0310-LS (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Aug 22, 2026
$6.41 AUD
$7.69 AUD $6.41 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Internal Retaining Rings - 36.53x1.27x38.35 mm Snap Rings - Carbon Spring Steel
Housing Bore (B)
36.53
mm
Clip Thickness (T)
1.27
mm
+/- 0.05
(Equiv. 0.05 in.)
Groove Dia. (Dg)
38.35
mm
+/- 0.13
(Equiv. 1.51 in.)
Approx. Loose Circlip OD (Dr)
38.99
mm
+ 0.79 / - 0.00
Section (Rd)
3.18
mm
+/- 0.13
Groove Width (W)
1.42
mm
Internal Retaining Rings - 36.53x1.27x38.35 mm - Spring Steel
Material: Carbon Spring Steel    Approx. Loose Clip ID: 32.63
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel
Part Number: WRI-0365-LS-O (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity
Internal Retaining Rings - 36.53x1.27x38.35 mm Snap Rings - Carbon Spring Steel
Housing Bore (B)
36.53
mm
Clip Thickness (T)
1.27
mm
+/- 0.05
(Equiv. 0.05 in.)
Groove Dia. (Dg)
38.35
mm
+/- 0.13
(Equiv. 1.51 in.)
Approx. Loose Circlip OD (Dr)
38.99
mm
+ 0.79 / - 0.00
Internal Retaining Rings - 36.53x1.27x38.35 mm - Spring Steel
Material: Carbon Spring Steel    Section (Rd): 3.18 mm +/- 0.13    Groove Width (W): 1.42 mm    Approx. Loose Clip ID: 32.63
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel
Part Number: WRI-0365-LS-O (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Tue, Apr 10, 2029
Internal Retaining Rings - 36.98x1.27x38.91 mm Snap Rings - Carbon Spring Steel
Housing Bore (B)
36.98
mm
Clip Thickness (T)
1.27
mm
+/- 0.05
(Equiv. 0.05 in.)
Groove Dia. (Dg)
38.91
mm
+/- 0.13
(Equiv. 1.532 in.)
Approx. Loose Circlip OD (Dr)
39.55
mm
+ 0.79 / - 0.00
Section (Rd)
3.18
mm
+/- 0.13
Groove Width (W)
1.42
mm
Internal Retaining Rings - 36.98x1.27x38.91 mm - Spring Steel
Material: Carbon Spring Steel    Approx. Loose Clip ID: 33.19
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel
Part Number: WRI-0370-LS-O (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity
Internal Retaining Rings - 36.98x1.27x38.91 mm Snap Rings - Carbon Spring Steel
Housing Bore (B)
36.98
mm
Clip Thickness (T)
1.27
mm
+/- 0.05
(Equiv. 0.05 in.)
Groove Dia. (Dg)
38.91
mm
+/- 0.13
(Equiv. 1.532 in.)
Approx. Loose Circlip OD (Dr)
39.55
mm
+ 0.79 / - 0.00
Internal Retaining Rings - 36.98x1.27x38.91 mm - Spring Steel
Material: Carbon Spring Steel    Section (Rd): 3.18 mm +/- 0.13    Groove Width (W): 1.42 mm    Approx. Loose Clip ID: 33.19
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel
Part Number: WRI-0370-LS-O (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Tue, Apr 10, 2029
Internal Retaining Rings - 38x1.5x39.2 mm Snap Rings - Carbon Spring Steel Snap Ring
Housing Bore (B)
38.00
mm
Clip Thickness (T)
1.50
mm
+ 0 / - 0.10
(Equiv. 0.059 in.)
Groove Dia. (Dg)
39.20
mm
+ 0.16 / - 0.00
(Equiv. 1.543 in.)
Approx. Loose Circlip OD (Dr)
39.80
mm
Section (Rd)
2.30
mm
+ 0 / - 0.10
Groove Width (W)
1.60
mm
Internal Retaining Rings - 38x1.5x39.2 mm - Spring Steel
Material: Carbon Spring Steel    Approx. Loose Clip ID: 35.2
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel
Part Number: WRI-0380-LS (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity
Internal Retaining Rings - 38x1.5x39.2 mm Snap Rings - Carbon Spring Steel Snap Ring
Housing Bore (B)
38.00
mm
Clip Thickness (T)
1.50
mm
+ 0 / - 0.10
(Equiv. 0.059 in.)
Groove Dia. (Dg)
39.20
mm
+ 0.16 / - 0.00
(Equiv. 1.543 in.)
Approx. Loose Circlip OD (Dr)
39.80
mm
Internal Retaining Rings - 38x1.5x39.2 mm - Spring Steel
Material: Carbon Spring Steel    Section (Rd): 2.30 mm + 0 / - 0.10    Groove Width (W): 1.60 mm    Approx. Loose Clip ID: 35.2
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel
Part Number: WRI-0380-LS (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Tue, Apr 10, 2029
Internal Retaining Rings - 38.1x1.07x40.13 mm Snap Rings - Carbon Spring Steel
Housing Bore (B)
38.10
mm
Clip Thickness (T)
1.07
mm
+/- 0.06
(Equiv. 0.042 in.)
Groove Dia. (Dg)
40.13
mm
+/- 0.13
(Equiv. 1.58 in.)
Approx. Loose Circlip OD (Dr)
40.64
mm
+ 0.79 / - 0.00
Section (Rd)
3.18
mm
+/- 0.13
Groove Width (W)
1.17
mm
Internal Retaining Rings - 38.1x1.07x40.13 mm - Spring Steel
Material: Carbon Spring Steel    Approx. Loose Clip ID: 34.28
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel
Part Number: WRI-0381-LS-O (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity
Internal Retaining Rings - 38.1x1.07x40.13 mm Snap Rings - Carbon Spring Steel
Housing Bore (B)
38.10
mm
Clip Thickness (T)
1.07
mm
+/- 0.06
(Equiv. 0.042 in.)
Groove Dia. (Dg)
40.13
mm
+/- 0.13
(Equiv. 1.58 in.)
Approx. Loose Circlip OD (Dr)
40.64
mm
+ 0.79 / - 0.00
Internal Retaining Rings - 38.1x1.07x40.13 mm - Spring Steel
Material: Carbon Spring Steel    Section (Rd): 3.18 mm +/- 0.13    Groove Width (W): 1.17 mm    Approx. Loose Clip ID: 34.28
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel
Part Number: WRI-0381-LS-O (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Tue, Apr 10, 2029
