| Housing Bore (B) | Clip Thickness (T) | Groove Dia. (Dg) | Approx. Loose Circlip OD (Dr) | Radial Wall (S) | Groove Width (W) |

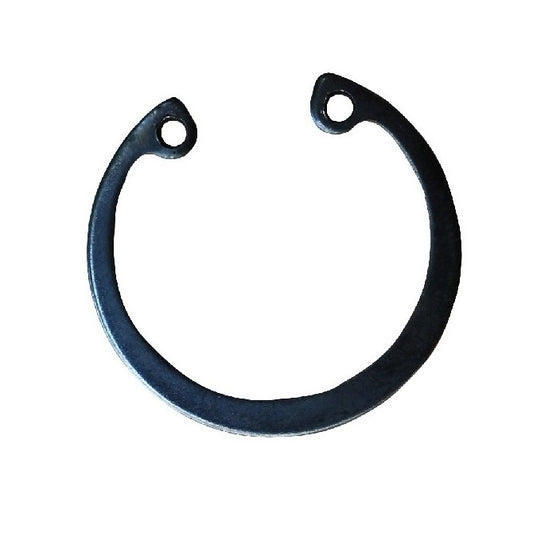

Indicative Image |
|---|---|---|---|---|---|---|
|
Housing Bore (B)
222.00
mm (Equiv. 8.74 in.) |
Clip Thickness (T)
5.00
mm + 0.72 / - 0.00 (Equiv. 0.197 in.) |
Groove Dia. (Dg)
228.00
mm + 0.00 / - 0.12 (Equiv. 8.976 in.) |
Approx. Loose Circlip OD (Dr)
232.00
mm + 1.70 / - 0.72 |
Groove Width (W)
5.15
mm + 0.20 / - 0.00 |
|
|
|
Material: Carbon Spring Steel phosphate and oil finish
Category: Retaining Rings - Internal - Circlips - Standard |
||||||
|
Part Number: CCI-22200-C
Internal Retaining Rings - 222x5x228 mm Circlips - Carbon Spring Steel phosphate and oil finish Circlip Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
| Housing Bore (B) | Clip Thickness (T) | Groove Dia. (Dg) | Approx. Loose Circlip OD (Dr) |
Indicative Image |
||
|
Housing Bore (B)
222.00
mm (Equiv. 8.74 in.) |
Clip Thickness (T)
5.00
mm + 0.72 / - 0.00 (Equiv. 0.197 in.) |
Groove Dia. (Dg)
228.00
mm + 0.00 / - 0.12 (Equiv. 8.976 in.) |
Approx. Loose Circlip OD (Dr)
232.00
mm + 1.70 / - 0.72 |
|
||
|
Material: Carbon Spring Steel phosphate and oil finish
Groove Width (W): 5.15 mm + 0.20 / - 0.00
Category: Retaining Rings - Internal - Circlips - Standard |
||||||
|
Part Number: CCI-22200-C
Internal Retaining Rings - 222x5x228 mm Circlips - Carbon Spring Steel phosphate and oil finish Circlip Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
222.25
mm (Equiv. 8.75 in.) |
Clip Thickness (T)
4.62
mm + 0.20 / - 0.00 (Equiv. 0.182 in.) |
Groove Dia. (Dg)
236.40
mm +/- 0.08 (Equiv. 9.307 in.) |
Approx. Loose Circlip OD (Dr)
240.49
mm + 4.60 / - 0.00 |
Radial Wall (S)
7.26 - 15.01
mm |
Groove Width (W)
3.84
mm + 0.08 / - 0.00 |
|
|
Material: Carbon Spring Steel

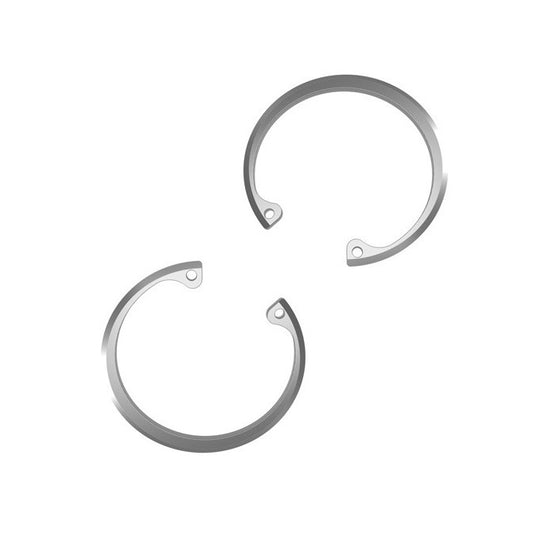

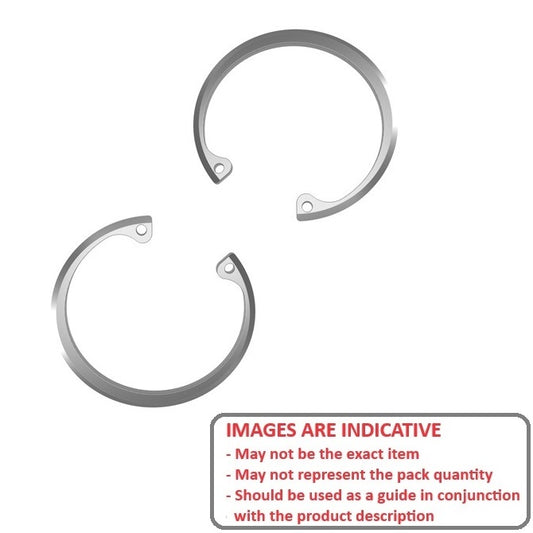

Category: Retaining Rings - Internal - Circlips - Bevelled |
||||||
|
Part Number: CIB-22225-C
Internal Retaining Rings - 222.25x4.62x236.4 mm Circlips - Carbon Spring Steel Circlip Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
222.25
mm (Equiv. 8.75 in.) |
Clip Thickness (T)
4.62
mm + 0.20 / - 0.00 (Equiv. 0.182 in.) |
Groove Dia. (Dg)
236.40
mm +/- 0.08 (Equiv. 9.307 in.) |
Approx. Loose Circlip OD (Dr)
240.49
mm + 4.60 / - 0.00 |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S): 7.26 - 15.01 mm
Groove Width (W): 3.84 mm + 0.08 / - 0.00
Category: Retaining Rings - Internal - Circlips - Bevelled |
||||||
|
Part Number: CIB-22225-C
Internal Retaining Rings - 222.25x4.62x236.4 mm Circlips - Carbon Spring Steel Circlip Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
222.25
mm (Equiv. 8.75 in.) |
Clip Thickness (T)
4.75
mm +/- 0.204 (Equiv. 0.187 in.) |
Groove Dia. (Dg)
232.28
mm + 0.00 / - 0.12 (Equiv. 9.145 in.) |
Approx. Loose Circlip OD (Dr)
242.77
mm + 2.29 / - 2.29 |
Groove Width (W)
5.31
mm + 0.20 / - 0.00 |
|
|
|
Material: Carbon Steel
Category: Retaining Rings - Internal - Circlips - Standard |
||||||
|
Part Number: CCI-22225-C
Internal Retaining Rings - 222.25x4.75x232.28 mm Circlips - Carbon Steel Circlip Out of Stock | Backorder Now | Orders can be expected around Fri, Sep 26, 2025 Regular price
$193.14 AUD
Regular price
Unit price
per
Each
|
||||||
|
Housing Bore (B)
222.25
mm (Equiv. 8.75 in.) |
Clip Thickness (T)
4.75
mm +/- 0.204 (Equiv. 0.187 in.) |
Groove Dia. (Dg)
232.28
mm + 0.00 / - 0.12 (Equiv. 9.145 in.) |
Approx. Loose Circlip OD (Dr)
242.77
mm + 2.29 / - 2.29 |
|
||
|
Material: Carbon Steel
Groove Width (W): 5.31 mm + 0.20 / - 0.00
Category: Retaining Rings - Internal - Circlips - Standard |
||||||
|
Part Number: CCI-22225-C
Internal Retaining Rings - 222.25x4.75x232.28 mm Circlips - Carbon Steel Circlip Out of Stock | Backorder Now | Orders can be expected around Fri, Sep 26, 2025 Regular price
$193.14 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Housing Bore (B)
225.00
mm (Equiv. 8.858 in.) |
Clip Thickness (T)
5.00
mm + 0.72 / - 0.00 (Equiv. 0.197 in.) |
Groove Dia. (Dg)
236.00
mm + 0.00 / - 0.12 (Equiv. 9.291 in.) |
Approx. Loose Circlip OD (Dr)
237.00
mm + 1.70 / - 0.72 |
Groove Width (W)
5.15
mm + 0.20 / - 0.00 |
|
|
|
Material: Carbon Steel
Clearance in Bore (C): 195.20 mm
Clearance in Groove (C1): 202.00 mm
Category: Retaining Rings - Internal - Circlips - Standard |
||||||
|
Part Number: CCI-22500-C
Internal Retaining Rings - 225x5x236 mm Circlips - Carbon Steel Circlip Out of Stock | Backorder Now | Orders can be expected around Fri, Sep 26, 2025 Regular price
$37.32 AUD
Regular price
Unit price
per
Each
|
||||||
|
Housing Bore (B)
225.00
mm (Equiv. 8.858 in.) |
Clip Thickness (T)
5.00
mm + 0.72 / - 0.00 (Equiv. 0.197 in.) |
Groove Dia. (Dg)
236.00
mm + 0.00 / - 0.12 (Equiv. 9.291 in.) |
Approx. Loose Circlip OD (Dr)
237.00
mm + 1.70 / - 0.72 |
|
||
|
Material: Carbon Steel
Groove Width (W): 5.15 mm + 0.20 / - 0.00
Clearance in Bore (C): 195.20 mm
Clearance in Groove (C1): 202.00 mm
Category: Retaining Rings - Internal - Circlips - Standard |
||||||
|
Part Number: CCI-22500-C
Internal Retaining Rings - 225x5x236 mm Circlips - Carbon Steel Circlip Out of Stock | Backorder Now | Orders can be expected around Fri, Sep 26, 2025 Regular price
$37.32 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Housing Bore (B)
227.00
mm (Equiv. 8.937 in.) |
Clip Thickness (T)
5.00
mm + 0.72 / - 0.00 (Equiv. 0.197 in.) |
Groove Dia. (Dg)
233.00
mm + 0.00 / - 0.12 (Equiv. 9.173 in.) |
Approx. Loose Circlip OD (Dr)
237.00
mm + 1.70 / - 0.72 |
Groove Width (W)
5.15
mm + 0.20 / - 0.00 |
|
|
|
Material: Carbon Spring Steel phosphate and oil finish
Category: Retaining Rings - Internal - Circlips - Standard |
||||||
|
Part Number: CCI-22700-C
Internal Retaining Rings - 227x5x233 mm Circlips - Carbon Spring Steel phosphate and oil finish Circlip Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
227.00
mm (Equiv. 8.937 in.) |
Clip Thickness (T)
5.00
mm + 0.72 / - 0.00 (Equiv. 0.197 in.) |
Groove Dia. (Dg)
233.00
mm + 0.00 / - 0.12 (Equiv. 9.173 in.) |
Approx. Loose Circlip OD (Dr)
237.00
mm + 1.70 / - 0.72 |
|
||
|
Material: Carbon Spring Steel phosphate and oil finish
Groove Width (W): 5.15 mm + 0.20 / - 0.00
Category: Retaining Rings - Internal - Circlips - Standard |
||||||
|
Part Number: CCI-22700-C
Internal Retaining Rings - 227x5x233 mm Circlips - Carbon Spring Steel phosphate and oil finish Circlip Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
228.00
mm (Equiv. 8.976 in.) |
Clip Thickness (T)
5.00
mm + 0.72 / - 0.00 (Equiv. 0.197 in.) |
Groove Dia. (Dg)
234.00
mm + 0.00 / - 0.12 (Equiv. 9.213 in.) |
Approx. Loose Circlip OD (Dr)
242.00
mm + 1.70 / - 0.72 |
Groove Width (W)
5.15
mm + 0.20 / - 0.00 |
|
|
|
Material: Carbon Spring Steel phosphate and oil finish
Category: Retaining Rings - Internal - Circlips - Standard |
||||||
|
Part Number: CCI-22800-C
Internal Retaining Rings - 228x5x234 mm Circlips - Carbon Spring Steel phosphate and oil finish Circlip Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
228.00
mm (Equiv. 8.976 in.) |
Clip Thickness (T)
5.00
mm + 0.72 / - 0.00 (Equiv. 0.197 in.) |
Groove Dia. (Dg)
234.00
mm + 0.00 / - 0.12 (Equiv. 9.213 in.) |
Approx. Loose Circlip OD (Dr)
242.00
mm + 1.70 / - 0.72 |
|
||
|
Material: Carbon Spring Steel phosphate and oil finish
Groove Width (W): 5.15 mm + 0.20 / - 0.00
Category: Retaining Rings - Internal - Circlips - Standard |
||||||
|
Part Number: CCI-22800-C
Internal Retaining Rings - 228x5x234 mm Circlips - Carbon Spring Steel phosphate and oil finish Circlip Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
228.60
mm (Equiv. 9 in.) |
Clip Thickness (T)
4.62
mm + 0.20 / - 0.00 (Equiv. 0.182 in.) |
Groove Dia. (Dg)
243.15
mm +/- 0.08 (Equiv. 9.573 in.) |
Approx. Loose Circlip OD (Dr)
247.40
mm + 4.60 / - 0.00 |
Radial Wall (S)
7.47 - 15.47
mm |
Groove Width (W)
3.84
mm + 0.08 / - 0.00 |
|
|
Material: Carbon Spring Steel
Category: Retaining Rings - Internal - Circlips - Bevelled |
||||||
|
Part Number: CIB-22860-C
Internal Retaining Rings - 228.6x4.62x243.15 mm Circlips - Carbon Spring Steel Circlip Out of Stock | Backorder Now | Orders can be expected around Wed, Nov 26, 2025 Regular price
$935.23 AUD
Regular price
Unit price
per
Each
|
||||||
|
Housing Bore (B)
228.60
mm (Equiv. 9 in.) |
Clip Thickness (T)
4.62
mm + 0.20 / - 0.00 (Equiv. 0.182 in.) |
Groove Dia. (Dg)
243.15
mm +/- 0.08 (Equiv. 9.573 in.) |
Approx. Loose Circlip OD (Dr)
247.40
mm + 4.60 / - 0.00 |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S): 7.47 - 15.47 mm
Groove Width (W): 3.84 mm + 0.08 / - 0.00
Category: Retaining Rings - Internal - Circlips - Bevelled |
||||||
|
Part Number: CIB-22860-C
Internal Retaining Rings - 228.6x4.62x243.15 mm Circlips - Carbon Spring Steel Circlip Out of Stock | Backorder Now | Orders can be expected around Wed, Nov 26, 2025 Regular price
$935.23 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Housing Bore (B)
228.60
mm (Equiv. 9 in.) |
Clip Thickness (T)
4.75
mm +/- 0.204 (Equiv. 0.187 in.) |
Groove Dia. (Dg)
238.89
mm + 0.00 / - 0.12 (Equiv. 9.405 in.) |
Approx. Loose Circlip OD (Dr)
253.75
mm + 2.29 / - 2.29 |
Groove Width (W)
5.31
mm + 0.20 / - 0.00 |
|
|
|
Material: Carbon Steel
Category: Retaining Rings - Internal - Circlips - Standard |
||||||
|
Part Number: CCI-22860-C
Internal Retaining Rings - 228.6x4.75x238.89 mm Circlips - Carbon Steel Circlip Out of Stock | Backorder Now | Orders can be expected around Fri, Sep 26, 2025 Regular price
$207.95 AUD
Regular price
Unit price
per
Each
|
||||||
|
Housing Bore (B)
228.60
mm (Equiv. 9 in.) |
Clip Thickness (T)
4.75
mm +/- 0.204 (Equiv. 0.187 in.) |
Groove Dia. (Dg)
238.89
mm + 0.00 / - 0.12 (Equiv. 9.405 in.) |
Approx. Loose Circlip OD (Dr)
253.75
mm + 2.29 / - 2.29 |
|
||
|
Material: Carbon Steel
Groove Width (W): 5.31 mm + 0.20 / - 0.00
Category: Retaining Rings - Internal - Circlips - Standard |
||||||
|
Part Number: CCI-22860-C
Internal Retaining Rings - 228.6x4.75x238.89 mm Circlips - Carbon Steel Circlip Out of Stock | Backorder Now | Orders can be expected around Fri, Sep 26, 2025 Regular price
$207.95 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Housing Bore (B)
230.00
mm (Equiv. 9.055 in.) |
Clip Thickness (T)
5.00
mm + 0.72 / - 0.00 (Equiv. 0.197 in.) |
Groove Dia. (Dg)
236.00
mm + 0.00 / - 0.12 (Equiv. 9.291 in.) |
Approx. Loose Circlip OD (Dr)
242.00
mm + 1.70 / - 0.72 |
Groove Width (W)
5.15
mm + 0.20 / - 0.00 |
|
|
|
Material: Carbon Steel
Clearance in Bore (C): 200.20 mm
Clearance in Groove (C1): 207.00 mm
Category: Retaining Rings - Internal - Circlips - Standard |
||||||
|
Part Number: CCI-23000-C
Internal Retaining Rings - 230x5x236 mm Circlips - Carbon Steel Circlip Out of Stock | Backorder Now | Orders can be expected around Fri, Sep 26, 2025 Regular price
$38.32 AUD
Regular price
Unit price
per
Each
|
||||||
|
Housing Bore (B)
230.00
mm (Equiv. 9.055 in.) |
Clip Thickness (T)
5.00
mm + 0.72 / - 0.00 (Equiv. 0.197 in.) |
Groove Dia. (Dg)
236.00
mm + 0.00 / - 0.12 (Equiv. 9.291 in.) |
Approx. Loose Circlip OD (Dr)
242.00
mm + 1.70 / - 0.72 |
|
||
|
Material: Carbon Steel
Groove Width (W): 5.15 mm + 0.20 / - 0.00
Clearance in Bore (C): 200.20 mm
Clearance in Groove (C1): 207.00 mm
Category: Retaining Rings - Internal - Circlips - Standard |
||||||
|
Part Number: CCI-23000-C
Internal Retaining Rings - 230x5x236 mm Circlips - Carbon Steel Circlip Out of Stock | Backorder Now | Orders can be expected around Fri, Sep 26, 2025 Regular price
$38.32 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Housing Bore (B)
232.00
mm (Equiv. 9.134 in.) |
Clip Thickness (T)
5.00
mm + 0.72 / - 0.00 (Equiv. 0.197 in.) |
Groove Dia. (Dg)
238.00
mm + 0.00 / - 0.12 (Equiv. 9.37 in.) |
Approx. Loose Circlip OD (Dr)
242.00
mm + 1.70 / - 0.72 |
Groove Width (W)
5.15
mm + 0.20 / - 0.00 |
|
|
|
Material: Carbon Spring Steel phosphate and oil finish
Category: Retaining Rings - Internal - Circlips - Standard |
||||||
|
Part Number: CCI-23200-C
Internal Retaining Rings - 232x5x238 mm Circlips - Carbon Spring Steel phosphate and oil finish Circlip Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
232.00
mm (Equiv. 9.134 in.) |
Clip Thickness (T)
5.00
mm + 0.72 / - 0.00 (Equiv. 0.197 in.) |
Groove Dia. (Dg)
238.00
mm + 0.00 / - 0.12 (Equiv. 9.37 in.) |
Approx. Loose Circlip OD (Dr)
242.00
mm + 1.70 / - 0.72 |
|
||
|
Material: Carbon Spring Steel phosphate and oil finish
Groove Width (W): 5.15 mm + 0.20 / - 0.00
Category: Retaining Rings - Internal - Circlips - Standard |
||||||
|
Part Number: CCI-23200-C
Internal Retaining Rings - 232x5x238 mm Circlips - Carbon Spring Steel phosphate and oil finish Circlip Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
234.95
mm (Equiv. 9.25 in.) |
Clip Thickness (T)
4.62
mm + 0.20 / - 0.00 (Equiv. 0.182 in.) |
Groove Dia. (Dg)
249.89
mm +/- 0.08 (Equiv. 9.838 in.) |
Approx. Loose Circlip OD (Dr)
254.30
mm + 4.60 / - 0.00 |
Radial Wall (S)
7.59 - 15.88
mm |
Groove Width (W)
3.84
mm + 0.08 / - 0.00 |
|
|
Material: Carbon Spring Steel
Category: Retaining Rings - Internal - Circlips - Bevelled |
||||||
|
Part Number: CIB-23495-C
Internal Retaining Rings - 234.95x4.62x249.89 mm Circlips - Carbon Spring Steel Circlip Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
234.95
mm (Equiv. 9.25 in.) |
Clip Thickness (T)
4.62
mm + 0.20 / - 0.00 (Equiv. 0.182 in.) |
Groove Dia. (Dg)
249.89
mm +/- 0.08 (Equiv. 9.838 in.) |
Approx. Loose Circlip OD (Dr)
254.30
mm + 4.60 / - 0.00 |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S): 7.59 - 15.88 mm
Groove Width (W): 3.84 mm + 0.08 / - 0.00
Category: Retaining Rings - Internal - Circlips - Bevelled |
||||||
|
Part Number: CIB-23495-C
Internal Retaining Rings - 234.95x4.62x249.89 mm Circlips - Carbon Spring Steel Circlip Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
235.00
mm (Equiv. 9.252 in.) |
Clip Thickness (T)
5.00
mm + 0.72 / - 0.00 (Equiv. 0.197 in.) |
Groove Dia. (Dg)
241.00
mm + 0.00 / - 0.12 (Equiv. 9.488 in.) |
Approx. Loose Circlip OD (Dr)
247.00
mm + 2.00 / - 0.81 |
Groove Width (W)
5.15
mm + 0.20 / - 0.00 |
|
|
|
Material: Carbon Steel
Category: Retaining Rings - Internal - Circlips - Standard |
||||||
|
Part Number: CCI-23500-C
Internal Retaining Rings - 235x5x241 mm Circlips - Carbon Steel Circlip Out of Stock | Backorder Now | Orders can be expected around Fri, Sep 26, 2025 Regular price
$35.86 AUD
Regular price
Unit price
per
Each
|
||||||
|
Housing Bore (B)
235.00
mm (Equiv. 9.252 in.) |
Clip Thickness (T)
5.00
mm + 0.72 / - 0.00 (Equiv. 0.197 in.) |
Groove Dia. (Dg)
241.00
mm + 0.00 / - 0.12 (Equiv. 9.488 in.) |
Approx. Loose Circlip OD (Dr)
247.00
mm + 2.00 / - 0.81 |
|
||
|
Material: Carbon Steel
Groove Width (W): 5.15 mm + 0.20 / - 0.00
Category: Retaining Rings - Internal - Circlips - Standard |
||||||
|
Part Number: CCI-23500-C
Internal Retaining Rings - 235x5x241 mm Circlips - Carbon Steel Circlip Out of Stock | Backorder Now | Orders can be expected around Fri, Sep 26, 2025 Regular price
$35.86 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Housing Bore (B)
237.00
mm (Equiv. 9.331 in.) |
Clip Thickness (T)
5.00
mm + 0.72 / - 0.00 (Equiv. 0.197 in.) |
Groove Dia. (Dg)
243.00
mm + 0.00 / - 0.12 (Equiv. 9.567 in.) |
Approx. Loose Circlip OD (Dr)
247.00
mm + 2.00 / - 0.81 |
Groove Width (W)
5.15
mm + 0.20 / - 0.00 |
|
|
|
Material: Carbon Spring Steel phosphate and oil finish
Category: Retaining Rings - Internal - Circlips - Standard |
||||||
|
Part Number: CCI-23700-C
Internal Retaining Rings - 237x5x243 mm Circlips - Carbon Spring Steel phosphate and oil finish Circlip Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
237.00
mm (Equiv. 9.331 in.) |
Clip Thickness (T)
5.00
mm + 0.72 / - 0.00 (Equiv. 0.197 in.) |
Groove Dia. (Dg)
243.00
mm + 0.00 / - 0.12 (Equiv. 9.567 in.) |
Approx. Loose Circlip OD (Dr)
247.00
mm + 2.00 / - 0.81 |
|
||
|
Material: Carbon Spring Steel phosphate and oil finish
Groove Width (W): 5.15 mm + 0.20 / - 0.00
Category: Retaining Rings - Internal - Circlips - Standard |
||||||
|
Part Number: CCI-23700-C
Internal Retaining Rings - 237x5x243 mm Circlips - Carbon Spring Steel phosphate and oil finish Circlip Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
238.00
mm (Equiv. 9.37 in.) |
Clip Thickness (T)
5.00
mm + 0.72 / - 0.00 (Equiv. 0.197 in.) |
Groove Dia. (Dg)
244.00
mm + 0.00 / - 0.12 (Equiv. 9.606 in.) |
Approx. Loose Circlip OD (Dr)
252.00
mm + 2.00 / - 0.81 |
Groove Width (W)
5.15
mm + 0.20 / - 0.00 |
|
|
|
Material: Carbon Spring Steel phosphate and oil finish
Category: Retaining Rings - Internal - Circlips - Standard |
||||||
|
Part Number: CCI-23800-C
Internal Retaining Rings - 238x5x244 mm Circlips - Carbon Spring Steel phosphate and oil finish Circlip Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
238.00
mm (Equiv. 9.37 in.) |
Clip Thickness (T)
5.00
mm + 0.72 / - 0.00 (Equiv. 0.197 in.) |
Groove Dia. (Dg)
244.00
mm + 0.00 / - 0.12 (Equiv. 9.606 in.) |
Approx. Loose Circlip OD (Dr)
252.00
mm + 2.00 / - 0.81 |
|
||
|
Material: Carbon Spring Steel phosphate and oil finish
Groove Width (W): 5.15 mm + 0.20 / - 0.00
Category: Retaining Rings - Internal - Circlips - Standard |
||||||
|
Part Number: CCI-23800-C
Internal Retaining Rings - 238x5x244 mm Circlips - Carbon Spring Steel phosphate and oil finish Circlip Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
240.00
mm (Equiv. 9.449 in.) |
Clip Thickness (T)
5.00
mm + 0.72 / - 0.00 (Equiv. 0.197 in.) |
Groove Dia. (Dg)
246.00
mm + 0.00 / - 0.12 (Equiv. 9.685 in.) |
Approx. Loose Circlip OD (Dr)
252.00
mm + 2.00 / - 0.81 |
Groove Width (W)
5.15
mm + 0.20 / - 0.00 |
|
|
|
Material: Carbon Steel
Clearance in Bore (C): 210.20 mm
Clearance in Groove (C1): 217.00 mm
Category: Retaining Rings - Internal - Circlips - Standard |
||||||
|
Part Number: CCI-24000-C
Internal Retaining Rings - 240x5x246 mm Circlips - Carbon Steel Circlip Out of Stock | Backorder Now | Orders can be expected around Fri, Sep 26, 2025 Regular price
$41.23 AUD
Regular price
Unit price
per
Each
|
||||||
|
Housing Bore (B)
240.00
mm (Equiv. 9.449 in.) |
Clip Thickness (T)
5.00
mm + 0.72 / - 0.00 (Equiv. 0.197 in.) |
Groove Dia. (Dg)
246.00
mm + 0.00 / - 0.12 (Equiv. 9.685 in.) |
Approx. Loose Circlip OD (Dr)
252.00
mm + 2.00 / - 0.81 |
|
||
|
Material: Carbon Steel
Groove Width (W): 5.15 mm + 0.20 / - 0.00
Clearance in Bore (C): 210.20 mm
Clearance in Groove (C1): 217.00 mm
Category: Retaining Rings - Internal - Circlips - Standard |
||||||
|
Part Number: CCI-24000-C
Internal Retaining Rings - 240x5x246 mm Circlips - Carbon Steel Circlip Out of Stock | Backorder Now | Orders can be expected around Fri, Sep 26, 2025 Regular price
$41.23 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Housing Bore (B)
241.30
mm (Equiv. 9.5 in.) |
Clip Thickness (T)
4.62
mm + 0.20 / - 0.00 (Equiv. 0.182 in.) |
Groove Dia. (Dg)
256.69
mm +/- 0.08 (Equiv. 10.106 in.) |
Approx. Loose Circlip OD (Dr)
261.24
mm + 4.60 / - 0.00 |
Radial Wall (S)
7.72 - 16.31
mm |
Groove Width (W)
3.73
mm + 0.08 / - 0.00 |
|
|
Material: Carbon Spring Steel
Category: Retaining Rings - Internal - Circlips - Bevelled |
||||||
|
Part Number: CIB-24130-C
Internal Retaining Rings - 241.3x4.62x256.69 mm Circlips - Carbon Spring Steel Circlip Out of Stock | Backorder Now | Orders can be expected around Wed, Nov 26, 2025 Regular price
$1,105.86 AUD
Regular price
Unit price
per
Each
|
||||||
|
Housing Bore (B)
241.30
mm (Equiv. 9.5 in.) |
Clip Thickness (T)
4.62
mm + 0.20 / - 0.00 (Equiv. 0.182 in.) |
Groove Dia. (Dg)
256.69
mm +/- 0.08 (Equiv. 10.106 in.) |
Approx. Loose Circlip OD (Dr)
261.24
mm + 4.60 / - 0.00 |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S): 7.72 - 16.31 mm
Groove Width (W): 3.73 mm + 0.08 / - 0.00
Category: Retaining Rings - Internal - Circlips - Bevelled |
||||||
|
Part Number: CIB-24130-C
Internal Retaining Rings - 241.3x4.62x256.69 mm Circlips - Carbon Spring Steel Circlip Out of Stock | Backorder Now | Orders can be expected around Wed, Nov 26, 2025 Regular price
$1,105.86 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Housing Bore (B)
242.00
mm (Equiv. 9.528 in.) |
Clip Thickness (T)
5.00
mm + 0.72 / - 0.00 (Equiv. 0.197 in.) |
Groove Dia. (Dg)
248.00
mm + 0.00 / - 0.12 (Equiv. 9.764 in.) |
Approx. Loose Circlip OD (Dr)
252.00
mm + 2.00 / - 0.81 |
Groove Width (W)
5.15
mm + 0.20 / - 0.00 |
|
|
|
Material: Carbon Spring Steel phosphate and oil finish
Category: Retaining Rings - Internal - Circlips - Standard |
||||||
|
Part Number: CCI-24200-C
Internal Retaining Rings - 242x5x248 mm Circlips - Carbon Spring Steel phosphate and oil finish Circlip Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
242.00
mm (Equiv. 9.528 in.) |
Clip Thickness (T)
5.00
mm + 0.72 / - 0.00 (Equiv. 0.197 in.) |
Groove Dia. (Dg)
248.00
mm + 0.00 / - 0.12 (Equiv. 9.764 in.) |
Approx. Loose Circlip OD (Dr)
252.00
mm + 2.00 / - 0.81 |
|
||
|
Material: Carbon Spring Steel phosphate and oil finish
Groove Width (W): 5.15 mm + 0.20 / - 0.00
Category: Retaining Rings - Internal - Circlips - Standard |
||||||
|
Part Number: CCI-24200-C
Internal Retaining Rings - 242x5x248 mm Circlips - Carbon Spring Steel phosphate and oil finish Circlip Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
247.00
mm (Equiv. 9.724 in.) |
Clip Thickness (T)
5.00
mm + 0.81 / - 0.00 (Equiv. 0.197 in.) |
Groove Dia. (Dg)
253.00
mm + 0.00 / - 0.12 (Equiv. 9.961 in.) |
Approx. Loose Circlip OD (Dr)
257.00
mm + 2.00 / - 0.81 |
Groove Width (W)
5.15
mm + 0.20 / - 0.00 |
|
|
|
Material: Carbon Spring Steel phosphate and oil finish
Category: Retaining Rings - Internal - Circlips - Standard |
||||||
|
Part Number: CCI-24700-C
Internal Retaining Rings - 247x5x253 mm Circlips - Carbon Spring Steel phosphate and oil finish Circlip Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
247.00
mm (Equiv. 9.724 in.) |
Clip Thickness (T)
5.00
mm + 0.81 / - 0.00 (Equiv. 0.197 in.) |
Groove Dia. (Dg)
253.00
mm + 0.00 / - 0.12 (Equiv. 9.961 in.) |
Approx. Loose Circlip OD (Dr)
257.00
mm + 2.00 / - 0.81 |
|
||
|
Material: Carbon Spring Steel phosphate and oil finish
Groove Width (W): 5.15 mm + 0.20 / - 0.00
Category: Retaining Rings - Internal - Circlips - Standard |
||||||
|
Part Number: CCI-24700-C
Internal Retaining Rings - 247x5x253 mm Circlips - Carbon Spring Steel phosphate and oil finish Circlip Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
247.65
mm (Equiv. 9.75 in.) |
Clip Thickness (T)
4.62
mm + 0.20 / - 0.00 (Equiv. 0.182 in.) |
Groove Dia. (Dg)
263.45
mm +/- 0.08 (Equiv. 10.372 in.) |
Approx. Loose Circlip OD (Dr)
268.17
mm + 4.60 / - 0.00 |
Radial Wall (S)
7.85 - 16.71
mm |
Groove Width (W)
3.73
mm + 0.08 / - 0.00 |
|
|
Material: Carbon Spring Steel
Category: Retaining Rings - Internal - Circlips - Bevelled |
||||||
|
Part Number: CIB-24765-C
Internal Retaining Rings - 247.65x4.62x263.45 mm Circlips - Carbon Spring Steel Circlip Out of Stock | Backorder Now | Orders can be expected around Wed, Nov 26, 2025 Regular price
$1,202.05 AUD
Regular price
Unit price
per
Each
|
||||||
|
Housing Bore (B)
247.65
mm (Equiv. 9.75 in.) |
Clip Thickness (T)
4.62
mm + 0.20 / - 0.00 (Equiv. 0.182 in.) |
Groove Dia. (Dg)
263.45
mm +/- 0.08 (Equiv. 10.372 in.) |
Approx. Loose Circlip OD (Dr)
268.17
mm + 4.60 / - 0.00 |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S): 7.85 - 16.71 mm
Groove Width (W): 3.73 mm + 0.08 / - 0.00
Category: Retaining Rings - Internal - Circlips - Bevelled |
||||||
|
Part Number: CIB-24765-C
Internal Retaining Rings - 247.65x4.62x263.45 mm Circlips - Carbon Spring Steel Circlip Out of Stock | Backorder Now | Orders can be expected around Wed, Nov 26, 2025 Regular price
$1,202.05 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Housing Bore (B)
248.00
mm (Equiv. 9.764 in.) |
Clip Thickness (T)
5.00
mm + 0.81 / - 0.00 (Equiv. 0.197 in.) |
Groove Dia. (Dg)
254.00
mm + 0.00 / - 0.12 (Equiv. 10 in.) |
Approx. Loose Circlip OD (Dr)
262.00
mm + 2.00 / - 0.81 |
Groove Width (W)
5.15
mm + 0.20 / - 0.00 |
|
|
|
Material: Carbon Spring Steel phosphate and oil finish
Category: Retaining Rings - Internal - Circlips - Standard |
||||||
|
Part Number: CCI-24800-C
Internal Retaining Rings - 248x5x254 mm Circlips - Carbon Spring Steel phosphate and oil finish Circlip Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
248.00
mm (Equiv. 9.764 in.) |
Clip Thickness (T)
5.00
mm + 0.81 / - 0.00 (Equiv. 0.197 in.) |
Groove Dia. (Dg)
254.00
mm + 0.00 / - 0.12 (Equiv. 10 in.) |
Approx. Loose Circlip OD (Dr)
262.00
mm + 2.00 / - 0.81 |
|
||
|
Material: Carbon Spring Steel phosphate and oil finish
Groove Width (W): 5.15 mm + 0.20 / - 0.00
Category: Retaining Rings - Internal - Circlips - Standard |
||||||
|
Part Number: CCI-24800-C
Internal Retaining Rings - 248x5x254 mm Circlips - Carbon Spring Steel phosphate and oil finish Circlip Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
250.00
mm (Equiv. 9.843 in.) |
Clip Thickness (T)
5.00
mm + 0.81 / - 0.00 (Equiv. 0.197 in.) |
Groove Dia. (Dg)
256.00
mm + 0.00 / - 0.12 (Equiv. 10.079 in.) |
Approx. Loose Circlip OD (Dr)
262.00
mm + 2.00 / - 0.81 |
Groove Width (W)
5.15
mm + 0.20 / - 0.00 |
|
|
|
Material: Carbon Steel
Clearance in Bore (C): 220.20 mm
Clearance in Groove (C1): 227.00 mm
Category: Retaining Rings - Internal - Circlips - Standard |
||||||
|
Part Number: CCI-25000-C
Internal Retaining Rings - 250x5x256 mm Circlips - Carbon Steel Circlip Out of Stock | Backorder Now | Orders can be expected around Fri, Sep 26, 2025 Regular price
$46.59 AUD
Regular price
Unit price
per
Each
|
||||||
|
Housing Bore (B)
250.00
mm (Equiv. 9.843 in.) |
Clip Thickness (T)
5.00
mm + 0.81 / - 0.00 (Equiv. 0.197 in.) |
Groove Dia. (Dg)
256.00
mm + 0.00 / - 0.12 (Equiv. 10.079 in.) |
Approx. Loose Circlip OD (Dr)
262.00
mm + 2.00 / - 0.81 |
|
||
|
Material: Carbon Steel
Groove Width (W): 5.15 mm + 0.20 / - 0.00
Clearance in Bore (C): 220.20 mm
Clearance in Groove (C1): 227.00 mm
Category: Retaining Rings - Internal - Circlips - Standard |
||||||
|
Part Number: CCI-25000-C
Internal Retaining Rings - 250x5x256 mm Circlips - Carbon Steel Circlip Out of Stock | Backorder Now | Orders can be expected around Fri, Sep 26, 2025 Regular price
$46.59 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Housing Bore (B)
252.00
mm (Equiv. 9.921 in.) |
Clip Thickness (T)
5.00
mm + 0.81 / - 0.00 (Equiv. 0.197 in.) |
Groove Dia. (Dg)
260.00
mm + 0.00 / - 0.12 (Equiv. 10.236 in.) |
Approx. Loose Circlip OD (Dr)
262.00
mm + 2.00 / - 0.81 |
Groove Width (W)
5.15
mm + 0.20 / - 0.00 |
|
|
|
Material: Carbon Spring Steel phosphate and oil finish
Category: Retaining Rings - Internal - Circlips - Standard |
||||||
|
Part Number: CCI-25200-C
Internal Retaining Rings - 252x5x260 mm Circlips - Carbon Spring Steel phosphate and oil finish Circlip Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
252.00
mm (Equiv. 9.921 in.) |
Clip Thickness (T)
5.00
mm + 0.81 / - 0.00 (Equiv. 0.197 in.) |
Groove Dia. (Dg)
260.00
mm + 0.00 / - 0.12 (Equiv. 10.236 in.) |
Approx. Loose Circlip OD (Dr)
262.00
mm + 2.00 / - 0.81 |
|
||
|
Material: Carbon Spring Steel phosphate and oil finish
Groove Width (W): 5.15 mm + 0.20 / - 0.00
Category: Retaining Rings - Internal - Circlips - Standard |
||||||
|
Part Number: CCI-25200-C
Internal Retaining Rings - 252x5x260 mm Circlips - Carbon Spring Steel phosphate and oil finish Circlip Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
254.00
mm (Equiv. 10 in.) |
Clip Thickness (T)
4.62
mm + 0.20 / - 0.00 (Equiv. 0.182 in.) |
Groove Dia. (Dg)
270.23
mm +/- 0.08 (Equiv. 10.639 in.) |
Approx. Loose Circlip OD (Dr)
275.08
mm + 4.60 / - 0.00 |
Radial Wall (S)
8.00 - 17.15
mm |
Groove Width (W)
3.73
mm + 0.08 / - 0.00 |
|
|
Material: Carbon Spring Steel
Category: Retaining Rings - Internal - Circlips - Bevelled |
||||||
|
Part Number: CIB-25400-C
Internal Retaining Rings - 254x4.62x270.23 mm Circlips - Carbon Spring Steel Circlip Out of Stock | Backorder Now | Orders can be expected around Wed, Nov 26, 2025 Regular price
$606.05 AUD
Regular price
Unit price
per
Each
|
||||||
|
Housing Bore (B)
254.00
mm (Equiv. 10 in.) |
Clip Thickness (T)
4.62
mm + 0.20 / - 0.00 (Equiv. 0.182 in.) |
Groove Dia. (Dg)
270.23
mm +/- 0.08 (Equiv. 10.639 in.) |
Approx. Loose Circlip OD (Dr)
275.08
mm + 4.60 / - 0.00 |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S): 8.00 - 17.15 mm
Groove Width (W): 3.73 mm + 0.08 / - 0.00
Category: Retaining Rings - Internal - Circlips - Bevelled |
||||||
|
Part Number: CIB-25400-C
Internal Retaining Rings - 254x4.62x270.23 mm Circlips - Carbon Spring Steel Circlip Out of Stock | Backorder Now | Orders can be expected around Wed, Nov 26, 2025 Regular price
$606.05 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Housing Bore (B)
255.00
mm (Equiv. 10.039 in.) |
Clip Thickness (T)
5.00
mm + 0.81 / - 0.00 (Equiv. 0.197 in.) |
Groove Dia. (Dg)
263.00
mm + 0.00 / - 0.12 (Equiv. 10.354 in.) |
Approx. Loose Circlip OD (Dr)
270.00
mm + 2.00 / - 0.81 |
Groove Width (W)
5.15
mm + 0.20 / - 0.00 |
|
|
|
Material: Carbon Steel
Category: Retaining Rings - Internal - Circlips - Standard |
||||||
|
Part Number: CCI-25500-C
Internal Retaining Rings - 255x5x263 mm Circlips - Carbon Steel Circlip Out of Stock | Backorder Now | Orders can be expected around Fri, Sep 26, 2025 Regular price
$71.32 AUD
Regular price
Unit price
per
Each
|
||||||
|
Housing Bore (B)
255.00
mm (Equiv. 10.039 in.) |
Clip Thickness (T)
5.00
mm + 0.81 / - 0.00 (Equiv. 0.197 in.) |
Groove Dia. (Dg)
263.00
mm + 0.00 / - 0.12 (Equiv. 10.354 in.) |
Approx. Loose Circlip OD (Dr)
270.00
mm + 2.00 / - 0.81 |
|
||
|
Material: Carbon Steel
Groove Width (W): 5.15 mm + 0.20 / - 0.00
Category: Retaining Rings - Internal - Circlips - Standard |
||||||
|
Part Number: CCI-25500-C
Internal Retaining Rings - 255x5x263 mm Circlips - Carbon Steel Circlip Out of Stock | Backorder Now | Orders can be expected around Fri, Sep 26, 2025 Regular price
$71.32 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
