Housing Bore (B)	Clip Thickness (T)	Groove Dia. (Dg)	Approx. Loose Circlip OD (Dr)	Radial Wall (S) Approx.	Groove Width (W)
Housing Bore (B) 76.00 mm (Equiv. 2.992 in.)	Clip Thickness (T) 2.50 mm _{+ 0.30 / - 0.00} (Equiv. 0.098 in.)	Groove Dia. (Dg) 79.00 mm _{+ 0.00 / - 0.07} (Equiv. 3.11 in.)	Approx. Loose Circlip OD (Dr) 80.70 mm + 1.10 / - 0.46		Groove Width (W) 2.65 mm + 0.13 / - 0.00
Material: Stainless Steel Grade PH15-7 Mo Clearance in Bore (C): 59.60 mm Clearance in Groove (C1): 63.40 mm Category: Retaining Rings - Internal - Circlips - Standard
Part Number: CCI-07600-S15 Internal Retaining Rings - 76x2.5x79 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Contact Us \| Special Order Only - Please contact us if you need a large quantity
Housing Bore (B)	Clip Thickness (T)	Groove Dia. (Dg)	Approx. Loose Circlip OD (Dr)	Indicative Image
Housing Bore (B) 76.00 mm (Equiv. 2.992 in.)	Clip Thickness (T) 2.50 mm _{+ 0.30 / - 0.00} (Equiv. 0.098 in.)	Groove Dia. (Dg) 79.00 mm _{+ 0.00 / - 0.07} (Equiv. 3.11 in.)	Approx. Loose Circlip OD (Dr) 80.70 mm + 1.10 / - 0.46
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 2.65 mm + 0.13 / - 0.00 Clearance in Bore (C): 59.60 mm Clearance in Groove (C1): 63.40 mm Category: Retaining Rings - Internal - Circlips - Standard
Part Number: CCI-07600-S15 Internal Retaining Rings - 76x2.5x79 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Contact Us \| Special Order Only - Please contact us if you need a large quantity \| Orders can be expected around Sat, Jul 22, 2028
Housing Bore (B) 76.20 mm (Equiv. 3 in.)	Clip Thickness (T) 2.36 mm _{+/- 0.152} (Equiv. 0.093 in.)	Groove Dia. (Dg) 80.82 mm _{+ 0.00 / - 0.07} (Equiv. 3.182 in.)	Approx. Loose Circlip OD (Dr) 84.46 mm + 1.02 / - 0.76		Groove Width (W) 2.62 mm + 0.13 / - 0.00
Material: Stainless Steel Grade PH15-7 Mo Clearance in Bore (C): 61.72 mm Clearance in Groove (C1): 66.04 mm Category: Retaining Rings - Internal - Circlips - Standard Additional stock available from USA subject to Prior Sale = 78
Part Number: CCI-07620-S15 Internal Retaining Rings - 76.2x2.36x80.82 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Out of Stock \| Backorder Now \| Orders can be expected around Mon, Nov 24, 2025 Regular price $47.59 AUD Regular price ~~$109.60 AUD~~ Sale price $47.59 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Housing Bore (B) 76.20 mm (Equiv. 3 in.)	Clip Thickness (T) 2.36 mm _{+/- 0.152} (Equiv. 0.093 in.)	Groove Dia. (Dg) 80.82 mm _{+ 0.00 / - 0.07} (Equiv. 3.182 in.)	Approx. Loose Circlip OD (Dr) 84.46 mm + 1.02 / - 0.76
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 2.62 mm + 0.13 / - 0.00 Clearance in Bore (C): 61.72 mm Clearance in Groove (C1): 66.04 mm Category: Retaining Rings - Internal - Circlips - Standard Additional stock available from USA subject to Prior Sale = 78
Part Number: CCI-07620-S15 Internal Retaining Rings - 76.2x2.36x80.82 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Out of Stock \| Backorder Now \| Orders can be expected around Mon, Nov 24, 2025 Regular price $47.59 AUD Regular price ~~$109.60 AUD~~ Sale price $47.59 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
CCI-07620-S15 --- Internal Retaining Rings - 76.2x2.36x80.82 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Sale CCI-07620-S15 --- Internal Retaining Rings - 76.2x2.36x80.82 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Regular price $47.59 AUD Regular price ~~$109.60 AUD~~ Sale price $47.59 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Housing Bore (B) 76.20 mm (Equiv. 3 in.)	Clip Thickness (T) 2.36 mm _{+/- 0.152} (Equiv. 0.093 in.)	Groove Dia. (Dg) 80.82 mm _{+ 0.00 / - 0.07} (Equiv. 3.182 in.)	Approx. Loose Circlip OD (Dr) 84.46 mm + 1.02 / - 0.76		Groove Width (W) 2.62 mm + 0.13 / - 0.00
Material: Carbon Steel Clearance in Bore (C): 61.72 mm Clearance in Groove (C1): 66.04 mm Category: Retaining Rings - Internal - Circlips - Standard Additional stock available from USA subject to Prior Sale = 590
Part Number: CCI-07620-C (3 Pcs) Internal Retaining Rings - 76.2x2.36x80.82 mm Circlips - Carbon Steel Circlip Out of Stock \| Backorder Now \| Orders can be expected around Mon, Nov 24, 2025 Regular price $12.59 AUD Regular price ~~$15.11 AUD~~ Sale price $12.59 AUD Unit price per 3 Per Sell Unit Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Housing Bore (B) 76.20 mm (Equiv. 3 in.)	Clip Thickness (T) 2.36 mm _{+/- 0.152} (Equiv. 0.093 in.)	Groove Dia. (Dg) 80.82 mm _{+ 0.00 / - 0.07} (Equiv. 3.182 in.)	Approx. Loose Circlip OD (Dr) 84.46 mm + 1.02 / - 0.76
Material: Carbon Steel Groove Width (W): 2.62 mm + 0.13 / - 0.00 Clearance in Bore (C): 61.72 mm Clearance in Groove (C1): 66.04 mm Category: Retaining Rings - Internal - Circlips - Standard Additional stock available from USA subject to Prior Sale = 590
Part Number: CCI-07620-C (3 Pcs) Internal Retaining Rings - 76.2x2.36x80.82 mm Circlips - Carbon Steel Circlip Out of Stock \| Backorder Now \| Orders can be expected around Mon, Nov 24, 2025 Regular price $12.59 AUD Regular price ~~$15.11 AUD~~ Sale price $12.59 AUD Unit price per 3 Per Sell Unit Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
CCI-07620-C (3 Pcs) --- Internal Retaining Rings - 76.2x2.36x80.82 mm Circlips - Carbon Steel Circlip Sale CCI-07620-C (3 Pcs) --- Internal Retaining Rings - 76.2x2.36x80.82 mm Circlips - Carbon Steel Circlip Regular price $12.59 AUD Regular price ~~$15.11 AUD~~ Sale price $12.59 AUD Unit price per 3 Per Sell Unit Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Housing Bore (B) 76.20 mm (Equiv. 3 in.)	Clip Thickness (T) 2.29 mm _{+ 0.15 / - 0.00} (Equiv. 0.09 in.)	Groove Dia. (Dg) 81.92 mm _{+/- 0.08} (Equiv. 3.225 in.)	Approx. Loose Circlip OD (Dr) 83.69 mm + 1.78 / - 0.00		Groove Width (W) 1.88 mm + 0.04 / - 0.00
Material: Carbon Steel Category: Retaining Rings - Internal - Circlips - Bevelled Additional stock available from USA subject to Prior Sale = 363
Part Number: CIB-07620-C (2 Pcs) Internal Retaining Rings - 76.2x2.29x81.92 mm Circlips - Carbon Steel Circlip Out of Stock \| Backorder Now \| Orders can be expected around Mon, Nov 24, 2025 Regular price $10.59 AUD Regular price ~~$23.58 AUD~~ Sale price $10.59 AUD Unit price per 2 Per Sell Unit Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Housing Bore (B) 76.20 mm (Equiv. 3 in.)	Clip Thickness (T) 2.29 mm _{+ 0.15 / - 0.00} (Equiv. 0.09 in.)	Groove Dia. (Dg) 81.92 mm _{+/- 0.08} (Equiv. 3.225 in.)	Approx. Loose Circlip OD (Dr) 83.69 mm + 1.78 / - 0.00
Material: Carbon Steel Groove Width (W): 1.88 mm + 0.04 / - 0.00 Category: Retaining Rings - Internal - Circlips - Bevelled Additional stock available from USA subject to Prior Sale = 363
Part Number: CIB-07620-C (2 Pcs) Internal Retaining Rings - 76.2x2.29x81.92 mm Circlips - Carbon Steel Circlip Out of Stock \| Backorder Now \| Orders can be expected around Mon, Nov 24, 2025 Regular price $10.59 AUD Regular price ~~$23.58 AUD~~ Sale price $10.59 AUD Unit price per 2 Per Sell Unit Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
CIB-07620-C (2 Pcs) --- Internal Retaining Rings - 76.2x2.29x81.92 mm Circlips - Carbon Steel Circlip Sale CIB-07620-C (2 Pcs) --- Internal Retaining Rings - 76.2x2.29x81.92 mm Circlips - Carbon Steel Circlip Regular price $10.59 AUD Regular price ~~$23.58 AUD~~ Sale price $10.59 AUD Unit price per 2 Per Sell Unit Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Housing Bore (B) 76.20 mm (Equiv. 3 in.)	Clip Thickness (T) 2.36 mm _{+/- 0.152} (Equiv. 0.093 in.)	Groove Dia. (Dg) 80.82 mm _{+/- 0.076} (Equiv. 3.182 in.)	Approx. Loose Circlip OD (Dr) 84.46 mm		Groove Width (W) 2.62 mm
Material: Carbon Steel Category: Retaining Rings - Internal - Circlips - Inverted Additional stock available from USA subject to Prior Sale = 83
Part Number: CCI-07620-C-V Internal Retaining Rings - 76.2x2.36x80.82 mm Circlips - Carbon Steel Circlip Out of Stock \| Backorder Now \| Orders can be expected around Mon, Nov 24, 2025 Regular price $19.32 AUD Regular price ~~$43.14 AUD~~ Sale price $19.32 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Housing Bore (B) 76.20 mm (Equiv. 3 in.)	Clip Thickness (T) 2.36 mm _{+/- 0.152} (Equiv. 0.093 in.)	Groove Dia. (Dg) 80.82 mm _{+/- 0.076} (Equiv. 3.182 in.)	Approx. Loose Circlip OD (Dr) 84.46 mm
Material: Carbon Steel Groove Width (W): 2.62 mm Category: Retaining Rings - Internal - Circlips - Inverted Additional stock available from USA subject to Prior Sale = 83
Part Number: CCI-07620-C-V Internal Retaining Rings - 76.2x2.36x80.82 mm Circlips - Carbon Steel Circlip Out of Stock \| Backorder Now \| Orders can be expected around Mon, Nov 24, 2025 Regular price $19.32 AUD Regular price ~~$43.14 AUD~~ Sale price $19.32 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
CCI-07620-C-V --- Internal Retaining Rings - 76.2x2.36x80.82 mm Circlips - Carbon Steel Circlip Sale CCI-07620-C-V --- Internal Retaining Rings - 76.2x2.36x80.82 mm Circlips - Carbon Steel Circlip Regular price $19.32 AUD Regular price ~~$43.14 AUD~~ Sale price $19.32 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Housing Bore (B) 77.79 mm (Equiv. 3.063 in.)	Clip Thickness (T) 2.69 mm _{+ 0.15 / - 0.00} (Equiv. 0.106 in.)	Groove Dia. (Dg) 83.57 mm _{+/- 0.08} (Equiv. 3.29 in.)	Approx. Loose Circlip OD (Dr) 85.42 mm + 2.80 / - 0.00		Groove Width (W) 2.26 mm + 0.05 / - 0.00
Material: Carbon Steel Category: Retaining Rings - Internal - Circlips - Bevelled Additional stock available from USA subject to Prior Sale = 450
Part Number: CIB-07779-C Internal Retaining Rings - 77.79x2.69x83.57 mm Circlips - Carbon Steel Circlip Out of Stock \| Backorder Now \| Orders can be expected around Mon, Nov 24, 2025 Regular price $9.59 AUD Regular price ~~$20.10 AUD~~ Sale price $9.59 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Housing Bore (B) 77.79 mm (Equiv. 3.063 in.)	Clip Thickness (T) 2.69 mm _{+ 0.15 / - 0.00} (Equiv. 0.106 in.)	Groove Dia. (Dg) 83.57 mm _{+/- 0.08} (Equiv. 3.29 in.)	Approx. Loose Circlip OD (Dr) 85.42 mm + 2.80 / - 0.00
Material: Carbon Steel Groove Width (W): 2.26 mm + 0.05 / - 0.00 Category: Retaining Rings - Internal - Circlips - Bevelled Additional stock available from USA subject to Prior Sale = 450
Part Number: CIB-07779-C Internal Retaining Rings - 77.79x2.69x83.57 mm Circlips - Carbon Steel Circlip Out of Stock \| Backorder Now \| Orders can be expected around Mon, Nov 24, 2025 Regular price $9.59 AUD Regular price ~~$20.10 AUD~~ Sale price $9.59 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
CIB-07779-C --- Internal Retaining Rings - 77.79x2.69x83.57 mm Circlips - Carbon Steel Circlip Sale CIB-07779-C --- Internal Retaining Rings - 77.79x2.69x83.57 mm Circlips - Carbon Steel Circlip Regular price $9.59 AUD Regular price ~~$20.10 AUD~~ Sale price $9.59 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Housing Bore (B) 77.79 mm (Equiv. 3.063 in.)	Clip Thickness (T) 2.77 mm _{+/- 0.152} (Equiv. 0.109 in.)	Groove Dia. (Dg) 82.50 mm _{+ 0.00 / - 0.07} (Equiv. 3.248 in.)	Approx. Loose Circlip OD (Dr) 86.82 mm + 1.40 / - 1.40		Groove Width (W) 3.05 mm + 0.13 / - 0.00
Material: Stainless Steel Grade PH15-7 Mo Clearance in Bore (C): 62.48 mm Clearance in Groove (C1): 67.06 mm Category: Retaining Rings - Internal - Circlips - Standard Additional stock available from USA subject to Prior Sale = 67
Part Number: CCI-07779-S15 Internal Retaining Rings - 77.79x2.77x82.5 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Out of Stock \| Backorder Now \| Orders can be expected around Mon, Nov 24, 2025 Regular price $47.77 AUD Regular price ~~$110.02 AUD~~ Sale price $47.77 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Housing Bore (B) 77.79 mm (Equiv. 3.063 in.)	Clip Thickness (T) 2.77 mm _{+/- 0.152} (Equiv. 0.109 in.)	Groove Dia. (Dg) 82.50 mm _{+ 0.00 / - 0.07} (Equiv. 3.248 in.)	Approx. Loose Circlip OD (Dr) 86.82 mm + 1.40 / - 1.40
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 3.05 mm + 0.13 / - 0.00 Clearance in Bore (C): 62.48 mm Clearance in Groove (C1): 67.06 mm Category: Retaining Rings - Internal - Circlips - Standard Additional stock available from USA subject to Prior Sale = 67
Part Number: CCI-07779-S15 Internal Retaining Rings - 77.79x2.77x82.5 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Out of Stock \| Backorder Now \| Orders can be expected around Mon, Nov 24, 2025 Regular price $47.77 AUD Regular price ~~$110.02 AUD~~ Sale price $47.77 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
CCI-07779-S15 --- Internal Retaining Rings - 77.79x2.77x82.5 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Sale CCI-07779-S15 --- Internal Retaining Rings - 77.79x2.77x82.5 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Regular price $47.77 AUD Regular price ~~$110.02 AUD~~ Sale price $47.77 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Housing Bore (B) 77.79 mm (Equiv. 3.063 in.)	Clip Thickness (T) 2.77 mm _{+/- 0.152} (Equiv. 0.109 in.)	Groove Dia. (Dg) 82.50 mm _{+ 0.00 / - 0.07} (Equiv. 3.248 in.)	Approx. Loose Circlip OD (Dr) 86.82 mm + 1.40 / - 1.40		Groove Width (W) 3.05 mm + 0.13 / - 0.00
Material: Carbon Steel Clearance in Bore (C): 62.48 mm Clearance in Groove (C1): 67.06 mm Category: Retaining Rings - Internal - Circlips - Standard Additional stock available from USA subject to Prior Sale = 207
Part Number: CCI-07779-C (2 Pcs) Internal Retaining Rings - 77.79x2.77x82.5 mm Circlips - Carbon Steel Circlip Out of Stock \| Backorder Now \| Orders can be expected around Mon, Nov 24, 2025 Regular price $11.41 AUD Regular price ~~$13.69 AUD~~ Sale price $11.41 AUD Unit price per 2 Per Sell Unit Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Housing Bore (B) 77.79 mm (Equiv. 3.063 in.)	Clip Thickness (T) 2.77 mm _{+/- 0.152} (Equiv. 0.109 in.)	Groove Dia. (Dg) 82.50 mm _{+ 0.00 / - 0.07} (Equiv. 3.248 in.)	Approx. Loose Circlip OD (Dr) 86.82 mm + 1.40 / - 1.40
Material: Carbon Steel Groove Width (W): 3.05 mm + 0.13 / - 0.00 Clearance in Bore (C): 62.48 mm Clearance in Groove (C1): 67.06 mm Category: Retaining Rings - Internal - Circlips - Standard Additional stock available from USA subject to Prior Sale = 207
Part Number: CCI-07779-C (2 Pcs) Internal Retaining Rings - 77.79x2.77x82.5 mm Circlips - Carbon Steel Circlip Out of Stock \| Backorder Now \| Orders can be expected around Mon, Nov 24, 2025 Regular price $11.41 AUD Regular price ~~$13.69 AUD~~ Sale price $11.41 AUD Unit price per 2 Per Sell Unit Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
CCI-07779-C (2 Pcs) --- Internal Retaining Rings - 77.79x2.77x82.5 mm Circlips - Carbon Steel Circlip Sale CCI-07779-C (2 Pcs) --- Internal Retaining Rings - 77.79x2.77x82.5 mm Circlips - Carbon Steel Circlip Regular price $11.41 AUD Regular price ~~$13.69 AUD~~ Sale price $11.41 AUD Unit price per 2 Per Sell Unit Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Housing Bore (B) 78.00 mm (Equiv. 3.071 in.)	Clip Thickness (T) 2.50 mm _{+ 0.35 / - 0.00} (Equiv. 0.098 in.)	Groove Dia. (Dg) 81.00 mm _{+ 0.00 / - 0.07} (Equiv. 3.189 in.)	Approx. Loose Circlip OD (Dr) 82.50 mm + 1.30 / - 0.54		Groove Width (W) 2.65 mm + 0.13 / - 0.00
Material: Carbon Steel Clearance in Bore (C): 60.10 mm Clearance in Groove (C1): 64.00 mm Category: Retaining Rings - Internal - Circlips - Standard Additional stock available from USA subject to Prior Sale = 231
Part Number: CCI-07800-C (5 Pcs) Internal Retaining Rings - 78x2.5x81 mm Circlips - Carbon Steel Circlip Out of Stock \| Backorder Now \| Orders can be expected around Mon, Nov 24, 2025 Regular price $15.77 AUD Regular price ~~$18.93 AUD~~ Sale price $15.77 AUD Unit price per 5 Per Sell Unit Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Housing Bore (B) 78.00 mm (Equiv. 3.071 in.)	Clip Thickness (T) 2.50 mm _{+ 0.35 / - 0.00} (Equiv. 0.098 in.)	Groove Dia. (Dg) 81.00 mm _{+ 0.00 / - 0.07} (Equiv. 3.189 in.)	Approx. Loose Circlip OD (Dr) 82.50 mm + 1.30 / - 0.54
Material: Carbon Steel Groove Width (W): 2.65 mm + 0.13 / - 0.00 Clearance in Bore (C): 60.10 mm Clearance in Groove (C1): 64.00 mm Category: Retaining Rings - Internal - Circlips - Standard Additional stock available from USA subject to Prior Sale = 231
Part Number: CCI-07800-C (5 Pcs) Internal Retaining Rings - 78x2.5x81 mm Circlips - Carbon Steel Circlip Out of Stock \| Backorder Now \| Orders can be expected around Mon, Nov 24, 2025 Regular price $15.77 AUD Regular price ~~$18.93 AUD~~ Sale price $15.77 AUD Unit price per 5 Per Sell Unit Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
CCI-07800-C (5 Pcs) --- Internal Retaining Rings - 78x2.5x81 mm Circlips - Carbon Steel Circlip Sale CCI-07800-C (5 Pcs) --- Internal Retaining Rings - 78x2.5x81 mm Circlips - Carbon Steel Circlip Regular price $15.77 AUD Regular price ~~$18.93 AUD~~ Sale price $15.77 AUD Unit price per 5 Per Sell Unit Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Housing Bore (B) 78.00 mm (Equiv. 3.071 in.)	Clip Thickness (T) 2.50 mm _{+ 0.35 / - 0.00} (Equiv. 0.098 in.)	Groove Dia. (Dg) 81.00 mm _{+ 0.00 / - 0.08} (Equiv. 3.189 in.)	Approx. Loose Circlip OD (Dr) 82.50 mm + 1.30 / - 0.54		Groove Width (W) 2.65 mm + 0.13 / - 0.00
Material: Stainless Steel Grade PH15-7 Mo Clearance in Bore (C): 60.10 mm Clearance in Groove (C1): 64.00 mm Category: Retaining Rings - Internal - Circlips - Standard
Part Number: CCI-07800-S15 Internal Retaining Rings - 78x2.5x81 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Contact Us \| Special Order Only - Please contact us if you need a large quantity
Housing Bore (B) 78.00 mm (Equiv. 3.071 in.)	Clip Thickness (T) 2.50 mm _{+ 0.35 / - 0.00} (Equiv. 0.098 in.)	Groove Dia. (Dg) 81.00 mm _{+ 0.00 / - 0.08} (Equiv. 3.189 in.)	Approx. Loose Circlip OD (Dr) 82.50 mm + 1.30 / - 0.54
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 2.65 mm + 0.13 / - 0.00 Clearance in Bore (C): 60.10 mm Clearance in Groove (C1): 64.00 mm Category: Retaining Rings - Internal - Circlips - Standard
Part Number: CCI-07800-S15 Internal Retaining Rings - 78x2.5x81 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Contact Us \| Special Order Only - Please contact us if you need a large quantity \| Orders can be expected around Sat, Jul 22, 2028
Housing Bore (B) 79.38 mm (Equiv. 3.125 in.)	Clip Thickness (T) 2.69 mm _{+ 0.15 / - 0.00} (Equiv. 0.106 in.)	Groove Dia. (Dg) 85.22 mm _{+/- 0.08} (Equiv. 3.355 in.)	Approx. Loose Circlip OD (Dr) 87.20 mm + 2.80 / - 0.00		Groove Width (W) 2.26 mm + 0.05 / - 0.00
Material: Carbon Spring Steel Category: Retaining Rings - Internal - Circlips - Bevelled
Part Number: CIB-07938-C (30 Pcs) Internal Retaining Rings - 79.38x2.69x85.22 mm Circlips - Carbon Spring Steel Circlip Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jan 24, 2026 Regular price $259.41 AUD Regular price ~~$607.92 AUD~~ Sale price $259.41 AUD Unit price per 30 Per Sell Unit Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Housing Bore (B) 79.38 mm (Equiv. 3.125 in.)	Clip Thickness (T) 2.69 mm _{+ 0.15 / - 0.00} (Equiv. 0.106 in.)	Groove Dia. (Dg) 85.22 mm _{+/- 0.08} (Equiv. 3.355 in.)	Approx. Loose Circlip OD (Dr) 87.20 mm + 2.80 / - 0.00
Material: Carbon Spring Steel Groove Width (W): 2.26 mm + 0.05 / - 0.00 Category: Retaining Rings - Internal - Circlips - Bevelled
Part Number: CIB-07938-C (30 Pcs) Internal Retaining Rings - 79.38x2.69x85.22 mm Circlips - Carbon Spring Steel Circlip Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jan 24, 2026 Regular price $259.41 AUD Regular price ~~$607.92 AUD~~ Sale price $259.41 AUD Unit price per 30 Per Sell Unit Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
CIB-07938-C (30 Pcs) --- Internal Retaining Rings - 79.38x2.69x85.22 mm Circlips - Carbon Spring Steel Circlip Sale CIB-07938-C (30 Pcs) --- Internal Retaining Rings - 79.38x2.69x85.22 mm Circlips - Carbon Spring Steel Circlip Regular price $259.41 AUD Regular price ~~$607.92 AUD~~ Sale price $259.41 AUD Unit price per 30 Per Sell Unit Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Housing Bore (B) 79.38 mm (Equiv. 3.125 in.)	Clip Thickness (T) 2.77 mm _{+/- 0.152} (Equiv. 0.109 in.)	Groove Dia. (Dg) 84.20 mm _{+ 0.00 / - 0.08} (Equiv. 3.315 in.)	Approx. Loose Circlip OD (Dr) 88.60 mm + 1.40 / - 1.40		Groove Width (W) 3.05 mm + 0.13 / - 0.00
Material: Carbon Steel Clearance in Bore (C): 64.01 mm Clearance in Groove (C1): 68.83 mm Category: Retaining Rings - Internal - Circlips - Standard Additional stock available from USA subject to Prior Sale = 364
Part Number: CCI-07938-C (2 Pcs) Internal Retaining Rings - 79.38x2.77x84.2 mm Circlips - Carbon Steel Circlip Out of Stock \| Backorder Now \| Orders can be expected around Mon, Nov 24, 2025 Regular price $11.59 AUD Regular price ~~$13.91 AUD~~ Sale price $11.59 AUD Unit price per 2 Per Sell Unit Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Housing Bore (B) 79.38 mm (Equiv. 3.125 in.)	Clip Thickness (T) 2.77 mm _{+/- 0.152} (Equiv. 0.109 in.)	Groove Dia. (Dg) 84.20 mm _{+ 0.00 / - 0.08} (Equiv. 3.315 in.)	Approx. Loose Circlip OD (Dr) 88.60 mm + 1.40 / - 1.40
Material: Carbon Steel Groove Width (W): 3.05 mm + 0.13 / - 0.00 Clearance in Bore (C): 64.01 mm Clearance in Groove (C1): 68.83 mm Category: Retaining Rings - Internal - Circlips - Standard Additional stock available from USA subject to Prior Sale = 364
Part Number: CCI-07938-C (2 Pcs) Internal Retaining Rings - 79.38x2.77x84.2 mm Circlips - Carbon Steel Circlip Out of Stock \| Backorder Now \| Orders can be expected around Mon, Nov 24, 2025 Regular price $11.59 AUD Regular price ~~$13.91 AUD~~ Sale price $11.59 AUD Unit price per 2 Per Sell Unit Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
CCI-07938-C (2 Pcs) --- Internal Retaining Rings - 79.38x2.77x84.2 mm Circlips - Carbon Steel Circlip Sale CCI-07938-C (2 Pcs) --- Internal Retaining Rings - 79.38x2.77x84.2 mm Circlips - Carbon Steel Circlip Regular price $11.59 AUD Regular price ~~$13.91 AUD~~ Sale price $11.59 AUD Unit price per 2 Per Sell Unit Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Housing Bore (B) 79.38 mm (Equiv. 3.125 in.)	Clip Thickness (T) 2.77 mm _{+/- 0.152} (Equiv. 0.109 in.)	Groove Dia. (Dg) 84.20 mm _{+ 0.00 / - 0.08} (Equiv. 3.315 in.)	Approx. Loose Circlip OD (Dr) 88.60 mm + 1.40 / - 1.40		Groove Width (W) 3.05 mm + 0.13 / - 0.00
Material: Carbon Steel Zinc Plated Clearance in Bore (C): 64.01 mm Clearance in Groove (C1): 68.83 mm Category: Retaining Rings - Internal - Circlips - Standard
Part Number: CCI-07938-CZY (62 Pcs) Internal Retaining Rings - 79.38x2.77x84.2 mm Circlips - Carbon Steel Zinc Plated Circlip Out of Stock \| Backorder Now \| Orders can be expected around Tue, Feb 17, 2026 Regular price $2,676.95 AUD Regular price Sale price $2,676.95 AUD Unit price per 62 Per Sell Unit Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Housing Bore (B) 79.38 mm (Equiv. 3.125 in.)	Clip Thickness (T) 2.77 mm _{+/- 0.152} (Equiv. 0.109 in.)	Groove Dia. (Dg) 84.20 mm _{+ 0.00 / - 0.08} (Equiv. 3.315 in.)	Approx. Loose Circlip OD (Dr) 88.60 mm + 1.40 / - 1.40
Material: Carbon Steel Zinc Plated Groove Width (W): 3.05 mm + 0.13 / - 0.00 Clearance in Bore (C): 64.01 mm Clearance in Groove (C1): 68.83 mm Category: Retaining Rings - Internal - Circlips - Standard
Part Number: CCI-07938-CZY (62 Pcs) Internal Retaining Rings - 79.38x2.77x84.2 mm Circlips - Carbon Steel Zinc Plated Circlip Out of Stock \| Backorder Now \| Orders can be expected around Tue, Feb 17, 2026 Regular price $2,676.95 AUD Regular price Sale price $2,676.95 AUD Unit price per 62 Per Sell Unit Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
CCI-07938-CZY (62 Pcs) --- Internal Retaining Rings - 79.38x2.77x84.2 mm Circlips - Carbon Steel Zinc Plated Circlip CCI-07938-CZY (62 Pcs) --- Internal Retaining Rings - 79.38x2.77x84.2 mm Circlips - Carbon Steel Zinc Plated Circlip Regular price $2,676.95 AUD Regular price Sale price $2,676.95 AUD Unit price per 62 Per Sell Unit Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now
Housing Bore (B) 79.38 mm (Equiv. 3.125 in.)	Clip Thickness (T) 2.77 mm _{+/- 0.152} (Equiv. 0.109 in.)	Groove Dia. (Dg) 84.20 mm _{+ 0.00 / - 0.08} (Equiv. 3.315 in.)	Approx. Loose Circlip OD (Dr) 88.60 mm + 1.40 / - 1.40		Groove Width (W) 3.05 mm + 0.13 / - 0.00
Material: Stainless Steel Grade PH15-7 Mo Clearance in Bore (C): 64.01 mm Clearance in Groove (C1): 68.83 mm Category: Retaining Rings - Internal - Circlips - Standard
Part Number: CCI-07938-S15 (3 Pcs) Internal Retaining Rings - 79.38x2.77x84.2 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jan 17, 2026 Regular price $182.32 AUD Regular price ~~$426.60 AUD~~ Sale price $182.32 AUD Unit price per 3 Per Sell Unit Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Housing Bore (B) 79.38 mm (Equiv. 3.125 in.)	Clip Thickness (T) 2.77 mm _{+/- 0.152} (Equiv. 0.109 in.)	Groove Dia. (Dg) 84.20 mm _{+ 0.00 / - 0.08} (Equiv. 3.315 in.)	Approx. Loose Circlip OD (Dr) 88.60 mm + 1.40 / - 1.40
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 3.05 mm + 0.13 / - 0.00 Clearance in Bore (C): 64.01 mm Clearance in Groove (C1): 68.83 mm Category: Retaining Rings - Internal - Circlips - Standard
Part Number: CCI-07938-S15 (3 Pcs) Internal Retaining Rings - 79.38x2.77x84.2 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jan 17, 2026 Regular price $182.32 AUD Regular price ~~$426.60 AUD~~ Sale price $182.32 AUD Unit price per 3 Per Sell Unit Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
CCI-07938-S15 (3 Pcs) --- Internal Retaining Rings - 79.38x2.77x84.2 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Sale CCI-07938-S15 (3 Pcs) --- Internal Retaining Rings - 79.38x2.77x84.2 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Regular price $182.32 AUD Regular price ~~$426.60 AUD~~ Sale price $182.32 AUD Unit price per 3 Per Sell Unit Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Housing Bore (B) 79.98 mm (Equiv. 3.149 in.)	Clip Thickness (T) 2.69 mm _{+ 0.15 / - 0.00} (Equiv. 0.106 in.)	Groove Dia. (Dg) 85.88 mm _{+/- 0.08} (Equiv. 3.381 in.)	Approx. Loose Circlip OD (Dr) 88.09 mm + 2.80 / - 0.00		Groove Width (W) 2.26 mm + 0.05 / - 0.00
Material: Carbon Spring Steel Category: Retaining Rings - Internal - Circlips - Bevelled
Part Number: CIB-07998-C Internal Retaining Rings - 79.98x2.69x85.88 mm Circlips - Carbon Spring Steel Circlip Contact Us \| Special Order Only - Please contact us if you need a large quantity
Housing Bore (B) 79.98 mm (Equiv. 3.149 in.)	Clip Thickness (T) 2.69 mm _{+ 0.15 / - 0.00} (Equiv. 0.106 in.)	Groove Dia. (Dg) 85.88 mm _{+/- 0.08} (Equiv. 3.381 in.)	Approx. Loose Circlip OD (Dr) 88.09 mm + 2.80 / - 0.00
Material: Carbon Spring Steel Groove Width (W): 2.26 mm + 0.05 / - 0.00 Category: Retaining Rings - Internal - Circlips - Bevelled
Part Number: CIB-07998-C Internal Retaining Rings - 79.98x2.69x85.88 mm Circlips - Carbon Spring Steel Circlip Contact Us \| Special Order Only - Please contact us if you need a large quantity \| Orders can be expected around Sat, Jul 22, 2028
Housing Bore (B) 79.98 mm (Equiv. 3.149 in.)	Clip Thickness (T) 2.77 mm _{+/- 0.152} (Equiv. 0.109 in.)	Groove Dia. (Dg) 85.04 mm _{+ 0.00 / - 0.08} (Equiv. 3.348 in.)	Approx. Loose Circlip OD (Dr) 89.48 mm + 1.40 / - 1.40		Groove Width (W) 3.05 mm + 0.13 / - 0.00
Material: Stainless Steel Grade PH15-7 Mo Clearance in Bore (C): 64.77 mm Clearance in Groove (C1): 69.60 mm Category: Retaining Rings - Internal - Circlips - Standard Additional stock available from USA subject to Prior Sale = 8
Part Number: CCI-07998-S15 Internal Retaining Rings - 79.98x2.77x85.04 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Out of Stock \| Backorder Now \| Orders can be expected around Mon, Nov 24, 2025 Regular price $74.14 AUD Regular price ~~$172.15 AUD~~ Sale price $74.14 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Housing Bore (B) 79.98 mm (Equiv. 3.149 in.)	Clip Thickness (T) 2.77 mm _{+/- 0.152} (Equiv. 0.109 in.)	Groove Dia. (Dg) 85.04 mm _{+ 0.00 / - 0.08} (Equiv. 3.348 in.)	Approx. Loose Circlip OD (Dr) 89.48 mm + 1.40 / - 1.40
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 3.05 mm + 0.13 / - 0.00 Clearance in Bore (C): 64.77 mm Clearance in Groove (C1): 69.60 mm Category: Retaining Rings - Internal - Circlips - Standard Additional stock available from USA subject to Prior Sale = 8
Part Number: CCI-07998-S15 Internal Retaining Rings - 79.98x2.77x85.04 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Out of Stock \| Backorder Now \| Orders can be expected around Mon, Nov 24, 2025 Regular price $74.14 AUD Regular price ~~$172.15 AUD~~ Sale price $74.14 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
CCI-07998-S15 --- Internal Retaining Rings - 79.98x2.77x85.04 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Sale CCI-07998-S15 --- Internal Retaining Rings - 79.98x2.77x85.04 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Regular price $74.14 AUD Regular price ~~$172.15 AUD~~ Sale price $74.14 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Housing Bore (B) 79.98 mm (Equiv. 3.149 in.)	Clip Thickness (T) 2.77 mm _{+/- 0.152} (Equiv. 0.109 in.)	Groove Dia. (Dg) 85.04 mm _{+ 0.00 / - 0.08} (Equiv. 3.348 in.)	Approx. Loose Circlip OD (Dr) 89.48 mm + 1.40 / - 1.40		Groove Width (W) 3.05 mm + 0.13 / - 0.00
Material: Carbon Steel Zinc Plated Clearance in Bore (C): 64.77 mm Clearance in Groove (C1): 69.60 mm Category: Retaining Rings - Internal - Circlips - Standard Additional stock available from USA subject to Prior Sale = 430
Part Number: CCI-07998-CZY (2 Pcs) Internal Retaining Rings - 79.98x2.77x85.04 mm Circlips - Carbon Steel Zinc Plated Circlip Out of Stock \| Backorder Now \| Orders can be expected around Mon, Nov 24, 2025 Regular price $22.95 AUD Regular price ~~$51.66 AUD~~ Sale price $22.95 AUD Unit price per 2 Per Sell Unit Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Housing Bore (B) 79.98 mm (Equiv. 3.149 in.)	Clip Thickness (T) 2.77 mm _{+/- 0.152} (Equiv. 0.109 in.)	Groove Dia. (Dg) 85.04 mm _{+ 0.00 / - 0.08} (Equiv. 3.348 in.)	Approx. Loose Circlip OD (Dr) 89.48 mm + 1.40 / - 1.40
Material: Carbon Steel Zinc Plated Groove Width (W): 3.05 mm + 0.13 / - 0.00 Clearance in Bore (C): 64.77 mm Clearance in Groove (C1): 69.60 mm Category: Retaining Rings - Internal - Circlips - Standard Additional stock available from USA subject to Prior Sale = 430
Part Number: CCI-07998-CZY (2 Pcs) Internal Retaining Rings - 79.98x2.77x85.04 mm Circlips - Carbon Steel Zinc Plated Circlip Out of Stock \| Backorder Now \| Orders can be expected around Mon, Nov 24, 2025 Regular price $22.95 AUD Regular price ~~$51.66 AUD~~ Sale price $22.95 AUD Unit price per 2 Per Sell Unit Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
CCI-07998-CZY (2 Pcs) --- Internal Retaining Rings - 79.98x2.77x85.04 mm Circlips - Carbon Steel Zinc Plated Circlip Sale CCI-07998-CZY (2 Pcs) --- Internal Retaining Rings - 79.98x2.77x85.04 mm Circlips - Carbon Steel Zinc Plated Circlip Regular price $22.95 AUD Regular price ~~$51.66 AUD~~ Sale price $22.95 AUD Unit price per 2 Per Sell Unit Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Housing Bore (B) 79.98 mm (Equiv. 3.149 in.)	Clip Thickness (T) 2.77 mm _{+/- 0.152} (Equiv. 0.109 in.)	Groove Dia. (Dg) 85.04 mm _{+ 0.00 / - 0.08} (Equiv. 3.348 in.)	Approx. Loose Circlip OD (Dr) 89.48 mm + 1.40 / - 1.40		Groove Width (W) 3.05 mm + 0.13 / - 0.00
Material: Carbon Steel Clearance in Bore (C): 64.77 mm Clearance in Groove (C1): 69.60 mm Category: Retaining Rings - Internal - Circlips - Standard Additional stock available from USA subject to Prior Sale = 1290
Part Number: CCI-07998-C Internal Retaining Rings - 79.98x2.77x85.04 mm Circlips - Carbon Steel Circlip 2 Available Now \| Further orders can be expected around Mon, Nov 24, 2025 Regular price $7.95 AUD Regular price Sale price $7.95 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required 2 Available Now. Backorder if more than 2.
Housing Bore (B) 79.98 mm (Equiv. 3.149 in.)	Clip Thickness (T) 2.77 mm _{+/- 0.152} (Equiv. 0.109 in.)	Groove Dia. (Dg) 85.04 mm _{+ 0.00 / - 0.08} (Equiv. 3.348 in.)	Approx. Loose Circlip OD (Dr) 89.48 mm + 1.40 / - 1.40
Material: Carbon Steel Groove Width (W): 3.05 mm + 0.13 / - 0.00 Clearance in Bore (C): 64.77 mm Clearance in Groove (C1): 69.60 mm Category: Retaining Rings - Internal - Circlips - Standard Additional stock available from USA subject to Prior Sale = 1290
Part Number: CCI-07998-C Internal Retaining Rings - 79.98x2.77x85.04 mm Circlips - Carbon Steel Circlip 2 Available Now \| Further orders can be expected around Mon, Nov 24, 2025 Regular price $7.95 AUD Regular price Sale price $7.95 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required 2 Available Now. Backorder if more than 2.
CCI-07998-C --- Internal Retaining Rings - 79.98x2.77x85.04 mm Circlips - Carbon Steel Circlip CCI-07998-C --- Internal Retaining Rings - 79.98x2.77x85.04 mm Circlips - Carbon Steel Circlip Regular price $7.95 AUD Regular price Sale price $7.95 AUD Unit price per Each Excludes GST and overseas Taxes & Duties 2 Available Now
Housing Bore (B) 80.00 mm (Equiv. 3.15 in.)	Clip Thickness (T) 2.50 mm _{+ 0.30 / - 0.00} (Equiv. 0.098 in.)	Groove Dia. (Dg) 83.50 mm _{+ 0.00 / - 0.07} (Equiv. 3.287 in.)	Approx. Loose Circlip OD (Dr) 85.50 mm + 1.30 / - 0.54	Radial Wall (S) Approx. 5.7 - 6.0 mm	Groove Width (W) 2.65 mm
Material: Carbon Spring Steel Category: Retaining Rings - Internal - Circlips - Inverted
Part Number: CCI-08000-C-V (125 Pcs) Internal Retaining Rings - 80x2.5x83.5 mm Circlips - Carbon Spring Steel Circlip Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jan 17, 2026 Regular price $3,698.14 AUD Regular price ~~$8,699.00 AUD~~ Sale price $3,698.14 AUD Unit price per 125 Per Sell Unit Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Housing Bore (B) 80.00 mm (Equiv. 3.15 in.)	Clip Thickness (T) 2.50 mm _{+ 0.30 / - 0.00} (Equiv. 0.098 in.)	Groove Dia. (Dg) 83.50 mm _{+ 0.00 / - 0.07} (Equiv. 3.287 in.)	Approx. Loose Circlip OD (Dr) 85.50 mm + 1.30 / - 0.54
Material: Carbon Spring Steel Radial Wall (S) Approx.: 5.7 - 6.0 mm Groove Width (W): 2.65 mm Category: Retaining Rings - Internal - Circlips - Inverted
Part Number: CCI-08000-C-V (125 Pcs) Internal Retaining Rings - 80x2.5x83.5 mm Circlips - Carbon Spring Steel Circlip Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jan 17, 2026 Regular price $3,698.14 AUD Regular price ~~$8,699.00 AUD~~ Sale price $3,698.14 AUD Unit price per 125 Per Sell Unit Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
CCI-08000-C-V (125 Pcs) --- Internal Retaining Rings - 80x2.5x83.5 mm Circlips - Carbon Spring Steel Circlip Sale CCI-08000-C-V (125 Pcs) --- Internal Retaining Rings - 80x2.5x83.5 mm Circlips - Carbon Spring Steel Circlip Regular price $3,698.14 AUD Regular price ~~$8,699.00 AUD~~ Sale price $3,698.14 AUD Unit price per 125 Per Sell Unit Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Housing Bore (B) 80.00 mm (Equiv. 3.15 in.)	Clip Thickness (T) 2.50 mm _{+ 0.35 / - 0.00} (Equiv. 0.098 in.)	Groove Dia. (Dg) 83.50 mm _{+ 0.00 / - 0.08} (Equiv. 3.287 in.)	Approx. Loose Circlip OD (Dr) 85.50 mm + 1.30 / - 0.54		Groove Width (W) 2.65 mm + 0.13 / - 0.00
Material: Carbon Steel Clearance in Bore (C): 62.10 mm Clearance in Groove (C1): 66.50 mm Category: Retaining Rings - Internal - Circlips - Standard Additional stock available from USA subject to Prior Sale = 1567
Part Number: CCI-08000-C (5 Pcs) Internal Retaining Rings - 80x2.5x83.5 mm Circlips - Carbon Steel Circlip 10 units (50 pcs) Available Now \| Further orders can be expected around Mon, Nov 24, 2025 Regular price $22.77 AUD Regular price Sale price $22.77 AUD Unit price per 5 Per Sell Unit Excludes GST and overseas Taxes & Duties Quantity Required 10 units (50 pcs) Available Now. Backorder if more than 10.
Housing Bore (B) 80.00 mm (Equiv. 3.15 in.)	Clip Thickness (T) 2.50 mm _{+ 0.35 / - 0.00} (Equiv. 0.098 in.)	Groove Dia. (Dg) 83.50 mm _{+ 0.00 / - 0.08} (Equiv. 3.287 in.)	Approx. Loose Circlip OD (Dr) 85.50 mm + 1.30 / - 0.54
Material: Carbon Steel Groove Width (W): 2.65 mm + 0.13 / - 0.00 Clearance in Bore (C): 62.10 mm Clearance in Groove (C1): 66.50 mm Category: Retaining Rings - Internal - Circlips - Standard Additional stock available from USA subject to Prior Sale = 1567
Part Number: CCI-08000-C (5 Pcs) Internal Retaining Rings - 80x2.5x83.5 mm Circlips - Carbon Steel Circlip 10 units (50 pcs) Available Now \| Further orders can be expected around Mon, Nov 24, 2025 Regular price $22.77 AUD Regular price Sale price $22.77 AUD Unit price per 5 Per Sell Unit Excludes GST and overseas Taxes & Duties Quantity Required 10 units (50 pcs) Available Now. Backorder if more than 10.
CCI-08000-C (5 Pcs) --- Internal Retaining Rings - 80x2.5x83.5 mm Circlips - Carbon Steel Circlip CCI-08000-C (5 Pcs) --- Internal Retaining Rings - 80x2.5x83.5 mm Circlips - Carbon Steel Circlip Regular price $22.77 AUD Regular price Sale price $22.77 AUD Unit price per 5 Per Sell Unit Excludes GST and overseas Taxes & Duties 10 Available Now
Housing Bore (B) 80.00 mm (Equiv. 3.15 in.)	Clip Thickness (T) 2.50 mm _{+ 0.35 / - 0.00} (Equiv. 0.098 in.)	Groove Dia. (Dg) 83.50 mm _{+ 0.00 / - 0.08} (Equiv. 3.287 in.)	Approx. Loose Circlip OD (Dr) 85.50 mm + 1.30 / - 0.54		Groove Width (W) 2.65 mm + 0.13 / - 0.00
Material: Stainless Steel Grade PH15-7 Mo Clearance in Bore (C): 62.10 mm Clearance in Groove (C1): 66.50 mm Category: Retaining Rings - Internal - Circlips - Standard Additional stock available from USA subject to Prior Sale = 17
Part Number: CCI-08000-S15 Internal Retaining Rings - 80x2.5x83.5 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip 2 Available Now \| Further orders can be expected around Mon, Nov 24, 2025 Regular price $12.59 AUD Regular price ~~$35.29 AUD~~ Sale price $12.59 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required 2 Available Now. Backorder if more than 2.
Housing Bore (B) 80.00 mm (Equiv. 3.15 in.)	Clip Thickness (T) 2.50 mm _{+ 0.35 / - 0.00} (Equiv. 0.098 in.)	Groove Dia. (Dg) 83.50 mm _{+ 0.00 / - 0.08} (Equiv. 3.287 in.)	Approx. Loose Circlip OD (Dr) 85.50 mm + 1.30 / - 0.54
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 2.65 mm + 0.13 / - 0.00 Clearance in Bore (C): 62.10 mm Clearance in Groove (C1): 66.50 mm Category: Retaining Rings - Internal - Circlips - Standard Additional stock available from USA subject to Prior Sale = 17
Part Number: CCI-08000-S15 Internal Retaining Rings - 80x2.5x83.5 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip 2 Available Now \| Further orders can be expected around Mon, Nov 24, 2025 Regular price $12.59 AUD Regular price ~~$35.29 AUD~~ Sale price $12.59 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required 2 Available Now. Backorder if more than 2.
CCI-08000-S15 --- Internal Retaining Rings - 80x2.5x83.5 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Sale CCI-08000-S15 --- Internal Retaining Rings - 80x2.5x83.5 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Regular price $12.59 AUD Regular price ~~$35.29 AUD~~ Sale price $12.59 AUD Unit price per Each Excludes GST and overseas Taxes & Duties 2 Available Now Sale
Housing Bore (B) 80.00 mm (Equiv. 3.15 in.)	Clip Thickness (T) 2.50 mm _{+ 0.00 / - 0.30} (Equiv. 0.098 in.)	Groove Dia. (Dg) 83.80 mm _{+ 0.00 / - 0.07} (Equiv. 3.299 in.)	Approx. Loose Circlip OD (Dr) 85.04 mm	Radial Wall (S) Approx. 7.00 mm	Groove Width (W) 2.65 mm
Material: Carbon Spring Steel Category: Retaining Rings - Internal - Circlips - Tabbed
Part Number: DJK-080 Internal Retaining Rings - 80x2.5x83.8 mm Circlips - Carbon Spring Steel Circlip Contact Us \| Special Order Only - Please contact us if you need a large quantity
Housing Bore (B) 80.00 mm (Equiv. 3.15 in.)	Clip Thickness (T) 2.50 mm _{+ 0.00 / - 0.30} (Equiv. 0.098 in.)	Groove Dia. (Dg) 83.80 mm _{+ 0.00 / - 0.07} (Equiv. 3.299 in.)	Approx. Loose Circlip OD (Dr) 85.04 mm
Material: Carbon Spring Steel Radial Wall (S) Approx.: 7.00 mm Groove Width (W): 2.65 mm Category: Retaining Rings - Internal - Circlips - Tabbed
Part Number: DJK-080 Internal Retaining Rings - 80x2.5x83.8 mm Circlips - Carbon Spring Steel Circlip Contact Us \| Special Order Only - Please contact us if you need a large quantity \| Orders can be expected around Sat, Jul 22, 2028
Housing Bore (B) 80.17 mm (Equiv. 3.156 in.)	Clip Thickness (T) 2.77 mm _{+/- 0.152} (Equiv. 0.109 in.)	Groove Dia. (Dg) 85.04 mm _{+/- 0.076} (Equiv. 3.348 in.)	Approx. Loose Circlip OD (Dr) 88.09 mm		Groove Width (W) 3.05 mm
Material: Carbon Steel Category: Retaining Rings - Internal - Circlips - Inverted Additional stock available from USA subject to Prior Sale = 172
Part Number: CCI-08017-C-V Internal Retaining Rings - 80.17x2.77x85.04 mm Circlips - Carbon Steel Circlip Out of Stock \| Backorder Now \| Orders can be expected around Mon, Nov 24, 2025 Regular price $20.05 AUD Regular price ~~$44.73 AUD~~ Sale price $20.05 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Housing Bore (B) 80.17 mm (Equiv. 3.156 in.)	Clip Thickness (T) 2.77 mm _{+/- 0.152} (Equiv. 0.109 in.)	Groove Dia. (Dg) 85.04 mm _{+/- 0.076} (Equiv. 3.348 in.)	Approx. Loose Circlip OD (Dr) 88.09 mm
Material: Carbon Steel Groove Width (W): 3.05 mm Category: Retaining Rings - Internal - Circlips - Inverted Additional stock available from USA subject to Prior Sale = 172
Part Number: CCI-08017-C-V Internal Retaining Rings - 80.17x2.77x85.04 mm Circlips - Carbon Steel Circlip Out of Stock \| Backorder Now \| Orders can be expected around Mon, Nov 24, 2025 Regular price $20.05 AUD Regular price ~~$44.73 AUD~~ Sale price $20.05 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
CCI-08017-C-V --- Internal Retaining Rings - 80.17x2.77x85.04 mm Circlips - Carbon Steel Circlip Sale CCI-08017-C-V --- Internal Retaining Rings - 80.17x2.77x85.04 mm Circlips - Carbon Steel Circlip Regular price $20.05 AUD Regular price ~~$44.73 AUD~~ Sale price $20.05 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Housing Bore (B) 80.17 mm (Equiv. 3.156 in.)	Clip Thickness (T) 2.69 mm _{+ 0.15 / - 0.00} (Equiv. 0.106 in.)	Groove Dia. (Dg) 98.55 mm _{+/- 0.08} (Equiv. 3.88 in.)	Approx. Loose Circlip OD (Dr) 88.09 mm + 2.80 / - 0.00		Groove Width (W) 2.26 mm + 0.05 / - 0.00
Material: Carbon Steel Category: Retaining Rings - Internal - Circlips - Bevelled Additional stock available from USA subject to Prior Sale = 169

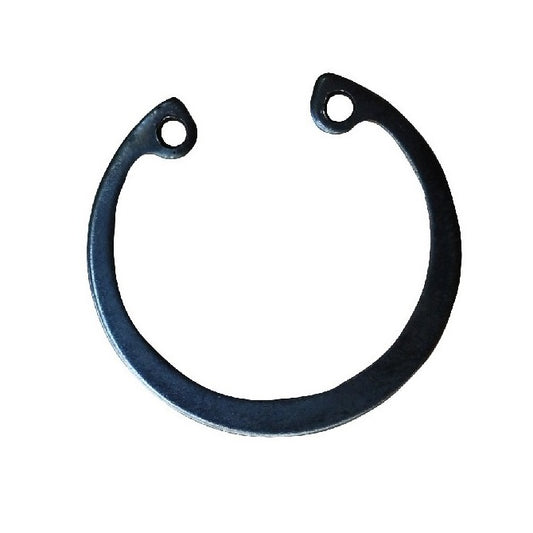

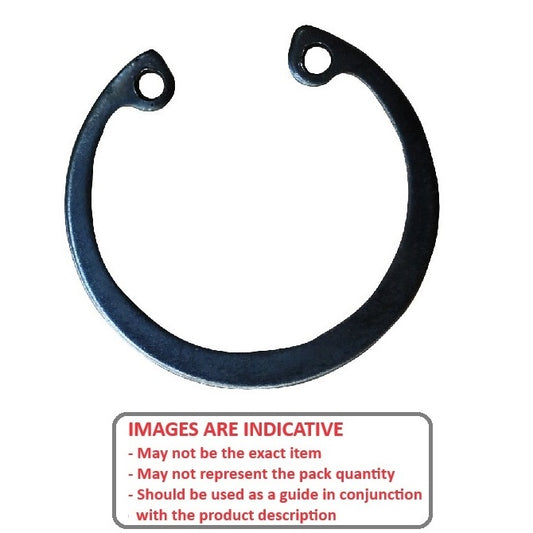

Part Number: CIB-08017-C Internal Retaining Rings - 80.17x2.69x98.55 mm Circlips - Carbon Steel Circlip 13 Available Now \| Further orders can be expected around Mon, Nov 24, 2025 Regular price $17.05 AUD Regular price Sale price $17.05 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required 13 Available Now. Backorder if more than 13.
Housing Bore (B) 80.17 mm (Equiv. 3.156 in.)	Clip Thickness (T) 2.69 mm _{+ 0.15 / - 0.00} (Equiv. 0.106 in.)	Groove Dia. (Dg) 98.55 mm _{+/- 0.08} (Equiv. 3.88 in.)	Approx. Loose Circlip OD (Dr) 88.09 mm + 2.80 / - 0.00
Material: Carbon Steel Groove Width (W): 2.26 mm + 0.05 / - 0.00 Category: Retaining Rings - Internal - Circlips - Bevelled Additional stock available from USA subject to Prior Sale = 169
Part Number: CIB-08017-C Internal Retaining Rings - 80.17x2.69x98.55 mm Circlips - Carbon Steel Circlip 13 Available Now \| Further orders can be expected around Mon, Nov 24, 2025 Regular price $17.05 AUD Regular price Sale price $17.05 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required 13 Available Now. Backorder if more than 13.
CIB-08017-C --- Internal Retaining Rings - 80.17x2.69x98.55 mm Circlips - Carbon Steel Circlip CIB-08017-C --- Internal Retaining Rings - 80.17x2.69x98.55 mm Circlips - Carbon Steel Circlip Regular price $17.05 AUD Regular price Sale price $17.05 AUD Unit price per Each Excludes GST and overseas Taxes & Duties 13 Available Now

Country/region

Miniature Bearings Australia

Collection: Retaining Rings - Internal - Circlips

Filter

Filter

Subscribe to our emails
