Collection: Retaining Rings - Internal - Circlips - Standard

Retaining Rings (With Images)

Internal

Circlips

Tabbed

511 Products in this selection

This is a combined category of Standard Circlips Internal Retaining Rings.
Use the filters in the table below, or the category tree above to refine the selection. To order any item, simply click the part number for a full product page, then add to your cart.

Additional resources:
Anderton Cross Reference PDF
Circlips PDF Catalogue
Circlip Tools

A more concise listing may be found on the Smallparts store at Retaining Rings - Internal - Circlips - Standard. Smallparts promote the most popular MBA products.

Housing Bore (B)	Clip Thickness (T)	Groove Dia. (Dg)	Approx. Loose Circlip OD (Dr)	Radial Wall (S)	Groove Width (W)	Indicative Image
Housing Bore (B) 18.00 mm _{(0.709 in.)}	Clip Thickness (T) 1.00 mm + 0.13 / - 0.00 _{(0.039 in.)}	Groove Dia. (Dg) 19.00 mm + 0.00 / - 0.06 _{(0.748 in.)}	Approx. Loose Circlip OD (Dr) 19.50 mm + 0.42 / - 0.13		Groove Width (W) 1.10 mm + 0.08 / - 0.00
Material: Carbon Steel Clearance in Bore (C): 9.40 mm Clearance in Groove (C1): 10.80 mm Min. Lug Diameter (h): 2.00 mm Min. Extension (n): 1.50 Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel
Part Number: CCI-01800-C (20 Pcs) Internal Retaining Rings - 18x1x19 mm - Carbon Steel 3 units (60 pcs) Available Immediately \| Further orders can be expected around Sun, Jun 08, 2025 Regular price $6.50 AUD Regular price Sale price $6.50 AUD Unit price per Per 20
Housing Bore (B)	Clip Thickness (T)	Groove Dia. (Dg)	Approx. Loose Circlip OD (Dr)	Indicative Image
Housing Bore (B) 18.00 mm _{(0.709 in.)}	Clip Thickness (T) 1.00 mm + 0.13 / - 0.00 _{(0.039 in.)}	Groove Dia. (Dg) 19.00 mm + 0.00 / - 0.06 _{(0.748 in.)}	Approx. Loose Circlip OD (Dr) 19.50 mm + 0.42 / - 0.13
Material: Carbon Steel Groove Width (W): 1.10 mm + 0.08 / - 0.00 Clearance in Bore (C): 9.40 mm Clearance in Groove (C1): 10.80 mm Min. Lug Diameter (h): 2.00 mm Min. Extension (n): 1.50 Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel
Part Number: CCI-01800-C (20 Pcs) Internal Retaining Rings - 18x1x19 mm - Carbon Steel 3 units (60 pcs) Available Immediately \| Further orders can be expected around Sun, Jun 08, 2025 Regular price $6.50 AUD Regular price Sale price $6.50 AUD Unit price per Per 20 View the product page first if you are unsure.
CCI-01800-C (20 Pcs) --- Internal Retaining Rings - 18x1x19 mm - Carbon Steel CCI-01800-C (20 Pcs) --- Internal Retaining Rings - 18x1x19 mm - Carbon Steel Regular price $6.50 AUD Regular price Sale price $6.50 AUD Unit price per 3 Available Now
Housing Bore (B) 18.00 mm _{(0.709 in.)}	Clip Thickness (T) 1.00 mm + 0.13 / - 0.00 _{(0.039 in.)}	Groove Dia. (Dg) 19.00 mm + 0.00 / - 0.06 _{(0.748 in.)}	Approx. Loose Circlip OD (Dr) 19.50 mm + 0.42 / - 0.13		Groove Width (W) 1.10 mm + 0.08 / - 0.00

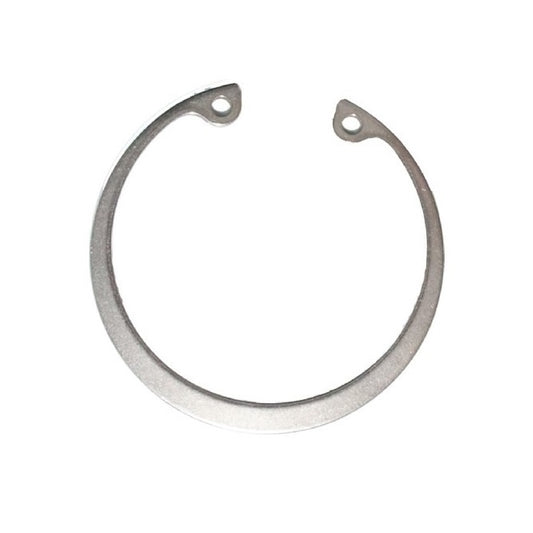

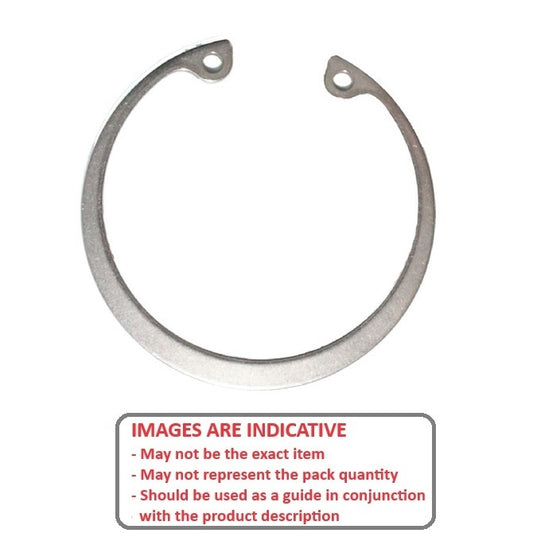

Material: Stainless Steel Grade PH15-7 Mo Clearance in Bore (C): 9.40 mm Clearance in Groove (C1): 10.80 mm Min. Lug Diameter (h): 2.00 mm Min. Extension (n): 1.50 Category: Retaining Rings - Internal - Circlips - Standard - Stainless Steel
Part Number: CCI-01800-S15 (50 Pcs) Internal Retaining Rings - 18x1x19 mm - Stainless Steel Grade PH15-7 Mo Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $93.68 AUD Regular price Sale price $93.68 AUD Unit price per Per 50
Housing Bore (B) 18.00 mm _{(0.709 in.)}	Clip Thickness (T) 1.00 mm + 0.13 / - 0.00 _{(0.039 in.)}	Groove Dia. (Dg) 19.00 mm + 0.00 / - 0.06 _{(0.748 in.)}	Approx. Loose Circlip OD (Dr) 19.50 mm + 0.42 / - 0.13
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 1.10 mm + 0.08 / - 0.00 Clearance in Bore (C): 9.40 mm Clearance in Groove (C1): 10.80 mm Min. Lug Diameter (h): 2.00 mm Min. Extension (n): 1.50 Category: Retaining Rings - Internal - Circlips - Standard - Stainless Steel
Part Number: CCI-01800-S15 (50 Pcs) Internal Retaining Rings - 18x1x19 mm - Stainless Steel Grade PH15-7 Mo Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $93.68 AUD Regular price Sale price $93.68 AUD Unit price per Per 50 View the product page first if you are unsure.
CCI-01800-S15 (50 Pcs) --- Internal Retaining Rings - 18x1x19 mm - Stainless Steel Grade PH15-7 Mo CCI-01800-S15 (50 Pcs) --- Internal Retaining Rings - 18x1x19 mm - Stainless Steel Grade PH15-7 Mo Regular price $93.68 AUD Regular price Sale price $93.68 AUD Unit price per Out of stock! Backorder Now
Housing Bore (B) 19.00 mm _{(0.748 in.)}	Clip Thickness (T) 1.00 mm + 0.13 / - 0.00 _{(0.039 in.)}	Groove Dia. (Dg) 20.00 mm + 0.00 / - 0.06 _{(0.787 in.)}	Approx. Loose Circlip OD (Dr) 20.50 mm + 0.42 / - 0.13		Groove Width (W) 1.10 mm + 0.08 / - 0.00
Material: Carbon Steel Clearance in Bore (C): 10.40 mm Clearance in Groove (C1): 11.80 mm Min. Lug Diameter (h): 2.00 mm Min. Extension (n): 1.50 Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel
Part Number: CCI-01900-C (100 Pcs) Internal Retaining Rings - 19x1x20 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $34.41 AUD Regular price Sale price $34.41 AUD Unit price per Per 100
Housing Bore (B) 19.00 mm _{(0.748 in.)}	Clip Thickness (T) 1.00 mm + 0.13 / - 0.00 _{(0.039 in.)}	Groove Dia. (Dg) 20.00 mm + 0.00 / - 0.06 _{(0.787 in.)}	Approx. Loose Circlip OD (Dr) 20.50 mm + 0.42 / - 0.13
Material: Carbon Steel Groove Width (W): 1.10 mm + 0.08 / - 0.00 Clearance in Bore (C): 10.40 mm Clearance in Groove (C1): 11.80 mm Min. Lug Diameter (h): 2.00 mm Min. Extension (n): 1.50 Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel
Part Number: CCI-01900-C (100 Pcs) Internal Retaining Rings - 19x1x20 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $34.41 AUD Regular price Sale price $34.41 AUD Unit price per Per 100 View the product page first if you are unsure.
CCI-01900-C (100 Pcs) --- Internal Retaining Rings - 19x1x20 mm - Carbon Steel CCI-01900-C (100 Pcs) --- Internal Retaining Rings - 19x1x20 mm - Carbon Steel Regular price $34.41 AUD Regular price Sale price $34.41 AUD Unit price per Out of stock! Backorder Now
Housing Bore (B) 19.00 mm _{(0.748 in.)}	Clip Thickness (T) 1.00 mm + 0.13 / - 0.00 _{(0.039 in.)}	Groove Dia. (Dg) 20.00 mm + 0.00 / - 0.06 _{(0.787 in.)}	Approx. Loose Circlip OD (Dr) 20.50 mm + 0.42 / - 0.13		Groove Width (W) 1.10 mm + 0.08 / - 0.00
Material: Stainless Steel Grade PH15-7 Mo Clearance in Bore (C): 10.40 mm Clearance in Groove (C1): 11.80 mm Min. Lug Diameter (h): 2.00 mm Min. Extension (n): 1.50 Category: Retaining Rings - Internal - Circlips - Standard - Stainless Steel
Part Number: CCI-01900-S15 (4 Pcs) Internal Retaining Rings - 19x1x20 mm - Stainless Steel Grade PH15-7 Mo Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $21.05 AUD Regular price Sale price $21.05 AUD Unit price per Per 4
Housing Bore (B) 19.00 mm _{(0.748 in.)}	Clip Thickness (T) 1.00 mm + 0.13 / - 0.00 _{(0.039 in.)}	Groove Dia. (Dg) 20.00 mm + 0.00 / - 0.06 _{(0.787 in.)}	Approx. Loose Circlip OD (Dr) 20.50 mm + 0.42 / - 0.13
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 1.10 mm + 0.08 / - 0.00 Clearance in Bore (C): 10.40 mm Clearance in Groove (C1): 11.80 mm Min. Lug Diameter (h): 2.00 mm Min. Extension (n): 1.50 Category: Retaining Rings - Internal - Circlips - Standard - Stainless Steel
Part Number: CCI-01900-S15 (4 Pcs) Internal Retaining Rings - 19x1x20 mm - Stainless Steel Grade PH15-7 Mo Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $21.05 AUD Regular price Sale price $21.05 AUD Unit price per Per 4 View the product page first if you are unsure.
CCI-01900-S15 (4 Pcs) --- Internal Retaining Rings - 19x1x20 mm - Stainless Steel Grade PH15-7 Mo CCI-01900-S15 (4 Pcs) --- Internal Retaining Rings - 19x1x20 mm - Stainless Steel Grade PH15-7 Mo Regular price $21.05 AUD Regular price Sale price $21.05 AUD Unit price per Out of stock! Backorder Now
Housing Bore (B) 19.05 mm _{(0.75 in.)}	Clip Thickness (T) 0.89 mm +/- 0.050 _{(0.035 in.)}	Groove Dia. (Dg) 20.22 mm + 0.00 / - 0.06 _{(0.796 in.)}	Approx. Loose Circlip OD (Dr) 21.11 mm + 0.25 / - 0.13		Groove Width (W) 0.99 mm + 0.08 / - 0.00
Material: Carbon Steel Clearance in Bore (C): 11.43 mm Clearance in Groove (C1): 12.70 mm Min. Lug Diameter (h): 1.52 mm Min. Extension (n): 1.75 Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel
Part Number: CCI-01905-C (10 Pcs) Internal Retaining Rings - 19.05x0.89x20.22 mm - Carbon Steel 6 units (60 pcs) Available Immediately \| Further orders can be expected around Sun, Jun 08, 2025 Regular price $6.86 AUD Regular price Sale price $6.86 AUD Unit price per Per 10
Housing Bore (B) 19.05 mm _{(0.75 in.)}	Clip Thickness (T) 0.89 mm +/- 0.050 _{(0.035 in.)}	Groove Dia. (Dg) 20.22 mm + 0.00 / - 0.06 _{(0.796 in.)}	Approx. Loose Circlip OD (Dr) 21.11 mm + 0.25 / - 0.13
Material: Carbon Steel Groove Width (W): 0.99 mm + 0.08 / - 0.00 Clearance in Bore (C): 11.43 mm Clearance in Groove (C1): 12.70 mm Min. Lug Diameter (h): 1.52 mm Min. Extension (n): 1.75 Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel
Part Number: CCI-01905-C (10 Pcs) Internal Retaining Rings - 19.05x0.89x20.22 mm - Carbon Steel 6 units (60 pcs) Available Immediately \| Further orders can be expected around Sun, Jun 08, 2025 Regular price $6.86 AUD Regular price Sale price $6.86 AUD Unit price per Per 10 View the product page first if you are unsure.
CCI-01905-C (10 Pcs) --- Internal Retaining Rings - 19.05x0.89x20.22 mm - Carbon Steel CCI-01905-C (10 Pcs) --- Internal Retaining Rings - 19.05x0.89x20.22 mm - Carbon Steel Regular price $6.86 AUD Regular price Sale price $6.86 AUD Unit price per 6 Available Now
Housing Bore (B) 19.05 mm _{(0.75 in.)}	Clip Thickness (T) 0.89 mm +/- 0.050 _{(0.035 in.)}	Groove Dia. (Dg) 20.22 mm + 0.00 / - 0.06 _{(0.796 in.)}	Approx. Loose Circlip OD (Dr) 21.11 mm + 0.25 / - 0.13		Groove Width (W) 0.99 mm + 0.08 / - 0.00
Material: Stainless Steel Grade PH15-7 Mo Clearance in Bore (C): 11.43 mm Clearance in Groove (C1): 12.70 mm Min. Lug Diameter (h): 1.52 mm Min. Extension (n): 1.75 Category: Retaining Rings - Internal - Circlips - Standard - Stainless Steel
Part Number: CCI-01905-S15 (5 Pcs) Internal Retaining Rings - 19.05x0.89x20.22 mm - Stainless Steel Grade PH15-7 Mo Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $21.32 AUD Regular price Sale price $21.32 AUD Unit price per Per 5
Housing Bore (B) 19.05 mm _{(0.75 in.)}	Clip Thickness (T) 0.89 mm +/- 0.050 _{(0.035 in.)}	Groove Dia. (Dg) 20.22 mm + 0.00 / - 0.06 _{(0.796 in.)}	Approx. Loose Circlip OD (Dr) 21.11 mm + 0.25 / - 0.13
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 0.99 mm + 0.08 / - 0.00 Clearance in Bore (C): 11.43 mm Clearance in Groove (C1): 12.70 mm Min. Lug Diameter (h): 1.52 mm Min. Extension (n): 1.75 Category: Retaining Rings - Internal - Circlips - Standard - Stainless Steel
Part Number: CCI-01905-S15 (5 Pcs) Internal Retaining Rings - 19.05x0.89x20.22 mm - Stainless Steel Grade PH15-7 Mo Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $21.32 AUD Regular price Sale price $21.32 AUD Unit price per Per 5 View the product page first if you are unsure.
CCI-01905-S15 (5 Pcs) --- Internal Retaining Rings - 19.05x0.89x20.22 mm - Stainless Steel Grade PH15-7 Mo CCI-01905-S15 (5 Pcs) --- Internal Retaining Rings - 19.05x0.89x20.22 mm - Stainless Steel Grade PH15-7 Mo Regular price $21.32 AUD Regular price Sale price $21.32 AUD Unit price per Out of stock! Backorder Now
Housing Bore (B) 19.05 mm _{(0.75 in.)}	Clip Thickness (T) 0.89 mm +/- 0.050 _{(0.035 in.)}	Groove Dia. (Dg) 20.22 mm + 0.00 / - 0.06 _{(0.796 in.)}	Approx. Loose Circlip OD (Dr) 21.11 mm + 0.25 / - 0.13		Groove Width (W) 0.99 mm + 0.08 / - 0.00

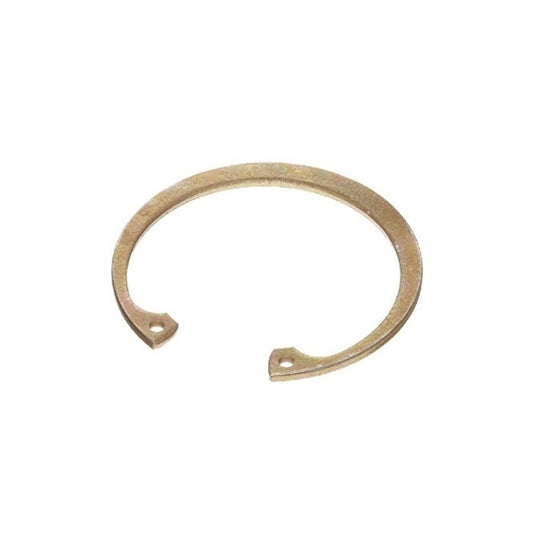

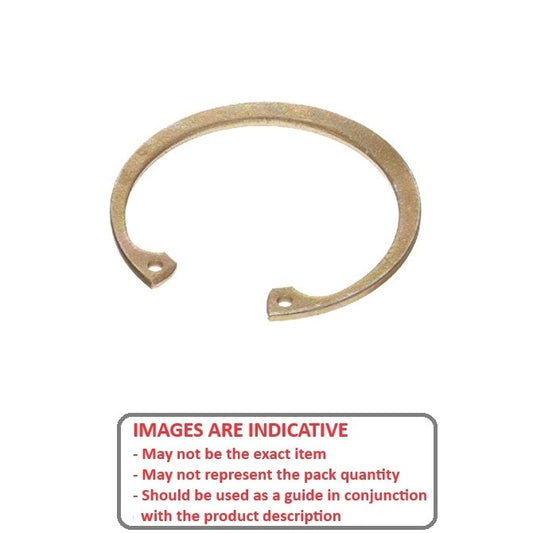

Material: Carbon Steel Zinc Plated Clearance in Bore (C): 11.43 mm Clearance in Groove (C1): 12.70 mm Min. Lug Diameter (h): 1.52 mm Min. Extension (n): 1.75 Category: Retaining Rings - Internal - Circlips - Standard - Zinc Plated
Part Number: CCI-01905-CZY (5 Pcs) Internal Retaining Rings - 19.05x0.89x20.22 mm - Carbon Steel Zinc Plated 60 units (300 pcs) Available Immediately \| Further orders can be expected around Sun, Jun 08, 2025 Regular price $5.32 AUD Regular price Sale price $5.32 AUD Unit price per Per 5
Housing Bore (B) 19.05 mm _{(0.75 in.)}	Clip Thickness (T) 0.89 mm +/- 0.050 _{(0.035 in.)}	Groove Dia. (Dg) 20.22 mm + 0.00 / - 0.06 _{(0.796 in.)}	Approx. Loose Circlip OD (Dr) 21.11 mm + 0.25 / - 0.13
Material: Carbon Steel Zinc Plated Groove Width (W): 0.99 mm + 0.08 / - 0.00 Clearance in Bore (C): 11.43 mm Clearance in Groove (C1): 12.70 mm Min. Lug Diameter (h): 1.52 mm Min. Extension (n): 1.75 Category: Retaining Rings - Internal - Circlips - Standard - Zinc Plated
Part Number: CCI-01905-CZY (5 Pcs) Internal Retaining Rings - 19.05x0.89x20.22 mm - Carbon Steel Zinc Plated 60 units (300 pcs) Available Immediately \| Further orders can be expected around Sun, Jun 08, 2025 Regular price $5.32 AUD Regular price Sale price $5.32 AUD Unit price per Per 5 View the product page first if you are unsure.
CCI-01905-CZY (5 Pcs) --- Internal Retaining Rings - 19.05x0.89x20.22 mm - Carbon Steel Zinc Plated CCI-01905-CZY (5 Pcs) --- Internal Retaining Rings - 19.05x0.89x20.22 mm - Carbon Steel Zinc Plated Regular price $5.32 AUD Regular price Sale price $5.32 AUD Unit price per 60 Available Now
Housing Bore (B) 19.74 mm _{(0.777 in.)}	Clip Thickness (T) 1.07 mm +/- 0.075 _{(0.042 in.)}	Groove Dia. (Dg) 20.96 mm + 0.00 / - 0.06 _{(0.825 in.)}	Approx. Loose Circlip OD (Dr) 21.82 mm + 0.25 / - 0.13		Groove Width (W) 1.17 mm + 0.08 / - 0.00
Material: Stainless Steel Grade PH15-7 Mo Clearance in Bore (C): 11.94 mm Clearance in Groove (C1): 13.21 mm Min. Lug Diameter (h): 1.52 mm Min. Extension (n): 1.83 Category: Retaining Rings - Internal - Circlips - Standard - Stainless Steel
Part Number: CCI-01974-S15 (4 Pcs) Internal Retaining Rings - 19.74x1.07x20.96 mm - Stainless Steel Grade PH15-7 Mo Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $20.50 AUD Regular price Sale price $20.50 AUD Unit price per Per 4
Housing Bore (B) 19.74 mm _{(0.777 in.)}	Clip Thickness (T) 1.07 mm +/- 0.075 _{(0.042 in.)}	Groove Dia. (Dg) 20.96 mm + 0.00 / - 0.06 _{(0.825 in.)}	Approx. Loose Circlip OD (Dr) 21.82 mm + 0.25 / - 0.13
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 1.17 mm + 0.08 / - 0.00 Clearance in Bore (C): 11.94 mm Clearance in Groove (C1): 13.21 mm Min. Lug Diameter (h): 1.52 mm Min. Extension (n): 1.83 Category: Retaining Rings - Internal - Circlips - Standard - Stainless Steel
Part Number: CCI-01974-S15 (4 Pcs) Internal Retaining Rings - 19.74x1.07x20.96 mm - Stainless Steel Grade PH15-7 Mo Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $20.50 AUD Regular price Sale price $20.50 AUD Unit price per Per 4 View the product page first if you are unsure.
CCI-01974-S15 (4 Pcs) --- Internal Retaining Rings - 19.74x1.07x20.96 mm - Stainless Steel Grade PH15-7 Mo CCI-01974-S15 (4 Pcs) --- Internal Retaining Rings - 19.74x1.07x20.96 mm - Stainless Steel Grade PH15-7 Mo Regular price $20.50 AUD Regular price Sale price $20.50 AUD Unit price per Out of stock! Backorder Now
Housing Bore (B) 19.74 mm _{(0.777 in.)}	Clip Thickness (T) 1.07 mm +/- 0.075 _{(0.042 in.)}	Groove Dia. (Dg) 20.96 mm + 0.00 / - 0.06 _{(0.825 in.)}	Approx. Loose Circlip OD (Dr) 21.82 mm + 0.25 / - 0.13		Groove Width (W) 1.17 mm + 0.08 / - 0.00
Material: Carbon Steel Zinc Plated Clearance in Bore (C): 11.94 mm Clearance in Groove (C1): 13.21 mm Min. Lug Diameter (h): 1.52 mm Min. Extension (n): 1.83 Category: Retaining Rings - Internal - Circlips - Standard - Zinc Plated
Part Number: CCI-01974-CZY (50 Pcs) Internal Retaining Rings - 19.74x1.07x20.96 mm - Carbon Steel Zinc Plated Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $51.68 AUD Regular price Sale price $51.68 AUD Unit price per Per 50
Housing Bore (B) 19.74 mm _{(0.777 in.)}	Clip Thickness (T) 1.07 mm +/- 0.075 _{(0.042 in.)}	Groove Dia. (Dg) 20.96 mm + 0.00 / - 0.06 _{(0.825 in.)}	Approx. Loose Circlip OD (Dr) 21.82 mm + 0.25 / - 0.13
Material: Carbon Steel Zinc Plated Groove Width (W): 1.17 mm + 0.08 / - 0.00 Clearance in Bore (C): 11.94 mm Clearance in Groove (C1): 13.21 mm Min. Lug Diameter (h): 1.52 mm Min. Extension (n): 1.83 Category: Retaining Rings - Internal - Circlips - Standard - Zinc Plated
Part Number: CCI-01974-CZY (50 Pcs) Internal Retaining Rings - 19.74x1.07x20.96 mm - Carbon Steel Zinc Plated Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $51.68 AUD Regular price Sale price $51.68 AUD Unit price per Per 50 View the product page first if you are unsure.
CCI-01974-CZY (50 Pcs) --- Internal Retaining Rings - 19.74x1.07x20.96 mm - Carbon Steel Zinc Plated CCI-01974-CZY (50 Pcs) --- Internal Retaining Rings - 19.74x1.07x20.96 mm - Carbon Steel Zinc Plated Regular price $51.68 AUD Regular price Sale price $51.68 AUD Unit price per Out of stock! Backorder Now
Housing Bore (B) 19.74 mm _{(0.777 in.)}	Clip Thickness (T) 1.07 mm +/- 0.075 _{(0.042 in.)}	Groove Dia. (Dg) 20.96 mm + 0.00 / - 0.06 _{(0.825 in.)}	Approx. Loose Circlip OD (Dr) 21.82 mm + 0.25 / - 0.13		Groove Width (W) 1.17 mm + 0.08 / - 0.00
Material: Carbon Steel Clearance in Bore (C): 11.94 mm Clearance in Groove (C1): 13.21 mm Min. Lug Diameter (h): 1.52 mm Min. Extension (n): 1.83 Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel
Part Number: CCI-01974-C (10 Pcs) Internal Retaining Rings - 19.74x1.07x20.96 mm - Carbon Steel 15 units (150 pcs) Available Immediately \| Further orders can be expected around Sun, Jun 08, 2025 Regular price $6.32 AUD Regular price Sale price $6.32 AUD Unit price per Per 10
Housing Bore (B) 19.74 mm _{(0.777 in.)}	Clip Thickness (T) 1.07 mm +/- 0.075 _{(0.042 in.)}	Groove Dia. (Dg) 20.96 mm + 0.00 / - 0.06 _{(0.825 in.)}	Approx. Loose Circlip OD (Dr) 21.82 mm + 0.25 / - 0.13
Material: Carbon Steel Groove Width (W): 1.17 mm + 0.08 / - 0.00 Clearance in Bore (C): 11.94 mm Clearance in Groove (C1): 13.21 mm Min. Lug Diameter (h): 1.52 mm Min. Extension (n): 1.83 Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel
Part Number: CCI-01974-C (10 Pcs) Internal Retaining Rings - 19.74x1.07x20.96 mm - Carbon Steel 15 units (150 pcs) Available Immediately \| Further orders can be expected around Sun, Jun 08, 2025 Regular price $6.32 AUD Regular price Sale price $6.32 AUD Unit price per Per 10 View the product page first if you are unsure.
CCI-01974-C (10 Pcs) --- Internal Retaining Rings - 19.74x1.07x20.96 mm - Carbon Steel CCI-01974-C (10 Pcs) --- Internal Retaining Rings - 19.74x1.07x20.96 mm - Carbon Steel Regular price $6.32 AUD Regular price Sale price $6.32 AUD Unit price per 15 Available Now
Housing Bore (B) 20.00 mm _{(0.787 in.)}	Clip Thickness (T) 1.00 mm + 0.13 / - 0.00 _{(0.039 in.)}	Groove Dia. (Dg) 21.00 mm + 0.00 / - 0.06 _{(0.827 in.)}	Approx. Loose Circlip OD (Dr) 21.50 mm + 0.42 / - 0.13		Groove Width (W) 1.10 mm + 0.08 / - 0.00
Material: Stainless Steel Grade PH15-7 Mo Clearance in Bore (C): 11.20 mm Clearance in Groove (C1): 12.60 mm Min. Lug Diameter (h): 2.00 mm Min. Extension (n): 1.50 Category: Retaining Rings - Internal - Circlips - Standard - Stainless Steel
Part Number: CCI-02000-S15 (4 Pcs) Internal Retaining Rings - 20x1x21 mm - Stainless Steel Grade PH15-7 Mo Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $21.23 AUD Regular price Sale price $21.23 AUD Unit price per Per 4
Housing Bore (B) 20.00 mm _{(0.787 in.)}	Clip Thickness (T) 1.00 mm + 0.13 / - 0.00 _{(0.039 in.)}	Groove Dia. (Dg) 21.00 mm + 0.00 / - 0.06 _{(0.827 in.)}	Approx. Loose Circlip OD (Dr) 21.50 mm + 0.42 / - 0.13
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 1.10 mm + 0.08 / - 0.00 Clearance in Bore (C): 11.20 mm Clearance in Groove (C1): 12.60 mm Min. Lug Diameter (h): 2.00 mm Min. Extension (n): 1.50 Category: Retaining Rings - Internal - Circlips - Standard - Stainless Steel
Part Number: CCI-02000-S15 (4 Pcs) Internal Retaining Rings - 20x1x21 mm - Stainless Steel Grade PH15-7 Mo Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $21.23 AUD Regular price Sale price $21.23 AUD Unit price per Per 4 View the product page first if you are unsure.
CCI-02000-S15 (4 Pcs) --- Internal Retaining Rings - 20x1x21 mm - Stainless Steel Grade PH15-7 Mo CCI-02000-S15 (4 Pcs) --- Internal Retaining Rings - 20x1x21 mm - Stainless Steel Grade PH15-7 Mo Regular price $21.23 AUD Regular price Sale price $21.23 AUD Unit price per Out of stock! Backorder Now
Housing Bore (B) 20.00 mm _{(0.787 in.)}	Clip Thickness (T) 1.00 mm + 0.13 / - 0.00 _{(0.039 in.)}	Groove Dia. (Dg) 21.00 mm + 0.00 / - 0.06 _{(0.827 in.)}	Approx. Loose Circlip OD (Dr) 21.50 mm + 0.42 / - 0.13		Groove Width (W) 1.10 mm + 0.08 / - 0.00
Material: Carbon Steel Clearance in Bore (C): 11.20 mm Clearance in Groove (C1): 12.60 mm Min. Lug Diameter (h): 2.00 mm Min. Extension (n): 1.50 Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel
Part Number: CCI-02000-C (20 Pcs) Internal Retaining Rings - 20x1x21 mm - Carbon Steel 38 units (760 pcs) Available Immediately \| Further orders can be expected around Sun, Jun 08, 2025 Regular price $6.23 AUD Regular price Sale price $6.23 AUD Unit price per Per 20
Housing Bore (B) 20.00 mm _{(0.787 in.)}	Clip Thickness (T) 1.00 mm + 0.13 / - 0.00 _{(0.039 in.)}	Groove Dia. (Dg) 21.00 mm + 0.00 / - 0.06 _{(0.827 in.)}	Approx. Loose Circlip OD (Dr) 21.50 mm + 0.42 / - 0.13
Material: Carbon Steel Groove Width (W): 1.10 mm + 0.08 / - 0.00 Clearance in Bore (C): 11.20 mm Clearance in Groove (C1): 12.60 mm Min. Lug Diameter (h): 2.00 mm Min. Extension (n): 1.50 Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel
Part Number: CCI-02000-C (20 Pcs) Internal Retaining Rings - 20x1x21 mm - Carbon Steel 38 units (760 pcs) Available Immediately \| Further orders can be expected around Sun, Jun 08, 2025 Regular price $6.23 AUD Regular price Sale price $6.23 AUD Unit price per Per 20 View the product page first if you are unsure.
CCI-02000-C (20 Pcs) --- Internal Retaining Rings - 20x1x21 mm - Carbon Steel CCI-02000-C (20 Pcs) --- Internal Retaining Rings - 20x1x21 mm - Carbon Steel Regular price $6.23 AUD Regular price Sale price $6.23 AUD Unit price per 38 Available Now
Housing Bore (B) 20.00 mm _{(0.787 in.)}	Clip Thickness (T) 1.50 mm + 0.15 / - 0.00 _{(0.059 in.)}	Groove Dia. (Dg) 21.00 mm + 0.00 / - 0.06 _{(0.827 in.)}	Approx. Loose Circlip OD (Dr) 21.50 mm + 0.42 / - 0.13		Groove Width (W) 1.60 mm + 0.08 / - 0.00
Material: Carbon Spring Steel Self Finish Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel
Part Number: CCI-02000H-C Internal Retaining Rings - 20x1.5x21 mm - Carbon Spring Steel Self Finish Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Housing Bore (B) 20.00 mm _{(0.787 in.)}	Clip Thickness (T) 1.50 mm + 0.15 / - 0.00 _{(0.059 in.)}	Groove Dia. (Dg) 21.00 mm + 0.00 / - 0.06 _{(0.827 in.)}	Approx. Loose Circlip OD (Dr) 21.50 mm + 0.42 / - 0.13
Material: Carbon Spring Steel Self Finish Groove Width (W): 1.60 mm + 0.08 / - 0.00 Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel
Part Number: CCI-02000H-C Internal Retaining Rings - 20x1.5x21 mm - Carbon Spring Steel Self Finish Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Housing Bore (B) 20.64 mm _{(0.813 in.)}	Clip Thickness (T) 1.07 mm +/- 0.075 _{(0.042 in.)}	Groove Dia. (Dg) 21.89 mm + 0.00 / - 0.06 _{(0.862 in.)}	Approx. Loose Circlip OD (Dr) 22.89 mm + 0.38 / - 0.25		Groove Width (W) 1.17 mm + 0.08 / - 0.00
Material: Carbon Steel Clearance in Bore (C): 12.45 mm Clearance in Groove (C1): 13.46 mm Min. Lug Diameter (h): 1.52 mm Min. Extension (n): 1.91 Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel
Part Number: CCI-02064-C (100 Pcs) Internal Retaining Rings - 20.64x1.07x21.89 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $55.68 AUD Regular price Sale price $55.68 AUD Unit price per Per 100
Housing Bore (B) 20.64 mm _{(0.813 in.)}	Clip Thickness (T) 1.07 mm +/- 0.075 _{(0.042 in.)}	Groove Dia. (Dg) 21.89 mm + 0.00 / - 0.06 _{(0.862 in.)}	Approx. Loose Circlip OD (Dr) 22.89 mm + 0.38 / - 0.25
Material: Carbon Steel Groove Width (W): 1.17 mm + 0.08 / - 0.00 Clearance in Bore (C): 12.45 mm Clearance in Groove (C1): 13.46 mm Min. Lug Diameter (h): 1.52 mm Min. Extension (n): 1.91 Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel
Part Number: CCI-02064-C (100 Pcs) Internal Retaining Rings - 20.64x1.07x21.89 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $55.68 AUD Regular price Sale price $55.68 AUD Unit price per Per 100 View the product page first if you are unsure.
CCI-02064-C (100 Pcs) --- Internal Retaining Rings - 20.64x1.07x21.89 mm - Carbon Steel CCI-02064-C (100 Pcs) --- Internal Retaining Rings - 20.64x1.07x21.89 mm - Carbon Steel Regular price $55.68 AUD Regular price Sale price $55.68 AUD Unit price per Out of stock! Backorder Now
Housing Bore (B) 20.64 mm _{(0.813 in.)}	Clip Thickness (T) 1.07 mm +/- 0.075 _{(0.042 in.)}	Groove Dia. (Dg) 21.89 mm + 0.00 / - 0.06 _{(0.862 in.)}	Approx. Loose Circlip OD (Dr) 22.89 mm + 0.38 / - 0.25		Groove Width (W) 1.17 mm + 0.08 / - 0.00
Material: Stainless Steel Grade PH15-7 Mo Clearance in Bore (C): 12.45 mm Clearance in Groove (C1): 13.46 mm Min. Lug Diameter (h): 1.52 mm Min. Extension (n): 1.91 Category: Retaining Rings - Internal - Circlips - Standard - Stainless Steel
Part Number: CCI-02064-S15 (4 Pcs) Internal Retaining Rings - 20.64x1.07x21.89 mm - Stainless Steel Grade PH15-7 Mo Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $20.32 AUD Regular price Sale price $20.32 AUD Unit price per Per 4
Housing Bore (B) 20.64 mm _{(0.813 in.)}	Clip Thickness (T) 1.07 mm +/- 0.075 _{(0.042 in.)}	Groove Dia. (Dg) 21.89 mm + 0.00 / - 0.06 _{(0.862 in.)}	Approx. Loose Circlip OD (Dr) 22.89 mm + 0.38 / - 0.25
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 1.17 mm + 0.08 / - 0.00 Clearance in Bore (C): 12.45 mm Clearance in Groove (C1): 13.46 mm Min. Lug Diameter (h): 1.52 mm Min. Extension (n): 1.91 Category: Retaining Rings - Internal - Circlips - Standard - Stainless Steel
Part Number: CCI-02064-S15 (4 Pcs) Internal Retaining Rings - 20.64x1.07x21.89 mm - Stainless Steel Grade PH15-7 Mo Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $20.32 AUD Regular price Sale price $20.32 AUD Unit price per Per 4 View the product page first if you are unsure.
CCI-02064-S15 (4 Pcs) --- Internal Retaining Rings - 20.64x1.07x21.89 mm - Stainless Steel Grade PH15-7 Mo CCI-02064-S15 (4 Pcs) --- Internal Retaining Rings - 20.64x1.07x21.89 mm - Stainless Steel Grade PH15-7 Mo Regular price $20.32 AUD Regular price Sale price $20.32 AUD Unit price per Out of stock! Backorder Now
Housing Bore (B) 20.64 mm _{(0.813 in.)}	Clip Thickness (T) 1.07 mm +/- 0.075 _{(0.042 in.)}	Groove Dia. (Dg) 21.89 mm + 0.00 / - 0.06 _{(0.862 in.)}	Approx. Loose Circlip OD (Dr) 22.89 mm + 0.38 / - 0.25		Groove Width (W) 1.17 mm + 0.08 / - 0.00
Material: Carbon Steel Zinc Plated Clearance in Bore (C): 12.45 mm Clearance in Groove (C1): 13.46 mm Min. Lug Diameter (h): 1.52 mm Min. Extension (n): 1.91 Category: Retaining Rings - Internal - Circlips - Standard - Zinc Plated
Part Number: CCI-02064-CZY (250 Pcs) Internal Retaining Rings - 20.64x1.07x21.89 mm - Carbon Steel Zinc Plated Out of Stock \| Backorder Now \| Orders can be expected around Wed, Sep 10, 2025 Regular price $223.14 AUD Regular price Sale price $223.14 AUD Unit price per Per 250
Housing Bore (B) 20.64 mm _{(0.813 in.)}	Clip Thickness (T) 1.07 mm +/- 0.075 _{(0.042 in.)}	Groove Dia. (Dg) 21.89 mm + 0.00 / - 0.06 _{(0.862 in.)}	Approx. Loose Circlip OD (Dr) 22.89 mm + 0.38 / - 0.25
Material: Carbon Steel Zinc Plated Groove Width (W): 1.17 mm + 0.08 / - 0.00 Clearance in Bore (C): 12.45 mm Clearance in Groove (C1): 13.46 mm Min. Lug Diameter (h): 1.52 mm Min. Extension (n): 1.91 Category: Retaining Rings - Internal - Circlips - Standard - Zinc Plated
Part Number: CCI-02064-CZY (250 Pcs) Internal Retaining Rings - 20.64x1.07x21.89 mm - Carbon Steel Zinc Plated Out of Stock \| Backorder Now \| Orders can be expected around Wed, Sep 10, 2025 Regular price $223.14 AUD Regular price Sale price $223.14 AUD Unit price per Per 250 View the product page first if you are unsure.
CCI-02064-CZY (250 Pcs) --- Internal Retaining Rings - 20.64x1.07x21.89 mm - Carbon Steel Zinc Plated CCI-02064-CZY (250 Pcs) --- Internal Retaining Rings - 20.64x1.07x21.89 mm - Carbon Steel Zinc Plated Regular price $223.14 AUD Regular price Sale price $223.14 AUD Unit price per Out of stock! Backorder Now
Housing Bore (B) 21.00 mm _{(0.827 in.)}	Clip Thickness (T) 1.00 mm + 0.13 / - 0.00 _{(0.039 in.)}	Groove Dia. (Dg) 22.00 mm + 0.00 / - 0.06 _{(0.866 in.)}	Approx. Loose Circlip OD (Dr) 22.50 mm + 0.42 / - 0.13		Groove Width (W) 1.10 mm + 0.08 / - 0.00
Material: Stainless Steel Grade PH15-7 Mo Clearance in Bore (C): 12.20 mm Clearance in Groove (C1): 13.60 mm Min. Lug Diameter (h): 2.00 mm Min. Extension (n): 1.50 Category: Retaining Rings - Internal - Circlips - Standard - Stainless Steel
Part Number: CCI-02100-S15 (50 Pcs) Internal Retaining Rings - 21x1x22 mm - Stainless Steel Grade PH15-7 Mo Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $105.32 AUD Regular price Sale price $105.32 AUD Unit price per Per 50
Housing Bore (B) 21.00 mm _{(0.827 in.)}	Clip Thickness (T) 1.00 mm + 0.13 / - 0.00 _{(0.039 in.)}	Groove Dia. (Dg) 22.00 mm + 0.00 / - 0.06 _{(0.866 in.)}	Approx. Loose Circlip OD (Dr) 22.50 mm + 0.42 / - 0.13
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 1.10 mm + 0.08 / - 0.00 Clearance in Bore (C): 12.20 mm Clearance in Groove (C1): 13.60 mm Min. Lug Diameter (h): 2.00 mm Min. Extension (n): 1.50 Category: Retaining Rings - Internal - Circlips - Standard - Stainless Steel
Part Number: CCI-02100-S15 (50 Pcs) Internal Retaining Rings - 21x1x22 mm - Stainless Steel Grade PH15-7 Mo Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $105.32 AUD Regular price Sale price $105.32 AUD Unit price per Per 50 View the product page first if you are unsure.
CCI-02100-S15 (50 Pcs) --- Internal Retaining Rings - 21x1x22 mm - Stainless Steel Grade PH15-7 Mo CCI-02100-S15 (50 Pcs) --- Internal Retaining Rings - 21x1x22 mm - Stainless Steel Grade PH15-7 Mo Regular price $105.32 AUD Regular price Sale price $105.32 AUD Unit price per Out of stock! Backorder Now
Housing Bore (B) 21.00 mm _{(0.827 in.)}	Clip Thickness (T) 1.00 mm + 0.13 / - 0.00 _{(0.039 in.)}	Groove Dia. (Dg) 22.00 mm + 0.00 / - 0.06 _{(0.866 in.)}	Approx. Loose Circlip OD (Dr) 22.50 mm + 0.42 / - 0.13		Groove Width (W) 1.10 mm + 0.08 / - 0.00
Material: Carbon Steel Clearance in Bore (C): 12.20 mm Clearance in Groove (C1): 13.60 mm Min. Lug Diameter (h): 2.00 mm Min. Extension (n): 1.50 Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel
Part Number: CCI-02100-C (20 Pcs) Internal Retaining Rings - 21x1x22 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $7.23 AUD Regular price Sale price $7.23 AUD Unit price per Per 20
Housing Bore (B) 21.00 mm _{(0.827 in.)}	Clip Thickness (T) 1.00 mm + 0.13 / - 0.00 _{(0.039 in.)}	Groove Dia. (Dg) 22.00 mm + 0.00 / - 0.06 _{(0.866 in.)}	Approx. Loose Circlip OD (Dr) 22.50 mm + 0.42 / - 0.13
Material: Carbon Steel Groove Width (W): 1.10 mm + 0.08 / - 0.00 Clearance in Bore (C): 12.20 mm Clearance in Groove (C1): 13.60 mm Min. Lug Diameter (h): 2.00 mm Min. Extension (n): 1.50 Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel
Part Number: CCI-02100-C (20 Pcs) Internal Retaining Rings - 21x1x22 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $7.23 AUD Regular price Sale price $7.23 AUD Unit price per Per 20 View the product page first if you are unsure.
CCI-02100-C (20 Pcs) --- Internal Retaining Rings - 21x1x22 mm - Carbon Steel CCI-02100-C (20 Pcs) --- Internal Retaining Rings - 21x1x22 mm - Carbon Steel Regular price $7.23 AUD Regular price Sale price $7.23 AUD Unit price per Out of stock! Backorder Now
Housing Bore (B) 22.00 mm _{(0.866 in.)}	Clip Thickness (T) 1.00 mm +/- 0.075 _{(0.039 in.)}	Groove Dia. (Dg) 23.00 mm + 0.00 / - 0.06 _{(0.906 in.)}	Approx. Loose Circlip OD (Dr) 23.50 mm + 0.38 / - 0.25		Groove Width (W) 1.17 mm + 0.08 / - 0.00
Material: Carbon Steel Zinc Plated Clearance in Bore (C): 13.20 mm Clearance in Groove (C1): 14.60 mm Min. Lug Diameter (h): 2.00 mm Min. Extension (n): 1.50 Category: Retaining Rings - Internal - Circlips - Standard - Zinc Plated
Part Number: CCI-02200N-CZY (50 Pcs) Internal Retaining Rings - 22x1x23 mm - Carbon Steel Zinc Plated Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $51.95 AUD Regular price Sale price $51.95 AUD Unit price per Per 50
Housing Bore (B) 22.00 mm _{(0.866 in.)}	Clip Thickness (T) 1.00 mm +/- 0.075 _{(0.039 in.)}	Groove Dia. (Dg) 23.00 mm + 0.00 / - 0.06 _{(0.906 in.)}	Approx. Loose Circlip OD (Dr) 23.50 mm + 0.38 / - 0.25
Material: Carbon Steel Zinc Plated Groove Width (W): 1.17 mm + 0.08 / - 0.00 Clearance in Bore (C): 13.20 mm Clearance in Groove (C1): 14.60 mm Min. Lug Diameter (h): 2.00 mm Min. Extension (n): 1.50 Category: Retaining Rings - Internal - Circlips - Standard - Zinc Plated
Part Number: CCI-02200N-CZY (50 Pcs) Internal Retaining Rings - 22x1x23 mm - Carbon Steel Zinc Plated Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $51.95 AUD Regular price Sale price $51.95 AUD Unit price per Per 50 View the product page first if you are unsure.
CCI-02200N-CZY (50 Pcs) --- Internal Retaining Rings - 22x1x23 mm - Carbon Steel Zinc Plated CCI-02200N-CZY (50 Pcs) --- Internal Retaining Rings - 22x1x23 mm - Carbon Steel Zinc Plated Regular price $51.95 AUD Regular price Sale price $51.95 AUD Unit price per Out of stock! Backorder Now
Housing Bore (B) 22.00 mm _{(0.866 in.)}	Clip Thickness (T) 1.00 mm +/- 0.075 _{(0.039 in.)}	Groove Dia. (Dg) 23.00 mm + 0.00 / - 0.06 _{(0.906 in.)}	Approx. Loose Circlip OD (Dr) 23.50 mm + 0.38 / - 0.25		Groove Width (W) 1.17 mm + 0.08 / - 0.00
Material: Carbon Steel Clearance in Bore (C): 13.20 mm Clearance in Groove (C1): 14.60 mm Min. Lug Diameter (h): 2.00 mm Min. Extension (n): 1.50 Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel
Part Number: CCI-02200N-C (10 Pcs) Internal Retaining Rings - 22x1x23 mm - Carbon Steel 7 units (70 pcs) Available Immediately \| Further orders can be expected around Sun, Jun 08, 2025 Regular price $6.14 AUD Regular price Sale price $6.14 AUD Unit price per Per 10
Housing Bore (B) 22.00 mm _{(0.866 in.)}	Clip Thickness (T) 1.00 mm +/- 0.075 _{(0.039 in.)}	Groove Dia. (Dg) 23.00 mm + 0.00 / - 0.06 _{(0.906 in.)}	Approx. Loose Circlip OD (Dr) 23.50 mm + 0.38 / - 0.25
Material: Carbon Steel Groove Width (W): 1.17 mm + 0.08 / - 0.00 Clearance in Bore (C): 13.20 mm Clearance in Groove (C1): 14.60 mm Min. Lug Diameter (h): 2.00 mm Min. Extension (n): 1.50 Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel
Part Number: CCI-02200N-C (10 Pcs) Internal Retaining Rings - 22x1x23 mm - Carbon Steel 7 units (70 pcs) Available Immediately \| Further orders can be expected around Sun, Jun 08, 2025 Regular price $6.14 AUD Regular price Sale price $6.14 AUD Unit price per Per 10 View the product page first if you are unsure.
CCI-02200N-C (10 Pcs) --- Internal Retaining Rings - 22x1x23 mm - Carbon Steel CCI-02200N-C (10 Pcs) --- Internal Retaining Rings - 22x1x23 mm - Carbon Steel Regular price $6.14 AUD Regular price Sale price $6.14 AUD Unit price per 7 Available Now
Housing Bore (B) 22.00 mm _{(0.866 in.)}	Clip Thickness (T) 1.00 mm +/- 0.075 _{(0.039 in.)}	Groove Dia. (Dg) 23.00 mm + 0.00 / - 0.06 _{(0.906 in.)}	Approx. Loose Circlip OD (Dr) 23.50 mm + 0.38 / - 0.25		Groove Width (W) 1.17 mm + 0.08 / - 0.00
Material: Stainless Steel Grade PH15-7 Mo Clearance in Bore (C): 13.20 mm Clearance in Groove (C1): 14.60 mm Min. Lug Diameter (h): 2.00 mm Min. Extension (n): 1.50 Category: Retaining Rings - Internal - Circlips - Standard - Stainless Steel
Part Number: CCI-02200N-S15 Internal Retaining Rings - 22x1x23 mm - Stainless Steel Grade PH15-7 Mo Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $7.59 AUD Regular price Sale price $7.59 AUD Unit price per Each
Housing Bore (B) 22.00 mm _{(0.866 in.)}	Clip Thickness (T) 1.00 mm +/- 0.075 _{(0.039 in.)}	Groove Dia. (Dg) 23.00 mm + 0.00 / - 0.06 _{(0.906 in.)}	Approx. Loose Circlip OD (Dr) 23.50 mm + 0.38 / - 0.25
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 1.17 mm + 0.08 / - 0.00 Clearance in Bore (C): 13.20 mm Clearance in Groove (C1): 14.60 mm Min. Lug Diameter (h): 2.00 mm Min. Extension (n): 1.50 Category: Retaining Rings - Internal - Circlips - Standard - Stainless Steel
Part Number: CCI-02200N-S15 Internal Retaining Rings - 22x1x23 mm - Stainless Steel Grade PH15-7 Mo Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $7.59 AUD Regular price Sale price $7.59 AUD Unit price per Each View the product page first if you are unsure.
CCI-02200N-S15 --- Internal Retaining Rings - 22x1x23 mm - Stainless Steel Grade PH15-7 Mo CCI-02200N-S15 --- Internal Retaining Rings - 22x1x23 mm - Stainless Steel Grade PH15-7 Mo Regular price $7.59 AUD Regular price Sale price $7.59 AUD Unit price per Out of stock! Backorder Now
Housing Bore (B) 22.00 mm _{(0.866 in.)}	Clip Thickness (T) 1.07 mm + 0.13 / - 0.00 _{(0.042 in.)}	Groove Dia. (Dg) 23.37 mm + 0.00 / - 0.06 _{(0.92 in.)}	Approx. Loose Circlip OD (Dr) 24.41 mm + 0.42 / - 0.13		Groove Width (W) 1.10 mm + 0.08 / - 0.00
Material: Carbon Steel Clearance in Bore (C): 13.72 mm Clearance in Groove (C1): 14.99 mm Min. Lug Diameter (h): 1.52 mm Min. Extension (n): 2.06 Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel
Part Number: CCI-02200-C (20 Pcs) Internal Retaining Rings - 22x1.07x23.37 mm - Carbon Steel 1 pack (20 pcs) Available Immediately \| Further orders can be expected around Sun, Jun 08, 2025 Regular price $7.23 AUD Regular price Sale price $7.23 AUD Unit price per Per 20
Housing Bore (B) 22.00 mm _{(0.866 in.)}	Clip Thickness (T) 1.07 mm + 0.13 / - 0.00 _{(0.042 in.)}	Groove Dia. (Dg) 23.37 mm + 0.00 / - 0.06 _{(0.92 in.)}	Approx. Loose Circlip OD (Dr) 24.41 mm + 0.42 / - 0.13
Material: Carbon Steel Groove Width (W): 1.10 mm + 0.08 / - 0.00 Clearance in Bore (C): 13.72 mm Clearance in Groove (C1): 14.99 mm Min. Lug Diameter (h): 1.52 mm Min. Extension (n): 2.06 Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel
Part Number: CCI-02200-C (20 Pcs) Internal Retaining Rings - 22x1.07x23.37 mm - Carbon Steel 1 pack (20 pcs) Available Immediately \| Further orders can be expected around Sun, Jun 08, 2025 Regular price $7.23 AUD Regular price Sale price $7.23 AUD Unit price per Per 20 View the product page first if you are unsure.
CCI-02200-C (20 Pcs) --- Internal Retaining Rings - 22x1.07x23.37 mm - Carbon Steel CCI-02200-C (20 Pcs) --- Internal Retaining Rings - 22x1.07x23.37 mm - Carbon Steel Regular price $7.23 AUD Regular price Sale price $7.23 AUD Unit price per 1 Available Now
Housing Bore (B) 22.00 mm _{(0.866 in.)}	Clip Thickness (T) 1.07 mm + 0.13 / - 0.00 _{(0.042 in.)}	Groove Dia. (Dg) 23.37 mm + 0.00 / - 0.06 _{(0.92 in.)}	Approx. Loose Circlip OD (Dr) 24.41 mm + 0.42 / - 0.13		Groove Width (W) 1.10 mm + 0.08 / - 0.00
Material: Stainless Steel Grade PH15-7 Mo Clearance in Bore (C): 13.72 mm Clearance in Groove (C1): 14.99 mm Min. Lug Diameter (h): 1.52 mm Min. Extension (n): 2.06 Category: Retaining Rings - Internal - Circlips - Standard - Stainless Steel
Part Number: CCI-02200-S15 (50 Pcs) Internal Retaining Rings - 22x1.07x23.37 mm - Stainless Steel Grade PH15-7 Mo Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $108.68 AUD Regular price Sale price $108.68 AUD Unit price per Per 50
Housing Bore (B) 22.00 mm _{(0.866 in.)}	Clip Thickness (T) 1.07 mm + 0.13 / - 0.00 _{(0.042 in.)}	Groove Dia. (Dg) 23.37 mm + 0.00 / - 0.06 _{(0.92 in.)}	Approx. Loose Circlip OD (Dr) 24.41 mm + 0.42 / - 0.13
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 1.10 mm + 0.08 / - 0.00 Clearance in Bore (C): 13.72 mm Clearance in Groove (C1): 14.99 mm Min. Lug Diameter (h): 1.52 mm Min. Extension (n): 2.06 Category: Retaining Rings - Internal - Circlips - Standard - Stainless Steel
Part Number: CCI-02200-S15 (50 Pcs) Internal Retaining Rings - 22x1.07x23.37 mm - Stainless Steel Grade PH15-7 Mo Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $108.68 AUD Regular price Sale price $108.68 AUD Unit price per Per 50 View the product page first if you are unsure.
CCI-02200-S15 (50 Pcs) --- Internal Retaining Rings - 22x1.07x23.37 mm - Stainless Steel Grade PH15-7 Mo CCI-02200-S15 (50 Pcs) --- Internal Retaining Rings - 22x1.07x23.37 mm - Stainless Steel Grade PH15-7 Mo Regular price $108.68 AUD Regular price Sale price $108.68 AUD Unit price per Out of stock! Backorder Now
Housing Bore (B) 22.00 mm _{(0.866 in.)}	Clip Thickness (T) 1.50 mm + 0.15 / - 0.00 _{(0.059 in.)}	Groove Dia. (Dg) 23.00 mm + 0.00 / - 0.06 _{(0.906 in.)}	Approx. Loose Circlip OD (Dr) 24.41 mm + 0.42 / - 0.13		Groove Width (W) 1.60 mm + 0.08 / - 0.00
Material: Carbon Spring Steel Self Finish Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel
Part Number: CCI-02200H-C Internal Retaining Rings - 22x1.5x23 mm - Carbon Spring Steel Self Finish Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Housing Bore (B) 22.00 mm _{(0.866 in.)}	Clip Thickness (T) 1.50 mm + 0.15 / - 0.00 _{(0.059 in.)}	Groove Dia. (Dg) 23.00 mm + 0.00 / - 0.06 _{(0.906 in.)}	Approx. Loose Circlip OD (Dr) 24.41 mm + 0.42 / - 0.13
Material: Carbon Spring Steel Self Finish Groove Width (W): 1.60 mm + 0.08 / - 0.00 Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel
Part Number: CCI-02200H-C Internal Retaining Rings - 22x1.5x23 mm - Carbon Spring Steel Self Finish Contact Us \| Item Discontinued - Please contact us if you need a large quantity
