Collection: Retaining Rings - Internal - Circlips - Standard

Retaining Rings (With Images)

Internal

Circlips

Tabbed

511 Products in this selection

This is a combined category of Standard Circlips Internal Retaining Rings.
Use the filters in the table below, or the category tree above to refine the selection. To order any item, simply click the part number for a full product page, then add to your cart.

Additional resources:
Anderton Cross Reference PDF
Circlips PDF Catalogue
Assortment Kits

A more concise listing may be found on the Smallparts store at Retaining Rings - Internal - Circlips - Standard. Smallparts promote the most popular MBA products.

Housing Bore (B)	Clip Thickness (T)	Groove Dia. (Dg)	Approx. Loose Circlip OD (Dr)	Radial Wall (S)	Groove Width (W)	Indicative Image

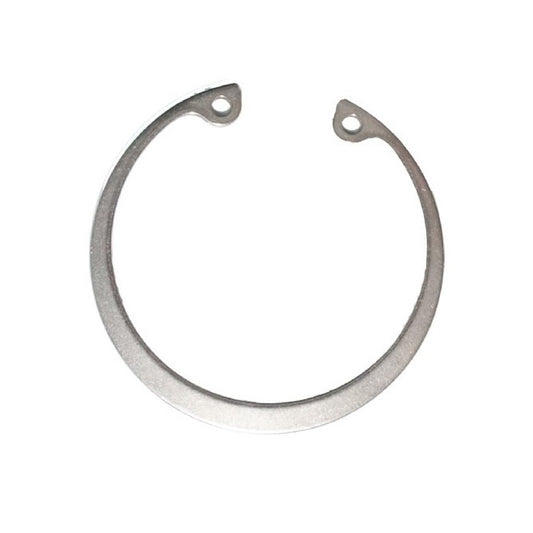

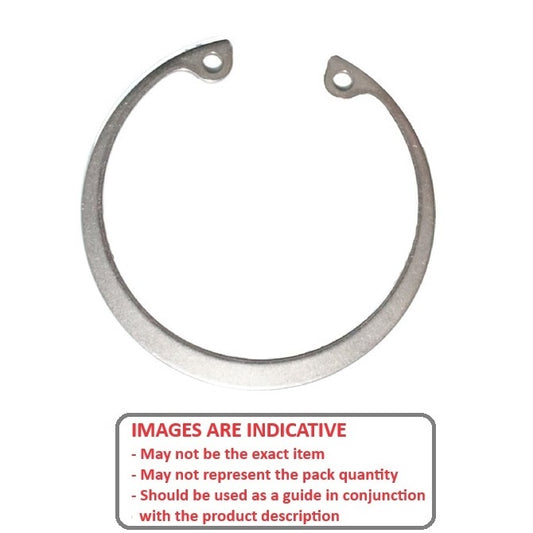

Housing Bore (B) 98.00 mm _{(3.858 in.)}	Clip Thickness (T) 3.00 mm + 0.35 / - 0.00 _{(0.118 in.)}	Groove Dia. (Dg) 101.50 mm + 0.00 / - 0.08 _{(3.996 in.)}	Approx. Loose Circlip OD (Dr) 103.50 mm + 1.30 / - 0.54		Groove Width (W) 3.15 mm + 0.13 / - 0.00
Material: Stainless Steel Grade PH15-7 Mo Clearance in Bore (C): 79.00 mm Clearance in Groove (C1): 83.50 mm Min. Lug Diameter (h): 3.50 mm Min. Extension (n): 5.30 Category: Retaining Rings - Internal - Circlips - Standard - Stainless Steel
Part Number: CCI-09800-S15 Internal Retaining Rings - 98x3x101.5 mm - Stainless Steel Grade PH15-7 Mo Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Housing Bore (B)	Clip Thickness (T)	Groove Dia. (Dg)	Approx. Loose Circlip OD (Dr)	Indicative Image
Housing Bore (B) 98.00 mm _{(3.858 in.)}	Clip Thickness (T) 3.00 mm + 0.35 / - 0.00 _{(0.118 in.)}	Groove Dia. (Dg) 101.50 mm + 0.00 / - 0.08 _{(3.996 in.)}	Approx. Loose Circlip OD (Dr) 103.50 mm + 1.30 / - 0.54
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 3.15 mm + 0.13 / - 0.00 Clearance in Bore (C): 79.00 mm Clearance in Groove (C1): 83.50 mm Min. Lug Diameter (h): 3.50 mm Min. Extension (n): 5.30 Category: Retaining Rings - Internal - Circlips - Standard - Stainless Steel
Part Number: CCI-09800-S15 Internal Retaining Rings - 98x3x101.5 mm - Stainless Steel Grade PH15-7 Mo Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Housing Bore (B) 98.43 mm _{(3.875 in.)}	Clip Thickness (T) 2.77 mm +/- 0.152 _{(0.109 in.)}	Groove Dia. (Dg) 104.32 mm + 0.00 / - 0.08 _{(4.107 in.)}	Approx. Loose Circlip OD (Dr) 108.99 mm + 1.65 / - 1.65		Groove Width (W) 3.05 mm + 0.13 / - 0.00
Material: Stainless Steel Grade PH15-7 Mo Clearance in Bore (C): 80.52 mm Clearance in Groove (C1): 86.36 mm Min. Lug Diameter (h): 3.12 mm Min. Extension (n): 8.84 Category: Retaining Rings - Internal - Circlips - Standard - Stainless Steel
Part Number: CCI-09843-S15 Internal Retaining Rings - 98.43x2.77x104.32 mm - Stainless Steel Grade PH15-7 Mo Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jul 16, 2025 Regular price $312.86 AUD Regular price ~~$733.71 AUD~~ Sale price $312.86 AUD Unit price per Each
Housing Bore (B) 98.43 mm _{(3.875 in.)}	Clip Thickness (T) 2.77 mm +/- 0.152 _{(0.109 in.)}	Groove Dia. (Dg) 104.32 mm + 0.00 / - 0.08 _{(4.107 in.)}	Approx. Loose Circlip OD (Dr) 108.99 mm + 1.65 / - 1.65
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 3.05 mm + 0.13 / - 0.00 Clearance in Bore (C): 80.52 mm Clearance in Groove (C1): 86.36 mm Min. Lug Diameter (h): 3.12 mm Min. Extension (n): 8.84 Category: Retaining Rings - Internal - Circlips - Standard - Stainless Steel
Part Number: CCI-09843-S15 Internal Retaining Rings - 98.43x2.77x104.32 mm - Stainless Steel Grade PH15-7 Mo Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jul 16, 2025 Regular price $312.86 AUD Regular price ~~$733.71 AUD~~ Sale price $312.86 AUD Unit price per Each View the product page first if you are unsure.
CCI-09843-S15 --- Internal Retaining Rings - 98.43x2.77x104.32 mm - Stainless Steel Grade PH15-7 Mo Sale CCI-09843-S15 --- Internal Retaining Rings - 98.43x2.77x104.32 mm - Stainless Steel Grade PH15-7 Mo Regular price $312.86 AUD Regular price ~~$733.71 AUD~~ Sale price $312.86 AUD Unit price per Out of stock! Backorder Now Sale
Housing Bore (B) 98.43 mm _{(3.875 in.)}	Clip Thickness (T) 2.77 mm +/- 0.152 _{(0.109 in.)}	Groove Dia. (Dg) 104.32 mm + 0.00 / - 0.08 _{(4.107 in.)}	Approx. Loose Circlip OD (Dr) 108.99 mm + 1.65 / - 1.65		Groove Width (W) 3.05 mm + 0.13 / - 0.00
Material: Carbon Steel Clearance in Bore (C): 80.52 mm Clearance in Groove (C1): 86.36 mm Min. Lug Diameter (h): 3.12 mm Min. Extension (n): 8.84 Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel
Part Number: CCI-09843-C (2 Pcs) Internal Retaining Rings - 98.43x2.77x104.32 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jul 05, 2025 Regular price $16.86 AUD Regular price ~~$20.24 AUD~~ Sale price $16.86 AUD Unit price per Per 2
Housing Bore (B) 98.43 mm _{(3.875 in.)}	Clip Thickness (T) 2.77 mm +/- 0.152 _{(0.109 in.)}	Groove Dia. (Dg) 104.32 mm + 0.00 / - 0.08 _{(4.107 in.)}	Approx. Loose Circlip OD (Dr) 108.99 mm + 1.65 / - 1.65
Material: Carbon Steel Groove Width (W): 3.05 mm + 0.13 / - 0.00 Clearance in Bore (C): 80.52 mm Clearance in Groove (C1): 86.36 mm Min. Lug Diameter (h): 3.12 mm Min. Extension (n): 8.84 Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel
Part Number: CCI-09843-C (2 Pcs) Internal Retaining Rings - 98.43x2.77x104.32 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jul 05, 2025 Regular price $16.86 AUD Regular price ~~$20.24 AUD~~ Sale price $16.86 AUD Unit price per Per 2 View the product page first if you are unsure.
CCI-09843-C (2 Pcs) --- Internal Retaining Rings - 98.43x2.77x104.32 mm - Carbon Steel Sale CCI-09843-C (2 Pcs) --- Internal Retaining Rings - 98.43x2.77x104.32 mm - Carbon Steel Regular price $16.86 AUD Regular price ~~$20.24 AUD~~ Sale price $16.86 AUD Unit price per Out of stock! Backorder Now Sale
Housing Bore (B) 100.00 mm _{(3.937 in.)}	Clip Thickness (T) 3.00 mm + 0.35 / - 0.00 _{(0.118 in.)}	Groove Dia. (Dg) 103.50 mm + 0.00 / - 0.08 _{(4.075 in.)}	Approx. Loose Circlip OD (Dr) 105.50 mm + 1.30 / - 0.54		Groove Width (W) 3.15 mm + 0.13 / - 0.00
Material: Carbon Steel Clearance in Bore (C): 80.60 mm Clearance in Groove (C1): 85.10 mm Min. Lug Diameter (h): 3.50 mm Min. Extension (n): 5.30 Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel
Part Number: CCI-10000-C Internal Retaining Rings - 100x3x103.5 mm - Carbon Steel 296 Available Immediately \| Item Discontinued - Up to 296 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $2.77 AUD Regular price ~~$6.29 AUD~~ Sale price $2.77 AUD Unit price per Each
Housing Bore (B) 100.00 mm _{(3.937 in.)}	Clip Thickness (T) 3.00 mm + 0.35 / - 0.00 _{(0.118 in.)}	Groove Dia. (Dg) 103.50 mm + 0.00 / - 0.08 _{(4.075 in.)}	Approx. Loose Circlip OD (Dr) 105.50 mm + 1.30 / - 0.54
Material: Carbon Steel Groove Width (W): 3.15 mm + 0.13 / - 0.00 Clearance in Bore (C): 80.60 mm Clearance in Groove (C1): 85.10 mm Min. Lug Diameter (h): 3.50 mm Min. Extension (n): 5.30 Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel
Part Number: CCI-10000-C Internal Retaining Rings - 100x3x103.5 mm - Carbon Steel 296 Available Immediately \| Item Discontinued - Up to 296 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $2.77 AUD Regular price ~~$6.29 AUD~~ Sale price $2.77 AUD Unit price per Each
CCI-10000-C --- Internal Retaining Rings - 100x3x103.5 mm - Carbon Steel Sale CCI-10000-C --- Internal Retaining Rings - 100x3x103.5 mm - Carbon Steel Regular price $2.77 AUD Regular price ~~$6.29 AUD~~ Sale price $2.77 AUD Unit price per 296 Available Now Sale
Housing Bore (B) 100.01 mm _{(3.937 in.)}	Clip Thickness (T) 2.77 mm +/- 0.152 _{(0.109 in.)}	Groove Dia. (Dg) 106.02 mm + 0.00 / - 0.10 _{(4.174 in.)}	Approx. Loose Circlip OD (Dr) 110.69 mm + 1.65 / - 1.65		Groove Width (W) 3.05 mm + 0.13 / - 0.00
Material: Carbon Steel Clearance in Bore (C): 82.04 mm Clearance in Groove (C1): 87.88 mm Min. Lug Diameter (h): 3.12 mm Min. Extension (n): 8.99 Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel
Part Number: CCI-10001-C (2 Pcs) Internal Retaining Rings - 100.01x2.77x106.02 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jul 05, 2025 Regular price $15.32 AUD Regular price ~~$18.38 AUD~~ Sale price $15.32 AUD Unit price per Per 2
Housing Bore (B) 100.01 mm _{(3.937 in.)}	Clip Thickness (T) 2.77 mm +/- 0.152 _{(0.109 in.)}	Groove Dia. (Dg) 106.02 mm + 0.00 / - 0.10 _{(4.174 in.)}	Approx. Loose Circlip OD (Dr) 110.69 mm + 1.65 / - 1.65
Material: Carbon Steel Groove Width (W): 3.05 mm + 0.13 / - 0.00 Clearance in Bore (C): 82.04 mm Clearance in Groove (C1): 87.88 mm Min. Lug Diameter (h): 3.12 mm Min. Extension (n): 8.99 Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel
Part Number: CCI-10001-C (2 Pcs) Internal Retaining Rings - 100.01x2.77x106.02 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jul 05, 2025 Regular price $15.32 AUD Regular price ~~$18.38 AUD~~ Sale price $15.32 AUD Unit price per Per 2 View the product page first if you are unsure.
CCI-10001-C (2 Pcs) --- Internal Retaining Rings - 100.01x2.77x106.02 mm - Carbon Steel Sale CCI-10001-C (2 Pcs) --- Internal Retaining Rings - 100.01x2.77x106.02 mm - Carbon Steel Regular price $15.32 AUD Regular price ~~$18.38 AUD~~ Sale price $15.32 AUD Unit price per Out of stock! Backorder Now Sale
Housing Bore (B) 100.01 mm _{(3.937 in.)}	Clip Thickness (T) 2.77 mm +/- 0.152 _{(0.109 in.)}	Groove Dia. (Dg) 106.02 mm + 0.00 / - 0.10 _{(4.174 in.)}	Approx. Loose Circlip OD (Dr) 110.69 mm + 1.65 / - 1.65		Groove Width (W) 3.05 mm + 0.13 / - 0.00
Material: Carbon Steel Zinc Plated Clearance in Bore (C): 82.04 mm Clearance in Groove (C1): 87.88 mm Min. Lug Diameter (h): 3.12 mm Min. Extension (n): 8.99 Category: Retaining Rings - Internal - Circlips - Standard - Zinc Plated
Part Number: CCI-10001-CZY Internal Retaining Rings - 100.01x2.77x106.02 mm - Carbon Steel Zinc Plated Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jul 05, 2025 Regular price $16.23 AUD Regular price ~~$35.80 AUD~~ Sale price $16.23 AUD Unit price per Each
Housing Bore (B) 100.01 mm _{(3.937 in.)}	Clip Thickness (T) 2.77 mm +/- 0.152 _{(0.109 in.)}	Groove Dia. (Dg) 106.02 mm + 0.00 / - 0.10 _{(4.174 in.)}	Approx. Loose Circlip OD (Dr) 110.69 mm + 1.65 / - 1.65
Material: Carbon Steel Zinc Plated Groove Width (W): 3.05 mm + 0.13 / - 0.00 Clearance in Bore (C): 82.04 mm Clearance in Groove (C1): 87.88 mm Min. Lug Diameter (h): 3.12 mm Min. Extension (n): 8.99 Category: Retaining Rings - Internal - Circlips - Standard - Zinc Plated
Part Number: CCI-10001-CZY Internal Retaining Rings - 100.01x2.77x106.02 mm - Carbon Steel Zinc Plated Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jul 05, 2025 Regular price $16.23 AUD Regular price ~~$35.80 AUD~~ Sale price $16.23 AUD Unit price per Each View the product page first if you are unsure.
CCI-10001-CZY --- Internal Retaining Rings - 100.01x2.77x106.02 mm - Carbon Steel Zinc Plated Sale CCI-10001-CZY --- Internal Retaining Rings - 100.01x2.77x106.02 mm - Carbon Steel Zinc Plated Regular price $16.23 AUD Regular price ~~$35.80 AUD~~ Sale price $16.23 AUD Unit price per Out of stock! Backorder Now Sale
Housing Bore (B) 100.01 mm _{(3.937 in.)}	Clip Thickness (T) 2.77 mm +/- 0.152 _{(0.109 in.)}	Groove Dia. (Dg) 106.02 mm + 0.00 / - 0.10 _{(4.174 in.)}	Approx. Loose Circlip OD (Dr) 110.69 mm + 1.65 / - 1.65		Groove Width (W) 3.05 mm + 0.13 / - 0.00
Material: Stainless Steel Grade PH15-7 Mo Clearance in Bore (C): 82.04 mm Clearance in Groove (C1): 87.88 mm Min. Lug Diameter (h): 3.12 mm Min. Extension (n): 8.99 Category: Retaining Rings - Internal - Circlips - Standard - Stainless Steel
Part Number: CCI-10001-S15 (3 Pcs) Internal Retaining Rings - 100.01x2.77x106.02 mm - Stainless Steel Grade PH15-7 Mo Out of Stock \| Backorder Now \| Orders can be expected around Thu, Sep 04, 2025 Regular price $280.68 AUD Regular price ~~$657.97 AUD~~ Sale price $280.68 AUD Unit price per Per 3
Housing Bore (B) 100.01 mm _{(3.937 in.)}	Clip Thickness (T) 2.77 mm +/- 0.152 _{(0.109 in.)}	Groove Dia. (Dg) 106.02 mm + 0.00 / - 0.10 _{(4.174 in.)}	Approx. Loose Circlip OD (Dr) 110.69 mm + 1.65 / - 1.65
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 3.05 mm + 0.13 / - 0.00 Clearance in Bore (C): 82.04 mm Clearance in Groove (C1): 87.88 mm Min. Lug Diameter (h): 3.12 mm Min. Extension (n): 8.99 Category: Retaining Rings - Internal - Circlips - Standard - Stainless Steel
Part Number: CCI-10001-S15 (3 Pcs) Internal Retaining Rings - 100.01x2.77x106.02 mm - Stainless Steel Grade PH15-7 Mo Out of Stock \| Backorder Now \| Orders can be expected around Thu, Sep 04, 2025 Regular price $280.68 AUD Regular price ~~$657.97 AUD~~ Sale price $280.68 AUD Unit price per Per 3 View the product page first if you are unsure.
CCI-10001-S15 (3 Pcs) --- Internal Retaining Rings - 100.01x2.77x106.02 mm - Stainless Steel Grade PH15-7 Mo Sale CCI-10001-S15 (3 Pcs) --- Internal Retaining Rings - 100.01x2.77x106.02 mm - Stainless Steel Grade PH15-7 Mo Regular price $280.68 AUD Regular price ~~$657.97 AUD~~ Sale price $280.68 AUD Unit price per Out of stock! Backorder Now Sale
Housing Bore (B) 101.60 mm _{(4 in.)}	Clip Thickness (T) 2.84 mm +/- 0.152 _{(0.112 in.)}	Groove Dia. (Dg) 107.54 mm + 0.00 / - 0.10 _{(4.234 in.)}	Approx. Loose Circlip OD (Dr) 112.37 mm + 1.65 / - 1.65		Groove Width (W) 3.05 mm + 0.13 / - 0.00
Material: Carbon Steel Zinc Plated Clearance in Bore (C): 82.30 mm Clearance in Groove (C1): 88.14 mm Min. Lug Diameter (h): 3.12 mm Min. Extension (n): 9.14 Category: Retaining Rings - Internal - Circlips - Standard - Zinc Plated
Part Number: CCI-10160-CZY Internal Retaining Rings - 101.6x2.84x107.54 mm - Carbon Steel Zinc Plated Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jul 05, 2025 Regular price $17.23 AUD Regular price ~~$38.15 AUD~~ Sale price $17.23 AUD Unit price per Each
Housing Bore (B) 101.60 mm _{(4 in.)}	Clip Thickness (T) 2.84 mm +/- 0.152 _{(0.112 in.)}	Groove Dia. (Dg) 107.54 mm + 0.00 / - 0.10 _{(4.234 in.)}	Approx. Loose Circlip OD (Dr) 112.37 mm + 1.65 / - 1.65
Material: Carbon Steel Zinc Plated Groove Width (W): 3.05 mm + 0.13 / - 0.00 Clearance in Bore (C): 82.30 mm Clearance in Groove (C1): 88.14 mm Min. Lug Diameter (h): 3.12 mm Min. Extension (n): 9.14 Category: Retaining Rings - Internal - Circlips - Standard - Zinc Plated
Part Number: CCI-10160-CZY Internal Retaining Rings - 101.6x2.84x107.54 mm - Carbon Steel Zinc Plated Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jul 05, 2025 Regular price $17.23 AUD Regular price ~~$38.15 AUD~~ Sale price $17.23 AUD Unit price per Each View the product page first if you are unsure.
CCI-10160-CZY --- Internal Retaining Rings - 101.6x2.84x107.54 mm - Carbon Steel Zinc Plated Sale CCI-10160-CZY --- Internal Retaining Rings - 101.6x2.84x107.54 mm - Carbon Steel Zinc Plated Regular price $17.23 AUD Regular price ~~$38.15 AUD~~ Sale price $17.23 AUD Unit price per Out of stock! Backorder Now Sale
Housing Bore (B) 101.60 mm _{(4 in.)}	Clip Thickness (T) 2.84 mm +/- 0.152 _{(0.112 in.)}	Groove Dia. (Dg) 107.54 mm + 0.00 / - 0.10 _{(4.234 in.)}	Approx. Loose Circlip OD (Dr) 112.37 mm + 1.65 / - 1.65		Groove Width (W) 3.05 mm + 0.13 / - 0.00
Material: Carbon Steel Clearance in Bore (C): 82.30 mm Clearance in Groove (C1): 88.14 mm Min. Lug Diameter (h): 3.12 mm Min. Extension (n): 9.14 Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel
Part Number: CCI-10160-C Internal Retaining Rings - 101.6x2.84x107.54 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jul 05, 2025 Regular price $8.95 AUD Regular price ~~$10.75 AUD~~ Sale price $8.95 AUD Unit price per Each
Housing Bore (B) 101.60 mm _{(4 in.)}	Clip Thickness (T) 2.84 mm +/- 0.152 _{(0.112 in.)}	Groove Dia. (Dg) 107.54 mm + 0.00 / - 0.10 _{(4.234 in.)}	Approx. Loose Circlip OD (Dr) 112.37 mm + 1.65 / - 1.65
Material: Carbon Steel Groove Width (W): 3.05 mm + 0.13 / - 0.00 Clearance in Bore (C): 82.30 mm Clearance in Groove (C1): 88.14 mm Min. Lug Diameter (h): 3.12 mm Min. Extension (n): 9.14 Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel
Part Number: CCI-10160-C Internal Retaining Rings - 101.6x2.84x107.54 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jul 05, 2025 Regular price $8.95 AUD Regular price ~~$10.75 AUD~~ Sale price $8.95 AUD Unit price per Each View the product page first if you are unsure.
CCI-10160-C --- Internal Retaining Rings - 101.6x2.84x107.54 mm - Carbon Steel Sale CCI-10160-C --- Internal Retaining Rings - 101.6x2.84x107.54 mm - Carbon Steel Regular price $8.95 AUD Regular price ~~$10.75 AUD~~ Sale price $8.95 AUD Unit price per Out of stock! Backorder Now Sale
Housing Bore (B) 102.00 mm _{(4.016 in.)}	Clip Thickness (T) 4.00 mm + 0.54 / - 0.00 _{(0.157 in.)}	Groove Dia. (Dg) 106.00 mm + 0.00 / - 0.10 _{(4.173 in.)}	Approx. Loose Circlip OD (Dr) 108.00 mm + 1.30 / - 0.54		Groove Width (W) 4.15 mm + 0.13 / - 0.00
Material: Carbon Steel Clearance in Bore (C): 82.00 mm Clearance in Groove (C1): 87.00 mm Min. Lug Diameter (h): 3.50 mm Min. Extension (n): 6.00 Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel
Part Number: CCI-10200-C (2 Pcs) Internal Retaining Rings - 102x4x106 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jul 05, 2025 Regular price $14.41 AUD Regular price ~~$17.29 AUD~~ Sale price $14.41 AUD Unit price per Per 2
Housing Bore (B) 102.00 mm _{(4.016 in.)}	Clip Thickness (T) 4.00 mm + 0.54 / - 0.00 _{(0.157 in.)}	Groove Dia. (Dg) 106.00 mm + 0.00 / - 0.10 _{(4.173 in.)}	Approx. Loose Circlip OD (Dr) 108.00 mm + 1.30 / - 0.54
Material: Carbon Steel Groove Width (W): 4.15 mm + 0.13 / - 0.00 Clearance in Bore (C): 82.00 mm Clearance in Groove (C1): 87.00 mm Min. Lug Diameter (h): 3.50 mm Min. Extension (n): 6.00 Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel
Part Number: CCI-10200-C (2 Pcs) Internal Retaining Rings - 102x4x106 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jul 05, 2025 Regular price $14.41 AUD Regular price ~~$17.29 AUD~~ Sale price $14.41 AUD Unit price per Per 2 View the product page first if you are unsure.
CCI-10200-C (2 Pcs) --- Internal Retaining Rings - 102x4x106 mm - Carbon Steel Sale CCI-10200-C (2 Pcs) --- Internal Retaining Rings - 102x4x106 mm - Carbon Steel Regular price $14.41 AUD Regular price ~~$17.29 AUD~~ Sale price $14.41 AUD Unit price per Out of stock! Backorder Now Sale
Housing Bore (B) 103.00 mm _{(4.055 in.)}	Clip Thickness (T) 4.00 mm + 0.54 / - 0.00 _{(0.157 in.)}	Groove Dia. (Dg) 108.00 mm + 0.00 / - 0.10 _{(4.252 in.)}	Approx. Loose Circlip OD (Dr) 110.76 mm + 1.30 / - 0.54		Groove Width (W) 4.15 mm + 0.13 / - 0.00
Material: Carbon Spring Steel Self Finish Clearance in Bore (C): 83.00 mm Clearance in Groove (C1): 88.00 mm Min. Lug Diameter (h): 3.500 mm Min. Extension (n): 6.00 Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel
Part Number: CCI-10300-C Internal Retaining Rings - 103x4x108 mm - Carbon Spring Steel Self Finish Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Housing Bore (B) 103.00 mm _{(4.055 in.)}	Clip Thickness (T) 4.00 mm + 0.54 / - 0.00 _{(0.157 in.)}	Groove Dia. (Dg) 108.00 mm + 0.00 / - 0.10 _{(4.252 in.)}	Approx. Loose Circlip OD (Dr) 110.76 mm + 1.30 / - 0.54
Material: Carbon Spring Steel Self Finish Groove Width (W): 4.15 mm + 0.13 / - 0.00 Clearance in Bore (C): 83.00 mm Clearance in Groove (C1): 88.00 mm Min. Lug Diameter (h): 3.500 mm Min. Extension (n): 6.00 Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel
Part Number: CCI-10300-C Internal Retaining Rings - 103x4x108 mm - Carbon Spring Steel Self Finish Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Housing Bore (B) 104.78 mm _{(4.125 in.)}	Clip Thickness (T) 2.77 mm +/- 0.152 _{(0.109 in.)}	Groove Dia. (Dg) 110.87 mm + 0.00 / - 0.10 _{(4.365 in.)}	Approx. Loose Circlip OD (Dr) 111.76 mm + 1.65 / - 1.65		Groove Width (W) 3.05 mm + 0.13 / - 0.00
Material: Carbon Steel Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel
Part Number: CCI-10478-C Internal Retaining Rings - 104.78x2.77x110.87 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jul 05, 2025 Regular price $11.68 AUD Regular price ~~$14.02 AUD~~ Sale price $11.68 AUD Unit price per Each
Housing Bore (B) 104.78 mm _{(4.125 in.)}	Clip Thickness (T) 2.77 mm +/- 0.152 _{(0.109 in.)}	Groove Dia. (Dg) 110.87 mm + 0.00 / - 0.10 _{(4.365 in.)}	Approx. Loose Circlip OD (Dr) 111.76 mm + 1.65 / - 1.65
Material: Carbon Steel Groove Width (W): 3.05 mm + 0.13 / - 0.00 Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel
Part Number: CCI-10478-C Internal Retaining Rings - 104.78x2.77x110.87 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jul 05, 2025 Regular price $11.68 AUD Regular price ~~$14.02 AUD~~ Sale price $11.68 AUD Unit price per Each View the product page first if you are unsure.
CCI-10478-C --- Internal Retaining Rings - 104.78x2.77x110.87 mm - Carbon Steel Sale CCI-10478-C --- Internal Retaining Rings - 104.78x2.77x110.87 mm - Carbon Steel Regular price $11.68 AUD Regular price ~~$14.02 AUD~~ Sale price $11.68 AUD Unit price per Out of stock! Backorder Now Sale
Housing Bore (B) 105.00 mm _{(4.134 in.)}	Clip Thickness (T) 4.00 mm + 0.54 / - 0.00 _{(0.157 in.)}	Groove Dia. (Dg) 409.00 mm + 0.00 / - 0.10 _{(16.102 in.)}	Approx. Loose Circlip OD (Dr) 112.00 mm + 1.30 / - 0.54		Groove Width (W) 4.15 mm + 0.13 / - 0.00
Material: Carbon Steel Clearance in Bore (C): 85.00 mm Clearance in Groove (C1): 90.00 mm Min. Lug Diameter (h): 3.50 mm Min. Extension (n): 6.00 Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel
Part Number: CCI-10500-C Internal Retaining Rings - 105x4x409 mm - Carbon Steel 22 Available Immediately \| Item Discontinued - Up to 22 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $4.32 AUD Regular price ~~$9.86 AUD~~ Sale price $4.32 AUD Unit price per Each
Housing Bore (B) 105.00 mm _{(4.134 in.)}	Clip Thickness (T) 4.00 mm + 0.54 / - 0.00 _{(0.157 in.)}	Groove Dia. (Dg) 409.00 mm + 0.00 / - 0.10 _{(16.102 in.)}	Approx. Loose Circlip OD (Dr) 112.00 mm + 1.30 / - 0.54
Material: Carbon Steel Groove Width (W): 4.15 mm + 0.13 / - 0.00 Clearance in Bore (C): 85.00 mm Clearance in Groove (C1): 90.00 mm Min. Lug Diameter (h): 3.50 mm Min. Extension (n): 6.00 Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel
Part Number: CCI-10500-C Internal Retaining Rings - 105x4x409 mm - Carbon Steel 22 Available Immediately \| Item Discontinued - Up to 22 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $4.32 AUD Regular price ~~$9.86 AUD~~ Sale price $4.32 AUD Unit price per Each
CCI-10500-C --- Internal Retaining Rings - 105x4x409 mm - Carbon Steel Sale CCI-10500-C --- Internal Retaining Rings - 105x4x409 mm - Carbon Steel Regular price $4.32 AUD Regular price ~~$9.86 AUD~~ Sale price $4.32 AUD Unit price per 22 Available Now Sale
Housing Bore (B) 105.00 mm _{(4.134 in.)}	Clip Thickness (T) 5.00 mm + 0.54 / - 0.00 _{(0.197 in.)}	Groove Dia. (Dg) 109.00 mm + 0.00 / - 0.12 _{(4.291 in.)}	Approx. Loose Circlip OD (Dr) 112.00 mm + 1.30 / - 0.54		Groove Width (W) 5.15 mm + 0.13 / - 0.00
Material: Carbon Spring Steel Self Finish Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel
Part Number: CCI-10500H-C Internal Retaining Rings - 105x5x109 mm - Carbon Spring Steel Self Finish Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Housing Bore (B) 105.00 mm _{(4.134 in.)}	Clip Thickness (T) 5.00 mm + 0.54 / - 0.00 _{(0.197 in.)}	Groove Dia. (Dg) 109.00 mm + 0.00 / - 0.12 _{(4.291 in.)}	Approx. Loose Circlip OD (Dr) 112.00 mm + 1.30 / - 0.54
Material: Carbon Spring Steel Self Finish Groove Width (W): 5.15 mm + 0.13 / - 0.00 Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel
Part Number: CCI-10500H-C Internal Retaining Rings - 105x5x109 mm - Carbon Spring Steel Self Finish Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Housing Bore (B) 107.00 mm _{(4.213 in.)}	Clip Thickness (T) 4.00 mm + 0.54 / - 0.00 _{(0.157 in.)}	Groove Dia. (Dg) 111.00 mm + 0.00 / - 0.10 _{(4.37 in.)}	Approx. Loose Circlip OD (Dr) 115.00 mm + 1.30 / - 0.54		Groove Width (W) 4.15 mm + 0.13 / - 0.00
Material: Carbon Spring Steel phosphate and oil finish Min. Extension (n): 6.00 Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel
Part Number: CCI-10700-C Internal Retaining Rings - 107x4x111 mm - Carbon Spring Steel phosphate and oil finish Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Housing Bore (B) 107.00 mm _{(4.213 in.)}	Clip Thickness (T) 4.00 mm + 0.54 / - 0.00 _{(0.157 in.)}	Groove Dia. (Dg) 111.00 mm + 0.00 / - 0.10 _{(4.37 in.)}	Approx. Loose Circlip OD (Dr) 115.00 mm + 1.30 / - 0.54
Material: Carbon Spring Steel phosphate and oil finish Groove Width (W): 4.15 mm + 0.13 / - 0.00 Min. Extension (n): 6.00 Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel
Part Number: CCI-10700-C Internal Retaining Rings - 107x4x111 mm - Carbon Spring Steel phosphate and oil finish Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Housing Bore (B) 107.95 mm _{(4.25 in.)}	Clip Thickness (T) 2.77 mm +/- 0.152 _{(0.109 in.)}	Groove Dia. (Dg) 114.05 mm + 0.00 / - 0.10 _{(4.49 in.)}	Approx. Loose Circlip OD (Dr) 116.08 mm + 1.65 / - 1.65		Groove Width (W) 3.05 mm + 0.13 / - 0.00
Material: Carbon Steel Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel
Part Number: CCI-10795-C Internal Retaining Rings - 107.95x2.77x114.05 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jul 05, 2025 Regular price $10.86 AUD Regular price ~~$13.04 AUD~~ Sale price $10.86 AUD Unit price per Each
Housing Bore (B) 107.95 mm _{(4.25 in.)}	Clip Thickness (T) 2.77 mm +/- 0.152 _{(0.109 in.)}	Groove Dia. (Dg) 114.05 mm + 0.00 / - 0.10 _{(4.49 in.)}	Approx. Loose Circlip OD (Dr) 116.08 mm + 1.65 / - 1.65
Material: Carbon Steel Groove Width (W): 3.05 mm + 0.13 / - 0.00 Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel
Part Number: CCI-10795-C Internal Retaining Rings - 107.95x2.77x114.05 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jul 05, 2025 Regular price $10.86 AUD Regular price ~~$13.04 AUD~~ Sale price $10.86 AUD Unit price per Each View the product page first if you are unsure.
CCI-10795-C --- Internal Retaining Rings - 107.95x2.77x114.05 mm - Carbon Steel Sale CCI-10795-C --- Internal Retaining Rings - 107.95x2.77x114.05 mm - Carbon Steel Regular price $10.86 AUD Regular price ~~$13.04 AUD~~ Sale price $10.86 AUD Unit price per Out of stock! Backorder Now Sale
Housing Bore (B) 108.00 mm _{(4.252 in.)}	Clip Thickness (T) 4.00 mm + 0.54 / - 0.00 _{(0.157 in.)}	Groove Dia. (Dg) 112.00 mm + 0.00 / - 0.10 _{(4.409 in.)}	Approx. Loose Circlip OD (Dr) 115.00 mm + 1.30 / - 0.54		Groove Width (W) 4.15 mm + 0.13 / - 0.00
Material: Carbon Steel Clearance in Bore (C): 88.00 mm Clearance in Groove (C1): 93.00 mm Min. Lug Diameter (h): 3.50 mm Min. Extension (n): 6.00 Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel
Part Number: CCI-10800-C (25 Pcs) Internal Retaining Rings - 108x4x112 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Sep 04, 2025 Regular price $183.32 AUD Regular price ~~$219.98 AUD~~ Sale price $183.32 AUD Unit price per Per 25
Housing Bore (B) 108.00 mm _{(4.252 in.)}	Clip Thickness (T) 4.00 mm + 0.54 / - 0.00 _{(0.157 in.)}	Groove Dia. (Dg) 112.00 mm + 0.00 / - 0.10 _{(4.409 in.)}	Approx. Loose Circlip OD (Dr) 115.00 mm + 1.30 / - 0.54
Material: Carbon Steel Groove Width (W): 4.15 mm + 0.13 / - 0.00 Clearance in Bore (C): 88.00 mm Clearance in Groove (C1): 93.00 mm Min. Lug Diameter (h): 3.50 mm Min. Extension (n): 6.00 Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel
Part Number: CCI-10800-C (25 Pcs) Internal Retaining Rings - 108x4x112 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Sep 04, 2025 Regular price $183.32 AUD Regular price ~~$219.98 AUD~~ Sale price $183.32 AUD Unit price per Per 25 View the product page first if you are unsure.
CCI-10800-C (25 Pcs) --- Internal Retaining Rings - 108x4x112 mm - Carbon Steel Sale CCI-10800-C (25 Pcs) --- Internal Retaining Rings - 108x4x112 mm - Carbon Steel Regular price $183.32 AUD Regular price ~~$219.98 AUD~~ Sale price $183.32 AUD Unit price per Out of stock! Backorder Now Sale
Housing Bore (B) 110.00 mm _{(4.331 in.)}	Clip Thickness (T) 4.00 mm + 0.54 / - 0.00 _{(0.157 in.)}	Groove Dia. (Dg) 114.00 mm + 0.00 / - 0.10 _{(4.488 in.)}	Approx. Loose Circlip OD (Dr) 117.00 mm + 1.30 / - 0.54		Groove Width (W) 4.15 mm + 0.13 / - 0.00
Material: Stainless Steel Grade PH15-7 Mo Clearance in Bore (C): 88.20 mm Clearance in Groove (C1): 93.20 mm Min. Lug Diameter (h): 3.50 mm Min. Extension (n): 6.00 Category: Retaining Rings - Internal - Circlips - Standard - Stainless Steel
Part Number: CCI-11000-S15 (5 Pcs) Internal Retaining Rings - 110x4x114 mm - Stainless Steel Grade PH15-7 Mo Out of Stock \| Backorder Now \| Orders can be expected around Thu, Sep 04, 2025 Regular price $601.77 AUD Regular price ~~$1,413.50 AUD~~ Sale price $601.77 AUD Unit price per Per 5
Housing Bore (B) 110.00 mm _{(4.331 in.)}	Clip Thickness (T) 4.00 mm + 0.54 / - 0.00 _{(0.157 in.)}	Groove Dia. (Dg) 114.00 mm + 0.00 / - 0.10 _{(4.488 in.)}	Approx. Loose Circlip OD (Dr) 117.00 mm + 1.30 / - 0.54
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 4.15 mm + 0.13 / - 0.00 Clearance in Bore (C): 88.20 mm Clearance in Groove (C1): 93.20 mm Min. Lug Diameter (h): 3.50 mm Min. Extension (n): 6.00 Category: Retaining Rings - Internal - Circlips - Standard - Stainless Steel
Part Number: CCI-11000-S15 (5 Pcs) Internal Retaining Rings - 110x4x114 mm - Stainless Steel Grade PH15-7 Mo Out of Stock \| Backorder Now \| Orders can be expected around Thu, Sep 04, 2025 Regular price $601.77 AUD Regular price ~~$1,413.50 AUD~~ Sale price $601.77 AUD Unit price per Per 5 View the product page first if you are unsure.
CCI-11000-S15 (5 Pcs) --- Internal Retaining Rings - 110x4x114 mm - Stainless Steel Grade PH15-7 Mo Sale CCI-11000-S15 (5 Pcs) --- Internal Retaining Rings - 110x4x114 mm - Stainless Steel Grade PH15-7 Mo Regular price $601.77 AUD Regular price ~~$1,413.50 AUD~~ Sale price $601.77 AUD Unit price per Out of stock! Backorder Now Sale
Housing Bore (B) 110.00 mm _{(4.331 in.)}	Clip Thickness (T) 4.00 mm + 0.54 / - 0.00 _{(0.157 in.)}	Groove Dia. (Dg) 114.00 mm + 0.00 / - 0.10 _{(4.488 in.)}	Approx. Loose Circlip OD (Dr) 117.00 mm + 1.30 / - 0.54		Groove Width (W) 4.15 mm + 0.13 / - 0.00
Material: Carbon Steel Clearance in Bore (C): 88.20 mm Clearance in Groove (C1): 93.20 mm Min. Lug Diameter (h): 3.50 mm Min. Extension (n): 6.00 Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel
Part Number: CCI-11000-C (2 Pcs) Internal Retaining Rings - 110x4x114 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jul 05, 2025 Regular price $17.32 AUD Regular price ~~$20.78 AUD~~ Sale price $17.32 AUD Unit price per Per 2
Housing Bore (B) 110.00 mm _{(4.331 in.)}	Clip Thickness (T) 4.00 mm + 0.54 / - 0.00 _{(0.157 in.)}	Groove Dia. (Dg) 114.00 mm + 0.00 / - 0.10 _{(4.488 in.)}	Approx. Loose Circlip OD (Dr) 117.00 mm + 1.30 / - 0.54
Material: Carbon Steel Groove Width (W): 4.15 mm + 0.13 / - 0.00 Clearance in Bore (C): 88.20 mm Clearance in Groove (C1): 93.20 mm Min. Lug Diameter (h): 3.50 mm Min. Extension (n): 6.00 Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel
Part Number: CCI-11000-C (2 Pcs) Internal Retaining Rings - 110x4x114 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jul 05, 2025 Regular price $17.32 AUD Regular price ~~$20.78 AUD~~ Sale price $17.32 AUD Unit price per Per 2 View the product page first if you are unsure.
CCI-11000-C (2 Pcs) --- Internal Retaining Rings - 110x4x114 mm - Carbon Steel Sale CCI-11000-C (2 Pcs) --- Internal Retaining Rings - 110x4x114 mm - Carbon Steel Regular price $17.32 AUD Regular price ~~$20.78 AUD~~ Sale price $17.32 AUD Unit price per Out of stock! Backorder Now Sale
Housing Bore (B) 110.00 mm _{(4.331 in.)}	Clip Thickness (T) 5.00 mm + 0.54 / - 0.00 _{(0.197 in.)}	Groove Dia. (Dg) 114.00 mm + 0.00 / - 0.12 _{(4.488 in.)}	Approx. Loose Circlip OD (Dr) 117.00 mm + 1.30 / - 0.54		Groove Width (W) 5.15 mm + 0.13 / - 0.00
Material: Carbon Spring Steel Self Finish Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel
Part Number: CCI-11000H-C (13 Pcs) Internal Retaining Rings - 110x5x114 mm - Carbon Spring Steel Self Finish Out of Stock \| Backorder Now \| Orders can be expected around Thu, Sep 04, 2025 Regular price $174.68 AUD Regular price ~~$209.62 AUD~~ Sale price $174.68 AUD Unit price per Per 13
Housing Bore (B) 110.00 mm _{(4.331 in.)}	Clip Thickness (T) 5.00 mm + 0.54 / - 0.00 _{(0.197 in.)}	Groove Dia. (Dg) 114.00 mm + 0.00 / - 0.12 _{(4.488 in.)}	Approx. Loose Circlip OD (Dr) 117.00 mm + 1.30 / - 0.54
Material: Carbon Spring Steel Self Finish Groove Width (W): 5.15 mm + 0.13 / - 0.00 Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel
Part Number: CCI-11000H-C (13 Pcs) Internal Retaining Rings - 110x5x114 mm - Carbon Spring Steel Self Finish Out of Stock \| Backorder Now \| Orders can be expected around Thu, Sep 04, 2025 Regular price $174.68 AUD Regular price ~~$209.62 AUD~~ Sale price $174.68 AUD Unit price per Per 13 View the product page first if you are unsure.
CCI-11000H-C (13 Pcs) --- Internal Retaining Rings - 110x5x114 mm - Carbon Spring Steel Self Finish Sale CCI-11000H-C (13 Pcs) --- Internal Retaining Rings - 110x5x114 mm - Carbon Spring Steel Self Finish Regular price $174.68 AUD Regular price ~~$209.62 AUD~~ Sale price $174.68 AUD Unit price per Out of stock! Backorder Now Sale
Housing Bore (B) 110.01 mm _{(4.331 in.)}	Clip Thickness (T) 2.77 mm +/- 0.152 _{(0.109 in.)}	Groove Dia. (Dg) 116.00 mm + 0.00 / - 0.10 _{(4.567 in.)}	Approx. Loose Circlip OD (Dr) 120.80 mm + 1.65 / - 1.65		Groove Width (W) 3.05 mm + 0.13 / - 0.00
Material: Stainless Steel Grade PH15-7 Mo Clearance in Bore (C): 88.20 mm Clearance in Groove (C1): 93.20 mm Min. Lug Diameter (h): 2.50 mm Min. Extension (n): 6.00 Category: Retaining Rings - Internal - Circlips - Standard - Stainless Steel
Part Number: CCI-11001N-S15 Internal Retaining Rings - 110.01x2.77x116 mm - Stainless Steel Grade PH15-7 Mo Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jul 05, 2025 Regular price $110.41 AUD Regular price ~~$257.35 AUD~~ Sale price $110.41 AUD Unit price per Each
Housing Bore (B) 110.01 mm _{(4.331 in.)}	Clip Thickness (T) 2.77 mm +/- 0.152 _{(0.109 in.)}	Groove Dia. (Dg) 116.00 mm + 0.00 / - 0.10 _{(4.567 in.)}	Approx. Loose Circlip OD (Dr) 120.80 mm + 1.65 / - 1.65
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 3.05 mm + 0.13 / - 0.00 Clearance in Bore (C): 88.20 mm Clearance in Groove (C1): 93.20 mm Min. Lug Diameter (h): 2.50 mm Min. Extension (n): 6.00 Category: Retaining Rings - Internal - Circlips - Standard - Stainless Steel
Part Number: CCI-11001N-S15 Internal Retaining Rings - 110.01x2.77x116 mm - Stainless Steel Grade PH15-7 Mo Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jul 05, 2025 Regular price $110.41 AUD Regular price ~~$257.35 AUD~~ Sale price $110.41 AUD Unit price per Each View the product page first if you are unsure.
CCI-11001N-S15 --- Internal Retaining Rings - 110.01x2.77x116 mm - Stainless Steel Grade PH15-7 Mo Sale CCI-11001N-S15 --- Internal Retaining Rings - 110.01x2.77x116 mm - Stainless Steel Grade PH15-7 Mo Regular price $110.41 AUD Regular price ~~$257.35 AUD~~ Sale price $110.41 AUD Unit price per Out of stock! Backorder Now Sale
Housing Bore (B) 110.01 mm _{(4.331 in.)}	Clip Thickness (T) 2.77 mm +/- 0.152 _{(0.109 in.)}	Groove Dia. (Dg) 116.00 mm + 0.00 / - 0.10 _{(4.567 in.)}	Approx. Loose Circlip OD (Dr) 120.80 mm + 1.65 / - 1.65		Groove Width (W) 3.05 mm + 0.13 / - 0.00
Material: Carbon Steel Clearance in Bore (C): 88.20 mm Clearance in Groove (C1): 93.20 mm Min. Lug Diameter (h): 2.50 mm Min. Extension (n): 6.00 Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel
Part Number: CCI-11001N-C Internal Retaining Rings - 110.01x2.77x116 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jul 05, 2025 Regular price $11.23 AUD Regular price ~~$13.47 AUD~~ Sale price $11.23 AUD Unit price per Each
Housing Bore (B) 110.01 mm _{(4.331 in.)}	Clip Thickness (T) 2.77 mm +/- 0.152 _{(0.109 in.)}	Groove Dia. (Dg) 116.00 mm + 0.00 / - 0.10 _{(4.567 in.)}	Approx. Loose Circlip OD (Dr) 120.80 mm + 1.65 / - 1.65
Material: Carbon Steel Groove Width (W): 3.05 mm + 0.13 / - 0.00 Clearance in Bore (C): 88.20 mm Clearance in Groove (C1): 93.20 mm Min. Lug Diameter (h): 2.50 mm Min. Extension (n): 6.00 Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel
Part Number: CCI-11001N-C Internal Retaining Rings - 110.01x2.77x116 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jul 05, 2025 Regular price $11.23 AUD Regular price ~~$13.47 AUD~~ Sale price $11.23 AUD Unit price per Each View the product page first if you are unsure.
CCI-11001N-C --- Internal Retaining Rings - 110.01x2.77x116 mm - Carbon Steel Sale CCI-11001N-C --- Internal Retaining Rings - 110.01x2.77x116 mm - Carbon Steel Regular price $11.23 AUD Regular price ~~$13.47 AUD~~ Sale price $11.23 AUD Unit price per Out of stock! Backorder Now Sale
Housing Bore (B) 112.00 mm _{(4.409 in.)}	Clip Thickness (T) 4.00 mm + 0.54 / - 0.00 _{(0.157 in.)}	Groove Dia. (Dg) 116.00 mm + 0.00 / - 0.10 _{(4.567 in.)}	Approx. Loose Circlip OD (Dr) 119.00 mm + 1.30 / - 0.54		Groove Width (W) 4.15 mm + 0.13 / - 0.00
Material: Carbon Steel Clearance in Bore (C): 90.00 mm Clearance in Groove (C1): 95.00 mm Min. Lug Diameter (h): 3.50 mm Min. Extension (n): 6.00 Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel
Part Number: CCI-11200-C (2 Pcs) Internal Retaining Rings - 112x4x116 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jul 05, 2025 Regular price $17.05 AUD Regular price ~~$20.45 AUD~~ Sale price $17.05 AUD Unit price per Per 2
Housing Bore (B) 112.00 mm _{(4.409 in.)}	Clip Thickness (T) 4.00 mm + 0.54 / - 0.00 _{(0.157 in.)}	Groove Dia. (Dg) 116.00 mm + 0.00 / - 0.10 _{(4.567 in.)}	Approx. Loose Circlip OD (Dr) 119.00 mm + 1.30 / - 0.54
Material: Carbon Steel Groove Width (W): 4.15 mm + 0.13 / - 0.00 Clearance in Bore (C): 90.00 mm Clearance in Groove (C1): 95.00 mm Min. Lug Diameter (h): 3.50 mm Min. Extension (n): 6.00 Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel
Part Number: CCI-11200-C (2 Pcs) Internal Retaining Rings - 112x4x116 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jul 05, 2025 Regular price $17.05 AUD Regular price ~~$20.45 AUD~~ Sale price $17.05 AUD Unit price per Per 2 View the product page first if you are unsure.
CCI-11200-C (2 Pcs) --- Internal Retaining Rings - 112x4x116 mm - Carbon Steel Sale CCI-11200-C (2 Pcs) --- Internal Retaining Rings - 112x4x116 mm - Carbon Steel Regular price $17.05 AUD Regular price ~~$20.45 AUD~~ Sale price $17.05 AUD Unit price per Out of stock! Backorder Now Sale
Housing Bore (B) 114.30 mm _{(4.5 in.)}	Clip Thickness (T) 2.77 mm +/- 0.152 _{(0.109 in.)}	Groove Dia. (Dg) 120.40 mm + 0.00 / - 0.10 _{(4.74 in.)}	Approx. Loose Circlip OD (Dr) 125.48 mm + 1.65 / - 1.65		Groove Width (W) 3.05 mm + 0.13 / - 0.00
Material: Carbon Steel Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel
Part Number: CCI-11430-C Internal Retaining Rings - 114.3x2.77x120.4 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jul 05, 2025 Regular price $11.14 AUD Regular price ~~$13.36 AUD~~ Sale price $11.14 AUD Unit price per Each
Housing Bore (B) 114.30 mm _{(4.5 in.)}	Clip Thickness (T) 2.77 mm +/- 0.152 _{(0.109 in.)}	Groove Dia. (Dg) 120.40 mm + 0.00 / - 0.10 _{(4.74 in.)}	Approx. Loose Circlip OD (Dr) 125.48 mm + 1.65 / - 1.65
Material: Carbon Steel Groove Width (W): 3.05 mm + 0.13 / - 0.00 Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel
Part Number: CCI-11430-C Internal Retaining Rings - 114.3x2.77x120.4 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jul 05, 2025 Regular price $11.14 AUD Regular price ~~$13.36 AUD~~ Sale price $11.14 AUD Unit price per Each View the product page first if you are unsure.
CCI-11430-C --- Internal Retaining Rings - 114.3x2.77x120.4 mm - Carbon Steel Sale CCI-11430-C --- Internal Retaining Rings - 114.3x2.77x120.4 mm - Carbon Steel Regular price $11.14 AUD Regular price ~~$13.36 AUD~~ Sale price $11.14 AUD Unit price per Out of stock! Backorder Now Sale
