| Housing Bore (B) | Clip Thickness (T) | Groove Dia. (Dg) | Approx. Loose Circlip OD (Dr) | Radial Wall (S) | Groove Width (W) |

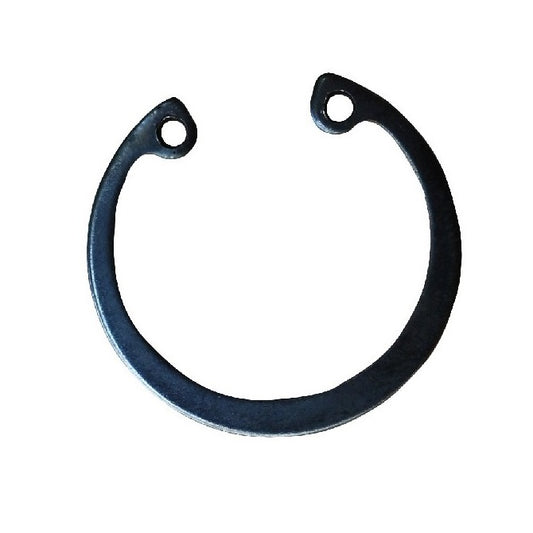

Indicative Image |
|---|---|---|---|---|---|---|
|
Housing Bore (B)
20.00
mm (0.787 in.) |
Clip Thickness (T)
1.00
mm + 0.13 / - 0.00 (0.039 in.) |
Groove Dia. (Dg)
21.00
mm + 0.00 / - 0.06 (0.827 in.) |
Approx. Loose Circlip OD (Dr)
21.50
mm + 0.42 / - 0.13 |
Groove Width (W)
1.10
mm + 0.08 / - 0.00 |
|
|
| Material: Carbon Steel Clearance in Bore (C): 11.20 mm Clearance in Groove (C1): 12.60 mm Min. Lug Diameter (h): 2.00 mm Min. Extension (n): 1.50 Standard: DIN472 | ||||||
|
Part Number: CCI-02000-C (20 Pcs) Internal Retaining Rings - 20x1x21 mm - Carbon Steel
38 units (760 pcs) Available Immediately | Further orders can be expected around Sun, Jun 08, 2025 Regular price
$6.23 AUD
Regular price
Unit price
per
Per 20
|
||||||
| Housing Bore (B) | Clip Thickness (T) | Groove Dia. (Dg) | Approx. Loose Circlip OD (Dr) |
Indicative Image |
||
|
Housing Bore (B)
20.00
mm (0.787 in.) |
Clip Thickness (T)
1.00
mm + 0.13 / - 0.00 (0.039 in.) |
Groove Dia. (Dg)
21.00
mm + 0.00 / - 0.06 (0.827 in.) |
Approx. Loose Circlip OD (Dr)
21.50
mm + 0.42 / - 0.13 |
|
||
| Material: Carbon Steel Groove Width (W): 1.10 mm + 0.08 / - 0.00 Clearance in Bore (C): 11.20 mm Clearance in Groove (C1): 12.60 mm Min. Lug Diameter (h): 2.00 mm Min. Extension (n): 1.50 Standard: DIN472 | ||||||
|
Part Number: CCI-02000-C (20 Pcs) Internal Retaining Rings - 20x1x21 mm - Carbon Steel
38 units (760 pcs) Available Immediately | Further orders can be expected around Sun, Jun 08, 2025 Regular price
$6.23 AUD
Regular price
Unit price
per
Per 20
|
||||||
|
||||||
|
Housing Bore (B)
20.00
mm (0.787 in.) |
Clip Thickness (T)
1.50
mm + 0.15 / - 0.00 (0.059 in.) |
Groove Dia. (Dg)
21.00
mm + 0.00 / - 0.06 (0.827 in.) |
Approx. Loose Circlip OD (Dr)
21.50
mm + 0.42 / - 0.13 |
Groove Width (W)
1.60
mm + 0.08 / - 0.00 |
|
|
| Material: Carbon Spring Steel Self Finish Standard: DIN472 | ||||||
|
Part Number: CCI-02000H-C Internal Retaining Rings - 20x1.5x21 mm - Carbon Spring Steel Self Finish
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
20.00
mm (0.787 in.) |
Clip Thickness (T)
1.50
mm + 0.15 / - 0.00 (0.059 in.) |
Groove Dia. (Dg)
21.00
mm + 0.00 / - 0.06 (0.827 in.) |
Approx. Loose Circlip OD (Dr)
21.50
mm + 0.42 / - 0.13 |
|
||
| Material: Carbon Spring Steel Self Finish Groove Width (W): 1.60 mm + 0.08 / - 0.00 Standard: DIN472 | ||||||
|
Part Number: CCI-02000H-C Internal Retaining Rings - 20x1.5x21 mm - Carbon Spring Steel Self Finish
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
20.64
mm (0.813 in.) |
Clip Thickness (T)
1.07
mm +/- 0.075 (0.042 in.) |
Groove Dia. (Dg)
21.89
mm + 0.00 / - 0.06 (0.862 in.) |
Approx. Loose Circlip OD (Dr)
22.89
mm + 0.38 / - 0.25 |
Groove Width (W)
1.17
mm + 0.08 / - 0.00 |
|
|
| Material: Carbon Steel Clearance in Bore (C): 12.45 mm Clearance in Groove (C1): 13.46 mm Min. Lug Diameter (h): 1.52 mm Min. Extension (n): 1.91 Standard: MIL-16625 | ||||||
|
Part Number: CCI-02064-C (100 Pcs) Internal Retaining Rings - 20.64x1.07x21.89 mm - Carbon Steel
Out of Stock | Backorder Now | Orders can be expected around Sun, Jun 08, 2025 Regular price
$55.68 AUD
Regular price
Unit price
per
Per 100
|
||||||
|
Housing Bore (B)
20.64
mm (0.813 in.) |
Clip Thickness (T)
1.07
mm +/- 0.075 (0.042 in.) |
Groove Dia. (Dg)
21.89
mm + 0.00 / - 0.06 (0.862 in.) |
Approx. Loose Circlip OD (Dr)
22.89
mm + 0.38 / - 0.25 |
|
||
| Material: Carbon Steel Groove Width (W): 1.17 mm + 0.08 / - 0.00 Clearance in Bore (C): 12.45 mm Clearance in Groove (C1): 13.46 mm Min. Lug Diameter (h): 1.52 mm Min. Extension (n): 1.91 Standard: MIL-16625 | ||||||
|
Part Number: CCI-02064-C (100 Pcs) Internal Retaining Rings - 20.64x1.07x21.89 mm - Carbon Steel
Out of Stock | Backorder Now | Orders can be expected around Sun, Jun 08, 2025 Regular price
$55.68 AUD
Regular price
Unit price
per
Per 100
|
||||||
|
||||||
|
Housing Bore (B)
21.00
mm (0.827 in.) |
Clip Thickness (T)
1.00
mm + 0.13 / - 0.00 (0.039 in.) |
Groove Dia. (Dg)
22.00
mm + 0.00 / - 0.06 (0.866 in.) |
Approx. Loose Circlip OD (Dr)
22.50
mm + 0.42 / - 0.13 |
Groove Width (W)
1.10
mm + 0.08 / - 0.00 |
|
|
| Material: Carbon Steel Clearance in Bore (C): 12.20 mm Clearance in Groove (C1): 13.60 mm Min. Lug Diameter (h): 2.00 mm Min. Extension (n): 1.50 Standard: DIN472 | ||||||
|
Part Number: CCI-02100-C (20 Pcs) Internal Retaining Rings - 21x1x22 mm - Carbon Steel
Out of Stock | Backorder Now | Orders can be expected around Sun, Jun 08, 2025 Regular price
$7.23 AUD
Regular price
Unit price
per
Per 20
|
||||||
|
Housing Bore (B)
21.00
mm (0.827 in.) |
Clip Thickness (T)
1.00
mm + 0.13 / - 0.00 (0.039 in.) |
Groove Dia. (Dg)
22.00
mm + 0.00 / - 0.06 (0.866 in.) |
Approx. Loose Circlip OD (Dr)
22.50
mm + 0.42 / - 0.13 |
|
||
| Material: Carbon Steel Groove Width (W): 1.10 mm + 0.08 / - 0.00 Clearance in Bore (C): 12.20 mm Clearance in Groove (C1): 13.60 mm Min. Lug Diameter (h): 2.00 mm Min. Extension (n): 1.50 Standard: DIN472 | ||||||
|
Part Number: CCI-02100-C (20 Pcs) Internal Retaining Rings - 21x1x22 mm - Carbon Steel
Out of Stock | Backorder Now | Orders can be expected around Sun, Jun 08, 2025 Regular price
$7.23 AUD
Regular price
Unit price
per
Per 20
|
||||||
|
||||||
|
Housing Bore (B)
22.00
mm (0.866 in.) |
Clip Thickness (T)
1.00
mm +/- 0.075 (0.039 in.) |
Groove Dia. (Dg)
23.00
mm + 0.00 / - 0.06 (0.906 in.) |
Approx. Loose Circlip OD (Dr)
23.50
mm + 0.38 / - 0.25 |
Groove Width (W)
1.17
mm + 0.08 / - 0.00 |
|
|
| Material: Carbon Steel Clearance in Bore (C): 13.20 mm Clearance in Groove (C1): 14.60 mm Min. Lug Diameter (h): 2.00 mm Min. Extension (n): 1.50 Standard: MIL-16625 | ||||||
|
Part Number: CCI-02200N-C (10 Pcs) Internal Retaining Rings - 22x1x23 mm - Carbon Steel
7 units (70 pcs) Available Immediately | Further orders can be expected around Sun, Jun 08, 2025 Regular price
$6.14 AUD
Regular price
Unit price
per
Per 10
|
||||||
|
Housing Bore (B)
22.00
mm (0.866 in.) |
Clip Thickness (T)
1.00
mm +/- 0.075 (0.039 in.) |
Groove Dia. (Dg)
23.00
mm + 0.00 / - 0.06 (0.906 in.) |
Approx. Loose Circlip OD (Dr)
23.50
mm + 0.38 / - 0.25 |
|
||
| Material: Carbon Steel Groove Width (W): 1.17 mm + 0.08 / - 0.00 Clearance in Bore (C): 13.20 mm Clearance in Groove (C1): 14.60 mm Min. Lug Diameter (h): 2.00 mm Min. Extension (n): 1.50 Standard: MIL-16625 | ||||||
|
Part Number: CCI-02200N-C (10 Pcs) Internal Retaining Rings - 22x1x23 mm - Carbon Steel
7 units (70 pcs) Available Immediately | Further orders can be expected around Sun, Jun 08, 2025 Regular price
$6.14 AUD
Regular price
Unit price
per
Per 10
|
||||||
|
||||||
|
Housing Bore (B)
22.00
mm (0.866 in.) |
Clip Thickness (T)
1.07
mm + 0.13 / - 0.00 (0.042 in.) |
Groove Dia. (Dg)
23.37
mm + 0.00 / - 0.06 (0.92 in.) |
Approx. Loose Circlip OD (Dr)
24.41
mm + 0.42 / - 0.13 |
Groove Width (W)
1.10
mm + 0.08 / - 0.00 |
|
|
| Material: Carbon Steel Clearance in Bore (C): 13.72 mm Clearance in Groove (C1): 14.99 mm Min. Lug Diameter (h): 1.52 mm Min. Extension (n): 2.06 Standard: DIN472 | ||||||
|
Part Number: CCI-02200-C (20 Pcs) Internal Retaining Rings - 22x1.07x23.37 mm - Carbon Steel
1 pack (20 pcs) Available Immediately | Further orders can be expected around Sun, Jun 08, 2025 Regular price
$7.23 AUD
Regular price
Unit price
per
Per 20
|
||||||
|
Housing Bore (B)
22.00
mm (0.866 in.) |
Clip Thickness (T)
1.07
mm + 0.13 / - 0.00 (0.042 in.) |
Groove Dia. (Dg)
23.37
mm + 0.00 / - 0.06 (0.92 in.) |
Approx. Loose Circlip OD (Dr)
24.41
mm + 0.42 / - 0.13 |
|
||
| Material: Carbon Steel Groove Width (W): 1.10 mm + 0.08 / - 0.00 Clearance in Bore (C): 13.72 mm Clearance in Groove (C1): 14.99 mm Min. Lug Diameter (h): 1.52 mm Min. Extension (n): 2.06 Standard: DIN472 | ||||||
|
Part Number: CCI-02200-C (20 Pcs) Internal Retaining Rings - 22x1.07x23.37 mm - Carbon Steel
1 pack (20 pcs) Available Immediately | Further orders can be expected around Sun, Jun 08, 2025 Regular price
$7.23 AUD
Regular price
Unit price
per
Per 20
|
||||||
|
||||||
|
Housing Bore (B)
22.00
mm (0.866 in.) |
Clip Thickness (T)
1.50
mm + 0.15 / - 0.00 (0.059 in.) |
Groove Dia. (Dg)
23.00
mm + 0.00 / - 0.06 (0.906 in.) |
Approx. Loose Circlip OD (Dr)
24.41
mm + 0.42 / - 0.13 |
Groove Width (W)
1.60
mm + 0.08 / - 0.00 |
|
|
| Material: Carbon Spring Steel Self Finish Standard: DIN472 | ||||||
|
Part Number: CCI-02200H-C Internal Retaining Rings - 22x1.5x23 mm - Carbon Spring Steel Self Finish
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
22.00
mm (0.866 in.) |
Clip Thickness (T)
1.50
mm + 0.15 / - 0.00 (0.059 in.) |
Groove Dia. (Dg)
23.00
mm + 0.00 / - 0.06 (0.906 in.) |
Approx. Loose Circlip OD (Dr)
24.41
mm + 0.42 / - 0.13 |
|
||
| Material: Carbon Spring Steel Self Finish Groove Width (W): 1.60 mm + 0.08 / - 0.00 Standard: DIN472 | ||||||
|
Part Number: CCI-02200H-C Internal Retaining Rings - 22x1.5x23 mm - Carbon Spring Steel Self Finish
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
22.23
mm (0.875 in.) |
Clip Thickness (T)
1.07
mm +/- 0.075 (0.042 in.) |
Groove Dia. (Dg)
23.65
mm + 0.00 / - 0.06 (0.931 in.) |
Approx. Loose Circlip OD (Dr)
24.66
mm + 0.38 / - 0.25 |
Groove Width (W)
1.17
mm + 0.08 / - 0.00 |
|
|
| Material: Carbon Steel Clearance in Bore (C): 13.97 mm Clearance in Groove (C1): 15.24 mm Min. Lug Diameter (h): 1.52 mm Min. Extension (n): 2.13 Standard: MIL-16625 | ||||||
|
Part Number: CCI-02223-C (100 Pcs) Internal Retaining Rings - 22.23x1.07x23.65 mm - Carbon Steel
Out of Stock | Backorder Now | Orders can be expected around Sun, Jun 08, 2025 Regular price
$61.95 AUD
Regular price
Unit price
per
Per 100
|
||||||
|
Housing Bore (B)
22.23
mm (0.875 in.) |
Clip Thickness (T)
1.07
mm +/- 0.075 (0.042 in.) |
Groove Dia. (Dg)
23.65
mm + 0.00 / - 0.06 (0.931 in.) |
Approx. Loose Circlip OD (Dr)
24.66
mm + 0.38 / - 0.25 |
|
||
| Material: Carbon Steel Groove Width (W): 1.17 mm + 0.08 / - 0.00 Clearance in Bore (C): 13.97 mm Clearance in Groove (C1): 15.24 mm Min. Lug Diameter (h): 1.52 mm Min. Extension (n): 2.13 Standard: MIL-16625 | ||||||
|
Part Number: CCI-02223-C (100 Pcs) Internal Retaining Rings - 22.23x1.07x23.65 mm - Carbon Steel
Out of Stock | Backorder Now | Orders can be expected around Sun, Jun 08, 2025 Regular price
$61.95 AUD
Regular price
Unit price
per
Per 100
|
||||||
|
||||||
|
Housing Bore (B)
22.89
mm (0.901 in.) |
Clip Thickness (T)
1.07
mm +/- 0.075 (0.042 in.) |
Groove Dia. (Dg)
24.36
mm + 0.00 / - 0.06 (0.959 in.) |
Approx. Loose Circlip OD (Dr)
25.40
mm + 0.38 / - 0.25 |
Groove Width (W)
1.17
mm + 0.08 / - 0.00 |
|
|
| Material: Carbon Steel Clearance in Bore (C): 14.73 mm Clearance in Groove (C1): 16.00 mm Min. Lug Diameter (h): 1.52 mm Min. Extension (n): 2.21 Standard: MIL-16625 | ||||||
|
Part Number: CCI-02289-C (100 Pcs) Internal Retaining Rings - 22.89x1.07x24.36 mm - Carbon Steel
Out of Stock | Backorder Now | Orders can be expected around Sun, Jun 08, 2025 Regular price
$203.32 AUD
Regular price
Unit price
per
Per 100
|
||||||
|
Housing Bore (B)
22.89
mm (0.901 in.) |
Clip Thickness (T)
1.07
mm +/- 0.075 (0.042 in.) |
Groove Dia. (Dg)
24.36
mm + 0.00 / - 0.06 (0.959 in.) |
Approx. Loose Circlip OD (Dr)
25.40
mm + 0.38 / - 0.25 |
|
||
| Material: Carbon Steel Groove Width (W): 1.17 mm + 0.08 / - 0.00 Clearance in Bore (C): 14.73 mm Clearance in Groove (C1): 16.00 mm Min. Lug Diameter (h): 1.52 mm Min. Extension (n): 2.21 Standard: MIL-16625 | ||||||
|
Part Number: CCI-02289-C (100 Pcs) Internal Retaining Rings - 22.89x1.07x24.36 mm - Carbon Steel
Out of Stock | Backorder Now | Orders can be expected around Sun, Jun 08, 2025 Regular price
$203.32 AUD
Regular price
Unit price
per
Per 100
|
||||||
|
||||||
|
Housing Bore (B)
23.00
mm (0.906 in.) |
Clip Thickness (T)
1.20
mm + 0.21 / - 0.00 (0.047 in.) |
Groove Dia. (Dg)
24.10
mm + 0.00 / - 0.06 (0.949 in.) |
Approx. Loose Circlip OD (Dr)
24.60
mm + 0.42 / - 0.21 |
Groove Width (W)
1.30
mm + 0.08 / - 0.00 |
|
|
| Material: Carbon Steel Clearance in Bore (C): 14.20 mm Clearance in Groove (C1): 15.70 mm Min. Lug Diameter (h): 2.00 mm Min. Extension (n): 1.70 Standard: DIN472 | ||||||
|
Part Number: CCI-02300-C (20 Pcs) Internal Retaining Rings - 23x1.2x24.1 mm - Carbon Steel
21 units (420 pcs) Available Immediately | Further orders can be expected around Sun, Jun 08, 2025 Regular price
$7.95 AUD
Regular price
Unit price
per
Per 20
|
||||||
|
Housing Bore (B)
23.00
mm (0.906 in.) |
Clip Thickness (T)
1.20
mm + 0.21 / - 0.00 (0.047 in.) |
Groove Dia. (Dg)
24.10
mm + 0.00 / - 0.06 (0.949 in.) |
Approx. Loose Circlip OD (Dr)
24.60
mm + 0.42 / - 0.21 |
|
||
| Material: Carbon Steel Groove Width (W): 1.30 mm + 0.08 / - 0.00 Clearance in Bore (C): 14.20 mm Clearance in Groove (C1): 15.70 mm Min. Lug Diameter (h): 2.00 mm Min. Extension (n): 1.70 Standard: DIN472 | ||||||
|
Part Number: CCI-02300-C (20 Pcs) Internal Retaining Rings - 23x1.2x24.1 mm - Carbon Steel
21 units (420 pcs) Available Immediately | Further orders can be expected around Sun, Jun 08, 2025 Regular price
$7.95 AUD
Regular price
Unit price
per
Per 20
|
||||||
|
||||||
|
Housing Bore (B)
23.81
mm (0.937 in.) |
Clip Thickness (T)
1.07
mm +/- 0.075 (0.042 in.) |
Groove Dia. (Dg)
25.40
mm + 0.00 / - 0.06 (1 in.) |
Approx. Loose Circlip OD (Dr)
26.44
mm + 0.38 / - 0.25 |
Groove Width (W)
1.17
mm + 0.08 / - 0.00 |
|
|
| Material: Carbon Steel Clearance in Bore (C): 15.49 mm Clearance in Groove (C1): 17.02 mm Min. Lug Diameter (h): 1.52 mm Min. Extension (n): 2.36 Standard: MIL-16625 | ||||||
|
Part Number: CCI-02381-C (10 Pcs) Internal Retaining Rings - 23.81x1.07x25.4 mm - Carbon Steel
126 units (1260 pcs) Available Immediately | Further orders can be expected around Sun, Jun 08, 2025 Regular price
$6.59 AUD
Regular price
Unit price
per
Per 10
|
||||||
|
Housing Bore (B)
23.81
mm (0.937 in.) |
Clip Thickness (T)
1.07
mm +/- 0.075 (0.042 in.) |
Groove Dia. (Dg)
25.40
mm + 0.00 / - 0.06 (1 in.) |
Approx. Loose Circlip OD (Dr)
26.44
mm + 0.38 / - 0.25 |
|
||
| Material: Carbon Steel Groove Width (W): 1.17 mm + 0.08 / - 0.00 Clearance in Bore (C): 15.49 mm Clearance in Groove (C1): 17.02 mm Min. Lug Diameter (h): 1.52 mm Min. Extension (n): 2.36 Standard: MIL-16625 | ||||||
|
Part Number: CCI-02381-C (10 Pcs) Internal Retaining Rings - 23.81x1.07x25.4 mm - Carbon Steel
126 units (1260 pcs) Available Immediately | Further orders can be expected around Sun, Jun 08, 2025 Regular price
$6.59 AUD
Regular price
Unit price
per
Per 10
|
||||||
|
||||||
|
Housing Bore (B)
24.00
mm (0.945 in.) |
Clip Thickness (T)
1.20
mm + 0.21 / - 0.00 (0.047 in.) |
Groove Dia. (Dg)
25.20
mm + 0.00 / - 0.06 (0.992 in.) |
Approx. Loose Circlip OD (Dr)
25.90
mm + 0.42 / - 0.21 |
Groove Width (W)
1.30
mm + 0.08 / - 0.00 |
|
|
| Material: Carbon Steel Clearance in Bore (C): 14.80 mm Clearance in Groove (C1): 16.40 mm Min. Lug Diameter (h): 2.00 mm Min. Extension (n): 1.80 Standard: DIN472 | ||||||
|
Part Number: CCI-02400-C (20 Pcs) Internal Retaining Rings - 24x1.2x25.2 mm - Carbon Steel
21 units (420 pcs) Available Immediately | Further orders can be expected around Sun, Jun 08, 2025 Regular price
$8.14 AUD
Regular price
Unit price
per
Per 20
|
||||||
|
Housing Bore (B)
24.00
mm (0.945 in.) |
Clip Thickness (T)
1.20
mm + 0.21 / - 0.00 (0.047 in.) |
Groove Dia. (Dg)
25.20
mm + 0.00 / - 0.06 (0.992 in.) |
Approx. Loose Circlip OD (Dr)
25.90
mm + 0.42 / - 0.21 |
|
||
| Material: Carbon Steel Groove Width (W): 1.30 mm + 0.08 / - 0.00 Clearance in Bore (C): 14.80 mm Clearance in Groove (C1): 16.40 mm Min. Lug Diameter (h): 2.00 mm Min. Extension (n): 1.80 Standard: DIN472 | ||||||
|
Part Number: CCI-02400-C (20 Pcs) Internal Retaining Rings - 24x1.2x25.2 mm - Carbon Steel
21 units (420 pcs) Available Immediately | Further orders can be expected around Sun, Jun 08, 2025 Regular price
$8.14 AUD
Regular price
Unit price
per
Per 20
|
||||||
|
||||||
|
Housing Bore (B)
24.00
mm (0.945 in.) |
Clip Thickness (T)
1.50
mm + 0.21 / - 0.00 (0.059 in.) |
Groove Dia. (Dg)
25.20
mm + 0.00 / - 0.06 (0.992 in.) |
Approx. Loose Circlip OD (Dr)
25.90
mm + 0.42 / - 0.21 |
Groove Width (W)
1.60
mm + 0.08 / - 0.00 |
|
|
| Material: Carbon Spring Steel Self Finish Standard: DIN472 | ||||||
|
Part Number: CCI-02400H-C Internal Retaining Rings - 24x1.5x25.2 mm - Carbon Spring Steel Self Finish
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
24.00
mm (0.945 in.) |
Clip Thickness (T)
1.50
mm + 0.21 / - 0.00 (0.059 in.) |
Groove Dia. (Dg)
25.20
mm + 0.00 / - 0.06 (0.992 in.) |
Approx. Loose Circlip OD (Dr)
25.90
mm + 0.42 / - 0.21 |
|
||
| Material: Carbon Spring Steel Self Finish Groove Width (W): 1.60 mm + 0.08 / - 0.00 Standard: DIN472 | ||||||
|
Part Number: CCI-02400H-C Internal Retaining Rings - 24x1.5x25.2 mm - Carbon Spring Steel Self Finish
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
25.00
mm (0.984 in.) |
Clip Thickness (T)
1.20
mm + 0.21 / - 0.00 (0.047 in.) |
Groove Dia. (Dg)
26.20
mm + 0.00 / - 0.06 (1.031 in.) |
Approx. Loose Circlip OD (Dr)
26.90
mm + 0.42 / - 0.21 |
Groove Width (W)
1.30
mm + 0.08 / - 0.00 |
|
|
| Material: Carbon Steel Clearance in Bore (C): 15.50 mm Clearance in Groove (C1): 17.20 mm Min. Lug Diameter (h): 2.00 mm Min. Extension (n): 1.80 Standard: DIN472 | ||||||
|
Part Number: CCI-02500-C (20 Pcs) Internal Retaining Rings - 25x1.2x26.2 mm - Carbon Steel
7 units (140 pcs) Available Immediately | Further orders can be expected around Sun, Jun 08, 2025 Regular price
$9.68 AUD
Regular price
Unit price
per
Per 20
|
||||||
|
Housing Bore (B)
25.00
mm (0.984 in.) |
Clip Thickness (T)
1.20
mm + 0.21 / - 0.00 (0.047 in.) |
Groove Dia. (Dg)
26.20
mm + 0.00 / - 0.06 (1.031 in.) |
Approx. Loose Circlip OD (Dr)
26.90
mm + 0.42 / - 0.21 |
|
||
| Material: Carbon Steel Groove Width (W): 1.30 mm + 0.08 / - 0.00 Clearance in Bore (C): 15.50 mm Clearance in Groove (C1): 17.20 mm Min. Lug Diameter (h): 2.00 mm Min. Extension (n): 1.80 Standard: DIN472 | ||||||
|
Part Number: CCI-02500-C (20 Pcs) Internal Retaining Rings - 25x1.2x26.2 mm - Carbon Steel
7 units (140 pcs) Available Immediately | Further orders can be expected around Sun, Jun 08, 2025 Regular price
$9.68 AUD
Regular price
Unit price
per
Per 20
|
||||||
|
||||||
|
Housing Bore (B)
25.40
mm (1 in.) |
Clip Thickness (T)
1.07
mm +/- 0.075 (0.042 in.) |
Groove Dia. (Dg)
27.08
mm + 0.00 / - 0.06 (1.066 in.) |
Approx. Loose Circlip OD (Dr)
28.22
mm + 0.38 / - 0.25 |
Groove Width (W)
1.17
mm + 0.08 / - 0.00 |
|
|
| Material: Carbon Steel Clearance in Bore (C): 17.27 mm Clearance in Groove (C1): 18.80 mm Min. Lug Diameter (h): 1.52 mm Min. Extension (n): 2.51 Standard: MIL-16625 | ||||||
|
Part Number: CCI-02540-C (10 Pcs) Internal Retaining Rings - 25.4x1.07x27.08 mm - Carbon Steel
10 units (100 pcs) Available Immediately | Further orders can be expected around Sun, Jun 08, 2025 Regular price
$7.77 AUD
Regular price
Unit price
per
Per 10
|
||||||
|
Housing Bore (B)
25.40
mm (1 in.) |
Clip Thickness (T)
1.07
mm +/- 0.075 (0.042 in.) |
Groove Dia. (Dg)
27.08
mm + 0.00 / - 0.06 (1.066 in.) |
Approx. Loose Circlip OD (Dr)
28.22
mm + 0.38 / - 0.25 |
|
||
| Material: Carbon Steel Groove Width (W): 1.17 mm + 0.08 / - 0.00 Clearance in Bore (C): 17.27 mm Clearance in Groove (C1): 18.80 mm Min. Lug Diameter (h): 1.52 mm Min. Extension (n): 2.51 Standard: MIL-16625 | ||||||
|
Part Number: CCI-02540-C (10 Pcs) Internal Retaining Rings - 25.4x1.07x27.08 mm - Carbon Steel
10 units (100 pcs) Available Immediately | Further orders can be expected around Sun, Jun 08, 2025 Regular price
$7.77 AUD
Regular price
Unit price
per
Per 10
|
||||||
|
||||||
|
Housing Bore (B)
25.98
mm (1.023 in.) |
Clip Thickness (T)
1.07
mm +/- 0.075 (0.042 in.) |
Groove Dia. (Dg)
27.71
mm + 0.00 / - 0.06 (1.091 in.) |
Approx. Loose Circlip OD (Dr)
28.85
mm + 0.38 / - 0.25 |
Groove Width (W)
1.17
mm + 0.08 / - 0.00 |
|
|
| Material: Carbon Steel Clearance in Bore (C): 17.78 mm Clearance in Groove (C1): 19.30 mm Min. Lug Diameter (h): 1.52 mm Min. Extension (n): 2.59 Standard: MIL-16625 | ||||||
|
Part Number: CCI-02598-C (50 Pcs) Internal Retaining Rings - 25.98x1.07x27.71 mm - Carbon Steel
Out of Stock | Backorder Now | Orders can be expected around Sun, Jun 08, 2025 Regular price
$38.05 AUD
Regular price
Unit price
per
Per 50
|
||||||
|
Housing Bore (B)
25.98
mm (1.023 in.) |
Clip Thickness (T)
1.07
mm +/- 0.075 (0.042 in.) |
Groove Dia. (Dg)
27.71
mm + 0.00 / - 0.06 (1.091 in.) |
Approx. Loose Circlip OD (Dr)
28.85
mm + 0.38 / - 0.25 |
|
||
| Material: Carbon Steel Groove Width (W): 1.17 mm + 0.08 / - 0.00 Clearance in Bore (C): 17.78 mm Clearance in Groove (C1): 19.30 mm Min. Lug Diameter (h): 1.52 mm Min. Extension (n): 2.59 Standard: MIL-16625 | ||||||
|
Part Number: CCI-02598-C (50 Pcs) Internal Retaining Rings - 25.98x1.07x27.71 mm - Carbon Steel
Out of Stock | Backorder Now | Orders can be expected around Sun, Jun 08, 2025 Regular price
$38.05 AUD
Regular price
Unit price
per
Per 50
|
||||||
|
||||||
|
Housing Bore (B)
26.00
mm (1.024 in.) |
Clip Thickness (T)
1.20
mm + 0.21 / - 0.00 (0.047 in.) |
Groove Dia. (Dg)
27.20
mm + 0.00 / - 0.06 (1.071 in.) |
Approx. Loose Circlip OD (Dr)
27.90
mm + 0.42 / - 0.21 |
Groove Width (W)
1.30
mm + 0.08 / - 0.00 |
|
|
| Material: Carbon Steel Clearance in Bore (C): 16.10 mm Clearance in Groove (C1): 17.80 mm Min. Lug Diameter (h): 2.00 mm Min. Extension (n): 1.80 Standard: DIN472 | ||||||
|
Part Number: CCI-02600-C (20 Pcs) Internal Retaining Rings - 26x1.2x27.2 mm - Carbon Steel
Out of Stock | Backorder Now | Orders can be expected around Sun, Jun 08, 2025 Regular price
$10.23 AUD
Regular price
Unit price
per
Per 20
|
||||||
|
Housing Bore (B)
26.00
mm (1.024 in.) |
Clip Thickness (T)
1.20
mm + 0.21 / - 0.00 (0.047 in.) |
Groove Dia. (Dg)
27.20
mm + 0.00 / - 0.06 (1.071 in.) |
Approx. Loose Circlip OD (Dr)
27.90
mm + 0.42 / - 0.21 |
|
||
| Material: Carbon Steel Groove Width (W): 1.30 mm + 0.08 / - 0.00 Clearance in Bore (C): 16.10 mm Clearance in Groove (C1): 17.80 mm Min. Lug Diameter (h): 2.00 mm Min. Extension (n): 1.80 Standard: DIN472 | ||||||
|
Part Number: CCI-02600-C (20 Pcs) Internal Retaining Rings - 26x1.2x27.2 mm - Carbon Steel
Out of Stock | Backorder Now | Orders can be expected around Sun, Jun 08, 2025 Regular price
$10.23 AUD
Regular price
Unit price
per
Per 20
|
||||||
|
||||||
|
Housing Bore (B)
26.00
mm (1.024 in.) |
Clip Thickness (T)
1.50
mm + 0.21 / - 0.00 (0.059 in.) |
Groove Dia. (Dg)
27.20
mm + 0.00 / - 0.06 (1.071 in.) |
Approx. Loose Circlip OD (Dr)
27.90
mm + 0.42 / - 0.21 |
Groove Width (W)
1.60
mm + 0.10 / - 0.00 |
|
|
| Material: Carbon Spring Steel Self Finish Standard: DIN472 | ||||||
|
Part Number: CCI-02600H-C Internal Retaining Rings - 26x1.5x27.2 mm - Carbon Spring Steel Self Finish
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
26.00
mm (1.024 in.) |
Clip Thickness (T)
1.50
mm + 0.21 / - 0.00 (0.059 in.) |
Groove Dia. (Dg)
27.20
mm + 0.00 / - 0.06 (1.071 in.) |
Approx. Loose Circlip OD (Dr)
27.90
mm + 0.42 / - 0.21 |
|
||
| Material: Carbon Spring Steel Self Finish Groove Width (W): 1.60 mm + 0.10 / - 0.00 Standard: DIN472 | ||||||
|
Part Number: CCI-02600H-C Internal Retaining Rings - 26x1.5x27.2 mm - Carbon Spring Steel Self Finish
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
26.99
mm (1.063 in.) |
Clip Thickness (T)
1.27
mm +/- 0.102 (0.05 in.) |
Groove Dia. (Dg)
28.70
mm + 0.00 / - 0.06 (1.13 in.) |
Approx. Loose Circlip OD (Dr)
29.97
mm + 0.64 / - 0.38 |
Groove Width (W)
1.42
mm + 0.10 / - 0.00 |
|
|
| Material: Carbon Steel Clearance in Bore (C): 17.53 mm Clearance in Groove (C1): 19.05 mm Min. Lug Diameter (h): 1.93 mm Min. Extension (n): 2.59 Standard: MIL-16625 | ||||||
|
Part Number: CCI-02699-C (50 Pcs) Internal Retaining Rings - 26.99x1.27x28.7 mm - Carbon Steel
Out of Stock | Backorder Now | Orders can be expected around Sun, Jun 08, 2025 Regular price
$34.95 AUD
Regular price
Unit price
per
Per 50
|
||||||
|
Housing Bore (B)
26.99
mm (1.063 in.) |
Clip Thickness (T)
1.27
mm +/- 0.102 (0.05 in.) |
Groove Dia. (Dg)
28.70
mm + 0.00 / - 0.06 (1.13 in.) |
Approx. Loose Circlip OD (Dr)
29.97
mm + 0.64 / - 0.38 |
|
||
| Material: Carbon Steel Groove Width (W): 1.42 mm + 0.10 / - 0.00 Clearance in Bore (C): 17.53 mm Clearance in Groove (C1): 19.05 mm Min. Lug Diameter (h): 1.93 mm Min. Extension (n): 2.59 Standard: MIL-16625 | ||||||
|
Part Number: CCI-02699-C (50 Pcs) Internal Retaining Rings - 26.99x1.27x28.7 mm - Carbon Steel
Out of Stock | Backorder Now | Orders can be expected around Sun, Jun 08, 2025 Regular price
$34.95 AUD
Regular price
Unit price
per
Per 50
|
||||||
|
||||||
|
Housing Bore (B)
27.00
mm (1.063 in.) |
Clip Thickness (T)
1.20
mm + 0.21 / - 0.00 (0.047 in.) |
Groove Dia. (Dg)
28.40
mm + 0.00 / - 0.06 (1.118 in.) |
Approx. Loose Circlip OD (Dr)
29.10
mm + 0.50 / - 0.25 |
Groove Width (W)
1.30
mm + 0.10 / - 0.00 |
|
|
| Material: Carbon Steel Clearance in Bore (C): 17.10 mm Clearance in Groove (C1): 19.00 mm Min. Lug Diameter (h): 2.00 mm Min. Extension (n): 2.10 Standard: DIN472 | ||||||
|
Part Number: CCI-02700-C (10 Pcs) Internal Retaining Rings - 27x1.2x28.4 mm - Carbon Steel
29 units (290 pcs) Available Immediately | Further orders can be expected around Sun, Jun 08, 2025 Regular price
$6.59 AUD
Regular price
Unit price
per
Per 10
|
||||||
|
Housing Bore (B)
27.00
mm (1.063 in.) |
Clip Thickness (T)
1.20
mm + 0.21 / - 0.00 (0.047 in.) |
Groove Dia. (Dg)
28.40
mm + 0.00 / - 0.06 (1.118 in.) |
Approx. Loose Circlip OD (Dr)
29.10
mm + 0.50 / - 0.25 |
|
||
| Material: Carbon Steel Groove Width (W): 1.30 mm + 0.10 / - 0.00 Clearance in Bore (C): 17.10 mm Clearance in Groove (C1): 19.00 mm Min. Lug Diameter (h): 2.00 mm Min. Extension (n): 2.10 Standard: DIN472 | ||||||
|
Part Number: CCI-02700-C (10 Pcs) Internal Retaining Rings - 27x1.2x28.4 mm - Carbon Steel
29 units (290 pcs) Available Immediately | Further orders can be expected around Sun, Jun 08, 2025 Regular price
$6.59 AUD
Regular price
Unit price
per
Per 10
|
||||||
|
||||||
|
Housing Bore (B)
27.00
mm (1.063 in.) |
Clip Thickness (T)
1.50
mm + 0.21 / - 0.00 (0.059 in.) |
Groove Dia. (Dg)
28.40
mm + 0.00 / - 0.06 (1.118 in.) |
Approx. Loose Circlip OD (Dr)
29.10
mm + 0.50 / - 0.25 |
Groove Width (W)
1.60
mm + 0.10 / - 0.00 |
|
|
| Material: Carbon Spring Steel Self Finish Standard: DIN472 | ||||||
|
Part Number: CCI-02700H-C Internal Retaining Rings - 27x1.5x28.4 mm - Carbon Spring Steel Self Finish
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
27.00
mm (1.063 in.) |
Clip Thickness (T)
1.50
mm + 0.21 / - 0.00 (0.059 in.) |
Groove Dia. (Dg)
28.40
mm + 0.00 / - 0.06 (1.118 in.) |
Approx. Loose Circlip OD (Dr)
29.10
mm + 0.50 / - 0.25 |
|
||
| Material: Carbon Spring Steel Self Finish Groove Width (W): 1.60 mm + 0.10 / - 0.00 Standard: DIN472 | ||||||
|
Part Number: CCI-02700H-C Internal Retaining Rings - 27x1.5x28.4 mm - Carbon Spring Steel Self Finish
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
28.00
mm (1.102 in.) |
Clip Thickness (T)
1.20
mm + 0.21 / - 0.00 (0.047 in.) |
Groove Dia. (Dg)
29.40
mm + 0.00 / - 0.06 (1.157 in.) |
Approx. Loose Circlip OD (Dr)
30.10
mm + 0.50 / - 0.25 |
Groove Width (W)
1.30
mm + 0.10 / - 0.00 |
|
|
| Material: Carbon Steel Clearance in Bore (C): 17.90 mm Clearance in Groove (C1): 19.80 mm Min. Lug Diameter (h): 2.00 mm Min. Extension (n): 2.10 Standard: DIN472 | ||||||
|
Part Number: CCI-02800-C (10 Pcs) Internal Retaining Rings - 28x1.2x29.4 mm - Carbon Steel
47 units (470 pcs) Available Immediately | Further orders can be expected around Sun, Jun 08, 2025 Regular price
$6.59 AUD
Regular price
Unit price
per
Per 10
|
||||||
|
Housing Bore (B)
28.00
mm (1.102 in.) |
Clip Thickness (T)
1.20
mm + 0.21 / - 0.00 (0.047 in.) |
Groove Dia. (Dg)
29.40
mm + 0.00 / - 0.06 (1.157 in.) |
Approx. Loose Circlip OD (Dr)
30.10
mm + 0.50 / - 0.25 |
|
||
| Material: Carbon Steel Groove Width (W): 1.30 mm + 0.10 / - 0.00 Clearance in Bore (C): 17.90 mm Clearance in Groove (C1): 19.80 mm Min. Lug Diameter (h): 2.00 mm Min. Extension (n): 2.10 Standard: DIN472 | ||||||
|
Part Number: CCI-02800-C (10 Pcs) Internal Retaining Rings - 28x1.2x29.4 mm - Carbon Steel
47 units (470 pcs) Available Immediately | Further orders can be expected around Sun, Jun 08, 2025 Regular price
$6.59 AUD
Regular price
Unit price
per
Per 10
|
||||||
|
||||||
|
Housing Bore (B)
28.00
mm (1.102 in.) |
Clip Thickness (T)
1.50
mm + 0.21 / - 0.00 (0.059 in.) |
Groove Dia. (Dg)
29.40
mm + 0.00 / - 0.06 (1.157 in.) |
Approx. Loose Circlip OD (Dr)
30.10
mm + 0.50 / - 0.25 |
Groove Width (W)
1.60
mm + 0.10 / - 0.00 |
|
|
| Material: Carbon Spring Steel Self Finish Standard: DIN472 | ||||||
|
Part Number: CCI-02800H-C Internal Retaining Rings - 28x1.5x29.4 mm - Carbon Spring Steel Self Finish
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
28.00
mm (1.102 in.) |
Clip Thickness (T)
1.50
mm + 0.21 / - 0.00 (0.059 in.) |
Groove Dia. (Dg)
29.40
mm + 0.00 / - 0.06 (1.157 in.) |
Approx. Loose Circlip OD (Dr)
30.10
mm + 0.50 / - 0.25 |
|
||
| Material: Carbon Spring Steel Self Finish Groove Width (W): 1.60 mm + 0.10 / - 0.00 Standard: DIN472 | ||||||
|
Part Number: CCI-02800H-C Internal Retaining Rings - 28x1.5x29.4 mm - Carbon Spring Steel Self Finish
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
28.58
mm (1.125 in.) |
Clip Thickness (T)
1.27
mm +/- 0.102 (0.05 in.) |
Groove Dia. (Dg)
30.40
mm + 0.00 / - 0.06 (1.197 in.) |
Approx. Loose Circlip OD (Dr)
31.72
mm + 0.64 / - 0.38 |
Groove Width (W)
1.42
mm + 0.10 / - 0.00 |
|
|
| Material: Carbon Steel Clearance in Bore (C): 19.05 mm Clearance in Groove (C1): 20.83 mm Min. Lug Diameter (h): 1.93 mm Min. Extension (n): 2.74 Standard: MIL-16625 | ||||||
|
Part Number: CCI-02858-C (10 Pcs) Internal Retaining Rings - 28.58x1.27x30.4 mm - Carbon Steel
40 units (400 pcs) Available Immediately | Further orders can be expected around Sun, Jun 08, 2025 Regular price
$7.23 AUD
Regular price
Unit price
per
Per 10
|
||||||
|
Housing Bore (B)
28.58
mm (1.125 in.) |
Clip Thickness (T)
1.27
mm +/- 0.102 (0.05 in.) |
Groove Dia. (Dg)
30.40
mm + 0.00 / - 0.06 (1.197 in.) |
Approx. Loose Circlip OD (Dr)
31.72
mm + 0.64 / - 0.38 |
|
||
| Material: Carbon Steel Groove Width (W): 1.42 mm + 0.10 / - 0.00 Clearance in Bore (C): 19.05 mm Clearance in Groove (C1): 20.83 mm Min. Lug Diameter (h): 1.93 mm Min. Extension (n): 2.74 Standard: MIL-16625 | ||||||
|
Part Number: CCI-02858-C (10 Pcs) Internal Retaining Rings - 28.58x1.27x30.4 mm - Carbon Steel
40 units (400 pcs) Available Immediately | Further orders can be expected around Sun, Jun 08, 2025 Regular price
$7.23 AUD
Regular price
Unit price
per
Per 10
|
||||||
|
||||||
