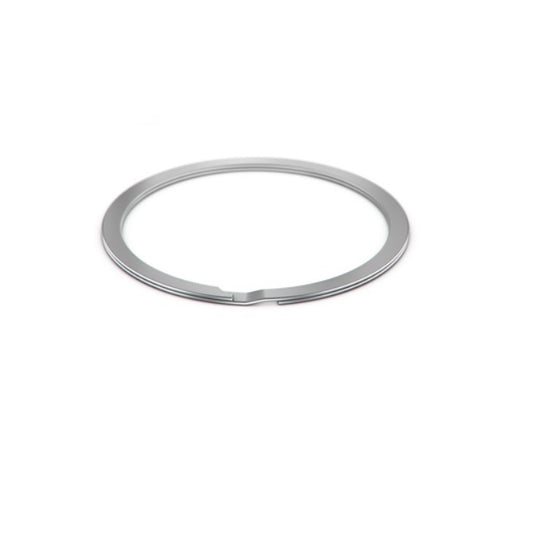

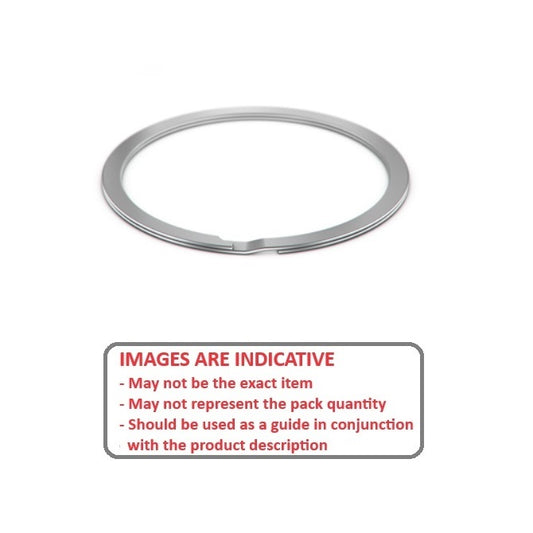

Retaining Rings - External - Spiral Rings - Medium-Heavy - Stainless Steel

2 Products in this selection
  • AME / WST / RST - Stainless Steel.
  • Originally designed to fit NAS50-51 grooves, this series is a popular OEM specification.
  • This two/three turn design is easier to install than the heavy duty RRN option.
  • Equivalent to Associated Spring: AME, Smalley: WST, Spirolox and Ramsey: RST
Additional resources:
Spiral Rings and Snap Rings PDF
A more concise listing may be found on the Smallparts store at Retaining Rings - External - Spiral Rings - Medium-Heavy - Stainless Steel. Smallparts promote the most popular MBA products.
Shaft Diameter (Ds) Clip Thickness (T) Groove Dia. (Dg) Approx. Loose Circlip ID (A) Radial Wall (S) min/max Groove Width (W) Indicative
Shaft Diameter (Ds)
19.05
mm

(0.75 in.)
Clip Thickness (T)
1.07
mm
+/- 0.05
(0.042 in.)
Groove Dia. (Dg)
18.16
mm

(0.715 in.)
Approx. Loose Circlip ID (A)
17.91
mm
+ 0.00 / - 0.33
Radial Wall (S) min/max
1.65
mm
+/- 0.10
Groove Width (W)
1.21
mm
+/- 0.08
External Retaining Rings - 19.05x1.07x18.16 mm - Stainless Steel 302/304 Similar to A2, 18-8
Material: Stainless Steel 302/304 (Similar to A2, 18-8)    Approx. Loose Clip OD: 21.21 +/- 0.04   Groove Depth (d): 0.46
Part Number: RST-075-S02 (25 Pcs) External Retaining Rings - 19.05x1.07x18.16 mm - Stainless Steel 302/304 Similar to A2, 18-8
Out of Stock | Backorder Now | Orders can be expected around Sat, Jun 07, 2025
$155.23 AUD
$155.23 AUD
Per 25
Shaft Diameter (Ds) Clip Thickness (T) Groove Dia. (Dg) Approx. Loose Circlip ID (A) Indicative
Shaft Diameter (Ds)
19.05
mm

(0.75 in.)
Clip Thickness (T)
1.07
mm
+/- 0.05
(0.042 in.)
Groove Dia. (Dg)
18.16
mm

(0.715 in.)
Approx. Loose Circlip ID (A)
17.91
mm
+ 0.00 / - 0.33
External Retaining Rings - 19.05x1.07x18.16 mm - Stainless Steel 302/304 Similar to A2, 18-8
Material: Stainless Steel 302/304 (Similar to A2, 18-8)    Radial Wall (S) min/max: 1.65 mm +/- 0.10    Groove Width (W): 1.21 mm +/- 0.08   Approx. Loose Clip OD: 21.21 +/- 0.04   Groove Depth (d): 0.46
Part Number: RST-075-S02 (25 Pcs) External Retaining Rings - 19.05x1.07x18.16 mm - Stainless Steel 302/304 Similar to A2, 18-8
Out of Stock | Backorder Now | Orders can be expected around Sat, Jun 07, 2025
$155.23 AUD
$155.23 AUD
Per 25
View the product page first if you are unsure.
Shaft Diameter (Ds)
31.75
mm

(1.25 in.)
Clip Thickness (T)
1.27
mm
+/- 0.05
(0.05 in.)
Groove Dia. (Dg)
30.35
mm

(1.195 in.)
Approx. Loose Circlip ID (A)
29.85
mm
+ 0.00 / - 0.38
Radial Wall (S) min/max
2.36
mm
+/- 0.10
Groove Width (W)
1.47
mm
+/- 0.10
External Retaining Rings - 31.75x1.27x30.35 mm - Stainless Steel 302/304 Similar to A2, 18-8
Material: Stainless Steel 302/304 (Similar to A2, 18-8)    Approx. Loose Clip OD: 34.57 +/- 0.05   Groove Depth (d): 0.71
Part Number: RST-125-S02 External Retaining Rings - 31.75x1.27x30.35 mm - Stainless Steel 302/304 Similar to A2, 18-8
Out of Stock | Backorder Now | Orders can be expected around Sat, Jun 07, 2025
$6.23 AUD
$6.23 AUD
Each
Shaft Diameter (Ds)
31.75
mm

(1.25 in.)
Clip Thickness (T)
1.27
mm
+/- 0.05
(0.05 in.)
Groove Dia. (Dg)
30.35
mm

(1.195 in.)
Approx. Loose Circlip ID (A)
29.85
mm
+ 0.00 / - 0.38
External Retaining Rings - 31.75x1.27x30.35 mm - Stainless Steel 302/304 Similar to A2, 18-8
Material: Stainless Steel 302/304 (Similar to A2, 18-8)    Radial Wall (S) min/max: 2.36 mm +/- 0.10    Groove Width (W): 1.47 mm +/- 0.10   Approx. Loose Clip OD: 34.57 +/- 0.05   Groove Depth (d): 0.71
Part Number: RST-125-S02 External Retaining Rings - 31.75x1.27x30.35 mm - Stainless Steel 302/304 Similar to A2, 18-8
Out of Stock | Backorder Now | Orders can be expected around Sat, Jun 07, 2025
$6.23 AUD
$6.23 AUD
Each
View the product page first if you are unsure.
