Collection: Retaining Rings - External - Spiral Rings - Heavy Duty

Retaining Rings (With Images)

External

Spiral Rings

Heavy Duty

84 Products in this selection

This is a combined category of Heavy Duty Spiral Rings External Retaining Rings.
Use the filters in the table below, or the category tree above to refine the selection. To order any item, simply click the part number for a full product page, then add to your cart.

Additional resources:
Spiral Rings and Snap Rings PDF

A more concise listing may be found on the Smallparts store at Retaining Rings - External - Spiral Rings - Heavy Duty. Smallparts promote the most popular MBA products.

Shaft Diameter (Ds)	Clip Thickness (T)	Groove Dia. (Dg)	Approx. Loose Circlip ID (A)	Radial Wall (S) min/max	Groove Width (W)	Indicative Image
Shaft Diameter (Ds) 46.02 mm _{(1.812 in.)}	Clip Thickness (T) 1.58 mm +/- 0.08 _{(0.062 in.)}	Groove Dia. (Dg) 43.39 mm _{(1.708 in.)}	Approx. Loose Circlip ID (A) 42.80 mm + 0.00 / - 0.51	Radial Wall (S) min/max 3.25 mm +/- 0.10	Groove Width (W) 1.78 mm +/- 0.13
Material: Spring Steel Approx. Loose Clip OD: 49.3 +/- 0.05 Groove Depth (d): 1.32 Category: Retaining Rings - External - Spiral Rings - Heavy Duty - Carbon Steel

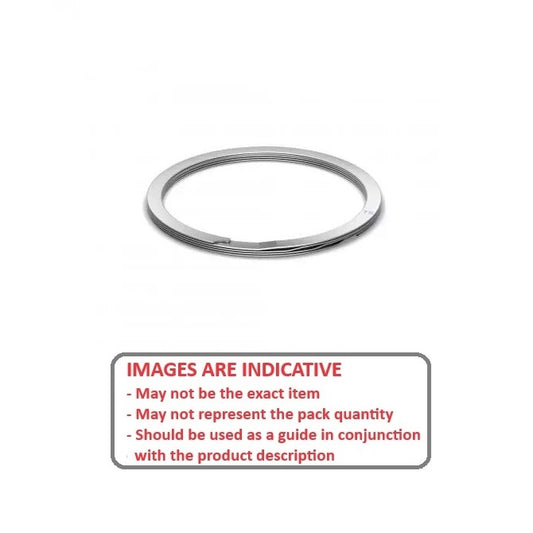

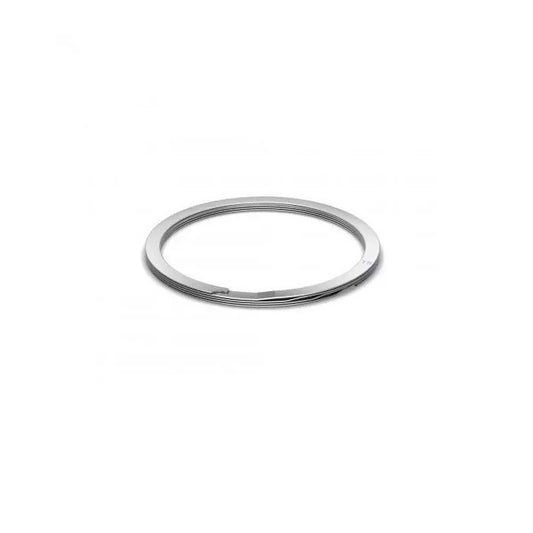

Part Number: RSN-181 External Retaining Rings - 46.02x1.58x43.39 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 18, 2025 Regular price $16.68 AUD Regular price Sale price $16.68 AUD Unit price per Each
Shaft Diameter (Ds)	Clip Thickness (T)	Groove Dia. (Dg)	Approx. Loose Circlip ID (A)	Indicative Image
Shaft Diameter (Ds) 46.02 mm _{(1.812 in.)}	Clip Thickness (T) 1.58 mm +/- 0.08 _{(0.062 in.)}	Groove Dia. (Dg) 43.39 mm _{(1.708 in.)}	Approx. Loose Circlip ID (A) 42.80 mm + 0.00 / - 0.51
Material: Spring Steel Radial Wall (S) min/max: 3.25 mm +/- 0.10 Groove Width (W): 1.78 mm +/- 0.13 Approx. Loose Clip OD: 49.3 +/- 0.05 Groove Depth (d): 1.32 Category: Retaining Rings - External - Spiral Rings - Heavy Duty - Carbon Steel
Part Number: RSN-181 External Retaining Rings - 46.02x1.58x43.39 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 18, 2025 Regular price $16.68 AUD Regular price Sale price $16.68 AUD Unit price per Each View the product page first if you are unsure.
RSN-181 --- External Retaining Rings - 46.02x1.58x43.39 mm - Spring Steel RSN-181 --- External Retaining Rings - 46.02x1.58x43.39 mm - Spring Steel Regular price $16.68 AUD Regular price Sale price $16.68 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 47.63 mm _{(1.875 in.)}	Clip Thickness (T) 1.58 mm +/- 0.08 _{(0.062 in.)}	Groove Dia. (Dg) 44.94 mm _{(1.769 in.)}	Approx. Loose Circlip ID (A) 44.30 mm + 0.00 / - 0.51	Radial Wall (S) min/max 4.01 mm +/- 0.10	Groove Width (W) 1.78 mm +/- 0.13
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Approx. Loose Clip OD: 52.32 +/- 0.05 Groove Depth (d): 1.35 Category: Retaining Rings - External - Spiral Rings - Heavy Duty - Stainless Steel
Part Number: RSN-187-S02 External Retaining Rings - 47.63x1.58x44.94 mm - Stainless Steel 302/304 Similar to A2, 18-8 Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 18, 2025 Regular price $30.41 AUD Regular price Sale price $30.41 AUD Unit price per Each
Shaft Diameter (Ds) 47.63 mm _{(1.875 in.)}	Clip Thickness (T) 1.58 mm +/- 0.08 _{(0.062 in.)}	Groove Dia. (Dg) 44.94 mm _{(1.769 in.)}	Approx. Loose Circlip ID (A) 44.30 mm + 0.00 / - 0.51
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Radial Wall (S) min/max: 4.01 mm +/- 0.10 Groove Width (W): 1.78 mm +/- 0.13 Approx. Loose Clip OD: 52.32 +/- 0.05 Groove Depth (d): 1.35 Category: Retaining Rings - External - Spiral Rings - Heavy Duty - Stainless Steel
Part Number: RSN-187-S02 External Retaining Rings - 47.63x1.58x44.94 mm - Stainless Steel 302/304 Similar to A2, 18-8 Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 18, 2025 Regular price $30.41 AUD Regular price Sale price $30.41 AUD Unit price per Each View the product page first if you are unsure.
RSN-187-S02 --- External Retaining Rings - 47.63x1.58x44.94 mm - Stainless Steel 302/304 Similar to A2, 18-8 RSN-187-S02 --- External Retaining Rings - 47.63x1.58x44.94 mm - Stainless Steel 302/304 Similar to A2, 18-8 Regular price $30.41 AUD Regular price Sale price $30.41 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 47.63 mm _{(1.875 in.)}	Clip Thickness (T) 1.58 mm +/- 0.08 _{(0.062 in.)}	Groove Dia. (Dg) 44.94 mm _{(1.769 in.)}	Approx. Loose Circlip ID (A) 44.30 mm + 0.00 / - 0.51	Radial Wall (S) min/max 4.01 mm +/- 0.10	Groove Width (W) 1.78 mm +/- 0.13
Material: Spring Steel Approx. Loose Clip OD: 52.32 +/- 0.05 Groove Depth (d): 1.35 Category: Retaining Rings - External - Spiral Rings - Heavy Duty - Carbon Steel
Part Number: RSN-187 External Retaining Rings - 47.63x1.58x44.94 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 18, 2025 Regular price $12.14 AUD Regular price Sale price $12.14 AUD Unit price per Each
Shaft Diameter (Ds) 47.63 mm _{(1.875 in.)}	Clip Thickness (T) 1.58 mm +/- 0.08 _{(0.062 in.)}	Groove Dia. (Dg) 44.94 mm _{(1.769 in.)}	Approx. Loose Circlip ID (A) 44.30 mm + 0.00 / - 0.51
Material: Spring Steel Radial Wall (S) min/max: 4.01 mm +/- 0.10 Groove Width (W): 1.78 mm +/- 0.13 Approx. Loose Clip OD: 52.32 +/- 0.05 Groove Depth (d): 1.35 Category: Retaining Rings - External - Spiral Rings - Heavy Duty - Carbon Steel
Part Number: RSN-187 External Retaining Rings - 47.63x1.58x44.94 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 18, 2025 Regular price $12.14 AUD Regular price Sale price $12.14 AUD Unit price per Each View the product page first if you are unsure.
RSN-187 --- External Retaining Rings - 47.63x1.58x44.94 mm - Spring Steel RSN-187 --- External Retaining Rings - 47.63x1.58x44.94 mm - Spring Steel Regular price $12.14 AUD Regular price Sale price $12.14 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 50.01 mm _{(1.969 in.)}	Clip Thickness (T) 1.58 mm +/- 0.08 _{(0.062 in.)}	Groove Dia. (Dg) 47.17 mm _{(1.857 in.)}	Approx. Loose Circlip ID (A) 46.69 mm + 0.00 / - 0.51	Radial Wall (S) min/max 4.01 mm +/- 0.10	Groove Width (W) 1.78 mm +/- 0.13
Material: Spring Steel Approx. Loose Clip OD: 54.71 +/- 0.05 Groove Depth (d): 1.42 Category: Retaining Rings - External - Spiral Rings - Heavy Duty - Carbon Steel
Part Number: RSN-196 (50 Pcs) External Retaining Rings - 50.01x1.58x47.17 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jun 19, 2025 Regular price $381.32 AUD Regular price Sale price $381.32 AUD Unit price per Per 50
Shaft Diameter (Ds) 50.01 mm _{(1.969 in.)}	Clip Thickness (T) 1.58 mm +/- 0.08 _{(0.062 in.)}	Groove Dia. (Dg) 47.17 mm _{(1.857 in.)}	Approx. Loose Circlip ID (A) 46.69 mm + 0.00 / - 0.51
Material: Spring Steel Radial Wall (S) min/max: 4.01 mm +/- 0.10 Groove Width (W): 1.78 mm +/- 0.13 Approx. Loose Clip OD: 54.71 +/- 0.05 Groove Depth (d): 1.42 Category: Retaining Rings - External - Spiral Rings - Heavy Duty - Carbon Steel
Part Number: RSN-196 (50 Pcs) External Retaining Rings - 50.01x1.58x47.17 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jun 19, 2025 Regular price $381.32 AUD Regular price Sale price $381.32 AUD Unit price per Per 50 View the product page first if you are unsure.
RSN-196 (50 Pcs) --- External Retaining Rings - 50.01x1.58x47.17 mm - Spring Steel RSN-196 (50 Pcs) --- External Retaining Rings - 50.01x1.58x47.17 mm - Spring Steel Regular price $381.32 AUD Regular price Sale price $381.32 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 50.80 mm _{(2 in.)}	Clip Thickness (T) 1.58 mm +/- 0.08 _{(0.062 in.)}	Groove Dia. (Dg) 47.91 mm _{(1.886 in.)}	Approx. Loose Circlip ID (A) 47.24 mm + 0.00 / - 0.51	Radial Wall (S) min/max 4.01 mm +/- 0.10	Groove Width (W) 1.78 mm +/- 0.13
Material: Spring Steel Approx. Loose Clip OD: 55.26 +/- 0.05 Groove Depth (d): 1.45 Category: Retaining Rings - External - Spiral Rings - Heavy Duty - Carbon Steel
Part Number: RSN-200 External Retaining Rings - 50.8x1.58x47.91 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $11.14 AUD Regular price Sale price $11.14 AUD Unit price per Each
Shaft Diameter (Ds) 50.80 mm _{(2 in.)}	Clip Thickness (T) 1.58 mm +/- 0.08 _{(0.062 in.)}	Groove Dia. (Dg) 47.91 mm _{(1.886 in.)}	Approx. Loose Circlip ID (A) 47.24 mm + 0.00 / - 0.51
Material: Spring Steel Radial Wall (S) min/max: 4.01 mm +/- 0.10 Groove Width (W): 1.78 mm +/- 0.13 Approx. Loose Clip OD: 55.26 +/- 0.05 Groove Depth (d): 1.45 Category: Retaining Rings - External - Spiral Rings - Heavy Duty - Carbon Steel
Part Number: RSN-200 External Retaining Rings - 50.8x1.58x47.91 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $11.14 AUD Regular price Sale price $11.14 AUD Unit price per Each View the product page first if you are unsure.
RSN-200 --- External Retaining Rings - 50.8x1.58x47.91 mm - Spring Steel RSN-200 --- External Retaining Rings - 50.8x1.58x47.91 mm - Spring Steel Regular price $11.14 AUD Regular price Sale price $11.14 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 50.80 mm _{(2 in.)}	Clip Thickness (T) 1.58 mm +/- 0.08 _{(0.062 in.)}	Groove Dia. (Dg) 47.91 mm _{(1.886 in.)}	Approx. Loose Circlip ID (A) 47.24 mm + 0.00 / - 0.51	Radial Wall (S) min/max 4.01 mm +/- 0.10	Groove Width (W) 1.78 mm +/- 0.13
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Approx. Loose Clip OD: 55.26 +/- 0.05 Groove Depth (d): 1.45 Category: Retaining Rings - External - Spiral Rings - Heavy Duty - Stainless Steel
Part Number: RSN-200-S02 External Retaining Rings - 50.8x1.58x47.91 mm - Stainless Steel 302/304 Similar to A2, 18-8 Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 18, 2025 Regular price $27.50 AUD Regular price Sale price $27.50 AUD Unit price per Each
Shaft Diameter (Ds) 50.80 mm _{(2 in.)}	Clip Thickness (T) 1.58 mm +/- 0.08 _{(0.062 in.)}	Groove Dia. (Dg) 47.91 mm _{(1.886 in.)}	Approx. Loose Circlip ID (A) 47.24 mm + 0.00 / - 0.51
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Radial Wall (S) min/max: 4.01 mm +/- 0.10 Groove Width (W): 1.78 mm +/- 0.13 Approx. Loose Clip OD: 55.26 +/- 0.05 Groove Depth (d): 1.45 Category: Retaining Rings - External - Spiral Rings - Heavy Duty - Stainless Steel
Part Number: RSN-200-S02 External Retaining Rings - 50.8x1.58x47.91 mm - Stainless Steel 302/304 Similar to A2, 18-8 Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 18, 2025 Regular price $27.50 AUD Regular price Sale price $27.50 AUD Unit price per Each View the product page first if you are unsure.
RSN-200-S02 --- External Retaining Rings - 50.8x1.58x47.91 mm - Stainless Steel 302/304 Similar to A2, 18-8 RSN-200-S02 --- External Retaining Rings - 50.8x1.58x47.91 mm - Stainless Steel 302/304 Similar to A2, 18-8 Regular price $27.50 AUD Regular price Sale price $27.50 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 53.98 mm _{(2.125 in.)}	Clip Thickness (T) 1.99 mm +/- 0.08 _{(0.078 in.)}	Groove Dia. (Dg) 50.88 mm _{(2.003 in.)}	Approx. Loose Circlip ID (A) 50.20 mm + 0.00 / - 0.64	Radial Wall (S) min/max 4.27 mm +/- 0.13	Groove Width (W) 2.25 mm +/- 0.16
Material: Spring Steel Approx. Loose Clip OD: 58.74 +/- 0.06 Groove Depth (d): 1.55 Category: Retaining Rings - External - Spiral Rings - Heavy Duty - Carbon Steel
Part Number: RSN-212 (2 Pcs) External Retaining Rings - 53.98x1.99x50.88 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $24.05 AUD Regular price Sale price $24.05 AUD Unit price per Per 2
Shaft Diameter (Ds) 53.98 mm _{(2.125 in.)}	Clip Thickness (T) 1.99 mm +/- 0.08 _{(0.078 in.)}	Groove Dia. (Dg) 50.88 mm _{(2.003 in.)}	Approx. Loose Circlip ID (A) 50.20 mm + 0.00 / - 0.64
Material: Spring Steel Radial Wall (S) min/max: 4.27 mm +/- 0.13 Groove Width (W): 2.25 mm +/- 0.16 Approx. Loose Clip OD: 58.74 +/- 0.06 Groove Depth (d): 1.55 Category: Retaining Rings - External - Spiral Rings - Heavy Duty - Carbon Steel
Part Number: RSN-212 (2 Pcs) External Retaining Rings - 53.98x1.99x50.88 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $24.05 AUD Regular price Sale price $24.05 AUD Unit price per Per 2 View the product page first if you are unsure.
RSN-212 (2 Pcs) --- External Retaining Rings - 53.98x1.99x50.88 mm - Spring Steel RSN-212 (2 Pcs) --- External Retaining Rings - 53.98x1.99x50.88 mm - Spring Steel Regular price $24.05 AUD Regular price Sale price $24.05 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 53.98 mm _{(2.125 in.)}	Clip Thickness (T) 1.99 mm +/- 0.08 _{(0.078 in.)}	Groove Dia. (Dg) 50.88 mm _{(2.003 in.)}	Approx. Loose Circlip ID (A) 50.20 mm + 0.00 / - 0.64	Radial Wall (S) min/max 4.27 mm +/- 0.13	Groove Width (W) 2.25 mm +/- 0.16
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Approx. Loose Clip OD: 58.74 +/- 0.06 Groove Depth (d): 1.55 Category: Retaining Rings - External - Spiral Rings - Heavy Duty - Stainless Steel
Part Number: RSN-212-S02 External Retaining Rings - 53.98x1.99x50.88 mm - Stainless Steel 302/304 Similar to A2, 18-8 Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 18, 2025 Regular price $38.14 AUD Regular price Sale price $38.14 AUD Unit price per Each
Shaft Diameter (Ds) 53.98 mm _{(2.125 in.)}	Clip Thickness (T) 1.99 mm +/- 0.08 _{(0.078 in.)}	Groove Dia. (Dg) 50.88 mm _{(2.003 in.)}	Approx. Loose Circlip ID (A) 50.20 mm + 0.00 / - 0.64
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Radial Wall (S) min/max: 4.27 mm +/- 0.13 Groove Width (W): 2.25 mm +/- 0.16 Approx. Loose Clip OD: 58.74 +/- 0.06 Groove Depth (d): 1.55 Category: Retaining Rings - External - Spiral Rings - Heavy Duty - Stainless Steel
Part Number: RSN-212-S02 External Retaining Rings - 53.98x1.99x50.88 mm - Stainless Steel 302/304 Similar to A2, 18-8 Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 18, 2025 Regular price $38.14 AUD Regular price Sale price $38.14 AUD Unit price per Each View the product page first if you are unsure.
RSN-212-S02 --- External Retaining Rings - 53.98x1.99x50.88 mm - Stainless Steel 302/304 Similar to A2, 18-8 RSN-212-S02 --- External Retaining Rings - 53.98x1.99x50.88 mm - Stainless Steel 302/304 Similar to A2, 18-8 Regular price $38.14 AUD Regular price Sale price $38.14 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 57.15 mm _{(2.25 in.)}	Clip Thickness (T) 1.99 mm +/- 0.08 _{(0.078 in.)}	Groove Dia. (Dg) 53.85 mm _{(2.12 in.)}	Approx. Loose Circlip ID (A) 53.15 mm + 0.00 / - 0.64	Radial Wall (S) min/max 4.27 mm +/- 0.13	Groove Width (W) 2.25 mm +/- 0.16
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Approx. Loose Clip OD: 61.69 +/- 0.06 Groove Depth (d): 1.65 Category: Retaining Rings - External - Spiral Rings - Heavy Duty - Stainless Steel
Part Number: RSN-225-S02 External Retaining Rings - 57.15x1.99x53.85 mm - Stainless Steel 302/304 Similar to A2, 18-8 Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 18, 2025 Regular price $42.59 AUD Regular price Sale price $42.59 AUD Unit price per Each
Shaft Diameter (Ds) 57.15 mm _{(2.25 in.)}	Clip Thickness (T) 1.99 mm +/- 0.08 _{(0.078 in.)}	Groove Dia. (Dg) 53.85 mm _{(2.12 in.)}	Approx. Loose Circlip ID (A) 53.15 mm + 0.00 / - 0.64
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Radial Wall (S) min/max: 4.27 mm +/- 0.13 Groove Width (W): 2.25 mm +/- 0.16 Approx. Loose Clip OD: 61.69 +/- 0.06 Groove Depth (d): 1.65 Category: Retaining Rings - External - Spiral Rings - Heavy Duty - Stainless Steel
Part Number: RSN-225-S02 External Retaining Rings - 57.15x1.99x53.85 mm - Stainless Steel 302/304 Similar to A2, 18-8 Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 18, 2025 Regular price $42.59 AUD Regular price Sale price $42.59 AUD Unit price per Each View the product page first if you are unsure.
RSN-225-S02 --- External Retaining Rings - 57.15x1.99x53.85 mm - Stainless Steel 302/304 Similar to A2, 18-8 RSN-225-S02 --- External Retaining Rings - 57.15x1.99x53.85 mm - Stainless Steel 302/304 Similar to A2, 18-8 Regular price $42.59 AUD Regular price Sale price $42.59 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 57.15 mm _{(2.25 in.)}	Clip Thickness (T) 1.99 mm +/- 0.08 _{(0.078 in.)}	Groove Dia. (Dg) 53.85 mm _{(2.12 in.)}	Approx. Loose Circlip ID (A) 53.47 mm + 0.00 / - 0.64	Radial Wall (S) min/max 4.27 mm +/- 0.13	Groove Width (W) 2.25 mm +/- 0.16
Material: Spring Steel Approx. Loose Clip OD: 62.01 +/- 0.06 Groove Depth (d): 1.65 Category: Retaining Rings - External - Spiral Rings - Heavy Duty - Carbon Steel
Part Number: RSN-225 External Retaining Rings - 57.15x1.99x53.85 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 18, 2025 Regular price $14.41 AUD Regular price Sale price $14.41 AUD Unit price per Each
Shaft Diameter (Ds) 57.15 mm _{(2.25 in.)}	Clip Thickness (T) 1.99 mm +/- 0.08 _{(0.078 in.)}	Groove Dia. (Dg) 53.85 mm _{(2.12 in.)}	Approx. Loose Circlip ID (A) 53.47 mm + 0.00 / - 0.64
Material: Spring Steel Radial Wall (S) min/max: 4.27 mm +/- 0.13 Groove Width (W): 2.25 mm +/- 0.16 Approx. Loose Clip OD: 62.01 +/- 0.06 Groove Depth (d): 1.65 Category: Retaining Rings - External - Spiral Rings - Heavy Duty - Carbon Steel
Part Number: RSN-225 External Retaining Rings - 57.15x1.99x53.85 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 18, 2025 Regular price $14.41 AUD Regular price Sale price $14.41 AUD Unit price per Each View the product page first if you are unsure.
RSN-225 --- External Retaining Rings - 57.15x1.99x53.85 mm - Spring Steel RSN-225 --- External Retaining Rings - 57.15x1.99x53.85 mm - Spring Steel Regular price $14.41 AUD Regular price Sale price $14.41 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 60.33 mm _{(2.375 in.)}	Clip Thickness (T) 1.99 mm +/- 0.08 _{(0.078 in.)}	Groove Dia. (Dg) 56.87 mm _{(2.239 in.)}	Approx. Loose Circlip ID (A) 56.11 mm + 0.00 / - 0.64	Radial Wall (S) min/max 5.08 mm +/- 0.13	Groove Width (W) 2.25 mm +/- 0.15
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Approx. Loose Clip OD: 66.27 +/- 0.06 Groove Depth (d): 1.73 Category: Retaining Rings - External - Spiral Rings - Heavy Duty - Stainless Steel
Part Number: RSN-237-S02 External Retaining Rings - 60.33x1.99x56.87 mm - Stainless Steel 302/304 Similar to A2, 18-8 Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 18, 2025 Regular price $63.95 AUD Regular price Sale price $63.95 AUD Unit price per Each
Shaft Diameter (Ds) 60.33 mm _{(2.375 in.)}	Clip Thickness (T) 1.99 mm +/- 0.08 _{(0.078 in.)}	Groove Dia. (Dg) 56.87 mm _{(2.239 in.)}	Approx. Loose Circlip ID (A) 56.11 mm + 0.00 / - 0.64
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Radial Wall (S) min/max: 5.08 mm +/- 0.13 Groove Width (W): 2.25 mm +/- 0.15 Approx. Loose Clip OD: 66.27 +/- 0.06 Groove Depth (d): 1.73 Category: Retaining Rings - External - Spiral Rings - Heavy Duty - Stainless Steel
Part Number: RSN-237-S02 External Retaining Rings - 60.33x1.99x56.87 mm - Stainless Steel 302/304 Similar to A2, 18-8 Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 18, 2025 Regular price $63.95 AUD Regular price Sale price $63.95 AUD Unit price per Each View the product page first if you are unsure.
RSN-237-S02 --- External Retaining Rings - 60.33x1.99x56.87 mm - Stainless Steel 302/304 Similar to A2, 18-8 RSN-237-S02 --- External Retaining Rings - 60.33x1.99x56.87 mm - Stainless Steel 302/304 Similar to A2, 18-8 Regular price $63.95 AUD Regular price Sale price $63.95 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 60.33 mm _{(2.375 in.)}	Clip Thickness (T) 1.99 mm +/- 0.08 _{(0.078 in.)}	Groove Dia. (Dg) 56.87 mm _{(2.239 in.)}	Approx. Loose Circlip ID (A) 56.11 mm + 0.00 / - 0.64	Radial Wall (S) min/max 5.08 mm +/- 0.13	Groove Width (W) 2.25 mm +/- 0.15
Material: Spring Steel Approx. Loose Clip OD: 66.27 +/- 0.06 Groove Depth (d): 1.73 Category: Retaining Rings - External - Spiral Rings - Heavy Duty - Carbon Steel
Part Number: RSN-237 External Retaining Rings - 60.33x1.99x56.87 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 18, 2025 Regular price $21.95 AUD Regular price Sale price $21.95 AUD Unit price per Each
Shaft Diameter (Ds) 60.33 mm _{(2.375 in.)}	Clip Thickness (T) 1.99 mm +/- 0.08 _{(0.078 in.)}	Groove Dia. (Dg) 56.87 mm _{(2.239 in.)}	Approx. Loose Circlip ID (A) 56.11 mm + 0.00 / - 0.64
Material: Spring Steel Radial Wall (S) min/max: 5.08 mm +/- 0.13 Groove Width (W): 2.25 mm +/- 0.15 Approx. Loose Clip OD: 66.27 +/- 0.06 Groove Depth (d): 1.73 Category: Retaining Rings - External - Spiral Rings - Heavy Duty - Carbon Steel
Part Number: RSN-237 External Retaining Rings - 60.33x1.99x56.87 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 18, 2025 Regular price $21.95 AUD Regular price Sale price $21.95 AUD Unit price per Each View the product page first if you are unsure.
RSN-237 --- External Retaining Rings - 60.33x1.99x56.87 mm - Spring Steel RSN-237 --- External Retaining Rings - 60.33x1.99x56.87 mm - Spring Steel Regular price $21.95 AUD Regular price Sale price $21.95 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 63.50 mm _{(2.5 in.)}	Clip Thickness (T) 1.99 mm +/- 0.08 _{(0.078 in.)}	Groove Dia. (Dg) 59.95 mm _{(2.36 in.)}	Approx. Loose Circlip ID (A) 59.06 mm + 0.00 / - 0.64	Radial Wall (S) min/max 5.08 mm +/- 0.13	Groove Width (W) 2.25 mm +/- 0.16
Material: Spring Steel Approx. Loose Clip OD: 69.22 +/- 0.06 Groove Depth (d): 1.78 Category: Retaining Rings - External - Spiral Rings - Heavy Duty - Carbon Steel
Part Number: RSN-250 External Retaining Rings - 63.5x1.99x59.95 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 18, 2025 Regular price $22.05 AUD Regular price Sale price $22.05 AUD Unit price per Each
Shaft Diameter (Ds) 63.50 mm _{(2.5 in.)}	Clip Thickness (T) 1.99 mm +/- 0.08 _{(0.078 in.)}	Groove Dia. (Dg) 59.95 mm _{(2.36 in.)}	Approx. Loose Circlip ID (A) 59.06 mm + 0.00 / - 0.64
Material: Spring Steel Radial Wall (S) min/max: 5.08 mm +/- 0.13 Groove Width (W): 2.25 mm +/- 0.16 Approx. Loose Clip OD: 69.22 +/- 0.06 Groove Depth (d): 1.78 Category: Retaining Rings - External - Spiral Rings - Heavy Duty - Carbon Steel
Part Number: RSN-250 External Retaining Rings - 63.5x1.99x59.95 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 18, 2025 Regular price $22.05 AUD Regular price Sale price $22.05 AUD Unit price per Each View the product page first if you are unsure.
RSN-250 --- External Retaining Rings - 63.5x1.99x59.95 mm - Spring Steel RSN-250 --- External Retaining Rings - 63.5x1.99x59.95 mm - Spring Steel Regular price $22.05 AUD Regular price Sale price $22.05 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 63.50 mm _{(2.5 in.)}	Clip Thickness (T) 1.99 mm +/- 0.08 _{(0.078 in.)}	Groove Dia. (Dg) 59.95 mm _{(2.36 in.)}	Approx. Loose Circlip ID (A) 59.06 mm + 0.00 / - 0.64	Radial Wall (S) min/max 5.08 mm +/- 0.13	Groove Width (W) 2.25 mm +/- 0.16
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Approx. Loose Clip OD: 69.22 +/- 0.06 Groove Depth (d): 1.78 Category: Retaining Rings - External - Spiral Rings - Heavy Duty - Stainless Steel
Part Number: RSN-250-S02 External Retaining Rings - 63.5x1.99x59.95 mm - Stainless Steel 302/304 Similar to A2, 18-8 Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 18, 2025 Regular price $67.50 AUD Regular price Sale price $67.50 AUD Unit price per Each
Shaft Diameter (Ds) 63.50 mm _{(2.5 in.)}	Clip Thickness (T) 1.99 mm +/- 0.08 _{(0.078 in.)}	Groove Dia. (Dg) 59.95 mm _{(2.36 in.)}	Approx. Loose Circlip ID (A) 59.06 mm + 0.00 / - 0.64
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Radial Wall (S) min/max: 5.08 mm +/- 0.13 Groove Width (W): 2.25 mm +/- 0.16 Approx. Loose Clip OD: 69.22 +/- 0.06 Groove Depth (d): 1.78 Category: Retaining Rings - External - Spiral Rings - Heavy Duty - Stainless Steel
Part Number: RSN-250-S02 External Retaining Rings - 63.5x1.99x59.95 mm - Stainless Steel 302/304 Similar to A2, 18-8 Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 18, 2025 Regular price $67.50 AUD Regular price Sale price $67.50 AUD Unit price per Each View the product page first if you are unsure.
RSN-250-S02 --- External Retaining Rings - 63.5x1.99x59.95 mm - Stainless Steel 302/304 Similar to A2, 18-8 RSN-250-S02 --- External Retaining Rings - 63.5x1.99x59.95 mm - Stainless Steel 302/304 Similar to A2, 18-8 Regular price $67.50 AUD Regular price Sale price $67.50 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 66.68 mm _{(2.625 in.)}	Clip Thickness (T) 1.99 mm +/- 0.08 _{(0.078 in.)}	Groove Dia. (Dg) 63.02 mm _{(2.481 in.)}	Approx. Loose Circlip ID (A) 62.01 mm + 0.00 / - 0.64	Radial Wall (S) min/max 5.08 mm +/- 0.13	Groove Width (W) 2.25 mm +/- 0.15
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Approx. Loose Clip OD: 72.17 +/- 0.06 Groove Depth (d): 1.83 Category: Retaining Rings - External - Spiral Rings - Heavy Duty - Stainless Steel
Part Number: RSN-262-S02 External Retaining Rings - 66.68x1.99x63.02 mm - Stainless Steel 302/304 Similar to A2, 18-8 Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 18, 2025 Regular price $61.59 AUD Regular price Sale price $61.59 AUD Unit price per Each
Shaft Diameter (Ds) 66.68 mm _{(2.625 in.)}	Clip Thickness (T) 1.99 mm +/- 0.08 _{(0.078 in.)}	Groove Dia. (Dg) 63.02 mm _{(2.481 in.)}	Approx. Loose Circlip ID (A) 62.01 mm + 0.00 / - 0.64
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Radial Wall (S) min/max: 5.08 mm +/- 0.13 Groove Width (W): 2.25 mm +/- 0.15 Approx. Loose Clip OD: 72.17 +/- 0.06 Groove Depth (d): 1.83 Category: Retaining Rings - External - Spiral Rings - Heavy Duty - Stainless Steel
Part Number: RSN-262-S02 External Retaining Rings - 66.68x1.99x63.02 mm - Stainless Steel 302/304 Similar to A2, 18-8 Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 18, 2025 Regular price $61.59 AUD Regular price Sale price $61.59 AUD Unit price per Each View the product page first if you are unsure.
RSN-262-S02 --- External Retaining Rings - 66.68x1.99x63.02 mm - Stainless Steel 302/304 Similar to A2, 18-8 RSN-262-S02 --- External Retaining Rings - 66.68x1.99x63.02 mm - Stainless Steel 302/304 Similar to A2, 18-8 Regular price $61.59 AUD Regular price Sale price $61.59 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 66.68 mm _{(2.625 in.)}	Clip Thickness (T) 1.99 mm +/- 0.08 _{(0.078 in.)}	Groove Dia. (Dg) 63.02 mm _{(2.481 in.)}	Approx. Loose Circlip ID (A) 62.01 mm + 0.00 / - 0.64	Radial Wall (S) min/max 5.08 mm +/- 0.13	Groove Width (W) 2.25 mm +/- 0.15
Material: Spring Steel Approx. Loose Clip OD: 72.17 +/- 0.06 Groove Depth (d): 1.83 Category: Retaining Rings - External - Spiral Rings - Heavy Duty - Carbon Steel
Part Number: RSN-262 External Retaining Rings - 66.68x1.99x63.02 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 18, 2025 Regular price $22.77 AUD Regular price Sale price $22.77 AUD Unit price per Each
Shaft Diameter (Ds) 66.68 mm _{(2.625 in.)}	Clip Thickness (T) 1.99 mm +/- 0.08 _{(0.078 in.)}	Groove Dia. (Dg) 63.02 mm _{(2.481 in.)}	Approx. Loose Circlip ID (A) 62.01 mm + 0.00 / - 0.64
Material: Spring Steel Radial Wall (S) min/max: 5.08 mm +/- 0.13 Groove Width (W): 2.25 mm +/- 0.15 Approx. Loose Clip OD: 72.17 +/- 0.06 Groove Depth (d): 1.83 Category: Retaining Rings - External - Spiral Rings - Heavy Duty - Carbon Steel
Part Number: RSN-262 External Retaining Rings - 66.68x1.99x63.02 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 18, 2025 Regular price $22.77 AUD Regular price Sale price $22.77 AUD Unit price per Each View the product page first if you are unsure.
RSN-262 --- External Retaining Rings - 66.68x1.99x63.02 mm - Spring Steel RSN-262 --- External Retaining Rings - 66.68x1.99x63.02 mm - Spring Steel Regular price $22.77 AUD Regular price Sale price $22.77 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 68.25 mm _{(2.687 in.)}	Clip Thickness (T) 1.99 mm +/- 0.08 _{(0.078 in.)}	Groove Dia. (Dg) 64.54 mm _{(2.541 in.)}	Approx. Loose Circlip ID (A) 64.21 mm + 0.00 / - 0.76	Radial Wall (S) min/max 5.08 mm +/- 0.13	Groove Width (W) 2.25 mm +/- 0.15
Material: Spring Steel Approx. Loose Clip OD: 74.37 +/- 0.06 Groove Depth (d): 1.85 Category: Retaining Rings - External - Spiral Rings - Heavy Duty - Carbon Steel
Part Number: RSN-268 External Retaining Rings - 68.25x1.99x64.54 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $9.86 AUD Regular price Sale price $9.86 AUD Unit price per Each
Shaft Diameter (Ds) 68.25 mm _{(2.687 in.)}	Clip Thickness (T) 1.99 mm +/- 0.08 _{(0.078 in.)}	Groove Dia. (Dg) 64.54 mm _{(2.541 in.)}	Approx. Loose Circlip ID (A) 64.21 mm + 0.00 / - 0.76
Material: Spring Steel Radial Wall (S) min/max: 5.08 mm +/- 0.13 Groove Width (W): 2.25 mm +/- 0.15 Approx. Loose Clip OD: 74.37 +/- 0.06 Groove Depth (d): 1.85 Category: Retaining Rings - External - Spiral Rings - Heavy Duty - Carbon Steel
Part Number: RSN-268 External Retaining Rings - 68.25x1.99x64.54 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $9.86 AUD Regular price Sale price $9.86 AUD Unit price per Each View the product page first if you are unsure.
RSN-268 --- External Retaining Rings - 68.25x1.99x64.54 mm - Spring Steel RSN-268 --- External Retaining Rings - 68.25x1.99x64.54 mm - Spring Steel Regular price $9.86 AUD Regular price Sale price $9.86 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 69.85 mm _{(2.75 in.)}	Clip Thickness (T) 2.37 mm +/- 0.08 _{(0.093 in.)}	Groove Dia. (Dg) 66.09 mm _{(2.602 in.)}	Approx. Loose Circlip ID (A) 64.96 mm + 0.00 / - 0.76	Radial Wall (S) min/max 5.72 mm +/- 0.13	Groove Width (W) 2.68 mm +/- 0.15
Material: Spring Steel Approx. Loose Clip OD: 76.4 +/- 0.06 Groove Depth (d): 1.88 Category: Retaining Rings - External - Spiral Rings - Heavy Duty - Carbon Steel
Part Number: RSN-275 External Retaining Rings - 69.85x2.37x66.09 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 18, 2025 Regular price $23.68 AUD Regular price Sale price $23.68 AUD Unit price per Each
Shaft Diameter (Ds) 69.85 mm _{(2.75 in.)}	Clip Thickness (T) 2.37 mm +/- 0.08 _{(0.093 in.)}	Groove Dia. (Dg) 66.09 mm _{(2.602 in.)}	Approx. Loose Circlip ID (A) 64.96 mm + 0.00 / - 0.76
Material: Spring Steel Radial Wall (S) min/max: 5.72 mm +/- 0.13 Groove Width (W): 2.68 mm +/- 0.15 Approx. Loose Clip OD: 76.4 +/- 0.06 Groove Depth (d): 1.88 Category: Retaining Rings - External - Spiral Rings - Heavy Duty - Carbon Steel
Part Number: RSN-275 External Retaining Rings - 69.85x2.37x66.09 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 18, 2025 Regular price $23.68 AUD Regular price Sale price $23.68 AUD Unit price per Each View the product page first if you are unsure.
RSN-275 --- External Retaining Rings - 69.85x2.37x66.09 mm - Spring Steel RSN-275 --- External Retaining Rings - 69.85x2.37x66.09 mm - Spring Steel Regular price $23.68 AUD Regular price Sale price $23.68 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 69.85 mm _{(2.75 in.)}	Clip Thickness (T) 2.37 mm +/- 0.08 _{(0.093 in.)}	Groove Dia. (Dg) 66.09 mm _{(2.602 in.)}	Approx. Loose Circlip ID (A) 64.96 mm + 0.00 / - 0.76	Radial Wall (S) min/max 5.72 mm +/- 0.13	Groove Width (W) 2.68 mm +/- 0.15
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Approx. Loose Clip OD: 76.4 +/- 0.06 Groove Depth (d): 1.88 Category: Retaining Rings - External - Spiral Rings - Heavy Duty - Stainless Steel
Part Number: RSN-275-S02 External Retaining Rings - 69.85x2.37x66.09 mm - Stainless Steel 302/304 Similar to A2, 18-8 Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 18, 2025 Regular price $73.05 AUD Regular price Sale price $73.05 AUD Unit price per Each
Shaft Diameter (Ds) 69.85 mm _{(2.75 in.)}	Clip Thickness (T) 2.37 mm +/- 0.08 _{(0.093 in.)}	Groove Dia. (Dg) 66.09 mm _{(2.602 in.)}	Approx. Loose Circlip ID (A) 64.96 mm + 0.00 / - 0.76
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Radial Wall (S) min/max: 5.72 mm +/- 0.13 Groove Width (W): 2.68 mm +/- 0.15 Approx. Loose Clip OD: 76.4 +/- 0.06 Groove Depth (d): 1.88 Category: Retaining Rings - External - Spiral Rings - Heavy Duty - Stainless Steel
Part Number: RSN-275-S02 External Retaining Rings - 69.85x2.37x66.09 mm - Stainless Steel 302/304 Similar to A2, 18-8 Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 18, 2025 Regular price $73.05 AUD Regular price Sale price $73.05 AUD Unit price per Each View the product page first if you are unsure.
RSN-275-S02 --- External Retaining Rings - 69.85x2.37x66.09 mm - Stainless Steel 302/304 Similar to A2, 18-8 RSN-275-S02 --- External Retaining Rings - 69.85x2.37x66.09 mm - Stainless Steel 302/304 Similar to A2, 18-8 Regular price $73.05 AUD Regular price Sale price $73.05 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 73.03 mm _{(2.875 in.)}	Clip Thickness (T) 2.37 mm +/- 0.08 _{(0.093 in.)}	Groove Dia. (Dg) 69.12 mm _{(2.721 in.)}	Approx. Loose Circlip ID (A) 67.92 mm + 0.00 / - 0.76	Radial Wall (S) min/max 5.72 mm +/- 0.13	Groove Width (W) 2.68 mm +/- 0.16
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Approx. Loose Clip OD: 79.36 +/- 0.06 Groove Depth (d): 1.96 Category: Retaining Rings - External - Spiral Rings - Heavy Duty - Stainless Steel
Part Number: RSN-287-S02 External Retaining Rings - 73.03x2.37x69.12 mm - Stainless Steel 302/304 Similar to A2, 18-8 Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 18, 2025 Regular price $74.59 AUD Regular price Sale price $74.59 AUD Unit price per Each
Shaft Diameter (Ds) 73.03 mm _{(2.875 in.)}	Clip Thickness (T) 2.37 mm +/- 0.08 _{(0.093 in.)}	Groove Dia. (Dg) 69.12 mm _{(2.721 in.)}	Approx. Loose Circlip ID (A) 67.92 mm + 0.00 / - 0.76
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Radial Wall (S) min/max: 5.72 mm +/- 0.13 Groove Width (W): 2.68 mm +/- 0.16 Approx. Loose Clip OD: 79.36 +/- 0.06 Groove Depth (d): 1.96 Category: Retaining Rings - External - Spiral Rings - Heavy Duty - Stainless Steel
Part Number: RSN-287-S02 External Retaining Rings - 73.03x2.37x69.12 mm - Stainless Steel 302/304 Similar to A2, 18-8 Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 18, 2025 Regular price $74.59 AUD Regular price Sale price $74.59 AUD Unit price per Each View the product page first if you are unsure.
RSN-287-S02 --- External Retaining Rings - 73.03x2.37x69.12 mm - Stainless Steel 302/304 Similar to A2, 18-8 RSN-287-S02 --- External Retaining Rings - 73.03x2.37x69.12 mm - Stainless Steel 302/304 Similar to A2, 18-8 Regular price $74.59 AUD Regular price Sale price $74.59 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 73.03 mm _{(2.875 in.)}	Clip Thickness (T) 2.39 mm +/- 0.10 _{(0.094 in.)}	Groove Dia. (Dg) 69.12 mm _{(2.721 in.)}	Approx. Loose Circlip ID (A) 67.92 mm + 0.00 / - 0.76	Radial Wall (S) min/max 5.66 mm +/- 0.06	Groove Width (W) 2.68 mm +/- 0.16
Material: Spring Steel Approx. Loose Clip OD: 79.24 +/- 0.06 Groove Depth (d): 1.96 Category: Retaining Rings - External - Spiral Rings - Heavy Duty - Carbon Steel
Part Number: RSN-287 External Retaining Rings - 73.03x2.39x69.12 mm - Spring Steel 480 Available Immediately \| Further orders can be expected around Thu, Feb 03, 2028 Regular price $25.14 AUD Regular price Sale price $25.14 AUD Unit price per Each
Shaft Diameter (Ds) 73.03 mm _{(2.875 in.)}	Clip Thickness (T) 2.39 mm +/- 0.10 _{(0.094 in.)}	Groove Dia. (Dg) 69.12 mm _{(2.721 in.)}	Approx. Loose Circlip ID (A) 67.92 mm + 0.00 / - 0.76
Material: Spring Steel Radial Wall (S) min/max: 5.66 mm +/- 0.06 Groove Width (W): 2.68 mm +/- 0.16 Approx. Loose Clip OD: 79.24 +/- 0.06 Groove Depth (d): 1.96 Category: Retaining Rings - External - Spiral Rings - Heavy Duty - Carbon Steel
Part Number: RSN-287 External Retaining Rings - 73.03x2.39x69.12 mm - Spring Steel 480 Available Immediately \| Further orders can be expected around Thu, Feb 03, 2028 Regular price $25.14 AUD Regular price Sale price $25.14 AUD Unit price per Each View the product page first if you are unsure.
RSN-287 --- External Retaining Rings - 73.03x2.39x69.12 mm - Spring Steel RSN-287 --- External Retaining Rings - 73.03x2.39x69.12 mm - Spring Steel Regular price $25.14 AUD Regular price Sale price $25.14 AUD Unit price per 480 Available Now
Shaft Diameter (Ds) 76.20 mm _{(3 in.)}	Clip Thickness (T) 2.37 mm +/- 0.08 _{(0.093 in.)}	Groove Dia. (Dg) 72.09 mm _{(2.838 in.)}	Approx. Loose Circlip ID (A) 70.87 mm + 0.00 / - 0.76	Radial Wall (S) min/max 5.72 mm +/- 0.13	Groove Width (W) 2.68 mm +/- 0.15
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Approx. Loose Clip OD: 82.31 +/- 0.06 Groove Depth (d): 2.06 Category: Retaining Rings - External - Spiral Rings - Heavy Duty - Stainless Steel
Part Number: RSN-300-S02 External Retaining Rings - 76.2x2.37x72.09 mm - Stainless Steel 302/304 Similar to A2, 18-8 Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 18, 2025 Regular price $75.77 AUD Regular price Sale price $75.77 AUD Unit price per Each
Shaft Diameter (Ds) 76.20 mm _{(3 in.)}	Clip Thickness (T) 2.37 mm +/- 0.08 _{(0.093 in.)}	Groove Dia. (Dg) 72.09 mm _{(2.838 in.)}	Approx. Loose Circlip ID (A) 70.87 mm + 0.00 / - 0.76
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Radial Wall (S) min/max: 5.72 mm +/- 0.13 Groove Width (W): 2.68 mm +/- 0.15 Approx. Loose Clip OD: 82.31 +/- 0.06 Groove Depth (d): 2.06 Category: Retaining Rings - External - Spiral Rings - Heavy Duty - Stainless Steel
Part Number: RSN-300-S02 External Retaining Rings - 76.2x2.37x72.09 mm - Stainless Steel 302/304 Similar to A2, 18-8 Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 18, 2025 Regular price $75.77 AUD Regular price Sale price $75.77 AUD Unit price per Each View the product page first if you are unsure.
RSN-300-S02 --- External Retaining Rings - 76.2x2.37x72.09 mm - Stainless Steel 302/304 Similar to A2, 18-8 RSN-300-S02 --- External Retaining Rings - 76.2x2.37x72.09 mm - Stainless Steel 302/304 Similar to A2, 18-8 Regular price $75.77 AUD Regular price Sale price $75.77 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 76.20 mm _{(3 in.)}	Clip Thickness (T) 2.37 mm +/- 0.08 _{(0.093 in.)}	Groove Dia. (Dg) 72.09 mm _{(2.838 in.)}	Approx. Loose Circlip ID (A) 70.87 mm + 0.00 / - 0.76	Radial Wall (S) min/max 5.72 mm +/- 0.13	Groove Width (W) 2.68 mm +/- 0.15
Material: Spring Steel Approx. Loose Clip OD: 82.31 +/- 0.06 Groove Depth (d): 2.06 Category: Retaining Rings - External - Spiral Rings - Heavy Duty - Carbon Steel
Part Number: RSN-300 External Retaining Rings - 76.2x2.37x72.09 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 18, 2025 Regular price $25.14 AUD Regular price Sale price $25.14 AUD Unit price per Each
Shaft Diameter (Ds) 76.20 mm _{(3 in.)}	Clip Thickness (T) 2.37 mm +/- 0.08 _{(0.093 in.)}	Groove Dia. (Dg) 72.09 mm _{(2.838 in.)}	Approx. Loose Circlip ID (A) 70.87 mm + 0.00 / - 0.76
Material: Spring Steel Radial Wall (S) min/max: 5.72 mm +/- 0.13 Groove Width (W): 2.68 mm +/- 0.15 Approx. Loose Clip OD: 82.31 +/- 0.06 Groove Depth (d): 2.06 Category: Retaining Rings - External - Spiral Rings - Heavy Duty - Carbon Steel
Part Number: RSN-300 External Retaining Rings - 76.2x2.37x72.09 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 18, 2025 Regular price $25.14 AUD Regular price Sale price $25.14 AUD Unit price per Each View the product page first if you are unsure.
RSN-300 --- External Retaining Rings - 76.2x2.37x72.09 mm - Spring Steel RSN-300 --- External Retaining Rings - 76.2x2.37x72.09 mm - Spring Steel Regular price $25.14 AUD Regular price Sale price $25.14 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 82.55 mm _{(3.25 in.)}	Clip Thickness (T) 2.37 mm +/- 0.08 _{(0.093 in.)}	Groove Dia. (Dg) 78.13 mm _{(3.076 in.)}	Approx. Loose Circlip ID (A) 76.77 mm + 0.00 / - 0.76	Radial Wall (S) min/max 5.72 mm +/- 0.13	Groove Width (W) 2.68 mm +/- 0.15
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Approx. Loose Clip OD: 88.21 +/- 0.06 Groove Depth (d): 2.21 Category: Retaining Rings - External - Spiral Rings - Heavy Duty - Stainless Steel
Part Number: RSN-325-S02 External Retaining Rings - 82.55x2.37x78.13 mm - Stainless Steel 302/304 Similar to A2, 18-8 Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 18, 2025 Regular price $125.14 AUD Regular price Sale price $125.14 AUD Unit price per Each
Shaft Diameter (Ds) 82.55 mm _{(3.25 in.)}	Clip Thickness (T) 2.37 mm +/- 0.08 _{(0.093 in.)}	Groove Dia. (Dg) 78.13 mm _{(3.076 in.)}	Approx. Loose Circlip ID (A) 76.77 mm + 0.00 / - 0.76
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Radial Wall (S) min/max: 5.72 mm +/- 0.13 Groove Width (W): 2.68 mm +/- 0.15 Approx. Loose Clip OD: 88.21 +/- 0.06 Groove Depth (d): 2.21 Category: Retaining Rings - External - Spiral Rings - Heavy Duty - Stainless Steel
Part Number: RSN-325-S02 External Retaining Rings - 82.55x2.37x78.13 mm - Stainless Steel 302/304 Similar to A2, 18-8 Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 18, 2025 Regular price $125.14 AUD Regular price Sale price $125.14 AUD Unit price per Each View the product page first if you are unsure.
RSN-325-S02 --- External Retaining Rings - 82.55x2.37x78.13 mm - Stainless Steel 302/304 Similar to A2, 18-8 RSN-325-S02 --- External Retaining Rings - 82.55x2.37x78.13 mm - Stainless Steel 302/304 Similar to A2, 18-8 Regular price $125.14 AUD Regular price Sale price $125.14 AUD Unit price per Out of stock! Backorder Now
