Collection: Retaining Rings - External - Spiral Rings - Heavy Duty - Stainless Steel

Retaining Rings (With Images)

External

Spiral Rings

Heavy Duty

Carbon Steel
Stainless Steel

40 Products in this selection

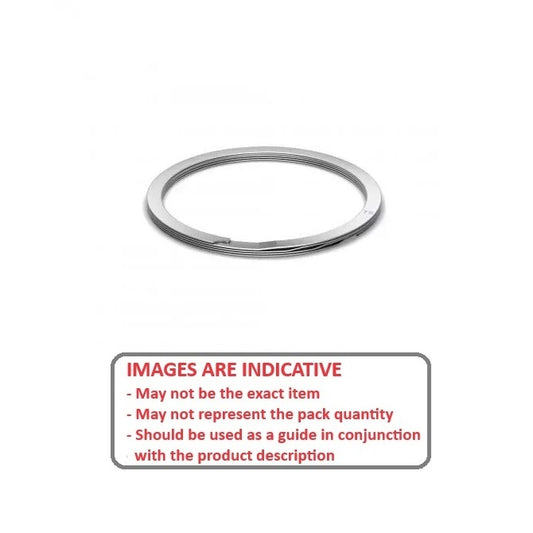

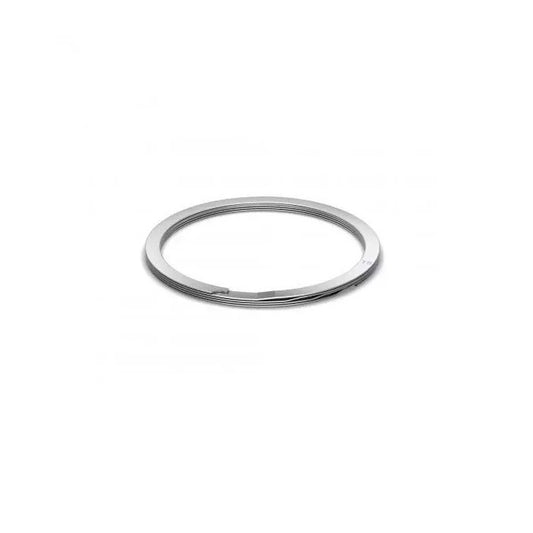

AHE / WSM / AS3216 / RSN / MIL-R-27426A2 - Stainless Steel.
Heavy duty design for use with NAS669-670 deep grooves in applications like double row and tapered roller bearings.
Requires no tools for removal.
Equivalent to Associated Spring: AHE, Smalley: WSM, Spirolox and Ramsey: RSN, Aerospace: AS3216, MIL-R-27426A2

Additional resources:
Spiral Rings and Snap Rings PDF

A more concise listing may be found on the Smallparts store at Retaining Rings - External - Spiral Rings - Heavy Duty - Stainless Steel. Smallparts promote the most popular MBA products.

Shaft Diameter (Ds)	Clip Thickness (T)	Groove Dia. (Dg)	Approx. Loose Circlip ID (A)	Radial Wall (S) min/max	Groove Width (W)	Indicative Image
Shaft Diameter (Ds) 11.91 mm _{(0.469 in.)}	Clip Thickness (T) 0.64 mm +/- 0.06 _{(0.025 in.)}	Groove Dia. (Dg) 11.25 mm _{(0.443 in.)}	Approx. Loose Circlip ID (A) 11.08 mm + 0.00 / - 0.33	Radial Wall (S) min/max 1.14 mm +/- 0.10	Groove Width (W) 0.78 mm +/- 0.05
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Approx. Loose Clip OD: 13.36 +/- 0.04 Groove Depth (d): 0.33
Part Number: RSN-046-S02 External Retaining Rings - 11.91x0.64x11.25 mm - Stainless Steel 302/304 Similar to A2, 18-8 Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 18, 2025 Regular price $10.41 AUD Regular price Sale price $10.41 AUD Unit price per Each
Shaft Diameter (Ds)	Clip Thickness (T)	Groove Dia. (Dg)	Approx. Loose Circlip ID (A)	Indicative Image
Shaft Diameter (Ds) 11.91 mm _{(0.469 in.)}	Clip Thickness (T) 0.64 mm +/- 0.06 _{(0.025 in.)}	Groove Dia. (Dg) 11.25 mm _{(0.443 in.)}	Approx. Loose Circlip ID (A) 11.08 mm + 0.00 / - 0.33
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Radial Wall (S) min/max: 1.14 mm +/- 0.10 Groove Width (W): 0.78 mm +/- 0.05 Approx. Loose Clip OD: 13.36 +/- 0.04 Groove Depth (d): 0.33
Part Number: RSN-046-S02 External Retaining Rings - 11.91x0.64x11.25 mm - Stainless Steel 302/304 Similar to A2, 18-8 Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 18, 2025 Regular price $10.41 AUD Regular price Sale price $10.41 AUD Unit price per Each View the product page first if you are unsure.
RSN-046-S02 --- External Retaining Rings - 11.91x0.64x11.25 mm - Stainless Steel 302/304 Similar to A2, 18-8 RSN-046-S02 --- External Retaining Rings - 11.91x0.64x11.25 mm - Stainless Steel 302/304 Similar to A2, 18-8 Regular price $10.41 AUD Regular price Sale price $10.41 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 12.70 mm _{(0.5 in.)}	Clip Thickness (T) 0.89 mm +/- 0.05 _{(0.035 in.)}	Groove Dia. (Dg) 11.89 mm _{(0.468 in.)}	Approx. Loose Circlip ID (A) 11.81 mm + 0.00 / - 0.33	Radial Wall (S) min/max 1.27 mm +/- 0.10	Groove Width (W) 1.03 mm +/- 0.05
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Approx. Loose Clip OD: 14.35 +/- 0.04 Groove Depth (d): 0.41
Part Number: RSN-050-S02 External Retaining Rings - 12.7x0.89x11.89 mm - Stainless Steel 302/304 Similar to A2, 18-8 Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 18, 2025 Regular price $9.50 AUD Regular price Sale price $9.50 AUD Unit price per Each
Shaft Diameter (Ds) 12.70 mm _{(0.5 in.)}	Clip Thickness (T) 0.89 mm +/- 0.05 _{(0.035 in.)}	Groove Dia. (Dg) 11.89 mm _{(0.468 in.)}	Approx. Loose Circlip ID (A) 11.81 mm + 0.00 / - 0.33
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Radial Wall (S) min/max: 1.27 mm +/- 0.10 Groove Width (W): 1.03 mm +/- 0.05 Approx. Loose Clip OD: 14.35 +/- 0.04 Groove Depth (d): 0.41
Part Number: RSN-050-S02 External Retaining Rings - 12.7x0.89x11.89 mm - Stainless Steel 302/304 Similar to A2, 18-8 Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 18, 2025 Regular price $9.50 AUD Regular price Sale price $9.50 AUD Unit price per Each View the product page first if you are unsure.
RSN-050-S02 --- External Retaining Rings - 12.7x0.89x11.89 mm - Stainless Steel 302/304 Similar to A2, 18-8 RSN-050-S02 --- External Retaining Rings - 12.7x0.89x11.89 mm - Stainless Steel 302/304 Similar to A2, 18-8 Regular price $9.50 AUD Regular price Sale price $9.50 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 14.27 mm _{(0.562 in.)}	Clip Thickness (T) 0.89 mm +/- 0.05 _{(0.035 in.)}	Groove Dia. (Dg) 13.46 mm _{(0.53 in.)}	Approx. Loose Circlip ID (A) 13.27 mm + 0.00 / - 0.33	Radial Wall (S) min/max 1.27 mm +/- 0.10	Groove Width (W) 1.03 mm +/- 0.05
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Approx. Loose Clip OD: 15.81 +/- 0.04 Groove Depth (d): 0.41
Part Number: RSN-056-S02 External Retaining Rings - 14.27x0.89x13.46 mm - Stainless Steel 302/304 Similar to A2, 18-8 Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 18, 2025 Regular price $9.68 AUD Regular price Sale price $9.68 AUD Unit price per Each
Shaft Diameter (Ds) 14.27 mm _{(0.562 in.)}	Clip Thickness (T) 0.89 mm +/- 0.05 _{(0.035 in.)}	Groove Dia. (Dg) 13.46 mm _{(0.53 in.)}	Approx. Loose Circlip ID (A) 13.27 mm + 0.00 / - 0.33
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Radial Wall (S) min/max: 1.27 mm +/- 0.10 Groove Width (W): 1.03 mm +/- 0.05 Approx. Loose Clip OD: 15.81 +/- 0.04 Groove Depth (d): 0.41
Part Number: RSN-056-S02 External Retaining Rings - 14.27x0.89x13.46 mm - Stainless Steel 302/304 Similar to A2, 18-8 Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 18, 2025 Regular price $9.68 AUD Regular price Sale price $9.68 AUD Unit price per Each View the product page first if you are unsure.
RSN-056-S02 --- External Retaining Rings - 14.27x0.89x13.46 mm - Stainless Steel 302/304 Similar to A2, 18-8 RSN-056-S02 --- External Retaining Rings - 14.27x0.89x13.46 mm - Stainless Steel 302/304 Similar to A2, 18-8 Regular price $9.68 AUD Regular price Sale price $9.68 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 15.09 mm _{(0.594 in.)}	Clip Thickness (T) 0.89 mm +/- 0.05 _{(0.035 in.)}	Groove Dia. (Dg) 14.20 mm _{(0.559 in.)}	Approx. Loose Circlip ID (A) 14.03 mm + 0.00 / - 0.33	Radial Wall (S) min/max 1.27 mm +/- 0.10	Groove Width (W) 1.03 mm +/- 0.08
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Approx. Loose Clip OD: 16.57 +/- 0.04 Groove Depth (d): 0.46
Part Number: RSN-059-S02 External Retaining Rings - 15.09x0.89x14.2 mm - Stainless Steel 302/304 Similar to A2, 18-8 Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 18, 2025 Regular price $10.68 AUD Regular price Sale price $10.68 AUD Unit price per Each
Shaft Diameter (Ds) 15.09 mm _{(0.594 in.)}	Clip Thickness (T) 0.89 mm +/- 0.05 _{(0.035 in.)}	Groove Dia. (Dg) 14.20 mm _{(0.559 in.)}	Approx. Loose Circlip ID (A) 14.03 mm + 0.00 / - 0.33
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Radial Wall (S) min/max: 1.27 mm +/- 0.10 Groove Width (W): 1.03 mm +/- 0.08 Approx. Loose Clip OD: 16.57 +/- 0.04 Groove Depth (d): 0.46
Part Number: RSN-059-S02 External Retaining Rings - 15.09x0.89x14.2 mm - Stainless Steel 302/304 Similar to A2, 18-8 Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 18, 2025 Regular price $10.68 AUD Regular price Sale price $10.68 AUD Unit price per Each View the product page first if you are unsure.
RSN-059-S02 --- External Retaining Rings - 15.09x0.89x14.2 mm - Stainless Steel 302/304 Similar to A2, 18-8 RSN-059-S02 --- External Retaining Rings - 15.09x0.89x14.2 mm - Stainless Steel 302/304 Similar to A2, 18-8 Regular price $10.68 AUD Regular price Sale price $10.68 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 15.88 mm _{(0.625 in.)}	Clip Thickness (T) 0.89 mm +/- 0.05 _{(0.035 in.)}	Groove Dia. (Dg) 14.94 mm _{(0.588 in.)}	Approx. Loose Circlip ID (A) 14.77 mm + 0.00 / - 0.33	Radial Wall (S) min/max 1.40 mm +/- 0.10	Groove Width (W) 1.03 mm +/- 0.08
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Approx. Loose Clip OD: 17.57 +/- 0.04 Groove Depth (d): 0.48
Part Number: RSN-062-S02 External Retaining Rings - 15.88x0.89x14.94 mm - Stainless Steel 302/304 Similar to A2, 18-8 Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 18, 2025 Regular price $9.32 AUD Regular price Sale price $9.32 AUD Unit price per Each
Shaft Diameter (Ds) 15.88 mm _{(0.625 in.)}	Clip Thickness (T) 0.89 mm +/- 0.05 _{(0.035 in.)}	Groove Dia. (Dg) 14.94 mm _{(0.588 in.)}	Approx. Loose Circlip ID (A) 14.77 mm + 0.00 / - 0.33
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Radial Wall (S) min/max: 1.40 mm +/- 0.10 Groove Width (W): 1.03 mm +/- 0.08 Approx. Loose Clip OD: 17.57 +/- 0.04 Groove Depth (d): 0.48
Part Number: RSN-062-S02 External Retaining Rings - 15.88x0.89x14.94 mm - Stainless Steel 302/304 Similar to A2, 18-8 Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 18, 2025 Regular price $9.32 AUD Regular price Sale price $9.32 AUD Unit price per Each View the product page first if you are unsure.
RSN-062-S02 --- External Retaining Rings - 15.88x0.89x14.94 mm - Stainless Steel 302/304 Similar to A2, 18-8 RSN-062-S02 --- External Retaining Rings - 15.88x0.89x14.94 mm - Stainless Steel 302/304 Similar to A2, 18-8 Regular price $9.32 AUD Regular price Sale price $9.32 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 17.48 mm _{(0.688 in.)}	Clip Thickness (T) 1.07 mm +/- 0.05 _{(0.042 in.)}	Groove Dia. (Dg) 16.41 mm _{(0.646 in.)}	Approx. Loose Circlip ID (A) 16.26 mm + 0.00 / - 0.33	Radial Wall (S) min/max 1.65 mm +/- 0.10	Groove Width (W) 1.21 mm +/- 0.08
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Approx. Loose Clip OD: 19.56 +/- 0.04 Groove Depth (d): 0.53
Part Number: RSN-068-S02 External Retaining Rings - 17.48x1.07x16.41 mm - Stainless Steel 302/304 Similar to A2, 18-8 Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 18, 2025 Regular price $12.32 AUD Regular price Sale price $12.32 AUD Unit price per Each
Shaft Diameter (Ds) 17.48 mm _{(0.688 in.)}	Clip Thickness (T) 1.07 mm +/- 0.05 _{(0.042 in.)}	Groove Dia. (Dg) 16.41 mm _{(0.646 in.)}	Approx. Loose Circlip ID (A) 16.26 mm + 0.00 / - 0.33
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Radial Wall (S) min/max: 1.65 mm +/- 0.10 Groove Width (W): 1.21 mm +/- 0.08 Approx. Loose Clip OD: 19.56 +/- 0.04 Groove Depth (d): 0.53
Part Number: RSN-068-S02 External Retaining Rings - 17.48x1.07x16.41 mm - Stainless Steel 302/304 Similar to A2, 18-8 Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 18, 2025 Regular price $12.32 AUD Regular price Sale price $12.32 AUD Unit price per Each View the product page first if you are unsure.
RSN-068-S02 --- External Retaining Rings - 17.48x1.07x16.41 mm - Stainless Steel 302/304 Similar to A2, 18-8 RSN-068-S02 --- External Retaining Rings - 17.48x1.07x16.41 mm - Stainless Steel 302/304 Similar to A2, 18-8 Regular price $12.32 AUD Regular price Sale price $12.32 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 19.05 mm _{(0.75 in.)}	Clip Thickness (T) 1.07 mm +/- 0.05 _{(0.042 in.)}	Groove Dia. (Dg) 17.89 mm _{(0.704 in.)}	Approx. Loose Circlip ID (A) 17.72 mm + 0.00 / - 0.33	Radial Wall (S) min/max 1.65 mm +/- 0.10	Groove Width (W) 1.21 mm +/- 0.08
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Approx. Loose Clip OD: 21.02 +/- 0.04 Groove Depth (d): 0.58
Part Number: RSN-075-S02 External Retaining Rings - 19.05x1.07x17.89 mm - Stainless Steel 302/304 Similar to A2, 18-8 Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 18, 2025 Regular price $11.23 AUD Regular price Sale price $11.23 AUD Unit price per Each
Shaft Diameter (Ds) 19.05 mm _{(0.75 in.)}	Clip Thickness (T) 1.07 mm +/- 0.05 _{(0.042 in.)}	Groove Dia. (Dg) 17.89 mm _{(0.704 in.)}	Approx. Loose Circlip ID (A) 17.72 mm + 0.00 / - 0.33
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Radial Wall (S) min/max: 1.65 mm +/- 0.10 Groove Width (W): 1.21 mm +/- 0.08 Approx. Loose Clip OD: 21.02 +/- 0.04 Groove Depth (d): 0.58
Part Number: RSN-075-S02 External Retaining Rings - 19.05x1.07x17.89 mm - Stainless Steel 302/304 Similar to A2, 18-8 Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 18, 2025 Regular price $11.23 AUD Regular price Sale price $11.23 AUD Unit price per Each View the product page first if you are unsure.
RSN-075-S02 --- External Retaining Rings - 19.05x1.07x17.89 mm - Stainless Steel 302/304 Similar to A2, 18-8 RSN-075-S02 --- External Retaining Rings - 19.05x1.07x17.89 mm - Stainless Steel 302/304 Similar to A2, 18-8 Regular price $11.23 AUD Regular price Sale price $11.23 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 19.84 mm _{(0.781 in.)}	Clip Thickness (T) 1.07 mm +/- 0.05 _{(0.042 in.)}	Groove Dia. (Dg) 18.62 mm _{(0.733 in.)}	Approx. Loose Circlip ID (A) 18.45 mm + 0.00 / - 0.33	Radial Wall (S) min/max 1.65 mm +/- 0.10	Groove Width (W) 1.21 mm +/- 0.08
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Approx. Loose Clip OD: 21.75 +/- 0.04 Groove Depth (d): 0.61
Part Number: RSN-078-S02 External Retaining Rings - 19.84x1.07x18.62 mm - Stainless Steel 302/304 Similar to A2, 18-8 Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 18, 2025 Regular price $13.32 AUD Regular price Sale price $13.32 AUD Unit price per Each
Shaft Diameter (Ds) 19.84 mm _{(0.781 in.)}	Clip Thickness (T) 1.07 mm +/- 0.05 _{(0.042 in.)}	Groove Dia. (Dg) 18.62 mm _{(0.733 in.)}	Approx. Loose Circlip ID (A) 18.45 mm + 0.00 / - 0.33
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Radial Wall (S) min/max: 1.65 mm +/- 0.10 Groove Width (W): 1.21 mm +/- 0.08 Approx. Loose Clip OD: 21.75 +/- 0.04 Groove Depth (d): 0.61
Part Number: RSN-078-S02 External Retaining Rings - 19.84x1.07x18.62 mm - Stainless Steel 302/304 Similar to A2, 18-8 Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 18, 2025 Regular price $13.32 AUD Regular price Sale price $13.32 AUD Unit price per Each View the product page first if you are unsure.
RSN-078-S02 --- External Retaining Rings - 19.84x1.07x18.62 mm - Stainless Steel 302/304 Similar to A2, 18-8 RSN-078-S02 --- External Retaining Rings - 19.84x1.07x18.62 mm - Stainless Steel 302/304 Similar to A2, 18-8 Regular price $13.32 AUD Regular price Sale price $13.32 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 20.62 mm _{(0.812 in.)}	Clip Thickness (T) 1.07 mm +/- 0.05 _{(0.042 in.)}	Groove Dia. (Dg) 19.36 mm _{(0.762 in.)}	Approx. Loose Circlip ID (A) 19.18 mm + 0.00 / - 0.33	Radial Wall (S) min/max 1.65 mm +/- 0.10	Groove Width (W) 1.21 mm +/- 0.07
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Approx. Loose Clip OD: 22.48 +/- 0.04 Groove Depth (d): 0.64
Part Number: RSN-081-S02 External Retaining Rings - 20.62x1.07x19.36 mm - Stainless Steel 302/304 Similar to A2, 18-8 Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 18, 2025 Regular price $13.50 AUD Regular price Sale price $13.50 AUD Unit price per Each
Shaft Diameter (Ds) 20.62 mm _{(0.812 in.)}	Clip Thickness (T) 1.07 mm +/- 0.05 _{(0.042 in.)}	Groove Dia. (Dg) 19.36 mm _{(0.762 in.)}	Approx. Loose Circlip ID (A) 19.18 mm + 0.00 / - 0.33
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Radial Wall (S) min/max: 1.65 mm +/- 0.10 Groove Width (W): 1.21 mm +/- 0.07 Approx. Loose Clip OD: 22.48 +/- 0.04 Groove Depth (d): 0.64
Part Number: RSN-081-S02 External Retaining Rings - 20.62x1.07x19.36 mm - Stainless Steel 302/304 Similar to A2, 18-8 Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 18, 2025 Regular price $13.50 AUD Regular price Sale price $13.50 AUD Unit price per Each View the product page first if you are unsure.
RSN-081-S02 --- External Retaining Rings - 20.62x1.07x19.36 mm - Stainless Steel 302/304 Similar to A2, 18-8 RSN-081-S02 --- External Retaining Rings - 20.62x1.07x19.36 mm - Stainless Steel 302/304 Similar to A2, 18-8 Regular price $13.50 AUD Regular price Sale price $13.50 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 22.23 mm _{(0.875 in.)}	Clip Thickness (T) 1.07 mm +/- 0.05 _{(0.042 in.)}	Groove Dia. (Dg) 20.86 mm _{(0.821 in.)}	Approx. Loose Circlip ID (A) 20.67 mm + 0.00 / - 0.33	Radial Wall (S) min/max 1.91 mm +/- 0.11	Groove Width (W) 1.21 mm +/- 0.07
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Approx. Loose Clip OD: 24.49 +/- 0.04 Groove Depth (d): 0.69
Part Number: RSN-087-S02 External Retaining Rings - 22.23x1.07x20.86 mm - Stainless Steel 302/304 Similar to A2, 18-8 Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 18, 2025 Regular price $12.86 AUD Regular price Sale price $12.86 AUD Unit price per Each
Shaft Diameter (Ds) 22.23 mm _{(0.875 in.)}	Clip Thickness (T) 1.07 mm +/- 0.05 _{(0.042 in.)}	Groove Dia. (Dg) 20.86 mm _{(0.821 in.)}	Approx. Loose Circlip ID (A) 20.67 mm + 0.00 / - 0.33
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Radial Wall (S) min/max: 1.91 mm +/- 0.11 Groove Width (W): 1.21 mm +/- 0.07 Approx. Loose Clip OD: 24.49 +/- 0.04 Groove Depth (d): 0.69
Part Number: RSN-087-S02 External Retaining Rings - 22.23x1.07x20.86 mm - Stainless Steel 302/304 Similar to A2, 18-8 Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 18, 2025 Regular price $12.86 AUD Regular price Sale price $12.86 AUD Unit price per Each View the product page first if you are unsure.
RSN-087-S02 --- External Retaining Rings - 22.23x1.07x20.86 mm - Stainless Steel 302/304 Similar to A2, 18-8 RSN-087-S02 --- External Retaining Rings - 22.23x1.07x20.86 mm - Stainless Steel 302/304 Similar to A2, 18-8 Regular price $12.86 AUD Regular price Sale price $12.86 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 23.83 mm _{(0.938 in.)}	Clip Thickness (T) 1.07 mm +/- 0.05 _{(0.042 in.)}	Groove Dia. (Dg) 22.41 mm _{(0.882 in.)}	Approx. Loose Circlip ID (A) 22.16 mm + 0.00 / - 0.33	Radial Wall (S) min/max 1.91 mm +/- 0.11	Groove Width (W) 1.21 mm +/- 0.08
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Approx. Loose Clip OD: 25.98 +/- 0.04 Groove Depth (d): 0.71
Part Number: RSN-093-S02 External Retaining Rings - 23.83x1.07x22.41 mm - Stainless Steel 302/304 Similar to A2, 18-8 Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 18, 2025 Regular price $15.14 AUD Regular price Sale price $15.14 AUD Unit price per Each
Shaft Diameter (Ds) 23.83 mm _{(0.938 in.)}	Clip Thickness (T) 1.07 mm +/- 0.05 _{(0.042 in.)}	Groove Dia. (Dg) 22.41 mm _{(0.882 in.)}	Approx. Loose Circlip ID (A) 22.16 mm + 0.00 / - 0.33
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Radial Wall (S) min/max: 1.91 mm +/- 0.11 Groove Width (W): 1.21 mm +/- 0.08 Approx. Loose Clip OD: 25.98 +/- 0.04 Groove Depth (d): 0.71
Part Number: RSN-093-S02 External Retaining Rings - 23.83x1.07x22.41 mm - Stainless Steel 302/304 Similar to A2, 18-8 Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 18, 2025 Regular price $15.14 AUD Regular price Sale price $15.14 AUD Unit price per Each View the product page first if you are unsure.
RSN-093-S02 --- External Retaining Rings - 23.83x1.07x22.41 mm - Stainless Steel 302/304 Similar to A2, 18-8 RSN-093-S02 --- External Retaining Rings - 23.83x1.07x22.41 mm - Stainless Steel 302/304 Similar to A2, 18-8 Regular price $15.14 AUD Regular price Sale price $15.14 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 25.40 mm _{(1 in.)}	Clip Thickness (T) 1.07 mm +/- 0.05 _{(0.042 in.)}	Groove Dia. (Dg) 23.88 mm _{(0.94 in.)}	Approx. Loose Circlip ID (A) 23.62 mm + 0.00 / - 0.33	Radial Wall (S) min/max 2.16 mm +/- 0.10	Groove Width (W) 1.21 mm +/- 0.07
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Approx. Loose Clip OD: 27.94 +/- 0.04 Groove Depth (d): 0.76
Part Number: RSN-100-S02 (5 Pcs) External Retaining Rings - 25.4x1.07x23.88 mm - Stainless Steel 302/304 Similar to A2, 18-8 Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $14.23 AUD Regular price Sale price $14.23 AUD Unit price per Per 5
Shaft Diameter (Ds) 25.40 mm _{(1 in.)}	Clip Thickness (T) 1.07 mm +/- 0.05 _{(0.042 in.)}	Groove Dia. (Dg) 23.88 mm _{(0.94 in.)}	Approx. Loose Circlip ID (A) 23.62 mm + 0.00 / - 0.33
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Radial Wall (S) min/max: 2.16 mm +/- 0.10 Groove Width (W): 1.21 mm +/- 0.07 Approx. Loose Clip OD: 27.94 +/- 0.04 Groove Depth (d): 0.76
Part Number: RSN-100-S02 (5 Pcs) External Retaining Rings - 25.4x1.07x23.88 mm - Stainless Steel 302/304 Similar to A2, 18-8 Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $14.23 AUD Regular price Sale price $14.23 AUD Unit price per Per 5 View the product page first if you are unsure.
RSN-100-S02 (5 Pcs) --- External Retaining Rings - 25.4x1.07x23.88 mm - Stainless Steel 302/304 Similar to A2, 18-8 RSN-100-S02 (5 Pcs) --- External Retaining Rings - 25.4x1.07x23.88 mm - Stainless Steel 302/304 Similar to A2, 18-8 Regular price $14.23 AUD Regular price Sale price $14.23 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 26.97 mm _{(1.062 in.)}	Clip Thickness (T) 1.27 mm +/- 0.05 _{(0.05 in.)}	Groove Dia. (Dg) 25.35 mm _{(0.998 in.)}	Approx. Loose Circlip ID (A) 25.08 mm + 0.00 / - 0.33	Radial Wall (S) min/max 2.62 mm +/- 0.11	Groove Width (W) 1.47 mm +/- 0.10
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Approx. Loose Clip OD: 30.32 +/- 0.05 Groove Depth (d): 0.81
Part Number: RSN-106-S02 External Retaining Rings - 26.97x1.27x25.35 mm - Stainless Steel 302/304 Similar to A2, 18-8 Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 18, 2025 Regular price $21.14 AUD Regular price Sale price $21.14 AUD Unit price per Each
Shaft Diameter (Ds) 26.97 mm _{(1.062 in.)}	Clip Thickness (T) 1.27 mm +/- 0.05 _{(0.05 in.)}	Groove Dia. (Dg) 25.35 mm _{(0.998 in.)}	Approx. Loose Circlip ID (A) 25.08 mm + 0.00 / - 0.33
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Radial Wall (S) min/max: 2.62 mm +/- 0.11 Groove Width (W): 1.47 mm +/- 0.10 Approx. Loose Clip OD: 30.32 +/- 0.05 Groove Depth (d): 0.81
Part Number: RSN-106-S02 External Retaining Rings - 26.97x1.27x25.35 mm - Stainless Steel 302/304 Similar to A2, 18-8 Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 18, 2025 Regular price $21.14 AUD Regular price Sale price $21.14 AUD Unit price per Each View the product page first if you are unsure.
RSN-106-S02 --- External Retaining Rings - 26.97x1.27x25.35 mm - Stainless Steel 302/304 Similar to A2, 18-8 RSN-106-S02 --- External Retaining Rings - 26.97x1.27x25.35 mm - Stainless Steel 302/304 Similar to A2, 18-8 Regular price $21.14 AUD Regular price Sale price $21.14 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 28.58 mm _{(1.125 in.)}	Clip Thickness (T) 1.27 mm +/- 0.05 _{(0.05 in.)}	Groove Dia. (Dg) 26.90 mm _{(1.059 in.)}	Approx. Loose Circlip ID (A) 26.58 mm + 0.00 / - 0.33	Radial Wall (S) min/max 2.62 mm +/- 0.11	Groove Width (W) 1.47 mm +/- 0.10
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Approx. Loose Clip OD: 31.82 +/- 0.05 Groove Depth (d): 0.84
Part Number: RSN-112-S02 External Retaining Rings - 28.58x1.27x26.9 mm - Stainless Steel 302/304 Similar to A2, 18-8 Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 18, 2025 Regular price $16.77 AUD Regular price Sale price $16.77 AUD Unit price per Each
Shaft Diameter (Ds) 28.58 mm _{(1.125 in.)}	Clip Thickness (T) 1.27 mm +/- 0.05 _{(0.05 in.)}	Groove Dia. (Dg) 26.90 mm _{(1.059 in.)}	Approx. Loose Circlip ID (A) 26.58 mm + 0.00 / - 0.33
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Radial Wall (S) min/max: 2.62 mm +/- 0.11 Groove Width (W): 1.47 mm +/- 0.10 Approx. Loose Clip OD: 31.82 +/- 0.05 Groove Depth (d): 0.84
Part Number: RSN-112-S02 External Retaining Rings - 28.58x1.27x26.9 mm - Stainless Steel 302/304 Similar to A2, 18-8 Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 18, 2025 Regular price $16.77 AUD Regular price Sale price $16.77 AUD Unit price per Each View the product page first if you are unsure.
RSN-112-S02 --- External Retaining Rings - 28.58x1.27x26.9 mm - Stainless Steel 302/304 Similar to A2, 18-8 RSN-112-S02 --- External Retaining Rings - 28.58x1.27x26.9 mm - Stainless Steel 302/304 Similar to A2, 18-8 Regular price $16.77 AUD Regular price Sale price $16.77 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 30.18 mm _{(1.188 in.)}	Clip Thickness (T) 1.27 mm +/- 0.05 _{(0.05 in.)}	Groove Dia. (Dg) 28.40 mm _{(1.118 in.)}	Approx. Loose Circlip ID (A) 28.07 mm + 0.00 / - 0.33	Radial Wall (S) min/max 2.62 mm +/- 0.11	Groove Width (W) 1.47 mm +/- 0.10
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Approx. Loose Clip OD: 33.31 +/- 0.05 Groove Depth (d): 0.89
Part Number: RSN-118-S02 External Retaining Rings - 30.18x1.27x28.4 mm - Stainless Steel 302/304 Similar to A2, 18-8 Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 18, 2025 Regular price $23.59 AUD Regular price Sale price $23.59 AUD Unit price per Each
Shaft Diameter (Ds) 30.18 mm _{(1.188 in.)}	Clip Thickness (T) 1.27 mm +/- 0.05 _{(0.05 in.)}	Groove Dia. (Dg) 28.40 mm _{(1.118 in.)}	Approx. Loose Circlip ID (A) 28.07 mm + 0.00 / - 0.33
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Radial Wall (S) min/max: 2.62 mm +/- 0.11 Groove Width (W): 1.47 mm +/- 0.10 Approx. Loose Clip OD: 33.31 +/- 0.05 Groove Depth (d): 0.89
Part Number: RSN-118-S02 External Retaining Rings - 30.18x1.27x28.4 mm - Stainless Steel 302/304 Similar to A2, 18-8 Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 18, 2025 Regular price $23.59 AUD Regular price Sale price $23.59 AUD Unit price per Each View the product page first if you are unsure.
RSN-118-S02 --- External Retaining Rings - 30.18x1.27x28.4 mm - Stainless Steel 302/304 Similar to A2, 18-8 RSN-118-S02 --- External Retaining Rings - 30.18x1.27x28.4 mm - Stainless Steel 302/304 Similar to A2, 18-8 Regular price $23.59 AUD Regular price Sale price $23.59 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 31.75 mm _{(1.25 in.)}	Clip Thickness (T) 1.27 mm +/- 0.05 _{(0.05 in.)}	Groove Dia. (Dg) 29.87 mm _{(1.176 in.)}	Approx. Loose Circlip ID (A) 29.53 mm + 0.00 / - 0.33	Radial Wall (S) min/max 2.62 mm +/- 0.11	Groove Width (W) 1.47 mm +/- 0.10
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Approx. Loose Clip OD: 34.77 +/- 0.05 Groove Depth (d): 0.94
Part Number: RSN-125-S02 External Retaining Rings - 31.75x1.27x29.87 mm - Stainless Steel 302/304 Similar to A2, 18-8 Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 18, 2025 Regular price $16.77 AUD Regular price Sale price $16.77 AUD Unit price per Each
Shaft Diameter (Ds) 31.75 mm _{(1.25 in.)}	Clip Thickness (T) 1.27 mm +/- 0.05 _{(0.05 in.)}	Groove Dia. (Dg) 29.87 mm _{(1.176 in.)}	Approx. Loose Circlip ID (A) 29.53 mm + 0.00 / - 0.33
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Radial Wall (S) min/max: 2.62 mm +/- 0.11 Groove Width (W): 1.47 mm +/- 0.10 Approx. Loose Clip OD: 34.77 +/- 0.05 Groove Depth (d): 0.94
Part Number: RSN-125-S02 External Retaining Rings - 31.75x1.27x29.87 mm - Stainless Steel 302/304 Similar to A2, 18-8 Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 18, 2025 Regular price $16.77 AUD Regular price Sale price $16.77 AUD Unit price per Each View the product page first if you are unsure.
RSN-125-S02 --- External Retaining Rings - 31.75x1.27x29.87 mm - Stainless Steel 302/304 Similar to A2, 18-8 RSN-125-S02 --- External Retaining Rings - 31.75x1.27x29.87 mm - Stainless Steel 302/304 Similar to A2, 18-8 Regular price $16.77 AUD Regular price Sale price $16.77 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 33.32 mm _{(1.312 in.)}	Clip Thickness (T) 1.27 mm +/- 0.05 _{(0.05 in.)}	Groove Dia. (Dg) 31.29 mm _{(1.232 in.)}	Approx. Loose Circlip ID (A) 30.99 mm + 0.00 / - 0.33	Radial Wall (S) min/max 3.00 mm +/- 0.10	Groove Width (W) 1.47 mm +/- 0.10
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Approx. Loose Clip OD: 36.99 +/- 0.05 Groove Depth (d): 1.02
Part Number: RSN-131-S02 External Retaining Rings - 33.32x1.27x31.29 mm - Stainless Steel 302/304 Similar to A2, 18-8 Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 18, 2025 Regular price $24.77 AUD Regular price Sale price $24.77 AUD Unit price per Each
Shaft Diameter (Ds) 33.32 mm _{(1.312 in.)}	Clip Thickness (T) 1.27 mm +/- 0.05 _{(0.05 in.)}	Groove Dia. (Dg) 31.29 mm _{(1.232 in.)}	Approx. Loose Circlip ID (A) 30.99 mm + 0.00 / - 0.33
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Radial Wall (S) min/max: 3.00 mm +/- 0.10 Groove Width (W): 1.47 mm +/- 0.10 Approx. Loose Clip OD: 36.99 +/- 0.05 Groove Depth (d): 1.02
Part Number: RSN-131-S02 External Retaining Rings - 33.32x1.27x31.29 mm - Stainless Steel 302/304 Similar to A2, 18-8 Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 18, 2025 Regular price $24.77 AUD Regular price Sale price $24.77 AUD Unit price per Each View the product page first if you are unsure.
RSN-131-S02 --- External Retaining Rings - 33.32x1.27x31.29 mm - Stainless Steel 302/304 Similar to A2, 18-8 RSN-131-S02 --- External Retaining Rings - 33.32x1.27x31.29 mm - Stainless Steel 302/304 Similar to A2, 18-8 Regular price $24.77 AUD Regular price Sale price $24.77 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 34.93 mm _{(1.375 in.)}	Clip Thickness (T) 1.27 mm +/- 0.05 _{(0.05 in.)}	Groove Dia. (Dg) 32.79 mm _{(1.291 in.)}	Approx. Loose Circlip ID (A) 32.48 mm + 0.00 / - 0.33	Radial Wall (S) min/max 3.00 mm +/- 0.10	Groove Width (W) 1.47 mm +/- 0.10
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Approx. Loose Clip OD: 38.48 +/- 0.05 Groove Depth (d): 1.07
Part Number: RSN-137-S02 External Retaining Rings - 34.93x1.27x32.79 mm - Stainless Steel 302/304 Similar to A2, 18-8 Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 18, 2025 Regular price $17.77 AUD Regular price Sale price $17.77 AUD Unit price per Each
Shaft Diameter (Ds) 34.93 mm _{(1.375 in.)}	Clip Thickness (T) 1.27 mm +/- 0.05 _{(0.05 in.)}	Groove Dia. (Dg) 32.79 mm _{(1.291 in.)}	Approx. Loose Circlip ID (A) 32.48 mm + 0.00 / - 0.33
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Radial Wall (S) min/max: 3.00 mm +/- 0.10 Groove Width (W): 1.47 mm +/- 0.10 Approx. Loose Clip OD: 38.48 +/- 0.05 Groove Depth (d): 1.07
Part Number: RSN-137-S02 External Retaining Rings - 34.93x1.27x32.79 mm - Stainless Steel 302/304 Similar to A2, 18-8 Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 18, 2025 Regular price $17.77 AUD Regular price Sale price $17.77 AUD Unit price per Each View the product page first if you are unsure.
RSN-137-S02 --- External Retaining Rings - 34.93x1.27x32.79 mm - Stainless Steel 302/304 Similar to A2, 18-8 RSN-137-S02 --- External Retaining Rings - 34.93x1.27x32.79 mm - Stainless Steel 302/304 Similar to A2, 18-8 Regular price $17.77 AUD Regular price Sale price $17.77 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 36.53 mm _{(1.438 in.)}	Clip Thickness (T) 1.27 mm +/- 0.05 _{(0.05 in.)}	Groove Dia. (Dg) 34.29 mm _{(1.35 in.)}	Approx. Loose Circlip ID (A) 33.97 mm + 0.00 / - 0.33	Radial Wall (S) min/max 3.00 mm +/- 0.10	Groove Width (W) 1.47 mm +/- 0.10
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Approx. Loose Clip OD: 39.97 +/- 0.05 Groove Depth (d): 1.12
Part Number: RSN-143-S02 External Retaining Rings - 36.53x1.27x34.29 mm - Stainless Steel 302/304 Similar to A2, 18-8 Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 18, 2025 Regular price $25.68 AUD Regular price Sale price $25.68 AUD Unit price per Each
Shaft Diameter (Ds) 36.53 mm _{(1.438 in.)}	Clip Thickness (T) 1.27 mm +/- 0.05 _{(0.05 in.)}	Groove Dia. (Dg) 34.29 mm _{(1.35 in.)}	Approx. Loose Circlip ID (A) 33.97 mm + 0.00 / - 0.33
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Radial Wall (S) min/max: 3.00 mm +/- 0.10 Groove Width (W): 1.47 mm +/- 0.10 Approx. Loose Clip OD: 39.97 +/- 0.05 Groove Depth (d): 1.12
Part Number: RSN-143-S02 External Retaining Rings - 36.53x1.27x34.29 mm - Stainless Steel 302/304 Similar to A2, 18-8 Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 18, 2025 Regular price $25.68 AUD Regular price Sale price $25.68 AUD Unit price per Each View the product page first if you are unsure.
RSN-143-S02 --- External Retaining Rings - 36.53x1.27x34.29 mm - Stainless Steel 302/304 Similar to A2, 18-8 RSN-143-S02 --- External Retaining Rings - 36.53x1.27x34.29 mm - Stainless Steel 302/304 Similar to A2, 18-8 Regular price $25.68 AUD Regular price Sale price $25.68 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 38.10 mm _{(1.5 in.)}	Clip Thickness (T) 1.27 mm +/- 0.05 _{(0.05 in.)}	Groove Dia. (Dg) 35.71 mm _{(1.406 in.)}	Approx. Loose Circlip ID (A) 35.43 mm + 0.00 / - 0.33	Radial Wall (S) min/max 3.00 mm +/- 0.10	Groove Width (W) 1.47 mm +/- 0.10
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Approx. Loose Clip OD: 41.43 +/- 0.05 Groove Depth (d): 1.19
Part Number: RSN-150-S02 External Retaining Rings - 38.1x1.27x35.71 mm - Stainless Steel 302/304 Similar to A2, 18-8 Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 18, 2025 Regular price $19.86 AUD Regular price Sale price $19.86 AUD Unit price per Each
Shaft Diameter (Ds) 38.10 mm _{(1.5 in.)}	Clip Thickness (T) 1.27 mm +/- 0.05 _{(0.05 in.)}	Groove Dia. (Dg) 35.71 mm _{(1.406 in.)}	Approx. Loose Circlip ID (A) 35.43 mm + 0.00 / - 0.33
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Radial Wall (S) min/max: 3.00 mm +/- 0.10 Groove Width (W): 1.47 mm +/- 0.10 Approx. Loose Clip OD: 41.43 +/- 0.05 Groove Depth (d): 1.19
Part Number: RSN-150-S02 External Retaining Rings - 38.1x1.27x35.71 mm - Stainless Steel 302/304 Similar to A2, 18-8 Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 18, 2025 Regular price $19.86 AUD Regular price Sale price $19.86 AUD Unit price per Each View the product page first if you are unsure.
RSN-150-S02 --- External Retaining Rings - 38.1x1.27x35.71 mm - Stainless Steel 302/304 Similar to A2, 18-8 RSN-150-S02 --- External Retaining Rings - 38.1x1.27x35.71 mm - Stainless Steel 302/304 Similar to A2, 18-8 Regular price $19.86 AUD Regular price Sale price $19.86 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 39.67 mm _{(1.562 in.)}	Clip Thickness (T) 1.58 mm +/- 0.08 _{(0.062 in.)}	Groove Dia. (Dg) 37.29 mm _{(1.468 in.)}	Approx. Loose Circlip ID (A) 36.89 mm + 0.00 / - 0.51	Radial Wall (S) min/max 3.25 mm +/- 0.10	Groove Width (W) 1.78 mm +/- 0.13
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Approx. Loose Clip OD: 43.39 +/- 0.05 Groove Depth (d): 1.19
Part Number: RSN-156-S02 External Retaining Rings - 39.67x1.58x37.29 mm - Stainless Steel 302/304 Similar to A2, 18-8 Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 18, 2025 Regular price $33.41 AUD Regular price Sale price $33.41 AUD Unit price per Each
Shaft Diameter (Ds) 39.67 mm _{(1.562 in.)}	Clip Thickness (T) 1.58 mm +/- 0.08 _{(0.062 in.)}	Groove Dia. (Dg) 37.29 mm _{(1.468 in.)}	Approx. Loose Circlip ID (A) 36.89 mm + 0.00 / - 0.51
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Radial Wall (S) min/max: 3.25 mm +/- 0.10 Groove Width (W): 1.78 mm +/- 0.13 Approx. Loose Clip OD: 43.39 +/- 0.05 Groove Depth (d): 1.19
Part Number: RSN-156-S02 External Retaining Rings - 39.67x1.58x37.29 mm - Stainless Steel 302/304 Similar to A2, 18-8 Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 18, 2025 Regular price $33.41 AUD Regular price Sale price $33.41 AUD Unit price per Each View the product page first if you are unsure.
RSN-156-S02 --- External Retaining Rings - 39.67x1.58x37.29 mm - Stainless Steel 302/304 Similar to A2, 18-8 RSN-156-S02 --- External Retaining Rings - 39.67x1.58x37.29 mm - Stainless Steel 302/304 Similar to A2, 18-8 Regular price $33.41 AUD Regular price Sale price $33.41 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 42.85 mm _{(1.687 in.)}	Clip Thickness (T) 1.58 mm +/- 0.08 _{(0.062 in.)}	Groove Dia. (Dg) 40.36 mm _{(1.589 in.)}	Approx. Loose Circlip ID (A) 39.85 mm + 0.00 / - 0.51	Radial Wall (S) min/max 3.25 mm +/- 0.10	Groove Width (W) 1.78 mm +/- 0.13
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Approx. Loose Clip OD: 46.35 +/- 0.05 Groove Depth (d): 1.24
Part Number: RSN-168-S02 External Retaining Rings - 42.85x1.58x40.36 mm - Stainless Steel 302/304 Similar to A2, 18-8 Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 18, 2025 Regular price $35.59 AUD Regular price Sale price $35.59 AUD Unit price per Each
Shaft Diameter (Ds) 42.85 mm _{(1.687 in.)}	Clip Thickness (T) 1.58 mm +/- 0.08 _{(0.062 in.)}	Groove Dia. (Dg) 40.36 mm _{(1.589 in.)}	Approx. Loose Circlip ID (A) 39.85 mm + 0.00 / - 0.51
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Radial Wall (S) min/max: 3.25 mm +/- 0.10 Groove Width (W): 1.78 mm +/- 0.13 Approx. Loose Clip OD: 46.35 +/- 0.05 Groove Depth (d): 1.24
Part Number: RSN-168-S02 External Retaining Rings - 42.85x1.58x40.36 mm - Stainless Steel 302/304 Similar to A2, 18-8 Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 18, 2025 Regular price $35.59 AUD Regular price Sale price $35.59 AUD Unit price per Each View the product page first if you are unsure.
RSN-168-S02 --- External Retaining Rings - 42.85x1.58x40.36 mm - Stainless Steel 302/304 Similar to A2, 18-8 RSN-168-S02 --- External Retaining Rings - 42.85x1.58x40.36 mm - Stainless Steel 302/304 Similar to A2, 18-8 Regular price $35.59 AUD Regular price Sale price $35.59 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 44.45 mm _{(1.75 in.)}	Clip Thickness (T) 1.58 mm +/- 0.08 _{(0.062 in.)}	Groove Dia. (Dg) 41.91 mm _{(1.65 in.)}	Approx. Loose Circlip ID (A) 41.34 mm + 0.00 / - 0.51	Radial Wall (S) min/max 3.25 mm +/- 0.10	Groove Width (W) 1.78 mm +/- 0.13
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Approx. Loose Clip OD: 47.84 +/- 0.05 Groove Depth (d): 1.27
Part Number: RSN-175-S02 External Retaining Rings - 44.45x1.58x41.91 mm - Stainless Steel 302/304 Similar to A2, 18-8 Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 18, 2025 Regular price $26.95 AUD Regular price Sale price $26.95 AUD Unit price per Each
Shaft Diameter (Ds) 44.45 mm _{(1.75 in.)}	Clip Thickness (T) 1.58 mm +/- 0.08 _{(0.062 in.)}	Groove Dia. (Dg) 41.91 mm _{(1.65 in.)}	Approx. Loose Circlip ID (A) 41.34 mm + 0.00 / - 0.51
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Radial Wall (S) min/max: 3.25 mm +/- 0.10 Groove Width (W): 1.78 mm +/- 0.13 Approx. Loose Clip OD: 47.84 +/- 0.05 Groove Depth (d): 1.27
Part Number: RSN-175-S02 External Retaining Rings - 44.45x1.58x41.91 mm - Stainless Steel 302/304 Similar to A2, 18-8 Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 18, 2025 Regular price $26.95 AUD Regular price Sale price $26.95 AUD Unit price per Each View the product page first if you are unsure.
RSN-175-S02 --- External Retaining Rings - 44.45x1.58x41.91 mm - Stainless Steel 302/304 Similar to A2, 18-8 RSN-175-S02 --- External Retaining Rings - 44.45x1.58x41.91 mm - Stainless Steel 302/304 Similar to A2, 18-8 Regular price $26.95 AUD Regular price Sale price $26.95 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 46.02 mm _{(1.812 in.)}	Clip Thickness (T) 1.58 mm +/- 0.08 _{(0.062 in.)}	Groove Dia. (Dg) 43.39 mm _{(1.708 in.)}	Approx. Loose Circlip ID (A) 42.80 mm + 0.00 / - 0.51	Radial Wall (S) min/max 3.25 mm +/- 0.10	Groove Width (W) 1.78 mm +/- 0.13
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Approx. Loose Clip OD: 49.3 +/- 0.05 Groove Depth (d): 1.32
Part Number: RSN-181-S02 External Retaining Rings - 46.02x1.58x43.39 mm - Stainless Steel 302/304 Similar to A2, 18-8 Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 18, 2025 Regular price $36.50 AUD Regular price Sale price $36.50 AUD Unit price per Each
Shaft Diameter (Ds) 46.02 mm _{(1.812 in.)}	Clip Thickness (T) 1.58 mm +/- 0.08 _{(0.062 in.)}	Groove Dia. (Dg) 43.39 mm _{(1.708 in.)}	Approx. Loose Circlip ID (A) 42.80 mm + 0.00 / - 0.51
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Radial Wall (S) min/max: 3.25 mm +/- 0.10 Groove Width (W): 1.78 mm +/- 0.13 Approx. Loose Clip OD: 49.3 +/- 0.05 Groove Depth (d): 1.32
Part Number: RSN-181-S02 External Retaining Rings - 46.02x1.58x43.39 mm - Stainless Steel 302/304 Similar to A2, 18-8 Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 18, 2025 Regular price $36.50 AUD Regular price Sale price $36.50 AUD Unit price per Each View the product page first if you are unsure.
RSN-181-S02 --- External Retaining Rings - 46.02x1.58x43.39 mm - Stainless Steel 302/304 Similar to A2, 18-8 RSN-181-S02 --- External Retaining Rings - 46.02x1.58x43.39 mm - Stainless Steel 302/304 Similar to A2, 18-8 Regular price $36.50 AUD Regular price Sale price $36.50 AUD Unit price per Out of stock! Backorder Now
