| Shaft or Bearing OD (d1) | Clip Thickness (T) | Groove Dia. (Dg) | Approx. Loose Circlip ID (A) | Radial Wall (S) min/max | Groove Width (W) |

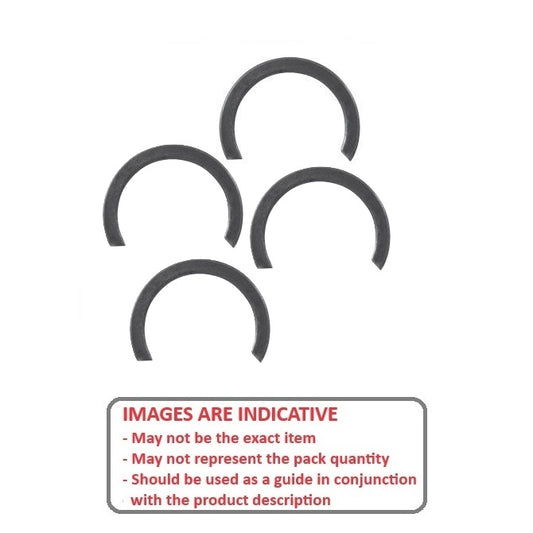

Indicative Image |
|---|---|---|---|---|---|---|
|
Shaft or Bearing OD (d1)
22.23
mm (0.875 in.) |
Clip Thickness (T)
1.07
mm +/- 0.05 (0.042 in.) |
Groove Dia. (Dg)
21.21
mm +/- 0.08 (0.835 in.) |
Approx. Loose Circlip ID (A)
20.83
mm + 0.00 / - 0.79 |
Radial Wall (S) min/max
1.98
mm +/- 0.08 |
Groove Width (W)
1.17
mm |
|
| Material: Spring Steel Approx. Loose Clip OD: 24.79 Info: Basic Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRE-0222-LS External Retaining Rings - 22.23x1.07x21.21 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
| Shaft or Bearing OD (d1) | Clip Thickness (T) | Groove Dia. (Dg) | Approx. Loose Circlip ID (A) |
Indicative Image |
||
|
Shaft or Bearing OD (d1)
22.23
mm (0.875 in.) |
Clip Thickness (T)
1.07
mm +/- 0.05 (0.042 in.) |
Groove Dia. (Dg)
21.21
mm +/- 0.08 (0.835 in.) |
Approx. Loose Circlip ID (A)
20.83
mm + 0.00 / - 0.79 |
|
||
| Material: Spring Steel Radial Wall (S) min/max: 1.98 mm +/- 0.08 Groove Width (W): 1.17 mm Approx. Loose Clip OD: 24.79 Info: Basic Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRE-0222-LS External Retaining Rings - 22.23x1.07x21.21 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
22.23
mm (0.875 in.) |
Clip Thickness (T)
1.07
mm +/- 0.04 (0.042 in.) |
Groove Dia. (Dg)
21.21
mm (0.835 in.) |
Approx. Loose Circlip ID (A)
21.16
mm + 0.00 / - 1.06 |
Radial Wall (S) min/max
1.78
mm |
Groove Width (W)
1.17
mm |
|
| Material: Spring Steel Approx. Loose Clip OD: 24.72 Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRE-0222-LS-L External Retaining Rings - 22.23x1.07x21.21 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
22.23
mm (0.875 in.) |
Clip Thickness (T)
1.07
mm +/- 0.04 (0.042 in.) |
Groove Dia. (Dg)
21.21
mm (0.835 in.) |
Approx. Loose Circlip ID (A)
21.16
mm + 0.00 / - 1.06 |
|
||
| Material: Spring Steel Radial Wall (S) min/max: 1.78 mm Groove Width (W): 1.17 mm Approx. Loose Clip OD: 24.72 Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRE-0222-LS-L External Retaining Rings - 22.23x1.07x21.21 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
22.23
mm (0.875 in.) |
Clip Thickness (T)
1.80
mm +/- 0.05 (0.071 in.) |
Groove Dia. (Dg)
21.31
mm + 0.08 / - 0.00 (0.839 in.) |
Approx. Loose Circlip ID (A)
21.11
mm + 0.00 / - 0.90 |
Radial Wall (S) min/max
1.80
mm +/- 0.05 |
Groove Width (W)
1.98
mm |
|
| Material: Spring Steel Approx. Loose Clip OD: 24.71 Info: Axial Assembly - Closed Gap Section Profile: Square Section | ||||||
|
Part Number: WRE-0222-SQ-C External Retaining Rings - 22.23x1.8x21.31 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
22.23
mm (0.875 in.) |
Clip Thickness (T)
1.80
mm +/- 0.05 (0.071 in.) |
Groove Dia. (Dg)
21.31
mm + 0.08 / - 0.00 (0.839 in.) |
Approx. Loose Circlip ID (A)
21.11
mm + 0.00 / - 0.90 |
|
||
| Material: Spring Steel Radial Wall (S) min/max: 1.80 mm +/- 0.05 Groove Width (W): 1.98 mm Approx. Loose Clip OD: 24.71 Info: Axial Assembly - Closed Gap Section Profile: Square Section | ||||||
|
Part Number: WRE-0222-SQ-C External Retaining Rings - 22.23x1.8x21.31 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
22.23
mm (0.875 in.) |
Clip Thickness (T)
1.80
mm +/- 0.05 (0.071 in.) |
Groove Dia. (Dg)
21.31
mm + 0.08 / - 0.00 (0.839 in.) |
Approx. Loose Circlip ID (A)
21.11
mm + 0.00 / - 0.90 |
Radial Wall (S) min/max
1.80
mm +/- 0.05 |
Groove Width (W)
1.98
mm |
|
| Material: Spring Steel Approx. Loose Clip OD: 24.71 Info: Radial Assembly - Open Gap Section Profile: Square Section | ||||||
|
Part Number: WRE-0222-SQ-O External Retaining Rings - 22.23x1.8x21.31 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
22.23
mm (0.875 in.) |
Clip Thickness (T)
1.80
mm +/- 0.05 (0.071 in.) |
Groove Dia. (Dg)
21.31
mm + 0.08 / - 0.00 (0.839 in.) |
Approx. Loose Circlip ID (A)
21.11
mm + 0.00 / - 0.90 |
|
||
| Material: Spring Steel Radial Wall (S) min/max: 1.80 mm +/- 0.05 Groove Width (W): 1.98 mm Approx. Loose Clip OD: 24.71 Info: Radial Assembly - Open Gap Section Profile: Square Section | ||||||
|
Part Number: WRE-0222-SQ-O External Retaining Rings - 22.23x1.8x21.31 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
22.23
mm (0.875 in.) |
Clip Thickness (T)
2.77
mm +/- 0.05 (0.109 in.) |
Groove Dia. (Dg)
20.85
mm + 0.08 / - 0.00 (0.821 in.) |
Approx. Loose Circlip ID (A)
20.65
mm + 0.00 / - 0.90 |
Radial Wall (S) min/max
2.77
mm +/- 0.05 |
Groove Width (W)
2.97
mm |
|
| Material: Spring Steel Approx. Loose Clip OD: 26.19 Info: Axial Assembly - Closed Gap Section Profile: Square Section | ||||||
|
Part Number: WRE-0222-SQ-HC External Retaining Rings - 22.23x2.77x20.85 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
22.23
mm (0.875 in.) |
Clip Thickness (T)
2.77
mm +/- 0.05 (0.109 in.) |
Groove Dia. (Dg)
20.85
mm + 0.08 / - 0.00 (0.821 in.) |
Approx. Loose Circlip ID (A)
20.65
mm + 0.00 / - 0.90 |
|
||
| Material: Spring Steel Radial Wall (S) min/max: 2.77 mm +/- 0.05 Groove Width (W): 2.97 mm Approx. Loose Clip OD: 26.19 Info: Axial Assembly - Closed Gap Section Profile: Square Section | ||||||
|
Part Number: WRE-0222-SQ-HC External Retaining Rings - 22.23x2.77x20.85 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
22.23
mm (0.875 in.) |
Clip Thickness (T)
2.77
mm +/- 0.05 (0.109 in.) |
Groove Dia. (Dg)
20.85
mm + 0.08 / - 0.00 (0.821 in.) |
Approx. Loose Circlip ID (A)
20.65
mm + 0.00 / - 0.90 |
Radial Wall (S) min/max
2.77
mm +/- 0.05 |
Groove Width (W)
2.97
mm |
|
| Material: Spring Steel Approx. Loose Clip OD: 26.19 Info: Radial Assembly - Open Gap Section Profile: Square Section | ||||||
|
Part Number: WRE-0222-SQ-HO External Retaining Rings - 22.23x2.77x20.85 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
22.23
mm (0.875 in.) |
Clip Thickness (T)
2.77
mm +/- 0.05 (0.109 in.) |
Groove Dia. (Dg)
20.85
mm + 0.08 / - 0.00 (0.821 in.) |
Approx. Loose Circlip ID (A)
20.65
mm + 0.00 / - 0.90 |
|
||
| Material: Spring Steel Radial Wall (S) min/max: 2.77 mm +/- 0.05 Groove Width (W): 2.97 mm Approx. Loose Clip OD: 26.19 Info: Radial Assembly - Open Gap Section Profile: Square Section | ||||||
|
Part Number: WRE-0222-SQ-HO External Retaining Rings - 22.23x2.77x20.85 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
23.00
mm + 0.10 / - 0.00
(0.906 in.) |
Clip Thickness (T)
1.20
mm + 0.00 / - 0.10 (0.047 in.) |
Groove Dia. (Dg)
22.20
mm (0.874 in.) |
Approx. Loose Circlip ID (A)
21.70
mm |
|
||
| Material: Spring Steel Approx. Loose Clip OD: 25.2 Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRE-0230-LS External Retaining Rings - 23x1.2x22.2 mm - Spring Steel
Out of Stock | Backorder Now | Orders can be expected around Tue, Jun 17, 2025 Regular price
$4.14 AUD
Regular price
Unit price
per
Each
|
||||||
|
Shaft or Bearing OD (d1)
23.00
mm + 0.10 / - 0.00 (0.906 in.) |
Clip Thickness (T)
1.20
mm + 0.00 / - 0.10 (0.047 in.) |
Groove Dia. (Dg)
22.20
mm (0.874 in.) |
Approx. Loose Circlip ID (A)
21.70
mm |
|
||
| Material: Spring Steel Approx. Loose Clip OD: 25.2 Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRE-0230-LS External Retaining Rings - 23x1.2x22.2 mm - Spring Steel
Out of Stock | Backorder Now | Orders can be expected around Tue, Jun 17, 2025 Regular price
$4.14 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Shaft or Bearing OD (d1)
23.83
mm (0.938 in.) |
Clip Thickness (T)
1.07
mm +/- 0.05 (0.042 in.) |
Groove Dia. (Dg)
22.76
mm +/- 0.08 (0.896 in.) |
Approx. Loose Circlip ID (A)
22.38
mm + 0.00 / - 0.79 |
Radial Wall (S) min/max
1.98
mm +/- 0.08 |
Groove Width (W)
1.17
mm |
|
| Material: Spring Steel Approx. Loose Clip OD: 26.34 Info: Basic Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRE-0238-LS External Retaining Rings - 23.83x1.07x22.76 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
23.83
mm (0.938 in.) |
Clip Thickness (T)
1.07
mm +/- 0.05 (0.042 in.) |
Groove Dia. (Dg)
22.76
mm +/- 0.08 (0.896 in.) |
Approx. Loose Circlip ID (A)
22.38
mm + 0.00 / - 0.79 |
|
||
| Material: Spring Steel Radial Wall (S) min/max: 1.98 mm +/- 0.08 Groove Width (W): 1.17 mm Approx. Loose Clip OD: 26.34 Info: Basic Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRE-0238-LS External Retaining Rings - 23.83x1.07x22.76 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
23.83
mm (0.938 in.) |
Clip Thickness (T)
1.07
mm +/- 0.04 (0.042 in.) |
Groove Dia. (Dg)
22.81
mm (0.898 in.) |
Approx. Loose Circlip ID (A)
22.76
mm + 0.00 / - 1.14 |
Radial Wall (S) min/max
2.06
mm |
Groove Width (W)
1.17
mm |
|
| Material: Spring Steel Approx. Loose Clip OD: 26.88 Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRE-0238-LS-L External Retaining Rings - 23.83x1.07x22.81 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
23.83
mm (0.938 in.) |
Clip Thickness (T)
1.07
mm +/- 0.04 (0.042 in.) |
Groove Dia. (Dg)
22.81
mm (0.898 in.) |
Approx. Loose Circlip ID (A)
22.76
mm + 0.00 / - 1.14 |
|
||
| Material: Spring Steel Radial Wall (S) min/max: 2.06 mm Groove Width (W): 1.17 mm Approx. Loose Clip OD: 26.88 Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRE-0238-LS-L External Retaining Rings - 23.83x1.07x22.81 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
23.83
mm (0.938 in.) |
Clip Thickness (T)
1.80
mm +/- 0.05 (0.071 in.) |
Groove Dia. (Dg)
22.89
mm + 0.08 / - 0.00 (0.901 in.) |
Approx. Loose Circlip ID (A)
22.68
mm + 0.00 / - 0.90 |
Radial Wall (S) min/max
1.80
mm +/- 0.05 |
Groove Width (W)
1.98
mm |
|
| Material: Spring Steel Approx. Loose Clip OD: 26.28 Info: Axial Assembly - Closed Gap Section Profile: Square Section | ||||||
|
Part Number: WRE-0238-SQ-C External Retaining Rings - 23.83x1.8x22.89 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
23.83
mm (0.938 in.) |
Clip Thickness (T)
1.80
mm +/- 0.05 (0.071 in.) |
Groove Dia. (Dg)
22.89
mm + 0.08 / - 0.00 (0.901 in.) |
Approx. Loose Circlip ID (A)
22.68
mm + 0.00 / - 0.90 |
|
||
| Material: Spring Steel Radial Wall (S) min/max: 1.80 mm +/- 0.05 Groove Width (W): 1.98 mm Approx. Loose Clip OD: 26.28 Info: Axial Assembly - Closed Gap Section Profile: Square Section | ||||||
|
Part Number: WRE-0238-SQ-C External Retaining Rings - 23.83x1.8x22.89 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
23.83
mm (0.938 in.) |
Clip Thickness (T)
1.80
mm +/- 0.05 (0.071 in.) |
Groove Dia. (Dg)
22.89
mm + 0.08 / - 0.00 (0.901 in.) |
Approx. Loose Circlip ID (A)
22.68
mm + 0.00 / - 0.90 |
Radial Wall (S) min/max
1.80
mm +/- 0.05 |
Groove Width (W)
1.98
mm |
|
| Material: Spring Steel Approx. Loose Clip OD: 26.28 Info: Radial Assembly - Open Gap Section Profile: Square Section | ||||||
|
Part Number: WRE-0238-SQ-O External Retaining Rings - 23.83x1.8x22.89 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
23.83
mm (0.938 in.) |
Clip Thickness (T)
1.80
mm +/- 0.05 (0.071 in.) |
Groove Dia. (Dg)
22.89
mm + 0.08 / - 0.00 (0.901 in.) |
Approx. Loose Circlip ID (A)
22.68
mm + 0.00 / - 0.90 |
|
||
| Material: Spring Steel Radial Wall (S) min/max: 1.80 mm +/- 0.05 Groove Width (W): 1.98 mm Approx. Loose Clip OD: 26.28 Info: Radial Assembly - Open Gap Section Profile: Square Section | ||||||
|
Part Number: WRE-0238-SQ-O External Retaining Rings - 23.83x1.8x22.89 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
23.83
mm (0.938 in.) |
Clip Thickness (T)
2.77
mm +/- 0.05 (0.109 in.) |
Groove Dia. (Dg)
22.43
mm + 0.08 / - 0.00 (0.883 in.) |
Approx. Loose Circlip ID (A)
22.23
mm + 0.00 / - 0.90 |
Radial Wall (S) min/max
2.77
mm +/- 0.05 |
Groove Width (W)
2.97
mm |
|
| Material: Spring Steel Approx. Loose Clip OD: 27.77 Info: Radial Assembly - Open Gap Section Profile: Square Section | ||||||
|
Part Number: WRE-0238-SQ-HO External Retaining Rings - 23.83x2.77x22.43 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
23.83
mm (0.938 in.) |
Clip Thickness (T)
2.77
mm +/- 0.05 (0.109 in.) |
Groove Dia. (Dg)
22.43
mm + 0.08 / - 0.00 (0.883 in.) |
Approx. Loose Circlip ID (A)
22.23
mm + 0.00 / - 0.90 |
|
||
| Material: Spring Steel Radial Wall (S) min/max: 2.77 mm +/- 0.05 Groove Width (W): 2.97 mm Approx. Loose Clip OD: 27.77 Info: Radial Assembly - Open Gap Section Profile: Square Section | ||||||
|
Part Number: WRE-0238-SQ-HO External Retaining Rings - 23.83x2.77x22.43 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
23.83
mm (0.938 in.) |
Clip Thickness (T)
2.77
mm +/- 0.05 (0.109 in.) |
Groove Dia. (Dg)
22.43
mm + 0.08 / - 0.00 (0.883 in.) |
Approx. Loose Circlip ID (A)
22.23
mm + 0.00 / - 0.90 |
Radial Wall (S) min/max
2.77
mm +/- 0.05 |
Groove Width (W)
2.97
mm |
|
| Material: Spring Steel Approx. Loose Clip OD: 27.77 Info: Axial Assembly - Closed Gap Section Profile: Square Section | ||||||
|
Part Number: WRE-0238-SQ-HC External Retaining Rings - 23.83x2.77x22.43 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
23.83
mm (0.938 in.) |
Clip Thickness (T)
2.77
mm +/- 0.05 (0.109 in.) |
Groove Dia. (Dg)
22.43
mm + 0.08 / - 0.00 (0.883 in.) |
Approx. Loose Circlip ID (A)
22.23
mm + 0.00 / - 0.90 |
|
||
| Material: Spring Steel Radial Wall (S) min/max: 2.77 mm +/- 0.05 Groove Width (W): 2.97 mm Approx. Loose Clip OD: 27.77 Info: Axial Assembly - Closed Gap Section Profile: Square Section | ||||||
|
Part Number: WRE-0238-SQ-HC External Retaining Rings - 23.83x2.77x22.43 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
24.00
mm (0.945 in.) |
Clip Thickness (T)
1.20
mm + 0 / - 0.10 (0.047 in.) |
Groove Dia. (Dg)
23.00
mm + 0 / - 0.13 (0.906 in.) |
Approx. Loose Circlip ID (A)
22.50
mm |
Radial Wall (S) min/max
1.75
mm + 0 / - 0.10 |
Groove Width (W)
1.30
mm |
|
| Material: Spring Steel Approx. Loose Clip OD: 26 Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRE-0240-LS (10 Pcs) External Retaining Rings - 24x1.2x23 mm - Spring Steel
18 units (180 pcs) Available Immediately | Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price
$23.86 AUD
Regular price
Unit price
per
Per 10
|
||||||
|
Shaft or Bearing OD (d1)
24.00
mm (0.945 in.) |
Clip Thickness (T)
1.20
mm + 0 / - 0.10 (0.047 in.) |
Groove Dia. (Dg)
23.00
mm + 0 / - 0.13 (0.906 in.) |
Approx. Loose Circlip ID (A)
22.50
mm |
|
||
| Material: Spring Steel Radial Wall (S) min/max: 1.75 mm + 0 / - 0.10 Groove Width (W): 1.30 mm Approx. Loose Clip OD: 26 Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRE-0240-LS (10 Pcs) External Retaining Rings - 24x1.2x23 mm - Spring Steel
18 units (180 pcs) Available Immediately | Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price
$23.86 AUD
Regular price
Unit price
per
Per 10
|
||||||
|
||||||
|
Shaft or Bearing OD (d1)
24.99
mm (0.984 in.) |
Clip Thickness (T)
1.07
mm +/- 0.05 (0.042 in.) |
Groove Dia. (Dg)
23.88
mm +/- 0.08 (0.94 in.) |
Approx. Loose Circlip ID (A)
23.50
mm + 0.00 / - 0.79 |
Radial Wall (S) min/max
1.98
mm +/- 0.08 |
Groove Width (W)
1.17
mm |
|
| Material: Spring Steel Approx. Loose Clip OD: 27.46 Info: Basic Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRE-0250-LS-L External Retaining Rings - 24.99x1.07x23.88 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
24.99
mm (0.984 in.) |
Clip Thickness (T)
1.07
mm +/- 0.05 (0.042 in.) |
Groove Dia. (Dg)
23.88
mm +/- 0.08 (0.94 in.) |
Approx. Loose Circlip ID (A)
23.50
mm + 0.00 / - 0.79 |
|
||
| Material: Spring Steel Radial Wall (S) min/max: 1.98 mm +/- 0.08 Groove Width (W): 1.17 mm Approx. Loose Clip OD: 27.46 Info: Basic Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRE-0250-LS-L External Retaining Rings - 24.99x1.07x23.88 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
25.00
mm (0.984 in.) |
Clip Thickness (T)
1.20
mm + 0 / - 0.10 (0.047 in.) |
Groove Dia. (Dg)
24.00
mm + 0 / - 0.13 (0.945 in.) |
Approx. Loose Circlip ID (A)
23.50
mm |
Radial Wall (S) min/max
1.75
mm + 0 / - 0.10 |
Groove Width (W)
1.30
mm |
|
| Material: Spring Steel Approx. Loose Clip OD: 27 Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRE-0250-LS (5 Pcs) External Retaining Rings - 25x1.2x24 mm - Spring Steel
56 units (280 pcs) Available Immediately | Further orders can be expected around Sun, Jun 08, 2025 Regular price
$6.41 AUD
Regular price
Unit price
per
Per 5
|
||||||
|
Shaft or Bearing OD (d1)
25.00
mm (0.984 in.) |
Clip Thickness (T)
1.20
mm + 0 / - 0.10 (0.047 in.) |
Groove Dia. (Dg)
24.00
mm + 0 / - 0.13 (0.945 in.) |
Approx. Loose Circlip ID (A)
23.50
mm |
|
||
| Material: Spring Steel Radial Wall (S) min/max: 1.75 mm + 0 / - 0.10 Groove Width (W): 1.30 mm Approx. Loose Clip OD: 27 Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRE-0250-LS (5 Pcs) External Retaining Rings - 25x1.2x24 mm - Spring Steel
56 units (280 pcs) Available Immediately | Further orders can be expected around Sun, Jun 08, 2025 Regular price
$6.41 AUD
Regular price
Unit price
per
Per 5
|
||||||
|
||||||
|
Shaft or Bearing OD (d1)
25.40
mm (1 in.) |
Clip Thickness (T)
1.07
mm +/- 0.05 (0.042 in.) |
Groove Dia. (Dg)
24.23
mm +/- 0.08 (0.954 in.) |
Approx. Loose Circlip ID (A)
23.98
mm - 0.00 / + 0.80 |
Radial Wall (S) min/max
2.36
mm +/- 0.08 |
Groove Width (W)
1.17
mm |
|
| Material: Spring Steel Approx. Loose Clip OD: 28.7 Info: Light Duty Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRE-0254A-SR-L External Retaining Rings - 25.4x1.07x24.23 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
25.40
mm (1 in.) |
Clip Thickness (T)
1.07
mm +/- 0.05 (0.042 in.) |
Groove Dia. (Dg)
24.23
mm +/- 0.08 (0.954 in.) |
Approx. Loose Circlip ID (A)
23.98
mm - 0.00 / + 0.80 |
|
||
| Material: Spring Steel Radial Wall (S) min/max: 2.36 mm +/- 0.08 Groove Width (W): 1.17 mm Approx. Loose Clip OD: 28.7 Info: Light Duty Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRE-0254A-SR-L External Retaining Rings - 25.4x1.07x24.23 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
25.40
mm (1 in.) |
Clip Thickness (T)
1.07
mm +/- 0.04 (0.042 in.) |
Groove Dia. (Dg)
24.31
mm (0.957 in.) |
Approx. Loose Circlip ID (A)
24.26
mm + 0.00 / - 1.21 |
Radial Wall (S) min/max
2.06
mm |
Groove Width (W)
1.17
mm |
|
| Material: Spring Steel Approx. Loose Clip OD: 28.38 Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRE-0254-LS-L External Retaining Rings - 25.4x1.07x24.31 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
25.40
mm (1 in.) |
Clip Thickness (T)
1.07
mm +/- 0.04 (0.042 in.) |
Groove Dia. (Dg)
24.31
mm (0.957 in.) |
Approx. Loose Circlip ID (A)
24.26
mm + 0.00 / - 1.21 |
|
||
| Material: Spring Steel Radial Wall (S) min/max: 2.06 mm Groove Width (W): 1.17 mm Approx. Loose Clip OD: 28.38 Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRE-0254-LS-L External Retaining Rings - 25.4x1.07x24.31 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
25.40
mm (1 in.) |
Clip Thickness (T)
1.98
mm +/- 0.05 (0.078 in.) |
Groove Dia. (Dg)
24.38
mm + 0.08 / - 0.00 (0.96 in.) |
Approx. Loose Circlip ID (A)
24.13
mm + 0.00 / - 0.90 |
Radial Wall (S) min/max
1.98
mm +/- 0.05 |
Groove Width (W)
2.16
mm |
|
| Material: Spring Steel Approx. Loose Clip OD: 28.09 Info: Radial Assembly - Open Gap Section Profile: Square Section | ||||||
|
Part Number: WRE-0254-SQ-O External Retaining Rings - 25.4x1.98x24.38 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
25.40
mm (1 in.) |
Clip Thickness (T)
1.98
mm +/- 0.05 (0.078 in.) |
Groove Dia. (Dg)
24.38
mm + 0.08 / - 0.00 (0.96 in.) |
Approx. Loose Circlip ID (A)
24.13
mm + 0.00 / - 0.90 |
|
||
| Material: Spring Steel Radial Wall (S) min/max: 1.98 mm +/- 0.05 Groove Width (W): 2.16 mm Approx. Loose Clip OD: 28.09 Info: Radial Assembly - Open Gap Section Profile: Square Section | ||||||
|
Part Number: WRE-0254-SQ-O External Retaining Rings - 25.4x1.98x24.38 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
25.40
mm (1 in.) |
Clip Thickness (T)
1.98
mm +/- 0.05 (0.078 in.) |
Groove Dia. (Dg)
24.38
mm + 0.08 / - 0.00 (0.96 in.) |
Approx. Loose Circlip ID (A)
24.13
mm + 0.00 / - 0.90 |
Radial Wall (S) min/max
1.98
mm +/- 0.05 |
Groove Width (W)
2.16
mm |
|
| Material: Spring Steel Approx. Loose Clip OD: 28.09 Info: Axial Assembly - Closed Gap Section Profile: Square Section | ||||||
|
Part Number: WRE-0254-SQ-C External Retaining Rings - 25.4x1.98x24.38 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
25.40
mm (1 in.) |
Clip Thickness (T)
1.98
mm +/- 0.05 (0.078 in.) |
Groove Dia. (Dg)
24.38
mm + 0.08 / - 0.00 (0.96 in.) |
Approx. Loose Circlip ID (A)
24.13
mm + 0.00 / - 0.90 |
|
||
| Material: Spring Steel Radial Wall (S) min/max: 1.98 mm +/- 0.05 Groove Width (W): 2.16 mm Approx. Loose Clip OD: 28.09 Info: Axial Assembly - Closed Gap Section Profile: Square Section | ||||||
|
Part Number: WRE-0254-SQ-C External Retaining Rings - 25.4x1.98x24.38 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
25.40
mm (1 in.) |
Clip Thickness (T)
3.18
mm +/- 0.05 (0.125 in.) |
Groove Dia. (Dg)
23.83
mm + 0.08 / - 0.00 (0.938 in.) |
Approx. Loose Circlip ID (A)
23.60
mm + 0.00 / - 0.90 |
Radial Wall (S) min/max
3.18
mm +/- 0.05 |
Groove Width (W)
3.38
mm |
|
| Material: Spring Steel Approx. Loose Clip OD: 29.96 Info: Axial Assembly - Closed Gap Section Profile: Square Section | ||||||
|
Part Number: WRE-0254-SQ-HC External Retaining Rings - 25.4x3.18x23.83 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
25.40
mm (1 in.) |
Clip Thickness (T)
3.18
mm +/- 0.05 (0.125 in.) |
Groove Dia. (Dg)
23.83
mm + 0.08 / - 0.00 (0.938 in.) |
Approx. Loose Circlip ID (A)
23.60
mm + 0.00 / - 0.90 |
|
||
| Material: Spring Steel Radial Wall (S) min/max: 3.18 mm +/- 0.05 Groove Width (W): 3.38 mm Approx. Loose Clip OD: 29.96 Info: Axial Assembly - Closed Gap Section Profile: Square Section | ||||||
|
Part Number: WRE-0254-SQ-HC External Retaining Rings - 25.4x3.18x23.83 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
25.40
mm (1 in.) |
Clip Thickness (T)
3.18
mm +/- 0.05 (0.125 in.) |
Groove Dia. (Dg)
23.83
mm + 0.08 / - 0.00 (0.938 in.) |
Approx. Loose Circlip ID (A)
23.60
mm + 0.00 / - 0.90 |
Radial Wall (S) min/max
3.18
mm +/- 0.05 |
Groove Width (W)
3.38
mm |
|
| Material: Spring Steel Approx. Loose Clip OD: 29.96 Info: Radial Assembly - Open Gap Section Profile: Square Section | ||||||
|
Part Number: WRE-0254-SQ-HO (50 Pcs) External Retaining Rings - 25.4x3.18x23.83 mm - Spring Steel
Out of Stock | Backorder Now | Orders can be expected around Sun, Jun 08, 2025 Regular price
$83.50 AUD
Regular price
Unit price
per
Per 50
|
||||||
|
Shaft or Bearing OD (d1)
25.40
mm (1 in.) |
Clip Thickness (T)
3.18
mm +/- 0.05 (0.125 in.) |
Groove Dia. (Dg)
23.83
mm + 0.08 / - 0.00 (0.938 in.) |
Approx. Loose Circlip ID (A)
23.60
mm + 0.00 / - 0.90 |
|
||
| Material: Spring Steel Radial Wall (S) min/max: 3.18 mm +/- 0.05 Groove Width (W): 3.38 mm Approx. Loose Clip OD: 29.96 Info: Radial Assembly - Open Gap Section Profile: Square Section | ||||||
|
Part Number: WRE-0254-SQ-HO (50 Pcs) External Retaining Rings - 25.4x3.18x23.83 mm - Spring Steel
Out of Stock | Backorder Now | Orders can be expected around Sun, Jun 08, 2025 Regular price
$83.50 AUD
Regular price
Unit price
per
Per 50
|
||||||
|
||||||
|
Shaft or Bearing OD (d1)
25.98
mm (1.023 in.) |
Clip Thickness (T)
1.07
mm +/- 0.05 (0.042 in.) |
Groove Dia. (Dg)
24.82
mm +/- 0.08 (0.977 in.) |
Approx. Loose Circlip ID (A)
24.44
mm + 0.00 / - 0.79 |
Radial Wall (S) min/max
2.36
mm +/- 0.08 |
Groove Width (W)
1.17
mm |
|
| Material: Spring Steel Approx. Loose Clip OD: 29.16 Info: Basic Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRE-0260-LS-L External Retaining Rings - 25.98x1.07x24.82 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
25.98
mm (1.023 in.) |
Clip Thickness (T)
1.07
mm +/- 0.05 (0.042 in.) |
Groove Dia. (Dg)
24.82
mm +/- 0.08 (0.977 in.) |
Approx. Loose Circlip ID (A)
24.44
mm + 0.00 / - 0.79 |
|
||
| Material: Spring Steel Radial Wall (S) min/max: 2.36 mm +/- 0.08 Groove Width (W): 1.17 mm Approx. Loose Clip OD: 29.16 Info: Basic Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRE-0260-LS-L External Retaining Rings - 25.98x1.07x24.82 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
26.98
mm (1.062 in.) |
Clip Thickness (T)
1.27
mm +/- 0.05 (0.05 in.) |
Groove Dia. (Dg)
25.81
mm +/- 0.08 (1.016 in.) |
Approx. Loose Circlip ID (A)
25.40
mm + 0.00 / - 0.79 |
Radial Wall (S) min/max
2.36
mm +/- 0.08 |
Groove Width (W)
1.42
mm |
|
| Material: Spring Steel Approx. Loose Clip OD: 30.12 Info: Basic Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRE-0270-LS-L External Retaining Rings - 26.98x1.27x25.81 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
26.98
mm (1.062 in.) |
Clip Thickness (T)
1.27
mm +/- 0.05 (0.05 in.) |
Groove Dia. (Dg)
25.81
mm +/- 0.08 (1.016 in.) |
Approx. Loose Circlip ID (A)
25.40
mm + 0.00 / - 0.79 |
|
||
| Material: Spring Steel Radial Wall (S) min/max: 2.36 mm +/- 0.08 Groove Width (W): 1.42 mm Approx. Loose Clip OD: 30.12 Info: Basic Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRE-0270-LS-L External Retaining Rings - 26.98x1.27x25.81 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
