| Shaft or Bearing OD (d1) | Clip Thickness (T) | Groove Dia. (Dg) | Approx. Loose Circlip ID (A) | Radial Wall (S) min/max | Groove Width (W) |

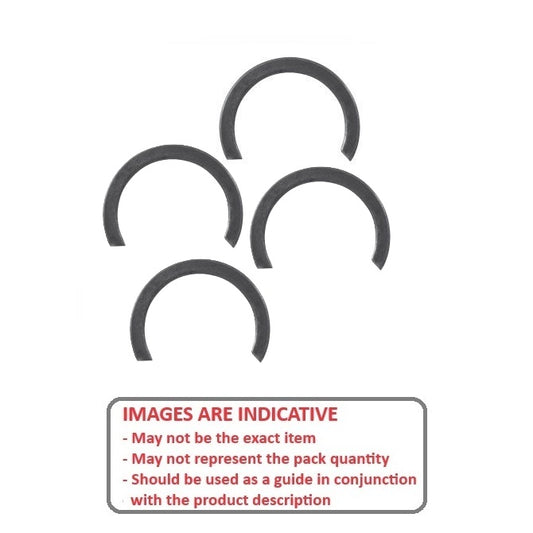

Indicative Image |
|---|---|---|---|---|---|---|
|
Shaft or Bearing OD (d1)
7.93
mm (0.312 in.) |
Clip Thickness (T)
0.79
mm +/- 0.05 (0.031 in.) |
Groove Dia. (Dg)
7.52
mm + 0.08 / - 0.00 (0.296 in.) |
Approx. Loose Circlip ID (A)
7.44
mm + 0.00 / - 0.50 |
Radial Wall (S) min/max
0.79
mm +/- 0.05 |
Groove Width (W)
0.91
mm |
|
| Material: Spring Steel Approx. Loose Clip OD: 9.02 Info: Radial Assembly - Open Gap Section Profile: Square Section | ||||||
|
Part Number: WRE-0079-SQ-O (100 Pcs) External Retaining Rings - 7.93x0.79x7.52 mm - Spring Steel
Out of Stock | Backorder Now | Orders can be expected around Sat, Jun 07, 2025 Regular price
$35.23 AUD
Regular price
Unit price
per
Per 100
|
||||||
| Shaft or Bearing OD (d1) | Clip Thickness (T) | Groove Dia. (Dg) | Approx. Loose Circlip ID (A) |
Indicative Image |
||
|
Shaft or Bearing OD (d1)
7.93
mm (0.312 in.) |
Clip Thickness (T)
0.79
mm +/- 0.05 (0.031 in.) |
Groove Dia. (Dg)
7.52
mm + 0.08 / - 0.00 (0.296 in.) |
Approx. Loose Circlip ID (A)
7.44
mm + 0.00 / - 0.50 |
|
||
| Material: Spring Steel Radial Wall (S) min/max: 0.79 mm +/- 0.05 Groove Width (W): 0.91 mm Approx. Loose Clip OD: 9.02 Info: Radial Assembly - Open Gap Section Profile: Square Section | ||||||
|
Part Number: WRE-0079-SQ-O (100 Pcs) External Retaining Rings - 7.93x0.79x7.52 mm - Spring Steel
Out of Stock | Backorder Now | Orders can be expected around Sat, Jun 07, 2025 Regular price
$35.23 AUD
Regular price
Unit price
per
Per 100
|
||||||
|
||||||
|
Shaft or Bearing OD (d1)
7.93
mm (0.312 in.) |
Clip Thickness (T)
0.99
mm +/- 0.05 (0.039 in.) |
Groove Dia. (Dg)
7.42
mm + 0.08 / - 0.00 (0.292 in.) |
Approx. Loose Circlip ID (A)
7.34
mm + 0.00 / - 0.50 |
Radial Wall (S) min/max
0.99
mm +/- 0.05 |
Groove Width (W)
1.14
mm |
|
| Material: Spring Steel Approx. Loose Clip OD: 9.32 Info: Axial Assembly - Closed Gap Section Profile: Square Section | ||||||
|
Part Number: WRE-0079-SQ-HC External Retaining Rings - 7.93x0.99x7.42 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
7.93
mm (0.312 in.) |
Clip Thickness (T)
0.99
mm +/- 0.05 (0.039 in.) |
Groove Dia. (Dg)
7.42
mm + 0.08 / - 0.00 (0.292 in.) |
Approx. Loose Circlip ID (A)
7.34
mm + 0.00 / - 0.50 |
|
||
| Material: Spring Steel Radial Wall (S) min/max: 0.99 mm +/- 0.05 Groove Width (W): 1.14 mm Approx. Loose Clip OD: 9.32 Info: Axial Assembly - Closed Gap Section Profile: Square Section | ||||||
|
Part Number: WRE-0079-SQ-HC External Retaining Rings - 7.93x0.99x7.42 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
7.93
mm (0.312 in.) |
Clip Thickness (T)
0.99
mm +/- 0.05 (0.039 in.) |
Groove Dia. (Dg)
7.42
mm + 0.08 / - 0.00 (0.292 in.) |
Approx. Loose Circlip ID (A)
7.34
mm + 0.00 / - 0.50 |
Radial Wall (S) min/max
0.99
mm +/- 0.05 |
Groove Width (W)
1.14
mm |
|
| Material: Spring Steel Approx. Loose Clip OD: 9.32 Info: Radial Assembly - Open Gap Section Profile: Square Section | ||||||
|
Part Number: WRE-0079-SQ-HO External Retaining Rings - 7.93x0.99x7.42 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
7.93
mm (0.312 in.) |
Clip Thickness (T)
0.99
mm +/- 0.05 (0.039 in.) |
Groove Dia. (Dg)
7.42
mm + 0.08 / - 0.00 (0.292 in.) |
Approx. Loose Circlip ID (A)
7.34
mm + 0.00 / - 0.50 |
|
||
| Material: Spring Steel Radial Wall (S) min/max: 0.99 mm +/- 0.05 Groove Width (W): 1.14 mm Approx. Loose Clip OD: 9.32 Info: Radial Assembly - Open Gap Section Profile: Square Section | ||||||
|
Part Number: WRE-0079-SQ-HO External Retaining Rings - 7.93x0.99x7.42 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
8.74
mm (0.344 in.) |
Clip Thickness (T)
0.64
mm +/- 0.05 (0.025 in.) |
Groove Dia. (Dg)
8.18
mm +/- 0.05 (0.322 in.) |
Approx. Loose Circlip ID (A)
7.93
mm + 0.00 / - 0.38 |
Radial Wall (S) min/max
1.02
mm +/- 0.08 |
Groove Width (W)
0.71
mm |
|
| Material: Spring Steel Approx. Loose Clip OD: 9.97 Info: Basic Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRE-0087-LS External Retaining Rings - 8.74x0.64x8.18 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
8.74
mm (0.344 in.) |
Clip Thickness (T)
0.64
mm +/- 0.05 (0.025 in.) |
Groove Dia. (Dg)
8.18
mm +/- 0.05 (0.322 in.) |
Approx. Loose Circlip ID (A)
7.93
mm + 0.00 / - 0.38 |
|
||
| Material: Spring Steel Radial Wall (S) min/max: 1.02 mm +/- 0.08 Groove Width (W): 0.71 mm Approx. Loose Clip OD: 9.97 Info: Basic Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRE-0087-LS External Retaining Rings - 8.74x0.64x8.18 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
8.74
mm (0.344 in.) |
Clip Thickness (T)
0.64
mm +/- 0.03 (0.025 in.) |
Groove Dia. (Dg)
8.23
mm (0.324 in.) |
Approx. Loose Circlip ID (A)
8.18
mm + 0.00 / - 0.49 |
Radial Wall (S) min/max
1.02
mm |
Groove Width (W)
0.71
mm |
|
| Material: Spring Steel Approx. Loose Clip OD: 10.22 Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRE-0087-LS-L External Retaining Rings - 8.74x0.64x8.23 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
8.74
mm (0.344 in.) |
Clip Thickness (T)
0.64
mm +/- 0.03 (0.025 in.) |
Groove Dia. (Dg)
8.23
mm (0.324 in.) |
Approx. Loose Circlip ID (A)
8.18
mm + 0.00 / - 0.49 |
|
||
| Material: Spring Steel Radial Wall (S) min/max: 1.02 mm Groove Width (W): 0.71 mm Approx. Loose Clip OD: 10.22 Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRE-0087-LS-L External Retaining Rings - 8.74x0.64x8.23 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
8.99
mm (0.354 in.) |
Clip Thickness (T)
0.64
mm +/- 0.05 (0.025 in.) |
Groove Dia. (Dg)
8.38
mm +/- 0.05 (0.33 in.) |
Approx. Loose Circlip ID (A)
8.13
mm + 0.00 / - 0.38 |
Radial Wall (S) min/max
1.02
mm +/- 0.08 |
Groove Width (W)
0.71
mm |
|
| Material: Spring Steel Approx. Loose Clip OD: 10.17 Info: Basic Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRE-0090-LS-L External Retaining Rings - 8.99x0.64x8.38 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
8.99
mm (0.354 in.) |
Clip Thickness (T)
0.64
mm +/- 0.05 (0.025 in.) |
Groove Dia. (Dg)
8.38
mm +/- 0.05 (0.33 in.) |
Approx. Loose Circlip ID (A)
8.13
mm + 0.00 / - 0.38 |
|
||
| Material: Spring Steel Radial Wall (S) min/max: 1.02 mm +/- 0.08 Groove Width (W): 0.71 mm Approx. Loose Clip OD: 10.17 Info: Basic Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRE-0090-LS-L External Retaining Rings - 8.99x0.64x8.38 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
9.53
mm (0.375 in.) |
Clip Thickness (T)
0.64
mm +/- 0.05 (0.025 in.) |
Groove Dia. (Dg)
8.92
mm +/- 0.05 (0.351 in.) |
Approx. Loose Circlip ID (A)
8.66
mm + 0.00 / - 0.38 |
Radial Wall (S) min/max
1.02
mm +/- 0.08 |
Groove Width (W)
0.71
mm |
|
| Material: Spring Steel Approx. Loose Clip OD: 10.7 Info: Basic Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRE-0095-LS External Retaining Rings - 9.53x0.64x8.92 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
9.53
mm (0.375 in.) |
Clip Thickness (T)
0.64
mm +/- 0.05 (0.025 in.) |
Groove Dia. (Dg)
8.92
mm +/- 0.05 (0.351 in.) |
Approx. Loose Circlip ID (A)
8.66
mm + 0.00 / - 0.38 |
|
||
| Material: Spring Steel Radial Wall (S) min/max: 1.02 mm +/- 0.08 Groove Width (W): 0.71 mm Approx. Loose Clip OD: 10.7 Info: Basic Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRE-0095-LS External Retaining Rings - 9.53x0.64x8.92 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
9.53
mm (0.375 in.) |
Clip Thickness (T)
0.64
mm +/- 0.03 (0.025 in.) |
Groove Dia. (Dg)
8.97
mm (0.353 in.) |
Approx. Loose Circlip ID (A)
8.92
mm + 0.00 / - 0.54 |
Radial Wall (S) min/max
1.02
mm |
Groove Width (W)
0.71
mm |
|
| Material: Spring Steel Approx. Loose Clip OD: 10.96 Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRE-0095-LS-L External Retaining Rings - 9.53x0.64x8.97 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
9.53
mm (0.375 in.) |
Clip Thickness (T)
0.64
mm +/- 0.03 (0.025 in.) |
Groove Dia. (Dg)
8.97
mm (0.353 in.) |
Approx. Loose Circlip ID (A)
8.92
mm + 0.00 / - 0.54 |
|
||
| Material: Spring Steel Radial Wall (S) min/max: 1.02 mm Groove Width (W): 0.71 mm Approx. Loose Clip OD: 10.96 Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRE-0095-LS-L External Retaining Rings - 9.53x0.64x8.97 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
9.53
mm (0.375 in.) |
Clip Thickness (T)
0.89
mm +/- 0.05 (0.035 in.) |
Groove Dia. (Dg)
9.07
mm + 0.08 / - 0.00 (0.357 in.) |
Approx. Loose Circlip ID (A)
8.97
mm + 0.00 / - 0.50 |
Radial Wall (S) min/max
0.89
mm +/- 0.05 |
Groove Width (W)
1.04
mm |
|
| Material: Spring Steel Approx. Loose Clip OD: 10.75 Info: Radial Assembly - Open Gap Section Profile: Square Section | ||||||
|
Part Number: WRE-0095-SQ-O External Retaining Rings - 9.53x0.89x9.07 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
9.53
mm (0.375 in.) |
Clip Thickness (T)
0.89
mm +/- 0.05 (0.035 in.) |
Groove Dia. (Dg)
9.07
mm + 0.08 / - 0.00 (0.357 in.) |
Approx. Loose Circlip ID (A)
8.97
mm + 0.00 / - 0.50 |
|
||
| Material: Spring Steel Radial Wall (S) min/max: 0.89 mm +/- 0.05 Groove Width (W): 1.04 mm Approx. Loose Clip OD: 10.75 Info: Radial Assembly - Open Gap Section Profile: Square Section | ||||||
|
Part Number: WRE-0095-SQ-O External Retaining Rings - 9.53x0.89x9.07 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
9.53
mm (0.375 in.) |
Clip Thickness (T)
0.89
mm +/- 0.05 (0.035 in.) |
Groove Dia. (Dg)
9.07
mm + 0.08 / - 0.00 (0.357 in.) |
Approx. Loose Circlip ID (A)
8.97
mm + 0.00 / - 0.50 |
Radial Wall (S) min/max
0.89
mm +/- 0.05 |
Groove Width (W)
1.04
mm |
|
| Material: Spring Steel Approx. Loose Clip OD: 10.75 Info: Axial Assembly - Closed Gap Section Profile: Square Section | ||||||
|
Part Number: WRE-0095-SQ-C External Retaining Rings - 9.53x0.89x9.07 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
9.53
mm (0.375 in.) |
Clip Thickness (T)
0.89
mm +/- 0.05 (0.035 in.) |
Groove Dia. (Dg)
9.07
mm + 0.08 / - 0.00 (0.357 in.) |
Approx. Loose Circlip ID (A)
8.97
mm + 0.00 / - 0.50 |
|
||
| Material: Spring Steel Radial Wall (S) min/max: 0.89 mm +/- 0.05 Groove Width (W): 1.04 mm Approx. Loose Clip OD: 10.75 Info: Axial Assembly - Closed Gap Section Profile: Square Section | ||||||
|
Part Number: WRE-0095-SQ-C External Retaining Rings - 9.53x0.89x9.07 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
9.53
mm (0.375 in.) |
Clip Thickness (T)
1.17
mm +/- 0.05 (0.046 in.) |
Groove Dia. (Dg)
8.92
mm + 0.08 / - 0.00 (0.351 in.) |
Approx. Loose Circlip ID (A)
8.81
mm + 0.00 / - 0.50 |
Radial Wall (S) min/max
1.17
mm +/- 0.05 |
Groove Width (W)
1.32
mm |
|
| Material: Spring Steel Approx. Loose Clip OD: 11.15 Info: Axial Assembly - Closed Gap Section Profile: Square Section | ||||||
|
Part Number: WRE-0095-SQ-HC (100 Pcs) External Retaining Rings - 9.53x1.17x8.92 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
9.53
mm (0.375 in.) |
Clip Thickness (T)
1.17
mm +/- 0.05 (0.046 in.) |
Groove Dia. (Dg)
8.92
mm + 0.08 / - 0.00 (0.351 in.) |
Approx. Loose Circlip ID (A)
8.81
mm + 0.00 / - 0.50 |
|
||
| Material: Spring Steel Radial Wall (S) min/max: 1.17 mm +/- 0.05 Groove Width (W): 1.32 mm Approx. Loose Clip OD: 11.15 Info: Axial Assembly - Closed Gap Section Profile: Square Section | ||||||
|
Part Number: WRE-0095-SQ-HC (100 Pcs) External Retaining Rings - 9.53x1.17x8.92 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
9.98
mm (0.393 in.) |
Clip Thickness (T)
0.64
mm +/- 0.05 (0.025 in.) |
Groove Dia. (Dg)
9.37
mm +/- 0.05 (0.369 in.) |
Approx. Loose Circlip ID (A)
9.12
mm + 0.00 / - 0.51 |
Radial Wall (S) min/max
1.02
mm +/- 0.08 |
Groove Width (W)
0.71
mm |
|
| Material: Spring Steel Approx. Loose Clip OD: 11.16 Info: Basic Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRE-0100-LS-L External Retaining Rings - 9.98x0.64x9.37 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
9.98
mm (0.393 in.) |
Clip Thickness (T)
0.64
mm +/- 0.05 (0.025 in.) |
Groove Dia. (Dg)
9.37
mm +/- 0.05 (0.369 in.) |
Approx. Loose Circlip ID (A)
9.12
mm + 0.00 / - 0.51 |
|
||
| Material: Spring Steel Radial Wall (S) min/max: 1.02 mm +/- 0.08 Groove Width (W): 0.71 mm Approx. Loose Clip OD: 11.16 Info: Basic Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRE-0100-LS-L External Retaining Rings - 9.98x0.64x9.37 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
10.31
mm (0.406 in.) |
Clip Thickness (T)
0.64
mm +/- 0.05 (0.025 in.) |
Groove Dia. (Dg)
9.70
mm +/- 0.05 (0.382 in.) |
Approx. Loose Circlip ID (A)
9.45
mm + 0.00 / - 0.51 |
Radial Wall (S) min/max
1.02
mm +/- 0.08 |
Groove Width (W)
0.71
mm |
|
| Material: Spring Steel Approx. Loose Clip OD: 11.49 Info: Basic Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRE-0103-LS External Retaining Rings - 10.31x0.64x9.7 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
10.31
mm (0.406 in.) |
Clip Thickness (T)
0.64
mm +/- 0.05 (0.025 in.) |
Groove Dia. (Dg)
9.70
mm +/- 0.05 (0.382 in.) |
Approx. Loose Circlip ID (A)
9.45
mm + 0.00 / - 0.51 |
|
||
| Material: Spring Steel Radial Wall (S) min/max: 1.02 mm +/- 0.08 Groove Width (W): 0.71 mm Approx. Loose Clip OD: 11.49 Info: Basic Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRE-0103-LS External Retaining Rings - 10.31x0.64x9.7 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
10.31
mm (0.406 in.) |
Clip Thickness (T)
0.64
mm +/- 0.03 (0.025 in.) |
Groove Dia. (Dg)
9.75
mm (0.384 in.) |
Approx. Loose Circlip ID (A)
9.70
mm + 0.00 / - 0.58 |
Radial Wall (S) min/max
1.14
mm |
Groove Width (W)
0.71
mm |
|
| Material: Spring Steel Approx. Loose Clip OD: 11.98 Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRE-0103-LS-L External Retaining Rings - 10.31x0.64x9.75 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
10.31
mm (0.406 in.) |
Clip Thickness (T)
0.64
mm +/- 0.03 (0.025 in.) |
Groove Dia. (Dg)
9.75
mm (0.384 in.) |
Approx. Loose Circlip ID (A)
9.70
mm + 0.00 / - 0.58 |
|
||
| Material: Spring Steel Radial Wall (S) min/max: 1.14 mm Groove Width (W): 0.71 mm Approx. Loose Clip OD: 11.98 Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRE-0103-LS-L External Retaining Rings - 10.31x0.64x9.75 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
11.13
mm (0.438 in.) |
Clip Thickness (T)
0.64
mm +/- 0.03 (0.025 in.) |
Groove Dia. (Dg)
10.52
mm (0.414 in.) |
Approx. Loose Circlip ID (A)
10.47
mm + 0.00 / - 0.52 |
Radial Wall (S) min/max
1.14
mm |
Groove Width (W)
0.71
mm |
|
| Material: Spring Steel Approx. Loose Clip OD: 12.75 Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRE-0111-LS-L External Retaining Rings - 11.13x0.64x10.52 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
11.13
mm (0.438 in.) |
Clip Thickness (T)
0.64
mm +/- 0.03 (0.025 in.) |
Groove Dia. (Dg)
10.52
mm (0.414 in.) |
Approx. Loose Circlip ID (A)
10.47
mm + 0.00 / - 0.52 |
|
||
| Material: Spring Steel Radial Wall (S) min/max: 1.14 mm Groove Width (W): 0.71 mm Approx. Loose Clip OD: 12.75 Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRE-0111-LS-L External Retaining Rings - 11.13x0.64x10.52 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
11.13
mm (0.438 in.) |
Clip Thickness (T)
0.99
mm +/- 0.05 (0.039 in.) |
Groove Dia. (Dg)
10.59
mm + 0.08 / - 0.00 (0.417 in.) |
Approx. Loose Circlip ID (A)
10.49
mm + 0.00 / - 0.50 |
Radial Wall (S) min/max
0.99
mm +/- 0.05 |
Groove Width (W)
1.14
mm |
|
| Material: Spring Steel Approx. Loose Clip OD: 12.47 Info: Axial Assembly - Closed Gap Section Profile: Square Section | ||||||
|
Part Number: WRE-0111-SQ-C External Retaining Rings - 11.13x0.99x10.59 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
11.13
mm (0.438 in.) |
Clip Thickness (T)
0.99
mm +/- 0.05 (0.039 in.) |
Groove Dia. (Dg)
10.59
mm + 0.08 / - 0.00 (0.417 in.) |
Approx. Loose Circlip ID (A)
10.49
mm + 0.00 / - 0.50 |
|
||
| Material: Spring Steel Radial Wall (S) min/max: 0.99 mm +/- 0.05 Groove Width (W): 1.14 mm Approx. Loose Clip OD: 12.47 Info: Axial Assembly - Closed Gap Section Profile: Square Section | ||||||
|
Part Number: WRE-0111-SQ-C External Retaining Rings - 11.13x0.99x10.59 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
11.13
mm (0.438 in.) |
Clip Thickness (T)
0.99
mm +/- 0.05 (0.039 in.) |
Groove Dia. (Dg)
10.59
mm + 0.08 / - 0.00 (0.417 in.) |
Approx. Loose Circlip ID (A)
10.49
mm + 0.00 / - 0.50 |
Radial Wall (S) min/max
0.99
mm +/- 0.05 |
Groove Width (W)
1.14
mm |
|
| Material: Spring Steel Approx. Loose Clip OD: 12.47 Info: Radial Assembly - Open Gap Section Profile: Square Section | ||||||
|
Part Number: WRE-0111-SQ-O External Retaining Rings - 11.13x0.99x10.59 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
11.13
mm (0.438 in.) |
Clip Thickness (T)
0.99
mm +/- 0.05 (0.039 in.) |
Groove Dia. (Dg)
10.59
mm + 0.08 / - 0.00 (0.417 in.) |
Approx. Loose Circlip ID (A)
10.49
mm + 0.00 / - 0.50 |
|
||
| Material: Spring Steel Radial Wall (S) min/max: 0.99 mm +/- 0.05 Groove Width (W): 1.14 mm Approx. Loose Clip OD: 12.47 Info: Radial Assembly - Open Gap Section Profile: Square Section | ||||||
|
Part Number: WRE-0111-SQ-O External Retaining Rings - 11.13x0.99x10.59 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
11.13
mm (0.438 in.) |
Clip Thickness (T)
1.40
mm +/- 0.05 (0.055 in.) |
Groove Dia. (Dg)
10.39
mm + 0.08 / - 0.00 (0.409 in.) |
Approx. Loose Circlip ID (A)
10.29
mm + 0.00 / - 0.50 |
Radial Wall (S) min/max
1.40
mm +/- 0.05 |
Groove Width (W)
1.58
mm |
|
| Material: Spring Steel Approx. Loose Clip OD: 13.09 Info: Radial Assembly - Open Gap Section Profile: Square Section | ||||||
|
Part Number: WRE-0111-SQ-HO (100 Pcs) External Retaining Rings - 11.13x1.4x10.39 mm - Spring Steel
Out of Stock | Backorder Now | Orders can be expected around Sat, Jun 07, 2025 Regular price
$35.23 AUD
Regular price
Unit price
per
Per 100
|
||||||
|
Shaft or Bearing OD (d1)
11.13
mm (0.438 in.) |
Clip Thickness (T)
1.40
mm +/- 0.05 (0.055 in.) |
Groove Dia. (Dg)
10.39
mm + 0.08 / - 0.00 (0.409 in.) |
Approx. Loose Circlip ID (A)
10.29
mm + 0.00 / - 0.50 |
|
||
| Material: Spring Steel Radial Wall (S) min/max: 1.40 mm +/- 0.05 Groove Width (W): 1.58 mm Approx. Loose Clip OD: 13.09 Info: Radial Assembly - Open Gap Section Profile: Square Section | ||||||
|
Part Number: WRE-0111-SQ-HO (100 Pcs) External Retaining Rings - 11.13x1.4x10.39 mm - Spring Steel
Out of Stock | Backorder Now | Orders can be expected around Sat, Jun 07, 2025 Regular price
$35.23 AUD
Regular price
Unit price
per
Per 100
|
||||||
|
||||||
|
Shaft or Bearing OD (d1)
11.13
mm (0.438 in.) |
Clip Thickness (T)
1.40
mm +/- 0.05 (0.055 in.) |
Groove Dia. (Dg)
10.39
mm + 0.08 / - 0.00 (0.409 in.) |
Approx. Loose Circlip ID (A)
10.29
mm + 0.00 / - 0.50 |
Radial Wall (S) min/max
1.40
mm +/- 0.05 |
Groove Width (W)
1.58
mm |
|
| Material: Spring Steel Approx. Loose Clip OD: 13.09 Info: Axial Assembly - Closed Gap Section Profile: Square Section | ||||||
|
Part Number: WRE-0111-SQ-HC External Retaining Rings - 11.13x1.4x10.39 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
11.13
mm (0.438 in.) |
Clip Thickness (T)
1.40
mm +/- 0.05 (0.055 in.) |
Groove Dia. (Dg)
10.39
mm + 0.08 / - 0.00 (0.409 in.) |
Approx. Loose Circlip ID (A)
10.29
mm + 0.00 / - 0.50 |
|
||
| Material: Spring Steel Radial Wall (S) min/max: 1.40 mm +/- 0.05 Groove Width (W): 1.58 mm Approx. Loose Clip OD: 13.09 Info: Axial Assembly - Closed Gap Section Profile: Square Section | ||||||
|
Part Number: WRE-0111-SQ-HC External Retaining Rings - 11.13x1.4x10.39 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
11.91
mm (0.469 in.) |
Clip Thickness (T)
0.64
mm +/- 0.05 (0.025 in.) |
Groove Dia. (Dg)
11.25
mm +/- 0.05 (0.443 in.) |
Approx. Loose Circlip ID (A)
11.00
mm + 0.00 / - 0.51 |
Radial Wall (S) min/max
1.02
mm +/- 0.08 |
Groove Width (W)
0.71
mm |
|
| Material: Spring Steel Approx. Loose Clip OD: 13.04 Info: Basic Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRE-0119-LS External Retaining Rings - 11.91x0.64x11.25 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
11.91
mm (0.469 in.) |
Clip Thickness (T)
0.64
mm +/- 0.05 (0.025 in.) |
Groove Dia. (Dg)
11.25
mm +/- 0.05 (0.443 in.) |
Approx. Loose Circlip ID (A)
11.00
mm + 0.00 / - 0.51 |
|
||
| Material: Spring Steel Radial Wall (S) min/max: 1.02 mm +/- 0.08 Groove Width (W): 0.71 mm Approx. Loose Clip OD: 13.04 Info: Basic Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRE-0119-LS External Retaining Rings - 11.91x0.64x11.25 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
11.91
mm (0.469 in.) |
Clip Thickness (T)
0.64
mm +/- 0.03 (0.025 in.) |
Groove Dia. (Dg)
11.30
mm (0.445 in.) |
Approx. Loose Circlip ID (A)
11.25
mm + 0.00 / - 0.56 |
Radial Wall (S) min/max
1.14
mm |
Groove Width (W)
0.71
mm |
|
| Material: Spring Steel Approx. Loose Clip OD: 13.53 Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRE-0119-LS-L External Retaining Rings - 11.91x0.64x11.3 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
11.91
mm (0.469 in.) |
Clip Thickness (T)
0.64
mm +/- 0.03 (0.025 in.) |
Groove Dia. (Dg)
11.30
mm (0.445 in.) |
Approx. Loose Circlip ID (A)
11.25
mm + 0.00 / - 0.56 |
|
||
| Material: Spring Steel Radial Wall (S) min/max: 1.14 mm Groove Width (W): 0.71 mm Approx. Loose Clip OD: 13.53 Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRE-0119-LS-L External Retaining Rings - 11.91x0.64x11.3 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
12.00
mm (0.472 in.) |
Clip Thickness (T)
1.00
mm + 0 / - 0.10 (0.039 in.) |
Groove Dia. (Dg)
11.50
mm + 0 / - 0.11 (0.453 in.) |
Approx. Loose Circlip ID (A)
11.20
mm |
Radial Wall (S) min/max
1.30
mm + 0 / - 0.10 |
Groove Width (W)
1.10
mm |
|
| Material: Spring Steel Approx. Loose Clip OD: 13.8 Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRE-0120-LS (10 Pcs) External Retaining Rings - 12x1x11.5 mm - Spring Steel
229 units (2290 pcs) Available Immediately | Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price
$3.49 AUD
Regular price
Unit price
per
Per 10
|
||||||
|
Shaft or Bearing OD (d1)
12.00
mm (0.472 in.) |
Clip Thickness (T)
1.00
mm + 0 / - 0.10 (0.039 in.) |
Groove Dia. (Dg)
11.50
mm + 0 / - 0.11 (0.453 in.) |
Approx. Loose Circlip ID (A)
11.20
mm |
|
||
| Material: Spring Steel Radial Wall (S) min/max: 1.30 mm + 0 / - 0.10 Groove Width (W): 1.10 mm Approx. Loose Clip OD: 13.8 Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRE-0120-LS (10 Pcs) External Retaining Rings - 12x1x11.5 mm - Spring Steel
229 units (2290 pcs) Available Immediately | Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price
$3.49 AUD
Regular price
Unit price
per
Per 10
|
||||||
|
||||||
|
Shaft or Bearing OD (d1)
12.70
mm (0.5 in.) |
Clip Thickness (T)
0.89
mm +/- 0.05 (0.035 in.) |
Groove Dia. (Dg)
12.04
mm +/- 0.05 (0.474 in.) |
Approx. Loose Circlip ID (A)
11.79
mm + 0.00 / - 0.64 |
Radial Wall (S) min/max
1.22
mm +/- 0.08 |
Groove Width (W)
0.99
mm |
|
| Material: Spring Steel Approx. Loose Clip OD: 14.23 Info: Basic Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRE-0127-LS External Retaining Rings - 12.7x0.89x12.04 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
12.70
mm (0.5 in.) |
Clip Thickness (T)
0.89
mm +/- 0.05 (0.035 in.) |
Groove Dia. (Dg)
12.04
mm +/- 0.05 (0.474 in.) |
Approx. Loose Circlip ID (A)
11.79
mm + 0.00 / - 0.64 |
|
||
| Material: Spring Steel Radial Wall (S) min/max: 1.22 mm +/- 0.08 Groove Width (W): 0.99 mm Approx. Loose Clip OD: 14.23 Info: Basic Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRE-0127-LS External Retaining Rings - 12.7x0.89x12.04 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
12.70
mm (0.5 in.) |
Clip Thickness (T)
0.89
mm +/- 0.05 (0.035 in.) |
Groove Dia. (Dg)
12.04
mm +/- 0.05 (0.474 in.) |
Approx. Loose Circlip ID (A)
11.81
mm - 0.00 / + 0.65 |
Radial Wall (S) min/max
1.22
mm +/- 0.08 |
Groove Width (W)
0.99
mm |
|
| Material: Spring Steel Approx. Loose Clip OD: 14.25 Info: Light Duty Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRE-0127A-SR-L External Retaining Rings - 12.7x0.89x12.04 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
12.70
mm (0.5 in.) |
Clip Thickness (T)
0.89
mm +/- 0.05 (0.035 in.) |
Groove Dia. (Dg)
12.04
mm +/- 0.05 (0.474 in.) |
Approx. Loose Circlip ID (A)
11.81
mm - 0.00 / + 0.65 |
|
||
| Material: Spring Steel Radial Wall (S) min/max: 1.22 mm +/- 0.08 Groove Width (W): 0.99 mm Approx. Loose Clip OD: 14.25 Info: Light Duty Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRE-0127A-SR-L External Retaining Rings - 12.7x0.89x12.04 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
