| Shaft or Bearing OD (d1) | Clip Thickness (T) | Groove Dia. (Dg) | Approx. Loose Circlip ID (A) | Radial Wall (S) min/max | Groove Width (W) |
Indicative Image |
|---|---|---|---|---|---|---|
|
Shaft or Bearing OD (d1)
76.20
mm (3 in.) |
Clip Thickness (T)
1.58
mm +/- 0.05 (0.062 in.) |
Groove Dia. (Dg)
73.05
mm +/- 0.15 (2.876 in.) |
Approx. Loose Circlip ID (A)
72.29
mm - 0.00 / + 2.00 |
Radial Wall (S) min/max
4.75
mm +/- 0.13 |
Groove Width (W)
1.73
mm |
|
| Material: Spring Steel Approx. Loose Clip OD: 81.79 Info: Light Duty Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRE-0762-LS-L External Retaining Rings - 76.2x1.58x73.05 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
| Shaft or Bearing OD (d1) | Clip Thickness (T) | Groove Dia. (Dg) | Approx. Loose Circlip ID (A) |
Indicative Image |
||
|
Shaft or Bearing OD (d1)
76.20
mm (3 in.) |
Clip Thickness (T)
1.58
mm +/- 0.05 (0.062 in.) |
Groove Dia. (Dg)
73.05
mm +/- 0.15 (2.876 in.) |
Approx. Loose Circlip ID (A)
72.29
mm - 0.00 / + 2.00 |
|
||
| Material: Spring Steel Radial Wall (S) min/max: 4.75 mm +/- 0.13 Groove Width (W): 1.73 mm Approx. Loose Clip OD: 81.79 Info: Light Duty Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRE-0762-LS-L External Retaining Rings - 76.2x1.58x73.05 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
76.20
mm (3 in.) |
Clip Thickness (T)
2.36
mm +/- 0.05 (0.093 in.) |
Groove Dia. (Dg)
72.09
mm +/- 0.15 (2.838 in.) |
Approx. Loose Circlip ID (A)
71.45
mm + 0.00 / - 2.00 |
Radial Wall (S) min/max
5.54
mm +/- 0.13 |
Groove Width (W)
2.62
mm |
|
| Material: Spring Steel Approx. Loose Clip OD: 82.53 Info: Notched Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRE-0762-LS-N External Retaining Rings - 76.2x2.36x72.09 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
76.20
mm (3 in.) |
Clip Thickness (T)
2.36
mm +/- 0.05 (0.093 in.) |
Groove Dia. (Dg)
72.09
mm +/- 0.15 (2.838 in.) |
Approx. Loose Circlip ID (A)
71.45
mm + 0.00 / - 2.00 |
|
||
| Material: Spring Steel Radial Wall (S) min/max: 5.54 mm +/- 0.13 Groove Width (W): 2.62 mm Approx. Loose Clip OD: 82.53 Info: Notched Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRE-0762-LS-N External Retaining Rings - 76.2x2.36x72.09 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
76.20
mm (3 in.) |
Clip Thickness (T)
2.36
mm +/- 0.05 (0.093 in.) |
Groove Dia. (Dg)
72.64
mm +/- 0.15 (2.86 in.) |
Approx. Loose Circlip ID (A)
71.88
mm + 0.00 / - 1.58 |
Radial Wall (S) min/max
5.54
mm +/- 0.13 |
Groove Width (W)
2.62
mm |
|
| Material: Spring Steel Approx. Loose Clip OD: 82.96 Info: Basic Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRE-0762-LS External Retaining Rings - 76.2x2.36x72.64 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
76.20
mm (3 in.) |
Clip Thickness (T)
2.36
mm +/- 0.05 (0.093 in.) |
Groove Dia. (Dg)
72.64
mm +/- 0.15 (2.86 in.) |
Approx. Loose Circlip ID (A)
71.88
mm + 0.00 / - 1.58 |
|
||
| Material: Spring Steel Radial Wall (S) min/max: 5.54 mm +/- 0.13 Groove Width (W): 2.62 mm Approx. Loose Clip OD: 82.96 Info: Basic Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRE-0762-LS External Retaining Rings - 76.2x2.36x72.64 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
76.20
mm (3 in.) |
Clip Thickness (T)
6.35
mm +/- 0.08 (0.25 in.) |
Groove Dia. (Dg)
73.03
mm + 0.10 / - 0.00 (2.875 in.) |
Approx. Loose Circlip ID (A)
72.26
mm + 0.00 / - 2.00 |
Radial Wall (S) min/max
6.35
mm +/- 0.08 |
Groove Width (W)
6.73
mm |
|
| Material: Spring Steel Approx. Loose Clip OD: 84.96 Info: Radial Assembly - Open Gap Section Profile: Square Section | ||||||
|
Part Number: WRE-0762-SQ-O External Retaining Rings - 76.2x6.35x73.03 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
76.20
mm (3 in.) |
Clip Thickness (T)
6.35
mm +/- 0.08 (0.25 in.) |
Groove Dia. (Dg)
73.03
mm + 0.10 / - 0.00 (2.875 in.) |
Approx. Loose Circlip ID (A)
72.26
mm + 0.00 / - 2.00 |
|
||
| Material: Spring Steel Radial Wall (S) min/max: 6.35 mm +/- 0.08 Groove Width (W): 6.73 mm Approx. Loose Clip OD: 84.96 Info: Radial Assembly - Open Gap Section Profile: Square Section | ||||||
|
Part Number: WRE-0762-SQ-O External Retaining Rings - 76.2x6.35x73.03 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
76.20
mm (3 in.) |
Clip Thickness (T)
6.35
mm +/- 0.08 (0.25 in.) |
Groove Dia. (Dg)
73.03
mm + 0.10 / - 0.00 (2.875 in.) |
Approx. Loose Circlip ID (A)
72.26
mm + 0.00 / - 2.00 |
Radial Wall (S) min/max
6.35
mm +/- 0.08 |
Groove Width (W)
6.73
mm |
|
| Material: Spring Steel Approx. Loose Clip OD: 84.96 Info: Axial Assembly - Closed Gap Section Profile: Square Section | ||||||
|
Part Number: WRE-0762-SQ-C External Retaining Rings - 76.2x6.35x73.03 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
76.20
mm (3 in.) |
Clip Thickness (T)
6.35
mm +/- 0.08 (0.25 in.) |
Groove Dia. (Dg)
73.03
mm + 0.10 / - 0.00 (2.875 in.) |
Approx. Loose Circlip ID (A)
72.26
mm + 0.00 / - 2.00 |
|
||
| Material: Spring Steel Radial Wall (S) min/max: 6.35 mm +/- 0.08 Groove Width (W): 6.73 mm Approx. Loose Clip OD: 84.96 Info: Axial Assembly - Closed Gap Section Profile: Square Section | ||||||
|
Part Number: WRE-0762-SQ-C External Retaining Rings - 76.2x6.35x73.03 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
76.20
mm (3 in.) |
Clip Thickness (T)
7.93
mm +/- 0.08 (0.312 in.) |
Groove Dia. (Dg)
72.24
mm + 0.10 / - 0.00 (2.844 in.) |
Approx. Loose Circlip ID (A)
71.53
mm + 0.00 / - 2.00 |
Radial Wall (S) min/max
7.93
mm +/- 0.08 |
Groove Width (W)
8.31
mm |
|
| Material: Spring Steel Approx. Loose Clip OD: 87.39 Info: Axial Assembly - Closed Gap Section Profile: Square Section | ||||||
|
Part Number: WRE-0762-SQ-HC External Retaining Rings - 76.2x7.93x72.24 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
76.20
mm (3 in.) |
Clip Thickness (T)
7.93
mm +/- 0.08 (0.312 in.) |
Groove Dia. (Dg)
72.24
mm + 0.10 / - 0.00 (2.844 in.) |
Approx. Loose Circlip ID (A)
71.53
mm + 0.00 / - 2.00 |
|
||
| Material: Spring Steel Radial Wall (S) min/max: 7.93 mm +/- 0.08 Groove Width (W): 8.31 mm Approx. Loose Clip OD: 87.39 Info: Axial Assembly - Closed Gap Section Profile: Square Section | ||||||
|
Part Number: WRE-0762-SQ-HC External Retaining Rings - 76.2x7.93x72.24 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
76.20
mm (3 in.) |
Clip Thickness (T)
7.93
mm +/- 0.08 (0.312 in.) |
Groove Dia. (Dg)
72.24
mm + 0.10 / - 0.00 (2.844 in.) |
Approx. Loose Circlip ID (A)
71.53
mm + 0.00 / - 2.00 |
Radial Wall (S) min/max
7.93
mm +/- 0.08 |
Groove Width (W)
8.31
mm |
|
| Material: Spring Steel Approx. Loose Clip OD: 87.39 Info: Radial Assembly - Open Gap Section Profile: Square Section | ||||||
|
Part Number: WRE-0762-SQ-HO External Retaining Rings - 76.2x7.93x72.24 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
76.20
mm (3 in.) |
Clip Thickness (T)
7.93
mm +/- 0.08 (0.312 in.) |
Groove Dia. (Dg)
72.24
mm + 0.10 / - 0.00 (2.844 in.) |
Approx. Loose Circlip ID (A)
71.53
mm + 0.00 / - 2.00 |
|
||
| Material: Spring Steel Radial Wall (S) min/max: 7.93 mm +/- 0.08 Groove Width (W): 8.31 mm Approx. Loose Clip OD: 87.39 Info: Radial Assembly - Open Gap Section Profile: Square Section | ||||||
|
Part Number: WRE-0762-SQ-HO External Retaining Rings - 76.2x7.93x72.24 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
77.78
mm (3.062 in.) |
Clip Thickness (T)
2.36
mm +/- 0.05 (0.093 in.) |
Groove Dia. (Dg)
73.61
mm +/- 0.15 (2.898 in.) |
Approx. Loose Circlip ID (A)
72.97
mm + 0.00 / - 2.00 |
Radial Wall (S) min/max
5.54
mm +/- 0.13 |
Groove Width (W)
2.62
mm |
|
| Material: Spring Steel Approx. Loose Clip OD: 84.05 Info: Notched Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRE-0778-LS-N External Retaining Rings - 77.78x2.36x73.61 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
77.78
mm (3.062 in.) |
Clip Thickness (T)
2.36
mm +/- 0.05 (0.093 in.) |
Groove Dia. (Dg)
73.61
mm +/- 0.15 (2.898 in.) |
Approx. Loose Circlip ID (A)
72.97
mm + 0.00 / - 2.00 |
|
||
| Material: Spring Steel Radial Wall (S) min/max: 5.54 mm +/- 0.13 Groove Width (W): 2.62 mm Approx. Loose Clip OD: 84.05 Info: Notched Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRE-0778-LS-N External Retaining Rings - 77.78x2.36x73.61 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
77.78
mm (3.062 in.) |
Clip Thickness (T)
2.36
mm +/- 0.05 (0.093 in.) |
Groove Dia. (Dg)
74.17
mm +/- 0.15 (2.92 in.) |
Approx. Loose Circlip ID (A)
73.41
mm + 0.00 / - 1.58 |
Radial Wall (S) min/max
5.54
mm +/- 0.13 |
Groove Width (W)
2.62
mm |
|
| Material: Spring Steel Approx. Loose Clip OD: 84.49 Info: Basic Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRE-0778-LS External Retaining Rings - 77.78x2.36x74.17 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
77.78
mm (3.062 in.) |
Clip Thickness (T)
2.36
mm +/- 0.05 (0.093 in.) |
Groove Dia. (Dg)
74.17
mm +/- 0.15 (2.92 in.) |
Approx. Loose Circlip ID (A)
73.41
mm + 0.00 / - 1.58 |
|
||
| Material: Spring Steel Radial Wall (S) min/max: 5.54 mm +/- 0.13 Groove Width (W): 2.62 mm Approx. Loose Clip OD: 84.49 Info: Basic Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRE-0778-LS External Retaining Rings - 77.78x2.36x74.17 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
79.38
mm (3.125 in.) |
Clip Thickness (T)
1.58
mm +/- 0.05 (0.062 in.) |
Groove Dia. (Dg)
76.20
mm +/- 0.15 (3 in.) |
Approx. Loose Circlip ID (A)
75.31
mm - 0.00 / + 2.00 |
Radial Wall (S) min/max
4.75
mm +/- 0.13 |
Groove Width (W)
1.73
mm |
|
| Material: Spring Steel Approx. Loose Clip OD: 84.81 Info: Light Duty Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRE-0794-LS-L External Retaining Rings - 79.38x1.58x76.2 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
79.38
mm (3.125 in.) |
Clip Thickness (T)
1.58
mm +/- 0.05 (0.062 in.) |
Groove Dia. (Dg)
76.20
mm +/- 0.15 (3 in.) |
Approx. Loose Circlip ID (A)
75.31
mm - 0.00 / + 2.00 |
|
||
| Material: Spring Steel Radial Wall (S) min/max: 4.75 mm +/- 0.13 Groove Width (W): 1.73 mm Approx. Loose Clip OD: 84.81 Info: Light Duty Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRE-0794-LS-L External Retaining Rings - 79.38x1.58x76.2 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
79.38
mm (3.125 in.) |
Clip Thickness (T)
2.36
mm +/- 0.05 (0.093 in.) |
Groove Dia. (Dg)
75.11
mm +/- 0.15 (2.957 in.) |
Approx. Loose Circlip ID (A)
74.47
mm + 0.00 / - 2.00 |
Radial Wall (S) min/max
5.54
mm +/- 0.13 |
Groove Width (W)
2.62
mm |
|
| Material: Spring Steel Approx. Loose Clip OD: 85.55 Info: Notched Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRE-0794-LS-N External Retaining Rings - 79.38x2.36x75.11 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
79.38
mm (3.125 in.) |
Clip Thickness (T)
2.36
mm +/- 0.05 (0.093 in.) |
Groove Dia. (Dg)
75.11
mm +/- 0.15 (2.957 in.) |
Approx. Loose Circlip ID (A)
74.47
mm + 0.00 / - 2.00 |
|
||
| Material: Spring Steel Radial Wall (S) min/max: 5.54 mm +/- 0.13 Groove Width (W): 2.62 mm Approx. Loose Clip OD: 85.55 Info: Notched Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRE-0794-LS-N External Retaining Rings - 79.38x2.36x75.11 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
79.38
mm (3.125 in.) |
Clip Thickness (T)
2.36
mm +/- 0.05 (0.093 in.) |
Groove Dia. (Dg)
75.72
mm +/- 0.15 (2.981 in.) |
Approx. Loose Circlip ID (A)
74.96
mm + 0.00 / - 1.58 |
Radial Wall (S) min/max
5.54
mm +/- 0.13 |
Groove Width (W)
2.62
mm |
|
| Material: Spring Steel Approx. Loose Clip OD: 86.04 Info: Basic Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRE-0794-LS External Retaining Rings - 79.38x2.36x75.72 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
79.38
mm (3.125 in.) |
Clip Thickness (T)
2.36
mm +/- 0.05 (0.093 in.) |
Groove Dia. (Dg)
75.72
mm +/- 0.15 (2.981 in.) |
Approx. Loose Circlip ID (A)
74.96
mm + 0.00 / - 1.58 |
|
||
| Material: Spring Steel Radial Wall (S) min/max: 5.54 mm +/- 0.13 Groove Width (W): 2.62 mm Approx. Loose Clip OD: 86.04 Info: Basic Section Profile: Rectangular with Square Edge | ||||||
|

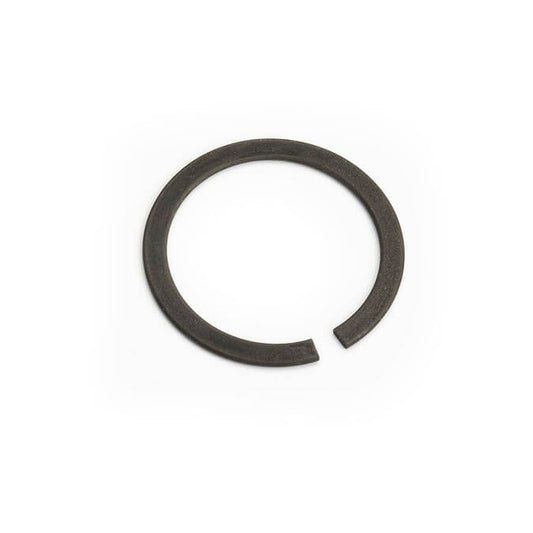

Part Number: WRE-0794-LS External Retaining Rings - 79.38x2.36x75.72 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
80.16
mm (3.156 in.) |
Clip Thickness (T)
2.36
mm +/- 0.05 (0.093 in.) |
Groove Dia. (Dg)
75.84
mm +/- 0.15 (2.986 in.) |
Approx. Loose Circlip ID (A)
75.21
mm + 0.00 / - 2.00 |
Radial Wall (S) min/max
6.35
mm +/- 0.13 |
Groove Width (W)
2.62
mm |
|
| Material: Spring Steel Approx. Loose Clip OD: 87.91 Info: Notched Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRE-0802-LS-N External Retaining Rings - 80.16x2.36x75.84 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
80.16
mm (3.156 in.) |
Clip Thickness (T)
2.36
mm +/- 0.05 (0.093 in.) |
Groove Dia. (Dg)
75.84
mm +/- 0.15 (2.986 in.) |
Approx. Loose Circlip ID (A)
75.21
mm + 0.00 / - 2.00 |
|
||
| Material: Spring Steel Radial Wall (S) min/max: 6.35 mm +/- 0.13 Groove Width (W): 2.62 mm Approx. Loose Clip OD: 87.91 Info: Notched Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRE-0802-LS-N External Retaining Rings - 80.16x2.36x75.84 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
80.16
mm (3.156 in.) |
Clip Thickness (T)
2.36
mm +/- 0.05 (0.093 in.) |
Groove Dia. (Dg)
76.45
mm +/- 0.15 (3.01 in.) |
Approx. Loose Circlip ID (A)
75.69
mm + 0.00 / - 1.58 |
Radial Wall (S) min/max
5.54
mm +/- 0.13 |
Groove Width (W)
2.62
mm |
|
| Material: Spring Steel Approx. Loose Clip OD: 86.77 Info: Basic Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRE-0802-LS External Retaining Rings - 80.16x2.36x76.45 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
80.16
mm (3.156 in.) |
Clip Thickness (T)
2.36
mm +/- 0.05 (0.093 in.) |
Groove Dia. (Dg)
76.45
mm +/- 0.15 (3.01 in.) |
Approx. Loose Circlip ID (A)
75.69
mm + 0.00 / - 1.58 |
|
||
| Material: Spring Steel Radial Wall (S) min/max: 5.54 mm +/- 0.13 Groove Width (W): 2.62 mm Approx. Loose Clip OD: 86.77 Info: Basic Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRE-0802-LS External Retaining Rings - 80.16x2.36x76.45 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
82.55
mm (3.25 in.) |
Clip Thickness (T)
1.58
mm +/- 0.05 (0.062 in.) |
Groove Dia. (Dg)
79.38
mm +/- 0.15 (3.125 in.) |
Approx. Loose Circlip ID (A)
78.49
mm - 0.00 / + 2.00 |
Radial Wall (S) min/max
4.75
mm +/- 0.13 |
Groove Width (W)
1.73
mm |
|
| Material: Spring Steel Approx. Loose Clip OD: 87.99 Info: Light Duty Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRE-0826-LS-L External Retaining Rings - 82.55x1.58x79.38 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
82.55
mm (3.25 in.) |
Clip Thickness (T)
1.58
mm +/- 0.05 (0.062 in.) |
Groove Dia. (Dg)
79.38
mm +/- 0.15 (3.125 in.) |
Approx. Loose Circlip ID (A)
78.49
mm - 0.00 / + 2.00 |
|
||
| Material: Spring Steel Radial Wall (S) min/max: 4.75 mm +/- 0.13 Groove Width (W): 1.73 mm Approx. Loose Clip OD: 87.99 Info: Light Duty Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRE-0826-LS-L External Retaining Rings - 82.55x1.58x79.38 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
82.55
mm (3.25 in.) |
Clip Thickness (T)
2.36
mm +/- 0.05 (0.093 in.) |
Groove Dia. (Dg)
78.13
mm +/- 0.15 (3.076 in.) |
Approx. Loose Circlip ID (A)
77.50
mm + 0.00 / - 2.00 |
Radial Wall (S) min/max
6.35
mm +/- 0.13 |
Groove Width (W)
2.62
mm |
|
| Material: Spring Steel Approx. Loose Clip OD: 90.2 Info: Notched Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRE-0826-LS-N External Retaining Rings - 82.55x2.36x78.13 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
82.55
mm (3.25 in.) |
Clip Thickness (T)
2.36
mm +/- 0.05 (0.093 in.) |
Groove Dia. (Dg)
78.13
mm +/- 0.15 (3.076 in.) |
Approx. Loose Circlip ID (A)
77.50
mm + 0.00 / - 2.00 |
|
||
| Material: Spring Steel Radial Wall (S) min/max: 6.35 mm +/- 0.13 Groove Width (W): 2.62 mm Approx. Loose Clip OD: 90.2 Info: Notched Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRE-0826-LS-N External Retaining Rings - 82.55x2.36x78.13 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
82.55
mm (3.25 in.) |
Clip Thickness (T)
2.36
mm +/- 0.05 (0.093 in.) |
Groove Dia. (Dg)
78.74
mm +/- 0.15 (3.1 in.) |
Approx. Loose Circlip ID (A)
77.98
mm + 0.00 / - 1.58 |
Radial Wall (S) min/max
6.35
mm +/- 0.13 |
Groove Width (W)
2.62
mm |
|
| Material: Spring Steel Approx. Loose Clip OD: 90.68 Info: Basic Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRE-0826-LS External Retaining Rings - 82.55x2.36x78.74 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
82.55
mm (3.25 in.) |
Clip Thickness (T)
2.36
mm +/- 0.05 (0.093 in.) |
Groove Dia. (Dg)
78.74
mm +/- 0.15 (3.1 in.) |
Approx. Loose Circlip ID (A)
77.98
mm + 0.00 / - 1.58 |
|
||
| Material: Spring Steel Radial Wall (S) min/max: 6.35 mm +/- 0.13 Groove Width (W): 2.62 mm Approx. Loose Clip OD: 90.68 Info: Basic Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRE-0826-LS External Retaining Rings - 82.55x2.36x78.74 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
84.94
mm (3.344 in.) |
Clip Thickness (T)
2.36
mm +/- 0.05 (0.093 in.) |
Groove Dia. (Dg)
81.03
mm +/- 0.15 (3.19 in.) |
Approx. Loose Circlip ID (A)
80.26
mm + 0.00 / - 1.58 |
Radial Wall (S) min/max
6.35
mm +/- 0.13 |
Groove Width (W)
2.62
mm |
|
| Material: Spring Steel Approx. Loose Clip OD: 92.96 Info: Basic Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRE-0849-LS External Retaining Rings - 84.94x2.36x81.03 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
84.94
mm (3.344 in.) |
Clip Thickness (T)
2.36
mm +/- 0.05 (0.093 in.) |
Groove Dia. (Dg)
81.03
mm +/- 0.15 (3.19 in.) |
Approx. Loose Circlip ID (A)
80.26
mm + 0.00 / - 1.58 |
|
||
| Material: Spring Steel Radial Wall (S) min/max: 6.35 mm +/- 0.13 Groove Width (W): 2.62 mm Approx. Loose Clip OD: 92.96 Info: Basic Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRE-0849-LS External Retaining Rings - 84.94x2.36x81.03 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
84.99
mm (3.346 in.) |
Clip Thickness (T)
2.36
mm +/- 0.05 (0.093 in.) |
Groove Dia. (Dg)
80.42
mm +/- 0.15 (3.166 in.) |
Approx. Loose Circlip ID (A)
79.78
mm + 0.00 / - 2.00 |
Radial Wall (S) min/max
6.35
mm +/- 0.13 |
Groove Width (W)
2.62
mm |
|
| Material: Spring Steel Approx. Loose Clip OD: 92.48 Info: Notched Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRE-0850-LS-H-N External Retaining Rings - 84.99x2.36x80.42 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
84.99
mm (3.346 in.) |
Clip Thickness (T)
2.36
mm +/- 0.05 (0.093 in.) |
Groove Dia. (Dg)
80.42
mm +/- 0.15 (3.166 in.) |
Approx. Loose Circlip ID (A)
79.78
mm + 0.00 / - 2.00 |
|
||
| Material: Spring Steel Radial Wall (S) min/max: 6.35 mm +/- 0.13 Groove Width (W): 2.62 mm Approx. Loose Clip OD: 92.48 Info: Notched Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRE-0850-LS-H-N External Retaining Rings - 84.99x2.36x80.42 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
85.73
mm (3.375 in.) |
Clip Thickness (T)
1.58
mm +/- 0.05 (0.062 in.) |
Groove Dia. (Dg)
82.55
mm +/- 0.15 (3.25 in.) |
Approx. Loose Circlip ID (A)
81.66
mm - 0.00 / + 2.00 |
Radial Wall (S) min/max
4.75
mm +/- 0.13 |
Groove Width (W)
1.73
mm |
|
| Material: Spring Steel Approx. Loose Clip OD: 91.16 Info: Light Duty Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRE-0857-LS-L External Retaining Rings - 85.73x1.58x82.55 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
85.73
mm (3.375 in.) |
Clip Thickness (T)
1.58
mm +/- 0.05 (0.062 in.) |
Groove Dia. (Dg)
82.55
mm +/- 0.15 (3.25 in.) |
Approx. Loose Circlip ID (A)
81.66
mm - 0.00 / + 2.00 |
|
||
| Material: Spring Steel Radial Wall (S) min/max: 4.75 mm +/- 0.13 Groove Width (W): 1.73 mm Approx. Loose Clip OD: 91.16 Info: Light Duty Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRE-0857-LS-L External Retaining Rings - 85.73x1.58x82.55 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
87.30
mm (3.437 in.) |
Clip Thickness (T)
2.36
mm +/- 0.05 (0.093 in.) |
Groove Dia. (Dg)
83.34
mm +/- 0.15 (3.281 in.) |
Approx. Loose Circlip ID (A)
82.58
mm + 0.00 / - 1.58 |
Radial Wall (S) min/max
6.35
mm +/- 0.13 |
Groove Width (W)
2.62
mm |
|
| Material: Spring Steel Approx. Loose Clip OD: 95.28 Info: Basic Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRE-0873-LS External Retaining Rings - 87.3x2.36x83.34 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
87.30
mm (3.437 in.) |
Clip Thickness (T)
2.36
mm +/- 0.05 (0.093 in.) |
Groove Dia. (Dg)
83.34
mm +/- 0.15 (3.281 in.) |
Approx. Loose Circlip ID (A)
82.58
mm + 0.00 / - 1.58 |
|
||
| Material: Spring Steel Radial Wall (S) min/max: 6.35 mm +/- 0.13 Groove Width (W): 2.62 mm Approx. Loose Clip OD: 95.28 Info: Basic Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRE-0873-LS External Retaining Rings - 87.3x2.36x83.34 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
87.33
mm (3.438 in.) |
Clip Thickness (T)
2.36
mm +/- 0.05 (0.093 in.) |
Groove Dia. (Dg)
82.73
mm +/- 0.15 (3.257 in.) |
Approx. Loose Circlip ID (A)
82.09
mm + 0.00 / - 2.00 |
Radial Wall (S) min/max
6.35
mm +/- 0.13 |
Groove Width (W)
2.62
mm |
|
| Material: Spring Steel Approx. Loose Clip OD: 94.79 Info: Notched Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRE-0873-LS-N External Retaining Rings - 87.33x2.36x82.73 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
87.33
mm (3.438 in.) |
Clip Thickness (T)
2.36
mm +/- 0.05 (0.093 in.) |
Groove Dia. (Dg)
82.73
mm +/- 0.15 (3.257 in.) |
Approx. Loose Circlip ID (A)
82.09
mm + 0.00 / - 2.00 |
|
||
| Material: Spring Steel Radial Wall (S) min/max: 6.35 mm +/- 0.13 Groove Width (W): 2.62 mm Approx. Loose Clip OD: 94.79 Info: Notched Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRE-0873-LS-N External Retaining Rings - 87.33x2.36x82.73 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
88.90
mm (3.5 in.) |
Clip Thickness (T)
1.58
mm +/- 0.05 (0.062 in.) |
Groove Dia. (Dg)
85.73
mm +/- 0.15 (3.375 in.) |
Approx. Loose Circlip ID (A)
84.84
mm - 0.00 / + 2.00 |
Radial Wall (S) min/max
4.75
mm +/- 0.13 |
Groove Width (W)
1.73
mm |
|
| Material: Spring Steel Approx. Loose Clip OD: 94.34 Info: Light Duty Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRE-0889-LS-L External Retaining Rings - 88.9x1.58x85.73 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
88.90
mm (3.5 in.) |
Clip Thickness (T)
1.58
mm +/- 0.05 (0.062 in.) |
Groove Dia. (Dg)
85.73
mm +/- 0.15 (3.375 in.) |
Approx. Loose Circlip ID (A)
84.84
mm - 0.00 / + 2.00 |
|
||
| Material: Spring Steel Radial Wall (S) min/max: 4.75 mm +/- 0.13 Groove Width (W): 1.73 mm Approx. Loose Clip OD: 94.34 Info: Light Duty Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRE-0889-LS-L External Retaining Rings - 88.9x1.58x85.73 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
88.90
mm (3.5 in.) |
Clip Thickness (T)
2.77
mm +/- 0.05 (0.109 in.) |
Groove Dia. (Dg)
84.23
mm +/- 0.15 (3.316 in.) |
Approx. Loose Circlip ID (A)
83.46
mm + 0.00 / - 2.00 |
Radial Wall (S) min/max
6.35
mm +/- 0.13 |
Groove Width (W)
3.05
mm |
|
| Material: Spring Steel Approx. Loose Clip OD: 96.16 Info: Notched Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRE-0889-LS-N External Retaining Rings - 88.9x2.77x84.23 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
88.90
mm (3.5 in.) |
Clip Thickness (T)
2.77
mm +/- 0.05 (0.109 in.) |
Groove Dia. (Dg)
84.23
mm +/- 0.15 (3.316 in.) |
Approx. Loose Circlip ID (A)
83.46
mm + 0.00 / - 2.00 |
|
||
| Material: Spring Steel Radial Wall (S) min/max: 6.35 mm +/- 0.13 Groove Width (W): 3.05 mm Approx. Loose Clip OD: 96.16 Info: Notched Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRE-0889-LS-N External Retaining Rings - 88.9x2.77x84.23 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
