| Shaft Diameter (Ds) | Clip Thickness (T) | Groove Dia. (Dg) | Approx. Loose Circlip ID (A) | Radial Wall (S) Approx. | Groove Width (W) |

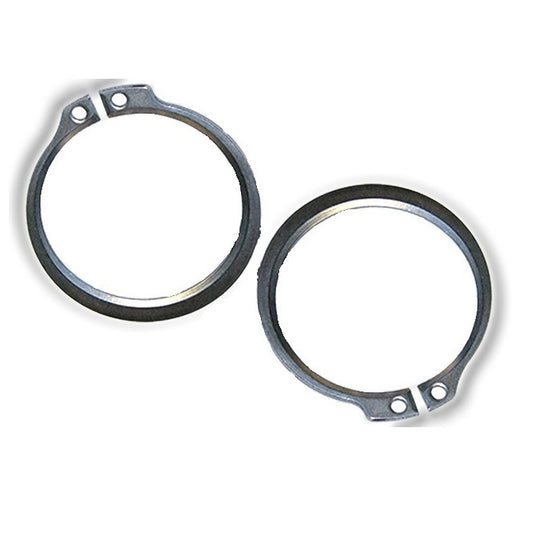

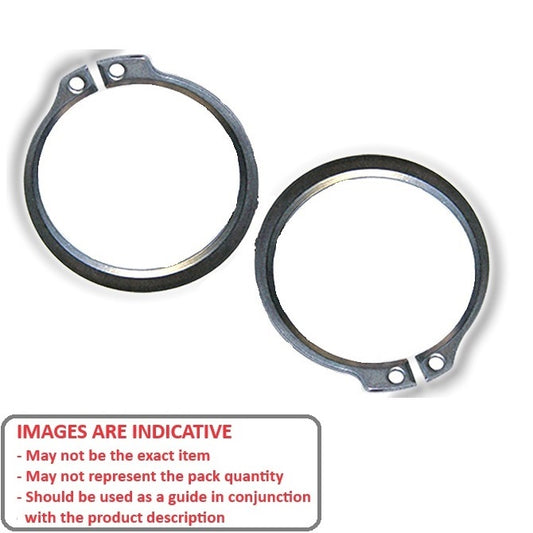

Indicative Image |
|---|---|---|---|---|---|---|
|
Shaft Diameter (Ds)
228.60
mm (Equiv. 9 in.) |
Clip Thickness (T)
4.75
mm + 0.00 / - 0.20 (Equiv. 0.187 in.) |
Groove Dia. (Dg)
215.01
mm +/- 0.13 (Equiv. 8.465 in.) |
Approx. Loose Circlip ID (A)
212.98
mm + 2.03 / - 0.00 |
Groove Width (W)
3.89
mm + 0.08 / - 0.00 |
|
|
|
Material: Carbon Spring Steel Self Finish
Category: Retaining Rings - External - Circlips - Bevelled |
||||||
|
Part Number: CEB-22860-C
External Retaining Rings - 228.6x4.75x215.01 mm Circlips - Carbon Spring Steel Self Finish Circlip Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
| Shaft Diameter (Ds) | Clip Thickness (T) | Groove Dia. (Dg) | Approx. Loose Circlip ID (A) |
Indicative Image |
||
|
Shaft Diameter (Ds)
228.60
mm (Equiv. 9 in.) |
Clip Thickness (T)
4.75
mm + 0.00 / - 0.20 (Equiv. 0.187 in.) |
Groove Dia. (Dg)
215.01
mm +/- 0.13 (Equiv. 8.465 in.) |
Approx. Loose Circlip ID (A)
212.98
mm + 2.03 / - 0.00 |
|
||
|
Material: Carbon Spring Steel Self Finish
Groove Width (W): 3.89 mm + 0.08 / - 0.00
Category: Retaining Rings - External - Circlips - Bevelled |
||||||
|
Part Number: CEB-22860-C
External Retaining Rings - 228.6x4.75x215.01 mm Circlips - Carbon Spring Steel Self Finish Circlip Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Thu, Jul 20, 2028 |
||||||
|
Shaft Diameter (Ds)
228.60
mm (Equiv. 9 in.) |
Clip Thickness (T)
4.75
mm +/- 0.204 (Equiv. 0.187 in.) |
Groove Dia. (Dg)
219.00
mm +/- 0.127 (Equiv. 8.622 in.) |
Approx. Loose Circlip ID (A)
213.70
mm |
Groove Width (W)
5.30
mm |
|
|
|
Material: Carbon Steel
Category: Retaining Rings - External - Circlips - Standard |
||||||
|
Part Number: CCE-22860-C
External Retaining Rings - 228.6x4.75x219 mm Circlips - Carbon Steel Circlip Out of Stock | Backorder Now | Orders can be expected around Thu, Jan 22, 2026 Regular price
$224.59 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
Shaft Diameter (Ds)
228.60
mm (Equiv. 9 in.) |
Clip Thickness (T)
4.75
mm +/- 0.204 (Equiv. 0.187 in.) |
Groove Dia. (Dg)
219.00
mm +/- 0.127 (Equiv. 8.622 in.) |
Approx. Loose Circlip ID (A)
213.70
mm |
|
||
|
Material: Carbon Steel
Groove Width (W): 5.30 mm
Category: Retaining Rings - External - Circlips - Standard |
||||||
|
Part Number: CCE-22860-C
External Retaining Rings - 228.6x4.75x219 mm Circlips - Carbon Steel Circlip Out of Stock | Backorder Now | Orders can be expected around Thu, Jan 22, 2026 Regular price
$224.59 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Shaft Diameter (Ds)
228.60
mm (Equiv. 9 in.) |
Clip Thickness (T)
4.75
mm +/- 0.204 (Equiv. 0.187 in.) |
Groove Dia. (Dg)
219.00
mm +/- 0.127 (Equiv. 8.622 in.) |
Approx. Loose Circlip ID (A)
213.70
mm |
Groove Width (W)
5.30
mm |
|
|
|
Material: Carbon Steel Zinc Plated
Category: Retaining Rings - External - Circlips - Standard |
||||||
|
Part Number: CCE-22860-CZY
External Retaining Rings - 228.6x4.75x219 mm Circlips - Carbon Steel Zinc Plated Circlip Out of Stock | Backorder Now | Orders can be expected around Thu, Jan 22, 2026 Regular price
$245.50 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
Shaft Diameter (Ds)
228.60
mm (Equiv. 9 in.) |
Clip Thickness (T)
4.75
mm +/- 0.204 (Equiv. 0.187 in.) |
Groove Dia. (Dg)
219.00
mm +/- 0.127 (Equiv. 8.622 in.) |
Approx. Loose Circlip ID (A)
213.70
mm |
|
||
|
Material: Carbon Steel Zinc Plated
Groove Width (W): 5.30 mm
Category: Retaining Rings - External - Circlips - Standard |
||||||
|
Part Number: CCE-22860-CZY
External Retaining Rings - 228.6x4.75x219 mm Circlips - Carbon Steel Zinc Plated Circlip Out of Stock | Backorder Now | Orders can be expected around Thu, Jan 22, 2026 Regular price
$245.50 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Shaft Diameter (Ds)
230.00
mm (Equiv. 9.055 in.) |
Clip Thickness (T)
5.00
mm + 0.00 / - 0.72 (Equiv. 0.197 in.) |
Groove Dia. (Dg)
224.00
mm + 0.00 / - 0.12 (Equiv. 8.819 in.) |
Approx. Loose Circlip ID (A)
218.00
mm |
Groove Width (W)
5.15
mm |
|
|
|
Material: Carbon Steel
Category: Retaining Rings - External - Circlips - Standard Additional stock available from USA subject to Prior Sale = 38 |
||||||
|
Part Number: CCE-23000-C
External Retaining Rings - 230x5x224 mm Circlips - Carbon Steel Circlip Out of Stock | Backorder Now | Orders can be expected around Sat, Nov 22, 2025 Regular price
$51.68 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
Shaft Diameter (Ds)
230.00
mm (Equiv. 9.055 in.) |
Clip Thickness (T)
5.00
mm + 0.00 / - 0.72 (Equiv. 0.197 in.) |
Groove Dia. (Dg)
224.00
mm + 0.00 / - 0.12 (Equiv. 8.819 in.) |
Approx. Loose Circlip ID (A)
218.00
mm |
|
||
|
Material: Carbon Steel
Groove Width (W): 5.15 mm
Category: Retaining Rings - External - Circlips - Standard Additional stock available from USA subject to Prior Sale = 38 |
||||||
|
Part Number: CCE-23000-C
External Retaining Rings - 230x5x224 mm Circlips - Carbon Steel Circlip Out of Stock | Backorder Now | Orders can be expected around Sat, Nov 22, 2025 Regular price
$51.68 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Shaft Diameter (Ds)
232.00
mm (Equiv. 9.134 in.) |
Clip Thickness (T)
5.00
mm + 0.00 / - 0.72 (Equiv. 0.197 in.) |
Groove Dia. (Dg)
226.00
mm + 0.00 / - 0.12 (Equiv. 8.898 in.) |
Approx. Loose Circlip ID (A)
218.00
mm |
Groove Width (W)
5.15
mm |
|
|
|
Material: Carbon Spring Steel Self Finish
Category: Retaining Rings - External - Circlips - Standard |
||||||
|
Part Number: CCE-23200-C
External Retaining Rings - 232x5x226 mm Circlips - Carbon Spring Steel Self Finish Circlip Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
232.00
mm (Equiv. 9.134 in.) |
Clip Thickness (T)
5.00
mm + 0.00 / - 0.72 (Equiv. 0.197 in.) |
Groove Dia. (Dg)
226.00
mm + 0.00 / - 0.12 (Equiv. 8.898 in.) |
Approx. Loose Circlip ID (A)
218.00
mm |
|
||
|
Material: Carbon Spring Steel Self Finish
Groove Width (W): 5.15 mm
Category: Retaining Rings - External - Circlips - Standard |
||||||
|
Part Number: CCE-23200-C
External Retaining Rings - 232x5x226 mm Circlips - Carbon Spring Steel Self Finish Circlip Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Thu, Jul 20, 2028 |
||||||
|
Shaft Diameter (Ds)
234.95
mm (Equiv. 9.25 in.) |
Clip Thickness (T)
4.80
mm +/- 0.204 (Equiv. 0.189 in.) |
Groove Dia. (Dg)
225.00
mm +/- 0.127 (Equiv. 8.858 in.) |
Approx. Loose Circlip ID (A)
219.70
mm |
Groove Width (W)
5.30
mm |
|
|
|
Material: Carbon Steel
Category: Retaining Rings - External - Circlips - Standard |
||||||
|
Part Number: CCE-23495-C
External Retaining Rings - 234.95x4.8x225 mm Circlips - Carbon Steel Circlip Out of Stock | Backorder Now | Orders can be expected around Thu, Jan 15, 2026 Regular price
$251.59 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
Shaft Diameter (Ds)
234.95
mm (Equiv. 9.25 in.) |
Clip Thickness (T)
4.80
mm +/- 0.204 (Equiv. 0.189 in.) |
Groove Dia. (Dg)
225.00
mm +/- 0.127 (Equiv. 8.858 in.) |
Approx. Loose Circlip ID (A)
219.70
mm |
|
||
|
Material: Carbon Steel
Groove Width (W): 5.30 mm
Category: Retaining Rings - External - Circlips - Standard |
||||||
|
Part Number: CCE-23495-C
External Retaining Rings - 234.95x4.8x225 mm Circlips - Carbon Steel Circlip Out of Stock | Backorder Now | Orders can be expected around Thu, Jan 15, 2026 Regular price
$251.59 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Shaft Diameter (Ds)
235.00
mm (Equiv. 9.252 in.) |
Clip Thickness (T)
5.00
mm + 0.00 / - 0.72 (Equiv. 0.197 in.) |
Groove Dia. (Dg)
229.00
mm + 0.00 / - 0.12 (Equiv. 9.016 in.) |
Approx. Loose Circlip ID (A)
223.00
mm |
Groove Width (W)
5.15
mm |
|
|
|
Material: Carbon Spring Steel Self Finish
Category: Retaining Rings - External - Circlips - Standard |
||||||
|
Part Number: CCE-23500-C
External Retaining Rings - 235x5x229 mm Circlips - Carbon Spring Steel Self Finish Circlip Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
235.00
mm (Equiv. 9.252 in.) |
Clip Thickness (T)
5.00
mm + 0.00 / - 0.72 (Equiv. 0.197 in.) |
Groove Dia. (Dg)
229.00
mm + 0.00 / - 0.12 (Equiv. 9.016 in.) |
Approx. Loose Circlip ID (A)
223.00
mm |
|
||
|
Material: Carbon Spring Steel Self Finish
Groove Width (W): 5.15 mm
Category: Retaining Rings - External - Circlips - Standard |
||||||
|
Part Number: CCE-23500-C
External Retaining Rings - 235x5x229 mm Circlips - Carbon Spring Steel Self Finish Circlip Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Thu, Jul 20, 2028 |
||||||
|
Shaft Diameter (Ds)
237.00
mm (Equiv. 9.331 in.) |
Clip Thickness (T)
5.00
mm + 0.00 / - 0.72 (Equiv. 0.197 in.) |
Groove Dia. (Dg)
231.00
mm + 0.00 / - 0.12 (Equiv. 9.094 in.) |
Approx. Loose Circlip ID (A)
223.00
mm |
Groove Width (W)
5.15
mm |
|
|
|
Material: Carbon Spring Steel Self Finish
Category: Retaining Rings - External - Circlips - Standard |
||||||
|
Part Number: CCE-23700-C
External Retaining Rings - 237x5x231 mm Circlips - Carbon Spring Steel Self Finish Circlip Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
237.00
mm (Equiv. 9.331 in.) |
Clip Thickness (T)
5.00
mm + 0.00 / - 0.72 (Equiv. 0.197 in.) |
Groove Dia. (Dg)
231.00
mm + 0.00 / - 0.12 (Equiv. 9.094 in.) |
Approx. Loose Circlip ID (A)
223.00
mm |
|
||
|
Material: Carbon Spring Steel Self Finish
Groove Width (W): 5.15 mm
Category: Retaining Rings - External - Circlips - Standard |
||||||
|
Part Number: CCE-23700-C
External Retaining Rings - 237x5x231 mm Circlips - Carbon Spring Steel Self Finish Circlip Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Thu, Jul 20, 2028 |
||||||
|
Shaft Diameter (Ds)
238.00
mm (Equiv. 9.37 in.) |
Clip Thickness (T)
5.00
mm + 0.00 / - 0.72 (Equiv. 0.197 in.) |
Groove Dia. (Dg)
232.00
mm + 0.00 / - 0.12 (Equiv. 9.134 in.) |
Approx. Loose Circlip ID (A)
223.00
mm |
Groove Width (W)
5.15
mm |
|
|
|
Material: Carbon Spring Steel Self Finish
Category: Retaining Rings - External - Circlips - Standard |
||||||
|
Part Number: CCE-23800-C
External Retaining Rings - 238x5x232 mm Circlips - Carbon Spring Steel Self Finish Circlip Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
238.00
mm (Equiv. 9.37 in.) |
Clip Thickness (T)
5.00
mm + 0.00 / - 0.72 (Equiv. 0.197 in.) |
Groove Dia. (Dg)
232.00
mm + 0.00 / - 0.12 (Equiv. 9.134 in.) |
Approx. Loose Circlip ID (A)
223.00
mm |
|
||
|
Material: Carbon Spring Steel Self Finish
Groove Width (W): 5.15 mm
Category: Retaining Rings - External - Circlips - Standard |
||||||
|
Part Number: CCE-23800-C
External Retaining Rings - 238x5x232 mm Circlips - Carbon Spring Steel Self Finish Circlip Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Thu, Jul 20, 2028 |
||||||
|
Shaft Diameter (Ds)
240.00
mm (Equiv. 9.449 in.) |
Clip Thickness (T)
5.00
mm + 0.00 / - 0.72 (Equiv. 0.197 in.) |
Groove Dia. (Dg)
234.00
mm + 0.00 / - 0.12 (Equiv. 9.213 in.) |
Approx. Loose Circlip ID (A)
228.00
mm |
Groove Width (W)
5.15
mm |
|
|
|
Material: Carbon Steel
Clearance on Shaft (C1): 263.00 mm
Clearance in Groove (C1): 270.00 mm
Category: Retaining Rings - External - Circlips - Standard Additional stock available from USA subject to Prior Sale = 15 |
||||||
|
Part Number: CCE-24000-C
External Retaining Rings - 240x5x234 mm Circlips - Carbon Steel Circlip 2 Available Now | Further orders can be expected around Sat, Nov 22, 2025 Regular price
$41.23 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
Shaft Diameter (Ds)
240.00
mm (Equiv. 9.449 in.) |
Clip Thickness (T)
5.00
mm + 0.00 / - 0.72 (Equiv. 0.197 in.) |
Groove Dia. (Dg)
234.00
mm + 0.00 / - 0.12 (Equiv. 9.213 in.) |
Approx. Loose Circlip ID (A)
228.00
mm |
|
||
|
Material: Carbon Steel
Groove Width (W): 5.15 mm
Clearance on Shaft (C1): 263.00 mm
Clearance in Groove (C1): 270.00 mm
Category: Retaining Rings - External - Circlips - Standard Additional stock available from USA subject to Prior Sale = 15 |
||||||
|
Part Number: CCE-24000-C
External Retaining Rings - 240x5x234 mm Circlips - Carbon Steel Circlip 2 Available Now | Further orders can be expected around Sat, Nov 22, 2025 Regular price
$41.23 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Shaft Diameter (Ds)
241.30
mm (Equiv. 9.5 in.) |
Clip Thickness (T)
4.75
mm +/- 0.204 (Equiv. 0.187 in.) |
Groove Dia. (Dg)
231.10
mm +/- 0.127 (Equiv. 9.098 in.) |
Approx. Loose Circlip ID (A)
225.70
mm |
Groove Width (W)
5.30
mm |
|
|
|
Material: Carbon Steel
Category: Retaining Rings - External - Circlips - Standard Additional stock available from USA subject to Prior Sale = 8 |
||||||
|
Part Number: CCE-24130-C
External Retaining Rings - 241.3x4.75x231.1 mm Circlips - Carbon Steel Circlip Out of Stock | Backorder Now | Orders can be expected around Sat, Nov 22, 2025 Regular price
$253.50 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
Shaft Diameter (Ds)
241.30
mm (Equiv. 9.5 in.) |
Clip Thickness (T)
4.75
mm +/- 0.204 (Equiv. 0.187 in.) |
Groove Dia. (Dg)
231.10
mm +/- 0.127 (Equiv. 9.098 in.) |
Approx. Loose Circlip ID (A)
225.70
mm |
|
||
|
Material: Carbon Steel
Groove Width (W): 5.30 mm
Category: Retaining Rings - External - Circlips - Standard Additional stock available from USA subject to Prior Sale = 8 |
||||||
|
Part Number: CCE-24130-C
External Retaining Rings - 241.3x4.75x231.1 mm Circlips - Carbon Steel Circlip Out of Stock | Backorder Now | Orders can be expected around Sat, Nov 22, 2025 Regular price
$253.50 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Shaft Diameter (Ds)
241.30
mm (Equiv. 9.5 in.) |
Clip Thickness (T)
4.75
mm + 0.00 / - 0.20 (Equiv. 0.187 in.) |
Groove Dia. (Dg)
226.95
mm +/- 0.13 (Equiv. 8.935 in.) |
Approx. Loose Circlip ID (A)
224.92
mm + 2.03 / - 0.00 |
Groove Width (W)
3.81
mm + 0.08 / - 0.00 |
|
|
|
Material: Carbon Spring Steel Self Finish
Category: Retaining Rings - External - Circlips - Bevelled |
||||||
|
Part Number: CEB-24130-C
External Retaining Rings - 241.3x4.75x226.95 mm Circlips - Carbon Spring Steel Self Finish Circlip Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
241.30
mm (Equiv. 9.5 in.) |
Clip Thickness (T)
4.75
mm + 0.00 / - 0.20 (Equiv. 0.187 in.) |
Groove Dia. (Dg)
226.95
mm +/- 0.13 (Equiv. 8.935 in.) |
Approx. Loose Circlip ID (A)
224.92
mm + 2.03 / - 0.00 |
|
||
|
Material: Carbon Spring Steel Self Finish
Groove Width (W): 3.81 mm + 0.08 / - 0.00
Category: Retaining Rings - External - Circlips - Bevelled |
||||||
|
Part Number: CEB-24130-C
External Retaining Rings - 241.3x4.75x226.95 mm Circlips - Carbon Spring Steel Self Finish Circlip Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Thu, Jul 20, 2028 |
||||||
|
Shaft Diameter (Ds)
241.30
mm (Equiv. 9.5 in.) |
Clip Thickness (T)
4.75
mm +/- 0.204 (Equiv. 0.187 in.) |
Groove Dia. (Dg)
231.10
mm +/- 0.127 (Equiv. 9.098 in.) |
Approx. Loose Circlip ID (A)
225.70
mm |
Groove Width (W)
5.30
mm |
|
|
|
Material: Carbon Steel Zinc Plated
Category: Retaining Rings - External - Circlips - Standard |
||||||
|
Part Number: CCE-24130-CZY (3 Pcs)
External Retaining Rings - 241.3x4.75x231.1 mm Circlips - Carbon Steel Zinc Plated Circlip Out of Stock | Backorder Now | Orders can be expected around Thu, Jan 22, 2026 Regular price
$819.77 AUD
Regular price
Unit price
per
3 Per Sell Unit
Excludes GST and overseas Taxes & Duties |
||||||
|
Shaft Diameter (Ds)
241.30
mm (Equiv. 9.5 in.) |
Clip Thickness (T)
4.75
mm +/- 0.204 (Equiv. 0.187 in.) |
Groove Dia. (Dg)
231.10
mm +/- 0.127 (Equiv. 9.098 in.) |
Approx. Loose Circlip ID (A)
225.70
mm |
|
||
|
Material: Carbon Steel Zinc Plated
Groove Width (W): 5.30 mm
Category: Retaining Rings - External - Circlips - Standard |
||||||
|
Part Number: CCE-24130-CZY (3 Pcs)
External Retaining Rings - 241.3x4.75x231.1 mm Circlips - Carbon Steel Zinc Plated Circlip Out of Stock | Backorder Now | Orders can be expected around Thu, Jan 22, 2026 Regular price
$819.77 AUD
Regular price
Unit price
per
3 Per Sell Unit
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Shaft Diameter (Ds)
241.30
mm (Equiv. 9.5 in.) |
Clip Thickness (T)
4.75
mm +/- 0.204 (Equiv. 0.187 in.) |
Groove Dia. (Dg)
231.10
mm +/- 0.127 (Equiv. 9.098 in.) |
Approx. Loose Circlip ID (A)
225.70
mm |
Groove Width (W)
5.30
mm |
|
|
|
Material: Stainless Steel Grade PH15-7 Mo
Category: Retaining Rings - External - Circlips - Standard |
||||||
|
Part Number: CCE-24130-S15
External Retaining Rings - 241.3x4.75x231.1 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Out of Stock | Backorder Now | Orders can be expected around Thu, Jan 22, 2026 Regular price
$6,628.95 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
Shaft Diameter (Ds)
241.30
mm (Equiv. 9.5 in.) |
Clip Thickness (T)
4.75
mm +/- 0.204 (Equiv. 0.187 in.) |
Groove Dia. (Dg)
231.10
mm +/- 0.127 (Equiv. 9.098 in.) |
Approx. Loose Circlip ID (A)
225.70
mm |
|
||
|
Material: Stainless Steel Grade PH15-7 Mo
Groove Width (W): 5.30 mm
Category: Retaining Rings - External - Circlips - Standard |
||||||
|
Part Number: CCE-24130-S15
External Retaining Rings - 241.3x4.75x231.1 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Out of Stock | Backorder Now | Orders can be expected around Thu, Jan 22, 2026 Regular price
$6,628.95 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Shaft Diameter (Ds)
242.00
mm (Equiv. 9.528 in.) |
Clip Thickness (T)
5.00
mm + 0.00 / - 0.72 (Equiv. 0.197 in.) |
Groove Dia. (Dg)
236.00
mm + 0.00 / - 0.12 (Equiv. 9.291 in.) |
Approx. Loose Circlip ID (A)
228.00
mm |
Groove Width (W)
5.15
mm |
|
|
|
Material: Carbon Spring Steel Self Finish
Category: Retaining Rings - External - Circlips - Standard |
||||||
|
Part Number: CCE-24200-C
External Retaining Rings - 242x5x236 mm Circlips - Carbon Spring Steel Self Finish Circlip Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
242.00
mm (Equiv. 9.528 in.) |
Clip Thickness (T)
5.00
mm + 0.00 / - 0.72 (Equiv. 0.197 in.) |
Groove Dia. (Dg)
236.00
mm + 0.00 / - 0.12 (Equiv. 9.291 in.) |
Approx. Loose Circlip ID (A)
228.00
mm |
|
||
|
Material: Carbon Spring Steel Self Finish
Groove Width (W): 5.15 mm
Category: Retaining Rings - External - Circlips - Standard |
||||||
|
Part Number: CCE-24200-C
External Retaining Rings - 242x5x236 mm Circlips - Carbon Spring Steel Self Finish Circlip Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Thu, Jul 20, 2028 |
||||||
|
Shaft Diameter (Ds)
245.00
mm (Equiv. 9.646 in.) |
Clip Thickness (T)
5.00
mm + 0.00 / - 0.72 (Equiv. 0.197 in.) |
Groove Dia. (Dg)
239.00
mm + 0.00 / - 0.12 (Equiv. 9.409 in.) |
Approx. Loose Circlip ID (A)
233.00
mm |
Groove Width (W)
5.15
mm |
|
|
|
Material: Carbon Spring Steel Self Finish
Category: Retaining Rings - External - Circlips - Standard |
||||||
|
Part Number: CCE-24500-C
External Retaining Rings - 245x5x239 mm Circlips - Carbon Spring Steel Self Finish Circlip Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
245.00
mm (Equiv. 9.646 in.) |
Clip Thickness (T)
5.00
mm + 0.00 / - 0.72 (Equiv. 0.197 in.) |
Groove Dia. (Dg)
239.00
mm + 0.00 / - 0.12 (Equiv. 9.409 in.) |
Approx. Loose Circlip ID (A)
233.00
mm |
|
||
|
Material: Carbon Spring Steel Self Finish
Groove Width (W): 5.15 mm
Category: Retaining Rings - External - Circlips - Standard |
||||||
|
Part Number: CCE-24500-C
External Retaining Rings - 245x5x239 mm Circlips - Carbon Spring Steel Self Finish Circlip Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Thu, Jul 20, 2028 |
||||||
|
Shaft Diameter (Ds)
247.00
mm (Equiv. 9.724 in.) |
Clip Thickness (T)
5.00
mm + 0.00 / - 0.72 (Equiv. 0.197 in.) |
Groove Dia. (Dg)
241.00
mm + 0.00 / - 0.12 (Equiv. 9.488 in.) |
Approx. Loose Circlip ID (A)
233.00
mm |
Groove Width (W)
5.15
mm |
|
|
|
Material: Carbon Spring Steel Self Finish
Category: Retaining Rings - External - Circlips - Standard |
||||||
|
Part Number: CCE-24700-C
External Retaining Rings - 247x5x241 mm Circlips - Carbon Spring Steel Self Finish Circlip Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
247.00
mm (Equiv. 9.724 in.) |
Clip Thickness (T)
5.00
mm + 0.00 / - 0.72 (Equiv. 0.197 in.) |
Groove Dia. (Dg)
241.00
mm + 0.00 / - 0.12 (Equiv. 9.488 in.) |
Approx. Loose Circlip ID (A)
233.00
mm |
|
||
|
Material: Carbon Spring Steel Self Finish
Groove Width (W): 5.15 mm
Category: Retaining Rings - External - Circlips - Standard |
||||||
|
Part Number: CCE-24700-C
External Retaining Rings - 247x5x241 mm Circlips - Carbon Spring Steel Self Finish Circlip Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Thu, Jul 20, 2028 |
||||||
|
Shaft Diameter (Ds)
247.65
mm (Equiv. 9.75 in.) |
Clip Thickness (T)
4.80
mm +/- 0.204 (Equiv. 0.189 in.) |
Groove Dia. (Dg)
237.20
mm +/- 0.127 (Equiv. 9.339 in.) |
Approx. Loose Circlip ID (A)
231.70
mm |
Groove Width (W)
5.30
mm |
|
|
|
Material: Carbon Steel
Category: Retaining Rings - External - Circlips - Standard Additional stock available from USA subject to Prior Sale = 67 |
||||||
|
Part Number: CCE-24765-C
External Retaining Rings - 247.65x4.8x237.2 mm Circlips - Carbon Steel Circlip Out of Stock | Backorder Now | Orders can be expected around Sat, Nov 22, 2025 Regular price
$290.77 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
Shaft Diameter (Ds)
247.65
mm (Equiv. 9.75 in.) |
Clip Thickness (T)
4.80
mm +/- 0.204 (Equiv. 0.189 in.) |
Groove Dia. (Dg)
237.20
mm +/- 0.127 (Equiv. 9.339 in.) |
Approx. Loose Circlip ID (A)
231.70
mm |
|
||
|
Material: Carbon Steel
Groove Width (W): 5.30 mm
Category: Retaining Rings - External - Circlips - Standard Additional stock available from USA subject to Prior Sale = 67 |
||||||
|
Part Number: CCE-24765-C
External Retaining Rings - 247.65x4.8x237.2 mm Circlips - Carbon Steel Circlip Out of Stock | Backorder Now | Orders can be expected around Sat, Nov 22, 2025 Regular price
$290.77 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Shaft Diameter (Ds)
248.00
mm (Equiv. 9.764 in.) |
Clip Thickness (T)
5.00
mm + 0.00 / - 0.72 (Equiv. 0.197 in.) |
Groove Dia. (Dg)
242.00
mm + 0.00 / - 0.12 (Equiv. 9.528 in.) |
Approx. Loose Circlip ID (A)
233.00
mm |
Groove Width (W)
5.15
mm |
|
|
|
Material: Carbon Spring Steel Self Finish
Category: Retaining Rings - External - Circlips - Standard |
||||||
|
Part Number: CCE-24800-C
External Retaining Rings - 248x5x242 mm Circlips - Carbon Spring Steel Self Finish Circlip Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
248.00
mm (Equiv. 9.764 in.) |
Clip Thickness (T)
5.00
mm + 0.00 / - 0.72 (Equiv. 0.197 in.) |
Groove Dia. (Dg)
242.00
mm + 0.00 / - 0.12 (Equiv. 9.528 in.) |
Approx. Loose Circlip ID (A)
233.00
mm |
|
||
|
Material: Carbon Spring Steel Self Finish
Groove Width (W): 5.15 mm
Category: Retaining Rings - External - Circlips - Standard |
||||||
|
Part Number: CCE-24800-C
External Retaining Rings - 248x5x242 mm Circlips - Carbon Spring Steel Self Finish Circlip Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Thu, Jul 20, 2028 |
||||||
|
Shaft Diameter (Ds)
252.00
mm (Equiv. 9.921 in.) |
Clip Thickness (T)
5.00
mm + 0.00 / - 0.72 (Equiv. 0.197 in.) |
Groove Dia. (Dg)
244.00
mm + 0.00 / - 0.12 (Equiv. 9.606 in.) |
Approx. Loose Circlip ID (A)
238.00
mm |
Groove Width (W)
5.15
mm |
|
|
|
Material: Carbon Spring Steel Self Finish
Category: Retaining Rings - External - Circlips - Standard |
||||||
|
Part Number: CCE-25200-C
External Retaining Rings - 252x5x244 mm Circlips - Carbon Spring Steel Self Finish Circlip Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
252.00
mm (Equiv. 9.921 in.) |
Clip Thickness (T)
5.00
mm + 0.00 / - 0.72 (Equiv. 0.197 in.) |
Groove Dia. (Dg)
244.00
mm + 0.00 / - 0.12 (Equiv. 9.606 in.) |
Approx. Loose Circlip ID (A)
238.00
mm |
|
||
|
Material: Carbon Spring Steel Self Finish
Groove Width (W): 5.15 mm
Category: Retaining Rings - External - Circlips - Standard |
||||||
|
Part Number: CCE-25200-C
External Retaining Rings - 252x5x244 mm Circlips - Carbon Spring Steel Self Finish Circlip Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Thu, Jul 20, 2028 |
||||||
|
Shaft Diameter (Ds)
254.00
mm (Equiv. 10 in.) |
Clip Thickness (T)
4.75
mm + 0.00 / - 0.20 (Equiv. 0.187 in.) |
Groove Dia. (Dg)
238.89
mm +/- 0.13 (Equiv. 9.405 in.) |
Approx. Loose Circlip ID (A)
236.86
mm + 2.03 / - 0.00 |
Groove Width (W)
3.76
mm + 0.08 / - 0.00 |
|
|
|
Material: Carbon Spring Steel Self Finish
Category: Retaining Rings - External - Circlips - Bevelled |
||||||
|
Part Number: CEB-25400-C
External Retaining Rings - 254x4.75x238.89 mm Circlips - Carbon Spring Steel Self Finish Circlip Out of Stock | Backorder Now | Orders can be expected around Thu, Jan 22, 2026 Regular price
$4,450.05 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
Shaft Diameter (Ds)
254.00
mm (Equiv. 10 in.) |
Clip Thickness (T)
4.75
mm + 0.00 / - 0.20 (Equiv. 0.187 in.) |
Groove Dia. (Dg)
238.89
mm +/- 0.13 (Equiv. 9.405 in.) |
Approx. Loose Circlip ID (A)
236.86
mm + 2.03 / - 0.00 |
|
||
|
Material: Carbon Spring Steel Self Finish
Groove Width (W): 3.76 mm + 0.08 / - 0.00
Category: Retaining Rings - External - Circlips - Bevelled |
||||||
|
Part Number: CEB-25400-C
External Retaining Rings - 254x4.75x238.89 mm Circlips - Carbon Spring Steel Self Finish Circlip Out of Stock | Backorder Now | Orders can be expected around Thu, Jan 22, 2026 Regular price
$4,450.05 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Shaft Diameter (Ds)
254.00
mm (Equiv. 10 in.) |
Clip Thickness (T)
4.75
mm +/- 0.204 (Equiv. 0.187 in.) |
Groove Dia. (Dg)
243.18
mm +/- 0.127 (Equiv. 9.574 in.) |
Approx. Loose Circlip ID (A)
237.60
mm |
Groove Width (W)
5.30
mm |
|
|
|
Material: Carbon Steel
Category: Retaining Rings - External - Circlips - Standard Additional stock available from USA subject to Prior Sale = 5 |
||||||
|
Part Number: CCE-25400-C
External Retaining Rings - 254x4.75x243.18 mm Circlips - Carbon Steel Circlip Out of Stock | Backorder Now | Orders can be expected around Sat, Nov 22, 2025 Regular price
$317.68 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
Shaft Diameter (Ds)
254.00
mm (Equiv. 10 in.) |
Clip Thickness (T)
4.75
mm +/- 0.204 (Equiv. 0.187 in.) |
Groove Dia. (Dg)
243.18
mm +/- 0.127 (Equiv. 9.574 in.) |
Approx. Loose Circlip ID (A)
237.60
mm |
|
||
|
Material: Carbon Steel
Groove Width (W): 5.30 mm
Category: Retaining Rings - External - Circlips - Standard Additional stock available from USA subject to Prior Sale = 5 |
||||||
|
Part Number: CCE-25400-C
External Retaining Rings - 254x4.75x243.18 mm Circlips - Carbon Steel Circlip Out of Stock | Backorder Now | Orders can be expected around Sat, Nov 22, 2025 Regular price
$317.68 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Shaft Diameter (Ds)
257.00
mm (Equiv. 10.118 in.) |
Clip Thickness (T)
5.00
mm + 0.00 / - 0.72 (Equiv. 0.197 in.) |
Groove Dia. (Dg)
249.00
mm + 0.00 / - 0.12 (Equiv. 9.803 in.) |
Approx. Loose Circlip ID (A)
240.00
mm |
Groove Width (W)
5.15
mm |
|
|
|
Material: Carbon Spring Steel Self Finish
Category: Retaining Rings - External - Circlips - Standard |
||||||
|
Part Number: CCE-25700-C
External Retaining Rings - 257x5x249 mm Circlips - Carbon Spring Steel Self Finish Circlip Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
257.00
mm (Equiv. 10.118 in.) |
Clip Thickness (T)
5.00
mm + 0.00 / - 0.72 (Equiv. 0.197 in.) |
Groove Dia. (Dg)
249.00
mm + 0.00 / - 0.12 (Equiv. 9.803 in.) |
Approx. Loose Circlip ID (A)
240.00
mm |
|
||
|
Material: Carbon Spring Steel Self Finish
Groove Width (W): 5.15 mm
Category: Retaining Rings - External - Circlips - Standard |
||||||
|
Part Number: CCE-25700-C
External Retaining Rings - 257x5x249 mm Circlips - Carbon Spring Steel Self Finish Circlip Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Thu, Jul 20, 2028 |
||||||
|
Shaft Diameter (Ds)
258.00
mm (Equiv. 10.157 in.) |
Clip Thickness (T)
5.00
mm + 0.00 / - 0.72 (Equiv. 0.197 in.) |
Groove Dia. (Dg)
250.00
mm + 0.00 / - 0.12 (Equiv. 9.843 in.) |
Approx. Loose Circlip ID (A)
240.00
mm |
Groove Width (W)
5.15
mm |
|
|
|
Material: Carbon Spring Steel Self Finish
Category: Retaining Rings - External - Circlips - Standard |
||||||
|
Part Number: CCE-25800-C
External Retaining Rings - 258x5x250 mm Circlips - Carbon Spring Steel Self Finish Circlip Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
258.00
mm (Equiv. 10.157 in.) |
Clip Thickness (T)
5.00
mm + 0.00 / - 0.72 (Equiv. 0.197 in.) |
Groove Dia. (Dg)
250.00
mm + 0.00 / - 0.12 (Equiv. 9.843 in.) |
Approx. Loose Circlip ID (A)
240.00
mm |
|
||
|
Material: Carbon Spring Steel Self Finish
Groove Width (W): 5.15 mm
Category: Retaining Rings - External - Circlips - Standard |
||||||
|
Part Number: CCE-25800-C
External Retaining Rings - 258x5x250 mm Circlips - Carbon Spring Steel Self Finish Circlip Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Thu, Jul 20, 2028 |
||||||
